heater TOYOTA YARIS HATCHBACK 2020 Owners Manual (in English)

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
251-1. Seats
1
Essential Safety Equipment
WARNING
■Do not use the seat warmer even when taking a short nap in the vehicle
The seat may be heated excessively and cause a low-temperature burn.
■ Do not place heavy objects with sharp projections on the seat, or insert
needles or pins into it
This could cause the seat to become excessively heated and resu lt in injury
from a minor burn.
NOTICE
Do not use solvents to clean the seat. It may damage the seat surface and
the heater.

128
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
2-5. Steering Wheel
The grips on the left and right of
the steering wheel can be warmed
up.
The ignition must be switched ON.
Press the switch to turn on the heated steering wheel. The heated steering
wheel operates for about 30 minutes and then turns off automati cally.
The indicator light illuminates when the heater is operating.
To turn off the heated steering wheel before the 30 minutes has elapsed,
press the switch again.
To sound the horn, press the mark on the steering wheel.
Heated Steering Wheel (if equipped)
Heating areaHeated steering
wheel switch
WARNING
■ The following types of persons should be careful not to touch t he
steering wheel. Otherwise, it coul d cause a low-temperature burn.
● Infants, small children, elderly people, and physically challenged people
● People with delicate skin
● People who are excessively fatigued
● People who are intoxicated
● People who have taken sleep-inducing medicine such as sleeping pills or
cold medicine
Horn

398
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
5-3. Owner Maintenance
Engine Coolant
Inspect the antifreeze protection and coolant level in the cool ant res-
ervoir at least once a year—at the beginning of the winter seas on—
and before traveling where temperatures may drop below freezing .
Inspect the condition and connec tions of all cooling system and
heater hoses.
Replace any that are sw ollen or deteriorated.
The coolant should be at full in the
radiator and between the F and L
marks on the coolant reservoir
when the engine is cool. Cooling fan
Cooling system cap
Coolant reservoir
If it is at or near L, add enough coolant to the coolant reserv oir to pro-
vide freezing and corrosion prote ction and to bring the level to F.
Securely tighten the coolant re servoir tank cap after adding co olant.
If the coolant reservoir is empty or new coolant is required frequently,
consult your Toyota dealer.
Changing the coolant should be done by your Toyota dealer.
Inspecting Coolant Level
1
2
3

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4395-3. Owner Maintenance
5
Maintenance and Care

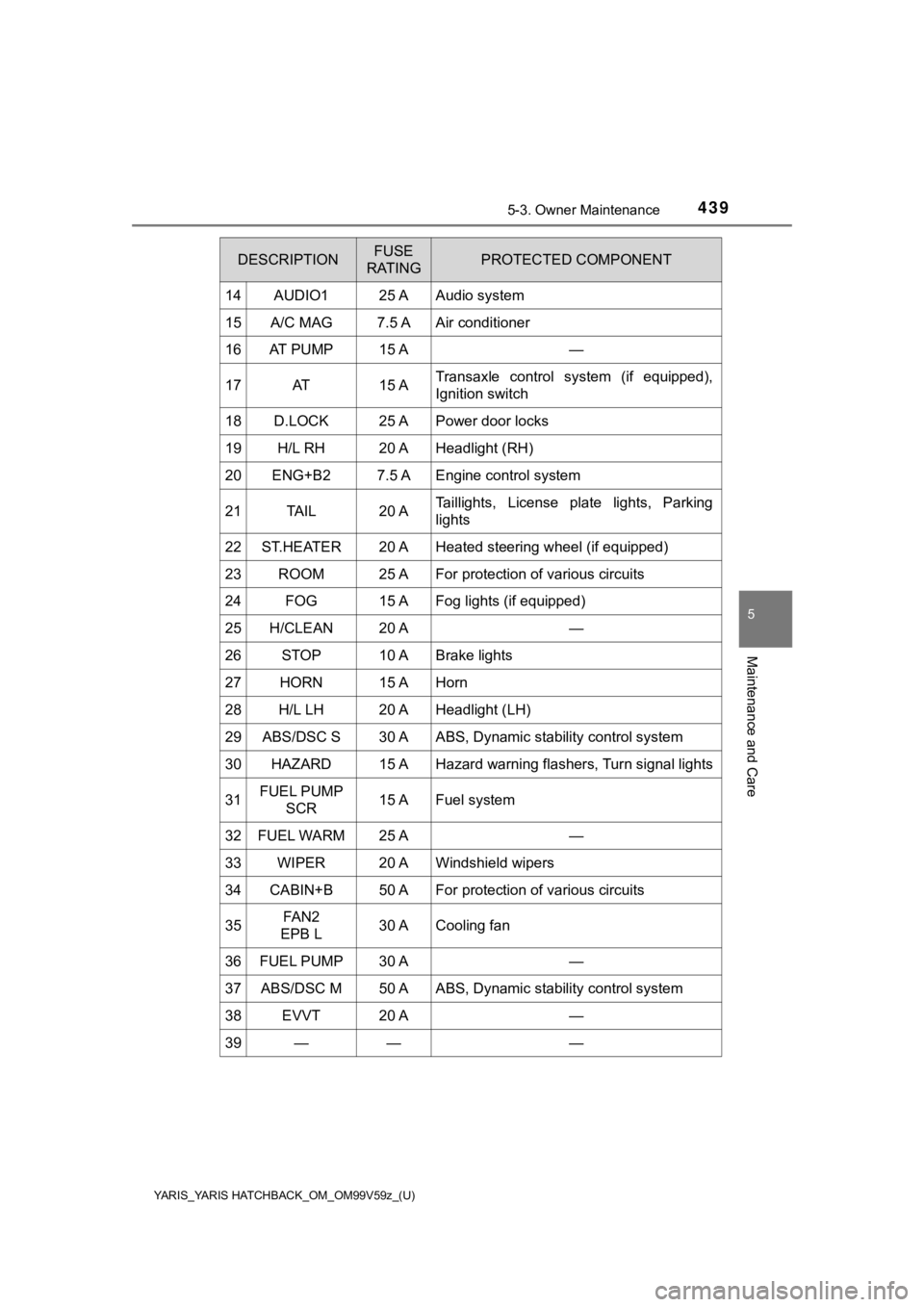

14AUDIO125 AAudio system
15A/C MAG7.5 AAir conditioner
16AT P U M P15 A—
17AT15 ATransaxle control system (if equipped),
Ignition switch
18D.LOCK25 APower door locks
19H/L RH20 AHeadlight (RH)
20ENG+B27.5 AEngine control system
21TA I L20 ATaillights, License plate lights, Parking
lights
22ST.HEATER20 AHeated steering wheel (if equipped)
23ROOM25 AFor protection of various circuits
24FOG15 AFog lights (if equipped)
25H/CLEAN20 A—
26STOP10 ABrake lights
27HORN15 AHorn
28H/L LH20 AHeadlight (LH)
29ABS/DSC S30 AABS, Dynamic stability control system
30HAZARD15 AHazard warning flashers, Turn signal lights
31FUEL PUMPSCR15 AFuel system
32FUEL WARM25 A—
33WIPER20 AWindshield wipers
34CABIN+B50 AFor protection of various circuits
35FA N 2
EPB L30 ACooling fan
36FUEL PUMP30 A—
37ABS/DSC M50 AABS, Dynamic stability control system
38EVVT20 A—
39———
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT

4405-3. Owner Maintenance
YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
40FA N 1
EPB R30 ACooling fan
41FA N 340 A—
42ENG.MAIN40 AEngine control system
43EPS60 A—
44DEFOG40 ARear window defogger
45IG230 AFor protection of various circuits
46INJECTOR
ENG.SUB30 AEngine control system
47HEATER40 AAir conditioner
48P. W I N D O W 130 APower windows
49DCDC DE40 A—
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT

YARIS_YARIS HATCHBACK_OM_OM99V59z_(U)
4415-3. Owner Maintenance
5
Maintenance and Care

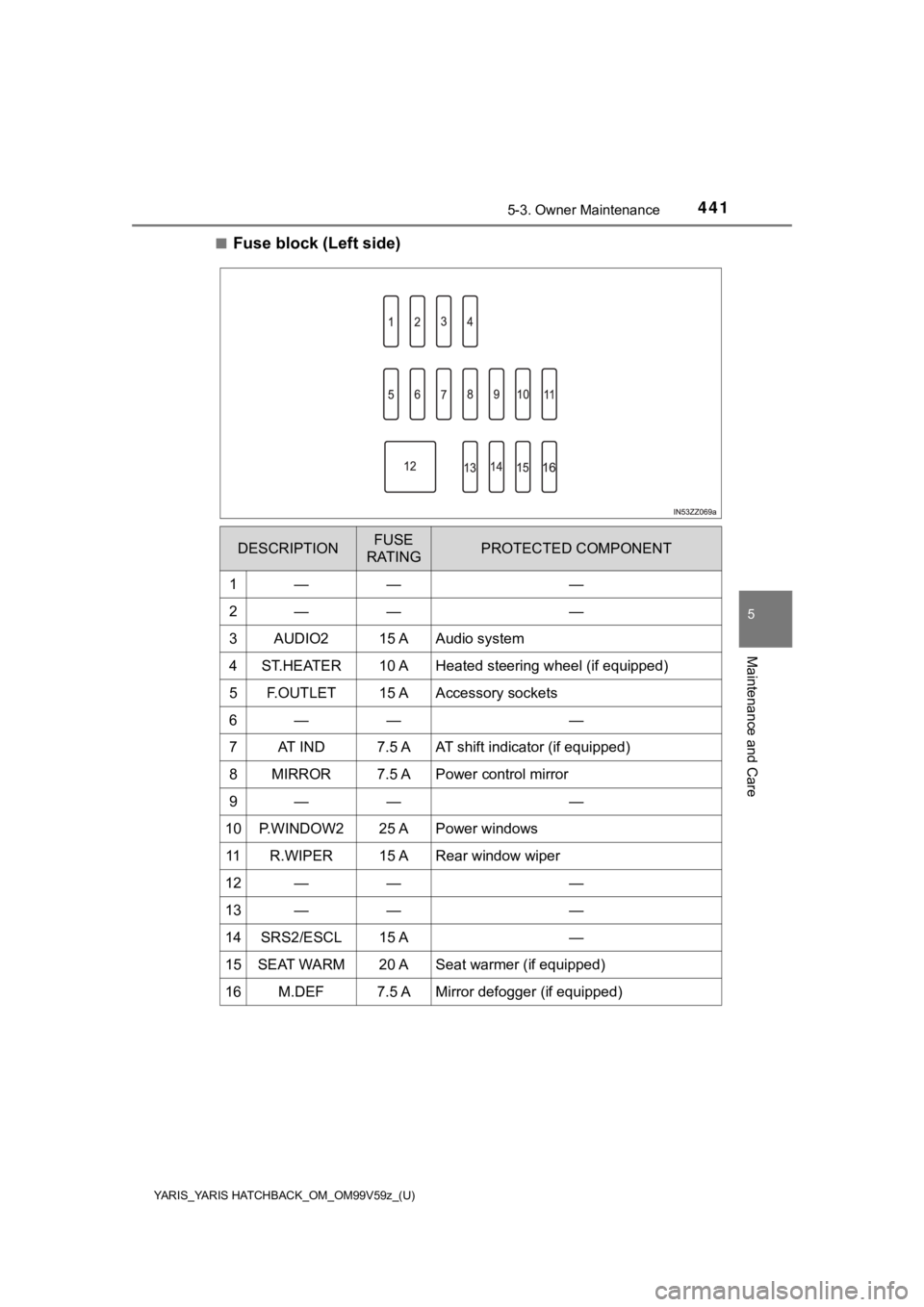

■Fuse block (Left side)
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1———
2———
3AUDIO215 AAudio system
4ST.HEATER10 AHeated steering wheel (if equipped)
5F.OUTLET15 AAccessory sockets
6———
7AT I N D7.5 AAT shift indicator (if equipped)
8MIRROR7.5 APower control mirror
9———
10P. W I N D O W 225 APower windows
11R.WIPER15 ARear window wiper
12———
13———
14SRS2/ESCL15 A—
15SEAT WARM20 ASeat warmer (if equipped)
16M.DEF7.5 AMirror defogger (if equipped)
