TOYOTA YARIS HATCHBACK 2021 Owners Manual

3
111
YARIS(HB) Owner's Manual_Europe_MK0001_en
3

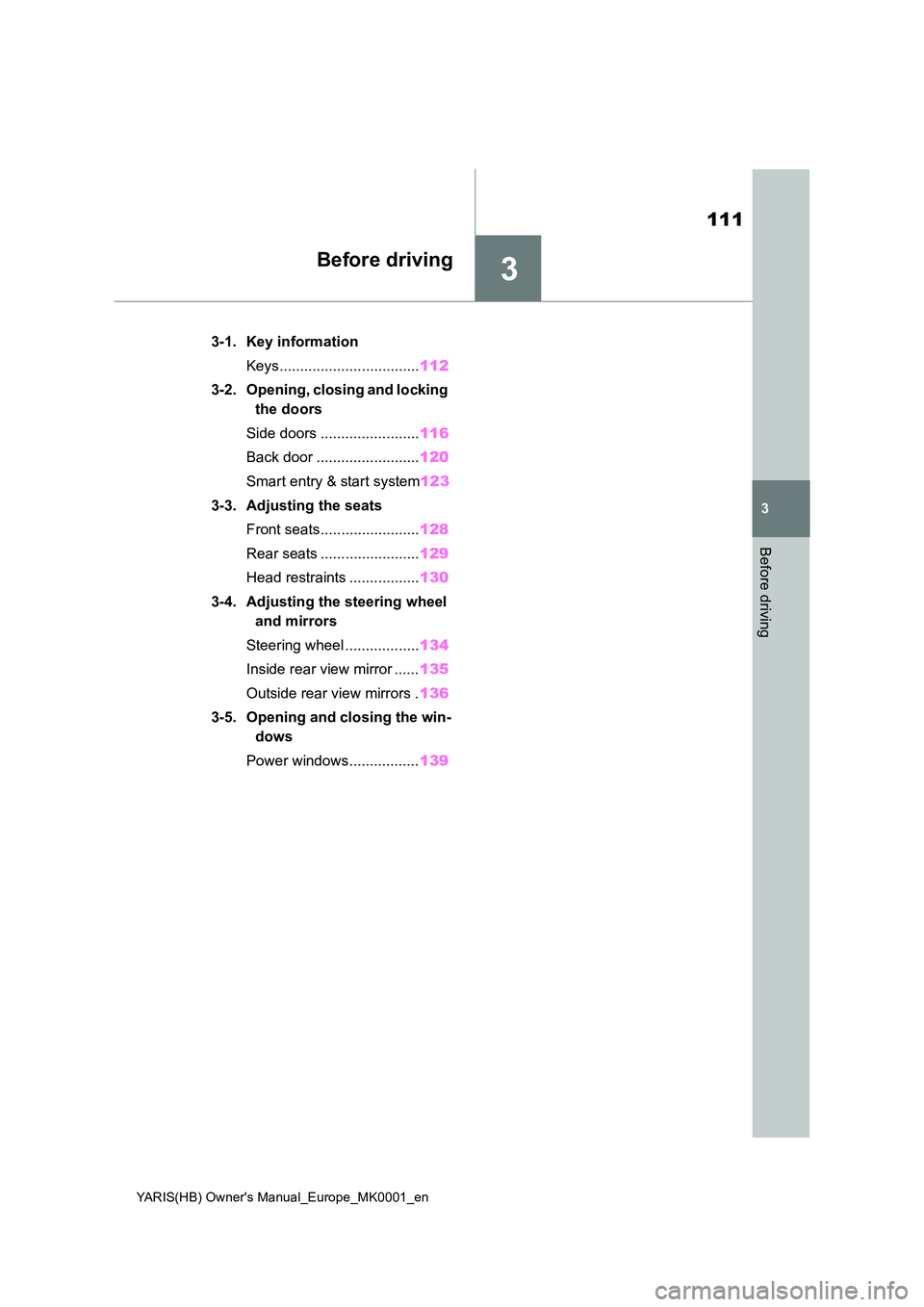

Before driving
Before driving
3-1. Key information
Keys.................................. 112
3-2. Opening, closing and locking
the doors
Side doors ........................ 116
Back door ......................... 120
Smart entry & start system 123
3-3. Adjusting the seats
Front seats........................ 128
Rear seats ........................ 129
Head restraints ................. 130
3-4. Adjusting the steering wheel
and mirrors
Steering wheel .................. 134
Inside rear view mirror ...... 135
Outside rear view mirrors . 136
3-5. Opening and closing the win-
dows
Power windows................. 139

112
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-1. Key information
3-1.Key info rmation
The following keys are provided
with the vehicle.
Vehicles without a smart entry &
start system
Key (with a wireless remote con-
trol function)
Operating the wireless remote control
function (→P.114)
Key (without a wireless remote
control function)
Key number plate
Vehicles with a smart entry &
start system
Electronic keys
• Operating the smart entry & start sys-tem (→P.123)
• Operating the wireless remote control
function (→P. 1 1 4 )
Mechanical keys
Key number plate
■When riding in an aircraft
When bringing a key with wireless
remote control function onto an aircraft,
make sure you do not press any buttons
on the key while inside the aircraft cabin.
If you are carrying the key in your bag,
etc., ensure that the buttons are not
likely to be pressed accidentally. Press-
ing a button may cause the key to emit
radio waves that could interfere with the
operation of the aircraft.
■Key battery depletion (vehicles
without a smart entry & start sys-
tem)
●The standard battery life is 1 to 2
years.
●The battery will become depleted
even if the key is not used. The follow-
ing symptoms indicate that the key
battery may be depleted. Replace the
battery when necessary. (→P.345)
• The wireless remote control does not
operate.
• The detection area becomes smaller.
■Key battery depletion (vehicles
with a smart entry & start system)
●The standard battery life is 1 to 2
years.
●If the battery becomes low, an alarm
will sound in the cabin and a message
will be shown on the multi-information
display when the engine is stopped.
●To reduce key battery depletion when
the electronic key is to not be used for
long periods of time, set the electronic
key to the battery-saving mode.
(→P.124)
●As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is
Keys
The keys

113
3
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-1. Key information
Before driving
not used. The following symptoms
indicate that the electronic key battery may be depleted. Replace the battery when necessary. ( →P.345)
• The smart entry & start system or the wireless remote control does not oper-ate.
• The detection area becomes smaller. • The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appli- ances that produce a magnetic field:•TVs
• Personal computers • Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cord- less phones• Table lamps
• Induction cookers
●If the electronic key is near the vehicle
for longer than necessary, even if the smart entry & start system is not oper-ated, the key battery may become
depleted faster than normal.
■Replacing the battery
→ P. 3 4 5
■If “A New Key has been Registered Contact Your Dealer for Details” is
shown on the multi-information display (vehicles with a smart entry & start system)
This message will be displayed each time the driver’s door is opened when the doors are unlocked from the outside
for approximately 10 days after a new electronic key has been registered.If this message is displayed but you
have not had a new electronic key regis- tered, ask any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer to check if an unknown electronic key (other than those in your possession) has been registered.
■If a wrong key is used
The key cylinder rotates freely, isolated from the internal mechanism.
NOTICE
■To prevent key damage
●Do not drop the keys, subject them
to strong shocks or bend them.
●Do not expose the keys to high
temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Vehicles with a smart entry & start system: Do not attach metallic or magnetic materials to the keys or
place the keys close to such materi- als.
●Do not disassemble the keys.
●Do not attach a sticker or anything
else to the surface of the key.
●Vehicles with a smart entry & start
system: Do not place the keys near objects that produce magnetic fields, such as TVs, audio systems
and induction cookers, or medical electrical equipment, such as low-frequency therapy equipment.
■Carrying the electronic key on your person (vehicles with a
smart entry & start system)
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-
ances that are turned on. Radio waves emitted from electric appli-ances within 10 cm (3.9 in.) of the
electronic key may interfere with the key, causing the key to not function properly.
■In case of a smart entry & start system malfunction or other key-
related problems (vehicles with a smart entry & start system)
→ P. 3 9 9

114
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-1. Key information
The keys are equipped with the fol-
lowing wireless remote control:
Vehicles without a smart entry &
start system
Locks the doors ( →P. 1 1 6 )
Closes the windows* ( →P. 1 1 6 )
Unlocks the doors ( →P. 1 1 6 )
Opens the windows* ( →P. 1 1 6 )
Vehicles with a smart entry &
start system
Locks the doors ( →P. 1 1 6 )
Closes the windows* ( →P. 1 1 6 )
Unlocks the doors ( →P. 1 1 6 )
Opens the windows* ( →P. 1 1 6 )
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
■Conditions affecting the operation
of the wireless remote control (vehicles without a smart entry & start system)
The wireless remote control function may not operate normally in the follow-ing situations:
●When the wireless key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that gen- erates strong radio waves or electrical noise
●When carrying a portable radio, cellu-lar phone or other wireless communi-
cation devices
●When the wireless key is in contact
with, or is covered by a metallic object
●When another wireless key (that emits
radio waves) is being used nearby
●If window tint with a metallic content or
metallic objects are attached to the rear window
■Conditions affecting the operation of the smart entry & start system or
wireless remote control (vehicles with a smart entry & start system)
→ P. 1 2 4
NOTICE
■When an electronic key is lost (vehicles with a smart entry &
start system)
→ P. 3 9 9
Wireless remote control

115
3
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-1. Key information
Before driving
1Releasing
To release the key, press the button
2Folding
To stow the key, press the button then
fold the key.
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( →P.399)
■If you lose your mechanical keys
→ P. 3 9 9
■Certification for the wireless remote control
→ P. 4 4 4
Using the key (vehicles with-
out a smart entry & start
system)
Using the mechanical key
(vehicles with a smart entry
& start system)

116
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-2. Opening, closing and locking the doors
3-2.Opening, closing and lo cking th e d oors
■Using the entry function (vehi-
cles with a smart entry & start
system)
Carry the electronic key to enable
this function.
1 Grip the front door handle to
unlock all the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
2 Touch the lock sensor (the
indentation on the side of the
front door handle) to lock all the
doors.
Check that the door is securely locked.
■Wireless remote control
Vehicles without a smart entry &
start system
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows.*
2 Unlocks all the doors
Press and hold to open the windows.*
Vehicles with a smart entry &
start system
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows.*
2 Unlocks all the doors
Press and hold to open the windows.*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
Side doors
Unlocking and locking the
doors from the outside

117
3
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-2. Opening, closing and locking the doors
Before driving
■Key
Turning the key operates the doors
as follows:
Vehicles without a smart entry &
start system
1 Locks all the doors
Turn and hold to close the windows.*
2Unlocks all the doors
Turn and hold to open the windows.*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
Vehicles with a smart entry &
start system
The doors can also be locked and
unlocked with the mechanical key.
( →P.400)
■Operation signals
Vehicles without a smart entry & start system
The emergency flashers flash to indicate
that the doors have been
locked/unlocked using the wireless
remote control. (Locked: Once;
Unlocked: Twice)
Vehicles with a smart entry & start system
The emergency flashers flash to indicate
that the doors have been
locked/unlocked using the entry function
or wireless remote control. (Locked:
Once; Unlocked: Twice)
A buzzer sounds to indicate that the win-
dows are operating.
■Security feature
Vehicles without a smart entry & start
system
If a door is not opened within approxi- mately 30 seconds after the vehicle is
unlocked using the wireless remote con- trol, the security feature automatically locks the vehicle again.
Vehicles with a smart entry & start system
If a door is not opened within approxi-
mately 30 seconds after the vehicle is unlocked using the entry function or wireless remote control, the security fea-
ture automatically locks the vehicle again.
■When the door cannot be locked by the lock sensor on the surface of
the front door handle (vehicles with a smart entry & start system)
If the doors cannot be locked by touch-
ing the lock sensor with a finger, touch the lock sensor with the palm of your hand.
If you are wearing gloves, remove them.
■Door lock buzzer (vehicles with a
smart entry & start system)
If an attempt to lock the doors using the entry function or wireless remote control
is made when a door is not fully closed, a buzzer will sound continuously for 5 seconds. Fully close the door to stop the

118
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-2. Opening, closing and locking the doors
buzzer, and lock the doors again.
■Alarm (if equipped)
Locking the doors will set the alarm sys- tem. ( →P.78)
■Conditions affecting the operation of the smart entry & start system or
wireless remote control
Vehicles without a smart entry & start system
→ P. 1 1 4
Vehicles with a smart entry & start system
→ P. 1 2 4
■If the smart entry & start system or the wireless remote control does not operate properly
Vehicles without a smart entry & start system
Replace the key battery with a new one
if it is depleted. ( →P.345)
Vehicles with a smart entry & start
system
Use the mechanical key to lock and
unlock the doors. ( →P.400)
Replace the key battery with a new one
if it is depleted. ( →P.345)
■If the battery is discharged (vehi- cles with a smart entry & start sys-tem)
The doors cannot be locked and unlocked using the entry function or wireless remote control. Lock or unlock
the doors using the mechanical key. ( →P.400)
■Customization
Some functions can be customized.
( →P.422)
WARNING
■To prevent an accident
Observe the following precautions
while driving the vehicle. Failure to do so may result in a door opening and an occupant being
thrown out of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside door handle while driving.Be especially careful of the front
doors, as the doors may be opened even if the inside lock buttons are in the locked position.
●Set the rear door child-protector locks when children are seated in
the rear seats.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an incline, whether there is enough
space for a door to open and whether a strong wind is blowing. When open-ing or closing the door, hold the door
handle tightly to prepare for any unpredictable movement.
■When using the wireless remote control or the key and operating the power windows
Operate the power windows after checking to make sure that there is no possibility of any passenger having
any of their body parts caught in the windows. Also, do not allow children to operate the wireless remote control
or the key. It is possible for children and other passengers to get caught in the power windows.

119
3
YARIS(HB) Owner's Manual_Europe_MK0001_en

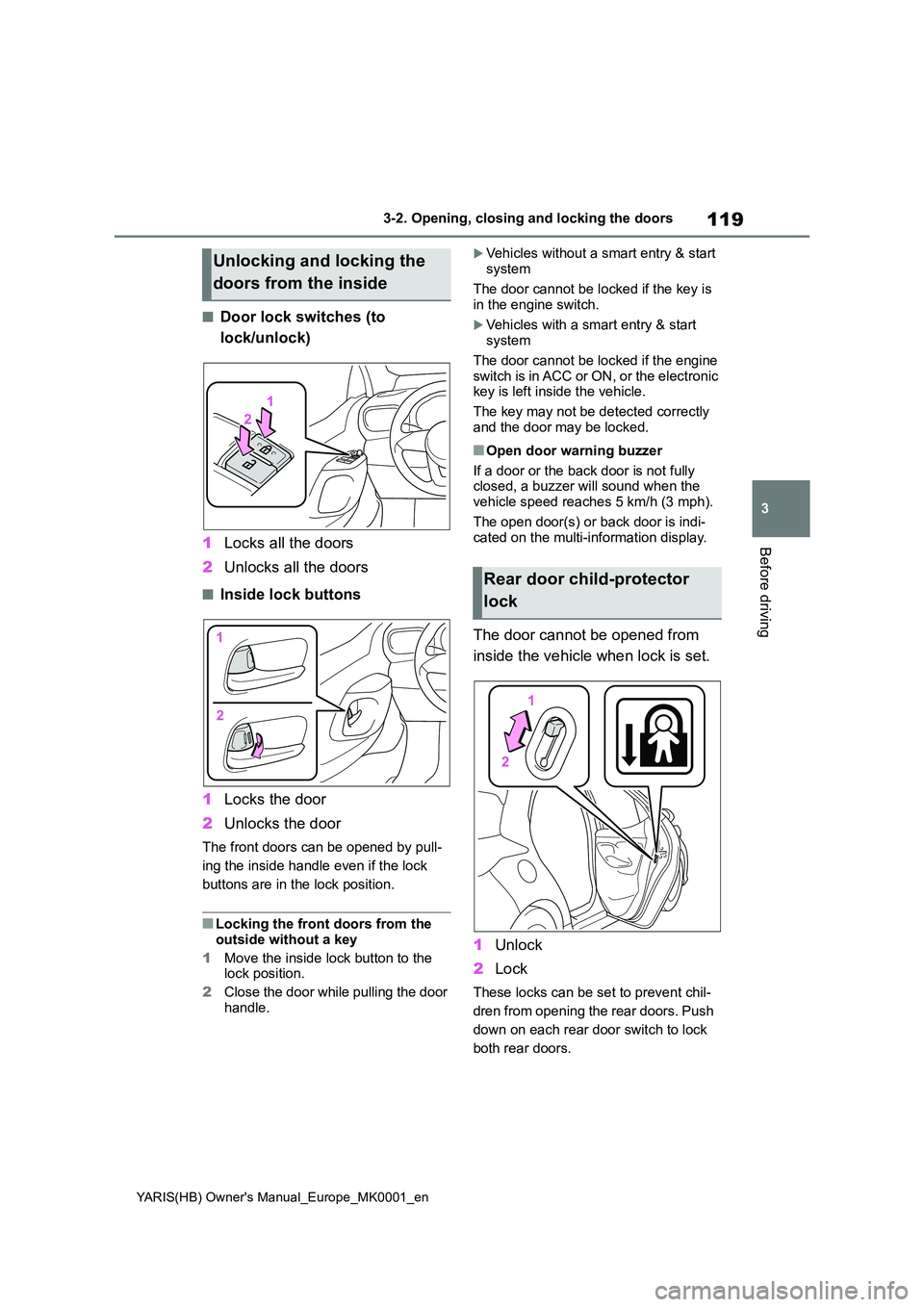

3-2. Opening, closing and locking the doors
Before driving
■Door lock switches (to
lock/unlock)
1 Locks all the doors
2 Unlocks all the doors
■Inside lock buttons
1 Locks the door
2 Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
■Locking the front doors from the outside without a key
1 Move the inside lock button to the lock position.
2 Close the door while pulling the door
handle.
Vehicles without a smart entry & start
system
The door cannot be locked if the key is in the engine switch.
Vehicles with a smart entry & start system
The door cannot be locked if the engine
switch is in ACC or ON, or the electronic key is left inside the vehicle.
The key may not be detected correctly
and the door may be locked.
■Open door warning buzzer
If a door or the back door is not fully closed, a buzzer will sound when the
vehicle speed reaches 5 km/h (3 mph).
The open door(s) or back door is indi- cated on the multi-information display.
The door cannot be opened from
inside the vehicle when lock is set.
1 Unlock
2 Lock
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
Unlocking and locking the
doors from the inside
Rear door child-protector
lock

120
YARIS(HB) Owner's Manual_Europe_MK0001_en
3-2. Opening, closing and locking the doors
Back door
The back door can be
locked/unlocked and
opened/closed by the follow-
ing procedures.
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■Caution while driving
●Keep the back door closed while driving. If the back door is left open, it may hit near-by objects while driv-
ing or luggage may be unexpect- edly thrown out, causing an accident.
In addition, exhaust gases may enter the vehicle, causing death or a serious health hazard. Make sure
to close the back door before driv- ing.
●Before driving the vehicle, make sure that the back door is fully closed. If the back door is not fully
closed, it may open unexpectedly while driving, causing an accident.
●Never let anyone sit in the luggage compartment. In the event of sud-den braking or a collision, they are
susceptible to death or serious injury.
■When children are in the vehicle
●Do not allow children to play in the luggage compartment.
If a child is accidentally locked in the luggage compartment, they could have heat exhaustion or other
injuries.
●Do not allow a child to open or close the back door.Doing so may cause the back door
to move unexpectedly, or cause the child’s hands, head, or neck to be caught by the closing back door.
■Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the body to be caught, resulting in death or serious injury.
●Remove any heavy loads, such as snow and ice, from the back door
before opening it. Failure to do so may cause the back door to sud-denly shut again after it is opened.
●When opening or closing the back door, thoroughly check to make
sure the surrounding area is safe.
●If anyone is in the vicinity, make
sure they are safe and let them know that the back door is about to open or close.
●Use caution when opening or clos-ing the back door in windy weather
as it may move abruptly in strong wind.
●The back door may suddenly shut if it is not opened fully. It is more diffi-cult to open or close the back door
on an incline than on a level sur- face, so beware of the back door unexpectedly opening or closing by
itself. Make sure that the back door is fully open and secure before using the luggage compartment.
