TOYOTA YARIS HATCHBACK 2021 Owners Manual

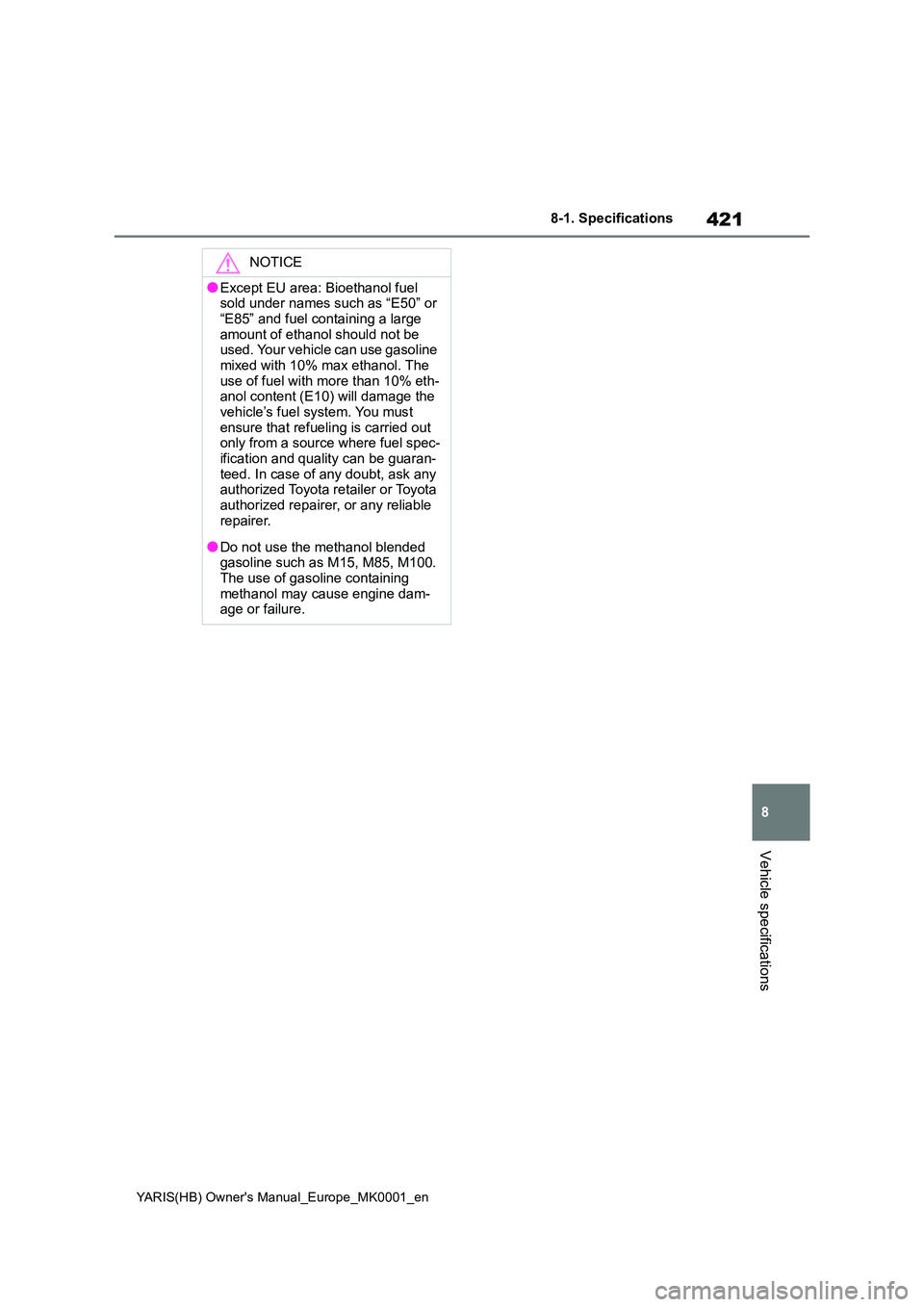

421
8
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-1. Specifications
Vehicle specifications
NOTICE
●Except EU area: Bioethanol fuel sold under names such as “E50” or
“E85” and fuel containing a large amount of ethanol should not be used. Your vehicle can use gasoline
mixed with 10% max ethanol. The use of fuel with more than 10% eth-anol content (E10) will damage the
vehicle’s fuel system. You must ensure that refueling is carried out only from a source where fuel spec-
ification and quality can be guaran- teed. In case of any doubt, ask any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
●Do not use the methanol blended gasoline such as M15, M85, M100. The use of gasoline containing
methanol may cause engine dam- age or failure.

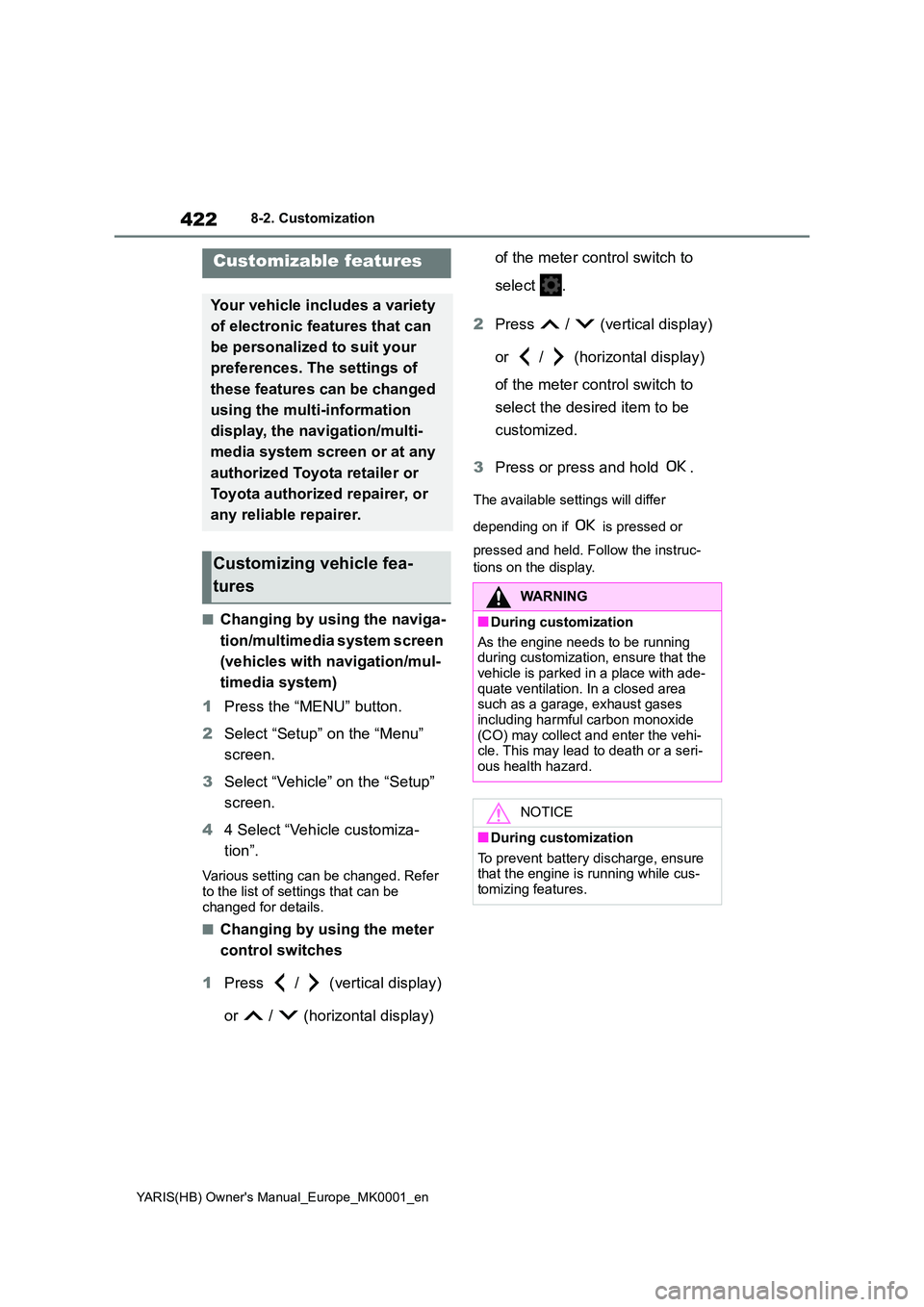

422
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
8-2.Customiz ation
■Changing by using the naviga-
tion/multimedia system screen
(vehicles with navigation/mul-
timedia system)
1 Press the “MENU” button.
2 Select “Setup” on the “Menu”
screen.
3 Select “Vehicle” on the “Setup”
screen.
4 4 Select “Vehicle customiza-
tion”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing by using the meter
control switches
1 Press / (vertical display)
or / (horizontal display)
of the meter control switch to
select .
2 Press / (vertical display)
or / (horizontal display)
of the meter control switch to
select the desired item to be
customized.
3 Press or press and hold .
The available settings will differ
depending on if is pressed or
pressed and held. Follow the instruc-
tions on the display.
Customizable features
Your vehicle includes a variety
of electronic features that can
be personalized to suit your
preferences. The settings of
these features can be changed
using the multi-information
display, the navigation/multi-
media system screen or at any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
Customizing vehicle fea-
turesWARNING
■During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with ade- quate ventilation. In a closed area such as a garage, exhaust gases
including harmful carbon monoxide (CO) may collect and enter the vehi-cle. This may lead to death or a seri-
ous health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-tomizing features.

423
8
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
Vehicle specifications
Some function settings are changed simultaneously with other functions
being customized. Contact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer for further details.
Settings that can be changed using the audio system screen (if
equipped)
Settings that can be changed using the meter control switches
Settings that can be changed by any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer
Definition of symbols: O = Available, — = Not available
■Alarm* (→P.78)
*: If equipped
■Gauges, meters and multi-information display (→P.86, 90, 93, 99)
Customizable features
FunctionDefault settingCustomized setting
Deactivates the alarm
when the doors are
unlocked using the key or
mechanical key
OffOn——O
Function*1Default settingCustomized setting
Language*2English*3—O—
Units*2L/100 kmkm/L—O—miles (MPG)*4
Eco Driving Indicator
Light
*4OnOff—O—
Fuel economy display
Total average
(Average fuel
consumption
[after reset])
Trip average (Aver-
age fuel consump-
tion [after start])
—O—Tank average (Aver-
age fuel consump-
tion [after refuel])

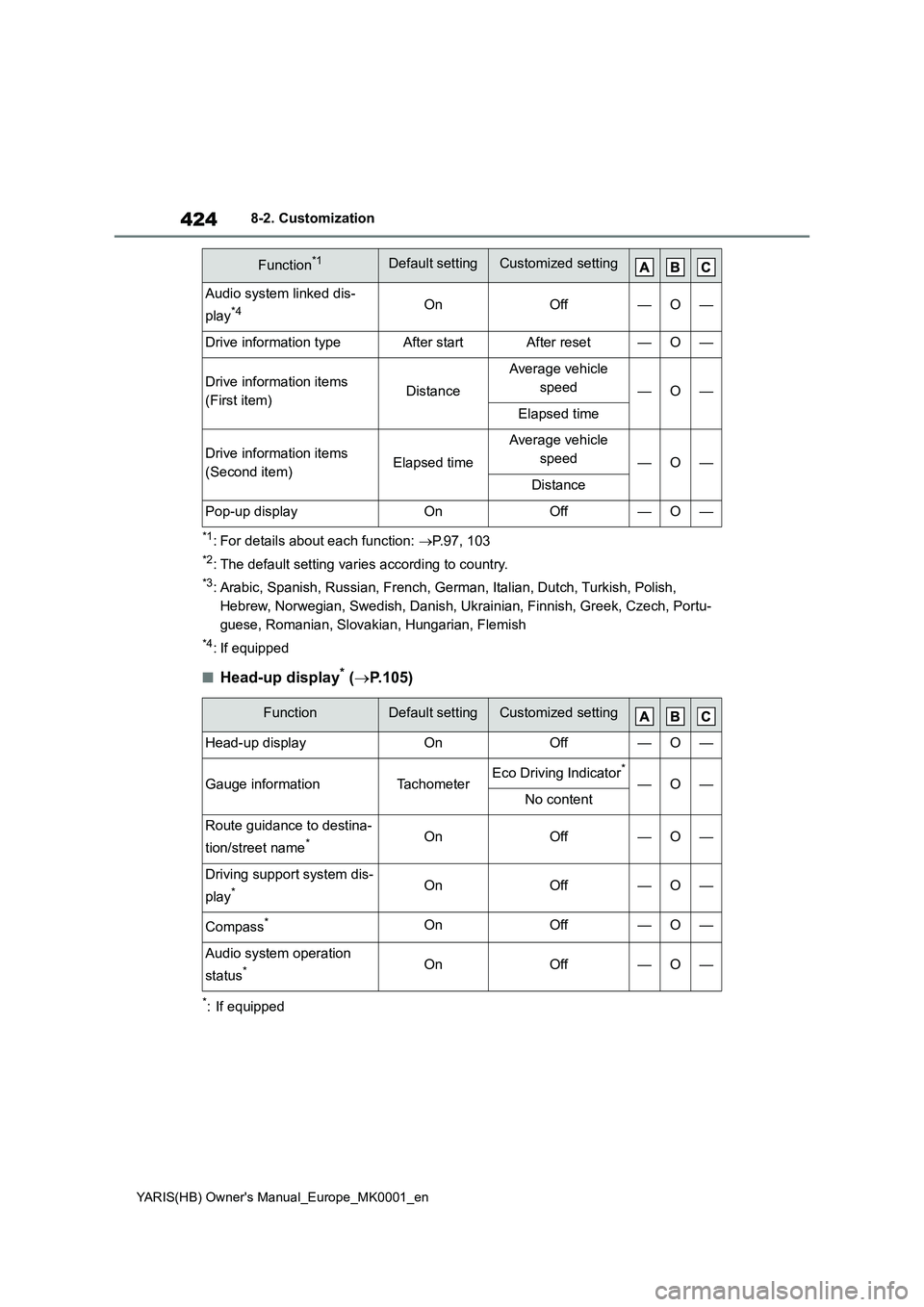

424
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
*1: For details about each function: →P.97, 103
*2: The default setting varies according to country.
*3: Arabic, Spanish, Russian, French, German, Italian, Dutch, Turkish, Polish,
Hebrew, Norwegian, Swedish, Danish, Ukrainian, Finnish, Greek, Czech, Portu-
guese, Romanian, Slovakian, Hungarian, Flemish
*4: If equipped
■Head-up display* (→P.105)
*: If equipped
Audio system linked dis-
play
*4OnOff—O—
Drive information typeAfter startAfter reset—O—
Drive information items
(First item)Distance
Average vehicle
speed
—O—
Elapsed time
Drive information items
(Second item)Elapsed time
Average vehicle
speed
—O—
Distance
Pop-up displayOnOff—O—
FunctionDefault settingCustomized setting
Head-up displayOnOff—O—
Gauge informationTachometerEco Driving Indicator*
—O—No content
Route guidance to destina-
tion/street name
*OnOff—O—
Driving support system dis-
play
*OnOff—O—
Compass*OnOff—O—
Audio system operation
status
*OnOff—O—
Function*1Default settingCustomized setting

425
8
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
Vehicle specifications
■Smart entry & start system* and wireless remote control (→P.116,
123)
*: If equipped
■Smart entry & start system* (→P.116, 121, 123)
*: If equipped
■Wireless remote control (→P.114, 116)
■Outside rear view mirrors (→P.136)
*: If equipped
FunctionDefault settingCustomized setting
Operation signal (Emer-
gency flashers)OnOffO—O
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
30 seconds
60 seconds
——O120 seconds
Open door warning buzzer*OnOff——O
FunctionDefault settingCustomized setting
Smart entry & start systemOnOffO—O
Number of consecutive
door lock operations2 timesAs many as desired——O
FunctionDefault settingCustomized setting
Wireless remote controlOnOff——O
FunctionDefault settingCustomized setting
Automatic mirror folding
and extending operation
*
Linked to the
locking/ unlock-
ing of the doorsOff
——OLinked to operation of
the engine switch

426
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
■Power windows (→P.139)
*: If equipped
■Automatic light control system (→P.173)
■Lights (→P.174)
*: If equipped
■PCS (Pre-Collision System)* (→P.193)
*: If equipped
FunctionDefault settingCustomized setting
Key (include mechanical
key
*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
*OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Headlamp temporary light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lamp*OnOff——O
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late

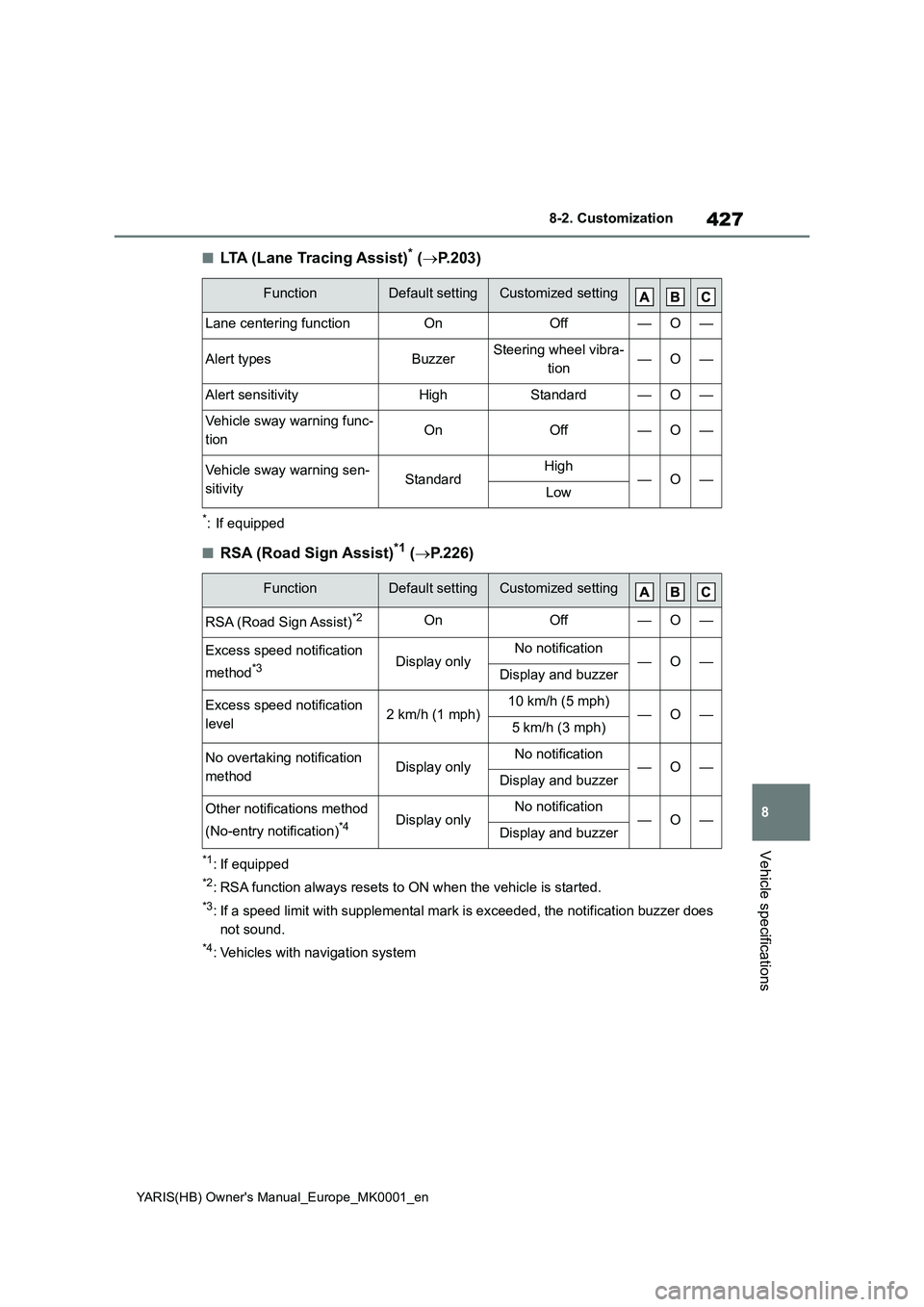

427
8
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
Vehicle specifications
■LTA (Lane Tracing Assist)* (→P.203)
*: If equipped
■RSA (Road Sign Assist)*1 (→P.226)
*1: If equipped
*2: RSA function always resets to ON when the vehicle is started.
*3: If a speed limit with supplemental mark is exceeded, the notification buzzer does
not sound.
*4: Vehicles with navigation system
FunctionDefault settingCustomized setting
Lane centering functionOnOff—O—
Alert typesBuzzerSteering wheel vibra-
tion—O—
Alert sensitivityHighStandard—O—
Vehicle sway warning func-
tionOnOff—O—
Vehicle sway warning sen-
sitivityStandardHigh—O—Low
FunctionDefault settingCustomized setting
RSA (Road Sign Assist)*2OnOff—O—
Excess speed notification
method
*3Display onlyNo notification—O—Display and buzzer
Excess speed notification
level2 km/h (1 mph)10 km/h (5 mph)—O—5 km/h (3 mph)
No overtaking notification
methodDisplay onlyNo notification—O—Display and buzzer
Other notifications method
(No-entry notification)
*4Display onlyNo notification—O—Display and buzzer

428
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
■Dynamic radar cruise control* (→P.213)
*: If equipped
■Stop & Start system* (→P.230)
*: If equipped
■BSM (Blind Spot Monitor)* (→P.237)
*: If equipped
■Toyota parking assist-sensor* (→P.242)
FunctionDefault settingCustomized setting
Radar Cruise Control with
Road Sign AssistOffOn—O—
FunctionDefault settingCustomized setting
Change the Stop & Start
system duration when the
A/C is on
StandardExtended—O—
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)
functionOnOff—O—
Outside rear view mirror
indicator brightnessBrightDim—O—
Alert timing for presence of
approaching vehicle (sensi-
tivity)
Intermediate
Early
—O—Late
Only when vehicle
detected in blind spot
FunctionDefault settingCustomized setting
Toyota parking assist-sen-
sorOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
Detection distance of the
front center sensorFarNear——O

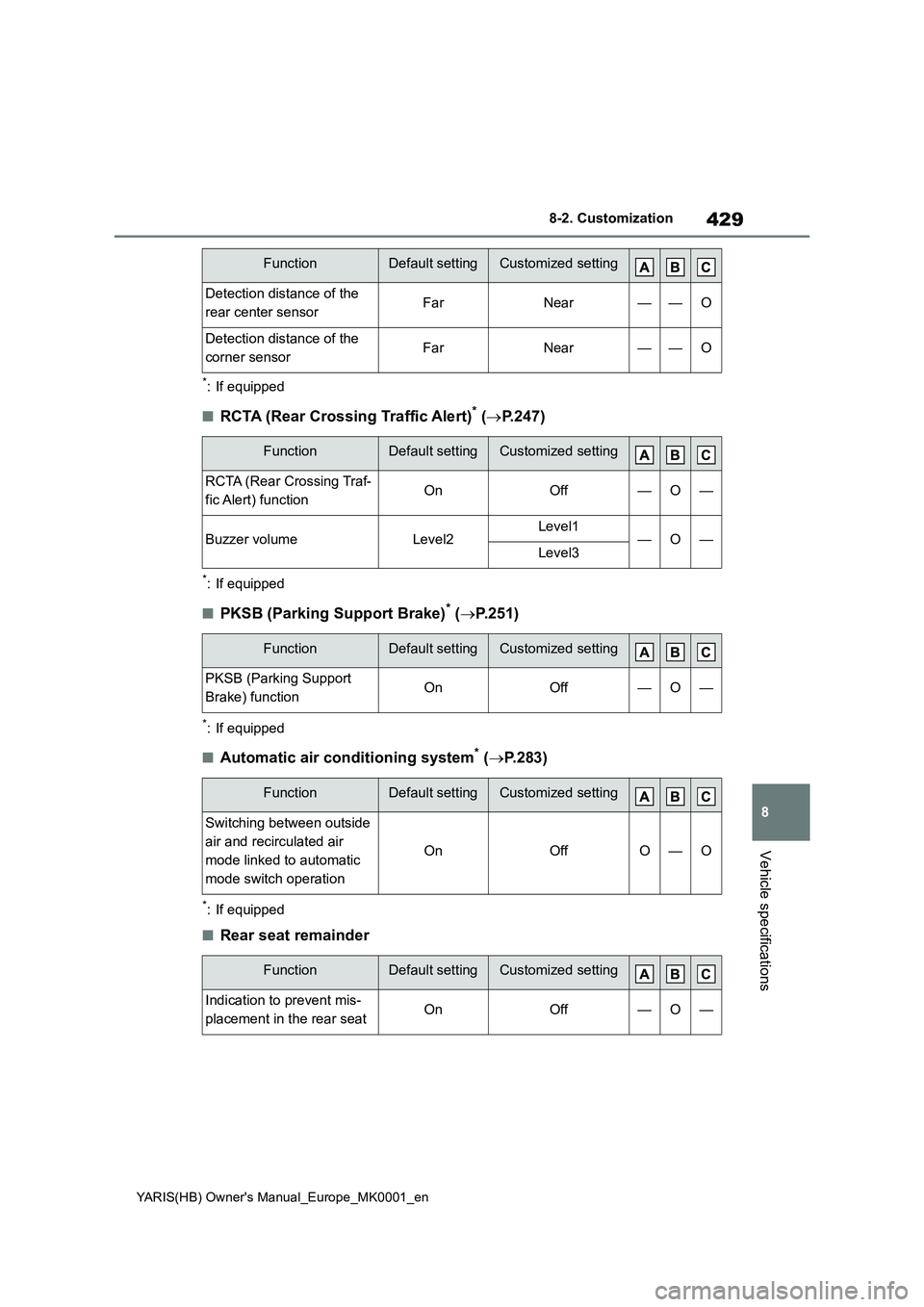

429
8
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
Vehicle specifications
*: If equipped
■RCTA (Rear Crossing Traffic Alert)* (→P.247)
*: If equipped
■PKSB (Parking Support Brake)* (→P.251)
*: If equipped
■Automatic air conditioning system* (→P.283)
*: If equipped
■Rear seat remainder
Detection distance of the
rear center sensorFarNear——O
Detection distance of the
corner sensorFarNear——O
FunctionDefault settingCustomized setting
RCTA (Rear Crossing Traf-
fic Alert) functionOnOff—O—
Buzzer volumeLevel2Level1—O—Level3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff—O—
FunctionDefault settingCustomized setting
Switching between outside
air and recirculated air
mode linked to automatic
mode switch operation
OnOffO—O
FunctionDefault settingCustomized setting
Indication to prevent mis-
placement in the rear seatOnOff—O—
FunctionDefault settingCustomized setting

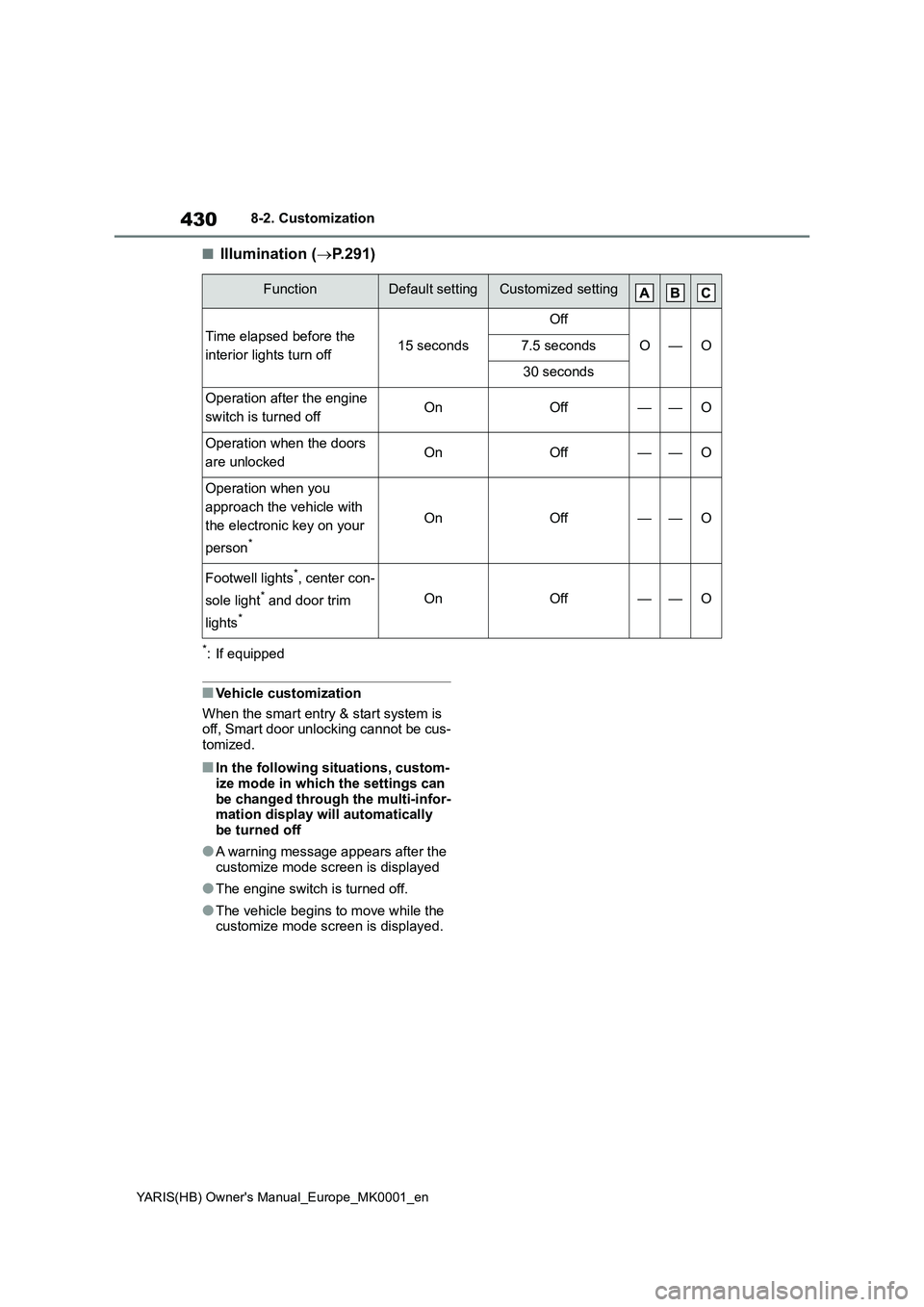

430
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
■Illumination (→P.291)
*: If equipped
■Vehicle customization
When the smart entry & start system is
off, Smart door unlocking cannot be cus-
tomized.
■In the following situations, custom-
ize mode in which the settings can
be changed through the multi-infor-
mation display will automatically
be turned off
●A warning message appears after the
customize mode screen is displayed
●The engine switch is turned off.
●The vehicle begins to move while the
customize mode screen is displayed.
FunctionDefault settingCustomized setting
Time elapsed before the
interior lights turn off15 seconds
Off
O—O7.5 seconds
30 seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
*
OnOff——O
Footwell lights*, center con-
sole light
* and door trim
lights
*
OnOff——O
