Page 175 of 568

175
4
YARIS(HB) Owner's Manual_Europe_MK0001_en
4-3. Operating the lights and wipers
Driving
1With the headlights on, push the
lever away from you to turn on
the high beams.
Pull the lever toward you to the center
position to turn the high beams off.
2 Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the
headlights on or off.
This system allows the headlights
to be turned on for 30 seconds
when the engine switch is off.
Pull the lever toward you and
release it with the light switch in
or after turning the engine
switch off.
The lights are turned off in the fol-
lowing situations.
z The engine switch is turned to
ON.
z The light switch is turned on.
z The light switch is pulled toward
you and then released.
The level of the headlights can be
adjusted according to the number
of passengers and the loading con-
dition of the vehicle.
1 Raises the level of the head-
lights
2 Lowers the level of the head-
lights
Turning on the high beam
headlights
Headlamp temporary light-
ing function
Manual headlight leveling
dial

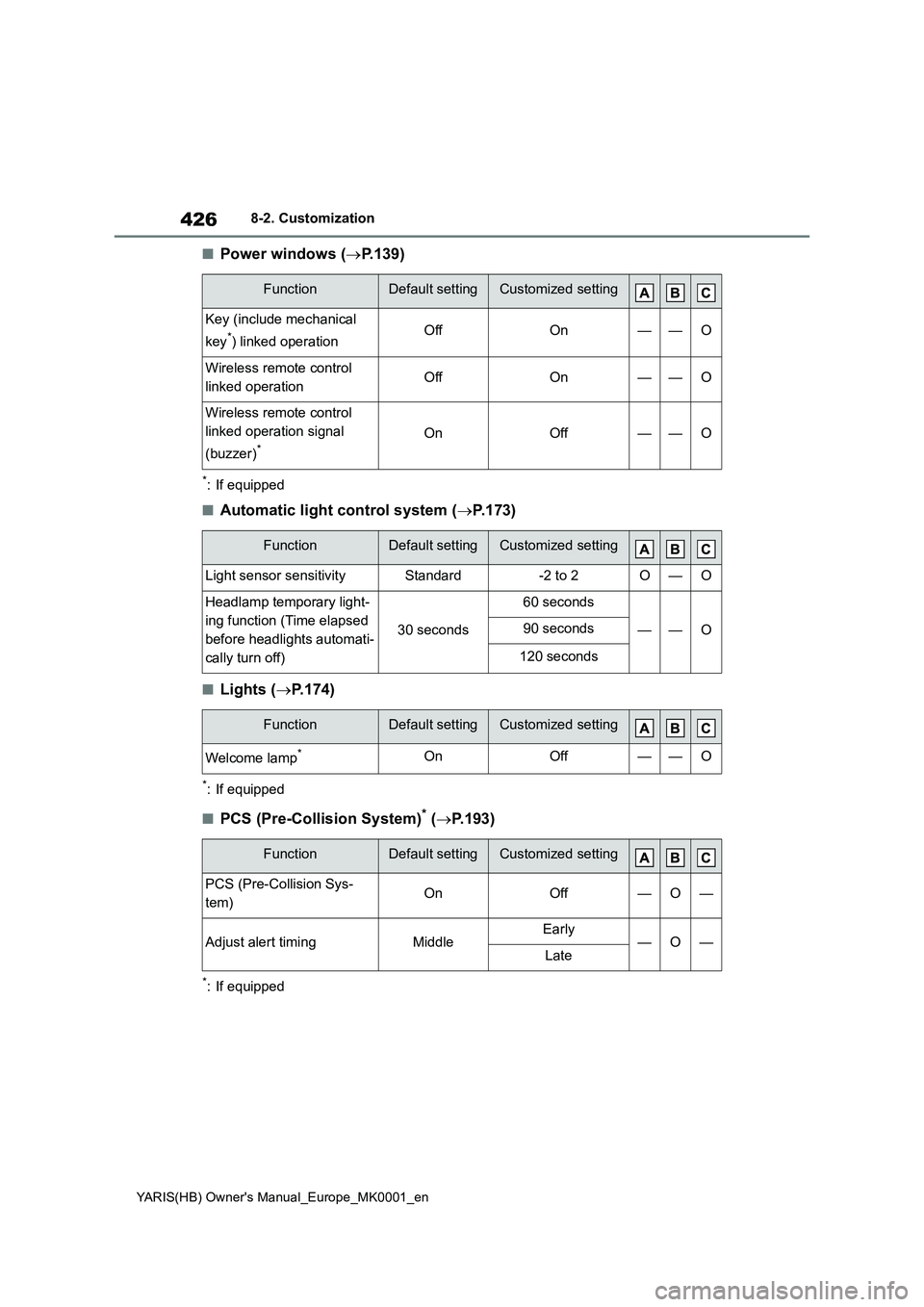

Page 426 of 568

426
YARIS(HB) Owner's Manual_Europe_MK0001_en
8-2. Customization
■Power windows (→P.139)
*: If equipped
■Automatic light control system (→P.173)
■Lights (→P.174)
*: If equipped
■PCS (Pre-Collision System)* (→P.193)
*: If equipped
FunctionDefault settingCustomized setting
Key (include mechanical
key
*) linked operationOffOn——O
Wireless remote control
linked operationOffOn——O
Wireless remote control
linked operation signal
(buzzer)
*OnOff——O
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2O—O
Headlamp temporary light-
ing function (Time elapsed
before headlights automati-
cally turn off)
30 seconds
60 seconds
——O90 seconds
120 seconds
FunctionDefault settingCustomized setting
Welcome lamp*OnOff——O
FunctionDefault settingCustomized setting
PCS (Pre-Collision Sys-
tem)OnOff—O—
Adjust alert timingMiddleEarly—O—Late
Page 559 of 568

559
YARIS(HB) Owner's Manual_Europe_MK0001_en
Alphabetical Index
Headlamp temporary lighting func-
tion............................................... 175
Headlights
Automatic High Beam system .... 177
Headlamp temporary lighting func-
tion ........................................... 175
Light switch ................................ 173
Replacing light bulbs .......... 351, 352
Wattage ...................................... 419
Heated steering wheel ................. 289
Heaters
Automatic air conditioning system
................................................. 283
Heated steering wheel ............... 289
Heater system ............................ 278
Manual air conditioning system.. 278
Outside rear view mirrors ... 280, 285
Seat heaters............................... 289
High mounted stoplight
Replacing light bulbs .................. 352
Hill-start assist control................. 269
Hood .............................................. 317
Open .......................................... 317
Hooks
Coat hooks ................................. 304
Grocery bag hooks..................... 295
Retaining hooks (floor mat) .......... 30
Horn ............................................... 134
I
Identification
Engine ........................................ 411
Vehicle ....................................... 411
Ignition switch (engine switch) . 158,
159
Auto power off function .............. 162
Changing the engine switch modes
......................................... 158, 162
If your vehicle has to be stopped in
an emergency .......................... 360
Illuminated entry system ............. 292Indicators......................................... 84
Initialization
Engine oil maintenance data ...... 323
Items to initialize......................... 431
Parking Support Brake ............... 255
Power windows .......................... 139
Tire pressure warning system .... 334
Inside rear view mirror ................. 135
Intercooler ..................................... 324
Intercooler coolant .......................324
Capacity ..................................... 415
Checking .................................... 324
Interior lights ................................. 291
Front interior light .......................291
Rear interior light ........................ 291
Wattage ...................................... 419
J
Jack
Positioning a floor jack ............... 319
Vehicle-equipped jack ................ 390
Jack handle ...................................390
Jam protection function
Power windows .......................... 139
K
Keyless entry
Smart entry & start system ......... 123
Wireless remote control ............. 114
Keys ............................................... 112
Battery-saving function............... 124
Electronic key ............................. 112
Engine switch .....................158, 159
If the electronic key does not operate
properly .................................... 399
If you lose your keys ..................399
Key number plate ....................... 112
Keyless entry.............. 116, 121, 123
Mechanical key .......................... 112
Replacing the battery ................. 345
Page 560 of 568

560
YARIS(HB) Owner's Manual_Europe_MK0001_en
Alphabetical Index
Warning buzzer .......................... 123
Wireless remote control ............. 114
L
Lane Tracing Assist (LTA) ............ 203
Operation ................................... 203
Warning lights ............................ 372
Warning messages .................... 212
Language (multi-information dis-
play) ....................................... 97, 103
Lever
Auxiliary catch lever ................... 317
Hood lock release lever ............. 317
Shift lever ........................... 164, 168
Turn signal lever ........................ 171
Wiper lever ................................. 181
License plate lights
Light switch ................................ 173
Wattage ...................................... 419
Light bulbs
Replacing ................................... 351
Lights
Automatic High Beam system .... 177
Fog light switch .......................... 180
Front interior lights ..................... 291
Front personal lights .................. 292
Headlamp temporary lighting func-
tion ........................................... 175
Headlight switch ......................... 173
Interior lights .............................. 291
Interior lights list ......................... 291
Luggage compartment light ....... 122
Rear interior lights ...................... 291
Rear personal lights ................... 292
Replacing light bulbs .......... 351, 352
Turn signal lever ........................ 171
Vanity lights ................................ 303
Wattage ...................................... 419
Lock steering column .......... 158, 160
LTA (Lane Tracing Assist) ............ 203
Operation ................................... 203Warning lights.............................372
Warning messages..................... 212
Luggage compartment features .. 295
Luggage compartment light
Wattage ...................................... 419
M
Maintenance
Do-it-yourself maintenance ........ 316
Maintenance data.......................410
Maintenance requirements......... 314
Malfunction indicator lamp .......... 369
Manual air conditioning system .. 278
Manual headlight leveling dial ..... 175
Manual transmission .................... 168
Gear Shift Indicator .................... 170
Menu icons ................................ 93, 99
Meter
Clock ...................................... 86, 90
Indicators...................................... 84
Instrument panel light control . 89, 93
Meter control switches .........94, 100
Meters ....................................86, 90
Multi-information display ........93, 99
Settings ................................97, 103
Warning lights.............................368
Warning message ...................... 377
Mirrors
Inside rear view mirror................ 135
Outside rear view mirror defoggers
......................................... 280, 285
Outside rear view mirrors ........... 136
Vanity mirrors .............................303
Multi-information display ......... 93, 99
Audio system-linked display .97, 102
Clock ................................ 88, 92, 92
Cruise control .............................224
Driving information display ...94, 100
Driving support system information
display ................................96, 102
Dynamic radar cruise control ..... 213
