lane assist TOYOTA YARIS HATCHBACK 2021 Owners Manual

3
YARIS(HB) Owner's Manual_Europe_MK0001_en
TABLE OF CONTENTS
1
6
5
4
3
2
8
7
3-5. Opening and closing the win-
dows
Power windows ................... 139
4-1. Before driving
Driving the vehicle .............. 144
Cargo and luggage ............. 151
Trailer towing (vehicles without
towing packages - including
Reunion) ........................... 152
Trailer towing (vehicles with tow-
ing packages - except for
Reunion) ........................... 152
4-2. Driving procedures
Engine (ignition) switch (vehicles
without a smart entry & start
system) ............................. 158
Engine (ignition) switch (vehicles
with a smart entry & start sys-
tem) .................................. 159
Multidrive ............................ 164
Manual transmission ........... 168
Turn signal lever ................. 171
Parking brake...................... 171
4-3. Operating the lights and wip-
ers
Headlight switch.................. 173
Automatic High Beam ......... 177
Fog light switch ................... 180
Windshield wipers and washer
.......................................... 181
Rear window wiper and washer
.......................................... 184
4-4. Refueling
Opening the fuel tank cap ... 186
4-5. Using the driving support sys-
tems
Toyota Safety Sense ........... 188
PCS (Pre-Collision System) 193
LTA (Lane Tracing Assist) ... 203
Dynamic radar cruise control
.......................................... 213
Speed limiter ....................... 224
RSA (Road Sign Assist) ...... 226
Stop & Start system ............ 230
BSM (Blind Spot Monitor) ... 237
Toyota parking assist-sensor
.......................................... 242
RCTA (Rear Crossing Traffic
Alert) ................................. 247
PKSB (Parking Support Brake)
.......................................... 251
Parking Support Brake function
(static objects) .................. 256
Parking Support Brake function
(rear-crossing vehicles) .... 262
Driving mode select switch . 266
GPF (Gasoline Particulate Filter)
system .............................. 267
Driving assist systems ........ 268
4-6. Driving tips
Winter driving tips ............... 274
4Driving

17
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Meter control switches ............................................................P.94, 100
Paddle shift switches*1..................................................................P.166
Phone switch*2
Vehicle-to-vehicle distance switch*1............................................P.218
LTA (Lane Tracing Assist) switch*1...............................................P.203
Cruise control switches*1
Dynamic radar cruise control*1.........................................................P.213
Speed limiter main switch*1..........................................................P.224
Audio remote control switches*2
Talk switch*2
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.

24
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Meter control switches ............................................................P.94, 100
Paddle shift switches*1..................................................................P.166
Phone switch*2
Vehicle-to-vehicle distance switch ...............................................P.218
LTA (Lane Tracing Assist) switch .................................................P.203
Cruise control switches
Dynamic radar cruise control ...........................................................P.213
Speed limiter main switch .............................................................P.224
Audio remote control switches*2
Talk switch*2
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.

93
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
Have the vehicle inspected by any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
The brightness of the instrument
panel lights can be adjusted on
select to the multi-information
display.
The brightness of the instrument panel
lights can be adjusted separately for
when the tail lights are on and off.
1Press or to select of
the multi-information display.
2Press or to select ,
and then press and hold the
.
3Press or to change the
brightness.
■Display
Driving support system status
display area
Displays an image when the following
systems are operating and a menu icon
other than is selected:
• LTA (Lane Tracing Assist) (if
equipped) (→P.203)
• Dynamic radar cruise control (if
equipped) (→P.213)
• RSA (Road Sign Assist) (if equipped)
(→P.226)
Content display area
By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.
■Menu icons
The menu icons will be displayed
by pressing the or meter

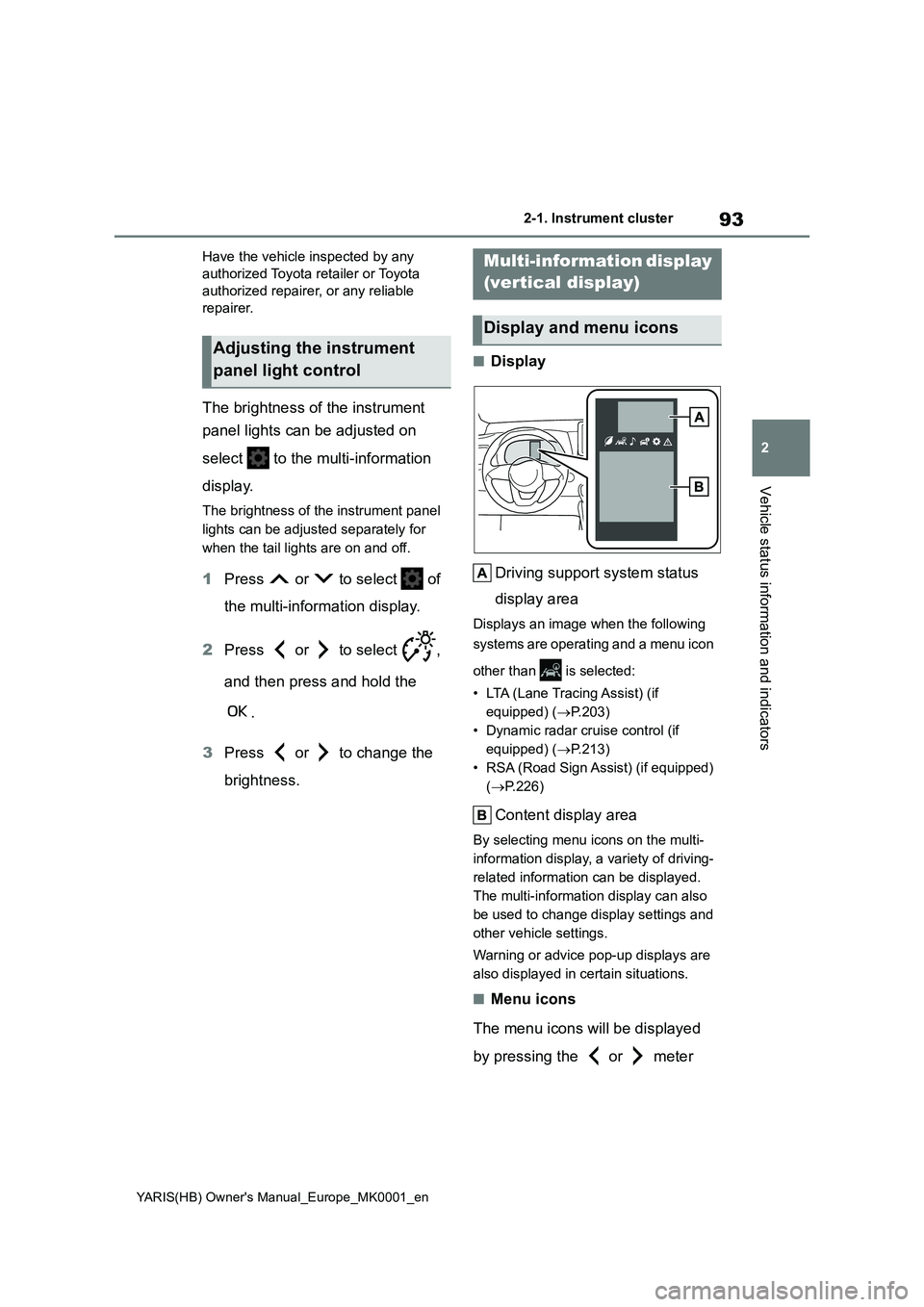

Adjusting the instrument
panel light control
Multi-information display
(vertical display)
Display and menu icons

96
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster

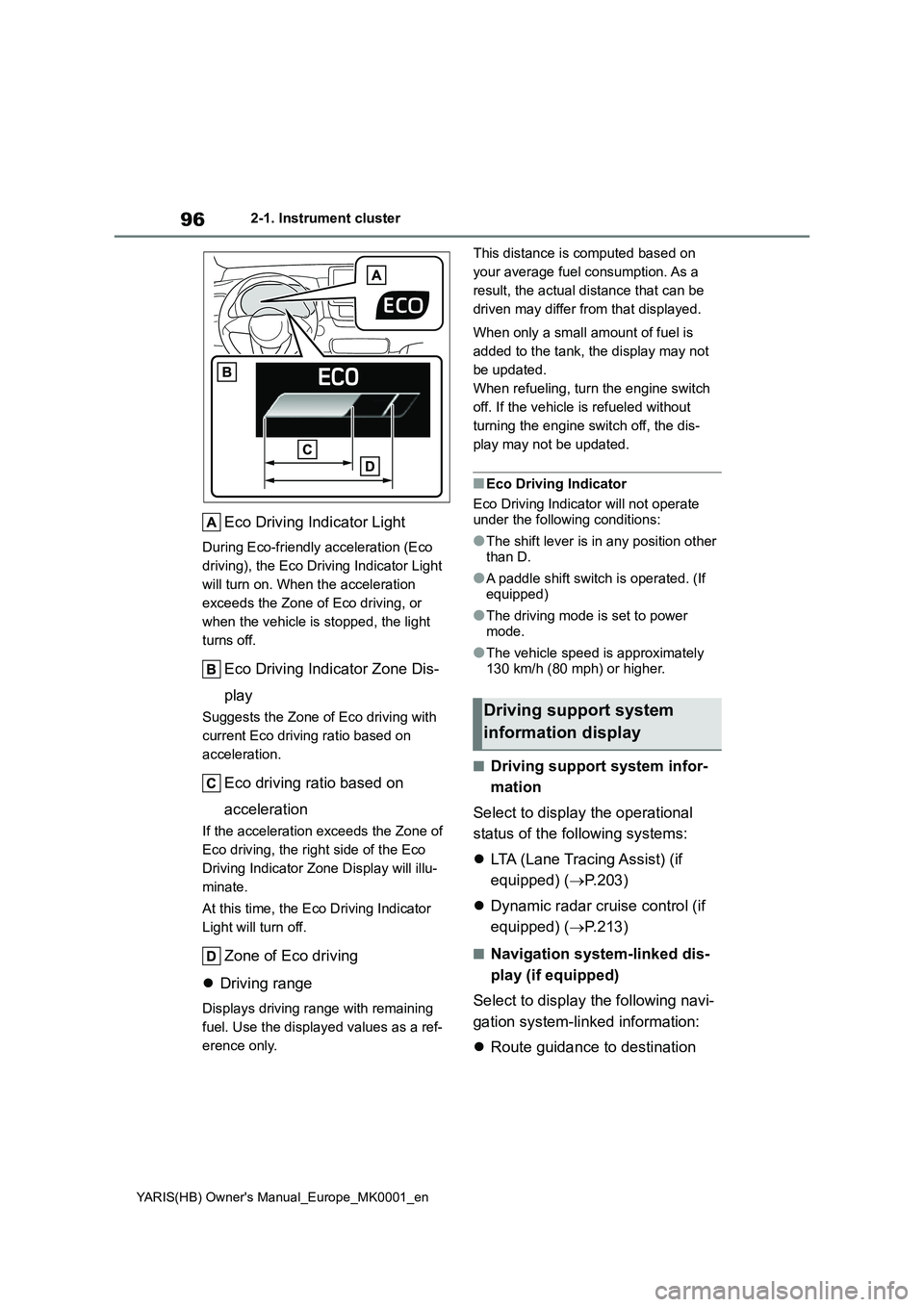

Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Dis-
play
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on
acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
Driving Indicator Zone Display will illu-
minate.
At this time, the Eco Driving Indicator
Light will turn off.
Zone of Eco driving
zDriving range
Displays driving range with remaining
fuel. Use the displayed values as a ref-
erence only.This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
■Eco Driving Indicator
Eco Driving Indicator will not operate
under the following conditions:
●The shift lever is in any position other
than D.
●A paddle shift switch is operated. (If
equipped)
●The driving mode is set to power
mode.
●The vehicle speed is approximately
130 km/h (80 mph) or higher.
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
zLTA (Lane Tracing Assist) (if
equipped) (→P.203)
zDynamic radar cruise control (if
equipped) (→P.213)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
zRoute guidance to destination
Driving support system
information display

99
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
(→P.234)

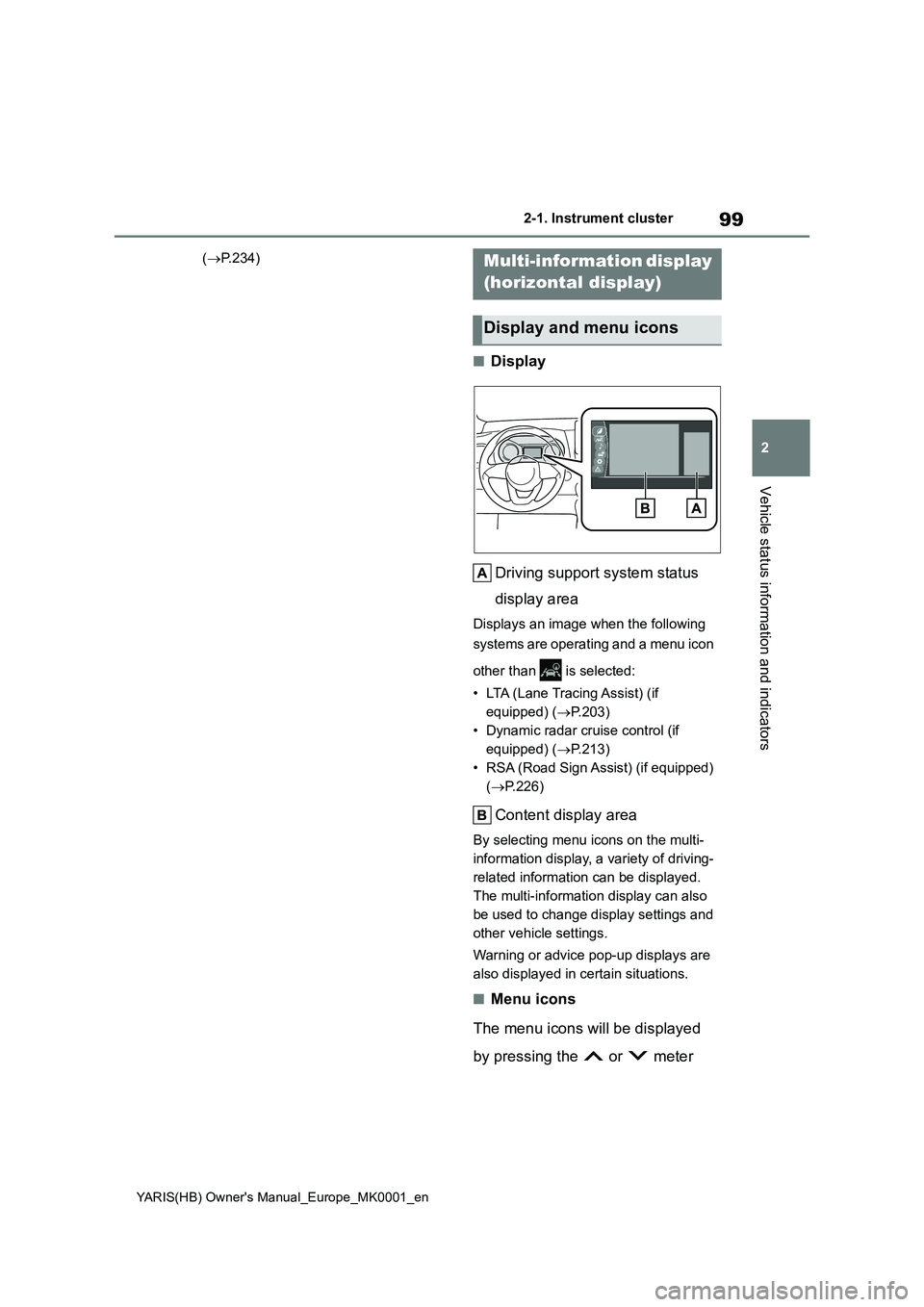

■Display
Driving support system status
display area
Displays an image when the following
systems are operating and a menu icon
other than is selected:
• LTA (Lane Tracing Assist) (if
equipped) (→P.203)
• Dynamic radar cruise control (if
equipped) (→P.213)
• RSA (Road Sign Assist) (if equipped)
(→P.226)
Content display area
By selecting menu icons on the multi-
information display, a variety of driving-
related information can be displayed.
The multi-information display can also
be used to change display settings and
other vehicle settings.
Warning or advice pop-up displays are
also displayed in certain situations.
■Menu icons
The menu icons will be displayed
by pressing the or meter
Multi-information display
(horizontal display)
Display and menu icons

102

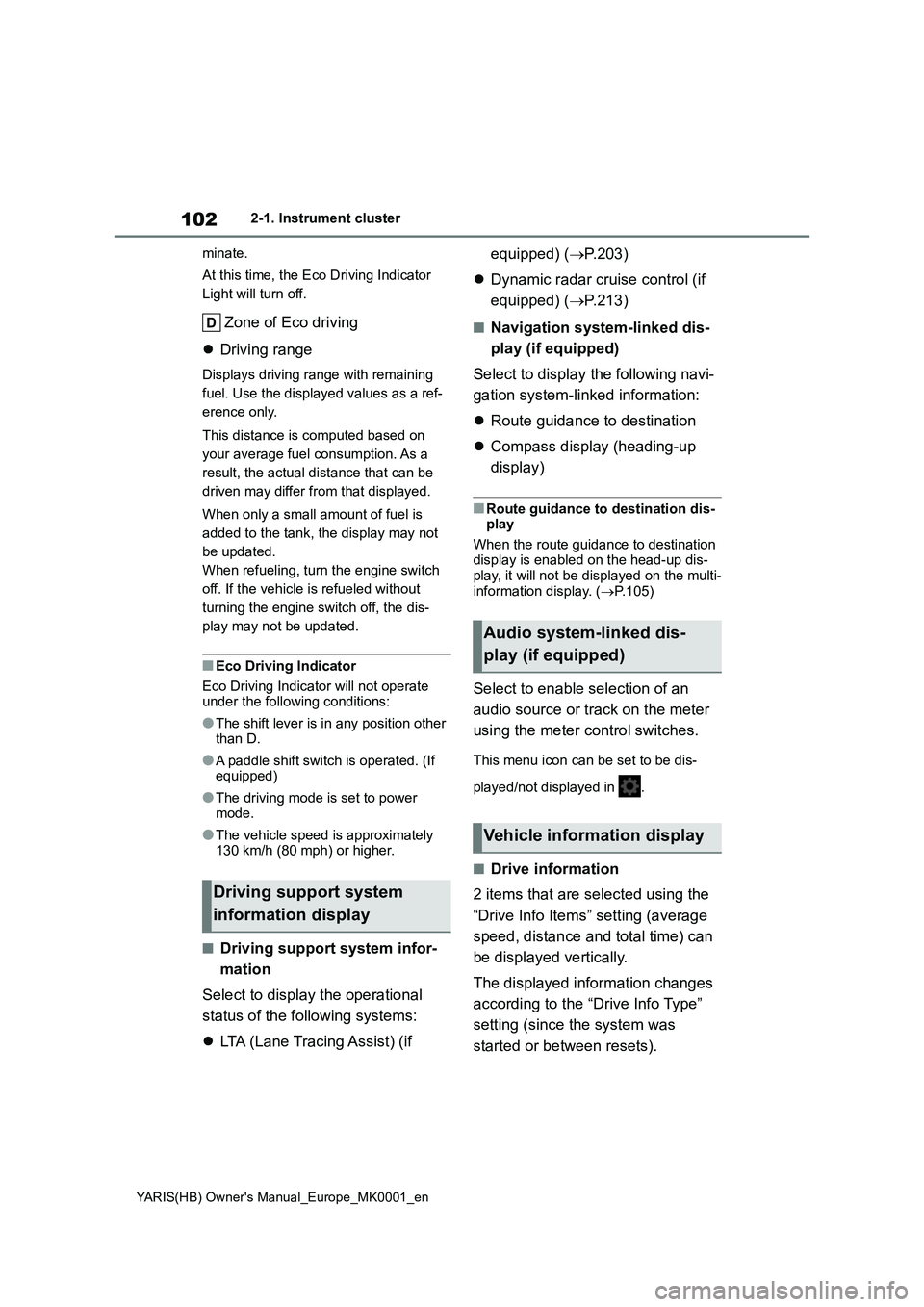

YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
minate.
At this time, the Eco Driving Indicator
Light will turn off.
Zone of Eco driving
zDriving range
Displays driving range with remaining
fuel. Use the displayed values as a ref-
erence only.
This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
■Eco Driving Indicator
Eco Driving Indicator will not operate
under the following conditions:
●The shift lever is in any position other
than D.
●A paddle shift switch is operated. (If
equipped)
●The driving mode is set to power
mode.
●The vehicle speed is approximately
130 km/h (80 mph) or higher.
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
zLTA (Lane Tracing Assist) (if equipped) (→P.203)
zDynamic radar cruise control (if
equipped) (→P.213)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
zRoute guidance to destination
zCompass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination
display is enabled on the head-up dis-
play, it will not be displayed on the multi-
information display. (→P.105)
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Drive information
2 items that are selected using the
“Drive Info Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info Type”
setting (since the system was
started or between resets).
Driving support system
information display
Audio system-linked dis-
play (if equipped)
Vehicle information display

107
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators

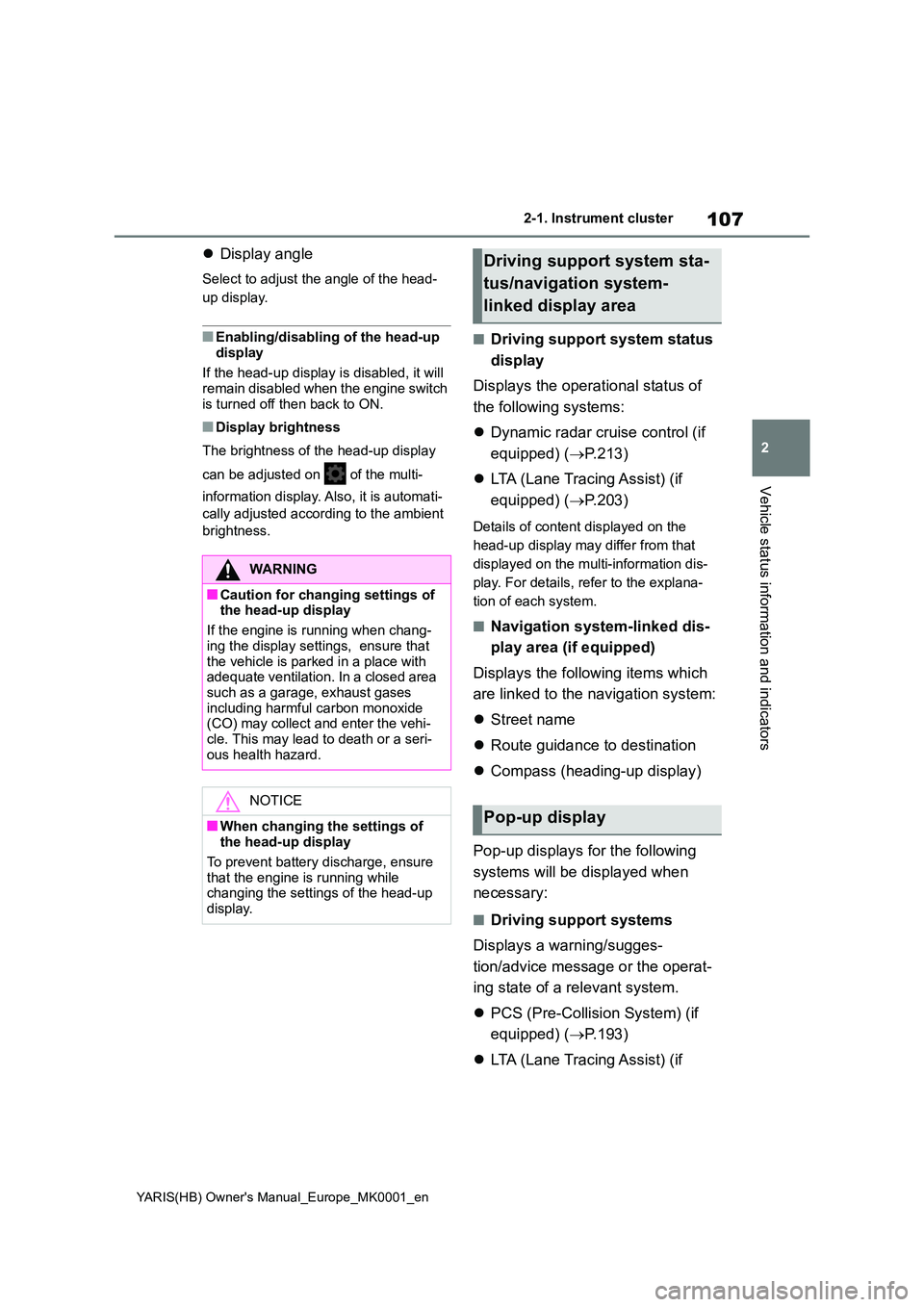

zDisplay angle
Select to adjust the angle of the head-
up display.
■Enabling/disabling of the head-up
display
If the head-up display is disabled, it will remain disabled when the engine switch
is turned off then back to ON.
■Display brightness
The brightness of the head-up display
can be adjusted on of the multi-
information display. Also, it is automati-
cally adjusted according to the ambient
brightness.
■Driving support system status
display
Displays the operational status of
the following systems:
z Dynamic radar cruise control (if
equipped) ( →P.213)
z LTA (Lane Tracing Assist) (if
equipped) ( →P.203)
Details of content displayed on the
head-up display may differ from that
displayed on the multi-information dis-
play. For details, refer to the explana-
tion of each system.
■Navigation system-linked dis-
play area (if equipped)
Displays the following items which
are linked to the navigation system:
z Street name
z Route guidance to destination
z Compass (heading-up display)
Pop-up displays for the following
systems will be displayed when
necessary:
■Driving support systems
Displays a warning/sugges-
tion/advice message or the operat-
ing state of a relevant system.
z PCS (Pre-Collision System) (if
equipped) ( →P.193)
z LTA (Lane Tracing Assist) (if
WARNING
■Caution for changing settings of the head-up display
If the engine is running when chang-
ing the display settings, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter the vehi-
cle. This may lead to death or a seri- ous health hazard.
NOTICE
■When changing the settings of the head-up display
To prevent battery discharge, ensure
that the engine is running while changing the settings of the head-up display.
Driving support system sta-
tus/navigation system-
linked display area
Pop-up display

4
143
YARIS(HB) Owner's Manual_Europe_MK0001_en
4
Driving
Driving
4-1. Before driving
Driving the vehicle ............ 144
Cargo and luggage ........... 151
Trailer towing (vehicles without
towing packages - including
Reunion) ......................... 152
Trailer towing (vehicles with
towing packages - except for
Reunion) ......................... 152
4-2. Driving procedures
Engine (ignition) switch (vehi-
cles without a smart entry &
start system) ................... 158
Engine (ignition) switch (vehi-
cles with a smart entry & start
system) ........................... 159
Multidrive .......................... 164
Manual transmission......... 168
Turn signal lever ............... 171
Parking brake ................... 171
4-3. Operating the lights and wip-
ers
Headlight switch ............... 173
Automatic High Beam ....... 177
Fog light switch ................. 180
Windshield wipers and washer
....................................... 181
Rear window wiper and washer
....................................... 184
4-4. Refueling
Opening the fuel tank cap. 186
4-5. Using the driving support
systems
Toyota Safety Sense ......... 188
PCS (Pre-Collision System)
........................................ 193
LTA (Lane Tracing Assist) . 203
Dynamic radar cruise control
........................................ 213
Speed limiter ..................... 224
RSA (Road Sign Assist) .... 226
Stop & Start system .......... 230
BSM (Blind Spot Monitor) . 237
Toyota parking assist-sensor
........................................ 242
RCTA (Rear Crossing Traffic
Alert) ............................... 247
PKSB (Parking Support Brake)
........................................ 251
Parking Support Brake function
(static objects) ................ 256
Parking Support Brake function
(rear-crossing vehicles) .. 262
Driving mode select switch 266
GPF (Gasoline Particulate Fil-
ter) system ...................... 267
Driving assist systems ...... 268
4-6. Driving tips
Winter driving tips ............. 274

188
YARIS(HB) Owner's Manual_Europe_MK0001_en
4-5. Using the driving support systems
4-5.Using the d riving s upport sy ste ms
*: If equipped
■PCS (Pre-Collision System)
→ P. 1 9 3
■LTA (Lane Tracing Assist)
→ P. 2 0 3
■AHB (Automatic High Beam)
→ P. 1 7 7
■RSA (Road Sign Assist) (if
equipped)
→ P. 2 2 6
■Dynamic radar cruise control
→ P. 2 1 3
Two types of sensors, located
behind the front grille and wind-
shield, detect information neces-
sary to operate the drive assist
systems.
Radar sensor
Front camera
Toyota Safety Sense*
The Toyota Safety Sense con-
sists of the following drive
assist systems and contrib-
utes to a safe and comfortable
driving experience:
Driving assist system
WARNING
■Toyota Safety Sense
The Toyota Safety Sense is designed to operate under the assumption that the driver will drive safely, and is
designed to help reduce the impact to the occupants and the vehicle in the case of a collision or assist the driver
in normal driving conditions. As there is a limit to the degree of rec-ognition accuracy and control perfor-
mance that this system can provide, do not overly rely on this system. The driver is always responsible for paying
attention to the vehicle’s surroundings and driving safely.
Sensors
WARNING
■To avoid malfunction of the radar sensor
Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to an accident resulting in death or seri-
ous injury.
