Pictorial index
Multi-information display ..........................................................P.93, 99
Display .........................................................................................P.93, 99
When a warning message is displayed............................................P.377
Parking brake .................................................................................P.171
Applying/releasing............................................................................P.171
Precautions against winter season ..................................................P.275
Warning buzzer/message ........................................................P.171, 377
Turn signal lever ............................................................................P.171
Headlight switch ............................................................................P.173
Headlights/front position lights/tail lights/daytime running lights ......P.173
Front fog lights
*4/rear fog light .........................................................P.180
Windshield wiper and washer switch ..........................................P.181
Rear window wiper and washer switch
*4.....................................P.184
Usage.......................................................................................P.181, 184
Adding washer fluid..........................................................................P.329
Emergency flasher switch.............................................................P.360
Hood lock release lever .................................................................P.317
Tilt and telescopic steering lock release lever............................P.134
Audio system
*4, 5
Air conditioning system ........................................................P.278, 283
Usage.......................................................................................P.278, 283
Rear window defogger .............................................................P.280, 285
Fuel filler door opener ...................................................................P.187
*1: Vehicles without a smart entry & start system
*2: Vehicles with a smart entry & start system
*3: Vehicles with a Multidrive
*4: If equipped
*5: Refer to “Navigation and multimedia system Owner’s manual”.

17
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Meter control switches ............................................................P.94, 100
Paddle shift switches*1..................................................................P.166
Phone switch*2
Vehicle-to-vehicle distance switch*1............................................P.218
LTA (Lane Tracing Assist) switch*1...............................................P.203
Cruise control switches*1
Dynamic radar cruise control*1.........................................................P.213
Speed limiter main switch*1..........................................................P.224
Audio remote control switches*2
Talk switch*2
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.

22
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Multi-information display ..........................................................P.93, 99
Display .........................................................................................P.93, 99
When a warning message is displayed............................................P.377
Parking brake .................................................................................P.171
Applying/releasing............................................................................P.171
Precautions against winter season ..................................................P.275
Warning buzzer/message ........................................................P.171, 377
Windshield wiper and washer switch ..........................................P.181
Rear window wiper and washer switch
*4.....................................P.184
Usage.......................................................................................P.181, 184
Adding washer fluid..........................................................................P.329
Turn signal lever ............................................................................P.171
Headlight switch ............................................................................P.173
Headlights/front position lights/tail lights/daytime running lights ......P.173
Front fog lights
*4/rear fog light .........................................................P.180
Emergency flasher switch.............................................................P.360
Hood lock release lever .................................................................P.317
Tilt and telescopic steering lock release lever............................P.134
Air conditioning system ........................................................P.278, 283
Usage.......................................................................................P.278, 283
Rear window defogger .............................................................P.280, 285
Audio system
*4, 5
Fuel filler door opener ...................................................................P.187
*1: Vehicles without a smart entry & start system
*2: Vehicles with a smart entry & start system
*3: Vehicles with a Multidrive
*4: If equipped
*5: Refer to “Navigation and multimedia system Owner’s manual”.

24
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Meter control switches ............................................................P.94, 100
Paddle shift switches*1..................................................................P.166
Phone switch*2
Vehicle-to-vehicle distance switch ...............................................P.218
LTA (Lane Tracing Assist) switch .................................................P.203
Cruise control switches
Dynamic radar cruise control ...........................................................P.213
Speed limiter main switch .............................................................P.224
Audio remote control switches*2
Talk switch*2
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.

66
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-3. Emergency assistance
1-3.Emerg ency as sista nce
*1: If equipped
*2: Operates within the eCall coverage.
The system name differs depending
on the country.
Microphone
“SOS” button*
Indicator lights
Speaker
*: This button is intended for communi-
cation with the eCall system operator.
Other SOS buttons available in other
systems of a motor vehicle do not
relate to the device and are not
intended for communication with the
eCall system operator.
■Automatic Emergency Calls
If any airbag deploys, the system is
designed to automatically call the
eCall control center.* The answer-
ing operator receives the vehicle’s
location, the time of the incident
and the vehicle VIN, and attempts
to speak with the vehicle occupants
to assess the situation. If the occu-
pants are unable to communicate,
the operator automatically treats
the call as an emergency and con-
tacts the nearest emergency ser-
vices provider (112 system etc.) to
describe the situation and request
that assistance be sent to the loca-
tion.
*: In some cases, the call cannot be
made. ( →P. 6 7 )
■Manual Emergency Calls
In the event of an emergency, press
the “SOS” button to call the eCall
control center.* The answering
operator will determine your vehi-
cle’s location, assess the situation,
and dispatch the necessary assis-
eCall*1, 2
eCall is a telematics service
that uses Global Navigation
Satellite System (GNSS) data
and embedded cellular tech-
nology to enable the following
emergency calls to be made:
Automatic emergency calls
(Automatic Collision Notifica-
tion) and manual emergency
calls (by pressing the “SOS”
button). This service is
required by European Union
Regulations.
System components
Emergency Notification Ser-
vices

88
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
been driven since the meter was last
reset. Trip meters A and B can be used
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
zDistance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: →P. 3 2 3
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select “Clock
: 00”.
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If “Clock : 00” is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)
Adjusting the clock (vehi-
cles with navigation/multi-
media system)

92
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
to record and display different distances
independently.
To reset, display the desired trip meter
and press and hold the display change
button.
zDistance until next engine oil
change
Displays the distance the vehicle can
be driven until an oil change is neces-
sary.
The distance until the next engine oil
change will also be displayed in the fol-
lowing situations:
• When the engine switch is turned to
ON.
• When a warning message indicating
that oil maintenance should be per-
formed soon or is required is dis-
played.
• Resetting: →P. 3 2 3
■Adjusting the minute to “00”
1Press or to select of
the multi-information display.
2Press or to select .
Press the to set the clock to the
beginning of the nearest hour.
e.g.
1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00
■Changing the clock
1Press or to select of
the multi-information display.
2Press or to select .
3Press and hold the .
4Press or to select an
item to be changed.
5Press or to change the
setting.
The following can be changed:
z12-hour/24-hour format
zHour
zMinute
The clocks on the following can be
adjusted on the audio system
screen.
zMulti-information display
zAudio system screen
For details, refer to “Navigation and
multimedia system Owner’s man-
ual”.
■Clock settings screen (vehicles
with navigation/multimedia system)
If is displayed when is
selected on the multi-information dis-
play, the system may be malfunctioning.
Adjusting the clock (vehi-
cles without navigation/mul-
timedia system)Adjusting the clock (vehi-
cles with navigation/multi-
media system)

94
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
control switch.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to use the display.
The multi-information display is
operated using the meter control
switches.
/ : Select menu icons
/ : Change displayed con-
tent, scroll up/down the screen
and move the cursor up/down
Press: Enter/Set
Press and hold: Reset/Display
customizable items
Return to the previous screen
Call sending/receiving and his-
tory display
Linked with the hands-free system,
sending or receiving call is displayed.
For details regarding the hands-free
system, refer to the “Navigation and
multimedia system Owner’s manual”.
■Display items
z Speedometer display/Driving
range
z Fuel economy
z Eco Driving Indicator/Driving
range (if equipped)
Driving information display
( →P.94)
Driving support system infor-
mation display (if equipped)
( →P.96)
Audio system-linked display
(if equipped) ( →P.97)
Vehicle information display
( →P.97)
Settings display ( →P. 9 7 )
Warning message display
( →P.377)
WARNING
■Caution for use while driving
●When operating the multi-informa- tion display while driving, pay extra
attention to the safety of the area around the vehicle.
●Do not look continuously at the multi-information display while driv-ing as you may fail to see pedestri-
ans, objects on the road, etc., ahead of the vehicle.
■The information display at low temperatures
→ P. 8 7

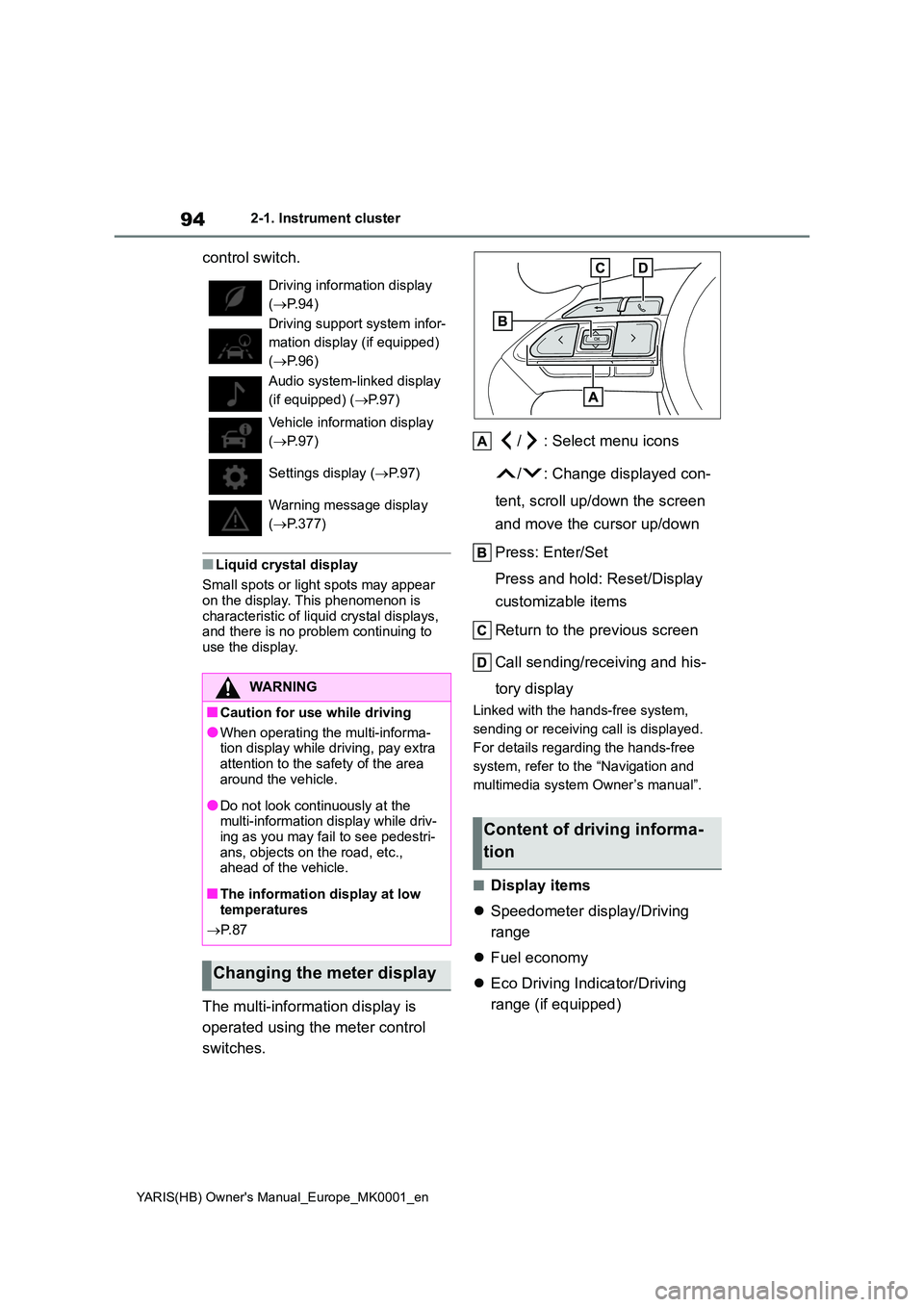

Changing the meter display
Content of driving informa-
tion

96
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or
when the vehicle is stopped, the light
turns off.
Eco Driving Indicator Zone Dis-
play
Suggests the Zone of Eco driving with
current Eco driving ratio based on
acceleration.
Eco driving ratio based on
acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco
Driving Indicator Zone Display will illu-
minate.
At this time, the Eco Driving Indicator
Light will turn off.
Zone of Eco driving
zDriving range
Displays driving range with remaining
fuel. Use the displayed values as a ref-
erence only.This distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
When only a small amount of fuel is
added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the dis-
play may not be updated.
■Eco Driving Indicator
Eco Driving Indicator will not operate
under the following conditions:
●The shift lever is in any position other
than D.
●A paddle shift switch is operated. (If
equipped)
●The driving mode is set to power
mode.
●The vehicle speed is approximately
130 km/h (80 mph) or higher.
■Driving support system infor-
mation
Select to display the operational
status of the following systems:
zLTA (Lane Tracing Assist) (if
equipped) (→P.203)
zDynamic radar cruise control (if
equipped) (→P.213)
■Navigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information:
zRoute guidance to destination
Driving support system
information display

97
2
YARIS(HB) Owner's Manual_Europe_MK0001_en
2-1. Instrument cluster
Vehicle status information and indicators
zCompass display (heading-up
display)
■Route guidance to destination dis-
play
When the route guidance to destination
display is enabled on the head-up dis-
play, it will not be displayed on the multi-
information display. (→P.105)
Select to enable selection of an
audio source or track on the meter
using the meter control switches.
This menu icon can be set to be dis-
played/not displayed in .
■Drive information
2 items that are selected using the
“Drive Info Items” setting (average
speed, distance and total time) can
be displayed vertically.
The displayed information changes
according to the “Drive Info Type”
setting (since the system was
started or between resets). (→P. 9 7 )
Use the displayed information as a ref-
erence only.
Following items will be displayed.
z“Trip”
• “Average Speed”: Displays the aver-
age vehicle speed since engine start*
• “Distance”: Displays the distance
driven since engine start*
• “Total Time”: Displays the elapsed time since engine start
*
*
: These items are reset each time the
engine stops.
z“Total”
• “Average Speed”: Displays the aver-
age vehicle speed since the display
was reset
*
• “Distance”: Displays the distance
driven since the display was reset*
• “Total Time”: Displays the elapsed
time since the display was reset*
*
: To reset, display the desired item and
press and hold the meter control
switch.
■Meter display settings that can
be changed
zClock setting (vehicles without
navigation/multimedia system)
→P. 8 8
zLanguage
Select to change the language dis-
played.
zUnits
Select to change the units of measure
displayed.
zEco Driving Indicator Light (if
equipped)
Select to enable/disable the Eco Driv-
ing Indicator Light.
z
• Fuel economy display
Select to change the average fuel con-
sumption display between after
Audio system-linked dis-
play (if equipped)
Vehicle information display
Settings display
