3
YARIS(HB) Owner's Manual_Europe_MK0001_en
TABLE OF CONTENTS
1
6
5
4
3
2
8
7
3-5. Opening and closing the win-
dows
Power windows ................... 139
4-1. Before driving
Driving the vehicle .............. 144
Cargo and luggage ............. 151
Trailer towing (vehicles without
towing packages - including
Reunion) ........................... 152
Trailer towing (vehicles with tow-
ing packages - except for
Reunion) ........................... 152
4-2. Driving procedures
Engine (ignition) switch (vehicles
without a smart entry & start
system) ............................. 158
Engine (ignition) switch (vehicles
with a smart entry & start sys-
tem) .................................. 159
Multidrive ............................ 164
Manual transmission ........... 168
Turn signal lever ................. 171
Parking brake...................... 171
4-3. Operating the lights and wip-
ers
Headlight switch.................. 173
Automatic High Beam ......... 177
Fog light switch ................... 180
Windshield wipers and washer
.......................................... 181
Rear window wiper and washer
.......................................... 184
4-4. Refueling
Opening the fuel tank cap ... 186
4-5. Using the driving support sys-
tems
Toyota Safety Sense ........... 188
PCS (Pre-Collision System) 193
LTA (Lane Tracing Assist) ... 203
Dynamic radar cruise control
.......................................... 213
Speed limiter ....................... 224
RSA (Road Sign Assist) ...... 226
Stop & Start system ............ 230
BSM (Blind Spot Monitor) ... 237
Toyota parking assist-sensor
.......................................... 242
RCTA (Rear Crossing Traffic
Alert) ................................. 247
PKSB (Parking Support Brake)
.......................................... 251
Parking Support Brake function
(static objects) .................. 256
Parking Support Brake function
(rear-crossing vehicles) .... 262
Driving mode select switch . 266
GPF (Gasoline Particulate Filter)
system .............................. 267
Driving assist systems ........ 268
4-6. Driving tips
Winter driving tips ............... 274
4Driving

13
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Refueling method .............................................................................P.187
Fuel type/fuel tank capacity .............................................................P.413
Tires ................................................................................................P.330
Tire size/inflation pressure ...............................................................P.417
Winter tires/tire chains .....................................................................P.274
Checking/rotation/tire pressure warning system ..............................P.330
Coping with flat tires.................................................................P.379, 389
Hood ................................................................................................P.317
Opening ...........................................................................................P.317
Engine oil .........................................................................................P.413
Coping with overheating ..................................................................P.405
Headlights/front position lights/daytime running lights/turn signal
lights .......................................................................................P.171, 173
Front fog lights
*2............................................................................P.180
Tail lights/turn signal lights ..................................................P.171, 173
Stop lights
Side turn signal lights ...................................................................P.171
License plate light..........................................................................P.173
Rear fog light ..................................................................................P.180
Back-up light
Shifting the shift position to R ..................................................P.164, 168
*1: Vehicles with a smart entry & start system
*2: If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P.351, Watts: P.419)

14
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
■Instrument panel (left-hand drive vehicles)
Engine switch .........................................................................P.158, 159
Starting the engine/changing the positions*1...................................P.158
Starting the engine/changing the modes*2.......................................P.159
Emergency stop of the engine .........................................................P.360
When the engine will not start ..........................................................P.397
Warning messages ..........................................................................P.377
Shift lever................................................................................P.164, 168
Changing the shift position.......................................................P.164, 168
Precautions for towing .....................................................................P.363
When the shift lever does not move*3..............................................P.165
Meters .........................................................................................P.86, 90
Reading the meters/adjusting the instrument panel light .............P.86, 90
Warning lights/indicator lights ............................................................P.82
When a warning light turns on .........................................................P.368

16
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
■Switches (left-hand drive vehicles)
Outside rear view mirror switches ...............................................P.136
Window lock switch .......................................................................P.141
Door lock switches ........................................................................ P.119
Power window switches ................................................................P.139
Headlight leveling dial ...................................................................P.175
Automatic High Beam switch
*......................................................P.177
Heated steering wheel switch
*......................................................P.289
Driving mode select switch
*..........................................................P.266
VSC OFF switch .............................................................................P.269
Stop & Start cancel switch
*...........................................................P.231
Seat heater switches
*....................................................................P.289
*: If equipped

21
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
■Instrument panel (right-hand drive vehicles)
Engine switch .........................................................................P.158, 159
Starting the engine/changing the positions
*1...................................P.158
Starting the engine/changing the modes
*2.......................................P.159
Emergency stop of the engine .........................................................P.360
When the engine will not start ..........................................................P.397
Warning messages ..........................................................................P.377
Shift lever................................................................................P.164, 168
Changing the shift position.......................................................P.164, 168
Precautions for towing .....................................................................P.363
When the shift lever does not move
*3..............................................P.165
Meters .........................................................................................P.86, 90
Reading the meters/adjusting the instrument panel light .............P.86, 90
Warning lights/indicator lights ............................................................P.82
When a warning light turns on .........................................................P.368

23
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
■Switches (right-hand drive vehicles)
Outside rear view mirror switches ...............................................P.136
Window lock switch .......................................................................P.141
Door lock switches ........................................................................ P.119
Power window switches ................................................................P.139
Headlight leveling dial ...................................................................P.175
Automatic High Beam switch .......................................................P.177
Heated steering wheel switch
*......................................................P.289
Driving mode select switch
*..........................................................P.266
VSC OFF switch .............................................................................P.269
Stop & Start cancel switch
*...........................................................P.231
*: If equipped

30
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-1. For safe use
1-1.For s afe us e
Use only floor mats designed spe-
cifically for vehicles of the same
model and model year as your vehi-
cle. Fix them securely in place onto
the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
Always align the marks .
The shape of the retaining hooks (clips)
may differ from that shown in the illus-
tration.Before driving
Observe the following before
starting off in the vehicle to
ensure safety of driving.
Floor mat
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driv-
ing. An unexpectedly high speed may result or it may become difficult to stop the vehicle. This could lead to an
accident, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for
other models or different model year vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips)
provided.
●Do not use two or more floor mats
on top of each other.
●Do not place the floor mat bottom-
side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in the correct place with all the provided retaining hooks (clips). Be
especially careful to perform this check after cleaning the floor.

32
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-1. For safe use
Make sure that all occupants are
wearing their seat belts before driv-
ing the vehicle. ( →P.33)
Use a child restraint system appro-
priate for the child until the child
becomes large enough to properly
wear the vehicle’s seat belt.
( →P. 4 7 )
Make sure that you can see back-
ward clearly by adjusting the inside
and outside rear view mirrors prop-
erly. ( →P.135, 136)
WARNING
■For safe driving
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.Doing so could cause the driver to
lose control of the vehicle.
●Do not place a cushion between the
driver or passenger and the seatback.A cushion may prevent correct pos-
ture from being achieved, and reduce the effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop the seat from
locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start
to feel tired. Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Correct use of the seat belts
Adjusting the mirrors

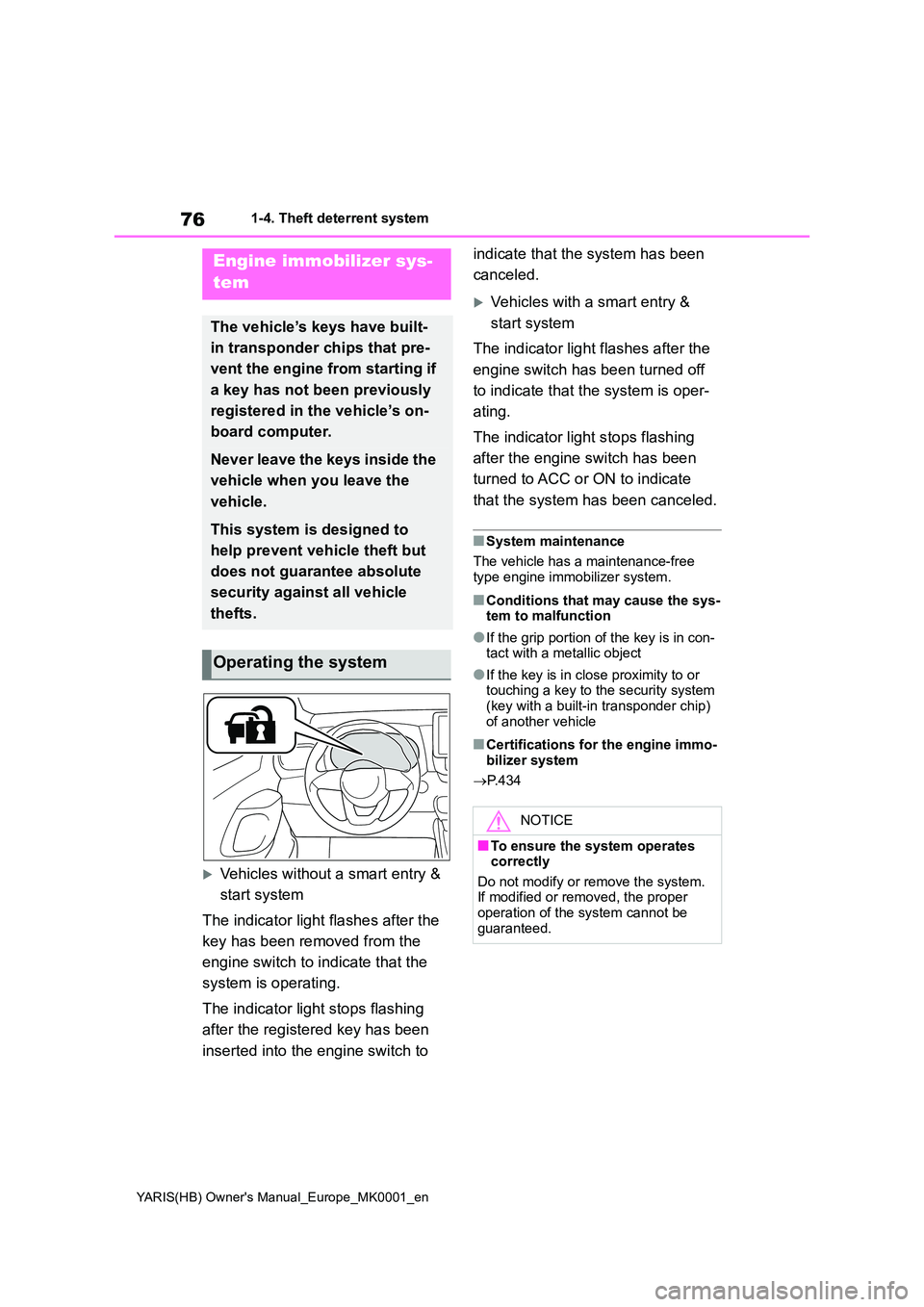

76
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-4. Theft deterrent system
1-4.Theft de terre nt sys te m
Vehicles without a smart entry &
start system
The indicator light flashes after the
key has been removed from the
engine switch to indicate that the
system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart entry &
start system
The indicator light flashes after the
engine switch has been turned off
to indicate that the system is oper-
ating.
The indicator light stops flashing
after the engine switch has been
turned to ACC or ON to indicate
that the system has been canceled.
■System maintenance
The vehicle has a maintenance-free
type engine immobilizer system.
■Conditions that may cause the sys- tem to malfunction
●If the grip portion of the key is in con-tact with a metallic object
●If the key is in close proximity to or touching a key to the security system (key with a built-in transponder chip)
of another vehicle
■Certifications for the engine immo- bilizer system
→ P. 4 3 4
Engine immobilizer sys-
tem
The vehicle’s keys have built-
in transponder chips that pre-
vent the engine from starting if
a key has not been previously
registered in the vehicle’s on-
board computer.
Never leave the keys inside the
vehicle when you leave the
vehicle.
This system is designed to
help prevent vehicle theft but
does not guarantee absolute
security against all vehicle
thefts.
Operating the system
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of the system cannot be
guaranteed.

78
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-4. Theft deterrent system
*: If equipped
■Items to check before locking
the vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make
sure of the following:
z Nobody is in the vehicle.
z The windows are closed before
the alarm is set.
z No valuables or other personal
items are left in the vehicle.
■Setting
Close the door and hood, and lock
all the doors using the entry func-
tion (if equipped) or wireless
remote control. The system will set
automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
■Canceling or stopping
Do one of the following to deacti-
vate or stop the alarms:
z Unlock the doors using the entry
function (if equipped) or wireless
remote control.
z Starting the engine. (The alarm
will be deactivated or stopped
after a few seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Triggering of the alarm
The alarm may be triggered in the fol- lowing situations: (Stopping the alarm deactivates the
alarm system.)
●The doors are unlocked using the key
or the mechanical key.
●A person inside the vehicle opens a
door or hood, or unlocks the vehicle.
Alarm*
The alarm uses light and
sound to give an alert when an
intrusion is detected.
The alarm is triggered in the
following situations when the
alarm is set:
z A locked door is unlocked or
opened in any way other than
using the entry function (if
equipped) or wireless remote
control. (The doors will lock
again automatically.)
z The hood is opened.
Setting/canceling/stopping
the alarm system
