key TOYOTA YARIS HATCHBACK 2021 Owners Manual

1
6
5
4
3
2
7
YARIS(HB) Owner's Manual_Europe_MK0001_en
8
Pictorial indexSearch by illustration
For safety
and security
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Vehicle status
information and
indicators
Reading driving-related information
(Main topics: Meters, multi-information display)
Before driving
Opening and closing the doors and windows, adjustment
before driving
(Main topics: Keys, doors, seats, power windows)
DrivingOperations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Interior featuresUsage of the interior features
(Main topics: Air conditioner, storage features)
Maintenance
and care
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
When trouble
arises
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle
specifications
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
IndexSearch by symptom
Search alphabetically

2
YARIS(HB) Owner's Manual_Europe_MK0001_en
TABLE OF CONTENTS
For your information ........................6
Reading this manual........................ 9
How to search ............................... 10
Pictorial index ................................ 12
1-1. For safe use
Before driving........................ 30
For safe driving ..................... 31
Seat belts .............................. 33
SRS airbags.......................... 36
Exhaust gas precautions ...... 44
1-2. Child safety
Airbag manual on-off system 45
Riding with children............... 46
Child restraint systems ......... 47
1-3. Emergency assistance
eCall...................................... 66
1-4. Theft deterrent system
Engine immobilizer system ... 76
Double locking system .......... 77
Alarm .................................... 78
2-1. Instrument cluster
Warning lights and indicators 82
Gauges and meters (vertical dis-
play) .................................... 86
Gauges and meters (horizontal
display) ............................... 90
Multi-information display (verti-
cal display).......................... 93
Multi-information display (hori-
zontal display)..................... 99
Head-up display .................. 105
Fuel consumption information
.......................................... 109
3-1. Key information
Keys .................................... 112
3-2. Opening, closing and locking
the doors
Side doors........................... 116
Back door............................ 120
Smart entry & start system . 123
3-3. Adjusting the seats
Front seats .......................... 128
Rear seats .......................... 129
Head restraints ................... 130
3-4. Adjusting the steering wheel
and mirrors
Steering wheel .................... 134
Inside rear view mirror ........ 135
Outside rear view mirrors.... 136
1For safety and security
2Vehicle status information
and indicators
3Before driving

4
YARIS(HB) Owner's Manual_Europe_MK0001_en
TABLE OF CONTENTS
5-1. Using the air conditioning
system and defogger
Manual air conditioning system
.......................................... 278
Automatic air conditioning sys-
tem .................................... 283
Heated steering wheel/seat
heaters.............................. 289
5-2. Using the interior lights
Interior lights list .................. 291
5-3. Using the storage features
List of storage features ....... 293
Luggage compartment features
.......................................... 295
5-4. Other interior features
Other interior features ......... 299
6-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................. 308
Cleaning and protecting the
vehicle interior .................. 311
6-2. Maintenance
Maintenance requirements . 314
6-3. Do-it-yourself maintenance
Do-it-yourself service precau-
tions .................................. 316
Hood ................................... 317
Positioning a floor jack ........ 319
Engine compartment........... 320
Tires .................................... 330
Tire inflation pressure ......... 340
Wheels ................................ 341
Air conditioning filter ........... 343
Wireless remote control/elec-
tronic key battery .............. 345
Checking and replacing fuses
.......................................... 348
Light bulbs .......................... 351
7-1. Essential information
Emergency flashers ............ 360
If your vehicle has to be stopped
in an emergency ............... 360
If the vehicle is trapped in rising
water ................................. 361
5Interior features
6Maintenance and care
7When trouble arises

5
YARIS(HB) Owner's Manual_Europe_MK0001_en
TABLE OF CONTENTS
1
6
5
4
3
2
8
7
7-2. Steps to take in an emergency
If your vehicle needs to be towed
.......................................... 363
If you think something is wrong
.......................................... 366
Fuel pump shut off system .. 367
If a warning light turns on or a
warning buzzer sounds..... 368
If a warning message is dis-
played ............................... 377
If you have a flat tire (vehicles
with an emergency tire punc-
ture repair kit) ................... 379
If you have a flat tire (vehicles
with a spare tire) ............... 389
If the engine will not start .... 397
If you lose your keys ........... 399
If the electronic key does not
operate properly (vehicles with
a smart entry & start system)
.......................................... 399
If the vehicle battery is dis-
charged............................. 401
If your vehicle overheats ..... 405
If the vehicle becomes stuck
.......................................... 408
8-1. Specifications
Maintenance data (fuel, oil level,
etc.)................................... 410
Fuel information .................. 420
8-2. Customization
Customizable features ........ 422
8-3. Initialization
Items to initialize ................. 431
8-4. Certifications
Certifications ....................... 432
What to do if... (Troubleshooting)
.......................................... 552
Alphabetical Index .............. 555
8Vehicle specifications
Index

8
YARIS(HB) Owner's Manual_Europe_MK0001_en
Toyota Motor Europe NV/SA, Ave-
nue du Bourget 60 - 1140 Brussels,
Belgium www.toyota-europe.com
WARNING
■General precautions while driv- ing
Driving under the influence: Never drive your vehicle when under the influence of alcohol or drugs that have
impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment
and reduce coordination, which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might
make and be ready to avoid acci- dents.
Driver distraction: Always give your
full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you, your occupants or others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use the key.
Children may be able to start the vehi- cle or shift the vehicle into neutral. There is also a danger that children
may injure themselves by playing with the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

12
YARIS(HB) Owner's Manual_Europe_MK0001_en
Pictorial index
Pictorial index
■Exterior
Side doors ...................................................................................... P.116
Locking/unlocking ............................................................................ P.116
Opening/closing the side windows ...................................................P.139
Locking/unlocking by using the mechanical key*1............................P.400
Back door .......................................................................................P.120
Locking/unlocking ............................................................................P.121
Outside rear view mirrors .............................................................P.136
Adjusting the mirror angle ................................................................P.136
Folding the mirrors ...........................................................................P.137
Defogging the mirrors ..............................................................P.280, 285
Windshield wipers .........................................................................P.181
Precautions for winter season..........................................................P.274
Precautions for car wash .................................................................P.309
Fuel filler door ................................................................................P.186

45
1
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-2. Child safety
For safety and security
1-2.Child sa fety
“PASSENGER AIR BAG” indica-
tor
“PASSENGER AIR BAG” and “ON”
indicator light turns on when the airbag
system is on, and about after 60 sec-
onds they go off. (only when the engine
switch is in ON)
Airbag manual on-off switch
Vehicles without a smart entry &
start system: Insert the key into the
cylinder and turn to the “OFF” posi-
tion.
The “OFF” indicator light turns on (only
when the engine switch is in ON).
Vehicles with a smart entry & start
system: Insert the mechanical key
into the cylinder and turn to the
“OFF” position.
The “OFF” indicator light turns on (only
when the engine switch is in ON).
■“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it
is possible that there is a malfunction in the system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
●The “OFF” indicator does not illumi-nate when the airbag manual on-off switch is set to “OFF”.
●The indicator light does not change when the airbag manual on-off switch
is switched to “ON” or “OFF”.
Airbag manual on-off
system
This system deactivates the
front passenger airbag.
Only deactivate the airbag
when using a child restraint
system on the front passenger
seat.
System components
Deactivating the front seat
passenger airbag

46
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-2. Child safety
WARNING
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In the event that the rear seat cannot be
used, the front seat can be used as long as the airbag manual on-off sys-tem is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag deployment (inflation) may cause
serious injury or even death.
■When a child restraint system is
not installed on the front passen- ger seat
Ensure that the airbag manual on-off
system is set to “ON”. If it is left off, the airbag may not deploy in the event of an accident,
which may result in serious injury or even death.
Riding with children
Observe the following precau-
tions when children are in the
vehicle.
Use a child restraint system
appropriate for the child, until
the child becomes large
enough to properly wear the
vehicle’s seat belt.
z It is recommended that chil-
dren sit in the rear seats to
avoid accidental contact with
the shift lever, wiper switch,
etc.
z Use the rear door child-protec-
tor lock or the window lock
switch to avoid children open-
ing the door while driving or
operating the power window
accidentally. ( →P.119, 141)
zDo not let small children oper-
ate equipment which may
catch or pinch body parts,
such as the power window,
hood, back door, seats, etc.
WARNING
■When children are in the vehicle
Never leave children unattended in the vehicle, and never allow children to have or use the key.
Children may be able to start the vehi- cle or shift the vehicle into neutral. There is also a danger that children
may injure themselves by playing with the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

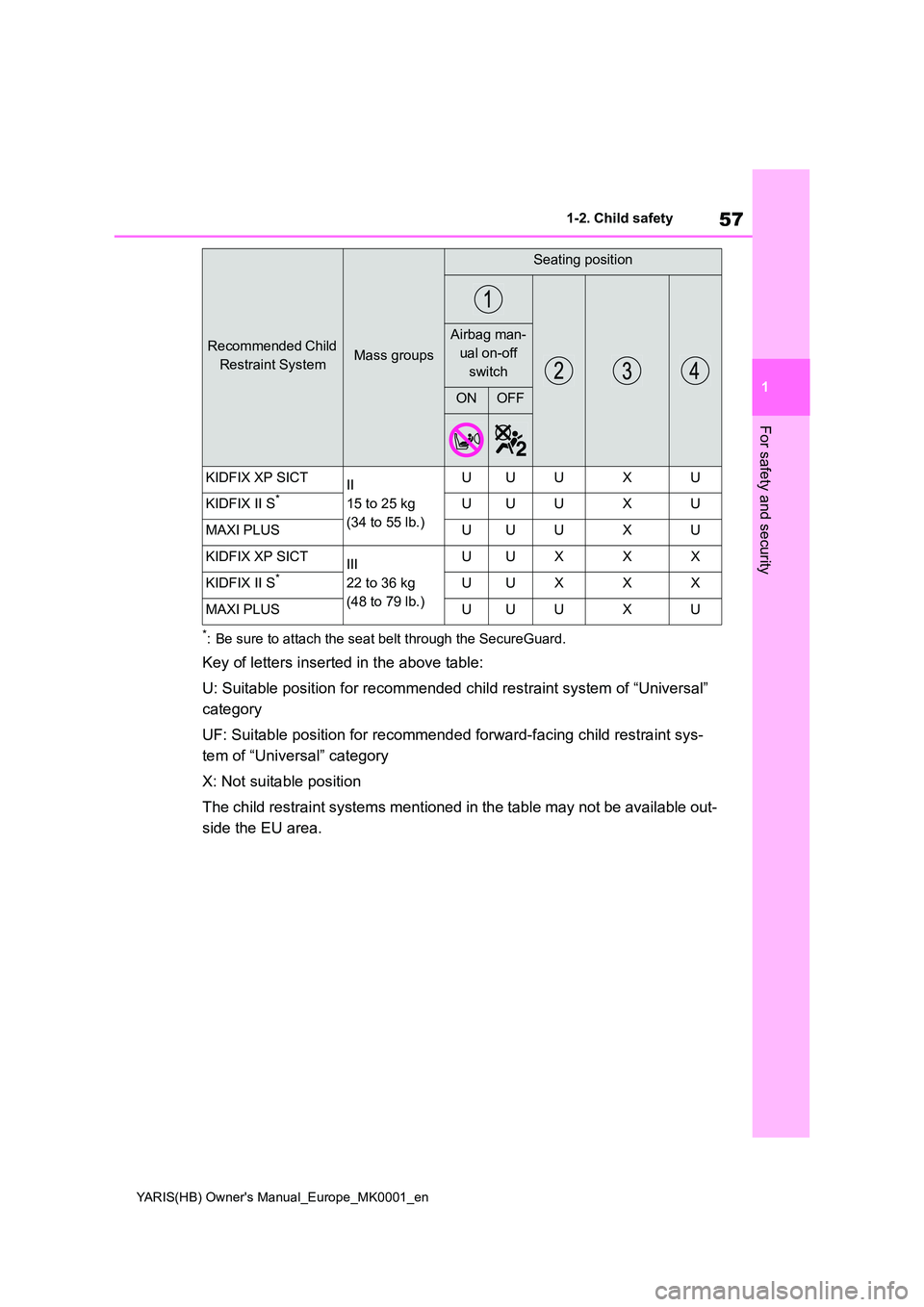

57
1
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-2. Child safety
For safety and security
*: Be sure to attach the seat belt through the SecureGuard.
Key of letters inserted in the above table:
U: Suitable position for recommended child restraint system of “Universal”
category
UF: Suitable position for recommended forward-facing child restraint sys-
tem of “Universal” category
X: Not suitable position
The child restraint systems mentioned in the table may not be available out-
side the EU area.
KIDFIX XP SICTII
15 to 25 kg
(34 to 55 lb.)
UUUXU
KIDFIX II S*UUUXU
MAXI PLUSUUUXU
KIDFIX XP SICTIII
22 to 36 kg
(48 to 79 lb.)
UUXXX
KIDFIX II S*UUXXX
MAXI PLUSUUUXU
Recommended Child
Restraint SystemMass groups
Seating position
Airbag man-
ual on-off
switch
ONOFF

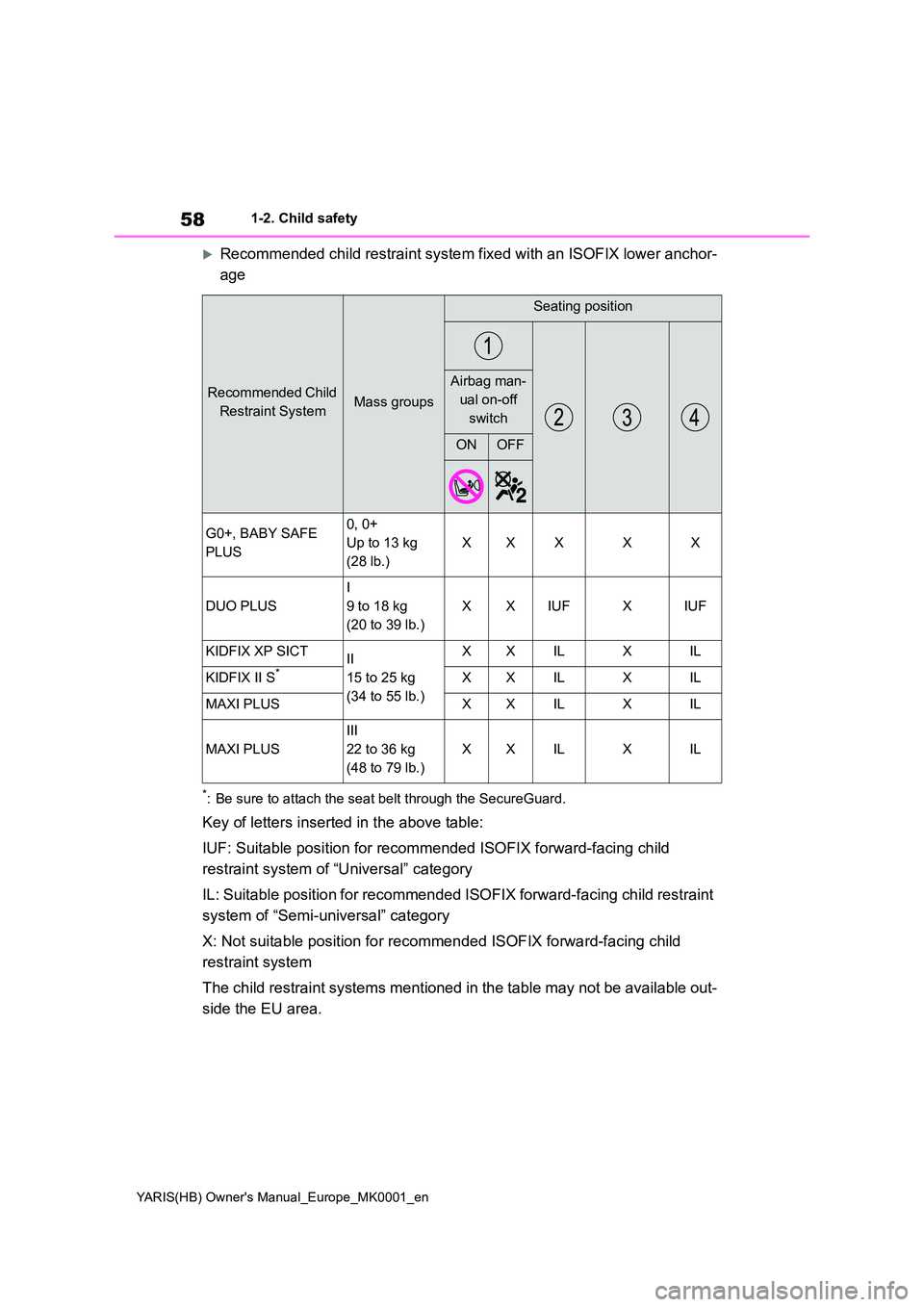

58
YARIS(HB) Owner's Manual_Europe_MK0001_en
1-2. Child safety
Recommended child restraint system fixed with an ISOFIX lower anchor-
age
*: Be sure to attach the seat belt through the SecureGuard.
Key of letters inserted in the above table:
IUF: Suitable position for recommended ISOFIX forward-facing child
restraint system of “Universal” category
IL: Suitable position for recommended ISOFIX forward-facing child restraint
system of “Semi-universal” category
X: Not suitable position for recommended ISOFIX forward-facing child
restraint system
The child restraint systems mentioned in the table may not be available out-
side the EU area.
Recommended Child
Restraint SystemMass groups
Seating position
Airbag man-
ual on-off
switch
ONOFF
G0+, BABY SAFE
PLUS
0, 0+
Up to 13 kg
(28 lb.)
XXXXX
DUO PLUS
I
9 to 18 kg
(20 to 39 lb.)
XXIUFXIUF
KIDFIX XP SICTII
15 to 25 kg
(34 to 55 lb.)
XXILXIL
KIDFIX II S*XXILXIL
MAXI PLUSXXILXIL
MAXI PLUS
III
22 to 36 kg
(48 to 79 lb.)
XXILXIL
