TOYOTA YARIS HYBRID 2014 Owner's Manual

21Pictorial index
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 223
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 369
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 191
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 193
Headlights/front position lights/tail lights . . . . . . . . . . . . . . . . . P. 193
Front fog lights
*2/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 200, 204
Usage (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 200
Usage (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 308
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 360
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 154
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 260
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 264
Audio system
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 226
Navigation/Multimedia system
*2, 3
*1: Vehicles with a smart entry & start system
*2: If equipped
*3: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12

22Pictorial index
Switches (Right-hand drive vehicles)
Outside rear view mirror switches*1. . . . . . . . . . . . . . . . . . P. 158
Manual headlight leveling dial . . . . . . . . . . . . . . . . . . . . . . . P. 195
Tire pressure warning reset switch
*1 . . . . . . . . . . . . . . . . . P. 317
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 123
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 161
1
2
3
4
5
6

23Pictorial index
Audio remote control switches . . . . . . . . . . . . . . . . . . . . . . P. 228
Telephone switch
*1, 2
Cruise control switch*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
“EV MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 186
“ECO MODE” switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 214
1
2
3
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
1
2
3

24Pictorial index
Interior (Right-hand drive vehicles)
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 39
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 147
Rear seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 152
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Inside lock buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 123
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 275
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 2841
2
3
4
5
6
7
8
9

25Pictorial index
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Sun visors
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 280
Interior light/personal lights . . . . . . . . . . . . . . . . . . . . . P. 271, 272
Panoramic roof shade
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 283
1
2
3
4
5
*1: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD
can occur. (P. 70)
*2: If equipped

26Pictorial index

27
1For safety and security
1-1. For safe use
Before driving....................... 28
For safety drive .................... 30
Seat belts ............................. 32
SRS airbags......................... 39
Airbag manual on-off
system ............................... 50
Safety information
for children ......................... 52
Child restraint systems ........ 53
Installing child restraints ...... 63
Exhaust gas precautions ..... 72
1-2. Hybrid system
Hybrid system features ........ 73
Hybrid system
precautions ........................ 77
1-3. Theft deterrent system
Immobilizer system .............. 82
Double locking system ......... 87

281-1. For safe use
Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks (clips)
into the floor mat eyelets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the
illustration.
Floor mat
1
*
2

291-1. For safe use
1
For safety and security

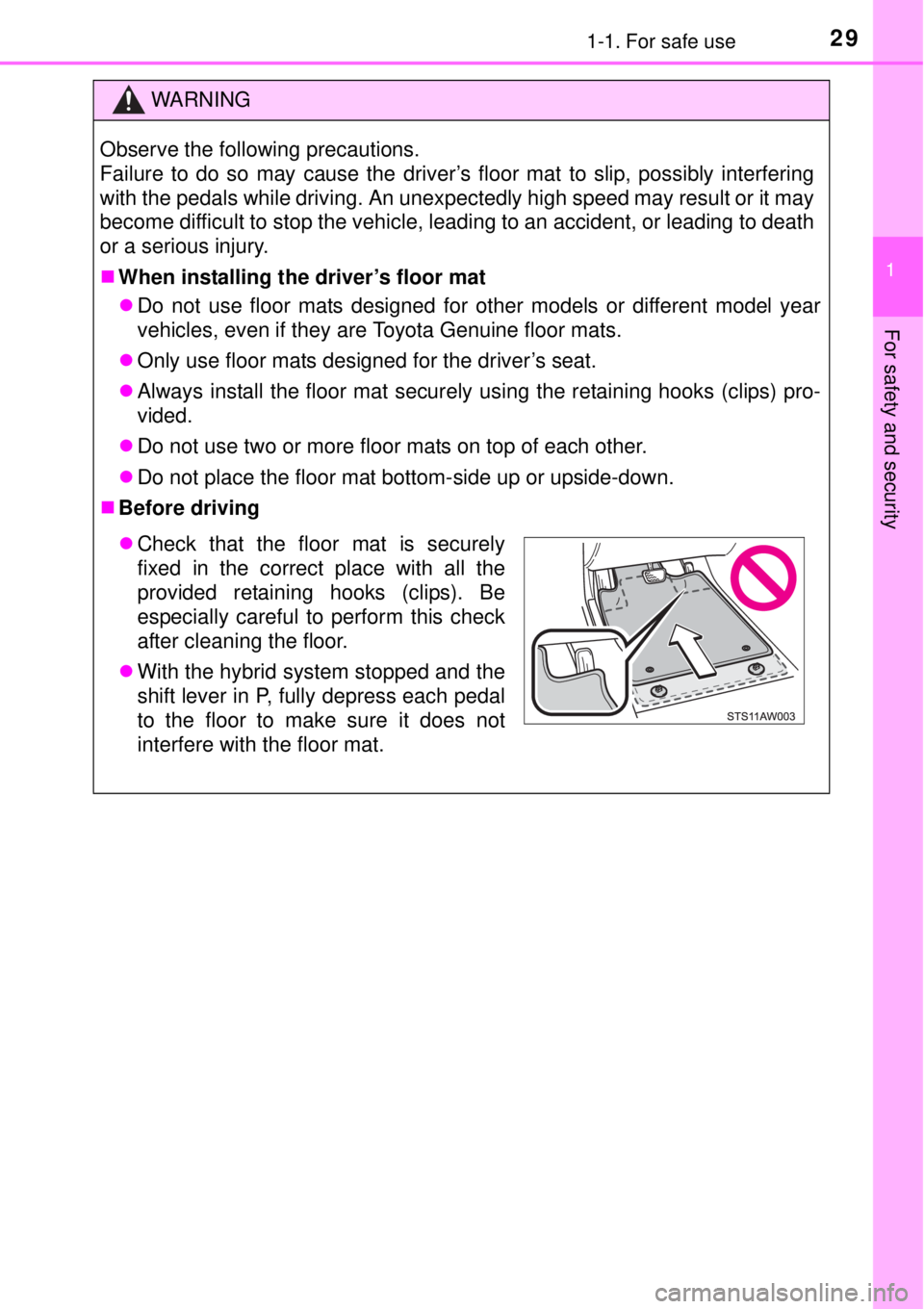

WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to an accident, or leading to death
or a serious injury.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the hybrid system stopped and the
shift lever in P, fully depress each pedal
to the floor to make sure it does not
interfere with the floor mat.

301-1. For safe use
For safety drive

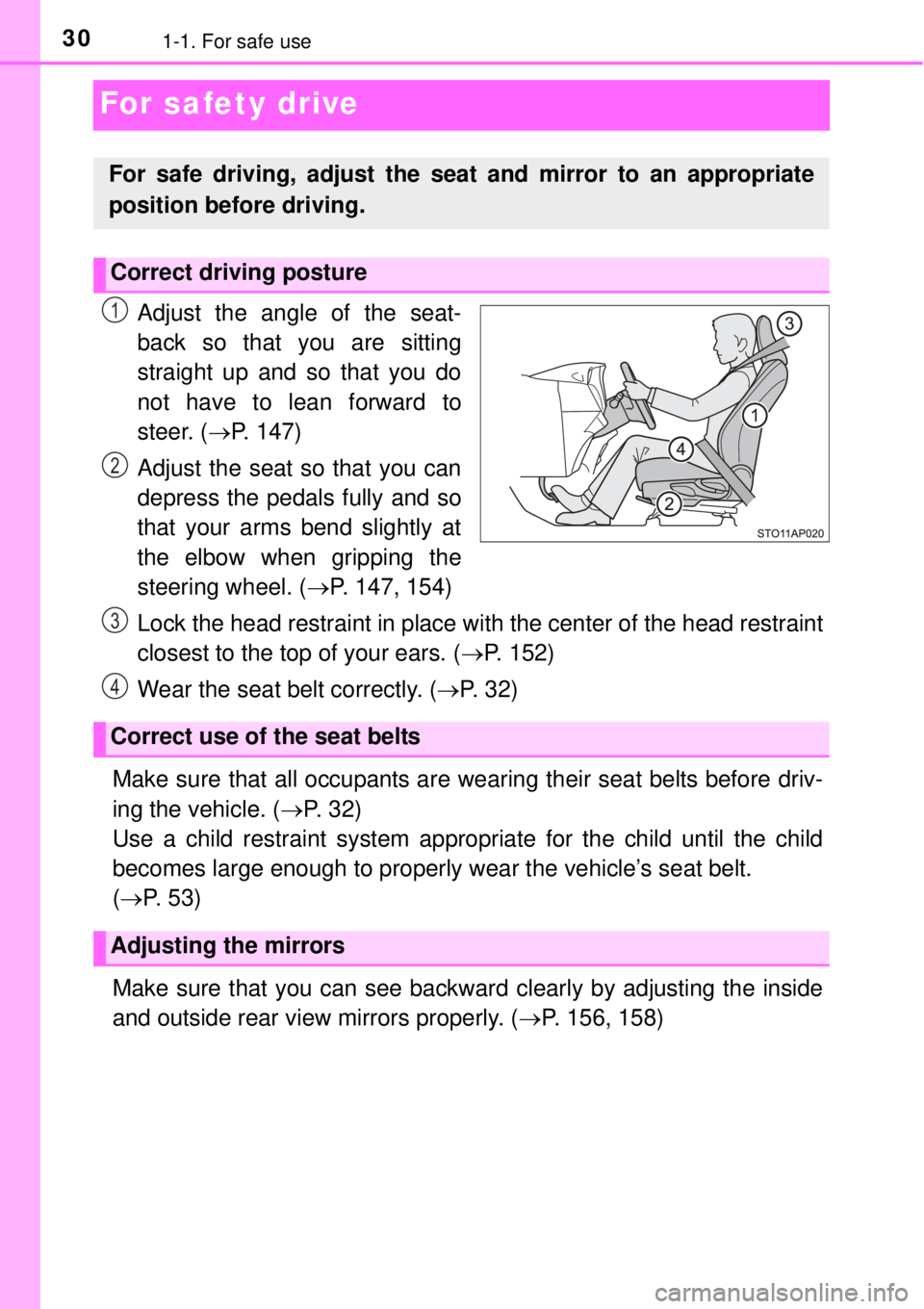

Adjust the angle of the seat-
back so that you are sitting
straight up and so that you do
not have to lean forward to
steer. (P. 147)
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. (P. 147, 154)
Lock the head restraint in place with the center of the head restraint
closest to the top of your ears. (P. 152)
Wear the seat belt correctly. (P. 3 2 )
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle. (P. 3 2 )
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
(P. 53)
Make sure that you can see backward clearly by adjusting the inside
and outside rear view mirrors properly. (P. 156, 158)
For safe driving, adjust the seat and mirror to an appropriate
position before driving.
Correct driving posture
1
2
Correct use of the seat belts
Adjusting the mirrors
3
4
