TOYOTA YARIS iA 2017 Owners Manual (in English)

YARIS iA_OM_OM99N89z_(U)
1112-3. Fuel and Emission
2
Before Driving
To open, pull the remote fuel-filler
lid release.
To close, press the fuel-filler lid
until it locks securely.Open
To remove the fuel-filler cap, turn it
counterclockwise. Attach the
removed cap to the inner side of
the fuel lid.
Close
To close the fuel-filler cap, turn it
clockwise until a click is heard.
Fuel-Filler Lid
Remote fuel-filler lid release
Fuel-Filler Cap
1
2
NOTICE
If the check fuel cap warning light illuminates, the fuel-filler cap may not be
properly installed. If the warning light illuminates, park your vehicle safely off
the right-of-way, remove the fuel-filler cap and reinstall it correctly. After the
cap has been correctly installed, the fuel cap warning light may continue to
illuminate until a number of driving cycles have been completed. A drive
cycle consists of starting the engine (after four or more hours with the
engine off) and driving the vehicle on city and highway roads.
Continuing to drive with the check fuel cap warning light illuminated could
cause the check engine light to illuminate as well.

112
YARIS iA_OM_OM99N89z_(U)
2-4. Steering Wheel
Steering Wheel
To change the angle or length of the steering wheel:Stop the vehicle, and then pull
down the lock release lever
under the steering column.
Tilt the steering wheel and/or
adjust the steering column
length to the desired positions,
then push the lever up to lock
the column.
Attempt to push the steering wheel up and down to make sure it’s
locked before driving.
To sound the horn, press the mark on the steering wheel.
Steering Wheel Adjustment
Lock release
lever
1
2
WARNING
■ Make sure that the steering wheel is locked firmly in place
If it is difficult to raise the lever, lightly move the steering wheel forward and
back to pull up the lever.
■ Never adjust the steering wheel while the vehicle is moving
Adjusting the steering wheel while the vehicle is moving is dangerous. Mov-
ing it can very easily cause the driver to abruptly turn to the left or right. This
can lead to loss of control or an accident.
Horn
3

113
YARIS iA_OM_OM99N89z_(U)
2-5. Mirrors
2
Before Driving
Mirrors
■Mirror type
Flat type (driver’s side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its surface.
■Power mirror adjustment
The ignition must be switched to ACC or ON position.
To adjust:
Rotate the mirror switch to
the left or right to choose
the left or right side mirror.
Press the mirror switch in the
appropriate direction.
After adjusting the mirror,
lock the control by rotating
the switch in the center posi-
tion.
Before driving, adjust the inside and outside mirrors.
Outside Mirrors
Center position
Mirror switch1
2

114
YARIS iA_OM_OM99N89z_(U)
2-5. Mirrors
■Folding mirror
Fold the outside mirror rear-
ward until it is flush with the
vehicle.
■Rearview mirror adjustment
Before driving, adjust the rear-
view mirror to center on the
scene through the rear window.
WARNING
■Be sure to look over your shoulder before changing lanes
Changing lanes without taking into account the actual distance of the vehi-
cle in the convex mirror is dangerous. You could have a serious accident.
What you see in the convex mirror is closer than it appears.
■ Always return the outside mirrors to the driving position before you
start driving
Driving with the outside mirrors folded in is dangerous. Your rear view will
be restricted, and you could have an accident.
Rearview Mirror

YARIS iA_OM_OM99N89z_(U)
1152-5. Mirrors
2
Before Driving
■Reducing glare from headlights
Adjust the mirror with the day/night lever in the day position.
Push the day/night lever for-
ward for day driving. Pull it back
to reduce glare of headlights
from vehicles at the rear. Day
Night
Day/Night lever
1
2
WARNING
■Do not stack cargo or objects higher than the seatbacks
Cargo stacked higher than the seatbacks is dangerous. It can block your
view in the rearview mirror, which might cause you to hit another car when
changing lanes.
■ Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

116
YARIS iA_OM_OM99N89z_(U)
2-6. Windows
Power Windows
The ignition must be switched ON for the power windows to operate.
A power window may no longer open/close if you continue to press the switch
after fully opening/closing the power window. If the power window does not
open/close, wait a moment and then operate the switch again.
■
Normal opening/closingClose
To close the window to the
desired position, lightly pull up
the switch.
Open
To open the window to the
desired position, lightly hold
down the switch.
WARNING
■Make sure the opening is clear before closing a window
Closing a power window is dangerous. A person’s hands, head, or even
neck could be caught by the window and result in serious injury or even
death. This warning applies especially to children.
■ Never allow children to play with power window switches
Power window switches that are not locked with the power window lock
switch would allow children to operate power windows unintentionally,
which could result in serious injury if a child’s hands, head or neck becomes
caught by the window.
NOTICE
To prevent burning out the fuse and damaging the power window system,
do not open or close more than three windows at once.
Operating the Driver’s Side Power Window
Master control switches
Driver’s
window
1
2

YARIS iA_OM_OM99N89z_(U)
1172-6. Windows
2
Before Driving
■Auto-opening/closing
To fully open the window automatically, press the switch completely
down, then release. The window will fully open automatically.
To fully close the window automat ically, pull the switch completely
up, then release. The window will fully close automatically.
To stop the window partway, pull or press the switch in the opposite
direction and then release it.
● Power window system initialization procedure
If the battery was disconnected during vehicle maintenance, or
for other reasons (such as a switch continues to be operated
after the window is fully open/cl osed), the window will not fully
open and close automatically.
The power window auto function will only resume on a power
window that has been reset.
Switch the ignition ON.
Make sure that the power window lock switch located on the
driver’s door is not depressed.
Press the switch and fully open the window.
Pull up the switch to fully close the window and continue hold-
ing the switch for about 2 seconds after the window fully
closed.
■Jam-safe window
If a person’s hands, head or an obj ect blocks the window during the
auto-closing operatio n, the window will stop and open halfway.
■Engine-off power window operation
The power window can be operated for about 40 seconds after the
ignition is switched from ON to off with all doors closed. If any door
is opened, the power window will stop operating.
1
2
3
4

118
YARIS iA_OM_OM99N89z_(U)
2-6. Windows
■Jam-safe window
●Depending on driving conditions, a closing power window could stop and
start opening when the window feels a shock that is similar to something
blocking it.
In the event the jam-safe function activates and the power window cannot
be closed automatically, pull and hold the switch and the window will close.
● The jam-safe window function does not operate until the system has been
reset.
■ Engine-off power window operation
For engine-off operation of the power window, the switch must be held up
firmly throughout window closure because the auto-closing function will be
inoperable.
Close
To close the window to the desired
position, pull up the switch.
Open
To open the window to the desired
position, hold down the switch.
WARNING
■Make sure nothing blocks the window just before it reaches the fully
closed position or while holding up the power window switch
Blocking the power window just before it reaches the fully closed position or
while holding up the power window switch is dangerous.
In this case, the jam-safe function cannot prevent the window from closing
all the way. If fingers are caught, serious injuries could occur.
Operating the Passenger Power Windows
1
2

YARIS iA_OM_OM99N89z_(U)
1192-6. Windows
2
Before Driving
●The power windows may be operated when the power window lock switch
on the driver’s door is in the unlocked position.
● The passenger windows may be opened or closed using the master control
switches on the driver’s door.
This feature prevents all power win dows from operating, except the
driver’s power window. Keep this switch in the locked position while
children are in the vehicle.
Locked position (button
depressed)
Only the driver’s power window
can be operated.
Unlocked position (button not
depressed)
All power windows on each door
can be operated.Driver’s window
Front passenger’s window
Right rear window
Left rear window
Power Window Lock Switch
1
2
3
4
Master control switches
1
2

120
YARIS iA_OM_OM99N89z_(U)
2-7. Security System

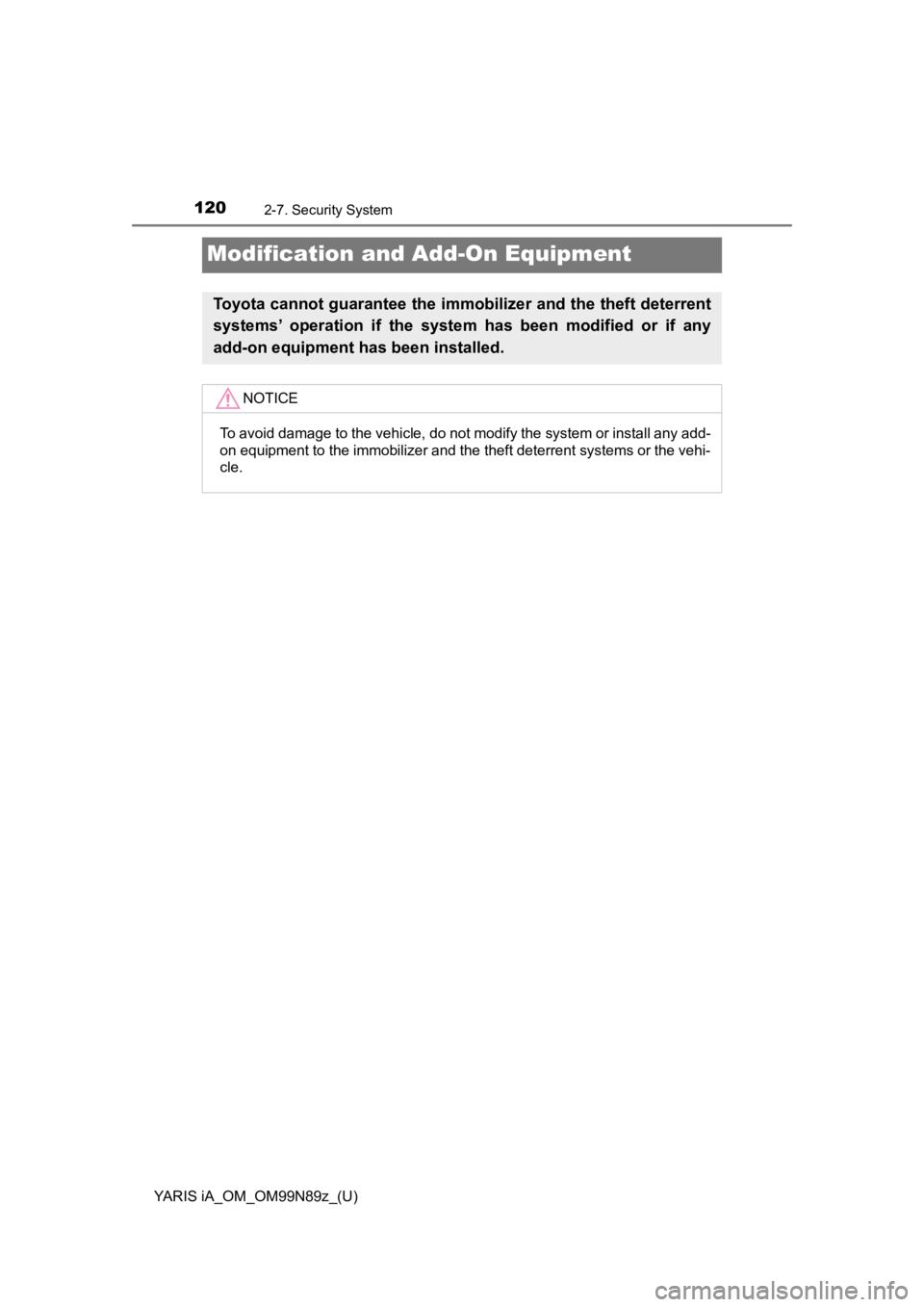

Modification and Add-On Equipment
Toyota cannot guarantee the immobilizer and the theft deterrent
systems’ operation if the system has been modified or if any
add-on equipment has been installed.
NOTICE
To avoid damage to the vehicle, do not modify the system or install any add-
on equipment to the immobilizer and the theft deterrent systems or the vehi-
cle.
