5-1. Essential Information
Introduction
Be extremely careful and prevent injury to yourself and others or dam-
age to your vehicle when using this manual for inspection and mainte-
nance.
If you are unsure about any procedure it describes, we strongly urge
you to have a reliable and qualified service shop perform the work,
preferably your Toyota dealer.
Factory-trained Toyota technicians and genuine Toyota parts are best
for your vehicle. Without this expe rtise and the parts that have been
designed and made especially for your Toyota, inadequate, incom-
plete, and insufficient servicing may result in problems. This could
lead to vehicle damage or an accident and injuries.
For expert advice and quality service, consult your Toyota dealer.
To continue warranty eligibility and to protect your investment, it is
your responsibility to pr operly maintain your vehicle according to fac-
tory recommended schedul es outlined in this manual. Keep a copy of
the repair order. It proves that the maintenance that has been per-
formed is under warranty coverage. If any problem should arise while
your vehicle is under warranty, your Toyota dealer will promptly take
care of it.
This evidence may consist of the following: • The Maintenance Log, found within the Warranty and Maintenance Guide, must be completely filled out showing mileage, repair order
number, date for each service, and signed by a qualified automotive
service technician who service vehicles.
• Original copies of repair orders or other receipts that include the mileage and date the vehicle was serviced. Each receipt should be
signed by a qualified automot ive service technician.
• For self maintenance, a statemen t that you completed the mainte-
nance yourself, displaying mileag e and the date the work was per-
formed. Also, receipts for the replac ement parts (fluid, filters, etc.)
indicating the date and mileage mu st accompany this statement.

YARIS iA_OM_OM99N89z_(U)
4135-1. Essential Information
5
Maintenance and Care
Claims against the warranty resulting from lack of maintenance, as
opposed to defective materials or authorized Toyota workmanship, will
not be honored.
Any auto repair shop using parts equivalent to your Toyota’s original
equipment may perform maintenance. But we recommend that it
always be done by your Toyota dealer using genuine Toyota parts.
Selecting “Maintenance Monitor” enables the system to notify you of
your vehicle’s approaching inspection/servicing period (→P. 414).
If you elect to perform maintenance yourself or have your vehicle serviced at
a location other than your Toyota dealer, Toyota requires that all fluids, parts
and materials must meet Toyota standards for durability and performance as
described in this manual.

414
YARIS iA_OM_OM99N89z_(U)
5-2. Scheduled Maintenance
Maintenance Monitor
“Oil Change” with a flexible setting*1 is available. Consult your Toyota
dealer when you want to change the setting
*2. Once the system turns
on, the wrench indi cator light in the combinat ion meter will be illumi-
nated when remaining oil life becomes less than 300 miles (500 km),
or remaining days are less than 15 (whichever comes first).
*1: The flexible setting is available in the United States and Puerto Rico. Based on the engine operating conditions, the onboard computer in your
vehicle calculates the remaining oil life. Toyota Genuine Motor Oil 0W-20
or equivalent are required to achieve optimum calculation performance.
*2: Once the Flexible Oil Maintenance Setting is selected, the system must bereset whenever replacing the engine oil.
■
Reset method
Press and hold the selector with
the ignition switched off, then
switch it on. Keep pressing the
selector for mo re than 5 sec-
onds. The master warning light
will flash for a few seconds
when the reset is completed.
Select the icon on the home screen to display the “Applica-
tions” screen.
Select “Maintenance” to display the maintenance list screen.
Switch the tab and select the se tting item you want to change.
Maintenance Monitor (Type A audio)
Selector
Maintenance Monitor (Type B audio)
1
2
3

YARIS iA_OM_OM99N89z_(U)
4155-2. Scheduled Maintenance
5
Maintenance and Care

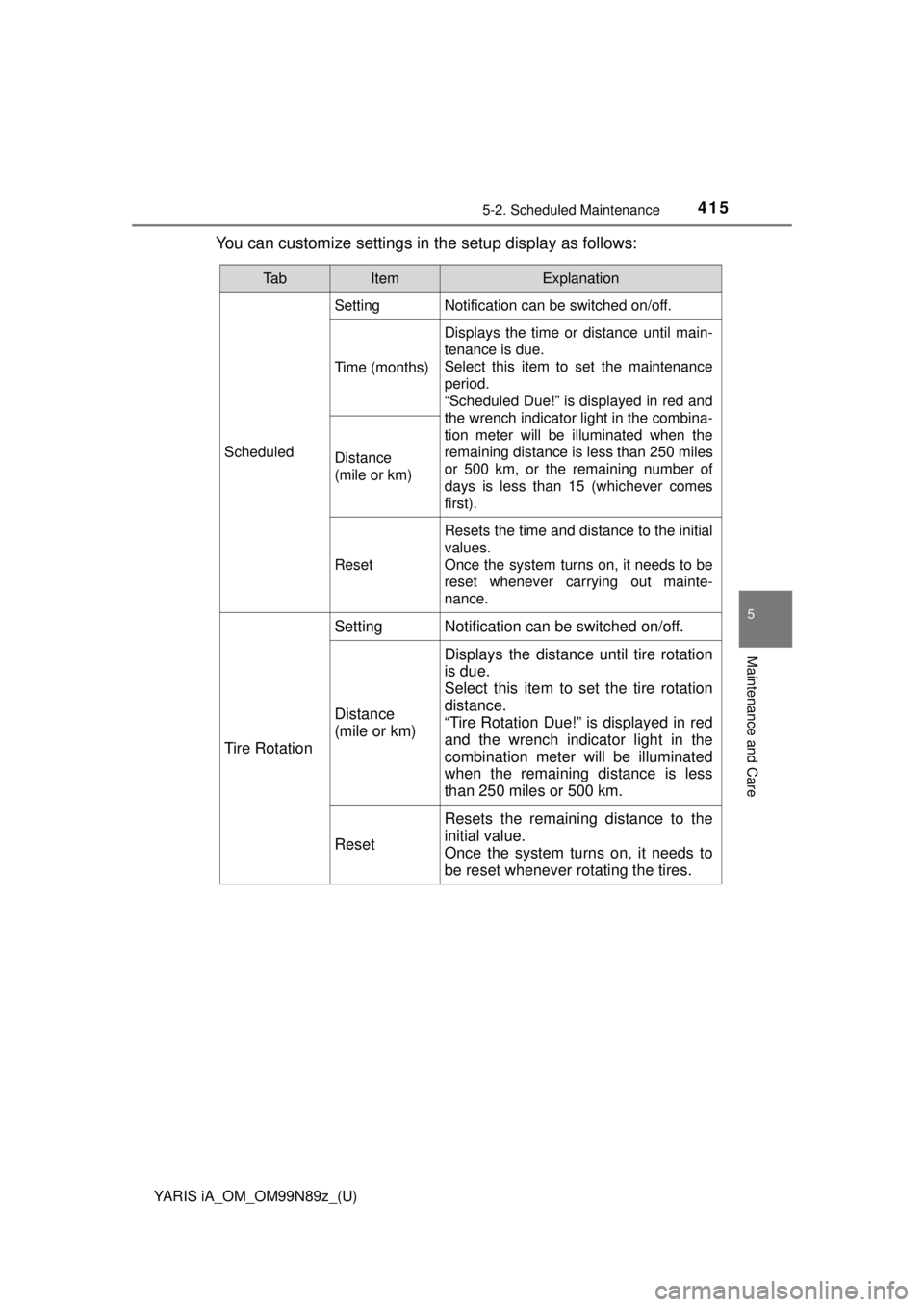

You can customize settings in the setup display as follows:
Ta bItemExplanation
Scheduled
SettingNotification can be switched on/off.
Time (months)
Displays the time or distance until main-
tenance is due.
Select this item to set the maintenance
period.
“Scheduled Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining distance is less than 250 miles
or 500 km, or the remaining number of
days is less than 15 (whichever comes
first).
Distance
(mile or km)
Reset
Resets the time and distance to the initial
values.
Once the system turns on, it needs to be
reset whenever carrying out mainte-
nance.
Tire Rotation
SettingNotification can be switched on/off.
Distance
(mile or km)
Displays the distance until tire rotation
is due.
Select this item to set the tire rotation
distance.
“Tire Rotation Due!” is displayed in red
and the wrench indicator light in the
combination meter will be illuminated
when the remaining distance is less
than 250 miles or 500 km.
Reset
Resets the remaining distance to the
initial value.
Once the system turns on, it needs to
be reset whenever rotating the tires.

4165-2. Scheduled Maintenance
YARIS iA_OM_OM99N89z_(U)
Oil Change
Setting Inter-
val
Oil replacement period can be selected
from the flexible setting or fixed setting,
or it can be set to non-display.
The flexible setting is available only in the
United States and Puerto Rico. Once
engine oil flexible maintenance is
selected, the vehicle calculates the
remaining oil life based on the engine
operating conditions. The vehicle lets you
know when an oil change is due by illumi-
nating the wrench indicator light in the
combination meter. Toyota Genuine
Motor Oil or equivalent are required to
achieve optimum performance.
Distance (mile
or km)
(Displays only
in fixed set-
ting)
Displays the distance until the oil replace-
ment is due.
Select this item to set the oil replacement
distance.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining distance is less than 250 miles
or 500 km.
Oil life (%)
(Displays only
in flexible set-
ting)
Displays the engine oil life until the oil
replacement is due.
“Oil Change Due!” is displayed in red and
the wrench indicator light in the combina-
tion meter will be illuminated when the
remaining oil life distance is less than
250 miles (500 km), or remaining days
are less than 15 (whichever comes first).
Reset
In flexible setting:
Resets the remaining oil life to 100%.
In fixed setting:
Resets the remaining distance to the ini-
tial value.
Once the Flexible Oil Maintenance Set-
ting is selected, the system must be reset
whenever replacing the engine oil.
Ta bItemExplanation

417
YARIS iA_OM_OM99N89z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Owner Maintenance Precautions
The owner or a qualified service technician should make these vehicle
inspections at the indicated inte rvals to ensure safe and dependable
operation.
Bring any problem to the attention of your Toyota dealer or qualified
service technician as soon as possible.
■When Refueling • Brake and clutch fluid level ( →P. 428)
• Engine coolant level ( →P. 425)
• Engine oil level ( →P. 424)
• Washer fluid level ( →P. 429)
■At Least Monthly
• Tire inflation pressures ( →P. 439)
■At Least Twice a Year (For Example, Every Spring and Fall)
You can do the following scheduled maintenance items if you have
some mechanical ability and a few basic tools and if you closely fol-
low the directions in this manual.
• Engine coolant ( →P. 425)
• Engine oil ( →P. 422)
Improper or incomplete service may result in problems. This section
gives instructions only for items that are easy to perform.
As explained in the Introduction ( →P. 412), several procedures can be
done only by a qualified service technician with special tools.
Improper owner maintenance during the warranty period may affect
warranty coverage. Refer to Introduction ( →P. 412) for owner’s
responsibility in protecting your in vestment. For details, read the sep-
arate Toyota Warranty and Mainten ance Guide provided with the vehi-
cle. If you are unsure about any se rvicing or maintenance procedure,
have it done by your Toyota dealer.
There are strict environmental laws regarding the disposal of waste oil
and fluids. Please dispose of your waste properly and with due regard
to the environment.
We recommend that you entrust the oil and fluid changes of your vehi-
cle to your Toyota dealer.

4185-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)
WARNING
■Do not perform maintenance work if you lack sufficient knowledge and
experience or the proper tools an d equipment to do the work. Have
maintenance work done by a qualified technician
Performing maintenance work on a vehicle is dangerous if not done prop-
erly. You can be seriously injured while performing some maintenance pro-
cedures.
■ If you must run the engine while working under the hood, make certain
that you remove all jewelry (especially rings, bracelets, watches, and
necklaces) and all neckties, scarves, and similar loose clothing before
getting near the engine or coolin g fan which may turn on unexpectedly
Working under the hood with the engine running is dangerous. It becomes
even more dangerous when you wear jewelry or loose clothing.
Either can become entangled in moving parts and result in injury.
■ Switch the ignition to off and make sure the fan is not running
before attempting to work near the cooling fan
Working near the cooling fan when it is running is dangerous. The fan could
continue running indefinitely even if the engine has stopped and the engine
compartment temperature is high. You could be hit by the fan and seriously
injured.
■ Do not leave items in th e engine compartment
After you have finished checking or doing servicing in the engine compart-
ment, do not forget and leave items such as tools or rags in the engine com-
partment.
Tools or other items left in the engine compartment could cause engine
damage or a fire leading to an unexpected accident.

419
YARIS iA_OM_OM99N89z_(U)
5-3. Owner Maintenance
5
Maintenance and Care
Hood
With the vehicle parked, pull the
release handle to unlock the
hood.
Insert your hand into the hood
opening, slide the latch lever to
the right, and lift up the hood.
Grasp the support rod in the
padded area and secure it in
the support rod hole indicated
by the arrow to hold the hood
open.
Opening the Hood
Release handle
1
Lever
2
Pad
ClipClip
3

4205-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)
Check under the hood area to make certain all filler caps are in
place and all loose items (e.g. tools, oil containers, etc.) have been
removed.
Lift the hood, grasp the padded
area on the support rod, and
secure the support rod in the
clip. Verify that the support rod
is secured in the clip before
closing the hood.
Lower the hood slowly to a height of about 7.9 in. (200 mm) above
its closed position and then let it drop.

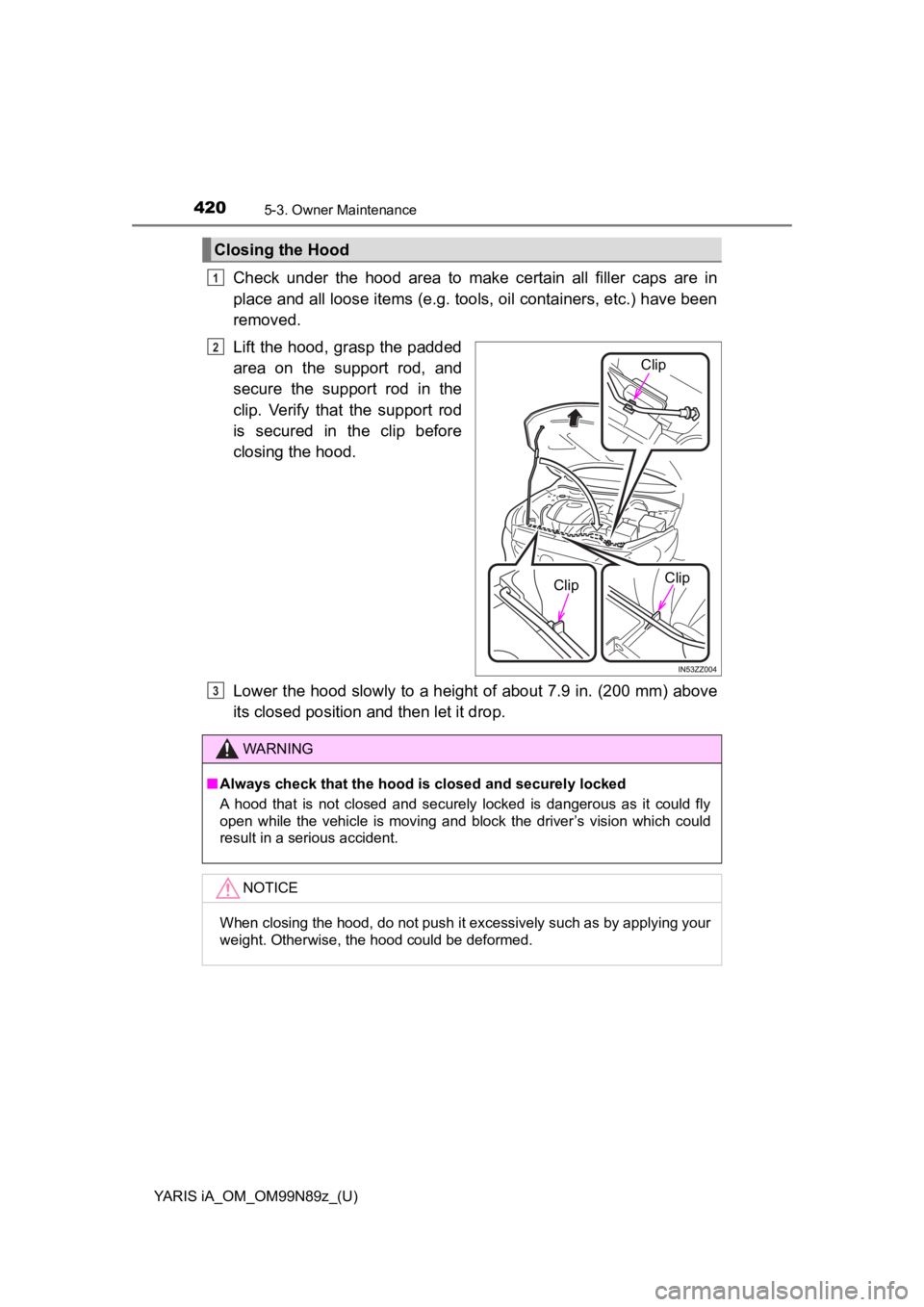

Closing the Hood
1
Clip
ClipClip
2
WARNING
■ Always check that the hood is closed and securely locked
A hood that is not closed and securely locked is dangerous as it could fly
open while the vehicle is moving and block the driver’s vision which could
result in a serious accident.
NOTICE
When closing the hood, do not push it excessively such as by applying your
weight. Otherwise, the hood could be deformed.
3
