TOYOTA YARIS iA 2017 Owners Manual (in English)

YARIS iA_OM_OM99N89z_(U)
4515-3. Owner Maintenance
5
Maintenance and Care
Install the new bulb in the reverse order of the removal proce-
dure.
Insert the cover tabs and install the cover.
Verify that the cover is securely installed.
■

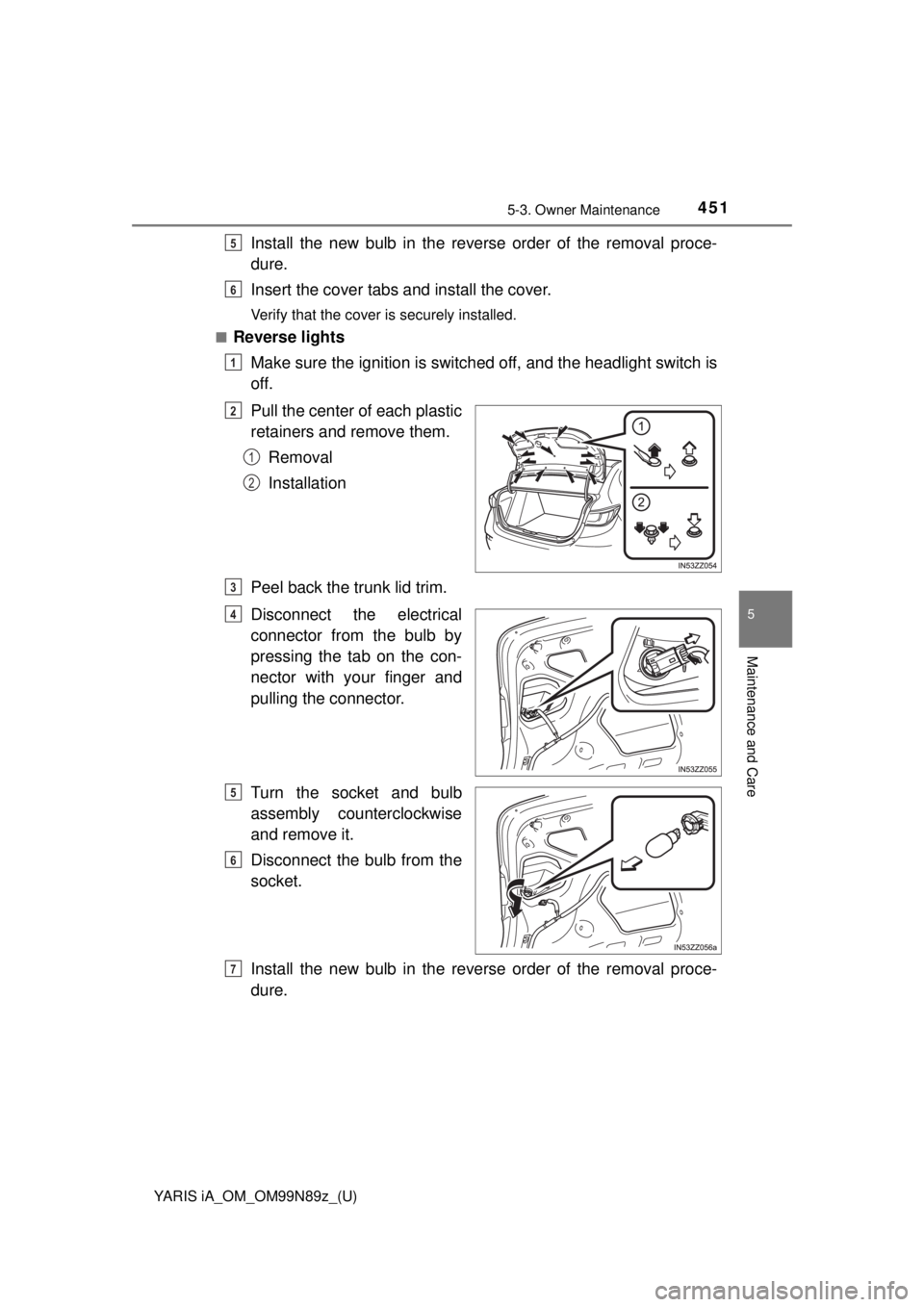

Reverse lights
Make sure the ignition is switched off, and the headlight switch is
off.
Pull the center of each plastic
retainers and remove them.Removal
Installation
Peel back the trunk lid trim.
Disconnect the electrical
connector from the bulb by
pressing the tab on the con-
nector with your finger and
pulling the connector.
Turn the socket and bulb
assembly counterclockwise
and remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
5
6
1
2
1
2
3
4
5
6
7

4525-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)■

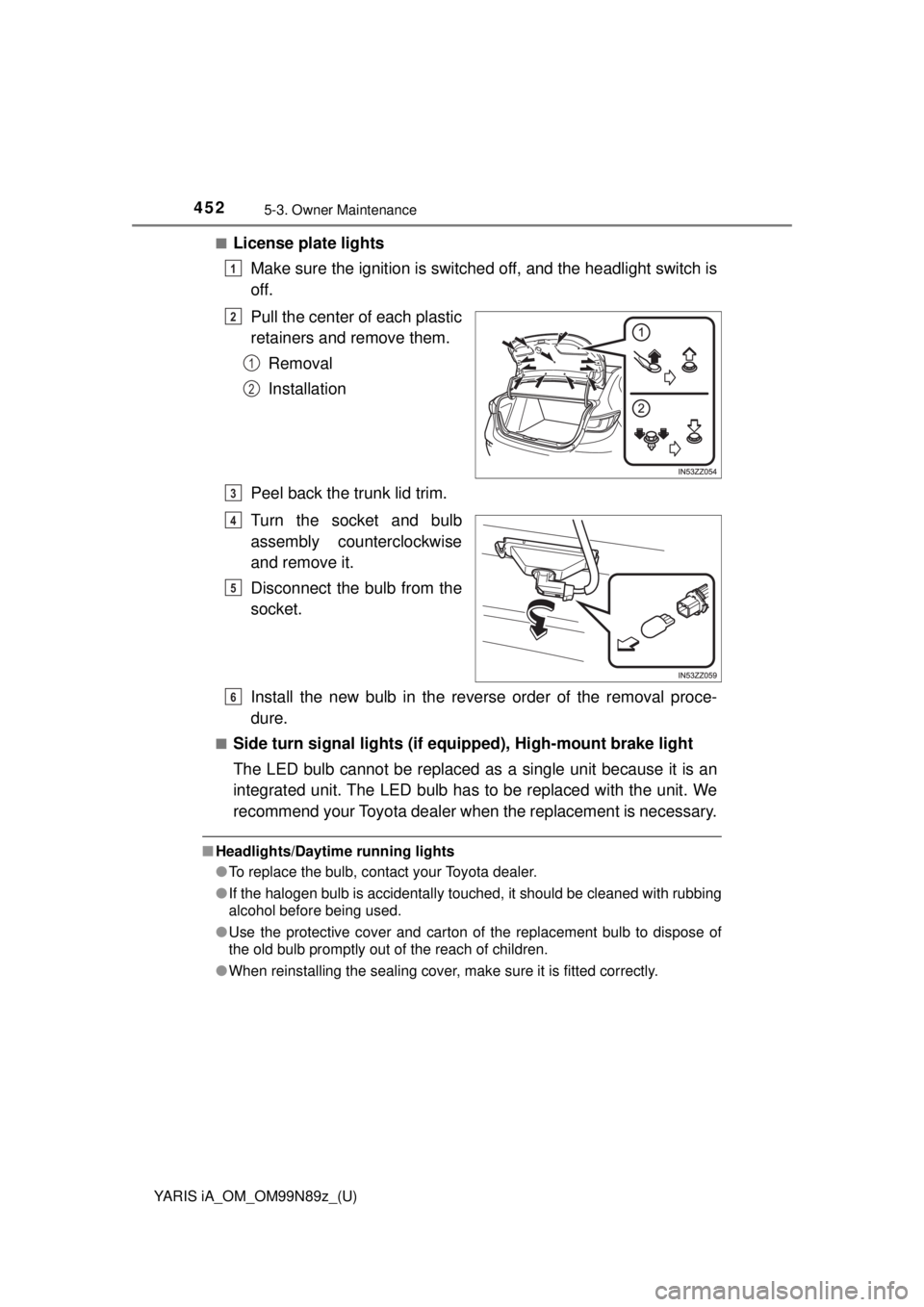

License plate lights
Make sure the ignition is switched off, and the headlight switch is
off.
Pull the center of each plastic
retainers and remove them.Removal
Installation
Peel back the trunk lid trim.
Turn the socket and bulb
assembly counterclockwise
and remove it.
Disconnect the bulb from the
socket.
Install the new bulb in the reverse order of the removal proce-
dure.
■Side turn signal lights (if e quipped), High-mount brake light
The LED bulb cannot be replaced as a single unit because it is an
integrated unit. The LED bulb has to be replaced with the unit. We
recommend your Toyota dealer when the replacement is necessary.
■ Headlights/Daytime running lights
●To replace the bulb, contact your Toyota dealer.
● If the halogen bulb is accidentally touched, it should be cleaned with rubbing
alcohol before being used.
● Use the protective cover and carton of the replacement bulb to dispose of
the old bulb promptly out of the reach of children.
● When reinstalling the sealing cover, make sure it is fitted correctly.
1
2
1
2
3
4
5
6

YARIS iA_OM_OM99N89z_(U)
4535-3. Owner Maintenance
5
Maintenance and Care
■Overhead lights/Map lightsWrap a small flathead screw-
driver with a soft cloth to pre-
vent damage to the lens, and
then remove the lens by
carefully prying on the edge
of the lens with the flathead
screwdriver.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
Replacing Interior Light Bulbs
1
2
3

4545-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)■

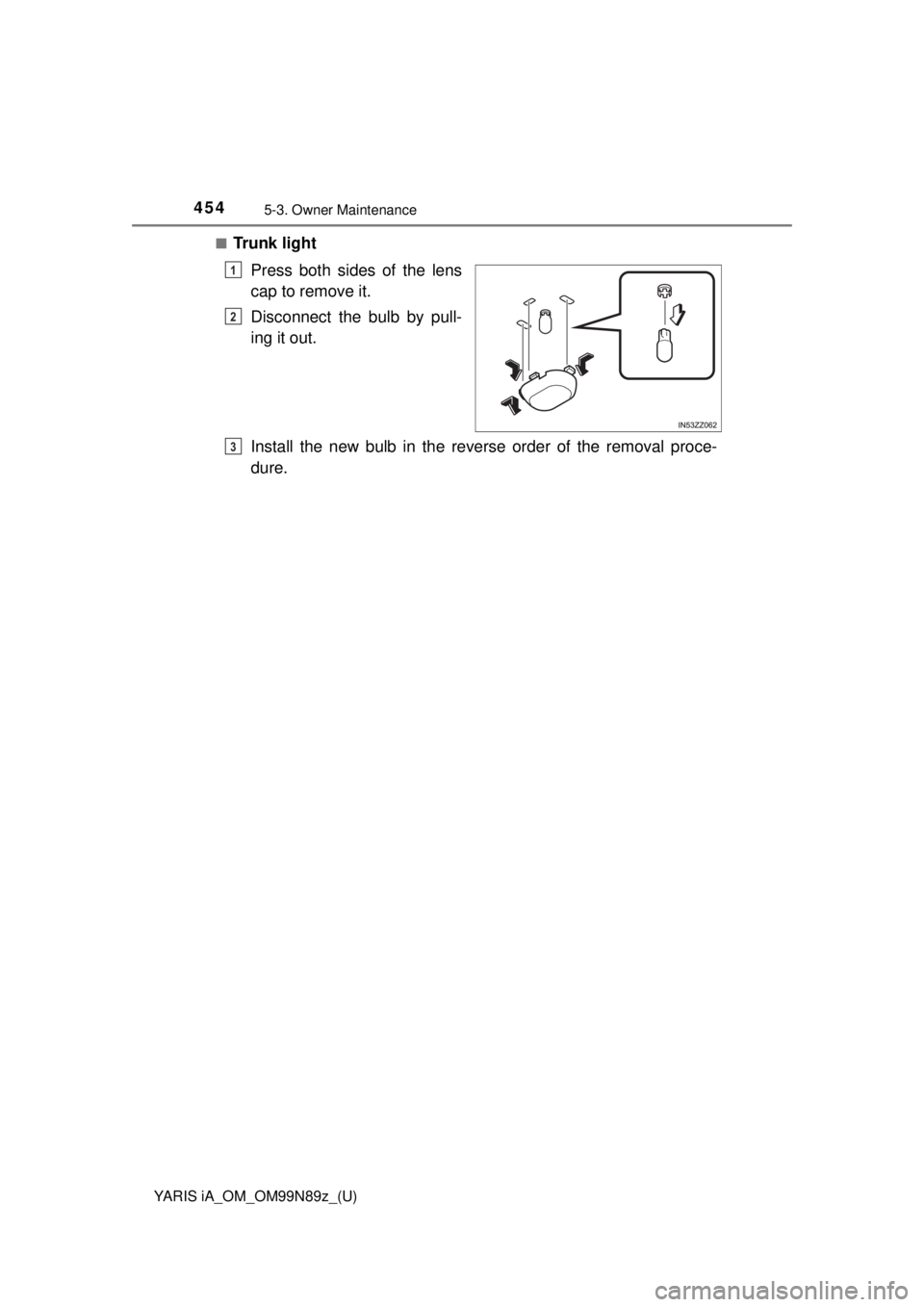

Trunk light
Press both sides of the lens
cap to remove it.
Disconnect the bulb by pull-
ing it out.
Install the new bulb in the reverse order of the removal proce-
dure.
1
2
3

455
YARIS iA_OM_OM99N89z_(U)
5-3. Owner Maintenance
5
Maintenance and Care

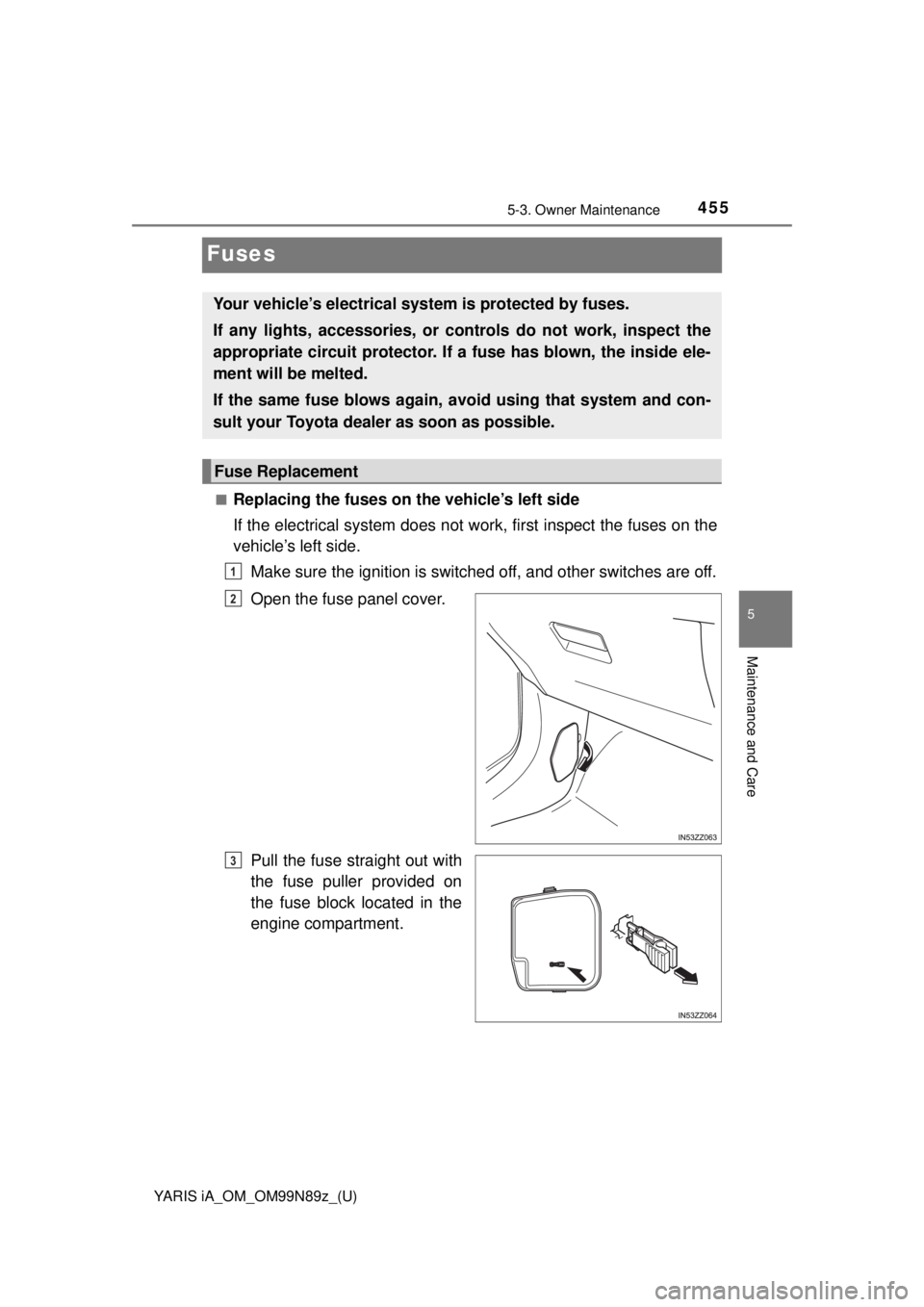

Fuses
■Replacing the fuses on the vehicle’s left side
If the electrical system does not work, first inspect the fuses on the
vehicle’s left side.
Make sure the ignition is switched off, and other switches are off.
Open the fuse panel cover.
Pull the fuse straight out with
the fuse puller provided on
the fuse block located in the
engine compartment.
Your vehicle’s electrical system is protected by fuses.
If any lights, accessories, or controls do not work, inspect the
appropriate circuit protector. If a fuse has blown, the inside ele-
ment will be melted.
If the same fuse blows again, avoid using that system and con-
sult your Toyota dealer as soon as possible.
Fuse Replacement
1
2
3

4565-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)

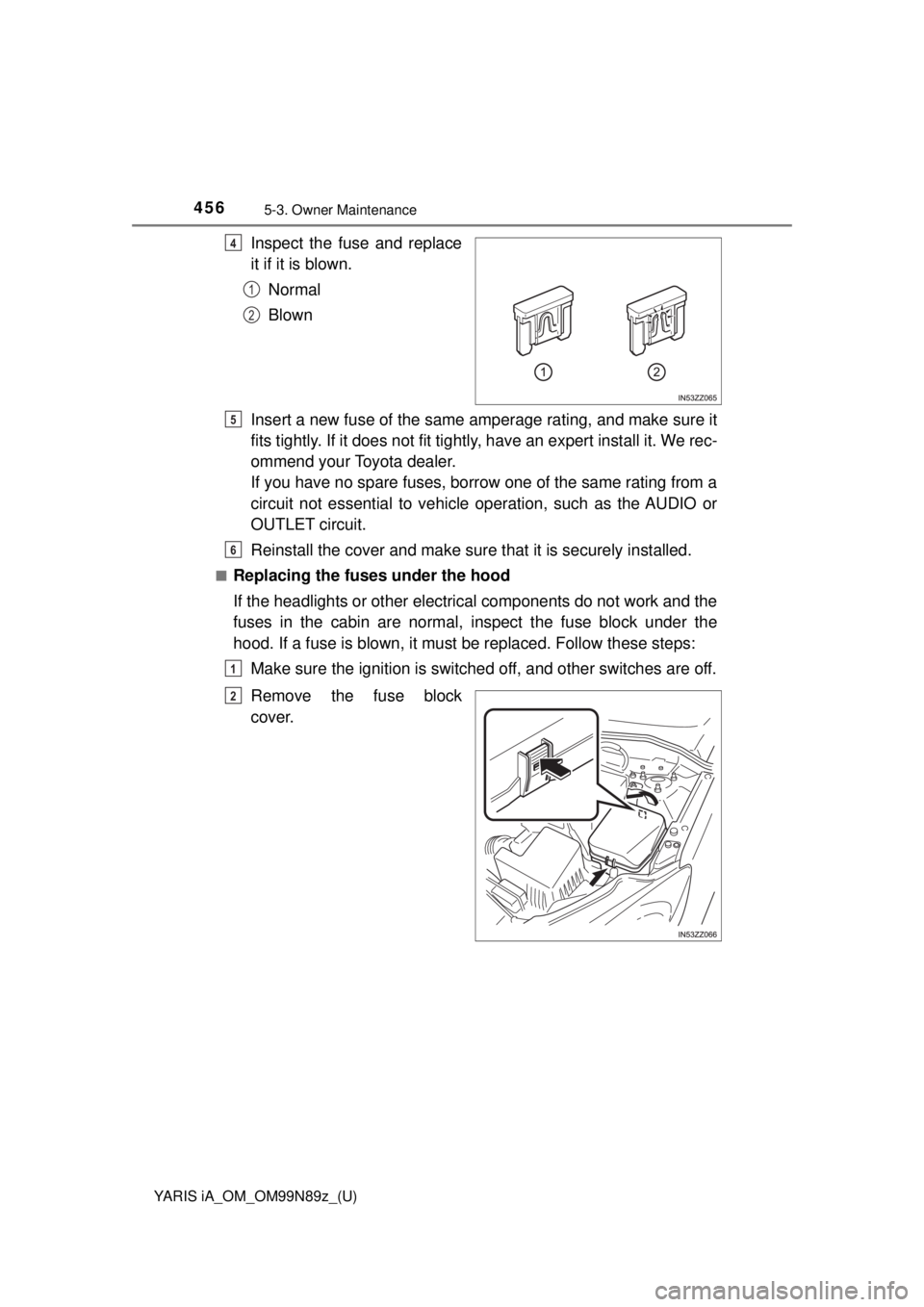

Inspect the fuse and replace
it if it is blown.Normal
Blown
Insert a new fuse of the same amperage rating, and make sure it
fits tightly. If it does not fit tigh tly, have an expert install it. We rec-
ommend your Toyota dealer.
If you have no spare fuses, borrow one of the same rating from a
circuit not essential to vehicle operation, such as the AUDIO or
OUTLET circuit.
Reinstall the cover and make sure that it is securely installed.
■Replacing the fuses under the hood
If the headlights or other electrical components do not work and the
fuses in the cabin are normal, inspect the fuse block under the
hood. If a fuse is blown, it must be replaced. Follow these steps:
Make sure the ignition is switched off, and other switches are off.
Remove the fuse block
cover.
4
1
2
5
6
1
2

YARIS iA_OM_OM99N89z_(U)
4575-3. Owner Maintenance
5
Maintenance and Care

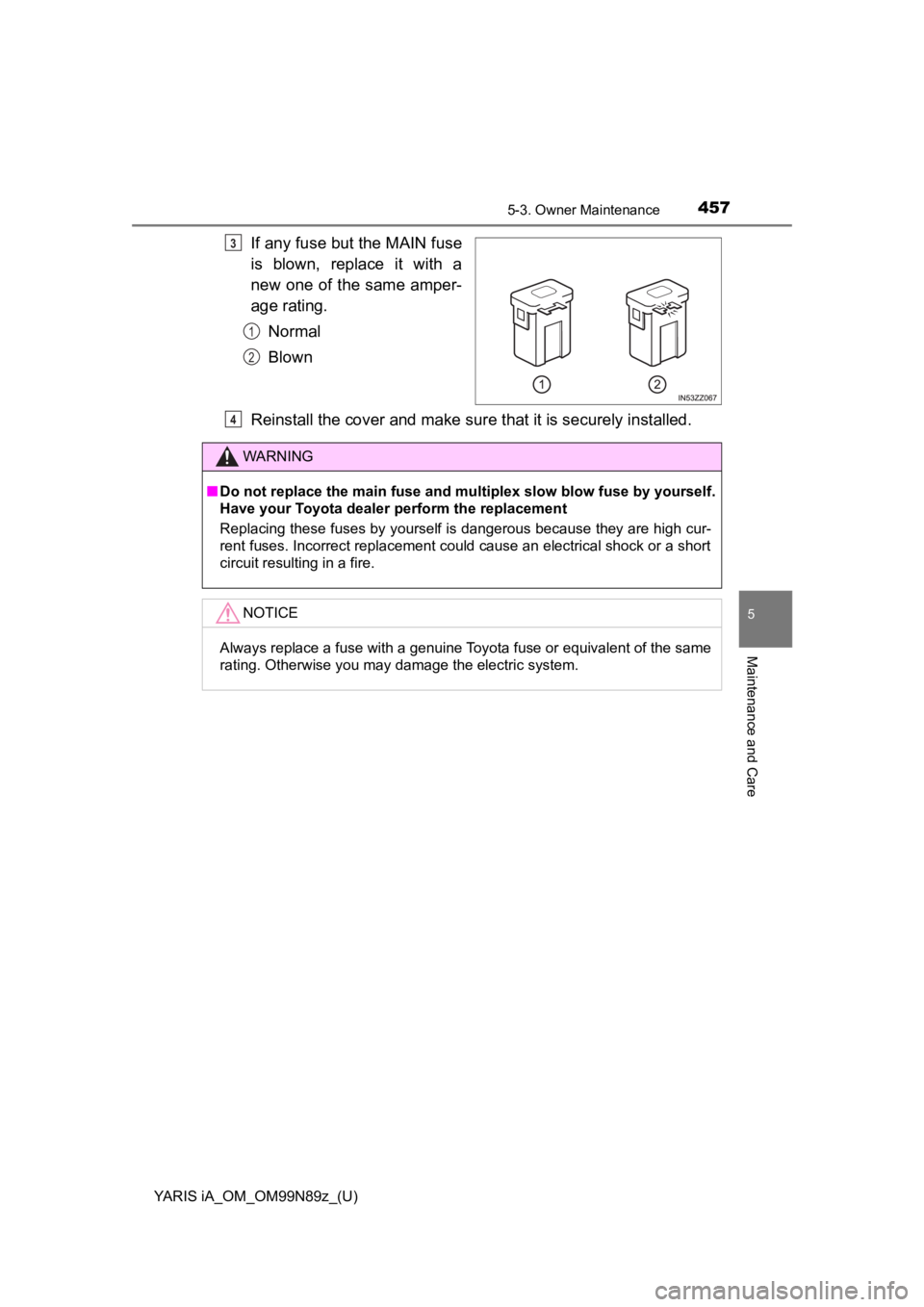

If any fuse but the MAIN fuse
is blown, replace it with a
new one of the same amper-
age rating.Normal
Blown
Reinstall the cover and make sure that it is securely installed.3
1
2
WARNING
■Do not replace the main fuse and multiplex slow blow fuse by yourself.
Have your Toyota dealer perform the replacement
Replacing these fuses by yourself is dangerous because they are high cur-
rent fuses. Incorrect replacement could cause an electrical shock or a short
circuit resulting in a fire.
NOTICE
Always replace a fuse with a genuine Toyota fuse or equivalent of the same
rating. Otherwise you may damage the electric system.
4

4585-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)■

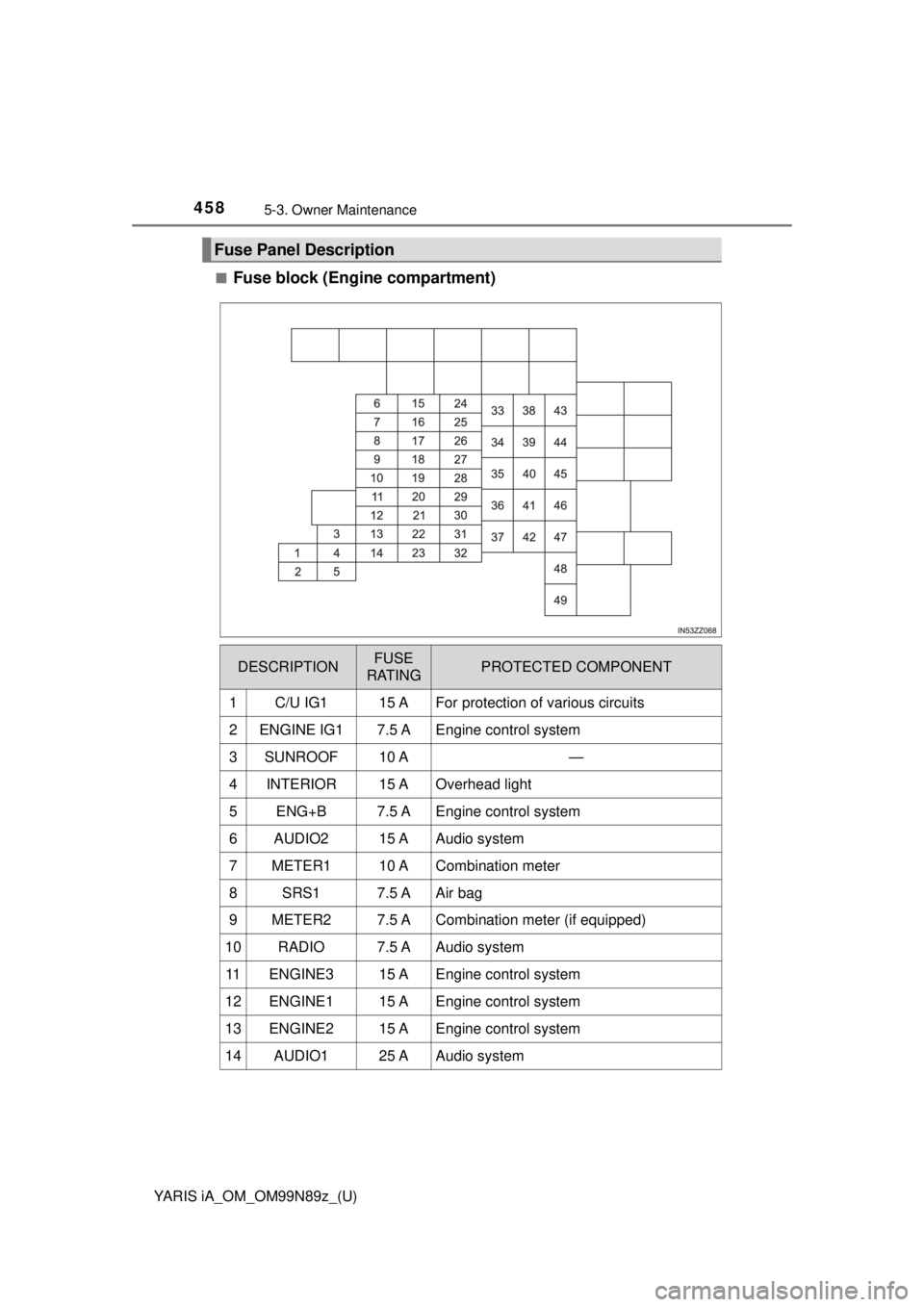

Fuse block (Engine compartment)
Fuse Panel Description
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
1C/U IG115 AFor protection of various circuits
2ENGINE IG17.5 AEngine control system
3SUNROOF10 A—
4INTERIOR15 AOverhead light
5ENG+B7.5 AEngine control system
6AUDIO215 AAudio system
7METER110 ACombination meter
8SRS17.5 AAir bag
9METER27.5 ACombination meter (if equipped)
10RADIO7.5 AAudio system
11ENGINE315 AEngine control system
12ENGINE115 AEngine control system
13ENGINE215 AEngine control system
14AUDIO125 AAudio system

YARIS iA_OM_OM99N89z_(U)
4595-3. Owner Maintenance
5
Maintenance and Care

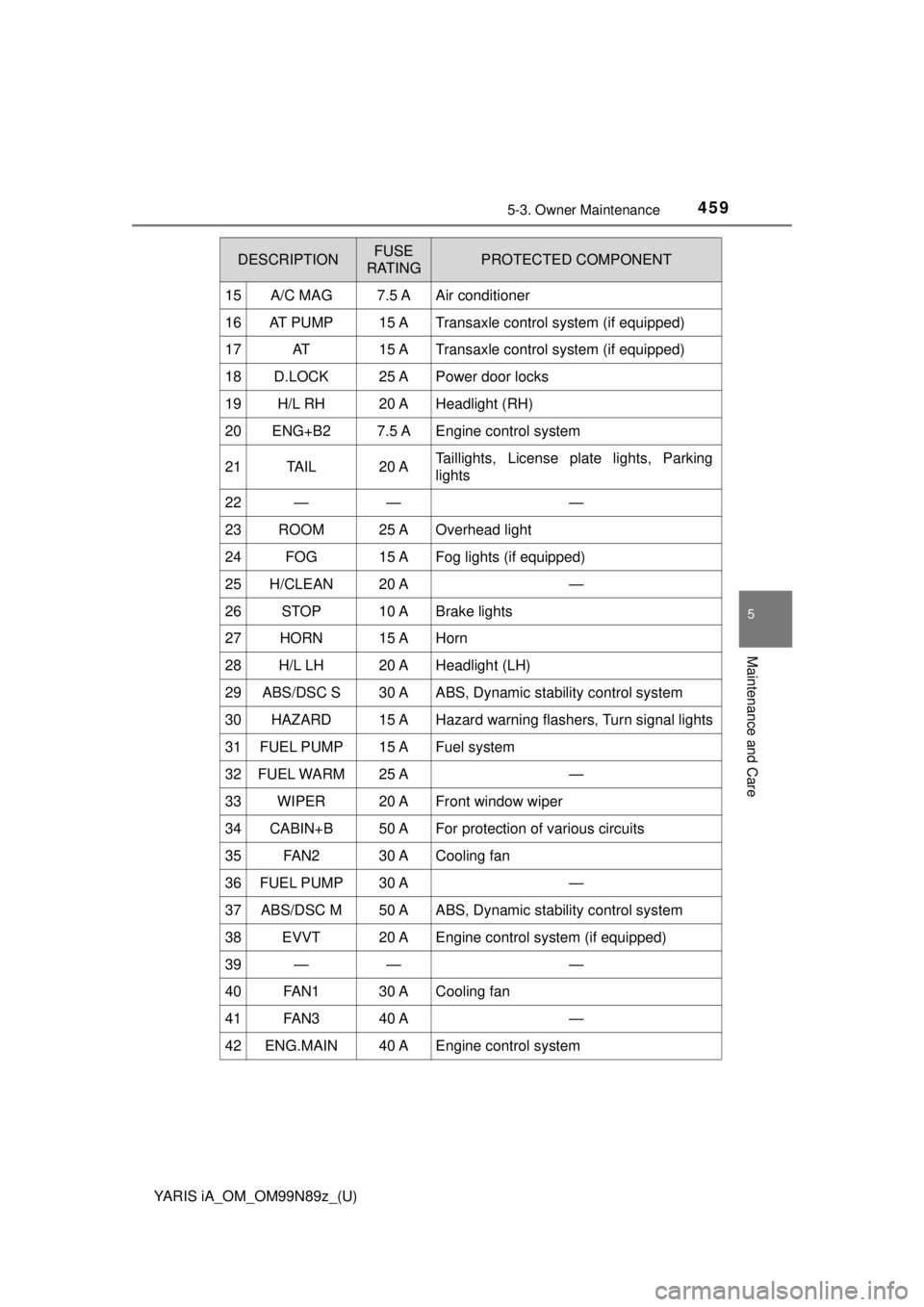

15A/C MAG7.5 AAir conditioner
16AT P U M P15 ATransaxle control system (if equipped)
17AT15 ATransaxle control system (if equipped)
18D.LOCK25 APower door locks
19H/L RH20 AHeadlight (RH)
20ENG+B27.5 AEngine control system
21TA I L20 ATaillights, License plate lights, Parking
lights
22———
23ROOM25 AOverhead light
24FOG15 AFog lights (if equipped)
25H/CLEAN20 A—
26STOP10 ABrake lights
27HORN15 AHorn
28H/L LH20 AHeadlight (LH)
29ABS/DSC S30 AABS, Dynamic stability control system
30HAZARD15 AHazard warning flashers, Turn signal lights
31FUEL PUMP15 AFuel system
32FUEL WARM25 A—
33WIPER20 AFront window wiper
34CABIN+B50 AFor protection of various circuits
35FA N 230 ACooling fan
36FUEL PUMP30 A—
37ABS/DSC M50 AABS, Dynamic stability control system
38EVVT20 AEngine control system (if equipped)
39———
40FA N 130 ACooling fan
41FA N 340 A—
42ENG.MAIN40 AEngine control system
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT

4605-3. Owner Maintenance
YARIS iA_OM_OM99N89z_(U)

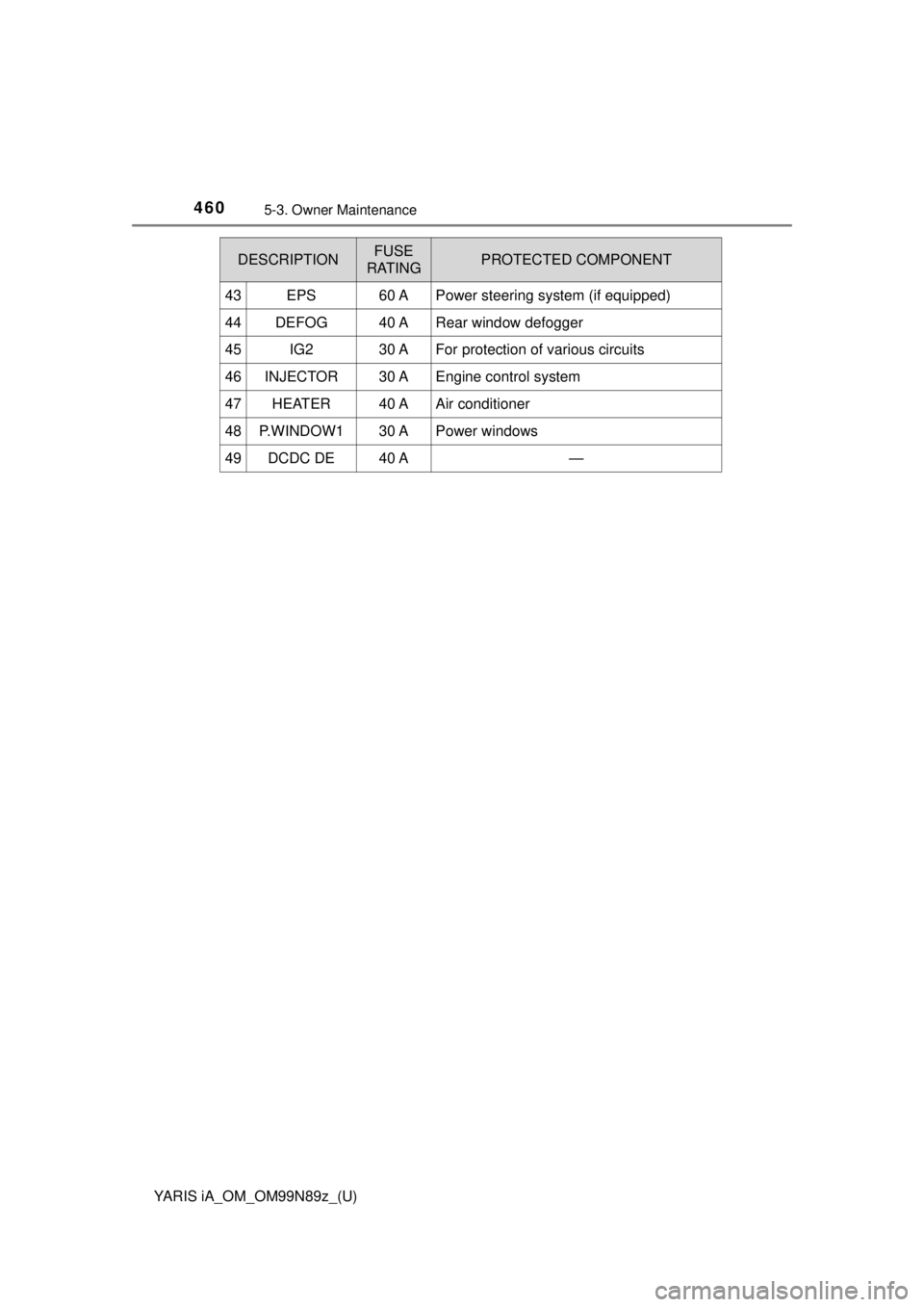

43EPS60 APower steering system (if equipped)
44DEFOG40 ARear window defogger
45IG230 AFor protection of various circuits
46INJECTOR30 AEngine control system
47HEATER40 AAir conditioner
48P. W I N D O W 130 APower windows
49DCDC DE40 A—
DESCRIPTIONFUSE
RATINGPROTECTED COMPONENT
