8Specifications
8-1. Identification NumbersVehicle Information Labels ............................. 552
8-2. Specifications Specifications .................... 554
8-3. Customizable Features Customizable Features.......................... 560

552
YARIS iA_OM_OM99N89z_(U)
8-1. Identification Numbers

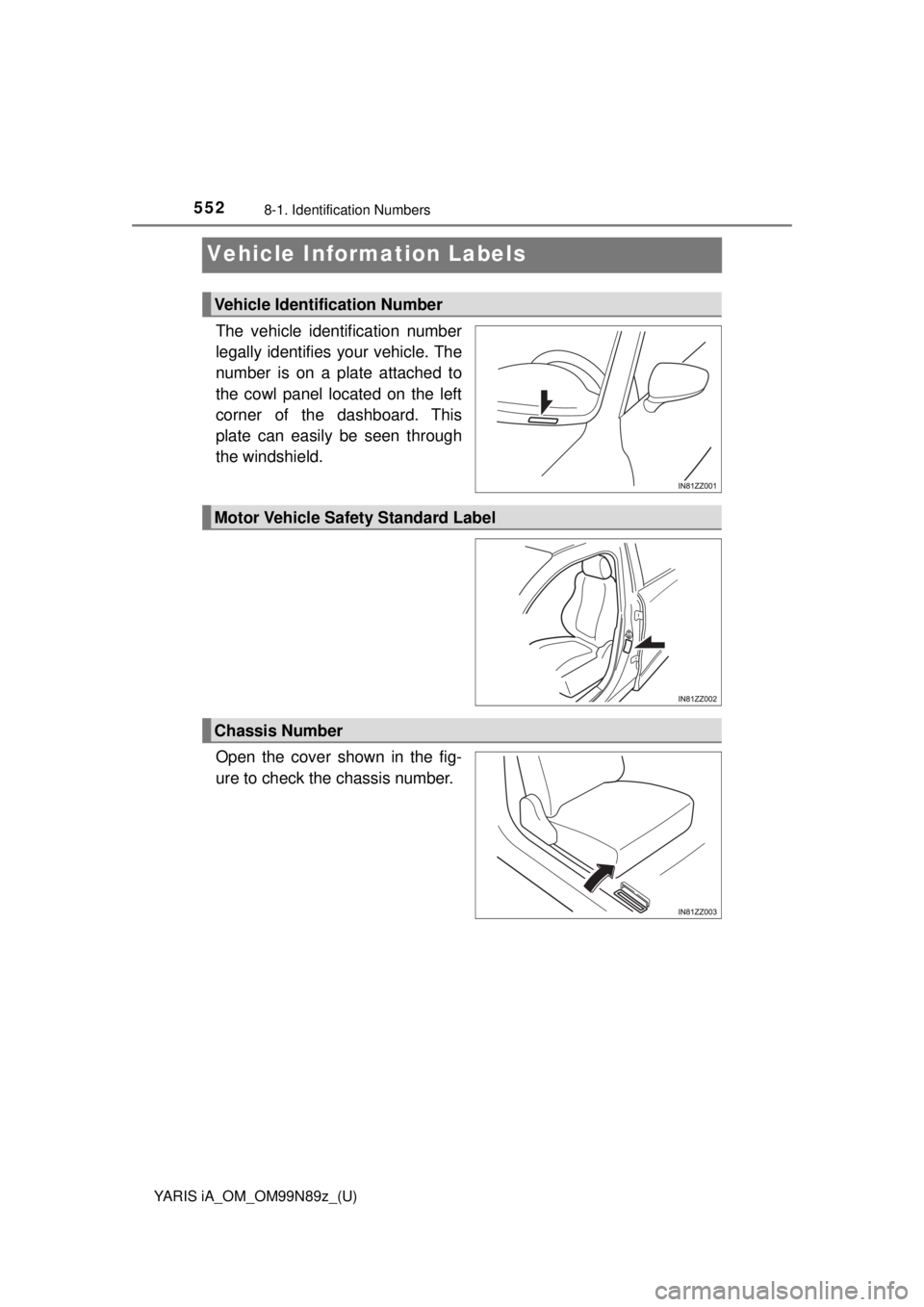

Vehicle Information Labels
The vehicle identification number
legally identifies your vehicle. The
number is on a plate attached to
the cowl panel located on the left
corner of the dashboard. This
plate can easily be seen through
the windshield.
Open the cover shown in the fig-
ure to check the chassis number.
Vehicle Identification Number
Motor Vehicle Safety Standard Label
Chassis Number

5538-1. Identification Numbers
YARIS iA_OM_OM99N89z_(U)
8
Specifications

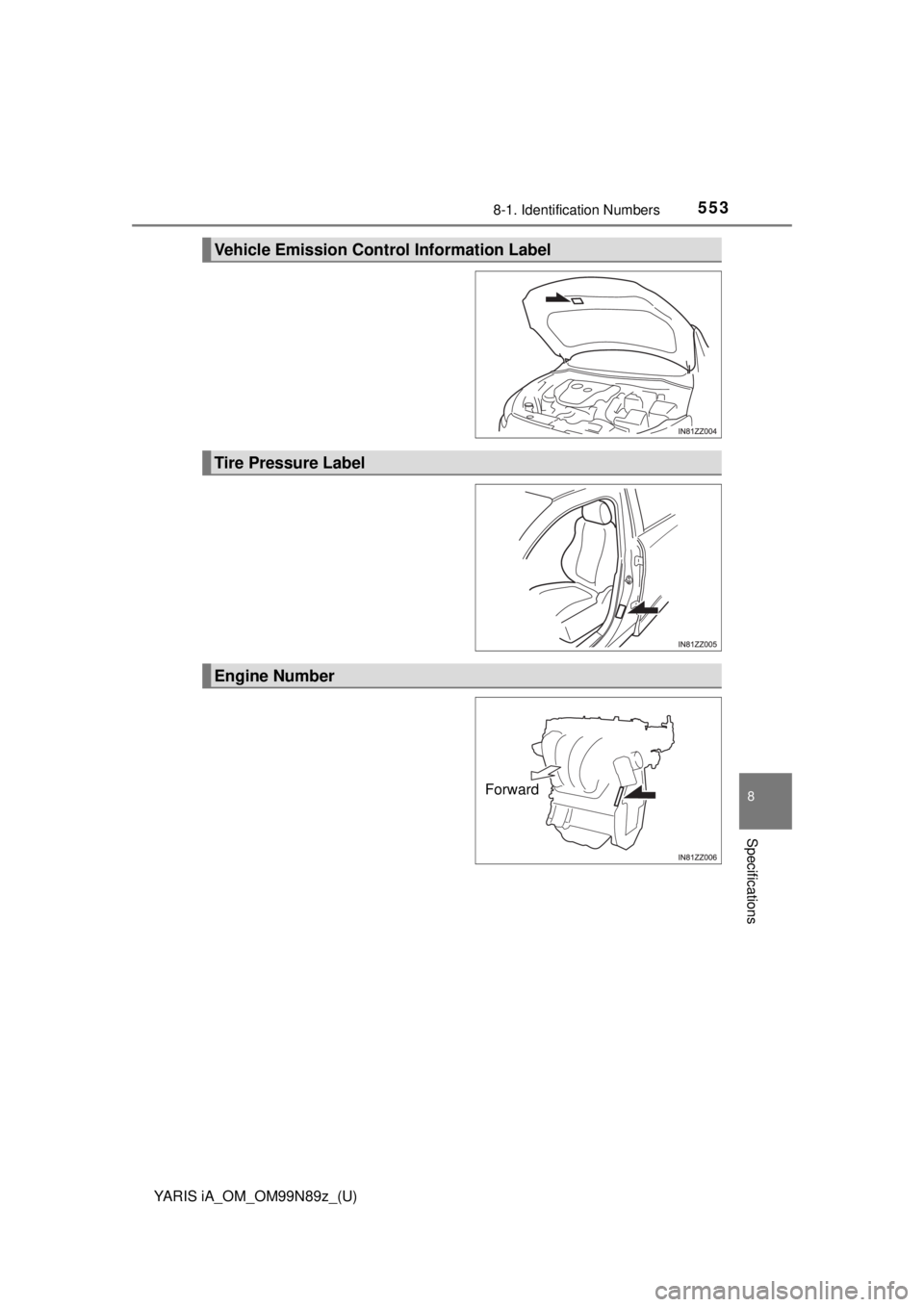

Vehicle Emission Control Information Label
Tire Pressure Label
Engine Number
Forward

554
YARIS iA_OM_OM99N89z_(U)
8-2. Specifications

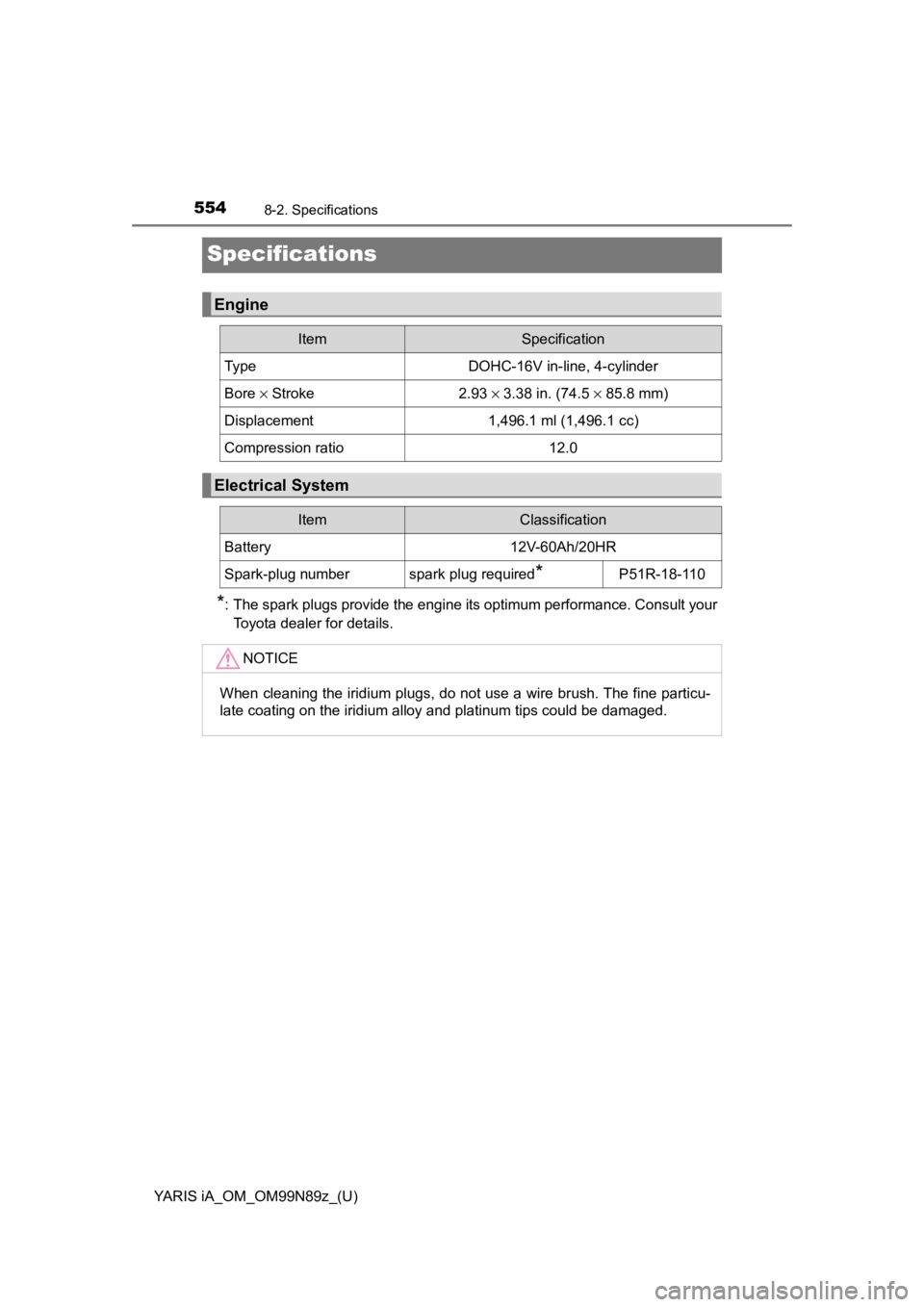

Specifications
*: The spark plugs provide the engine its optimum performance. Consult yourToyota dealer for details.
Engine
ItemSpecification
Ty p eDOHC-16V in-line, 4-cylinder
Bore × Stroke2.93 × 3.38 in. (74.5 × 85.8 mm)
Displacement1,496.1 ml (1,496.1 cc)
Compression ratio12.0
Electrical System
ItemClassification
Battery12V-60Ah/20HR
Spark-plug numberspark plug required*P51R-18-110
NOTICE
When cleaning the iridium plugs, do not use a wire brush. The fine particu-
late coating on the iridium alloy and platinum tips could be damaged.

5558-2. Specifications
YARIS iA_OM_OM99N89z_(U)
8
Specifications
Refer to Introduction on P. 412 for owner’s responsibility in protecting your
investment.
Approximate Quantities:
Check oil and fluid levels with dipsticks or reservoir gauges.

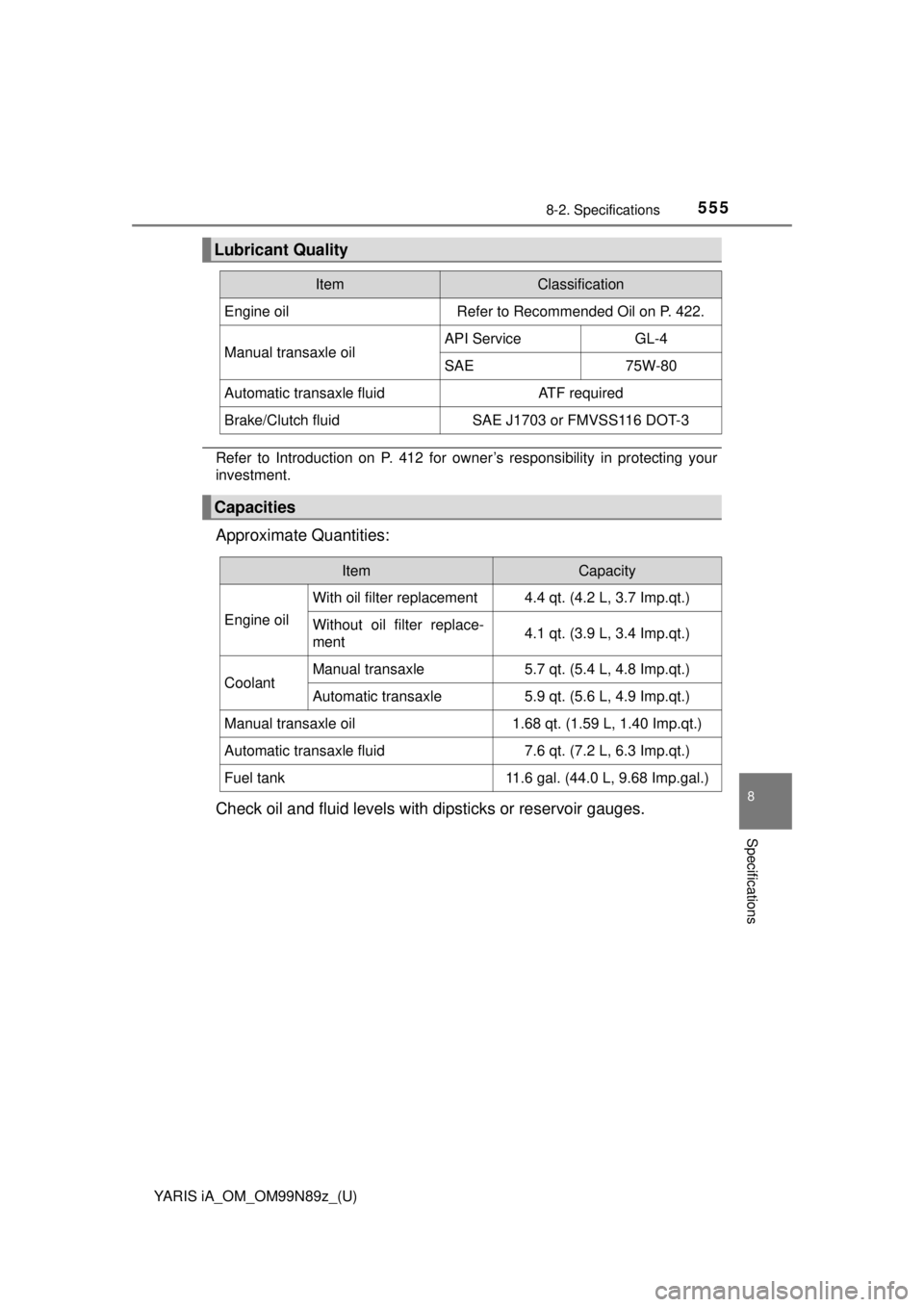

Lubricant Quality
ItemClassification
Engine oilRefer to Recommended Oil on P. 422.
Manual transaxle oilAPI ServiceGL-4
SAE75W-80
Automatic transaxle fluidATF required
Brake/Clutch fluidSAE J1703 or FMVSS116 DOT-3
Capacities
ItemCapacity
Engine oil
With oil filter replacement4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without oil filter replace-
ment4.1 qt. (3.9 L, 3.4 Imp.qt.)
CoolantManual transaxle5.7 qt. (5.4 L, 4.8 Imp.qt.)
Automatic transaxle5.9 qt. (5.6 L, 4.9 Imp.qt.)
Manual transaxle oil1.68 qt. (1.59 L, 1.40 Imp.qt.)
Automatic transaxle fluid7.6 qt. (7.2 L, 6.3 Imp.qt.)
Fuel tank11.6 gal. (44.0 L, 9.68 Imp.gal.)

5568-2. Specifications
YARIS iA_OM_OM99N89z_(U)

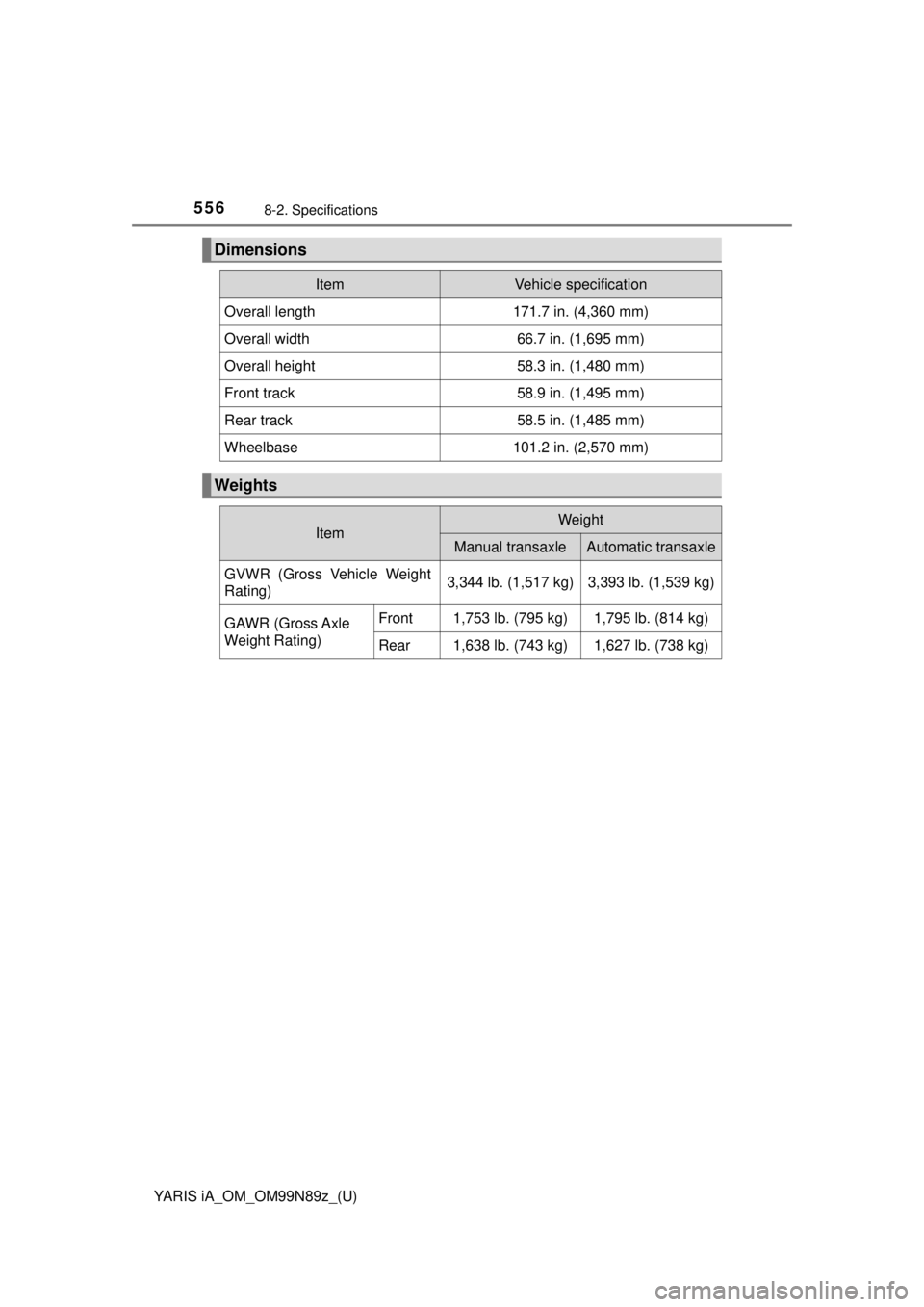

Dimensions
ItemVehicle specification
Overall length171.7 in. (4,360 mm)
Overall width66.7 in. (1,695 mm)
Overall height58.3 in. (1,480 mm)
Front track58.9 in. (1,495 mm)
Rear track58.5 in. (1,485 mm)
Wheelbase101.2 in. (2,570 mm)
Weights
ItemWeight
Manual transaxleAutomatic transaxle
GVWR (Gross Vehicle Weight
Rating)3,344 lb. (1,517 kg)3,393 lb. (1,539 kg)
GAWR (Gross Axle
Weight Rating)Front1,753 lb. (795 kg)1,795 lb. (814 kg)
Rear1,638 lb. (743 kg)1,627 lb. (738 kg)

5578-2. Specifications
YARIS iA_OM_OM99N89z_(U)
8
Specifications
The type of refrigerant used is indicated on a label attached to the
inside of the engine compartment. Check the label before recharging
the refrigerant. Refer to Climate Control System on P. 234.
■Exterior light
*1: UNECE stands for United Nations Economic Commission for Europe.
*2: Double-filament light bulb, however, only 60 W filament bulb is used in thedaytime running lights.
*3: LED is the abbreviation for Light Emitting Diode.

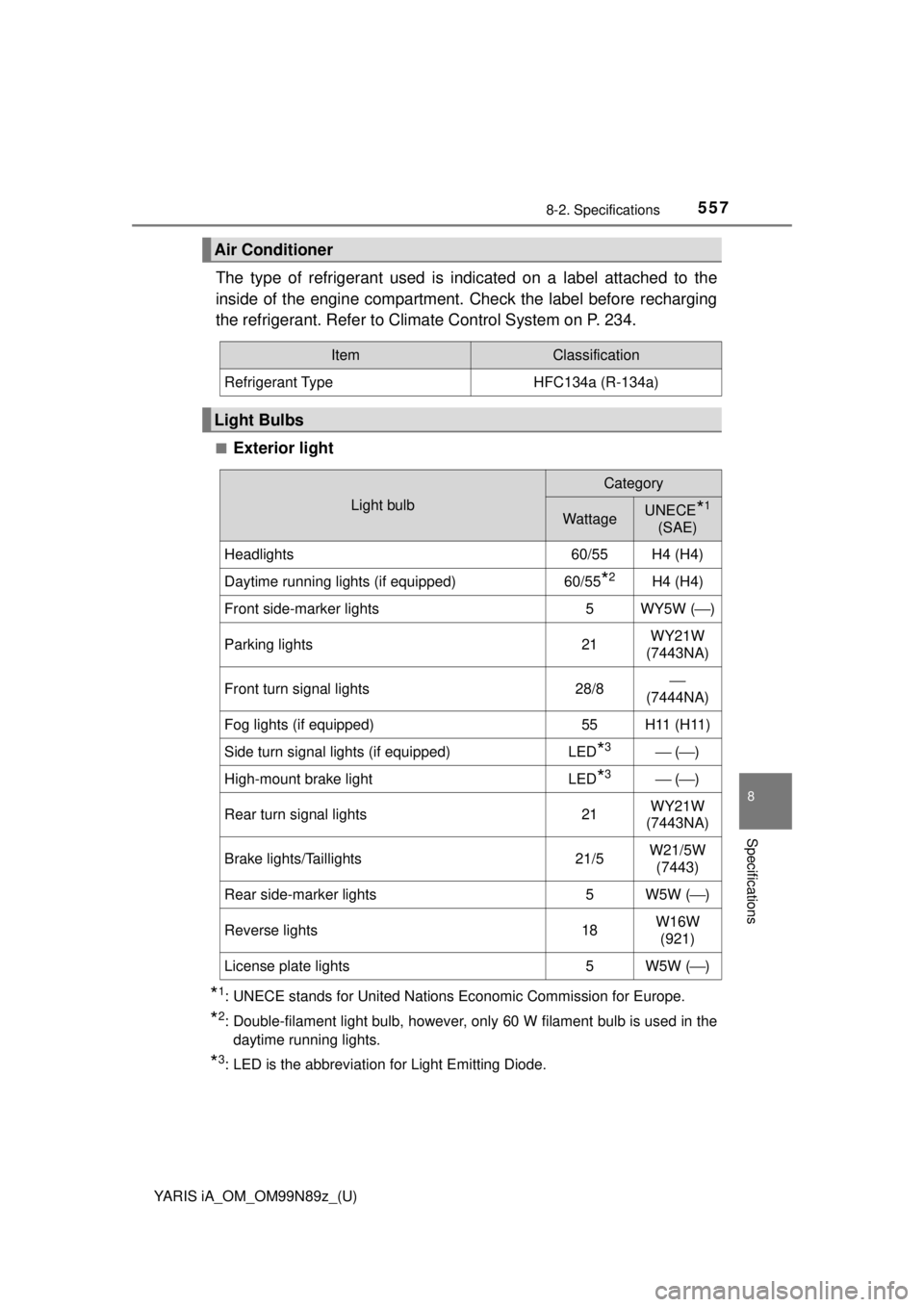

Air Conditioner
ItemClassification
Refrigerant TypeHFC134a (R-134a)
Light Bulbs
Light bulb
Category
WattageUNECE*1
(SAE)
Headlights 60/55 H4 (H4)
Daytime running lights (if equipped)60/55*2H4 (H4)
Front side-marker lights5WY5W ( ⎯)
Parking lights21WY21W
(7443NA)
Front turn signal lights28/8⎯
(7444NA)
Fog lights (if equipped)55H11 (H11)
Side turn signal lights (if equipped)LED*3⎯ ( ⎯)
High-mount brake lightLED*3⎯ (⎯)
Rear turn signal lights21WY21W
(7443NA)
Brake lights/Taillights21/5W21/5W (7443)
Rear side-marker lights5W5W ( ⎯)
Reverse lights18W16W
(921)
License plate lights5W5W ( ⎯)

5588-2. Specifications
YARIS iA_OM_OM99N89z_(U)■
Interior light
*1: UNECE stands for United Nations Economic Commission for Europe.
Check the tire pressure label for
tire size and inflation pressure.
Refer to Tire Inflation Pressure on P. 439.
After adjusting the tire pressure, init ialization of the tire pressure mon-
itoring system is necessary to make the system operates normally.
Refer to Tire Pressure Monitoring System Initialization on P. 221.
■Standard tire
■Temporary spare tire
Light bulbCategory
WattageUNECE*1
Trunk light 3⎯
Overhead lights8⎯
Tires
Tire sizeInflation pressure
FrontRear
P185/65R15 86H255 kPa (37 psi)230 kPa (33 psi)
P185/60R16 86H250 kPa (36 psi)230 kPa (33 psi)
Tire sizeInflation pressure
T125/70D15 95M420 kPa (60 psi)

5598-2. Specifications
YARIS iA_OM_OM99N89z_(U)
8
Specifications
■Lug nut tightening torque
When installing a tire, tighten the lug nut to the following torque.
80-108 ft
•lbf (108-147 N•m, 12-14 kgf•m)
The tires have been opti mally matched with the ch assis of your vehicle.
When replacing tires, Toyota recommends that you replace tires of the
same type originally fitted to your vehicle. For details, contact your Toyota
dealer.
Refer to Fuses on P. 455.
Fuses

560
YARIS iA_OM_OM99N89z_(U)
8-3. Customizable Features
Customizable Features
The following customizable features can be set or changed by your
Toyota dealer. Consult your Toyota dealer for details.
Additionally, some of the customizable features can be changed by
the customer depending on the feature.
Customizable features which can be changed differ depending on the
market and specification.
Settings can be changed by operating the center display screen.
A: Refer to Settings on P. 292.
B: Refer to Fuel Economy Monitor on P. 199.
Settings can be changed by operating the vehicle switches.
C: Refer to Stopping The Smart City Brake Support (SCBS) System Operation on P. 210.
D: Refer to Auto Lock/Unlock Function on P. 98.
E: Refer to Smart Key on P. 89.
Settings can be changed by your Toyota dealer.
■Safety
● Smart City Brake Support (SCBS) ( →P. 205)
*: Though these systems can be turned Off, doing so will defeat the purpose
of the system and Toyota recommends that these systems remain On.
Settings Change Method
1
2
3
FeatureFactory SettingAvailable SettingsSettings Change Method
The system can be
changed so that Smart
City Brake Support
(SCBS) does not oper-
ate.
*
On On
AC –
Off
123
