3-2. Combination Meter and Display
■Odometer
The odometer records the total distance the vehicle has been
driven.
■Tr i p m e t e r
The trip meter can record the total distance of two trips. One is
recorded in trip meter A, and the other is recorded in trip meter B.
For instance, trip meter A can record the distance from the point of
origin, and trip meter B can record the distance from where the fuel
tank is filled.
When trip meter A is selected, pressing the selector again within
one second will change to trip meter B mode.
When trip meter A is selected, TRIP A will be displayed. When trip
meter B is selected, TRIP B will be displayed.
The trip meter records the total dist ance the vehicle is driven until
the meter is again reset. Return it to “0.0” by depressing and hold-
ing the selector for one second or more. Use this meter to measure
trip distances and to compute fuel consumption.
■ Odometer, Trip Meter and Trip Meter Selector
When the ignition is switched to ACC or off, the odometer or trip meters can-
not be displayed, however, pressing the selector can inadvertently switch the
trip meters or reset them during an approximate ten-minute period in the fol-
lowing cases:
● After the ignition is switched to off from ON.
● After the driver’s door is opened.
■ Trip meter
●Vehicles with type B audio:
If the fuel economy data is reset using the fuel economy monitor, or trip A is
reset using the trip meter when the function which synchronizes the fuel
economy monitor and the trip meter is on, the fuel economy data and trip A
are reset simultaneously.
Refer to Fuel Economy Monitor on P. 199.
● Only the trip meters record tenths of miles (kilometers).
● The trip record will be erased when:
• The power supply is interrupted (blown fuse or the battery is discon-
nected).
• The vehicle is driven over 9999.9 mile (km).

233
YARIS iA_OM_OM99N89z_(U)
4Interior Features
4-1. Climate Control SystemOperating Tips .................. 234
Vent Operation .................. 235
Manual Type ..................... 237
4-2. Audio System Antenna ............................. 244
Operating Tips for Audio System ............................ 245
Audio Set (Type A [non-touchscreen]) .......... 258
Audio Set (Type B [touchscreen]) ................. 274
Audio Control Switch Operation ........................ 295
AUX/USB mode ................ 298 4-3. Bluetooth®
Bluetooth®......................... 319
Bluetooth® Hands-Free
(Type A) .......................... 354
Bluetooth
® Hands-Free
(Type B) .......................... 365
Bluetooth
® Audio
(Type A) .......................... 378
Bluetooth
® Audio
(Type B) .......................... 382
Troubleshooting ................ 395
4-4. Interior Equipment Sunvisors .......................... 400
Interior Lights .................... 401
Accessory Sockets............ 404
Cup Holder ........................ 405
Bottle Holder ..................... 406
Storage Compartments ..... 407

YARIS iA_OM_OM99N89z_(U)
2554-2. Audio System
4
Interior Features
AAC stands for Advanced Audio Coding, which is standardized voice
compression established by the ISO
*1 working group (MPEG). Audio
data can be created and stored at a higher compression ratio than
MP3.
This unit plays files with the extensions (.aac/.m4a/.wav
*2) as the
AAC files.
• AAC files written under specificati ons other than the indicated spec-
ification may not play normally or files or folder names may not dis-
play correctly.
• The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.aac”, “.m4a”, or “.wav
*2” to the end of the file
name, and then write it to the memory.
*1: International Organization for Standardization
*2: Type B
Operating Tips for AAC
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.

256
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System

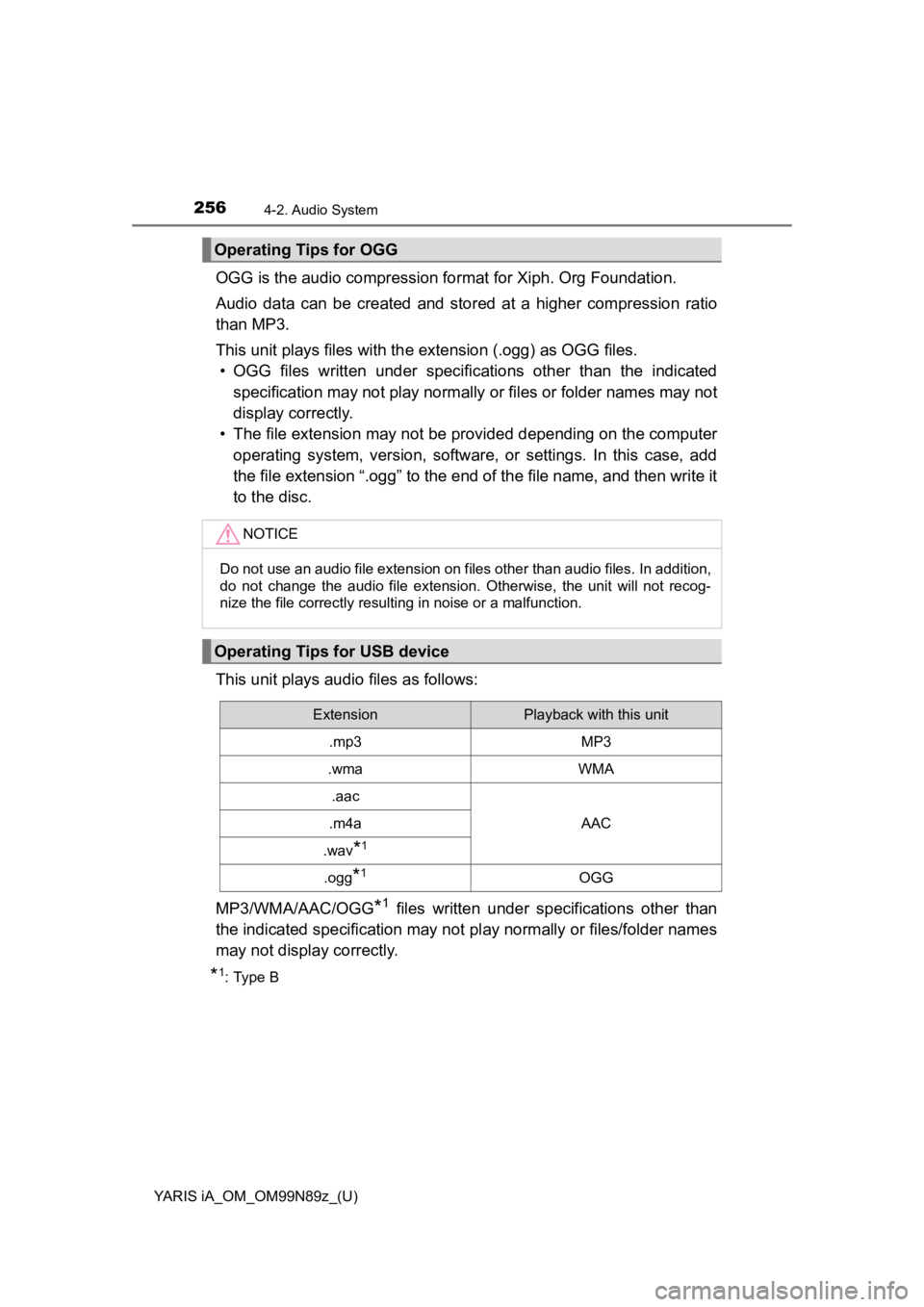

OGG is the audio compression format for Xiph. Org Foundation.
Audio data can be created and stor ed at a higher compression ratio
than MP3.
This unit plays files with th e extension (.ogg) as OGG files.
• OGG files written under specific ations other than the indicated
specification may not play normally or files or folder names may not
display correctly.
• The file extension may not be provided depending on the computer
operating system, version, software, or settings. In this case, add
the file extension “.ogg” to the end of the file name, and then write it
to the disc.
This unit plays audio files as follows:
MP3/WMA/AAC/OGG
*1 files written under specifications other than
the indicated specification may not pl ay normally or files/folder names
may not display correctly.
*1: Type B
Operating Tips for OGG
NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for USB device
ExtensionPlayback with this unit
.mp3MP3
.wmaWMA
.aac
AAC.m4a
.wav*1
.ogg*1OGG

YARIS iA_OM_OM99N89z_(U)
2574-2. Audio System
4
Interior Features
●Playback may not be possible depending on the type and condition of the
USB flash memory even if the audio file complies with the standard above.
● A copyright protected WMA/AAC file cannot be played in this unit.
● The order of the music data stored in the device may differ from the play-
back order.
● To prevent loss or damage of stored data, we recommend that you always
back up your data.
● If a device exceeds the maximum electric current value of 1,000 mA, it may
not operate or recharge when connected.
● Do not pull out the USB device while in the USB mode (only pull it out while
in FM/AM radio or CD mode).
● The device will not operate if the data is password protected.
This unit supports playback of music files recorded to an iPod.
*: iPod is a trademark of Apple Inc., registered in the U.S. and other coun-
tries.
The iPod may not be compatible depending on the model or OS ver-
sion. In this case, an error message is displayed.
The audio unit cannot display images or videos stored in an iPod. NOTICE
Do not use an audio file extension on files other than audio files. In addition,
do not change the audio file extension. Otherwise, the unit will not recog-
nize the file correctly resulting in noise or a malfunction.
Operating Tips for iPod
NOTICE
●
Remove the iPod when it is not in use. Because the iPod is not designed
to withstand excessive changes in temperature inside the cabin, it could
be damaged or the battery may deteriorate due to the excessive tempera-
ture or humidity inside the cabin if it is left in the vehicle.
● If data in the iPod is lost while it is connected to the unit, Toyota cannot
guarantee recovery of any lost data.
● If the iPod battery is deteriorated, the iPod may not recharge and playback
may not be possible when it is connected to the unit.
● For details on using the iPod, refer to the iPod instruction manual.
● When connecting the iPod to a USB port, all commands are made from
the audio unit. iPod control is not possible.

258
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System

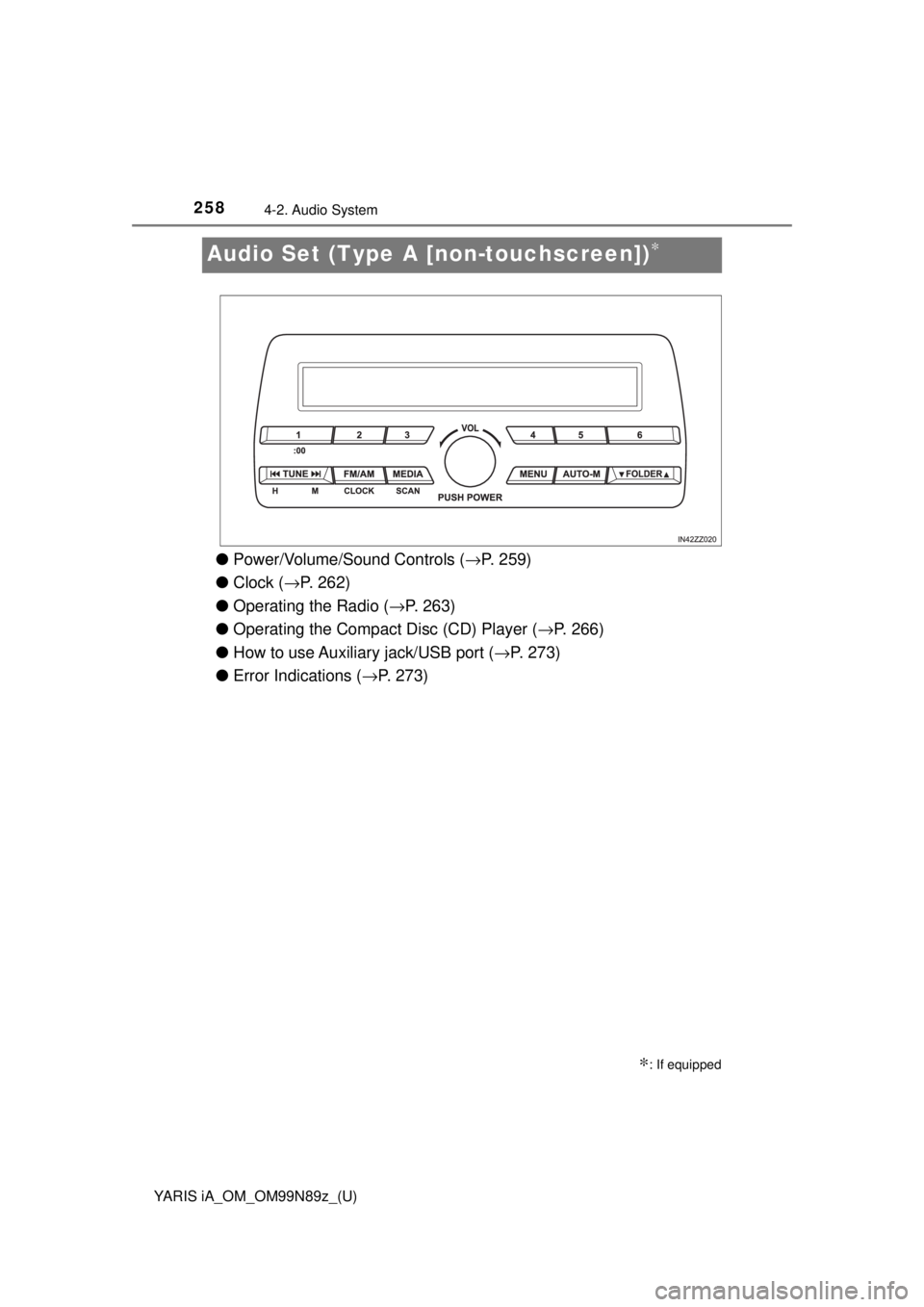

Audio Set (Type A [non-touchscreen])∗
●Power/Volume/Sound Controls ( →P. 259)
● Clock ( →P. 262)
● Operating the Radio ( →P. 263)
● Operating the Compact Disc (CD) Player ( →P. 266)
● How to use Auxiliary jack/USB port ( →P. 273)
● Error Indications ( →P. 273)
∗: If equipped

272
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
■Display scroll
Only 13 characters can be displayed at one time. To display the rest
of the characters of a long title, press and hold the text button (3).
The display scrolls the next 13 characters. Press and hold the text
button (3) again after the last 13 characters have been displayed to
return to the beginning of the title.
The number of characters which can be displayed is restricted.
■
Message display
If “CHECK CD” is displayed, it means that there is some CD mal-
function. Check the CD for dama ge, dirt, or smudges, and then
properly reinsert it. If the message appears again, insert another
known good CD. If the message continues to appear, take the unit
to your Toyota dealer for service.
■ Operating the Compact Disc (CD) Player
If a disc has both music data (CD-DA) and MP3/WMA/AAC files, playback of
the two or three file types differs depending on how the disc was recorded.
■ Music scan
If the unit is left in scan, normal playback will resume where scan was
selected.
■ Switching the display
●The information viewable in the display is only CD information (such as art-
ist name, song title) which has been recorded to the CD.
● This unit cannot display some characters. Characters which cannot be dis-
played are indicated by an asterisk ( ).

274
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System

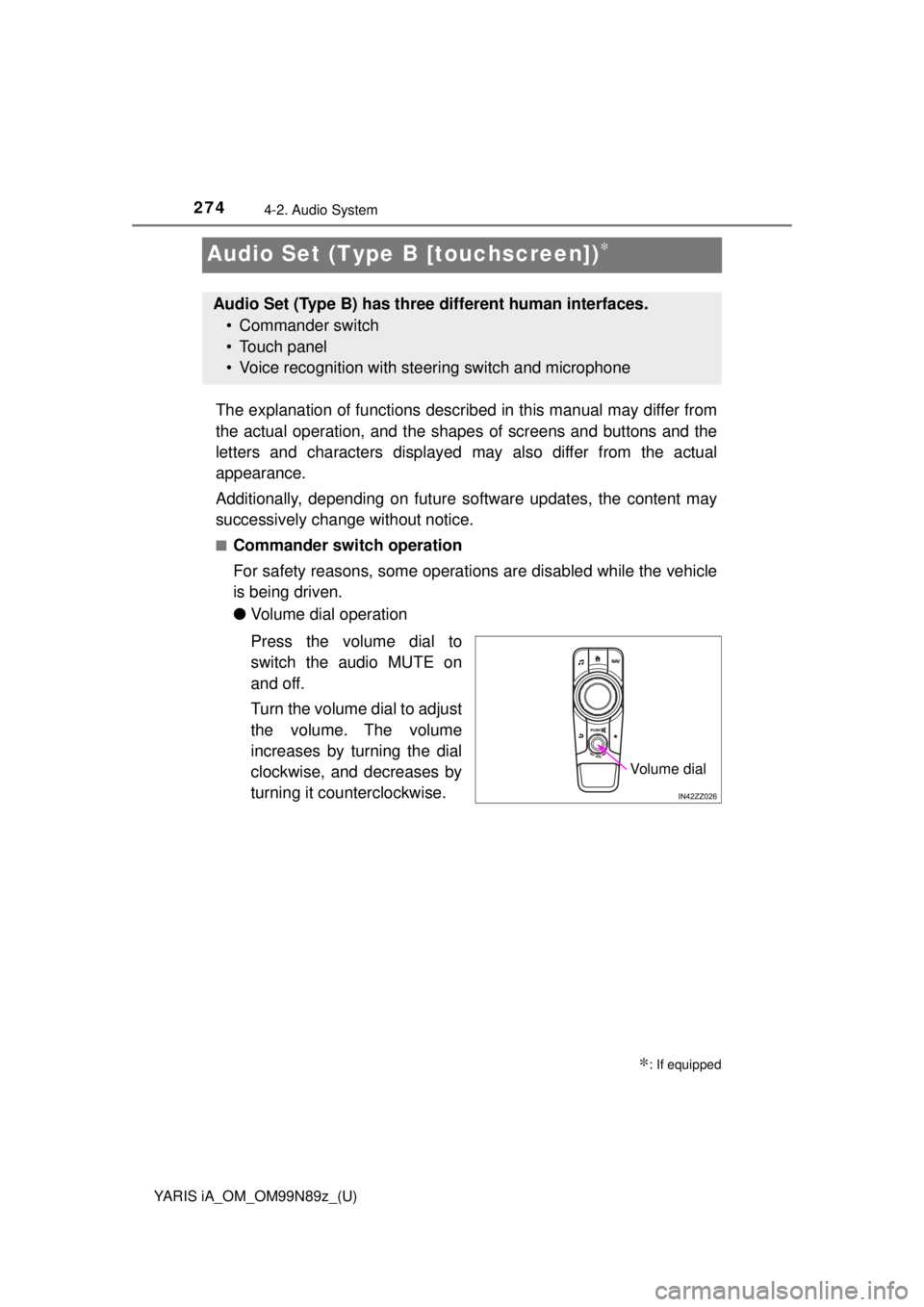

Audio Set (Type B [touchscreen])∗
The explanation of functions describe d in this manual may differ from
the actual operation, and the shape s of screens and buttons and the
letters and characters displayed may also differ from the actual
appearance.
Additionally, depending on future so ftware updates, the content may
successively change without notice.
■Commander switch operation
For safety reasons, some operations are disabled while the vehicle
is being driven.
● Volume dial operation
Press the volume dial to
switch the audio MUTE on
and off.
Turn the volume dial to adjust
the volume. The volume
increases by turning the dial
clockwise, and decreases by
turning it counterclockwise.
∗: If equipped
Audio Set (Type B) has three different human interfaces.
• Commander switch
• Touch panel
• Voice recognition with steer ing switch and microphone
Vo l u m e d i al

284
YARIS iA_OM_OM99N89z_(U)
4-2. Audio System
■Radio Broadcast Data System (RBDS) (if equipped)
● Radio text information display
Radio text information sent from a broadcasting station is dis-
played in the center display.
● Genre Seek
Some FM stations transmit Genre codes (Program type like a
Rock, News, and so on). This co de enables alternative stations
transmitting the same Genre code to be found quickly.
To scan for Genre Seek:
Select the icon while in the FM mode.
Select to open the genre list.
Select the genre type you want to select.
Select the , icon.
Ex.)
89.3 is currently being received. With Rock selected as the
Genre, the radio stations broadca sting Rock are at the following
frequencies.
98.3
*1, 98.7, 104.3*1, 107.1
*1: Radio stations with good reception
The frequency changes as foll ows each time is pressed.
89.3 →98.3 →104.3→ 98.3
■HD Radio
●What is HD Radio™ Technology and how does it work?
HD Radio™ Technology is the di gital evolution of analog AM/FM
radio. Your radio product has a sp ecial receiver which allows it to
receive digital broadcasts (where available) in addition to the
analog broadcasts it already receives. Digital broadcasts have
better sound quality than analog broadcasts as digital broadcasts
provide free, crystal clear audio. For more information, and a
guide to available radio stations and programming, please visit
www.hdradio.com.
1
2
3
4
