TOYOTA YARIS iA 2018 Owners Manual (in English)

YARIS iA_OM_OM99Q46z_(U)
3714-3. Bluetooth®
4
Interior Features
●If the ignition is switched off during a hands-free call, the line is transferred
to the device (Mobile phone) automatically.
● If the DTMF code has two or more digits or symbols, each one must be
transmitted individually.
Switches the call on hold.
DTMF (Dual Tone Multi-Frequency Signal) Transmis-
sion
This function is used when transmitting DTMF via the dial
pad. The receiver of a DTMF transmission is generally a
home telephone answering machine or a company’s auto-
mated guidance call center.
Input the number using a dial pad.
IconFunction

372
YARIS iA_OM_OM99Q46z_(U)
4-3. Bluetooth®
A call can be interrupted to receive an incoming call from a third party.
When is selected or the pick-up button on the steering
wheel is pressed, the current call is held and the system switches to
the new incoming call.
When is selected, the current call is ended and the system
switches to the new incoming call (GSM network only).
When is selected or the hang-up button on the steering wheel
is pressed, an incoming call is refused.
● The function may not be available depending on the contractual content of
the mobile device.
● The function may not be operable depending on the type of the telephone
network and the mobile device.
SMS (Short Message Service) messages, and E-mail received by
connected devices can be downloaded, displayed, and played (read
by the system).
Additionally, replies can also be made to calls and messages in the
received messages.
■Downloading messages
Up to 20 new messages can be downloaded and displayed from a
connected device.
For e-mail, 20 messages for each account can be downloaded.
Automatic downloading
The “Auto Download Email” (E-mail) or “Auto Download Text Mes-
sage” (SMS) setting must be on. A message is downloaded auto-
matically when the Bluetooth
® unit is connected to the device.
Refer to Communication Settings on P. 376.
Manually downloading
When the “Auto Download Email” (E-mail) or “Auto Download Text
Message” (SMS) setting is off, the message is downloaded using
the following procedure.
Select the icon on the home screen and display the Com-
munication screen.
Call Interrupt
Receiving and Replying to Messages (available only with E-mail/
SMS compatible phones)
1

YARIS iA_OM_OM99Q46z_(U)
3734-3. Bluetooth®
4
Interior Features
Select or to display the Inbox.
Select .
Download will be started from the mobile phone.
■Receiving messages
Method 1
When a device receives a mess age, a message received notifica-
tion is displayed. The “Email Notifica tions” (E-mail) or “Text Notifica-
tions” (SMS) setting must be on.
Refer to Communication Settings on P. 376.
Select and display the message.
Method 2
Select the icon on the home screen and display the Com-
munication screen.
Select and display the new message list for e-mail and
SMS.
Select the message you would like to display.
The following icons are displayed in the lower part of the details on
the message. Icons which can be used differ depending on use
conditions.
2
3
4
1
2
3
IconFunction
Displays the Communication menu.
Displays the inbox.
Plays back a message.
When selected again, playback is temporarily stopped.
Displays the previous message.
Displays the next message.
Only replies to the sender of the currently displayed mes-
sage.
Select the sentence on the displayed reply screen and
select the sentence for sending from the preset message.
Select .

374
YARIS iA_OM_OM99Q46z_(U)
4-3. Bluetooth®
Up to three preset messages can be selected.
●Example of use (verify unread E-mail)
Select the icon on the home screen and display the
Communication screen.
Select to display the inbox.
Select the unread mes-
sage displayed in bold.
The details of the message are displayed and replying to the
message, making a call, or playback can be performed.
Only E-mail:
Replies to all members including CC.
Select the sentence on the displayed reply screen and
select the sentence for sending from the preset message.
Select .
Makes a call to a person who sent a message.
For E-mail, this function may not work depending on the
device.
Deletes a message.
The messages stored in a device is also deleted.
IconFunction
1
2
3
4

YARIS iA_OM_OM99Q46z_(U)
3754-3. Bluetooth®
4
Interior Features
●Changing account for displaying (E-mail only)
Select .
Select the account which you would like to display. Only the
messages for the selected account are displayed in the inbox.
● Editing preset messages
Select the icon on the home screen and display the
Communication screen.
Select .
Select .
Select the preset message which you would like to edit. The
keyboard screen is displayed.
When the message is input and is selected, the mes-
sage is stored as a preset message.
■Downloading messages
●Attached data is not downloaded.
● Messages up to 1 kilobyte (e-mail)/140-bytes (SMS) can be downloaded.
● A message list is created for each device.
● If the connected device does not correspond to MAP 1.0, the AT command
is used to download. The downloaded message indicates that it is already
read.
● Downloading using the AT command may not function depending on the
connected device.
■ Editing preset messages
●Select the icon to change the language.
● Select the icon to switch between capitalized and lower-case charac-
ters.
● Select the icon to return to the previous screen without storing the
edit.
1
2
1
2
3
4
5

376
YARIS iA_OM_OM99Q46z_(U)
4-3. Bluetooth®
Select the icon on the home screen and display the Communi-
cation screen. Select to change the setting.

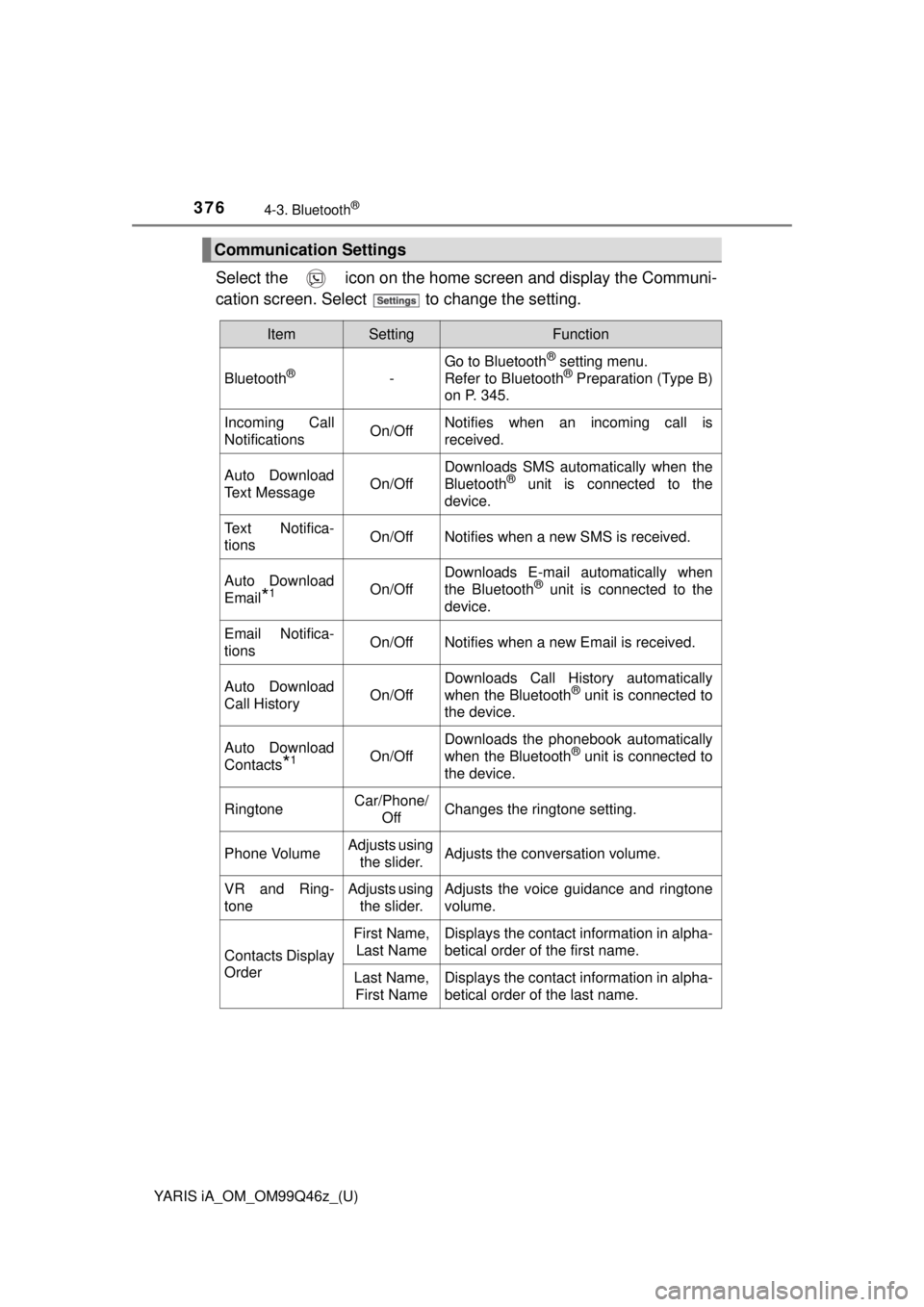

Communication Settings
ItemSettingFunction
Bluetooth®-
Go to Bluetooth® setting menu.
Refer to Bluetooth® Preparation (Type B)
on P. 345.
Incoming Call
NotificationsOn/OffNotifies when an incoming call is
received.
Auto Download
Text MessageOn/Off
Downloads SMS automatically when the
Bluetooth® unit is connected to the
device.
Text Notifica-
tionsOn/OffNotifies when a new SMS is received.
Auto Download
Email
*1On/Off
Downloads E-mail automatically when
the Bluetooth® unit is connected to the
device.
Email Notifica-
tionsOn/OffNotifies when a new Email is received.
Auto Download
Call HistoryOn/Off
Downloads Call History automatically
when the Bluetooth® unit is connected to
the device.
Auto Download
Contacts
*1On/Off
Downloads the phonebook automatically
when the Bluetooth® unit is connected to
the device.
RingtoneCar/Phone/ OffChanges the ringtone setting.
Phone VolumeAdjusts using the slider.Adjusts the conversation volume.
VR and Ring-
toneAdjusts using the slider.Adjusts the voice guidance and ringtone
volume.
Contacts Display
Order
First Name, Last NameDisplays the contact information in alpha-
betical order of the first name.
Last Name, First NameDisplays the contact information in alpha-
betical order of the last name.

YARIS iA_OM_OM99Q46z_(U)
3774-3. Bluetooth®
4
Interior Features

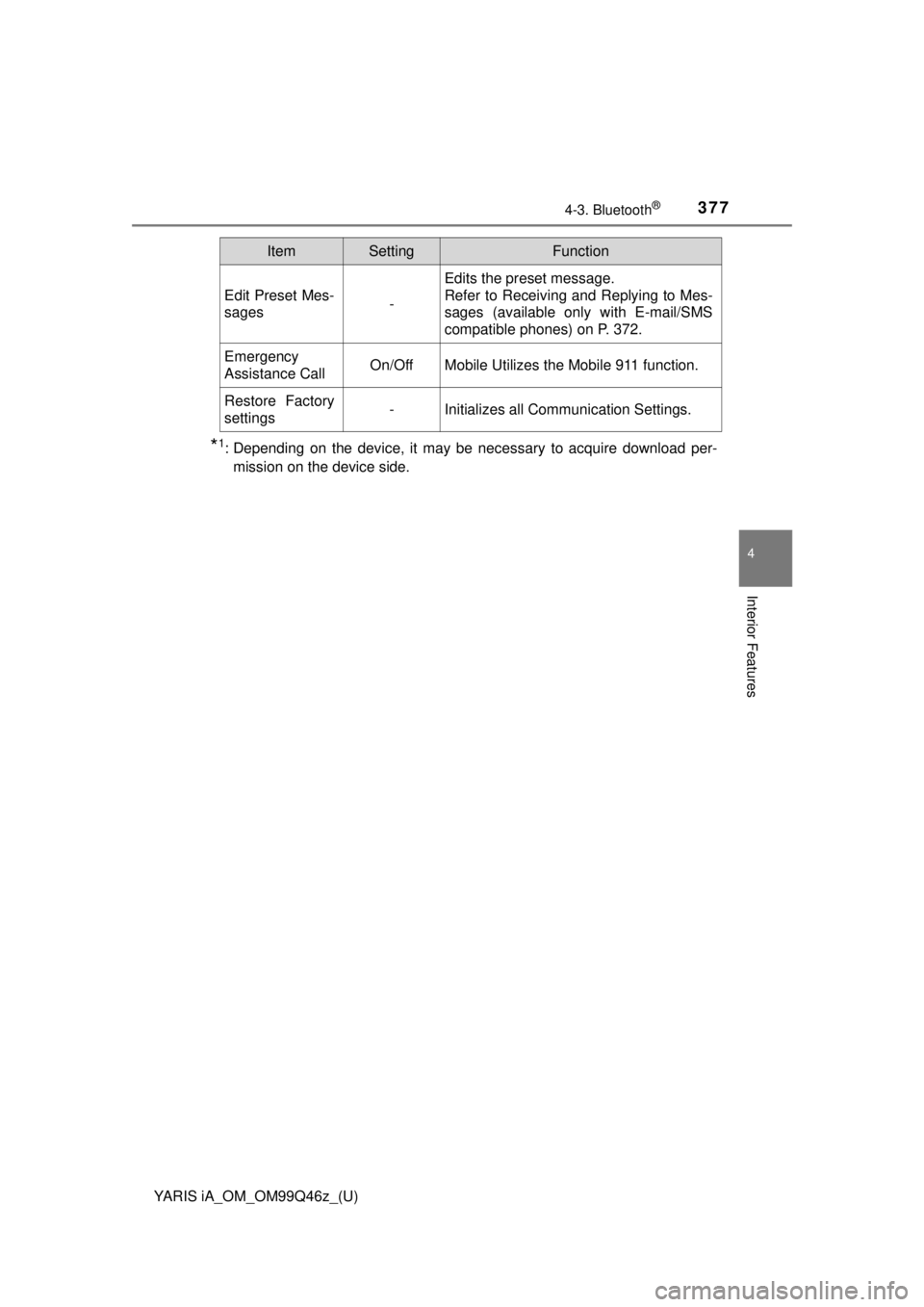

*1: Depending on the device, it may be necessary to acquire download per-mission on the device side.
Edit Preset Mes-
sages-
Edits the preset message.
Refer to Receiving and Replying to Mes-
sages (available only with E-mail/SMS
compatible phones) on P. 372.
Emergency
Assistance CallOn/OffMobile Utilizes the Mobile 911 function.
Restore Factory
settings-Initializes all Communication Settings.
ItemSettingFunction

378
YARIS iA_OM_OM99Q46z_(U)
4-3. Bluetooth®
Bluetooth® Audio (Type A)
●Applicable Bluetooth® specification (Recommended)
Ve r. 2 . 0
● Response profile
• A2DP (Advanced Audio Distribut ion Profile) Ver. 1.0/1.2
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0/1.3
A2DP is a profile which transmits only audio to the Bluetooth
® unit. If
your Bluetooth® audio device corresponds only to A2DP, but not
AVRCP, you cannot operate it using the control panel of the vehicle’s
audio system. In this case, only the operations on the mobile device
are available the same as when a portable audio device for a non-
compliant Bluetooth
® device is connected to the AUX terminal.
X: Available
-: Not available
● The battery consumption of Bluetooth® audio devices increases while Blue-
tooth® is connected.
● If a general mobile phone device is USB connected during music playback
over the Bluetooth
® connection, the Bluetooth® connection is disconnected.
For this reason, you cannot have music playback over a Bluetooth® connec-
tion and music playback using a USB connection at the same time.
● The system may not operate normally depending on the Bluetooth
® audio
device.
FunctionA2DPAV R C P
Ve r. 1 . 0Ve r. 1. 3
Playback-XX
Pause-XX
File (Track) up/down-XX
Reverse--X
Fast-forward--X
Text display--X

YARIS iA_OM_OM99Q46z_(U)
3794-3. Bluetooth®
4
Interior Features
■Switching to Bluetooth® audio mode
To listen to music or voice audio recorded to a Bluetooth
® audio
device, switch to the Bluetooth® audio mode to operate the audio
device using the audio system control panel. Any Bluetooth® audio
device must be paired to the vehicle’s Bluetooth® unit before it can
be used.
Refer to Bluetooth
® Preparation (Type A) on P. 322.
Turn on the Bluetooth
® audio device’s power.
Switch the ignition to ACC or ON. Make sure that the “ ”
symbol is displayed in the audio display. The symbol is not dis-
played if an un-paired Bluetooth
® audio device is being used or
the vehicle’s Bluetooth
® unit has a malfunction.
Some Bluetooth® audio devices need a certain amount of time before
the “ ” symbol is displayed.
Press the media button ( ) to switch to the Bluetooth®
audio mode and start playback.
If the current device version is lower than AVRCP Ver. 1.3:
“BT Audio” is displayed.
If the current device is AVRCP Ver. 1.3:
The playback time is displayed.
■Playback
To listen to a Bluetooth
® audio device over the vehicle’s speaker
system, switch the mode to Bluetooth® audio mode. (Refer to
“Switching to Bluetooth® audio mode”)
To stop playback, press the Play/Pause button (4).
Press the button again to resume playback.
How to Use the Bluetooth® Audio System
1
2
3
1
2
3

380
YARIS iA_OM_OM99Q46z_(U)
4-3. Bluetooth®
■Selecting a file (track)
●Selects the next file (track)
Short-press the track up button ( ).
● Selects the beginning of the current file (track)
Short-press the track down button ( ).
■Fast-forward/Reverse (AVRCP Ver. 1.3)
●Fast-forward
Press and hold the fast -forward button ( ).
● Reverse
Press and hold the reverse down button ( ).
■Switching the display (only AVRCP Ver. 1.3)
The information displayed on the audio display changes as follows
each time the text button (3) is pressed during playback.
■Display scroll
Only 13 characters can be displaye d at one time. To display the rest
of the characters of a long title, press and hold the text button (3).
The display scrolls the next 13 characters. Press and hold the text
button (3) again after the last 13 characters have been displayed to
return to the beginning of the title.
ButtonInformation displayed on audio display
Elapsed time
Album name
Song name
Artist name
