The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by your Toyota dealer
before you scrap your vehicle.
Special handling may apply,
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These compo-
nents may include airbag, seat belt pretensioners, and wireless remote con-
trol batteries.
Scrapping of your Toyota
Perchlorate Material
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regard ing children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neut\
ral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.

12

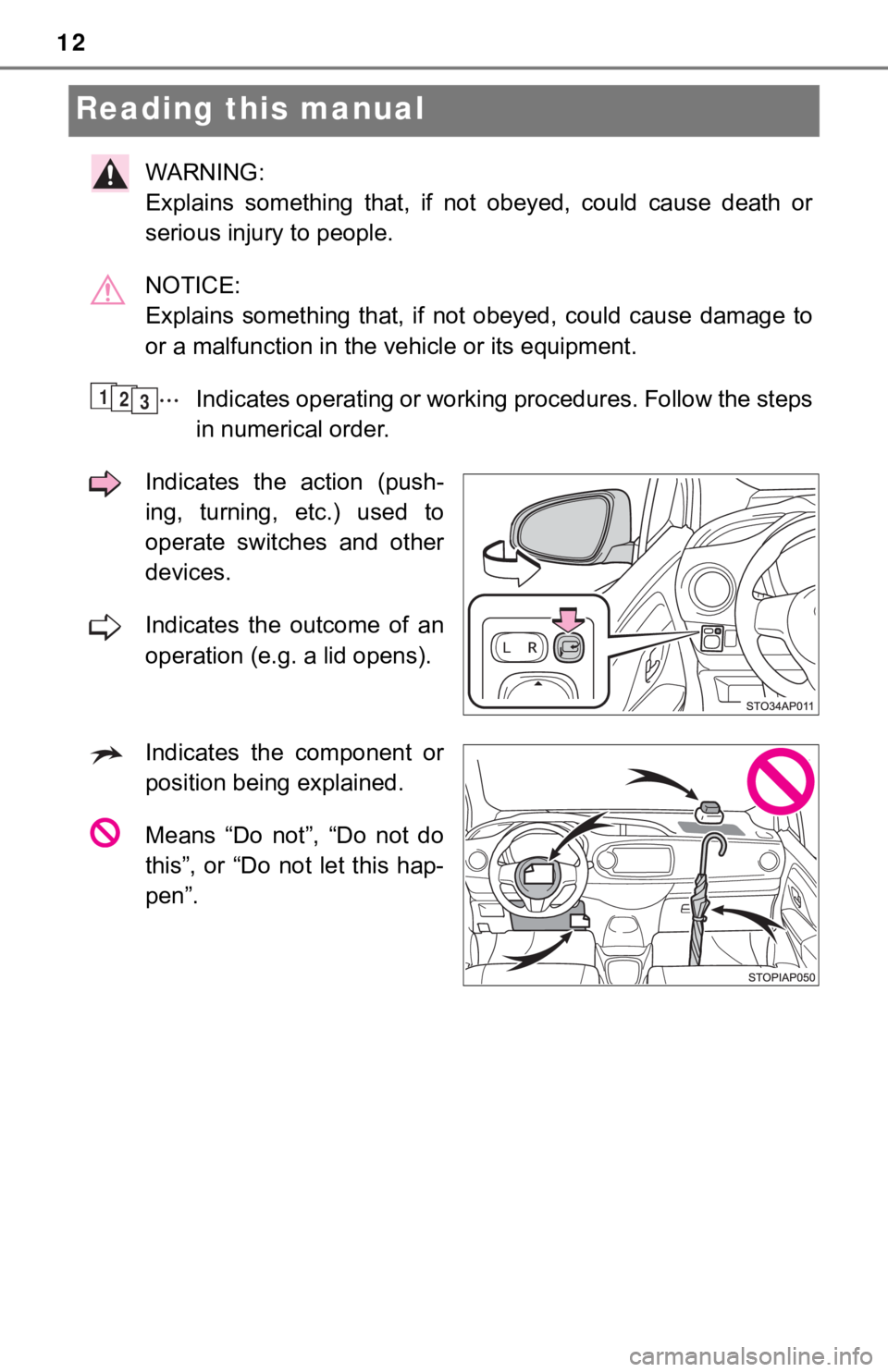

Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

13
How to search
■Searching by name• Alphabetical index .......P. 509
■Searching by installation
position• Pictorial index ................P. 14
■Searching by symptom or
sound• What to do if... (Troubleshooting) ........P. 506
■Searching by title• Table of contents .............P. 2

14Pictorial index
Pictorial index
■

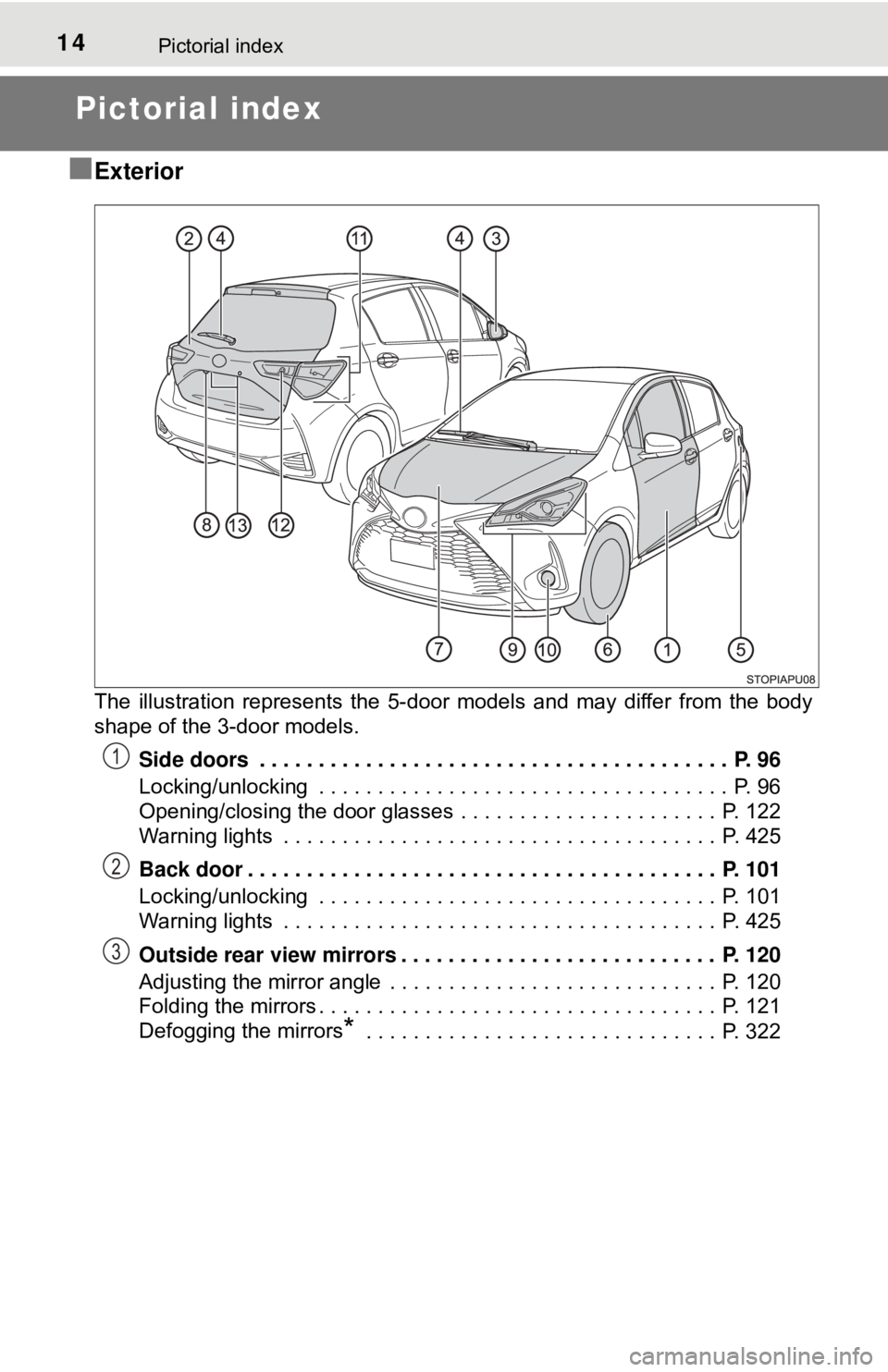

Exterior
The illustration represents the 5-door models and may differ from the body
shape of the 3-door models.
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 96
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . P. 122
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 120
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 121
Defogging the mirrors
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
1
2
3

15Pictorial index
Wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162, 165
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 221
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 168
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 370
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 469
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 222
Checking/rotation/tire pressure warning system
* . . . . . . . . . . P. 370
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 433
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 464
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 453
Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205
Headlights/parking lights/front side marker lights/
daytime running lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Fog lights
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Tail lights/rear side marker lights . . . . . . . . . . . . . . . . . . . . . P. 156
Rear turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Back-up lights
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . P. 149, 153
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
4
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 396, Watts: P. 470)
*: If equipped
9
10
11
12
13

16Pictorial index

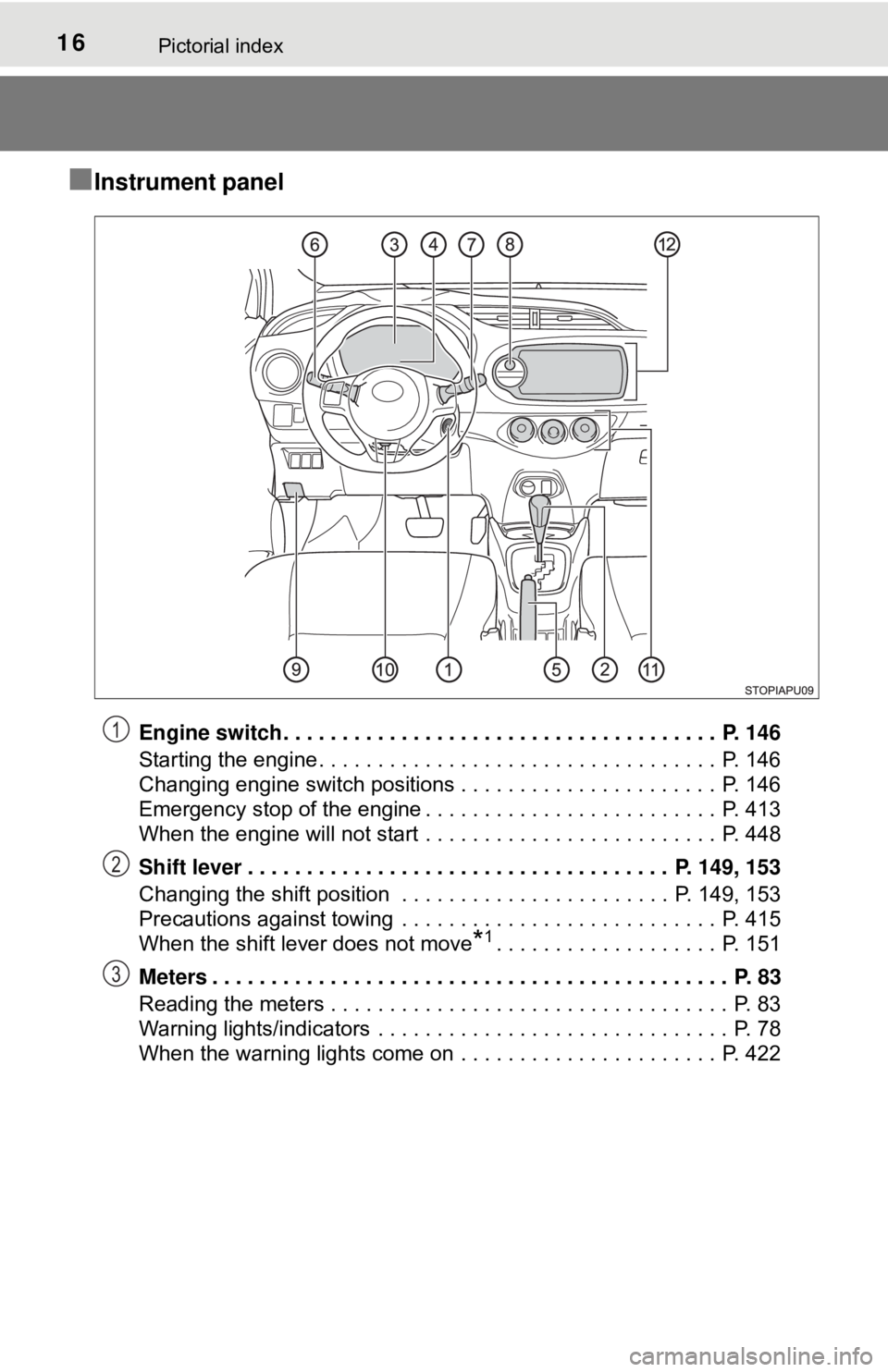

■Instrument panel
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Starting the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 146
Changing engine switch positions . . . . . . . . . . . . . . . . . . . . . . P. 146
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 413
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 448
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 149, 153
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . P. 149, 153
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 415
When the shift lever does not move
*1. . . . . . . . . . . . . . . . . . . P. 151
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 83
Reading the meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 83
Warning lights/indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 78
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 422
1
2
3

17Pictorial index
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 85
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . P. 222
Warning buzzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 154
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
Headlights/parking lights/side marker lights/
tail lights/daytime running lights
*2. . . . . . . . . . . . . . . . . . . . . . P. 156
Fog lights
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . P. 162, 165
Usage (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 162
Usage (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 369
Warning light
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 426
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 412
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 356
Tilt steering lock release lever . . . . . . . . . . . . . . . . . . . . . . . P. 116
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 322
Entune Audio system
*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
*1: Vehicles with automatic transmission
*2: If equipped
*3: For vehicles with Entune Audio Plus,
refer to “MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12

18Pictorial index

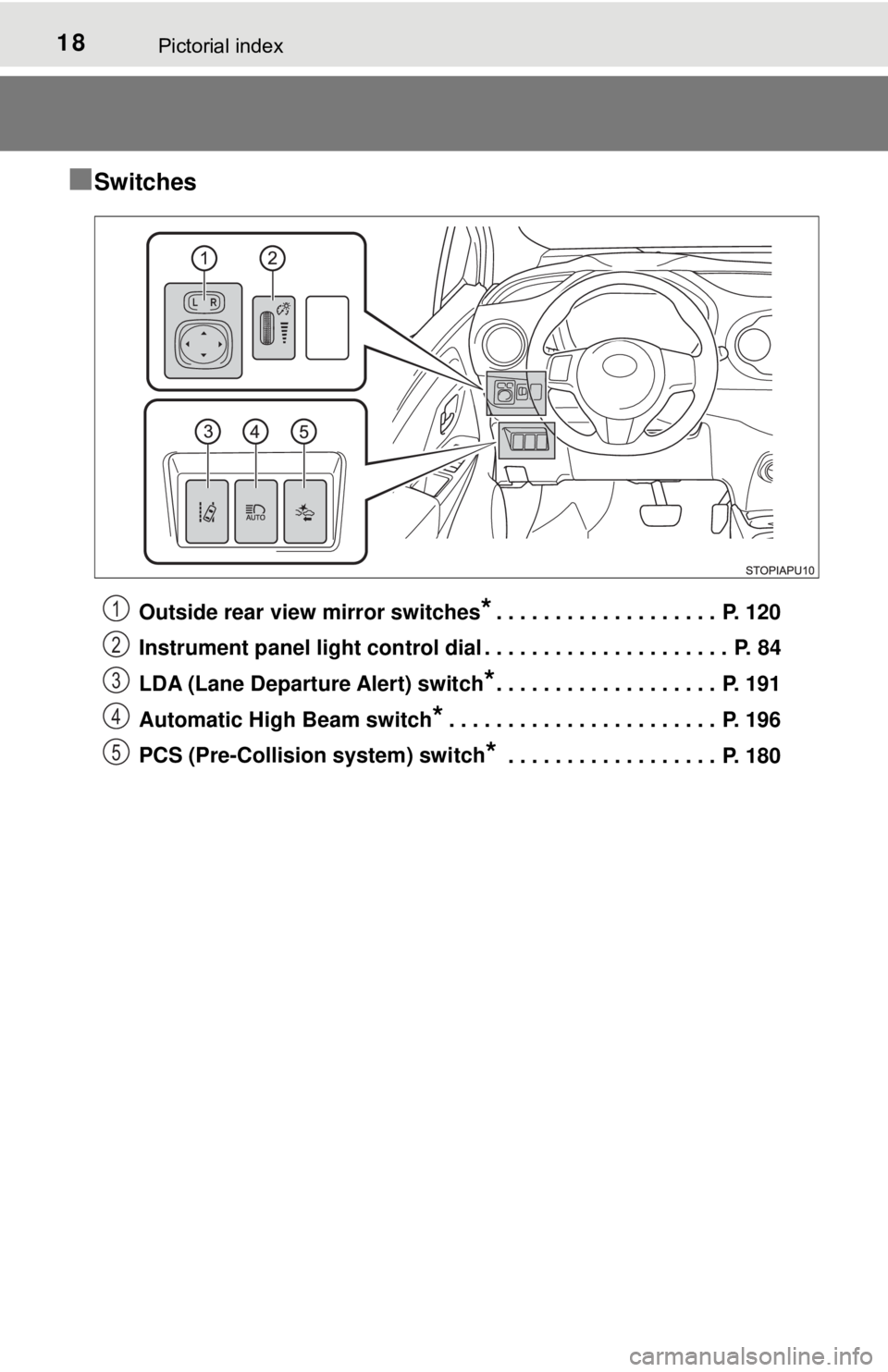

■Switches
Outside rear view mirror switches*. . . . . . . . . . . . . . . . . . . P. 120
Instrument panel light control dial . . . . . . . . . . . . . . . . . . . . . P. 84
LDA (Lane Departure Alert) switch
*. . . . . . . . . . . . . . . . . . . P. 191
Automatic High Beam switch
*. . . . . . . . . . . . . . . . . . . . . . . P. 196
PCS (Pre-Collision system) switch
* . . . . . . . . . . . . . . . . . . P. 180
1
2
3
4
5

19Pictorial index

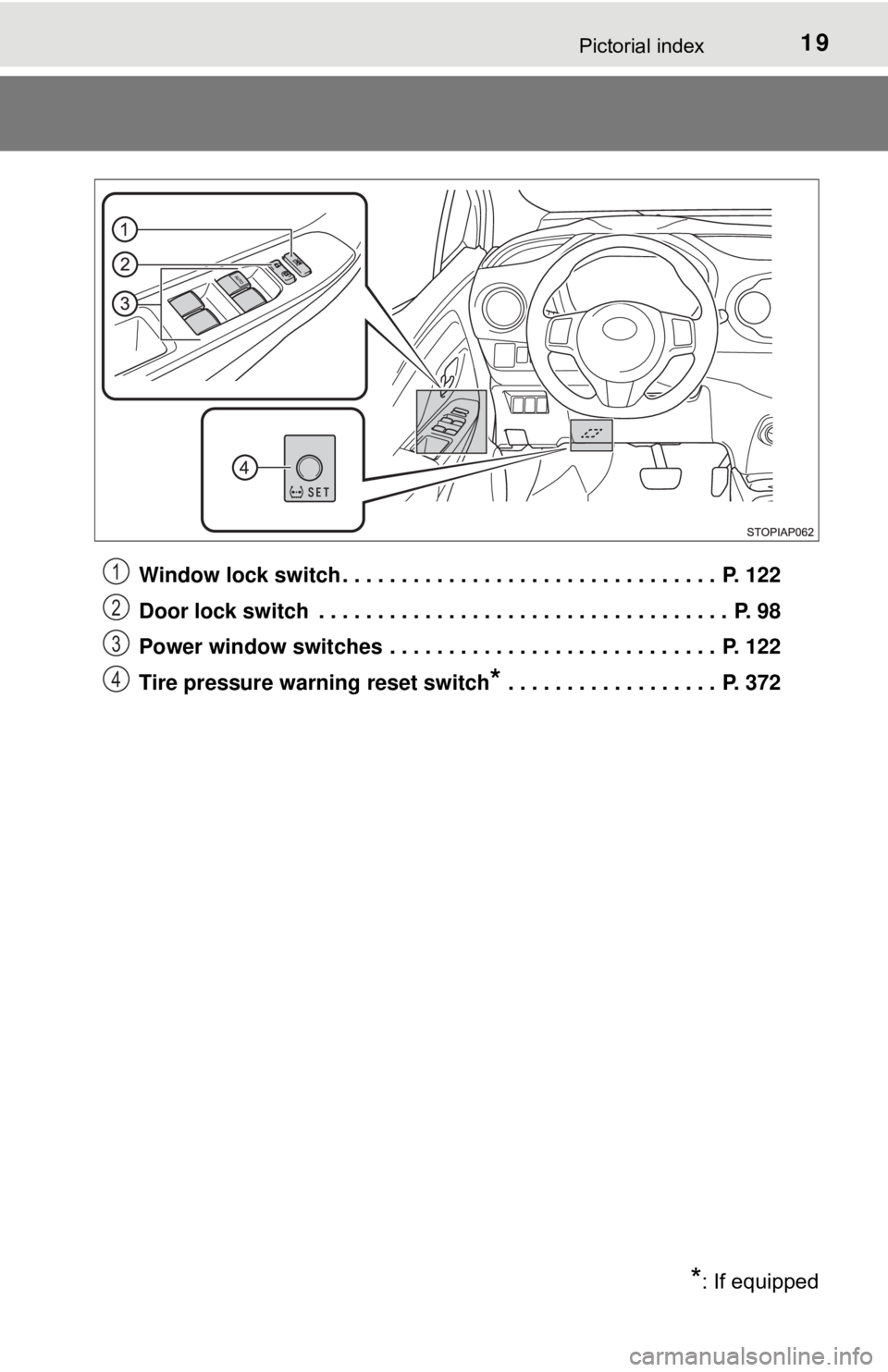

Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Door lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 98
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 122
Tire pressure warning reset switch
* . . . . . . . . . . . . . . . . . . P. 372
*: If equipped
1
2
3
4

20Pictorial index

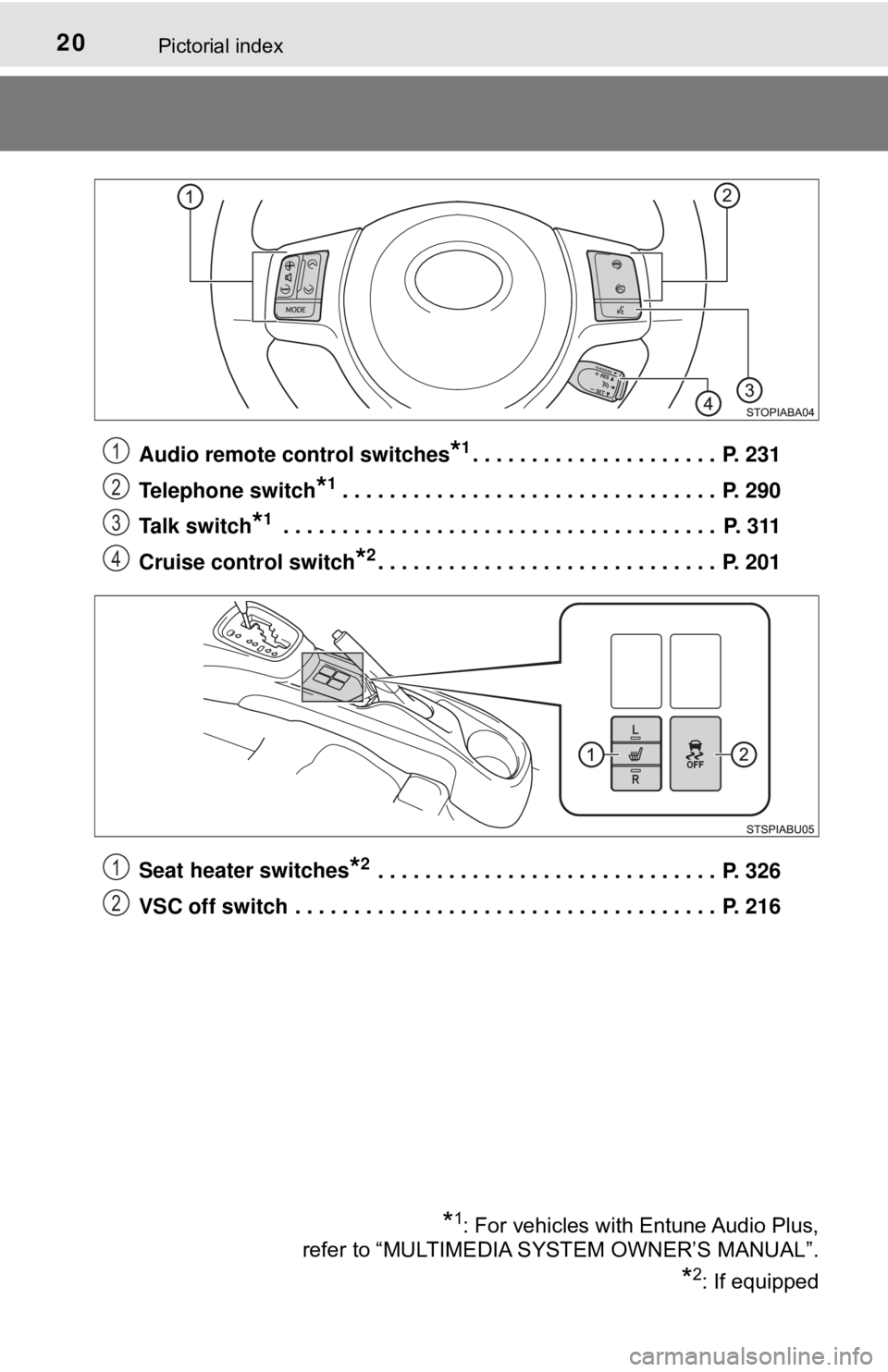

Audio remote control switches*1. . . . . . . . . . . . . . . . . . . . . P. 231
Telephone switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 290
Talk switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 311
Cruise control switch
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 201
Seat heater switches
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 326
VSC off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
1
2
3
4
*1: For vehicles with Entune Audio Plus,
refer to “MULTIMEDIA SYSTEM OWNER’S MANUAL”.
*2: If equipped
1
2
