TOYOTA YARIS SEDAN 2008 Owners Manual

187
3-2. Using the audio system
3
Interior features
n
Adjusting sound quality
Turning or adjusts the level.
n Adjusting the Automatic Sound Levelizer (ASL) - Type B only
When “ASL“ is selected, turni ng to the right changes the
“ASL level in the order of the “LOW”, “MID” and “HIGH”.
Turning to the left turns “ASL“ off.
ASL automatically adjusts the volu me and tone quality according to
the vehicle speed.

Sound qual- ity modeMode
displayedLevelTurn to the leftTurn to the right
BassBAS-5 to 5LowHighTrebleTRE-5 to 5
Front/rear balanceFA DR7 to F7Shifts to rearShifts to front
Left/right balanceBALL7 to R7Shifts to leftShifts to right

188 3-2. Using the audio system
nTrademark owned by SRS Labs, Inc.
The audio systems utilize SRS FOCUS
® and SRS TruBass® audio
enhancement technologies, under license from SRS Labs, Inc., in all modes
except AM radio mode.
FOCUS, TruBass, SRS and
symbols are trademarks of SRS Labs,
Inc.
FOCUS and TruBass technologies are incorporated under license from
SRS Labs, Inc.

189
3-2. Using the audio system
3
Interior features

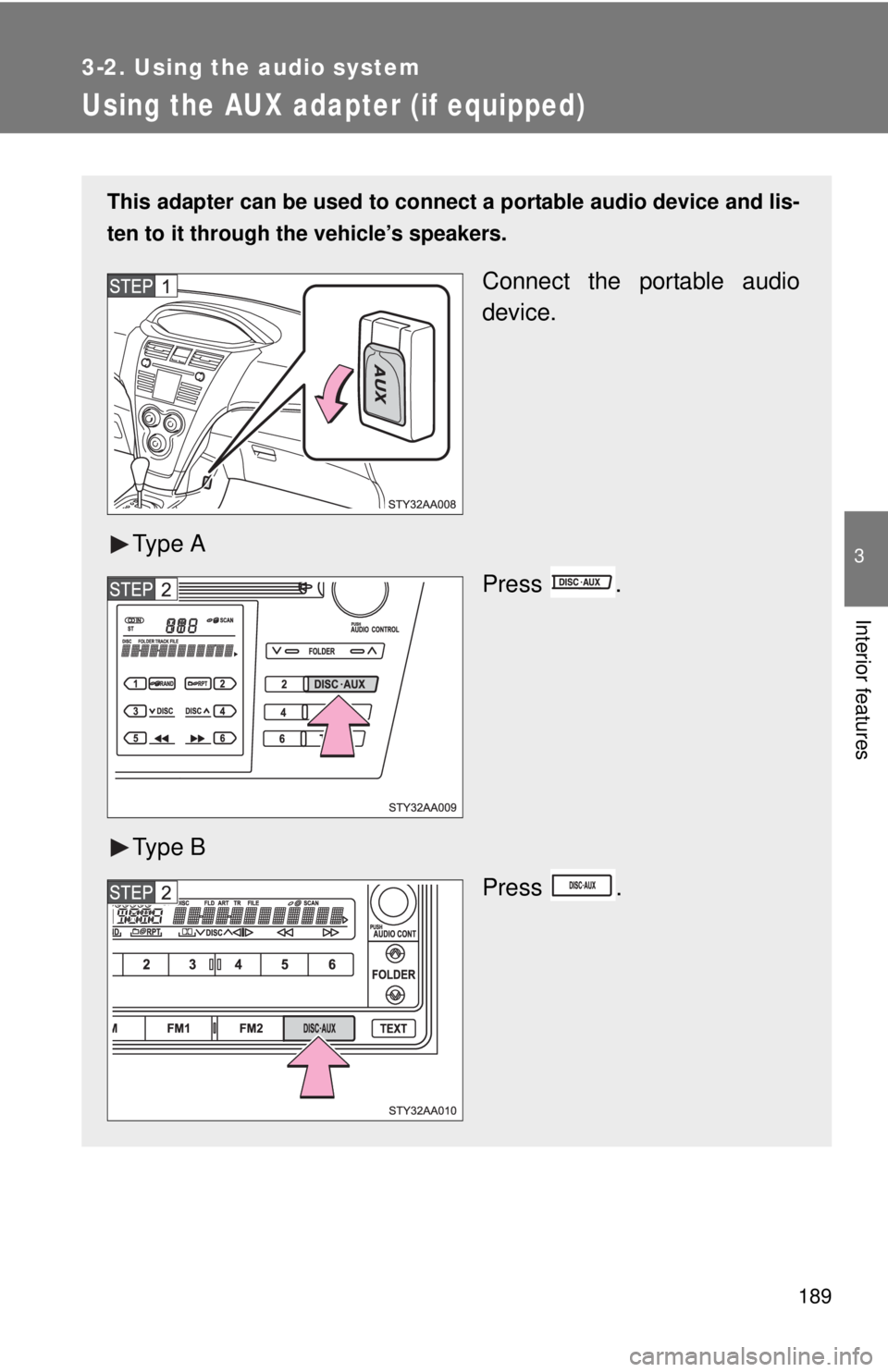

Using the AUX adapter (if equipped)
This adapter can be used to connect a portable audio device and lis-
ten to it through the vehicle’s speakers.
Connect the portable audio
device.
Ty p e A Press .
Ty p e B Press .

190 3-2. Using the audio system
nOperating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
n When using a portable audio device connected to the power outlet or
cigarette lighter
Noise may occur during playback. Use the power source of the portable
audio device.

191
3
Interior features
3-3. Using the interior lights
Interior lights list
nIlluminated entry system
When the interior light switch is in the DOOR position, the interior light auto-
matically turns on/off according to whether the doors are locked/unlocked
and whether the doors are open/closed and the engine switch position.
n To prevent the battery from being discharged
If the interior light remains on when the door is not fully closed and the inte-
rior light switch is in the DOOR position, the light will go off automatically
after 20 minutes.
n Customization that can be co nfigured at Toyota dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features →P. 351)
Interior light (→P. 192)
Personal lights ( →P. 192)

192 3-3. Using the interior lights
Interior lightON
OFF
DOOR position
Personal lightsON/OFF
Interior light and personal lights

193
3
Interior features
3-4. Using the storage features
List of storage features
Glove boxPull up the lever.
Cup holders
Glove box
Bottle holders
Console box
Auxiliary box
Glove box

194 3-4. Using the storage features
Console boxLift the lid while pulling the lever.
CAUTION
nCaution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
CAUTION
nCaution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

195
3-4. Using the
storage features
3
Interior features
Cup holders (front)
Push on the lid.
CAUTION
nItems unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
n When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders

196 3-4. Using the storage features
Cup holders (rear)Type A Pull the lid down.
Type B (if equipped) Pull the armrest down.
CAUTION
nItems unsuitable for the cup holder
Do not place anything other than cups or aluminum cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.
n When not in use
Keep the cup holders closed.
Injuries may result in the event of an accident or sudden braking.
Cup holders
