VAUXHALL ADAM 2016.5 Infotainment system

Phone41Mobile phones and CB radio
equipment
Installation instructions and
operating guidelines
The vehicle specific installation
instructions and the operating
guidelines of the mobile phone and
handsfree manufacturer must be observed when installing and
operating a mobile telephone. Failure to do so could invalidate the vehicle
type approval (EU directive 95/54/
EC).
Recommendations for fault-free
operation:
● Professionally installed exterior antenna to obtain the maximum
range possible,
● Maximum transmission power 10 watts,
● Installation of the phone in a suitable spot, consider relevant
Note in the Owner's Manual,
section Airbag system .
Seek advice on predetermined
installation points for the external
antenna or equipment holder andways of using devices with a
transmission power exceeding
10 watts.
Use of a handsfree attachment
without external antenna with mobile
telephone standards GSM
900/1800/1900 and UMTS is only
permitted if the maximum
transmission power of the mobile
telephone is 2 watts for GSM 900 or
1 watt for the other types.
For reasons of safety, do not use the
phone while driving. Even use of a handsfree set can be a distractionwhile driving.9 Warning
Operation of radio equipment and
mobile telephones which fail to
meet above mentioned mobile
telephone standards is only
permitted using an antenna
located outside of the vehicle.
Caution
Mobile telephones and radio
equipment may lead to
malfunctions in the vehicle
electronics when operated inside
the vehicle with no exterior
antenna, unless the above
mentioned regulations are
observed.

42IndexAActivating AUX audio ....................27
Activating Bluetooth music ...........27
Activating iPod audio ....................27
Activating phone ........................... 37
Activating phone projection ..........30
Activating radio ............................. 19
Activating USB audio ....................27
Activating USB movie ...................29
Activating USB picture ..................28
Audio files ..................................... 25
Auto volume.................................. 16 AUX AUX audio menu .......................27
Connecting device ....................25
General information................... 25
B Basic operation ............................. 13
Bluetooth Bluetooth connection ................34
Bluetooth music menu ..............27
Connecting device ....................25
General information................... 25
Pairing ....................................... 34
Phone ........................................ 37
Bluetooth connection ....................34C
Call Functions during a call ..............37
Incoming call ............................. 37
Initiating a phone call ................37
Ring tone ................................... 37
Call history .................................... 37
Control elements Infotainment system ....................8
Steering wheel ............................ 8
Control elements overview .............8
D DAB .............................................. 23
Digital audio broadcasting ............23
Displaying pictures .......................28
Display settings ......................28, 29
E Emergency call ............................. 36
F
Favourite lists ............................... 21
Retrieving stations..................... 21
Storing stations ......................... 21
File formats Audio files.................................. 25
Movie files ................................. 25
Picture files................................ 25

43GGeneral information ..........25, 32, 33
AUX ........................................... 25
Bluetooth ................................... 25
DAB ........................................... 23
Infotainment system ....................6
Phone ........................................ 33
Smartphone applications ..........25
USB ........................................... 25
H Home menu .................................. 13
I
Infotainment control panel ..............8
Intellitext ....................................... 23
iPod .............................................. 25
Connecting device ....................25
iPod audio menu .......................27
M Maximum startup volume .............16
Menu operation............................. 13
Mobile phones and CB radio equipment ................................ 41
Movie files..................................... 25
Mute.............................................. 11
O Operation ...................................... 37
External devices ........................25Menu......................................... 13
Phone ........................................ 37
Radio ......................................... 19
P Pairing .......................................... 34
Phone Bluetooth ................................... 33
Bluetooth connection ................34
Call history ................................ 37
Emergency calls ........................36
Entering a number ....................37
Functions during a call ..............37
General information................... 33
Incoming call ............................. 37
Phone book ............................... 37
Phone main menu .....................37
Selecting the ring tone ..............37
Speed dial number ....................37
Phone book .................................. 37
Phone projection .......................... 30
Picture files ................................... 25
Playing audio ................................ 27
Playing movies ............................. 29
R Radio Activating................................... 19
Configuring DAB .......................23
Configuring RDS .......................22
DAB announcements ................23Digital audio broadcasting
(DAB) ........................................ 23
Favourite lists ............................ 21
Intellitext .................................... 23
Radio data system (RDS) .........22
Regional .................................... 22
Regionalisation ......................... 22
Retrieving stations..................... 21
Selecting the waveband ............19
Station search ........................... 19
Station tuning ............................ 19
Storing stations ......................... 21
Usage ........................................ 19
Radio data system (RDS) ............22
RDS .............................................. 22
Regional ....................................... 22
Regionalisation ............................. 22
Retrieving stations ........................21
Ring tone Changing the ring tone ..............37
Ring tone volume ......................16
S Smartphone .................................. 25
Phone projection .......................30
Speech recognition .......................32
Speed dial numbers .....................37
Station search............................... 19
Steering wheel audio controls ........8
Storing stations ............................. 21

44Switching the Infotainmentsystem on .................................. 11
System settings ............................ 17
T
Theft-deterrent feature ................... 7
Tone settings ................................ 15
Touch beep volume ......................16
TP volume .................................... 16
U Usage ............................... 11, 19, 32
AUX ........................................... 25
Bluetooth ................................... 25
iPod ........................................... 25
Menu ......................................... 13
Phone ........................................ 37
Radio ......................................... 19
USB ........................................... 25
USB Connecting device ....................25
General information................... 25
USB audio menu .......................27
USB movie menu ......................29
USB picture menu .....................28
Using smartphone applications ....30V
Voice recognition ..........................32
Volume Auto volume .............................. 16
Maximum startup volume ..........16
Mute function............................. 11
Ring tone volume ......................16
Setting the volume ....................11
Speed compensated volume ....16
Touch beep volume ..................16
TP volume ................................. 16
Volume limitation at high
temperatures ............................. 11
Volume settings ............................ 16
W
Waveband selection .....................19

Introduction.................................. 46
Radio ........................................... 58
CD Player .................................... 66
AUX input ..................................... 69
USB port ...................................... 70
Bluetooth music ........................... 73
Phone .......................................... 75
Index ............................................ 84CD 3.0 BT / R 3.0

46IntroductionIntroductionGeneral information.....................46
Theft-deterrent feature .................47
Control elements overview ..........48
Usage .......................................... 52
Basic operation ............................ 54
Tone settings ............................... 56
Volume settings ........................... 57General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
Using the radio tuner functions, you
may register up to 36 stations on
six favourites pages.
The integrated audio player will
entertain you with audio CDs and
MP3/WMA CDs.
You can connect external data
storage devices, e.g. iPod, MP3
player, USB stick, or a portable CD
player to the Infotainment system as
further audio sources; either via cable or via Bluetooth.
In addition, the Infotainment system is equipped with a Phone portal that
allows for comfortable and safe use of
your mobile phone in the vehicle.
Optionally, the Infotainment system
can be operated using controls on the steering wheel.
The well-thought-out design of the
control elements and the clear
displays enable you to control the
system easily and intuitively.Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those
for display and menu functions, may not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on
operation and traffic safety9 Warning
The Infotainment system must be
used so that the vehicle can be
driven safely at all times. If in
doubt, stop the vehicle and
operate the Infotainment system
while the vehicle is stationary.

Introduction47Radio receptionRadio reception may be disrupted bystatic, noise, distortion or loss of
reception due to:
● changes in distance from the transmitter
● multipath reception due to reflection
● shadowing
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft deterrence.
The Infotainment system therefore functions only in your vehicle and isworthless to a thief.

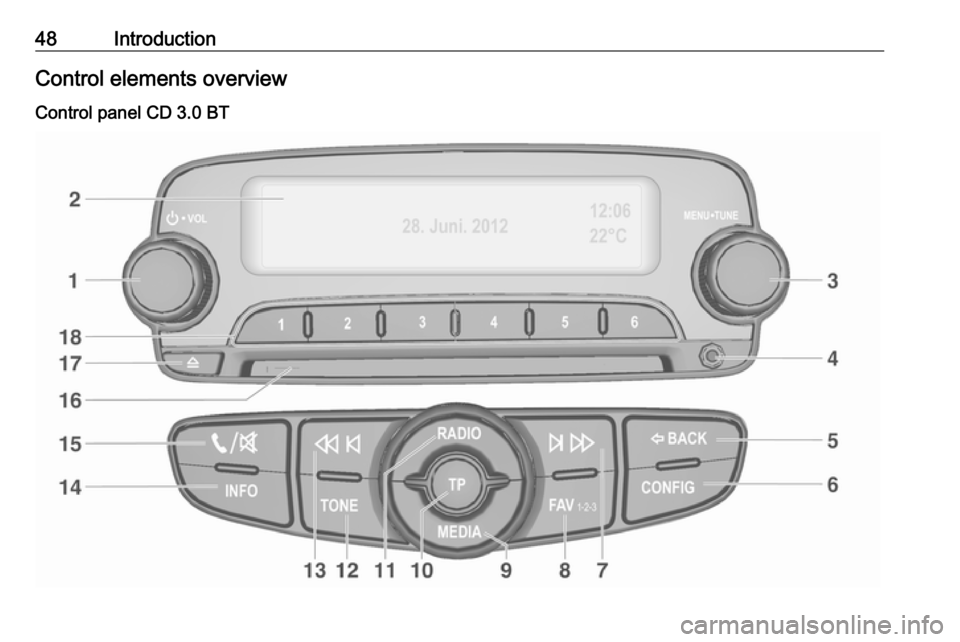

48IntroductionControl elements overviewControl panel CD 3.0 BT

Introduction491m VOL
Press: switch on/off
Infotainment system ..............52
Turn: adjust volume ..............52
2 Display
3 MENU-TUNE
Central control for
selection and navigation in menus ................................... 54
4 AUX input .............................. 69
5 P BACK
Menu: one level back ............54
Input: delete last character
or entire entry ........................ 54
6 CONFIG
System settings ..................... 52
7 u
Radio: search forwards .........58
CD/MP3/WMA: skip track
forwards ................................ 678FAV 1-2-3
Radio favourites and
autostore lists ........................ 60
9 MEDIA
Activate media or change
audio source ......................... 52
10 TP
Activate or deactivate
radio traffic service ................62
11 RADIO
Activate radio or change
waveband .............................. 58
12 TONE
Tone settings ........................ 56
13 s
Radio: search backwards .....58
CD/MP3/WMA: skip track
backwards ............................. 6714INFO
Radio: Information about
the current station
CD/MP3/WMA:
Information about the
current track
15 y / @
Open telephone main menu . 75
or activate/deactivate
mute function ........................ 52
16 Disc slot
17 d
Eject disc ............................... 67
18 Radio station buttons 1 - 6
Long press: save station .......60
Short press: select station ....60

50IntroductionControl panel R 3.0
