Keys, doors and windows25smelled, could enter the vehicle.
This can cause unconsciousness
and even death.
Notice
The installation of certain heavy accessories onto the tailgate may
affect its ability to remain open.
Closing
Use the interior handle.
Do not press the button under the
moulding while closing as this will unlock the tailgate again.
Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks all the doors.
All doors must be closed or the
system cannot be activated.
If the ignition was on, the driver's door
must be opened and closed once so
that the vehicle can be secured.
Unlocking the vehicle disables the
mechanical anti-theft locking system.
This is not possible with the central
locking button.
Activating with the remote
control
Press button p again within
10 seconds of locking.
Anti-theft alarm system
The anti-theft alarm system is
operated in conjunction with the
central locking system.
It monitors: ■ Doors, load compartment, bonnet,
■ Ignition.
Unlocking the vehicle deactivates the
anti-theft alarm system.

26Keys, doors and windows
Light-emitting diode (LED)
During the first 10 seconds of anti-
theft alarm system activation:
LED illu‐
minates=Test, ignition delay,LED
flashes
quickly=Door, load
compartment or bonnet open, or system fault.
After the first 10 seconds of anti-theft
alarm system activation:
LED flashes
slowly=System active.
Seek the assistance of a workshop in
the event of faults.
Alarm
When triggered, the alarm gives off
an acoustic signal (horn) and a visual signal (hazard warning flashers). The
number and duration of which are
stipulated by legislation.
The alarm siren can be silenced by
pressing any button of the radio
remote control or by switching on the
ignition. The anti-theft alarm system is deactivated at the same time.
If the vehicle's battery is to be
disconnected (e.g. for maintenance
work), the alarm siren must be
deactivated as follows: switch the
ignition on then off, then disconnect
the vehicle's battery within
15 seconds.
Immobiliser
The system checks whether the
vehicle is allowed to start with the key being used. If the transponder in the
key is recognised, the engine can be
started.The immobiliser activates itself
automatically after the key has been removed from the ignition switch.
If control indicator A flashes when
the ignition is on, there is a fault in the
system; the engine cannot be started. Switch off the ignition and then repeat
the start attempt.
If control indicator A continues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.
If control indicator A illuminates after
the engine has started, there is a fault in the engine electronics or
transmission electronics 3 81,
3 122, 3 127, or there is water in the
diesel fuel filter 3 90.
Notice
The immobiliser does not lock the doors. You should always lock the
vehicle after leaving it and switch on the anti-theft alarm system 3 21,
3 25.

Keys, doors and windows27Exterior mirrors
Convex shape
The convex exterior mirror contains
an aspherical area and reduces blind spots. The shape of the mirror makes
objects appear smaller, which will affect the ability to estimate
distances.
Electric adjustment
Setting with four-way switch in
vehicles with manual window operationFirst select the relevant exterior mirror then use the control to adjust.
Setting with four-way switch in
vehicles with electronic window
operation
First select the relevant exterior mirror then use the control to adjust.
Folding mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the mirror by applying slight pressure tothe mirror housing.

28Keys, doors and windows
Corsa VXR: For pedestrians safety,
the exterior mirrors of the Corsa VXR are released from the holder if they
are struck with sufficient force. Fit mirror housing to holder with latching
lugs and engage by striking gently.
Manual
The exterior mirrors can be folded in
by pressing gently on the outer edge
of the housing.
Heated mirrors
Operated by pressing the Ü button.
Heating works with the engine
running. It is switched off
automatically after a short time.

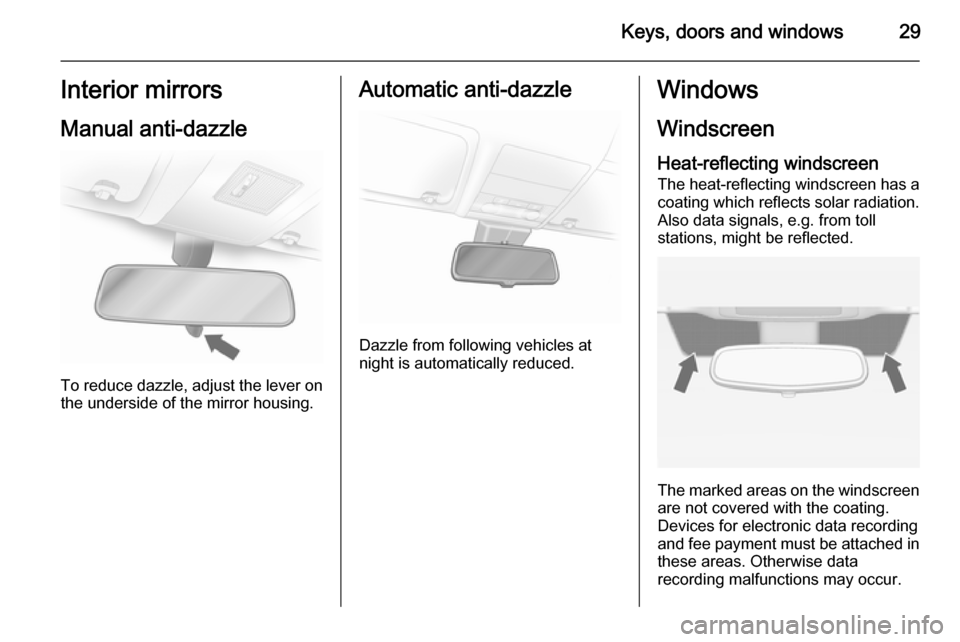

Keys, doors and windows29Interior mirrors
Manual anti-dazzle
To reduce dazzle, adjust the lever on the underside of the mirror housing.
Automatic anti-dazzle
Dazzle from following vehicles at
night is automatically reduced.
Windows
Windscreen
Heat-reflecting windscreen
The heat-reflecting windscreen has a
coating which reflects solar radiation. Also data signals, e.g. from toll
stations, might be reflected.
The marked areas on the windscreen are not covered with the coating.
Devices for electronic data recording
and fee payment must be attached in
these areas. Otherwise data
recording malfunctions may occur.

30Keys, doors and windows
Windscreen stickers
Do not attach stickers such as toll
road stickers or similar on the
windscreen in the area of the interior
mirror. Otherwise the detection zone
of the sensor and the view area of the camera in the mirror housing could be
restricted.
Manual windows
The door windows can be opened or
closed with the window winders.
Power windows9 Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.
Keep a close watch on the
windows when closing them.
Ensure that nothing becomes
trapped in them as they move.
Power windows can be operated:
■ with the ignition on,
■ within 5 minutes of switching the ignition off,
■ within 5 minutes of turning the ignition key to position 1.
After switching off the ignition, the
window operation is disabled when
the driver's door is opened, then
closed and locked.Operate the control to open or close
the window.
For vehicles with automatic feature,
pull or press the switch again to stop
window movement.
Safety function
If the window glass encounters
resistance during automatic closing, it is immediately stopped and openedagain.
In the event of closing difficulties due
to frost or the like, operate the switch
several times to close the window in
stages.

Keys, doors and windows31
Operating windows from outside
Depending on the equipment level,
the windows can be operated
remotely from outside the vehicle.
Press q or p until all windows have
opened or closed.
Overload
If the windows are repeatedly
operated at short intervals, the
window operation is disabled for
some time.
Fault
If the windows cannot be opened or
closed automatically, activate the window electronics as follows:
1. Close doors.
2. Switch on ignition.
3. Close the window completely and
operate the button for
5 more seconds.
4. Open the window completely and operate the button for
1 more second.
5. Repeat this for each window.Heated rear window
Operated by pressing the Ü button.
Heating functions with the engine running and is switched off
automatically after a short time.
Depending on the engine type, the
heated rear window comes on
automatically when the diesel particle filter is being cleaned.
Sun visors
The sun visors can be folded down or swivelled to the side to prevent
dazzling.

32Keys, doors and windows
If the sun visors have integral mirrors,the mirror covers should be closed
when driving.Roof
Sunroof9 Warning
Take care when operating the
sunroof. Risk of injury, particularly to children.
Keep a close watch on the
movable parts when operating
them. Ensure that nothing
becomes trapped in them as they
move.
Sunroof can be operated with ignition on.
Operated via a rocker switch in the
roof console.
Press the button briefly for activation
in steps. Hold down the button for
longer for automatic opening.
Raise
With the sunroof closed, press ü.
The sunroof is raised at the rear.
Open Press ü again with the sunroof in the
raised position. The sunroof opens
automatically until it reaches its end
position.
To close: press d.

Keys, doors and windows33Caution
When using a roof rack, check thefree movement of the sunroof in
order to avoid damage. It is only
permitted to raise the sunroof
when a roof rack is installed.
Notice
If the top of the roof is wet, tilt
sunroof, allow water to run off and
then open sunroof.
Do not affix any stickers to sunroof.
Close
Hold down d until the sunroof is
completely closed.
Sunblind
The sunblind is manually operated.
Close or open the sunblind by sliding. When the sunroof is open, the
sunblind is always open.
Overload
If the system is overloaded, the powersupply is automatically cut-off for a
short time. The system is protected by
fuses in the fuse box 3 166.
Initialising the sun roof
If the sunroof cannot be operated,
activate the electronics as follows:
with ignition on, close the sunroof and
hold d depressed for at least
10 seconds.
Seek the assistance of a workshop to
have the cause of the fault remedied.

Storage53StorageStorage compartments................53
Load compartment .......................63
Roof rack system .........................67
Loading information .....................68Storage compartments9Warning
Do not store heavy or sharp
objects in the storage
compartments. Otherwise, the
storage compartment lid could
open and vehicle occupants could be injured by objects being thrown
around in the event of hard
braking, a sudden change in
direction or an accident.
Glovebox
The glovebox features:
■ a card holder in cheque card format
■ a pen holder
■ pocket torch holder
■ a key adapter for the locking wheel
bolts
The glovebox should be closed whilst driving.
Cupholders
A cupholder is located in the front of
the centre console.
In the 3-door passenger vehicle: also
located on the side of the rear seat.
