VAUXHALL MOVANO_B 2015 Owner's Manual

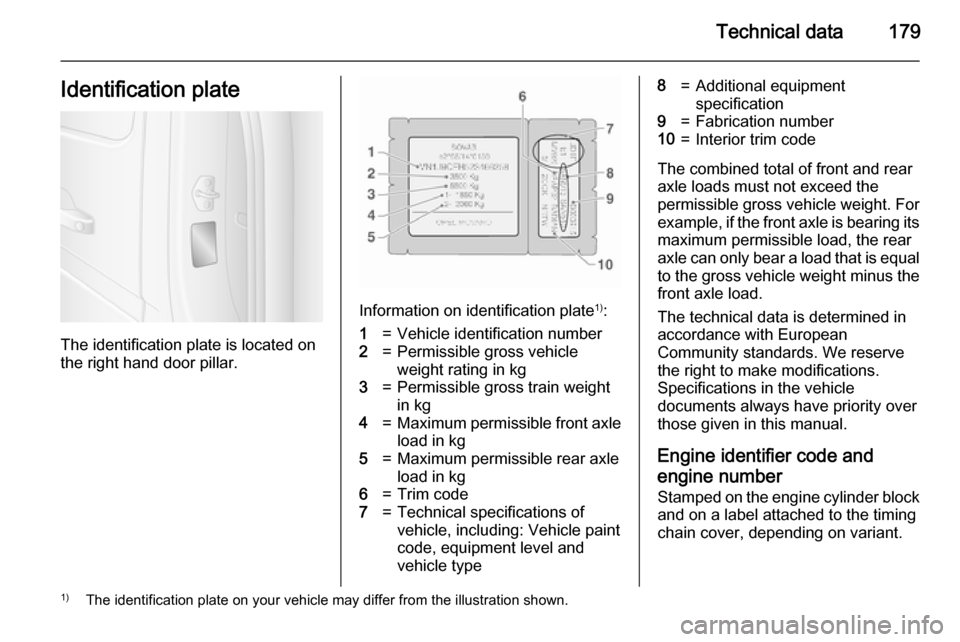

Technical data179Identification plate
The identification plate is located on
the right hand door pillar.
Information on identification plate 1)
:
1=Vehicle identification number2=Permissible gross vehicle
weight rating in kg3=Permissible gross train weight
in kg4=Maximum permissible front axle load in kg5=Maximum permissible rear axle
load in kg6=Trim code7=Technical specifications of
vehicle, including: Vehicle paint
code, equipment level and
vehicle type8=Additional equipment
specification9=Fabrication number10=Interior trim code
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over
those given in this manual.
Engine identifier code and engine number Stamped on the engine cylinder block
and on a label attached to the timing
chain cover, depending on variant.
1) The identification plate on your vehicle may differ from the illustration shown.

180Technical dataEngine identificationThe technical data tables show the
engine identifier code. Engine data
3 182.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

Technical data181Vehicle dataRecommended fluids and lubricantsRequired engine oil qualityEngine oil qualitydexos 2✔
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 once between each oil change.
In case dexos quality is unavailable in International countries you may use the oil qualities listed below:
Engine oil qualityGM-LL-A/B-025✔ACEA A3/B4
diesel engines without DPF✔ACEA C3
diesel engines with DPF✔
Engine oil viscosity grades
Ambient temperaturedown to -25 °CSAE 5W-30 or SAE 5W-40below -25 °CSAE 0W-30 or SAE 0W-40

182Technical dataEngine dataSales designation2.3 CDTI2.3 CDTIEngine identifier codeM9TM9TNumber of cylinders44Piston displacement [cm3
]22992299Engine power [kW] (brake horse power)92 (125)107 (146)at rpm35003500Torque [Nm]310350at rpm1250 - 25001500 - 2750Fuel typeDieselDieselSales designation2.3 CDTI2.3 CDTI2.3 CDTIEngine identifier codeM9TM9TM9TNumber of cylinders444Piston displacement [cm 3
]229922992299Engine power [kW] (brake horse power)81 (110)100 (135)120 (165)at rpm350035003500

Technical data183
Sales designation2.3 CDTI2.3 CDTI2.3 CDTIEngine identifier codeM9TM9TM9TTorque [Nm]285340360at rpm-2)1500 - 27501500 - 2750Fuel typeDieselDieselDiesel2)
Figure not available at time of printing.

184Technical dataVehicle weight
Kerb weight, basic model without any optional equipment Optional equipment and accessories increase the kerb weight.ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight 3)4)VanFront-wheel driveL1H1280018063300181135001816H2280018343300183935001844L2H23300188535001890H33300192135001931L3H235001970H3350020103)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.

Technical data185
ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight3)4)VanRear-wheel driveL3H235005)211035006)224645002246H33500 5)214835006)227945002279L4H23500 5)-7)3500 6)232445002324H335005)-7)3500 6)2366450023663)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
5) With Single rear wheels.
6) With Twin rear wheels.
7) Figure not available at time of printing. Refer to identification plate on the right hand door pillar.

186Technical data
ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight3)4)Platform CabFront-wheel driveL1H135001570L2H135001578H235001593L3H135001599H2350016133)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight 3)4)Chassis CabFront-wheel driveL2H135001686L3H1350017073)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.

Technical data187
ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight3)4)Chassis CabRear-wheel driveL2H135005)1835L3H135005)18603500 6)197545006)1975L4H13500 6)200545006)20053)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
5) With Single rear wheels.
6) With Twin rear wheels.ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight 3)4)Crew CabFront-wheel driveL2H135001887L3H1350019153)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.

188Technical data
ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight3)4)Crew CabRear-wheel driveL2H135005)2037L3H135005)20683500 6)215445006)2154L4H13500 6)222345006)22233)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
5) With Single rear wheels.
6) With Twin rear wheels.ModelDrive wheelsLengthRoof heightGross vehicle weightKerb weight 3)4)BusFront-wheel driveL3H2390024933)
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification plate.
4) Minimum vehicle weight according to type approval, including all fluids, vehicle tools and a 90% fuel load. Excludes the weight of the driver and deletable
options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options
and accessories.
Loading information 3 67.
