VAUXHALL MOVANO_B 2016 Owner's Manual

Technical data199Identification plate

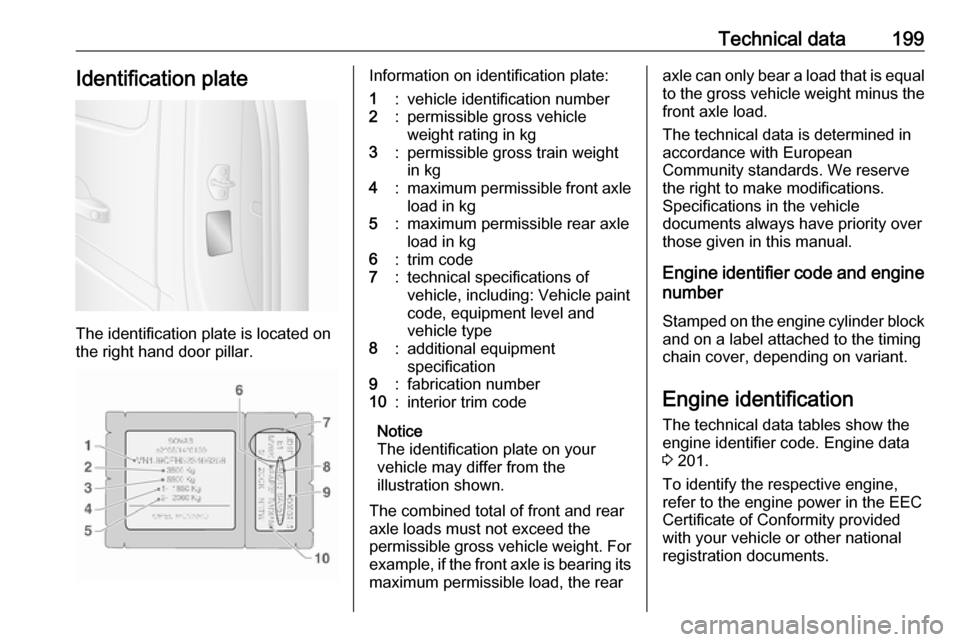

The identification plate is located on
the right hand door pillar.
Information on identification plate:1:vehicle identification number2:permissible gross vehicle
weight rating in kg3:permissible gross train weight
in kg4:maximum permissible front axle load in kg5:maximum permissible rear axle
load in kg6:trim code7:technical specifications of
vehicle, including: Vehicle paint
code, equipment level and
vehicle type8:additional equipment
specification9:fabrication number10:interior trim code
Notice
The identification plate on your
vehicle may differ from the
illustration shown.
The combined total of front and rear
axle loads must not exceed the
permissible gross vehicle weight. For
example, if the front axle is bearing its
maximum permissible load, the rear
axle can only bear a load that is equal
to the gross vehicle weight minus the front axle load.
The technical data is determined in
accordance with European
Community standards. We reserve
the right to make modifications.
Specifications in the vehicle
documents always have priority over those given in this manual.
Engine identifier code and enginenumber
Stamped on the engine cylinder block
and on a label attached to the timing
chain cover, depending on variant.
Engine identification
The technical data tables show the
engine identifier code. Engine data
3 201.
To identify the respective engine,
refer to the engine power in the EEC
Certificate of Conformity provided
with your vehicle or other national
registration documents.

200Technical dataVehicle dataRecommended fluids andlubricants
Required engine oil qualityEngine oil quality: Europedexos 2✔
For countries with International
service interval 3 195, you may use
the oil qualities listed below:
Engine oil quality: Internationaldexos 2✔GM-LL-A/B-025✔ACEA C3
diesel engines with DPF✔ACEA A3/B4
diesel engines without DPF✔Engine oil viscosity gradesAmbient temperaturedown to -25 °CSAE 5W-30 or
SAE 5W-40below -25 °CSAE 0W-30 or
SAE 0W-40

Technical data201Engine dataSales designation2.3 CDTI2.3 CDTI2.3 CDTI2.3 CDTI2.3 CDTIEngine identifier codeM9TM9TM9TM9TM9TNumber of cylinders44444Piston displacement [cm3
]22982298229822982298Engine power [kW]8192100110120at rpm35003500350035003500Torque [Nm]285310340350360at rpm12501250 - 2500150015001500Fuel typeDieselDieselDieselDieselDiesel

202Technical dataVehicle weight
Kerb weight, basic model without any optional equipment Optional equipment and accessories increase the kerb weight.
VanDrive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL1H1280018063300181135001816H2280018343300183935001844L2H23300188535001890H33300192135001931L3H235001970H335002010

Technical data203Drive wheelsLengthRoof heightGross vehicle weightKerb weightRear-wheel driveL3H235001)21593500 2)224645002246H335001)21483500 2)227945002279L4H235001)22703500 2)232445002324H335001)23003500 2)2366450023661)
With Single rear wheels.
2) With Twin rear wheels.

204Technical dataDoublecabDrive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL1H13300197035001975L1H23300199535002000L2H23300209435002102L3H235002177Rear-wheel driveL3H235001)232435002)24534500 2)24531)
With Single rear wheels.
2) With Twin rear wheels.
Combi
Drive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL1H133002002L2H235002149

Technical data205BusDrive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL3H235002493H33500-3)Rear-wheel driveL4H33500-3)3)
Figure not available at time of printing. Refer to identification plate on the right hand door pillar.

206Technical dataChassis CabDrive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL2H135001686L3H135001707Rear-wheel driveL2H135001)183535002)19674500 2)1967L3H135001)18603500 2)197545002)1975L4H13500 2)200545002)20051)
With Single rear wheels.
2) With Twin rear wheels.

Technical data207Crew CabDrive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL2H135001887L3H135001915Rear-wheel driveL2H135001)2037L3H13500 1)206835002)21544500 2)2154L4H135002)22234500 2)22231)
With Single rear wheels.
2) With Twin rear wheels.

208Technical dataPlatform CabDrive wheelsLengthRoof heightGross vehicle weightKerb weightFront-wheel driveL1H135001570L2H135001578H235001593L3H135001599H235001613
Notice
Kerb weight figures shown indicate the minimum vehicle weight according to type approval, including all fluids, vehicle
tools and a 90% fuel load. Excludes the weight of the driver and deletable options, e.g. spare wheel, bulkhead and sliding side door. Final weight may vary according to the specification of the vehicle, e.g. options, deleted options and
accessories.
Notice
Kerb weight and gross vehicle weight increase on models fitted with bad road equipment package - refer to identification
plate 3 199.
Loading information 3 71.
