Instruments and controls89
Notice
The sockets must always be kept
clean and dry.

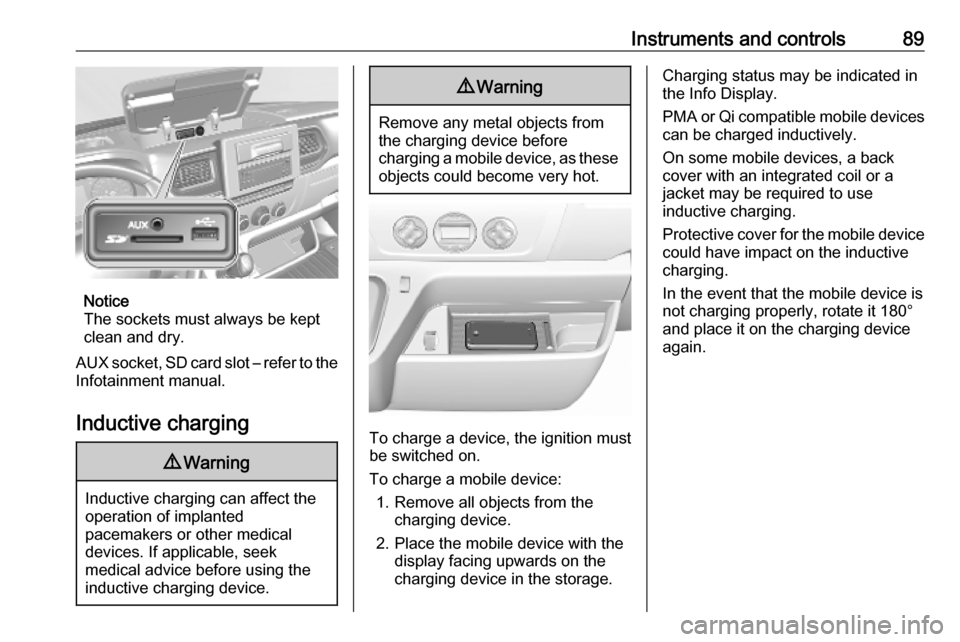

AUX socket, SD card slot – refer to the Infotainment manual.
Inductive charging
9 Warning
Inductive charging can affect the
operation of implanted
pacemakers or other medical
devices. If applicable, seek
medical advice before using the
inductive charging device.
9 Warning
Remove any metal objects from
the charging device before
charging a mobile device, as these objects could become very hot.
To charge a device, the ignition must
be switched on.
To charge a mobile device: 1. Remove all objects from the charging device.
2. Place the mobile device with the display facing upwards on the
charging device in the storage.
Charging status may be indicated in
the Info Display.
PMA or Qi compatible mobile devices can be charged inductively.
On some mobile devices, a back
cover with an integrated coil or a
jacket may be required to use
inductive charging.
Protective cover for the mobile device
could have impact on the inductive
charging.
In the event that the mobile device is
not charging properly, rotate it 180°
and place it on the charging device
again.

90Instruments and controlsCigarette lighter

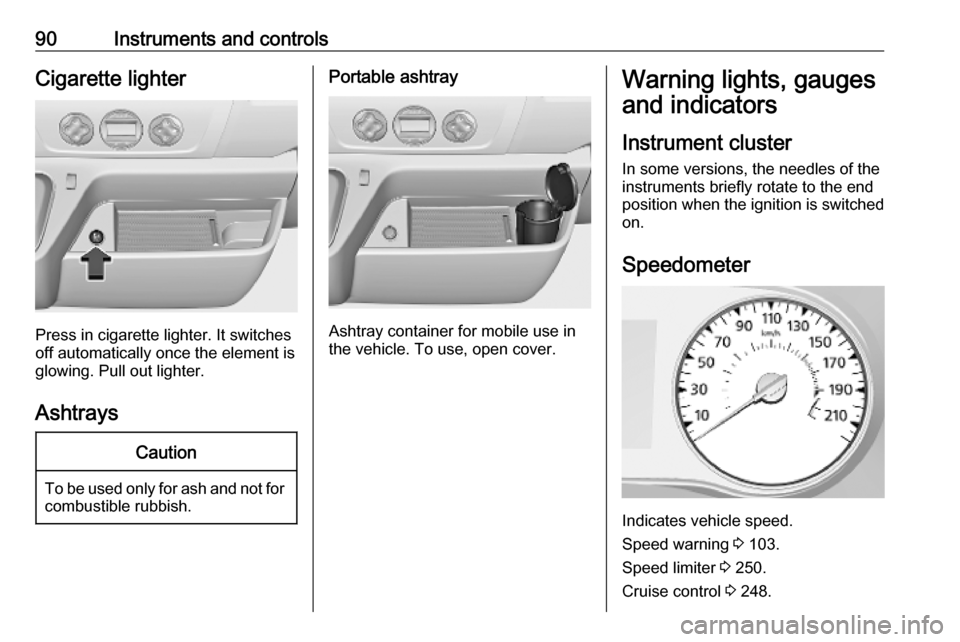

Press in cigarette lighter. It switches
off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not for combustible rubbish.
Portable ashtray
Ashtray container for mobile use in
the vehicle. To use, open cover.
Warning lights, gauges
and indicators
Instrument cluster
In some versions, the needles of the
instruments briefly rotate to the end
position when the ignition is switched
on.
Speedometer
Indicates vehicle speed.
Speed warning 3 103.
Speed limiter 3 250.
Cruise control 3 248.

Instruments and controls91Odometer
Displays the recorded distance in
miles.
Notice
When a tachograph is fitted, the total distance travelled may be shown
only on the tachograph.

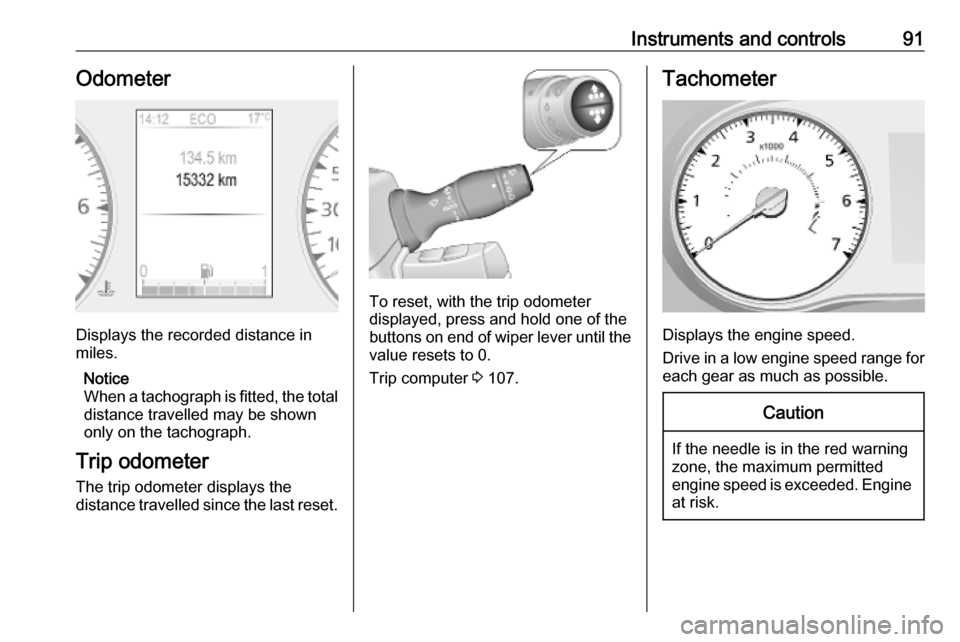

Trip odometer
The trip odometer displays the
distance travelled since the last reset.
To reset, with the trip odometer
displayed, press and hold one of the
buttons on end of wiper lever until the value resets to 0.
Trip computer 3 107.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine at risk.

92Instruments and controlsFuel gauge
Displays fuel level in the tank.
Depending on vehicle content are
different designs used.
Control indicator Y illuminates and a
warning chime sounds if the level in
the tank is low. Refuel immediately
3 262.
Never run the tank dry.
Diesel fuel system bleeding 3 275.
Because of the fuel remaining in the
tank, the top-up quantity may be less
than the specified tank capacity.
AdBlue gauge
AdBlue gauge shows the current
AdBlue fluid level remaining in the
tank.
Control indicator ú 3 100 illuminates
and a warning chime sounds if the
level in the tank is low. Refill AdBlue
as soon as possible to avoid
prevention of engine starts.
AdBlue 3 233.

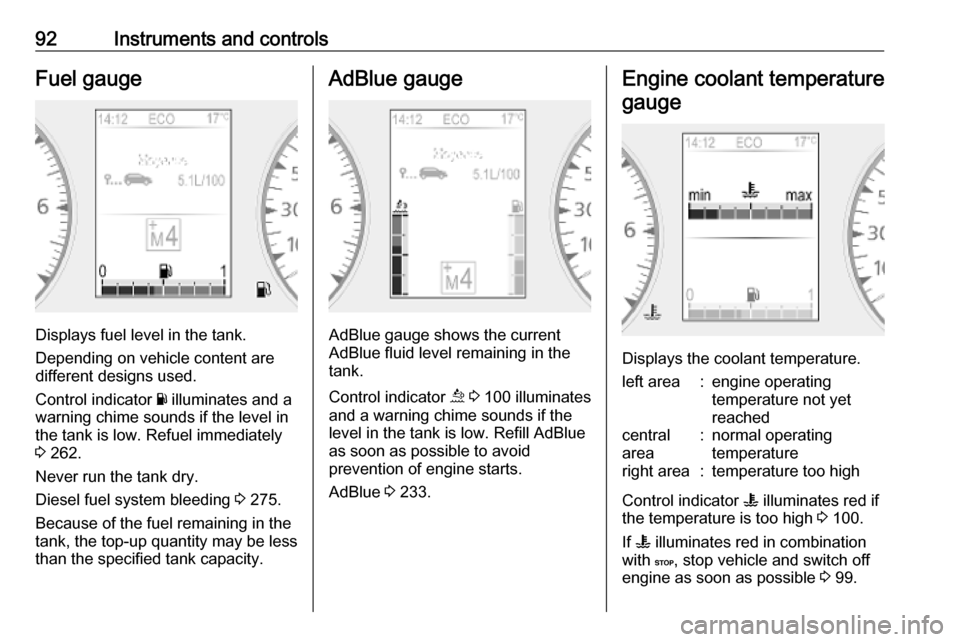

Engine coolant temperature
gauge
Displays the coolant temperature.
left area:engine operating
temperature not yet
reachedcentral
area:normal operating
temperatureright area:temperature too high
Control indicator W illuminates red if
the temperature is too high 3 100.
If W illuminates red in combination
with C, stop vehicle and switch off
engine as soon as possible 3 99.

Instruments and controls93Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
For physical reasons, the coolant temperature gauge shows the coolant temperature only if the coolant level is adequate.
Service display
Select the service page in the Driver
Information Centre, when the ignition
is switched on without running
engine. Press and hold one of the
buttons on end of wiper lever for
approx. 5 seconds 3 107. The
distance and time to the next service are displayed. Pressing then lower
botton, shows the information for the
next engine oil change.
When the ignition is switched on, the
remaining distance or time before the next service is due may be shown
briefly in the Driver Information
Centre. Based on driving conditions,
the interval at which a service will be
indicated can vary considerably.
When the remaining distance before
the next service is less than
930 miles or 1 month, a message
appears in the Driver Information
Centre.
When the distance reaches 0 miles or the service date is due, control
indicator j illuminates and a
message appears in the Driver
Information Centre.
The vehicle needs a service. Seek the
assistance of a workshop.
Resetting the service displayAfter a service or an engine oil
change, the values must be reset:
select the relevant information in the
Driver Information Centre, then press
and hold one of the buttons on end of
wiper lever for approx. 10 seconds
until the distance is displayed
continuously.
Trip computer 3 107.
Driver Information Centre 3 104.
Service information 3 310.Transmission display

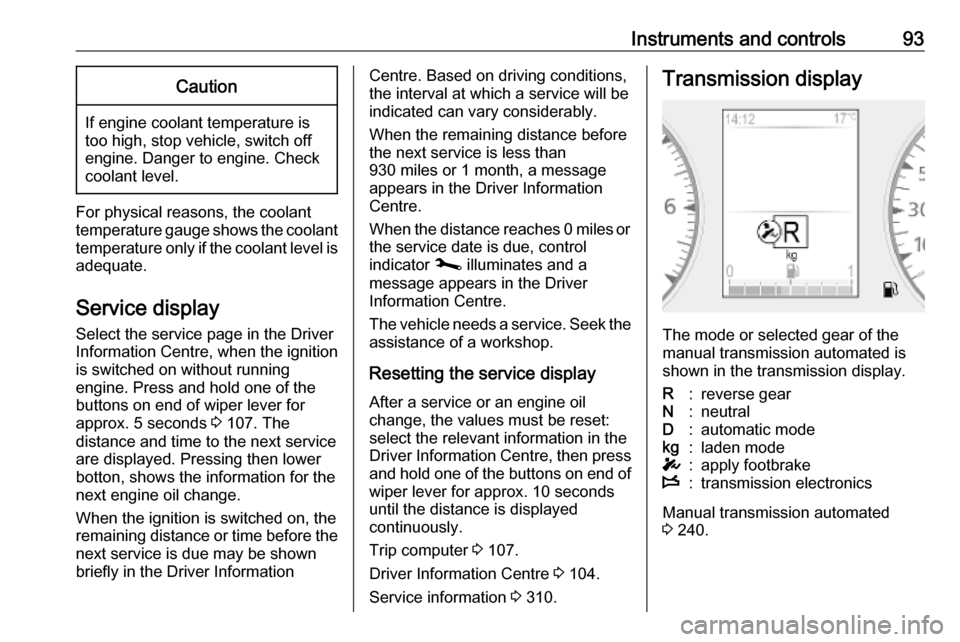

The mode or selected gear of the
manual transmission automated is shown in the transmission display.
R:reverse gearN:neutralD:automatic modekg:laden modeT:apply footbrakeW:transmission electronics
Manual transmission automated
3 240.

94Instruments and controlsControl indicatorsThe control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control indicators may vary. When the
ignition is switched on, most control
indicators will illuminate briefly as a functionality test.
The control indicator colours mean:red:danger, important reminderyellow:warning, information, faultgreen:confirmation of activationblue:confirmation of activationwhite:confirmation of activation

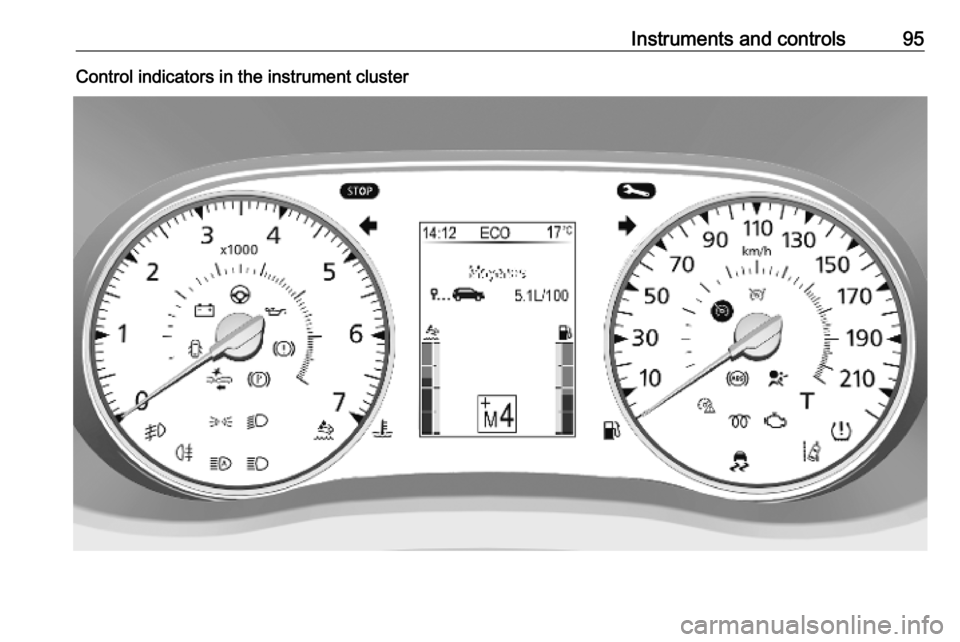

Instruments and controls95Control indicators in the instrument cluster

96Instruments and controlsControl indicators in the overhead
console
Overview
OTurn lights 3 97XSeat belt reminder 3 97vAirbag and belt tensioners
3 97WAirbag deactivation 3 97pCharging system 3 98ZMalfunction indicator light
3 98jService vehicle soon
3 98CStop engine 3 99RBrake system 3 99jParking brake 3 99uAntilock brake system
(ABS) 3 99baGear shifting 3 99§Variable effort steering
3 99QLane departure warning
3 100RElectronic Stability Control
3 100WEngine coolant temperature
3 100!Preheating 3 100úAdBlue 3 100wTyre pressure monitoring
system 3 101IEngine oil pressure 3 101YLow fuel 3 102DAutostop (Stop-start
system) 3 102\Autostop inhibited (Stop-
start system) 3 102FExterior light 3 1029Low beam 3 102CHigh beam 3 102fHigh beam assist 3 102>Front fog lights 3 102øRear fog light 3 102mCruise control 3 102lActive emergency braking
3 103$Speed warning 3 103UCruise control 3 102,
speed limiter 3 103&Tachograph 3 103yDoor open 3 103

Instruments and controls97Turn lights
O flashes green.
Flashes if a turn light or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn light or associated fuse.
An audible warning can be heard
when the turn lights are on. When
towing a trailer, the pitch of the
audible warning changes.
Bulb replacement 3 276.
Fuses 3 284.
Turn lights 3 112.
Seat belt reminder
X illuminates or flashes red in the
overhead console.
If the seat belt is unfastened, control
indicator X will flash when vehicle
speed exceeds approx. 10 mph. A warning chime also sounds for
approx. 90 seconds.
Depending on the vehicle, the control
indicator flashes if the front
passenger seat belt is not fastened.If the seat belt is fastened, the
indicator light extinguishes.9 Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
Three-point seat belts 3 55.
Airbag and belt tensioners
v illuminates yellow.
When the ignition is switched on, the control indicator illuminates briefly. If
it does not illuminate or illuminates
whilst driving, there is a fault in the
airbag system. Seek the assistance
of a workshop. The airbags and belt
pretensioners may fail to trigger in the event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.
9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners 3 54.
Airbag system 3 58.

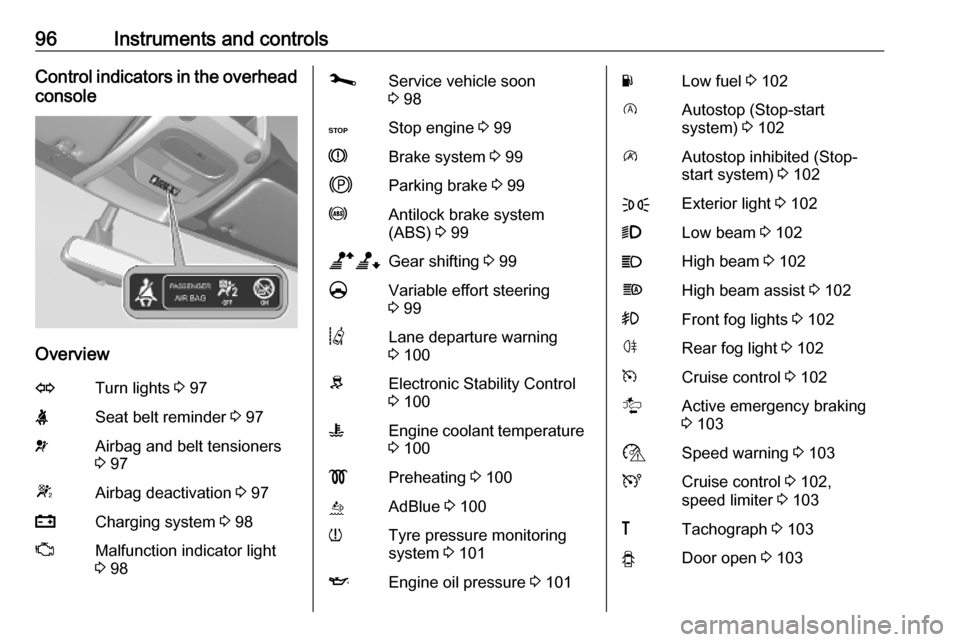

Airbag deactivation Ó illuminates yellow.
Illuminates for approx. 60 seconds
after the ignition is switched on. The
front passenger airbag is activated.
W illuminates yellow when the
ignition is switched on and remains
illuminated when the front passenger
airbag has been deactivated 3 62.

98Instruments and controls9Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Airbag system 3 58.
Belt tensioners 3 54.
Airbag deactivation 3 62.
Charging system p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates briefly when the ignition is
switched on.
Illuminates when the engine is
running
Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a
workshop immediately.
If Z illuminates in combination with
A , stop vehicle and switch off engine
as soon as possible.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the immediate assistance of a
workshop.
Service vehicle soon
j illuminates yellow.
Illuminates briefly when the ignition is
switched on.
The vehicle needs a service.
May illuminate in combination with
another control indicator or a
message in the Driver Information
Centre 3 104.
Illuminates if cleaning of the diesel particle filter is required and
automatic cleaning does not occur
3 232.
