VAUXHALL MOVANO_B 2020 Owner's Manual

Infotainment system119Warnings and cautions9Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Theft-deterrent feature
Depending on Infotainment system,
an electronic security system is
included for the purpose of theft
deterrence. The Infotainment system
functions only in your vehicle and is
therefore worthless to a thief.
The security code (supplied
separately) must be entered upon
first use of the system and after
prolonged interruptions to the power
supply.
Entering the security code
When first switching on the
Infotainment system, an enter
security code message, e.g. Radio
code followed by 0000 appears on the
display screen. Depending on
Infotainment system, the message
may only appear after a brief delay.
To enter first digit of security code,
press numbered button 1 on the unit
repeatedly until desired number is
displayed. Enter second, third and
fourth digits using buttons 2, 3 and 4
in the same way.
When the full code is displayed, press and hold button 6 until an audible
signal sounds. The system is
unlocked when the correct code has
been entered.
NAVI 50 IntelliLink,
NAVI 80 IntelliLink : Enter the security
code using numbered buttons 0 to 9on the touchscreen display. The
system is unlocked when the correct
code has been entered.
Incorrect code entered
Depending on Infotainment system,
when the security code has been
entered incorrectly, an incorrect code message, e.g. Error code followed by
a countdown value, e.g. Wait 100 is
displayed.
Wait until the countdown has expired, then enter the correct code. Each
time the code is entered incorrectly,
the countdown time may be doubled,
depending on Infotainment system.
Changing the geographical area When the security code is entered,
depending on Infotainment system it
will be necessary to choose a
geographical area, for example:
● Europe
● Asia
● Arabia
● America

120Infotainment systemSwitch off the Infotainment system,
then simultaneously press button 1
and 5 and m. Then press _ or 6 until
desired area is highlighted on the display screen and set with button 6.

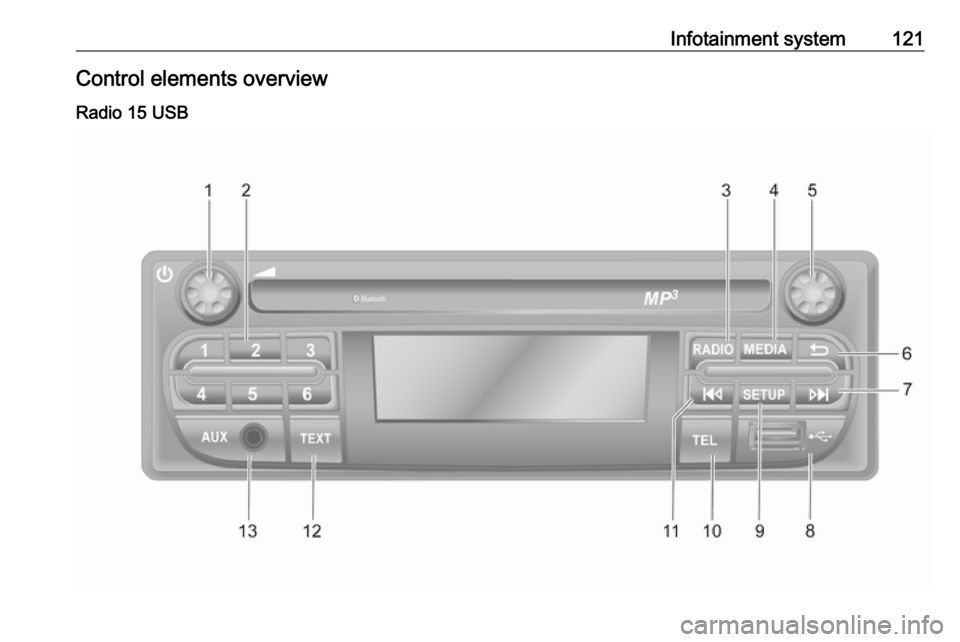

Infotainment system121Control elements overviewRadio 15 USB

122Infotainment system1m - Press: Switch on/off ......128
Turn: Adjust volume ............128
2 Station buttons 1...6 ............144
Short press: Select station ..144
Long press: Save station ....144
3 RADIO - Change audio
source, waveband ...............143
4 MEDIA - Change audio
source ................................. 152
5 Rotary knob ......................... 128
Short press: Confirm an
action .................................. 128
Turn: Access display
menu options ...................... 128
6 / - Return to previous
menu, cancel an action .......128
7 3 - Radio, Short press:
Search for next radio
frequency ............................ 144
Long press: Automatic
station search ...................... 144
8 M USB port .......................... 152
9 SETUP - Short press:
Settings menu .....................12810 TEL - Telephone menu .......192
11 2 - Radio, Short press:
Search for previous radio
frequency ............................ 144
Long press: Automatic
station search ...................... 144
12 TEXT - Display radio text
information .......................... 147
13 AUX input ............................ 150

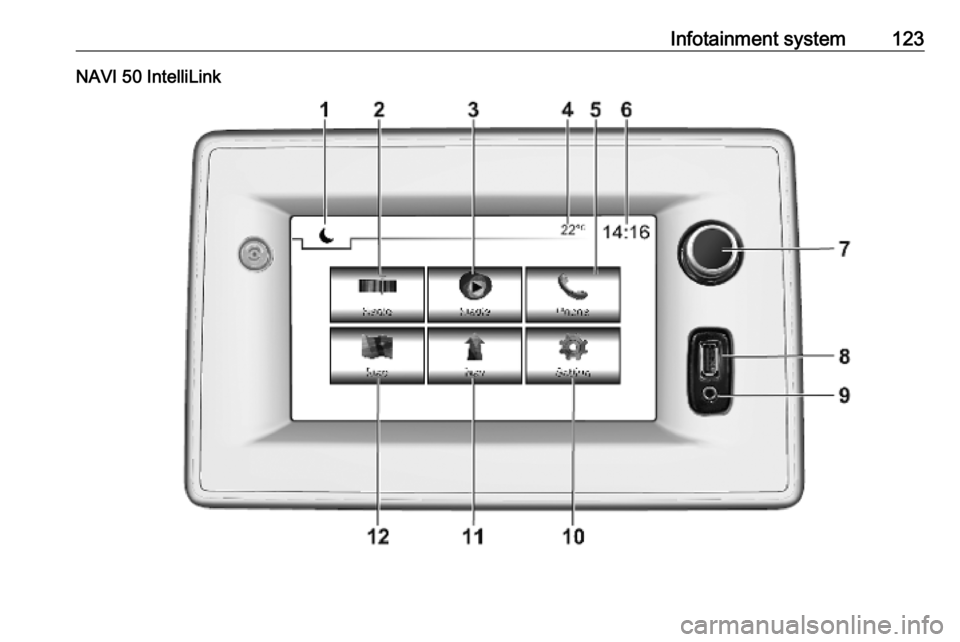

Infotainment system123NAVI 50 IntelliLink

124Infotainment system1æ: Darken screen (only
clock and audio system
information are displayed) ..128
2 ñRadio : Change audio
source to radio ....................143
3 üMedia : Change audio
source - USB, iPod .............152
BT (Bluetooth) .....................155
AUX ..................................... 150
4 Outside temperature
(depending on version) .......128
5 yPhone : Telephone menu . 192
6 Clock ................................... 128
7 X: Switch on/off ..................128
Increase / decrease volume 128
8 M USB port .......................... 152
9 AUX input ............................ 150
10 ÿSettings : Audio settings,
e.g. Tone settings ...............136
Volume settings ..................137
Connectivity settings ...........128
Display settings ...................128
System settings ................... 13811 ýNav : Navigation menu ......163
12 _Map : Display the map ....163

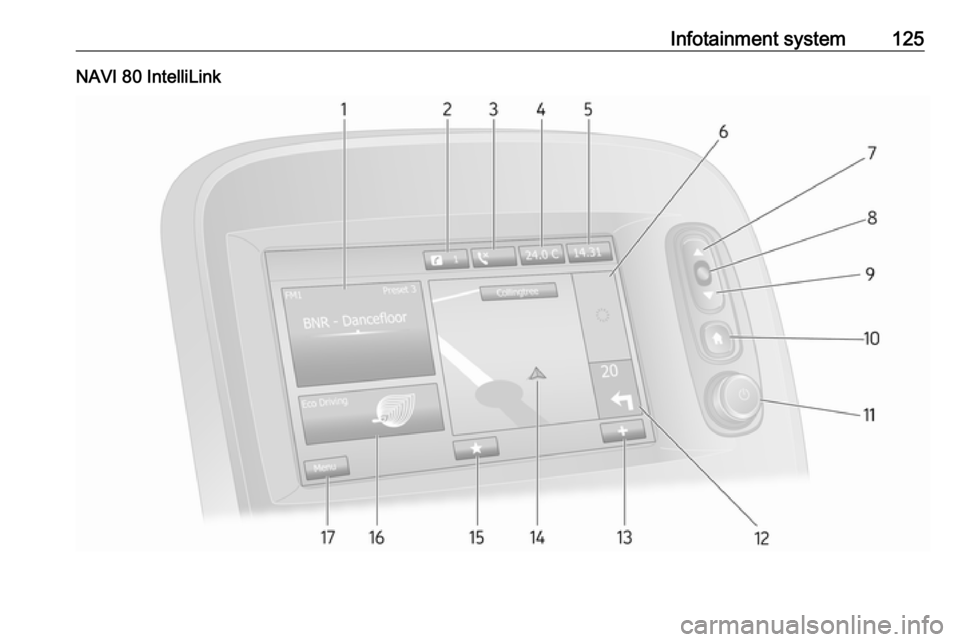

Infotainment system125NAVI 80 IntelliLink

126Infotainment system1Audio information, e.g.
Radio ................................... 143
Auxiliary devices .................150
M USB devices ....................152
Bluetooth music ..................155
2 H: System notifications (if
equipped) ............................ 128
3 y: Telephone status ...........192
Call log ................................ 200
4 Outside temperature ...........128
5 Clock ................................... 128
6 Traffic information (if
applicable) ........................... 182
7 R: Display lists - Scroll up ..128
Map: Change scale .............182
8 Enter menus, confirm
actions ................................. 128
9 S: Display lists - Scroll
down ................................... 128
Map: Change scale .............182
10 ;: Home page .................... 12811 m - Press: Switch on/off ......128
Turn: Change volume .........128
12 Navigation: Direction and
distance to next change of
direction .............................. 163
13 <: Pop-up menu .................128
14 Navigation display ...............163
Map ..................................... 182
15 f: Favourites, e.g. for
Navigation ⇑ ....................... 163
Media t (e.g. Radio) ..........143
Phone g.............................. 192
Services N......................... 165
16 Driving economy (Eco
Driving) ................................ 128

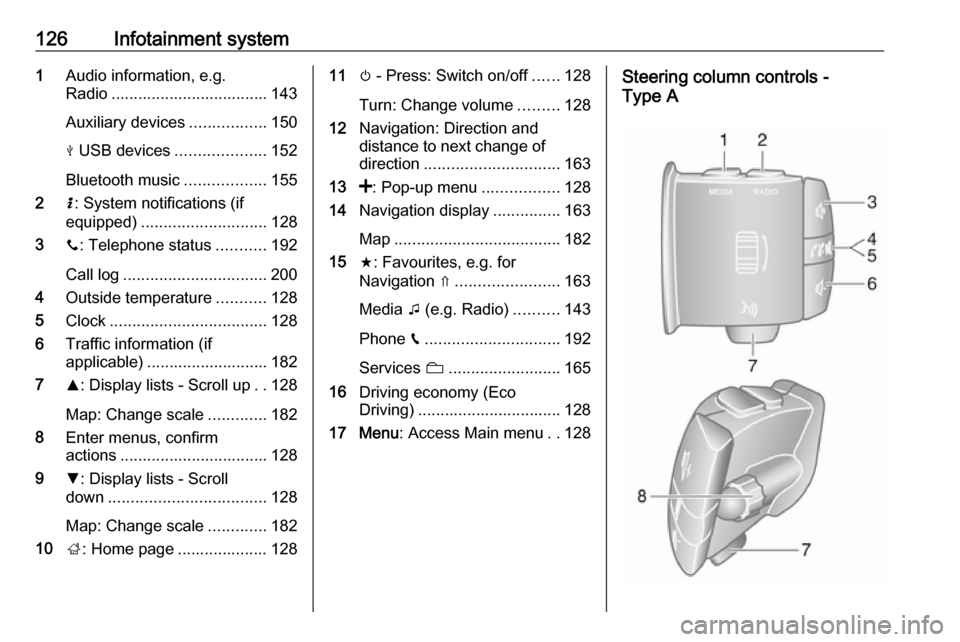

17 Menu : Access Main menu ..128Steering column controls -
Type A

Infotainment system1271 MEDIA - Change audio
source ................................. 128
2 RADIO - Change radio
waveband ........................... 143
3 ! - Increase volume ...........128
4 @ - Mute/unmute .................128
5 78 - Take/end phone call ..200
6 # - Decrease volume ..........128
7 5 - Voice recognition ........... 192
8 Turn: Move up/down in
display menus, select
next/previous radio
preset / radio frequency /
audio track ......................... 144

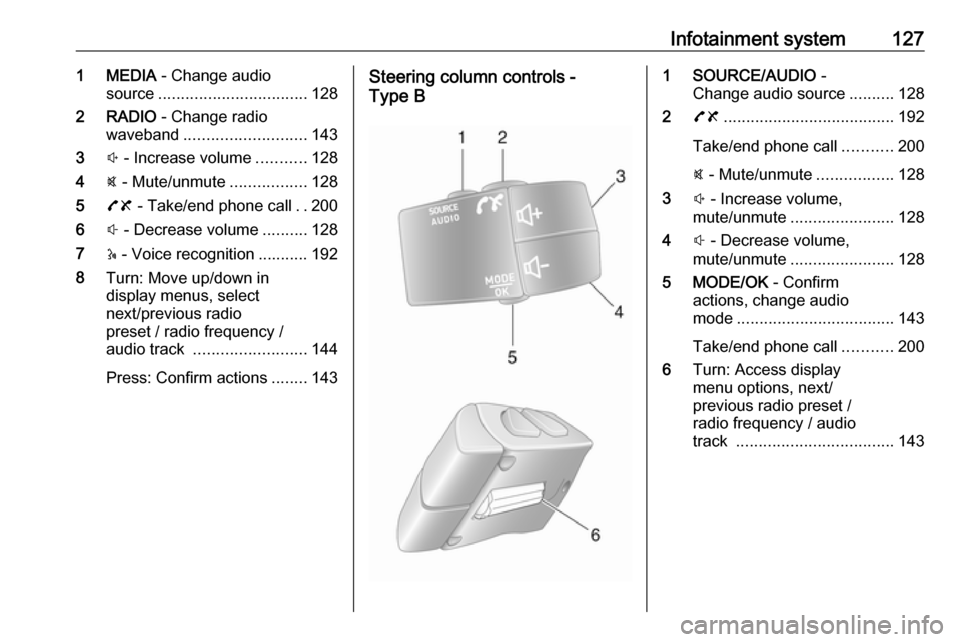

Press: Confirm actions ........143Steering column controls -
Type B1 SOURCE/AUDIO -
Change audio source ..........128
2 78 ...................................... 192
Take/end phone call ...........200
@ - Mute/unmute .................128
3 ! - Increase volume,
mute/unmute ....................... 128
4 # - Decrease volume,
mute/unmute ....................... 128
5 MODE/OK - Confirm
actions, change audio
mode ................................... 143
Take/end phone call ...........200
6 Turn: Access display
menu options, next/
previous radio preset /
radio frequency / audio
track ................................... 143

128Infotainment systemNotice
If equipped, the voice recognition
button 5 may be located on the
steering column controls.
Usage
Infotainment controls The Infotainment system is operated
via buttons, rotary knobs and/or
display menus.
Inputs are made via:
● the central control unit in the instrument panel 3 121, or
● the controls on the steering column 3 121
● the voice recognition system (if available) 3 190
● the touchscreen (NAVI 50 IntelliLink,
NAVI 80 IntelliLink) 3 135
Notice
Only the most direct ways for menu
operation are described in the
subsequent chapters. In some
cases, there may be other options.Switching the Infotainment
system on or off
Press X to switch the Infotainment
system on.
The previously used audio source is active.
Press X (or, depending on
Infotainment system, press and hold)
to switch the Infotainment system off.
Notice
The clock and/or outside
temperature may be displayed when
the Infotainment system is switched
off (depending on version).NAVI 50 IntelliLink:
The Infotainment system
automatically switches on/off when
the ignition is switched on/off. Press
X instead, if required.
Press and hold X for 5 seconds to
restart the system.NAVI 80 IntelliLink:
The Infotainment system switches on automatically when the ignition is
switched on (depending on version).
Press X instead, if required.The following options may be
displayed (depending on version):
● Change settings (to authorise or
reject data sharing)
The system displays a screen to
confirm the authorisation of data
sharing after touching Change
settings .
Notice
When data sharing is switched off, certain features may not operate
correctly.
● Language (to change the system
language)
● Done (to continue to the Home
page)
● Help (to see more detailed
information)
The Infotainment system
automatically switches off when the
ignition is switched off and the driver's door is opened. Press X instead, if
required.
Automatic switch-off
With the ignition off, if the
Infotainment system is switched on
with X, it will switch-off automatically
