VAUXHALL MOVANO_B 2020 Owner's Manual

Lighting109LightingExterior lighting.......................... 109
Light switch .............................. 109
Automatic light control .............109
High beam ............................... 110
High beam assist .....................110
Headlight flash ......................... 111
Headlight range adjustment ....111
Headlights when driving abroad .................................... 111
Daytime running lights .............112
Hazard warning flashers ..........112
Turn lights ................................ 112
Front fog lights ......................... 112
Rear fog light ........................... 113
Reversing lights .......................113
Misted light covers ...................113
Interior lighting ........................... 113
Interior lights ............................ 113
Load compartment lighting ......114
Reading lights .......................... 115
Lighting features ........................115
Exit lighting .............................. 115
Battery discharge protection ....116Exterior lighting
Light switch
Turn outer light switch:
7:off0:sidelights9 P:headlightsAUTO:automatic light control:
headlights are switched on
and off automatically.
Sidelights control indicator F
3 102.
Low beam control indicator 9 3 102.
High beam control indicator P
3 102.
Side position lights
Side position lights are illuminated
together with sidelights.
Automatic light control
When the automatic light control
function is switched on and the
engine is running, the system
switches between daytime running
lights (where fitted) and headlights,
depending on the lighting conditions.
For reasons of safety, the light switch
should always remain in the AUTO
position.
Daytime running lights 3 112.

110LightingAutomatic headlight activation
During poor lighting conditions the
headlights are switched on.
Additionally, headlights are switched
on if the windscreen wiper has been
activated for several wipes.
High beam
To change between low and high
beam, pull lever beyond the
resistance point.
High beam assist
This feature automatically activates
the high beam at night when vehicle
speed is faster than 28 mph.
It switches automatically back to low
beam when:
● The camera in the windscreen detects the lights of oncoming or
preceding vehicles.
● It is foggy or snowy.
● Driving in urban areas.
If there are no restrictions detected, the system switches back to high
beam.
ActivationTurn the outer light switch to AUTO
then pull the lever to activate high
beam assist.
The control indicator f illuminates
continuously in the instrument cluster when the assist is activated, while the
blue control indicator 7 3 102
illuminates when high beam is on.
Control indicator f 3 102.
Notice
Use of the system does not relieve
the driver from full responsibility for
vehicle operation.
Deactivation
Pull the lever again. Control indicator
f extinguishes.
High beam assist is also deactivated when the outer light switch is moved
out of the AUTO position or the
ignition is switched off.
Notice
Depending on version, the system
can be also deactivated via the
Infotainment system. Refer to
Infotainment manual for further
information.

Lighting111General informationPerformance of the system can be
affected due to the following:
● Extreme weather conditions, e.g.
heavy rain, fog or snow.
● The front camera or the windscreen is obstructed, e.g. bya portable navigation system.
● Oncoming or preceding vehicle lights are not detected.
● Headlights are not adjusted correctly.
● Various reflective surfaces may also cause the system to fail todetect other vehicles.
Headlight flash
To activate the headlight flash, pull
the lever briefly without passing the
resistance point.
High beam 3 110.Headlight range adjustment
Manual headlight range
adjustment
With low beam switched on, adapt the
headlight range to suit the vehicle
load to prevent dazzling of oncoming
traffic.
Turn knurled wheel to proposed
position:
0:driver only2:front seats occupied and loaded
up to permissible maximum
weight3:driver only and loaded up to
permissible maximum weightHeadlights when driving
abroad
The asymmetrical headlight beam
extends visibility at the edge of the
road at the passenger side.
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the headlights to prevent dazzling of oncoming
traffic.
Open the bonnet and adjust both
headlights with a screwdriver by
turning the screw a quarter turn in -
direction. Adjust to standard position
by turning the screw a quarter turn in
+ direction.

112LightingDaytime running lights
Daytime running lights increase
visibility of the vehicle during daylight.
The lights operate automatically
when the ignition is switched on.
If the vehicle is equipped with the
automatic light control function, the
system switches between daytime running lights and headlights
automatically depending on the
lighting conditions.
Automatic light control 3 109.
Hazard warning flashers
Operated by pressing ¨.
In the event of hard braking, the
hazard warning flashers may turn on automatically. Switch off by pressing
¨ .
Turn lightsup:right turn lightdown:left turn light
A resistance point can be felt when
moving the lever.
Constant flashing is activated when
the lever is being moved beyond the
resistance point. It is deactivated
when the steering wheel is moved in
the opposite direction or lever is
manually moved back to its neutral
position.
Activate temporary flashing by
holding the lever just before the
resistance point. Turn lights will flash
until lever is being released.
To activate three flashes, tap the
lever briefly without passing the
resistance point.

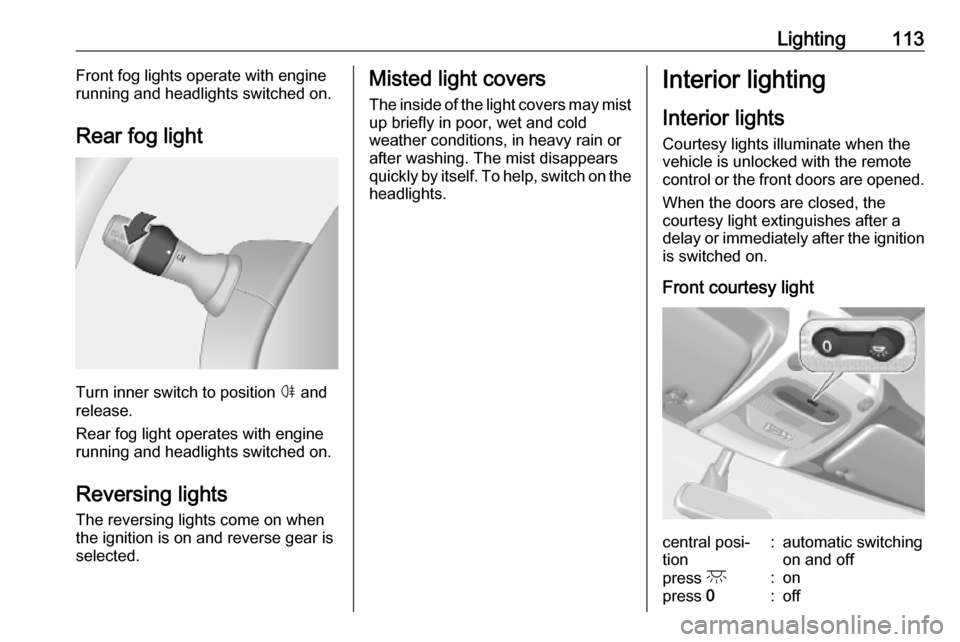

Front fog lights
Turn inner switch to position > and
release.

Lighting113Front fog lights operate with engine
running and headlights switched on.
Rear fog light
Turn inner switch to position ø
and
release.
Rear fog light operates with engine
running and headlights switched on.
Reversing lights
The reversing lights come on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light covers may mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself. To help, switch on the
headlights.Interior lighting

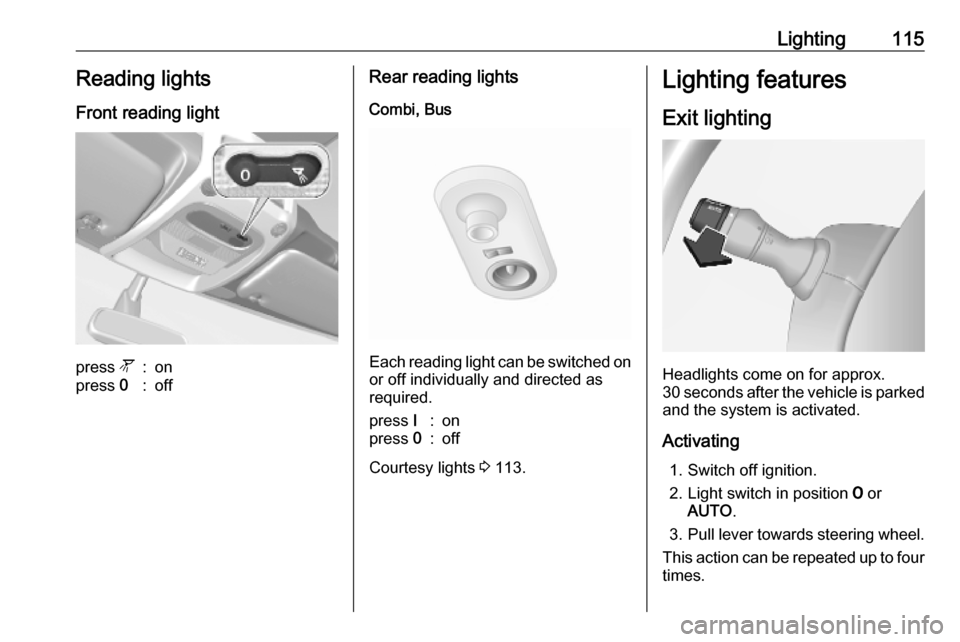

Interior lights
Courtesy lights illuminate when the vehicle is unlocked with the remote
control or the front doors are opened.
When the doors are closed, the
courtesy light extinguishes after a
delay or immediately after the ignition
is switched on.
Front courtesy lightcentral posi‐
tion:automatic switching
on and offpress c:onpress 0:off

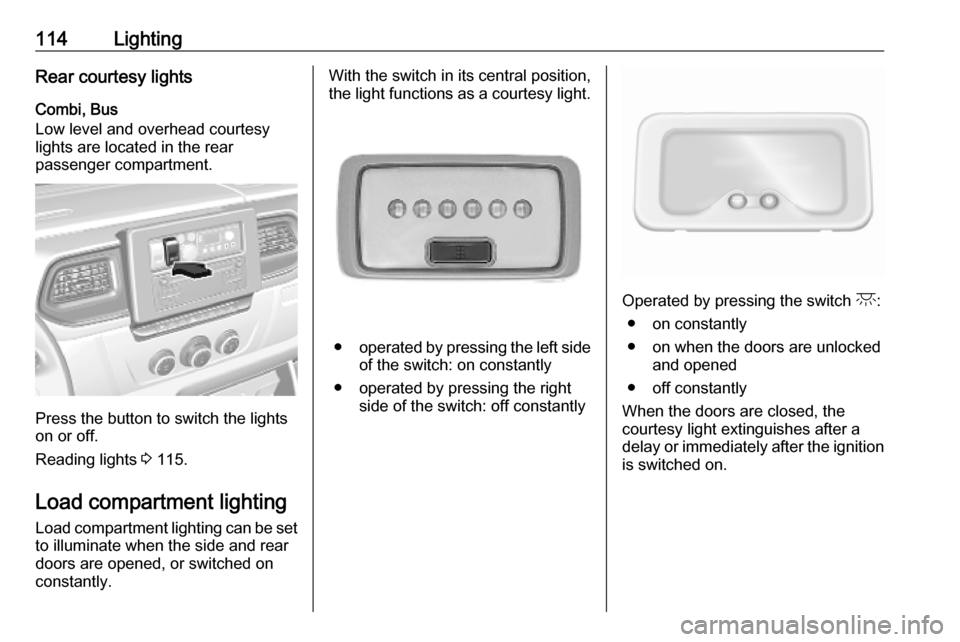

114LightingRear courtesy lights
Combi, Bus
Low level and overhead courtesy
lights are located in the rear
passenger compartment.
Press the button to switch the lights
on or off.
Reading lights 3 115.
Load compartment lighting Load compartment lighting can be setto illuminate when the side and rear
doors are opened, or switched on
constantly.
With the switch in its central position,
the light functions as a courtesy light.
● operated by pressing the left side
of the switch: on constantly
● operated by pressing the right side of the switch: off constantly
Operated by pressing the switch c:
● on constantly
● on when the doors are unlocked and opened
● off constantly
When the doors are closed, the courtesy light extinguishes after a
delay or immediately after the ignition
is switched on.

Lighting115Reading lightsFront reading lightpress l:onpress 0:offRear reading lights
Combi, Bus
Each reading light can be switched on
or off individually and directed as
required.
press I:onpress 0:off
Courtesy lights 3 113.
Lighting features
Exit lighting
Headlights come on for approx.
30 seconds after the vehicle is parked
and the system is activated.
Activating 1. Switch off ignition.
2. Light switch in position 7 or
AUTO .
3. Pull lever towards steering wheel.
This action can be repeated up to four
times.

116LightingThe headlights are turned off
immediately by turning the light switch
to any position and returning to 7 or
AUTO .
Battery discharge protection
To prevent discharge of the vehicle
battery when the ignition is switched off, some interior lights may be
switched off automatically after some
time.

Infotainment system117Infotainment systemIntroduction................................ 117
General information .................117
Theft-deterrent feature ............119
Control elements overview ......121
Usage ...................................... 128
Touch operation overview .......135
Tone settings ........................... 136
Volume settings .......................137
System settings .......................138
Radio ......................................... 143
Usage ...................................... 143
Station search ......................... 144
Autostore lists .......................... 146
Radio data system (RDS) ........147
Digital audio broadcasting .......150
AUX input ................................... 150
General information .................150
Usage ...................................... 151
USB port .................................... 152
General information .................152
Playing saved audio files .........153
Bluetooth music .........................155
General information .................155
Operation ................................. 155External devices........................160
Displaying pictures ..................160
Playing movies ........................ 161
Using smartphone applications ............................ 162
Navigation .................................. 163
General information .................163
Usage ...................................... 165
Destination input ......................176
Guidance ................................. 182
Symbols overview ...................189
Voice recognition .......................190
General information .................190
Navigation control ....................191
Phone control .......................... 192
Phone ........................................ 192
General information .................192
Connection .............................. 194
Bluetooth connection ...............196
Emergency call ........................199
Operation ................................. 200
Mobile phones and CB radio equipment ............................... 206Introduction
General information
The Infotainment system provides
state-of-the-art in-car information and
entertainment.
The radio is equipped with assignable channel presets for FM, AM and also
DAB wavebands (depending on
version).
External data storage devices, e.g.
iPod, MP3 player or USB stick, or a
portable player can be connected to
the Infotainment system. External
audio sources can also be connected
via Bluetooth.
The digital sound processor provides
several preset equalizer modes for
sound optimisation.
The navigation system's dynamic
route planning will reliably guide to
the chosen destination and can help
avoid traffic jams and other traffic
problems.
Optionally, the Infotainment system
can be operated using controls on the steering column or via the voice
recognition system.

118Infotainment systemIn addition, the Infotainment systemcan be equipped with a handsfree
phone system.
The well-thought-out design of the
controls and the clear displays enable
to control the system easily and
intuitively.
Notice
This manual describes all options
and features available for the
various Infotainment systems.
Certain descriptions, including those for display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment or
accessories.
Important information on
operation and traffic safety9 Warning
Drive safely at all times when
using the Infotainment system.
If in doubt, stop the vehicle before operating the Infotainment
system.
Radio reception
Radio reception may be disrupted by static, noise, distortion or loss of
reception due to:
● changes in distance from the transmitter
● multi-path reception due to reflection
● shadowing
In case of poor radio reception the
volume will automatically drop as to
minimize the disturbance effect.
Using this manual ● This manual describes features that may or may not be on your
specific vehicle, either because
they are optional or due to
changes subsequent to the
printing of this manual. Please
refer to the purchase
documentation to confirm each of the features found on the vehicle.
● Certain controls and descriptions, including symbols,
displays and menu functions may not apply to your vehicle due tomodel variant, country
specifications, special equipment or accessories.
● The table of contents at the beginning of this manual and
within each section shows where
the information is located.
● The index will enable to search for specific information.
● The vehicle display screens may not support your specific
language.
● Display messages and interior labelling are written in bold
letters.
● The operations given within this manual refer to Infotainment
system controls. For equivalent
steering column controls, refer to the control elements overview
3 121.
