ESP VAUXHALL VIVA 2015.75 Owner's Guide

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
184 Vehicle Care
Tyres age, even if they are not
used. We recommend tyre
replacement every 6 years.
Changing tyre and wheel size
If tyres of a different size than those
fitted at the factory are used, it may
be necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and to make other
vehicle modifications
After converting to a different tyre
size, have the label with tyre
pressures replaced.
{Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
Wheel Covers
Wheel covers and tyres that are
factory approved for the respective
vehicle and comply with all of the
relevant wheel and tyre combination
requirements must be used.If the wheel covers and tyres used
are not factory approved, the tyres
must not have a rim protection
ridge.
Wheel covers must not impair brake
cooling.
{Warning
Use of unsuitable tyres or wheel
covers could lead to sudden
pressure loss and thereby
accidents.
Tyre Chains
Tyre chains are only permitted on
the front wheels.
Always use fine mesh chains that
add no more than 10 mm to the tyre
tread and the inboard sides
(including chain lock).
{Warning
Damage may lead to tyre
blowout.
Tyre chains are only permitted on
tyres of size 165/65 R14.
Tyre chains are not permitted on
tyres of size 185/55 R15 and
195/45 R16.
The use of tyre chains is not
permitted on the temporary spare
wheel.
Tyre Repair Kit
Minor damage to the tyre tread can
be repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 191

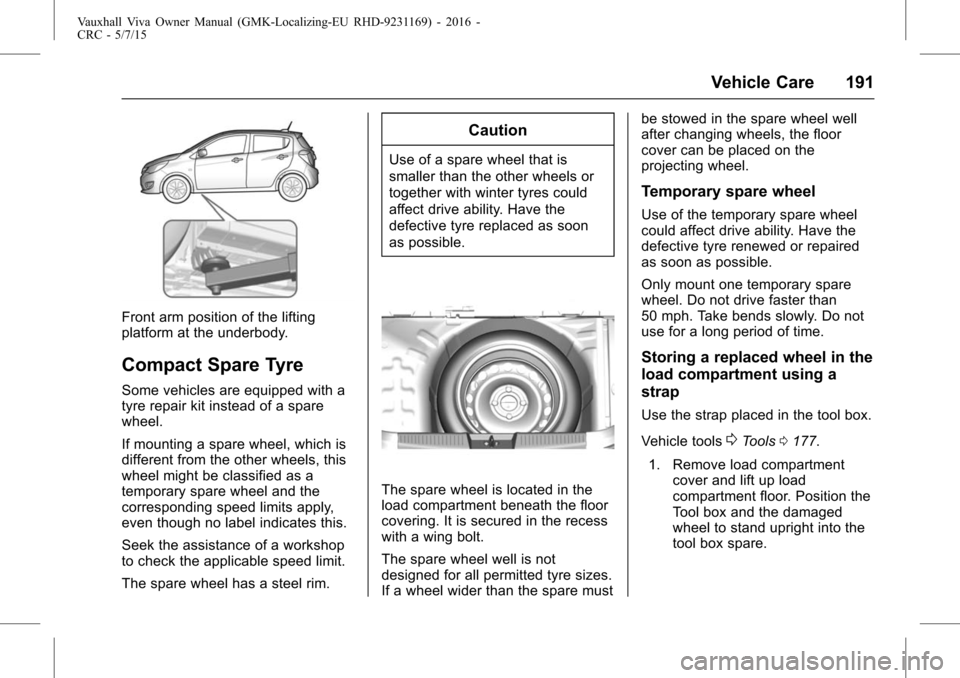

Front arm position of the lifting
platform at the underbody.
Compact Spare Tyre
Some vehicles are equipped with a
tyre repair kit instead of a spare
wheel.
If mounting a spare wheel, which is
different from the other wheels, this
wheel might be classified as a
temporary spare wheel and the
corresponding speed limits apply,
even though no label indicates this.
Seek the assistance of a workshop
to check the applicable speed limit.
The spare wheel has a steel rim.
Caution
Use of a spare wheel that is
smaller than the other wheels or
together with winter tyres could
affect drive ability. Have the
defective tyre replaced as soon
as possible.
The spare wheel is located in the
load compartment beneath the floor
covering. It is secured in the recess
with a wing bolt.
The spare wheel well is not
designed for all permitted tyre sizes.
If a wheel wider than the spare mustbe stowed in the spare wheel well
after changing wheels, the floor
cover can be placed on the
projecting wheel.
Temporary spare wheel
Use of the temporary spare wheel
could affect drive ability. Have the
defective tyre renewed or repaired
as soon as possible.
Only mount one temporary spare
wheel. Do not drive faster than
50 mph. Take bends slowly. Do not
use for a long period of time.
Storing a replaced wheel in the
load compartment using a
strap
Use the strap placed in the tool box.
Vehicle tools
0Tools
0177.
1. Remove load compartment cover and lift up load
compartment floor. Position the
Tool box and the damaged
wheel to stand upright into the
tool box spare.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 197
Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.
Before and after winter, wash the
underbody and have the protective
wax coating checked.
Interior Care
Interior and upholstery
Only clean the vehicle interior,
including the instrument panel
fascia and panelling, with a dry cloth
or interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case
of heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned
using a soft damp cloth.
If necessary use a weak soap
solution.Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colour-fast. This could cause visible
discolourations, especially on light
coloured upholstery.
Removable stains and
discolourations should be cleaned
as soon as possible. Clean seat
belts with lukewarm water or interior
cleaner.
Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like Zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior
cleaner if necessary. Do not use any
other agent. Avoid solvents and
petrol in particular. Do not use
high-pressure jet cleaners.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Technical Data 205
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 205
Engine Identification . . . . . . . . . . 205
Identification Plate . . . . . . . . . . . . 206
Vehicle Data
Engine Data . . . . . . . . . . . . . . . . . . 207
Performance . . . . . . . . . . . . . . . . . 207
Vehicle Weight . . . . . . . . . . . . . . . 208
Vehicle Dimensions . . . . . . . . . . 208
Capacities and Specifications . . . . . . . . . . . . . . . 209
Tyre Pressure . . . . . . . . . . . . . . . . 209
Vehicle Identification
Vehicle Identification
Number (VIN)
The Vehicle Identification Number is
located in the engine compartment.
The Vehicle Identification Number
may be embossed on the instrument
panel, visible through the
windscreen.
Engine Identification
The technical data tables show the
engine identifier code. Engine data
0Engine Data 0207.
To identify the respective engine,
refer to the engine power in the
EEC Certificate of Conformity
provided with your vehicle or other
national registration documents.
