warning VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
4 Introduction
Danger, Warning, and
Caution
{Danger
Text marked{Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
{Warning
Text marked{Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage
to the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated
with
0.0means "see page".
Thank you for choosing a Vauxhall.
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 5
In Brief
Initial Drive Information
Unlocking the Vehicle . . . . . . . . . . . 5
Seat Adjustment . . . . . . . . . . . . . . . . 6
Head Restraint Adjustment . . . . . . 7
Safety Belts . . . . . . . . . . . . . . . . . . . . . 7
Mirror Adjustment . . . . . . . . . . . . . . . 7
Steering Wheel Adjustment . . . . . 8
Instrument Panel Overview . . . . . . 9
Exterior Lighting . . . . . . . . . . . . . . . 11
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Windscreen Wiper/Washer . . . . . 13
Climate Controls . . . . . . . . . . . . . . . 14
Transmission . . . . . . . . . . . . . . . . . . 15
Starting the Engine . . . . . . . . . . . . 15
Parking . . . . . . . . . . . . . . . . . . . . . . . . 16
Initial Drive
Information
Unlocking the Vehicle
PressKto unlock the doors and
load compartment. Open the doors
by pulling the handles.
To open the tailgate, push the
touchpad switch under the tailgate
moulding.
Unlocks all doors. The hazard
warning lights will flash twice.
Radio remote control
0Radio
Remote Control 019,
Central locking system
0Central
Locking System 021,
Load compartment
0Load
Compartment 023.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
10 In Brief
1. Infotainment system on pageOperation 099.
2. Info-Display on page Overview 093.
3. Hazard warning lights on page Hazard Warning Flashers 086.
4. Centre air vents on page Adjustable Air Vents 0135.
5. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 086.
Exit lighting on page Exit
Lighting 090.
Parking lights on page Parking
Lights 088.
6. Instruments on page Steering
Wheel Adjustment 060.
7. Driver Information Centre on page Driver Information Centre
(DIC) 075. 8. Cruise control, Speed limiter on
page Driver Assistance
Systems 0152.
Heated steering wheel on page
Heated Steering Wheel 060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Side air vents on page Fixed
Air Vents 0136.
11. Steering wheel controls on page Steering Wheel
Controls 060.
12. Exterior mirrors on page Convex Mirrors 026
13. Power windows on page Power
Windows 027.
Central locking system on page
Central Locking System 021. 14. Light switch,
Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085.
15. Traction control system on page Traction Control System
(TCS) 0147.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0141.
City mode on page Electronic
Stability Control (ESC) 0148.
Lane departure warning on
page Lane Departure Warning
(LDW) 0154.
16. Ignition switch with steering wheel lock on page Ignition
Positions 0139.
17. Fuse box on page Fuses 0173.
18. Bonnet release lever on page Bonnet 0161.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
12 In Brief
Turn and lane-change signals
Lever up : Right indicator
Lever down : Left indicator
Turn and lane-change signals
0
Indicator and Lane-Change
Signals086,
Parking lights
0Parking
Lights 088.
Hazard lights
Operated with|.
Hazard warning lights
0Hazard
Warning Flashers 086.
Horn
Pressa.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
16 In Brief
Stop-start system
If the vehicle is at a low speed or at
a standstill and certain conditions
are fulfilled, activate an Autostop as
follows:
.depress the clutch pedal
. set the lever in neutral
. release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position
in the tachometer.
To restart the engine, depress the
clutch pedal again. Stop-start system
0Automatic
Engine Start/Stop Feature 0141.
Parking
{Warning
.
Do not park the vehicle on
an easily ignitable surface.
The high temperature of the
exhaust system could ignite
the surface.
. Always apply handbrake.
Pull switch
Yfor approx.
one second.
. Switch off the engine.
. surface or uphill slope,
engage first gear or set the
selector lever to position P
before removing the ignition
key. On an uphill slope, turn
the front wheels away from
the kerb.
If the vehicle is on a
downhill slope, engage
reverse gear or set the
(Continued)
Warning (Continued)
selector lever to position P
before removing the ignition
key. Turn the front wheels
towards the kerb.
. Remove the ignition key.
Turn the steering wheel until
the steering wheel lock is
felt to engage.
For vehicles with automatic
transmission, the key can
only be removed when the
selector lever is in
position P.
. Close the windows.
. Lock the vehicle with
Qon the
radio remote control.
. Activate the anti-theft alarm
system
0Anti-theft Alarm
System 024.
. The engine cooling fans may run
after the engine has been
switched off
0End-of-Life
Vehicle Recovery 0161.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 23
Safety Locks
{Warning
Use the child locks whenever
children are occupying the rear
seats.
Caution
Do not pull the inside door handle
while the child security door lock
is set to LOCK position. To do so
can damage the inside door
handle.
To close the child security door lock,
move the lever up to the lock
position.
To open a rear door when the child
security door lock is activated,
unlock the door from the inside and
open the door from the outside.
To cancel the child security door
lock, move the lever down to the
unlock position.
Doors
Load Compartment
Tailgate
Opening
To open the tailgate, with all doors
unlocked, press the touchpad switch
on the underside of pull cup handle
and lift up.
Central locking system
0Central
Locking System 021.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 27

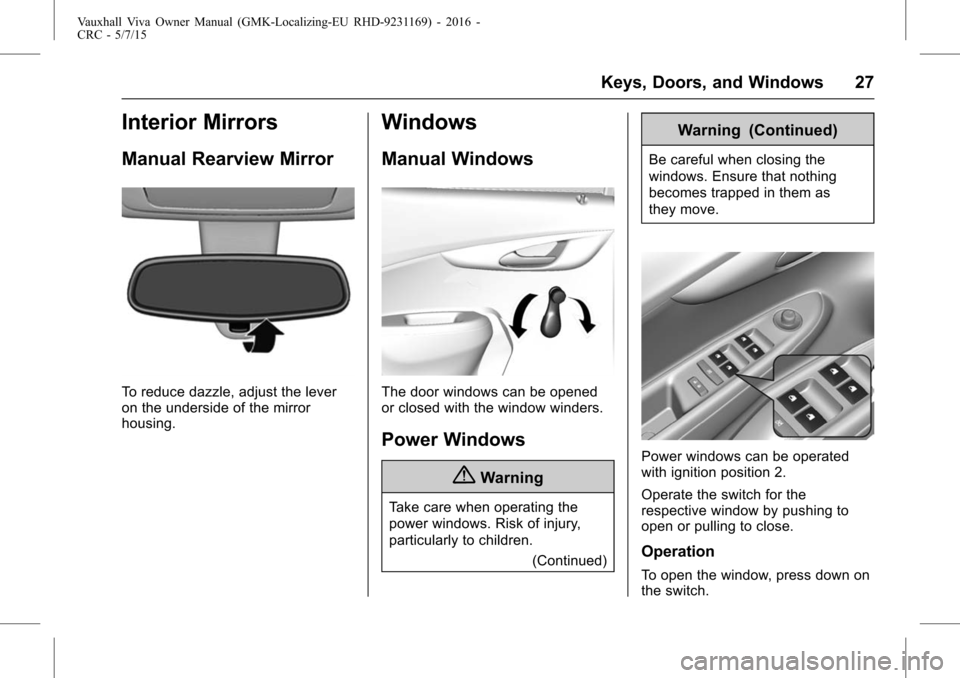

Interior Mirrors
Manual Rearview Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.
Windows
Manual Windows
The door windows can be opened
or closed with the window winders.
Power Windows
{Warning
Take care when operating the
power windows. Risk of injury,
particularly to children.(Continued)
Warning (Continued)
Be careful when closing the
windows. Ensure that nothing
becomes trapped in them as
they move.
Power windows can be operated
with ignition position 2.
Operate the switch for the
respective window by pushing to
open or pulling to close.
Operation
To open the window, press down on
the switch.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 29
Heated Rear Window
Operated by pressing+.
Heating works with the engine
running and is switched off
automatically after a short time.
Sun Visors
The sun visors can be folded down
or swivelled to the side to prevent
dazzling.
If the sun visors have integral
mirrors, the mirror covers should be
closed when driving.
Roof
Sunroof
{Warning
Take care when operating the
sunroof. Risk of injury, particularly
to children.
Keep a close eye on the movable
parts when operating them.
Ensure that nothing becomes
trapped in them as they move.
Sunroof can be operated with
ignition on.
Raise
Hold switch 1 depressed until the
sunroof is raised at the rear.
Open
From raised position press and
release switch 1: the sunroof is
opened automatically up to end
position. To stop movement before
endposition, operate switch
once more.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 31
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 31
Front Seats
Seat Position . . . . . . . . . . . . . . . . . . 33
Seat Adjustment . . . . . . . . . . . . . . . 33
Heated Front Seats . . . . . . . . . . . . 35
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . . 35
Three-Point Safety Belt . . . . . . . . 36
Airbag System
Airbag System . . . . . . . . . . . . . . . . . 38
Front Airbag System . . . . . . . . . . . 41
Side Airbag System . . . . . . . . . . . . 42
Curtain Airbag System . . . . . . . . . 42
Airbag On-Off Switch . . . . . . . . . . 43
Child Restraints
Child Restraint Systems . . . . . . . 44
Child Restraint InstallationLocations . . . . . . . . . . . . . . . . . . . . . 46
ISOFIX Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 49
Top Tether Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 51Head Restraints
Position
{Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head
restraint should be at upper head
level. If this is not possible for
extremely tall people, set to highest
position, and set to lowest position
for small people.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 33
Front Seats
Seat Position
{Warning
Only drive with the seat correctly
adjusted.
.Sit with buttocks as far back
against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing the pedals. Slide the
front passenger seat as far back
as possible.
. Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest
when turning the steering wheel.
Do not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
. Adjust the steering wheel
0
Steering Wheel Adjustment 060.
. Set the seat high enough to
have a clear field of vision on all
sides and on all display
instruments. There should be at
least one hand of clearance
between your head and the
headlining. Your thighs should
rest lightly on the seat without
pressing into it.
. Adjust the head restraint
0
Head Restraints 031. .
Adjust the height of the seat belt
0Three-Point Seat belt 036.
Seat Adjustment
{Danger
Do not sit nearer than 25 cm to
the steering wheel, to permit safe
airbag deployment.
{Warning
Never adjust seats while driving
as they could move
uncontrollably.
{Warning
Never store any objects under the
seats.
