Vehicle Care 163
We recommend the use of the same
grade of engine oil that was used at
last change.
The engine oil level must not
exceed theMAXmark on the
dipstick.
Caution
Overfilled engine oil must be
drained or suctioned out.
Capacities
0Capacities and
Specifications 0209.
Fit the cap on straight and tighten it.
Engine Coolant
The coolant provides freeze
protection down to approx. -28 °C.
In northern countries with very low
temperatures the factory filled
coolant provides frost protection
down to approx. -37 °C.
Caution
Only use approved antifreeze.
Coolant level
Caution
Too low a coolant level can cause
engine damage.
If the cooling system is cold, the
coolant level should be above the
filling line mark.
{Warning
Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
To top up use a 1:1 mixture of
released coolant concentrate mixed
with clean tap water. If no coolant
concentrate is available, use clean
tap water. Install the cap tightly.
Have the coolant concentration

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
164 Vehicle Care
checked and have the cause of the
coolant loss remedied by a
workshop.
Washer Fluid
Fill with clean water mixed with a
suitable quantity of washer fluid
which contains antifreeze.
Caution
Only washer fluid with a sufficient
antifreeze concentration provides
protection at low temperatures or
a sudden drop in temperature.(Continued)
Caution (Continued)
Use of washer fluid containing
isopropanol can damage exterior
lamps.
Brakes
In the event of minimum thickness
of the brake lining, a squealing
noise sounds during braking.
Continued driving is possible but
have the brake lining replaced as
soon as possible.
Once new brake linings are
installed, do not brake
unnecessarily hard for the first few
journeys.
Brake Fluid
{Warning
Brake fluid is poisonous and
corrosive. Avoid contact with
eyes, skin, fabrics and painted
surfaces.
The brake fluid level must be
between theMINand the MAX
marks.
If fluid level is below the MINmark,
seek the assistance of a workshop.
Brake and clutch fluid
0
Recommended Fluids and
Lubricants 0200.
Battery
Vehicles without stop-start system
will be equipped with a lead acid
battery. Vehicles with stop-start
system will be equipped with an
AGM battery which is not a lead
acid battery.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
178 Vehicle Care
Vehicles with spare wheel
The jack and the vehicle tools are in
the load compartment.
SeeTyre Changing 0188.
See Compact Spare Tyre 0191.
Wheels and Tyres
Tyre condition, wheel
condition
Drive over edges slowly and at right
angles if possible. Driving over
sharp edges can cause tyre and
wheel damage. Do not trap tyres on
the kerb when parking.
Regularly check the wheels for
damage. Seek the assistance of a
workshop in the event of damage or
unusual wear.
We recommend not swapping the
front wheels with the rear wheels
and vice versa, as this can affect
vehicle stability. Always use less
worn tyres on the rear axle.
Winter Tyres
Winter tyres improve driving safety
at temperatures below 7 °C and
should therefore be fitted on all
wheels.
In accordance with country-specific
regulations, affix the speed sticker
in the driver's field of view.
Tyre Designations
E.g. 195/65 R 15 91 H
195 : Tyre width, mm
65 : Cross-section ratio (tyre height
to tyre width), %
R : Belt type: Radial
RF : Type: RunFlat
15 : Wheel diameter, inches
91 : Load index e.g. 91 is equivalent
to 615 kg
H : Speed code letter
Speed code letter :
Q : Up to 100 mph
S : Up to 112 mph
T : Up to 118 mph
H : Up to 130 mph
V : Up to 150 mph
W : Up to 168 mph

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
180 Vehicle Care
Tyre Pressure Monitor
System
The tyre pressure monitoring
system (TPMS) checks the pressure
of all four wheels once a minute
when vehicle speed exceeds a
certain limit.
Caution
Tyre pressure monitoring system
warns only about low tyre
pressure condition and does not
replace regular tyre maintenance
by the driver.
All wheels must be equipped with
pressure sensors and the tyres
must have the prescribed pressure.
Note: In countries where the tyre
pressure monitoring system is
legally required, the use of wheels
without pressure sensors will
invalidate the vehicle type approval.
The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre (DIC). The menu can be selected by the
buttons on the indicator lever.
Press the
MENUto select the
Vehicle Information MENU
g.
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure
warnings are displayed by a
message with the corresponding
tyre flashing in the DIC.
The system considers the tyre
temperature for the warnings.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 181
A detected low tyre pressure
condition is indicated by the control
indicator
70Tyre Pressure
Monitoring System Light 073.
If
7illuminates, stop as soon as
possible and inflate the tyres as
recommended
0Tyre
Pressure 0209.
If
7flashes for 60-90 seconds and
then illuminates continuously, there
is a fault in the system. Consult a
workshop. After inflating, driving may be
required to update the tyre pressure
values in the DIC. During this time
7may illuminate.
If
7illuminates at lower
temperatures and extinguishes after
some driving, this could be an
indicator for getting low pressure.
Check tyre pressure.
Vehicle messages
0Vehicle
Messages 080.
If the tyre pressure shall be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and
7
illuminates continuously.
A temporary spare wheel is not
equipped with pressure sensors.
The tyre pressure monitoring
system is not operational for these
wheels. Control indicator
7
illuminates. For the further three
wheels the system remains
operational. The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory
approved repair kits can be used.
External high-power radio
equipment could disrupt the tyre
pressure monitoring system.
Each time the tyres are replaced
tyre pressure monitoring system
sensors must be dismounted and
serviced. For the screwed sensor :
Replace valve core and sealing ring.
For clipped sensor : Replace
complete valve stem.
Vehicle loading status
Adjust tyre pressure to load
condition according to tyre
information label or tyre pressure
chart
0Tyre Pressure
0209, and
select the relevant setting in the
menu Tyre Load in the Driver
Information Centre, Vehicle
Information Menu
0Driver
Information Centre (DIC) 075.
This setting is the reference for the
tyre pressure warnings.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 183
button to activate the TPMS
sensor. A horn chirp confirms
that the sensor identification
code has been matched to this
tyre and wheel position.
10. Proceed to the right side front tyre, and repeat the procedure
in Step 9.
11. Proceed to the right side rear tyre, and repeat the procedure
in Step 9.
12. Proceed to the left side rear tyre, and repeat the procedure
in Step 9. The horn sounds
twice to indicate the sensor
identification code has been
matched to the left side rear
tyre, and the TPMS sensor
matching process is no longer
active.
13. Turn off the ignition.
14. Set all four tyres to the recommended air pressure
level as indicated on the tyre
pressure label. 15. Ensure the tyre loading status
is set according selected
pressure
0Driver Information
Centre (DIC) 075.

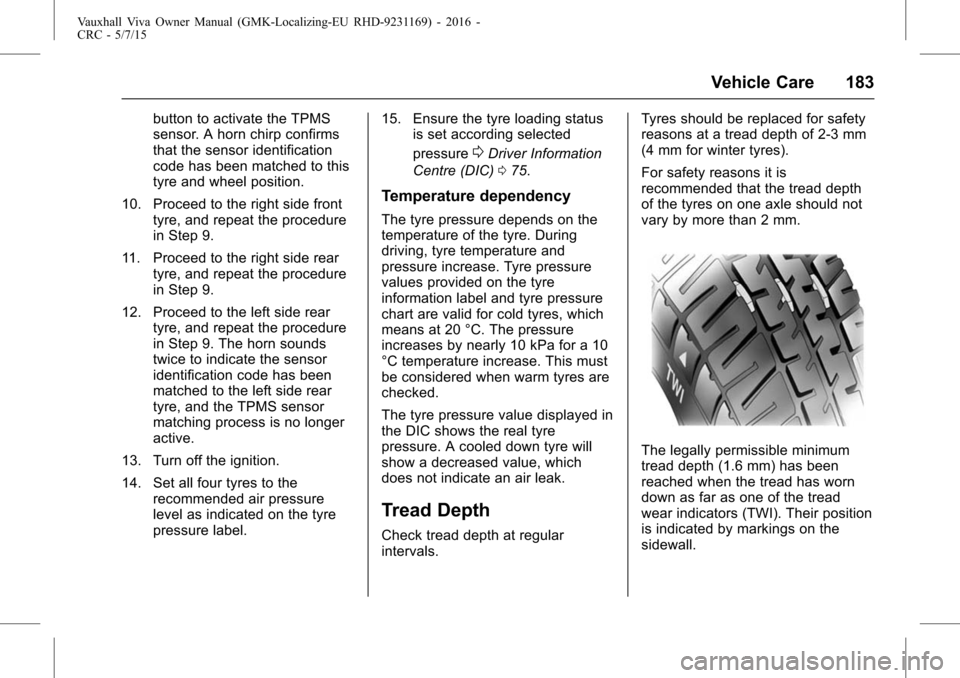

Temperature dependency
The tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase. Tyre pressure
values provided on the tyre
information label and tyre pressure
chart are valid for cold tyres, which
means at 20 °C. The pressure
increases by nearly 10 kPa for a 10
°C temperature increase. This must
be considered when warm tyres are
checked.
The tyre pressure value displayed in
the DIC shows the real tyre
pressure. A cooled down tyre will
show a decreased value, which
does not indicate an air leak.
Tread Depth
Check tread depth at regular
intervals. Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is
recommended that the tread depth
of the tyres on one axle should not
vary by more than 2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread
wear indicators (TWI). Their position
is indicated by markings on the
sidewall.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 193
.A discharged battery can
already freeze at temperatures
of 0 °C.
Defrost the frozen battery before
connecting jump leads.
. Wear eye protection and
protective clothing when
handling a battery.
. Use a booster battery with the
same voltage (12 volts). Its
capacity (Ah) must not be much
less than that of the discharged
battery.
. Use jump leads with insulated
terminals and a cross section of
at least 16 mm² (25 mm² for
diesel).
. Do not disconnect the
discharged battery from the
vehicle.
. Switch off all unnecessary
electrical consumers.
. Do not lean over the battery
during jump starting.
. Do not allow the terminals of one
lead to touch those of the
other lead. .
The vehicles must not come into
contact with each other during
the jump starting process.
. Apply the parking brake, manual
gearbox in neutral, automatic
transmission in P.
. Open the positive terminal
protection caps of both vehicle
batteries.
Lead connection order :
1. Connect the red lead to the positive terminal of the booster
battery. 2. Connect the other end of the
red lead to the positive terminal
of the discharged battery.
3. Connect the black lead to the negative terminal of the
booster battery.
4. Connect the other end of the black lead to a vehicle
grounding point, such as the
engine block or an engine
mounting bolt. Connect as far
away from the discharged
battery as possible, however at
least 60 cm(24 inches).
Route the leads so that they cannot
catch on rotating parts in the engine
compartment.
To start the engine : 1. Start the engine of the vehicle providing the jump.
2. After 5 minutes, start the other engine. Start attempts should
be made for no longer than
15 seconds at an interval of
1 minute.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
200 Service and Maintenance
Recommended
Fluids, Lubricants,
and Parts
Recommended Fluids
and Lubricants
Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not compliant with these
specifications will not be covered by
the warranty.
{Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use.
The oil quality ensures e.g. engine
cleanliness, wear protection and oil
ageing control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil
quality that provides optimum
protection for petrol and diesel
engines. If it is unavailable, engine
oils of other listed qualities have to
be used. Recommendations for
petrol engines are also valid for
Compressed Natural Gas (CNG),
Liquefied Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
0
Recommended Fluids and
Lubricants0200. Topping up engine oil
Engine oils of different
manufacturers and brands can be
mixed as long as they comply with
the required engine oil quality and
viscosity.
Use of engine oil with only ACEA
A1/B1 or only A5/B5 quality is
prohibited, since it can cause
longterm engine damage under
certain operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
0
Recommended Fluids and
Lubricants
0200.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Service and Maintenance 201
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of
the oil.
Multi-grade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates
the low temperature viscosity and
the second figure the high
temperature viscosity.
Select the appropriate viscosity
grade depending on the minimum
ambient temperature
0
Recommended Fluids and
Lubricants0200.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only organic acid type-long life
coolant (LLC) antifreeze approved
for the vehicle. Consult a workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -36 °C.
In northern countries with very low
temperatures the factory filled
coolant provides frost protection
down to approx. -50 °C. This
concentration should be maintained
all year round. The use of additional
coolant additives intended to give
additional corrosion protection or
seal against minor leaks can cause
function problems. Liability for
consequences resulting from the
use of additional coolant additives
will be rejected.
Brake and clutch fluid
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid
should therefore be replaced at the
specified interval.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
202 Service and Maintenance
European service schedule
Required engine oil qualityAll European countries with European service interval
Engine oil quality Petrol engines (including CNG, LPG, E85)
dexos 1
dexos 2
V
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 for topping up once between
each oil change.
Engine oil viscosity grades
All European countries with European service interval
Ambient temperature Petrol
down to -25 °C SAE 5W-30 or SAE 5W-40
below -25 °C SAE 0W-30 or SAE 0W-40
