VAUXHALL VIVARO 2014 User Guide

In brief9

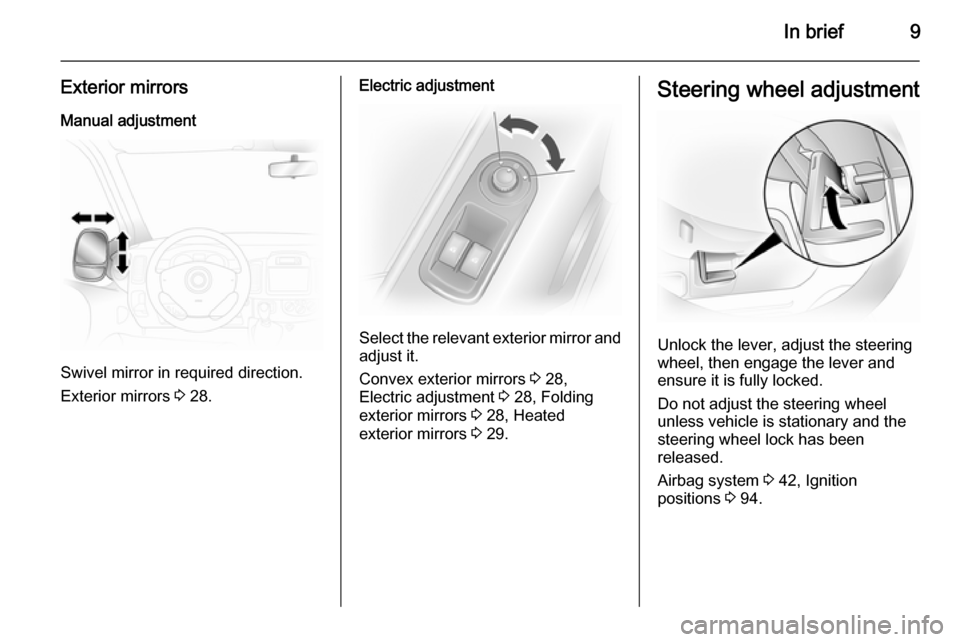

Exterior mirrors
Manual adjustment
Swivel mirror in required direction.
Exterior mirrors 3 28.
Electric adjustment
Select the relevant exterior mirror and
adjust it.
Convex exterior mirrors 3 28,
Electric adjustment 3 28, Folding
exterior mirrors 3 28, Heated
exterior mirrors 3 29.
Steering wheel adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless vehicle is stationary and the steering wheel lock has been
released.
Airbag system 3 42, Ignition
positions 3 94.

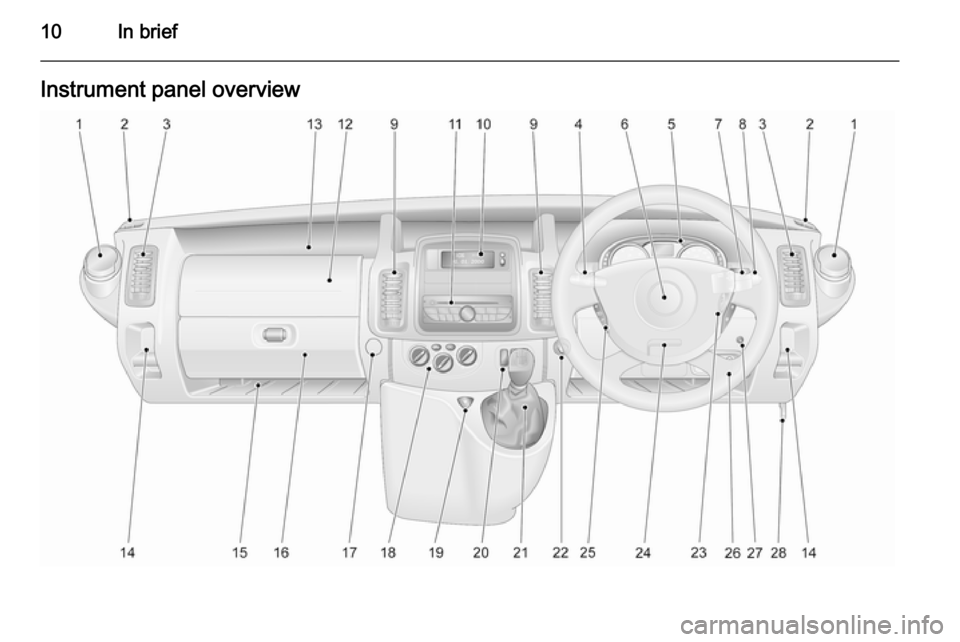

10In briefInstrument panel overview

In brief11
1Ashtray .................................. 65
Cupholders ........................... 56
Fuse box ............................. 129
2 Fixed air vents ....................... 91
3 Side air vents ........................ 90
4 Light switch .......................... 79
Rear fog light ......................... 82
Front fog lights .....................81
Exit lighting ............................ 83
Turn and lane-change
signals ................................... 81
Sidelights .............................. 79
Headlight flash, low beam
and high beam ......................80
5 Instruments .......................... 65
Driver Information Centre ..... 74
Transmission display ............68
6 Horn ...................................... 61
Driver airbag ......................... 45
7 Steering column controls ......618Windscreen wiper,
windscreen washer system ..61
Rear window wiper, rear
window washer system ........62
Trip computer ....................... 76
9 Centre air vents ..................... 90
10 Triple-Info-Display .................74
11 Tachograph ........................... 78
12 Front passenger airbag .........45
13 Storage tray ......................... 55
14 Coin tray ............................... 55
15 Storage tray ......................... 55
16 Glovebox .............................. 55
17 Utility hook ........................... 10
18 Climate control system .......... 84
19 Hazard warning flashers .......81
20 Central locking system ..........20
Heated exterior mirrors .........29
Heated rear window ..............31Manual transmission
automated,
Winter and Laden modes ......99
Cruise control and speed
limiter ................................. 104
21 Gear lever, Manual
transmission .......................... 96
Manual transmission
automated ............................. 97
22 Power outlet .......................... 64
Cigarette lighter ..................... 64
23 Ignition switch with
steering wheel lock ...............94
24 Steering wheel adjustment ...60
25 Remote control on
steering wheel ......................60
Cruise control .....................104
26 Ultrasonic parking assist ....108
Headlight range
adjustment ........................... 80
Electronic Stability
Program ............................. 103
Traction Control system ......102

12In brief
27Auxiliary heater .....................87
28 Bonnet release lever ...........116Exterior lighting
Turn light switch
7=Off0=Sidelights9P=Headlights>=Front fog lights>r=Front and rear fog lights
Lighting 3 79, Automatic light
control 3 79, Headlight warning
device 3 75.
Front and rear fog lights
Turn light switch
>=Front fog lights>r=Front and rear fog lights

In brief13
Headlight flash, high beam and
low beam
Pull lever.
High beam 3 80, Headlight flash
3 80.
Turn and lane-change signalslever up=right turn signallever down=left turn signal
Turn and lane-change signals
3 81.
Hazard warning flashers
Operated with the ¨ button.
Hazard warning flashers 3 81.

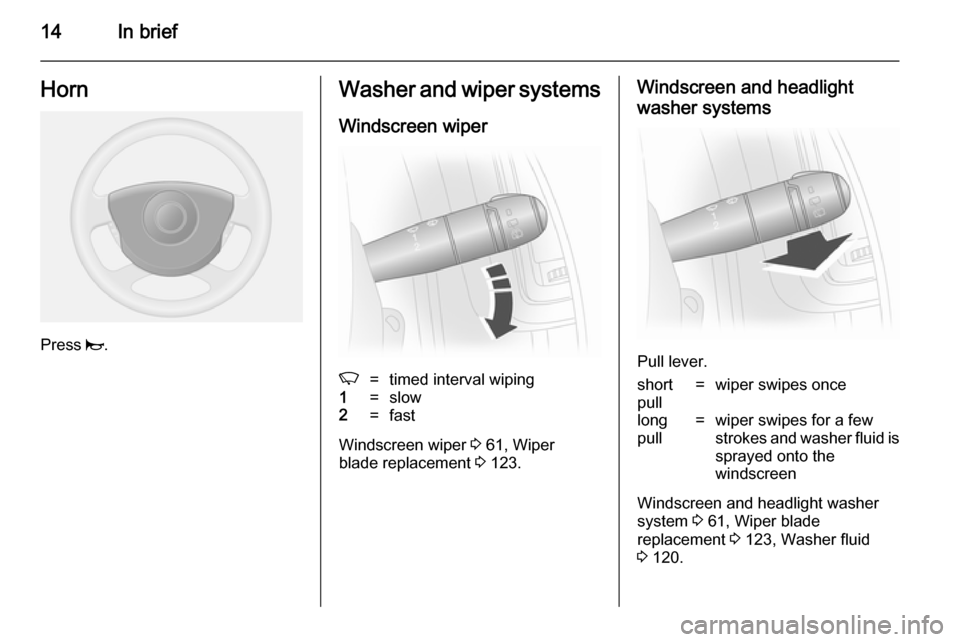

14In briefHorn
Press j.
Washer and wiper systems
Windscreen wiperK=timed interval wiping1=slow2=fast
Windscreen wiper 3 61, Wiper
blade replacement 3 123.
Windscreen and headlight
washer systems
Pull lever.
short
pull=wiper swipes oncelong
pull=wiper swipes for a few
strokes and washer fluid is sprayed onto the
windscreen
Windscreen and headlight washer
system 3 61, Wiper blade
replacement 3 123, Washer fluid
3 120.

In brief15

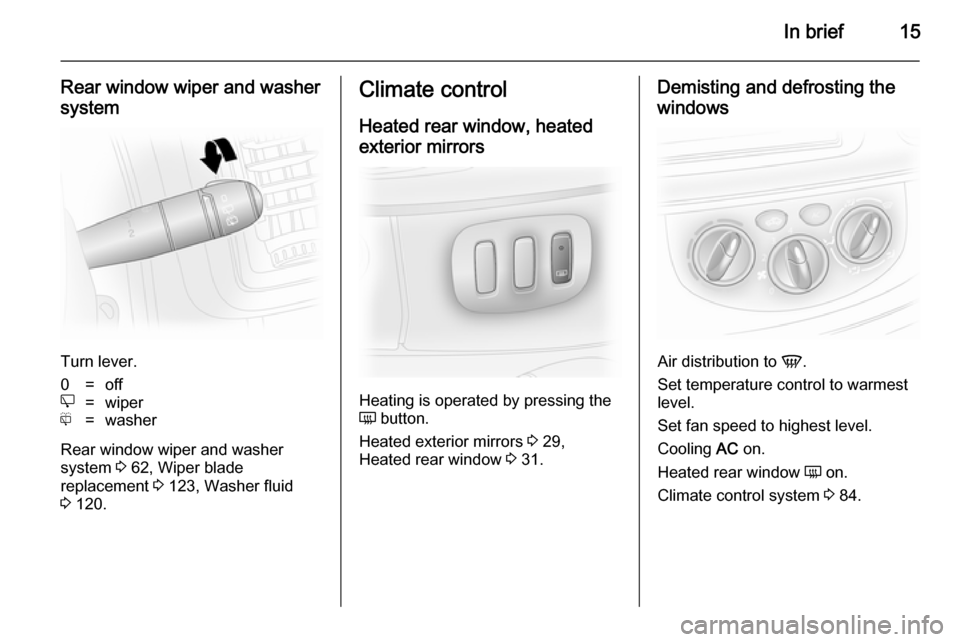

Rear window wiper and washer
system
Turn lever.
0=offe=wiperf=washer
Rear window wiper and washer
system 3 62, Wiper blade
replacement 3 123, Washer fluid
3 120.
Climate control
Heated rear window, heatedexterior mirrors
Heating is operated by pressing the
Ü button.
Heated exterior mirrors 3 29,
Heated rear window 3 31.
Demisting and defrosting the
windows
Air distribution to V.
Set temperature control to warmest
level.
Set fan speed to highest level.
Cooling AC on.
Heated rear window Ü on.
Climate control system 3 84.

16In briefTransmission
Manual transmission
Reverse: with the vehicle stationary,
wait 3 seconds after depressing
clutch pedal and then pull up the
collar on the selector lever and
engage the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then repeat
gear selection.
Manual transmission 3 96.
Manual transmission automatedN=neutralo=drive+=higher gear-=lower gearA/M =switch between automatic
and manual modeR=reverse gear
Manual transmission automated
3 97.
Starting off
Check before starting off ■ Tyre pressure and condition 3 132,
3 163.
■ Engine oil level and fluid levels 3 117.
■ All windows, mirrors, exterior lighting and number plates are free
from dirt, snow and ice and are
operational.
■ Proper position of mirrors, seats and seat belts 3 28, 3 33,
3 40.
■ Brake function at low speed, particularly if the brakes are wet.

In brief17
Starting the engine
■ Turn key to position A
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ do not operate accelerator pedal
■ diesel engines: turn the key to position M for preheating and wait
until control indicator !
extinguishes in the Driver
Information Centre.
■ turn key to position D and release.
Starting the engine 3 94.
Parking
■ Always apply parking brake without
pushing the release button. Apply
as firmly as possible on a downhill
or uphill slope. Depress foot brake
at the same time to reduce
operating force.
■ Switch off the engine. Turn the ignition key to position St and
remove it. Turn the steering wheel
until the steering wheel lock is felt
to engage.
■ If the vehicle is on a level surface or
uphill slope, engage first gear
before switching off the ignition. On
an uphill slope, turn the front
wheels away from the kerb.
If the vehicle is on a downhill slope, engage reverse gear before
switching off the ignition. Turn the
front wheels towards the kerb.
■ Lock the vehicle and activate the anti-theft alarm system 3 26 with
button e on the remote control.■ Do not park the vehicle on an easily
ignitable surface. The high
temperature of the exhaust system
could ignite the surface.
■ Close the windows.
■ The engine cooling fans may run after the engine has been switchedoff 3 116.
■ After running at high engine speeds
or with high engine loads, operate
the engine briefly at a low load or
run in neutral for approx.
30 seconds before switching off, in
order to protect the turbocharger.
Keys, locks 3 18.
Laying the vehicle up for a long period
of time 3 115.

18Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 18
Doors ........................................... 24
Vehicle security ............................ 25
Exterior mirrors ............................ 28
Interior mirrors ............................. 29
Windows ...................................... 29Keys, locks
Keys Replacement keys
The key number is specified on the
key or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 143.
Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical, remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.When the vehicle is taken to a
workshop, this vehicle data is needed in order to perform certain operations.
Radio remote control
Used to operate: ■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
Depending on model, the vehicle may use a 2 button or 3 button remote
control.
