Instruments and controls87
3. Move out of the flow of traffic asquickly as possible without
impeding other vehicles.
4. Switch off ignition.9 Warning
When the engine is off,
considerably more force is needed
to brake and steer.
Do not remove key until vehicle is stationary, otherwise the steering
wheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop 3 138.
Fuel economy mode
ECO illuminates green when ECO
mode is engaged to reduce fuel
consumption.
ECO mode, driving economically
3 110.
Low fuel
Y illuminates yellow.
When the ignition is switched on, the control indicator illuminates briefly.
Illuminates when level in fuel tank is
low (range of approx. 30 miles); refuel
immediately 3 132.
Catalytic converter 3 118.
Bleeding the diesel fuel system
3 144.
Autostop
D illuminates when engine is in an
Autostop.
Stop-start system 3 115.
Exterior light
9 illuminates green.
Illuminated when the headlights are on.
8 illuminates green.
Illuminated when the sidelights are
on.
Lighting 3 93.High beam
P illuminates blue.
Illuminated when high beam is on and during headlight flash 3 94.
Fog light > illuminates green.
Illuminated when the front fog lights
are on 3 96.
Rear fog light
r illuminates green.
Illuminated when the rear fog light is
on 3 96.
Cruise control
m , U illuminates green or yellow.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter
U illuminates yellow.

Instruments and controls89Vehicle messages
Messages are displayed in the Driver
Information Centre and may be
accompanied by illumination of
control indicator F or C in the
instrument cluster.
Information messages Information messages regarding,
e.g. engine starting conditions, stop-
start system, parking brake
application, central locking, steering
wheel lock etc. provide the current
status of certain vehicle functions and
instructions for use.
Fault messages Fault messages regarding, e.g. fuel
filter, airbags, exhaust emissions etc.
are displayed together with control
indicator F. Drive with caution and
seek the assistance of a workshop as
soon as possible.
To remove fault messages from the
display, press button on end of wiper
lever. After a few seconds the
message may disappearautomatically and F remains
illuminated. The fault will then be
stored in the on board system.
Warning messagesWarning messages regarding, e.g.
engine, battery or brake system
failure, are displayed together with
control indicator C and may be
accompanied by a warning chime.
Stop engine immediately and seek
the assistance of a workshop.
Fuel economy messages
Fuel economy messages provide tips to improve fuel efficiency. Journeys
can be saved in the system memory,
enabling you to compare
performances.
Refer to Infotainment system manual
for further information.
Fuel economy rating 3 90.
Warning chimes
A corresponding message may also
appear in the Driver Information
Centre when a warning chime is
sounded.When starting the engine or
whilst driving: ■ If seat belt is not fastened 3 48.
■ During operation of the turn and lane-change signals 3 95.
■ During illumination of certain control indicators.
■ If the parking assist detects an object 3 128.
■ If the vehicle speed briefly exceeds
a set limit 3 124, 3 128.
■ If a door or the bonnet is not properly closed when vehicle
exceeds a certain speed.
■ If there is a fault in the brake system
3 85.
■ If the vehicle battery is not charging
3 84.
■ If engine lubrication is interrupted 3 86.
■ If the electronic key is outside of the
detection range.
Electronic key system 3 21, Power
button 3 112.

90Instruments and controls
When the vehicle is parked and/or the driver's door is opened: ■ If the key has been left in the ignition.
■ If the electronic key has been left in
the card reader.
Electronic key system 3 21, Power
button 3 112.
■ If the vehicle is in an Autostop. Stop-start system 3 115.
■ If the exterior lights are on.
Engine oil level If the minimum engine oil level is
reached, a message is displayed in
the Driver Information Centre for
30 seconds after the engine is
started.
Check oil level 3 138.Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated electronically.
Depending on vehicle, the following
functions can be selected by pressing button repeatedly on end of wiper
lever:
■ Fuel used
■ Average consumption
■ Instantaneous consumption
■ Range
■ Distance travelled
■ Average speed
■ Distance before service 3 80
■ Clock 3 76, outside temperature
3 76
■ Cruise control and speed limiter stored speed 3 124
■ Fuel economy rating
■ Tyre pressures 3 157
■ Fault and information messages
Fuel used Displays the amount of fuel
consumed since the last reset.
The measurement can be restarted at
any time by pressing and holding the
button.
Average consumption
The value is displayed after driving a
distance of 0.25 miles.
Average consumption is displayed,
taking into consideration the distance
travelled and the fuel used since the
last reset.

Instruments and controls91
The measurement can be restarted at
any time.
Instantaneous consumption
The value is displayed after reaching
a speed of 20 mph.
Range The value is displayed after driving adistance of 0.25 miles.
The range is calculated from the
current contents of the fuel tank and
the average consumption since the
last reset.
The range will not display if control
indicator Y is illuminated in the
instrument cluster 3 87.
Distance travelled Displays the distance driven since the
last reset.
The measurement can be restarted at
any time.
Average speed
The value is displayed after driving a
distance of 0.25 miles.The average speed since the last
reset is displayed.
The measurement can be restarted at
any time.
Interruptions in the journey with the
ignition off are not included in the
calculations.
Reset trip computer information
To reset the trip computer, select one
of its functions then press and hold
the button on the end of the wiper
lever.
The following trip computer
information will be reset:
■ Fuel used
■ Average consumption
■ Distance travelled
■ Average speed
The trip computer will reset
automatically when the maximum
value of any of the parameters is
exceeded.Fuel economy rating
(ecoScoring) If equipped, a rating of 0 to 100 is
shown in the Info-Display to help
evaluate fuel efficiency, based on your driving style.
Higher ratings indicate better fuel
economy.
Tips to improve fuel economy are also
given in the Info-Display. Journeys
can be saved in the system memory,
enabling you to compare
performances. Refer to Infotainment system manual for further
information.
Vehicle messages 3 89.
Journey record When the engine is switched off, a
record of the last journey is shown in the Info-Display.
The following information is
displayed:
■ Average fuel consumption■ Total fuel consumption

92Instruments and controls
■ Distance travelled
■ Fuel saved in miles
Unit of measurement To change the unit of measurement
for the duration of a journey:
With ignition off, simultaneously press
the power button 3 112 and press
and hold button on end of wiper lever; the Driver Information Centre flashes
for approx. 10 seconds until the new
unit is displayed. Release button on
end of wiper lever.
When the engine is switched off, the trip computer automatically returns to the original unit of measurement.
Interruption of power supply
If the power supply has been
interrupted or if the vehicle battery
voltage has dropped too low, the
values stored in the trip computer will be lost.Tachograph
The tachograph is operated as
described in the operating
instructions supplied. Observe
regulations regarding use.

Lighting93LightingExterior lighting............................ 93
Interior lighting ............................. 96
Lighting features ..........................98Exterior lighting

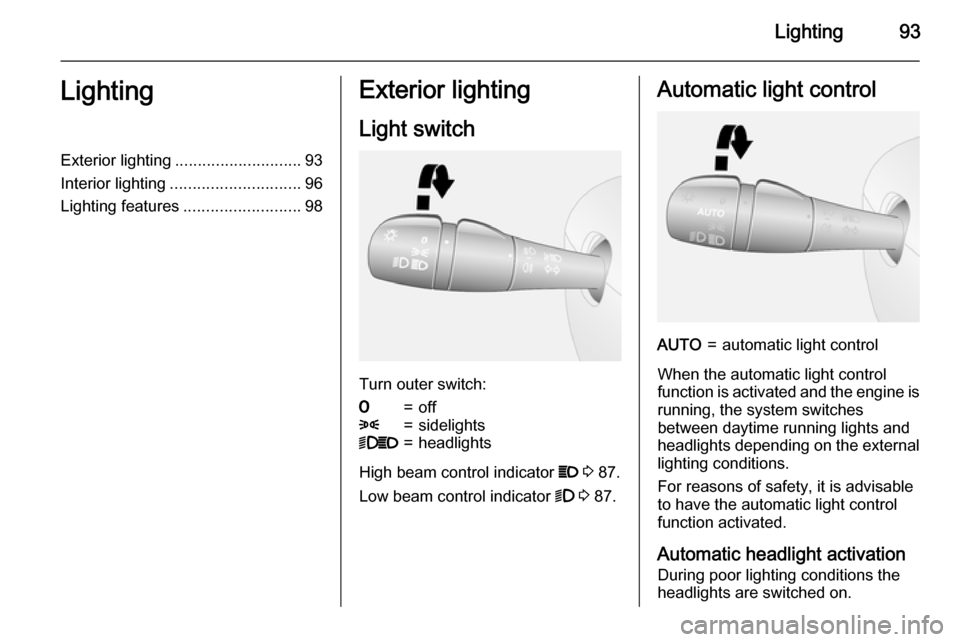

Light switch
Turn outer switch:
7=off8=sidelights9P=headlights
High beam control indicator P 3 87.
Low beam control indicator 9 3 87.
Automatic light controlAUTO=automatic light control
When the automatic light control
function is activated and the engine is running, the system switches
between daytime running lights and headlights depending on the external lighting conditions.
For reasons of safety, it is advisable
to have the automatic light control
function activated.
Automatic headlight activation
During poor lighting conditions the
headlights are switched on.

Climate control99Climate controlClimate control systems ............... 99
Air vents ..................................... 108
Maintenance .............................. 109Climate control systems

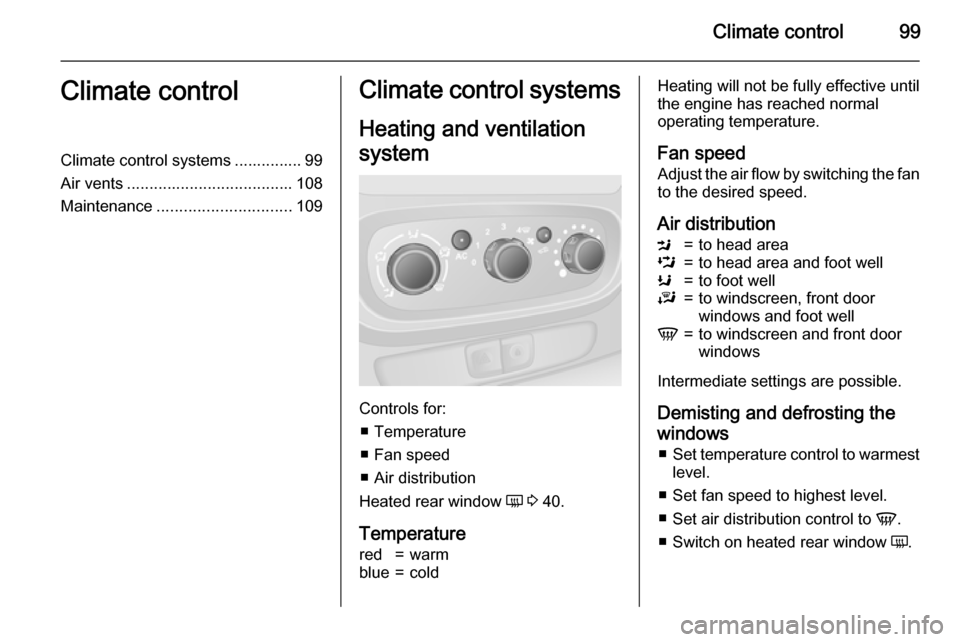

Heating and ventilation
system
Controls for: ■ Temperature
■ Fan speed
■ Air distribution
Heated rear window Ü 3 40.
Temperature
red=warmblue=coldHeating will not be fully effective until
the engine has reached normal
operating temperature.
Fan speed Adjust the air flow by switching the fan
to the desired speed.
Air distributionM=to head areaL=to head area and foot wellK=to foot wellJ=to windscreen, front door
windows and foot wellV=to windscreen and front door
windows
Intermediate settings are possible.
Demisting and defrosting the
windows ■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Set air distribution control to V.
■ Switch on heated rear window Ü.

100Climate control
■Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.
Heated rear window 3 40.

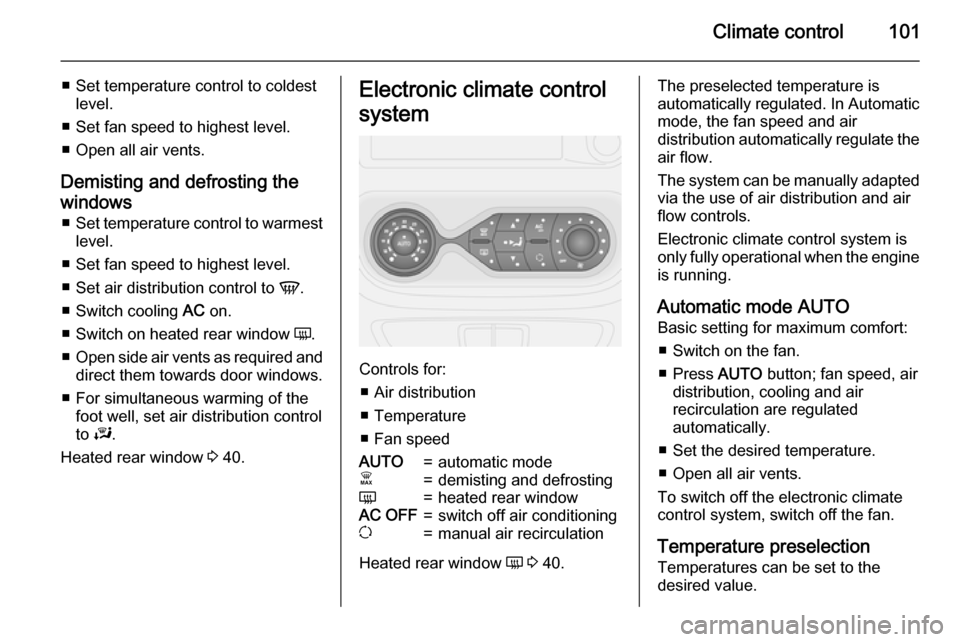

Air conditioning system
Additional to the heating and
ventilation system, the air
conditioning system has:
AC=cooling4=air recirculationCooling (AC)
Operated with the AC button and
functional only when the engine and
fan are running. LED illuminates in
the button when activated.
The air conditioning system cools and
dehumidifies (dries) the air when
outside temperature is above a
specific level. Therefore
condensation may form and drip from under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel.
Notice
Air conditioning performance is
reduced when ECO mode has been
activated 3 110.
Air recirculation system 4
Operated with the 4 button. LED
illuminates in the button when
activated.9 Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling, the
air humidity increases, so the
windows may mist up from inside.
The quality of the passenger
compartment air deteriorates,
which may cause the vehicle
occupants to feel drowsy.
In warm and very humid ambient air conditions, the windscreen might mist up from outside when cold air is
directed towards it. If windscreen
mists up from outside, activate
windscreen wiper and avoid the use
of air distribution settings J and V.
Maximum cooling
Briefly open the windows so that hot
air can disperse quickly.
■ Cooling AC on.
■ Air recirculation system 4 on.
■ Set air distribution control to M.

Climate control101
■ Set temperature control to coldestlevel.
■ Set fan speed to highest level.
■ Open all air vents.
Demisting and defrosting the
windows ■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Set air distribution control to V.
■ Switch cooling AC on.
■ Switch on heated rear window Ü.
■ Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.
Heated rear window 3 40.Electronic climate control
system
Controls for: ■ Air distribution
■ Temperature
■ Fan speed
AUTO=automatic modeÊ=demisting and defrostingÜ=heated rear windowAC OFF=switch off air conditioningu=manual air recirculation
Heated rear window Ü 3 40.
The preselected temperature is
automatically regulated. In Automatic mode, the fan speed and air
distribution automatically regulate the
air flow.
The system can be manually adapted via the use of air distribution and air
flow controls.
Electronic climate control system is
only fully operational when the engine is running.
Automatic mode AUTO
Basic setting for maximum comfort:
■ Switch on the fan.
■ Press AUTO button; fan speed, air
distribution, cooling and air
recirculation are regulated
automatically.
■ Set the desired temperature.
■ Open all air vents.
To switch off the electronic climate
control system, switch off the fan.
Temperature preselection
Temperatures can be set to the
desired value.

102Climate control
If the minimum temperature is set, the
climate control system runs at
maximum cooling.
If the maximum temperature is set, the climate control system runs at
maximum heating.
Demisting and defrosting the windows ■ Press button Ê. LED illuminates in
the button when activated.
■ Temperature, air distribution and cooling are regulated automaticallyand the fan runs at high speed.
■ Switch on heated rear window Ü
3 40.
To return to Automatic mode: press button Ê or AUTO .
Notice
If the Ê button is pressed while the
engine is running, an Autostop will
be inhibited until the Ê button is
pressed again.
If the Ê button is pressed while the
engine is in an Autostop, the engine will restart automatically.
Stop-start system 3 115.Manual settings
Manually changing any of the
following settings will deactivate
Automatic mode:
Fan speed Z
Adjust the air flow manually by
switching the fan to the desired
speed.
If the fan is switched off, the air
conditioning is also deactivated.
Air distribution M
Press appropriate button for desired
adjustment. LED illuminates in the
button when activated.R=to windscreen and front door
windows.M=to head area.S=to foot well.
Combinations of settings are possible
by pressing two buttons until both
LEDs are illuminated.
To return to Automatic mode: Press
AUTO button.
Cooling AC
The air conditioning system cools and
dehumidifies (dries) the air when
outside temperature is above a
specific level. Therefore
condensation may form and drip from
under the vehicle.
Notice
Air conditioning performance is
reduced when ECO mode has been
activated 3 110.
If no cooling or drying is required press the AC OFF button to switch the
cooling system off, thus saving fuel.
LED illuminates in the button.
To return to Automatic mode: Press
AUTO button.
Air recirculation mode u
Activate or deactivate manual air recirculation mode with the u button.
LED illuminates in the button when
activated.
