VAUXHALL ZAFIRA 2014 Owner's Manual

Vauxhall ZafiraOwner's Manual

Introduction.................................... 2
In brief ............................................ 6
Keys, doors and windows ............26
Seats, restraints ........................... 44
Storage ........................................ 67
Instruments and controls .............77
Lighting ...................................... 108
Climate control ........................... 116
Driving and operating .................124
Vehicle care ............................... 151
Service and maintenance ..........191
Technical data ........................... 195
Customer information ................208
Index .......................................... 210Contents

2IntroductionIntroduction

Introduction3Vehicle specific data

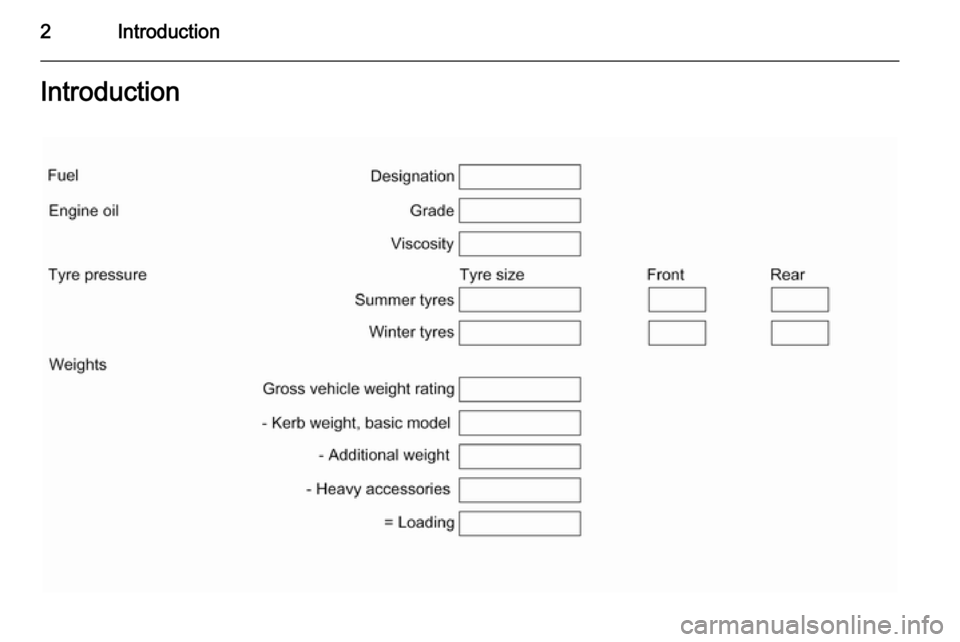

Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available under the sections "Service
and maintenance" and "Technical
data" as well as on the identification
plate.
Introduction
Your vehicle is a designed
combination of advanced technology, safety, environmental friendliness
and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of accident
and injury which may result from
improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in this Owner's Manual.When this Owner's Manual refers to aworkshop visit, we recommend your
Vauxhall Authorised Repairer.
All Vauxhall Authorised Repairers provide first-class service at
reasonable prices. Experienced
mechanics trained by Vauxhall work
according to specific Vauxhall
instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle glovebox.
Using this manual ■ This manual describes all options and features available for this
model. Certain descriptions,
including those for display and
menu functions, may not apply to
your vehicle due to model variant,
country specifications, special
equipment or accessories.
■ The "In brief" section will give you an initial overview.
■ The table of contents at the beginning of this manual and withineach section shows where the
information is located.■ The index will enable you to search
for specific information.
■ Yellow arrows in the illustrations serve as points of reference or
indicate some action to be
performed.
■ Black arrows in the illustrations indicate a reaction or a second
action to be performed.
■ This Owner's Manual depicts left- hand drive vehicles. Operation is
similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The
corresponding sales designations
can be found in the section
"Technical data".
■ Directional data, e.g. left or right, or
front or back, always relate to the
direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.

4IntroductionDanger, Warnings and
Cautions9 Danger
Text marked 9 Danger provides
information on risk of fatal injury.
Disregarding this information may
endanger life.
9 Warning
Text marked 9 Warning provides
information on risk of accident or
injury. Disregarding this
information may lead to injury.
Caution
Text marked Caution provides
information on possible damage to
the vehicle. Disregarding this
information may lead to vehicle
damage.
Symbols
Page references are indicated with 3.
3 means "see page".
Thank you for choosing a Vauxhall
We wish you many hours of
pleasurable driving.
Your Vauxhall Team

Introduction5

6In briefIn briefInitial drive informationVehicle unlockingRadio remote control

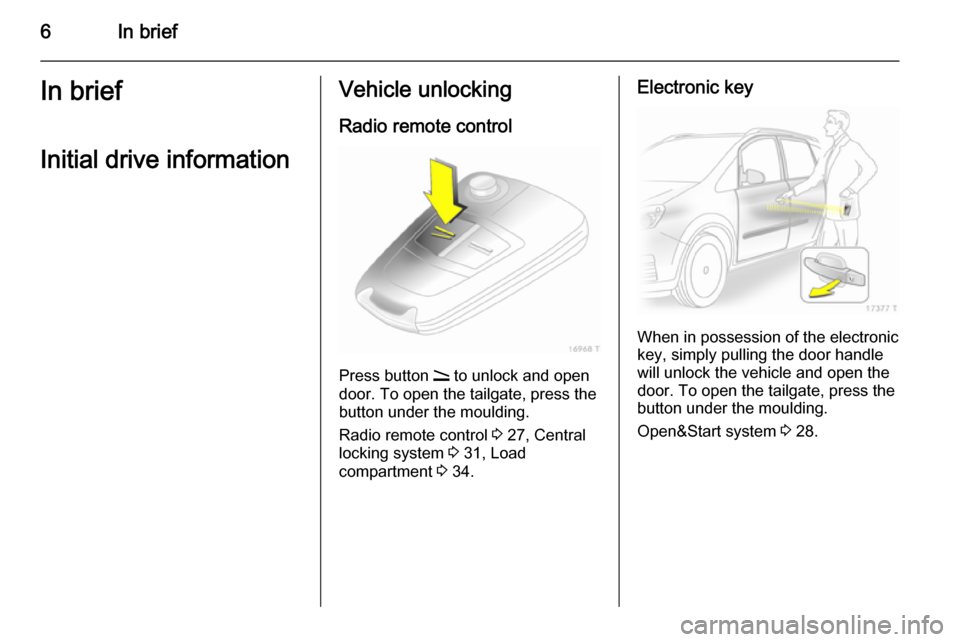

Press button q to unlock and open
door. To open the tailgate, press the
button under the moulding.
Radio remote control 3 27, Central
locking system 3 31, Load
compartment 3 34.
Electronic key
When in possession of the electronic
key, simply pulling the door handle
will unlock the vehicle and open the
door. To open the tailgate, press the button under the moulding.
Open&Start system 3 28.

In brief7Seat adjustmentSeat positioning
Pull handle, slide seat, release
handle.
Seat adjustment 3 46, Seat position
3 46.
9 Danger
Do not sit nearer than 25 cm from
the steering wheel, to permit safe
airbag deployment.
Seat backrests
Turn handwheel. Do not lean on seat when adjusting.
Seat adjustment 3 46, Seat position
3 46, Folding front passenger seat
backrest 3 49.
Seat height
Lever pumping motion
up=higherdown=lower
Seat adjustment 3 46, Seat position
3 46.

8In brief

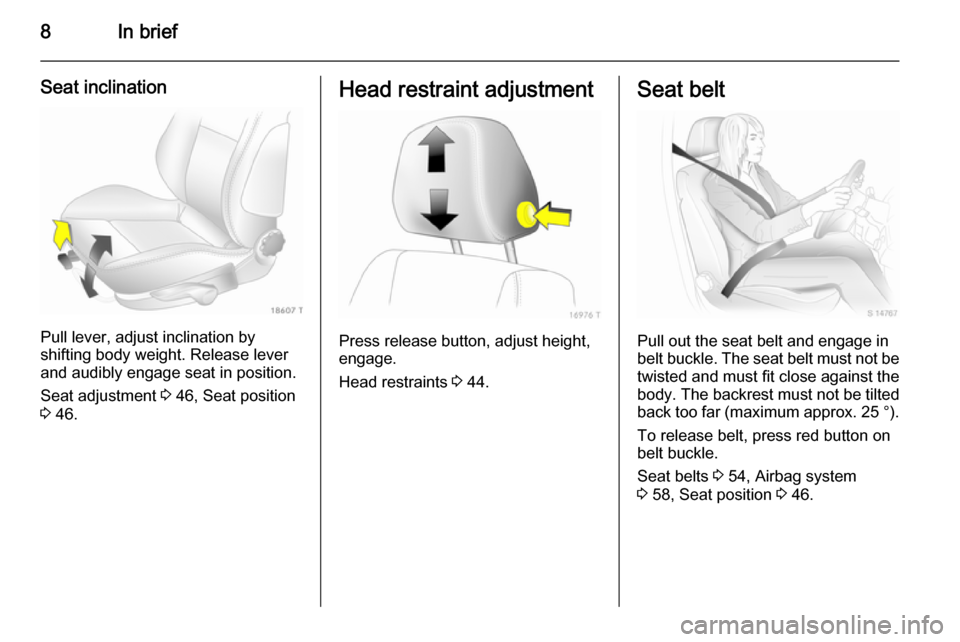

Seat inclination
Pull lever, adjust inclination by
shifting body weight. Release lever
and audibly engage seat in position.
Seat adjustment 3 46, Seat position
3 46.
Head restraint adjustment
Press release button, adjust height,
engage.
Head restraints 3 44.
Seat belt
Pull out the seat belt and engage in
belt buckle. The seat belt must not be twisted and must fit close against the
body. The backrest must not be tilted
back too far (maximum approx. 25 °).
To release belt, press red button on
belt buckle.
Seat belts 3 54, Airbag system
3 58, Seat position 3 46.
