VOLKSWAGEN ID.4 2020 Owner´s Manual

Displays

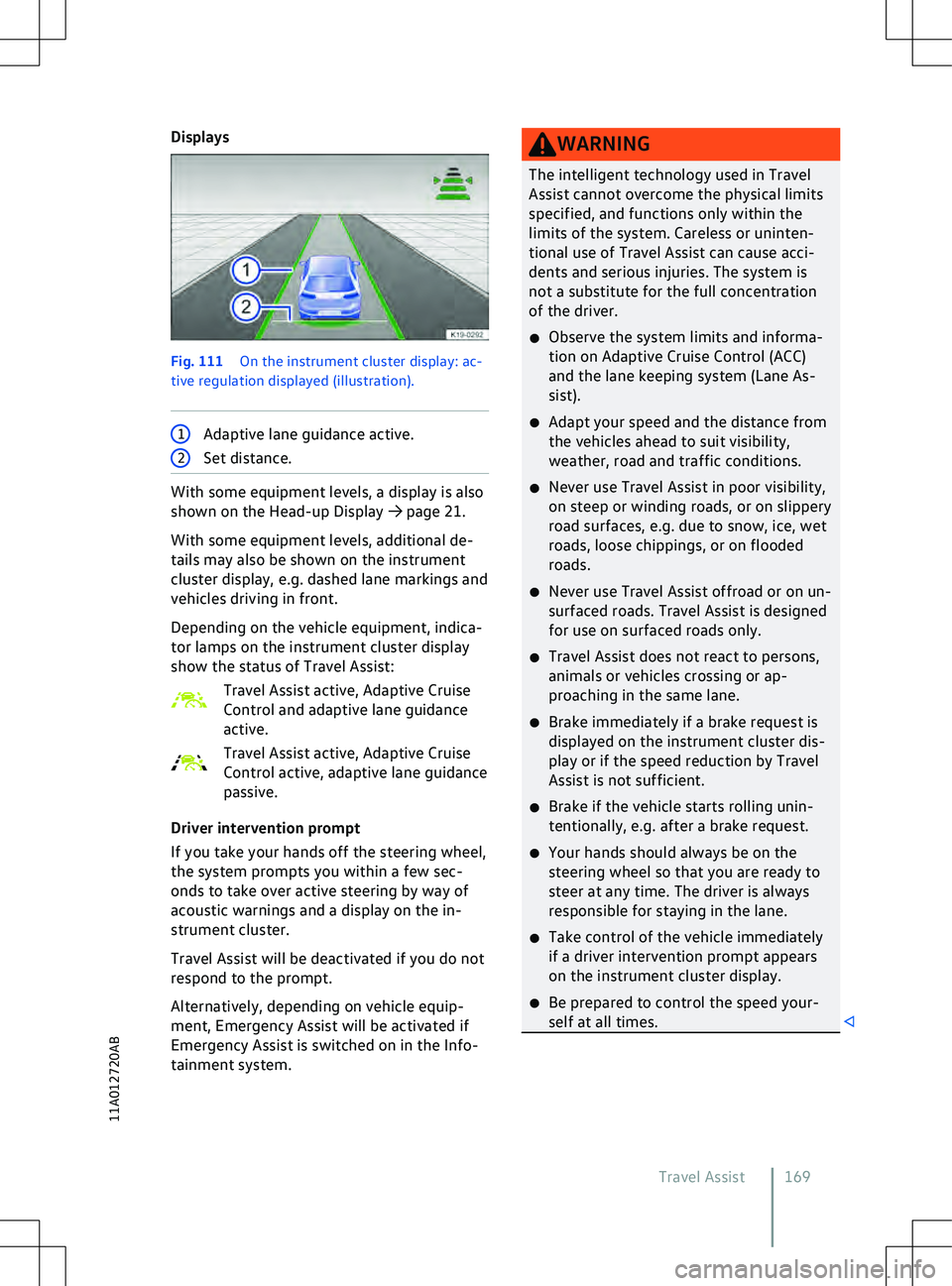

Fig. 111
On the instrument cluster display: ac-
tiv e regulation displayed (illustration). 1
Adaptive lane guidance active. 2
Set distance. With some equipment levels, a display is also
shown on the Head-up Display

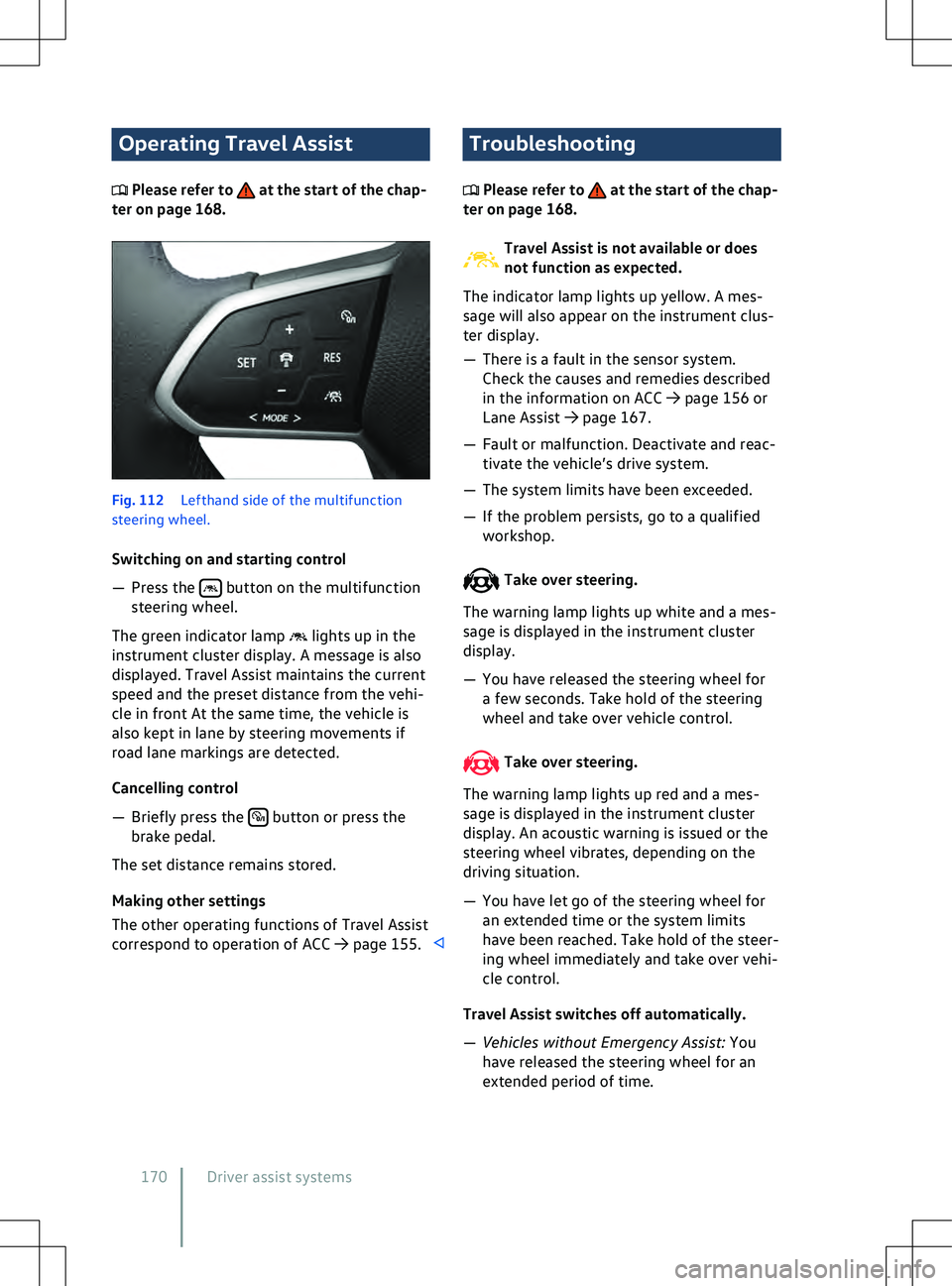

Operating Travel Assist
Please refer to at the start of the chap-
ter on page 168. Fig. 112
Lefthand side of the multifunction
steering wheel.
Switching on and starting control

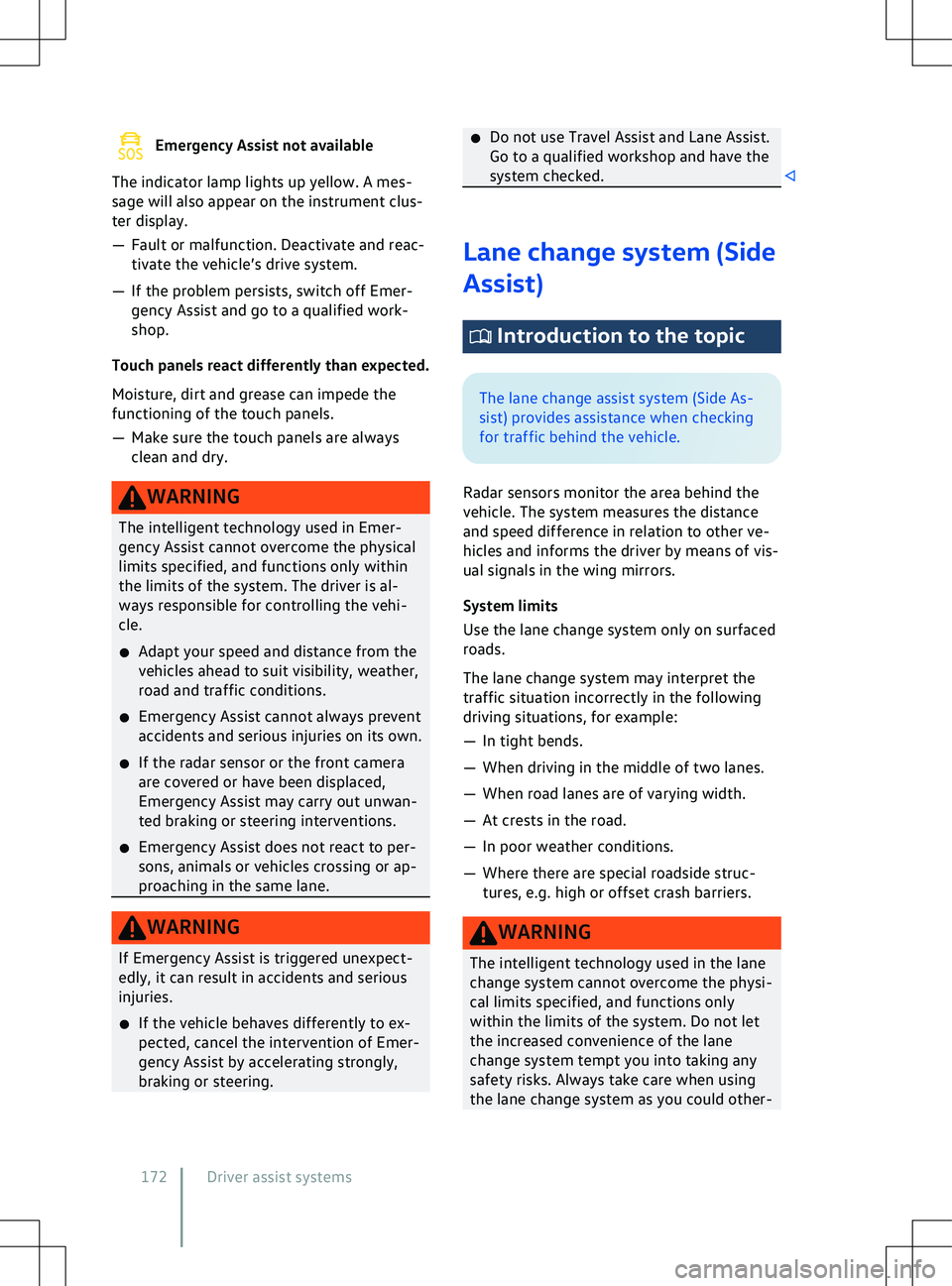

Emergency Assist not available
The indicator lamp lights up yellow. A mes-
sage will also appear on the instrument clus-
ter display.

wise cause accidents or injuries. The sys-
tem is not a substitute f
or the full concen-
tration of the driver.
x Adapt your speed and distance from the
vehicles ahead to suit visibility, weather,
road and traffic conditions.
x Your hands should always be on the
steering wheel so that you can steer at
any time.
x Observe the displays in the exterior mir-
ror housings and on the instrument clus-
ter display and act in accordance with
the requests.
x Always pay attention to what is happen-
ing around the vehicle.
x Never use the lane change system if the
radar sensors are dirty, covered or dam-
aged. These circumstances can impair
the proper functioning of the system.
x It may be hard to see the display in the
wing mirror in direct sunlight. The radar sensors calibrate themselves
once in the first f
ew kilometres after
vehicle delivery and if the sensors are re-
paired. The sensor range may be limited dur-

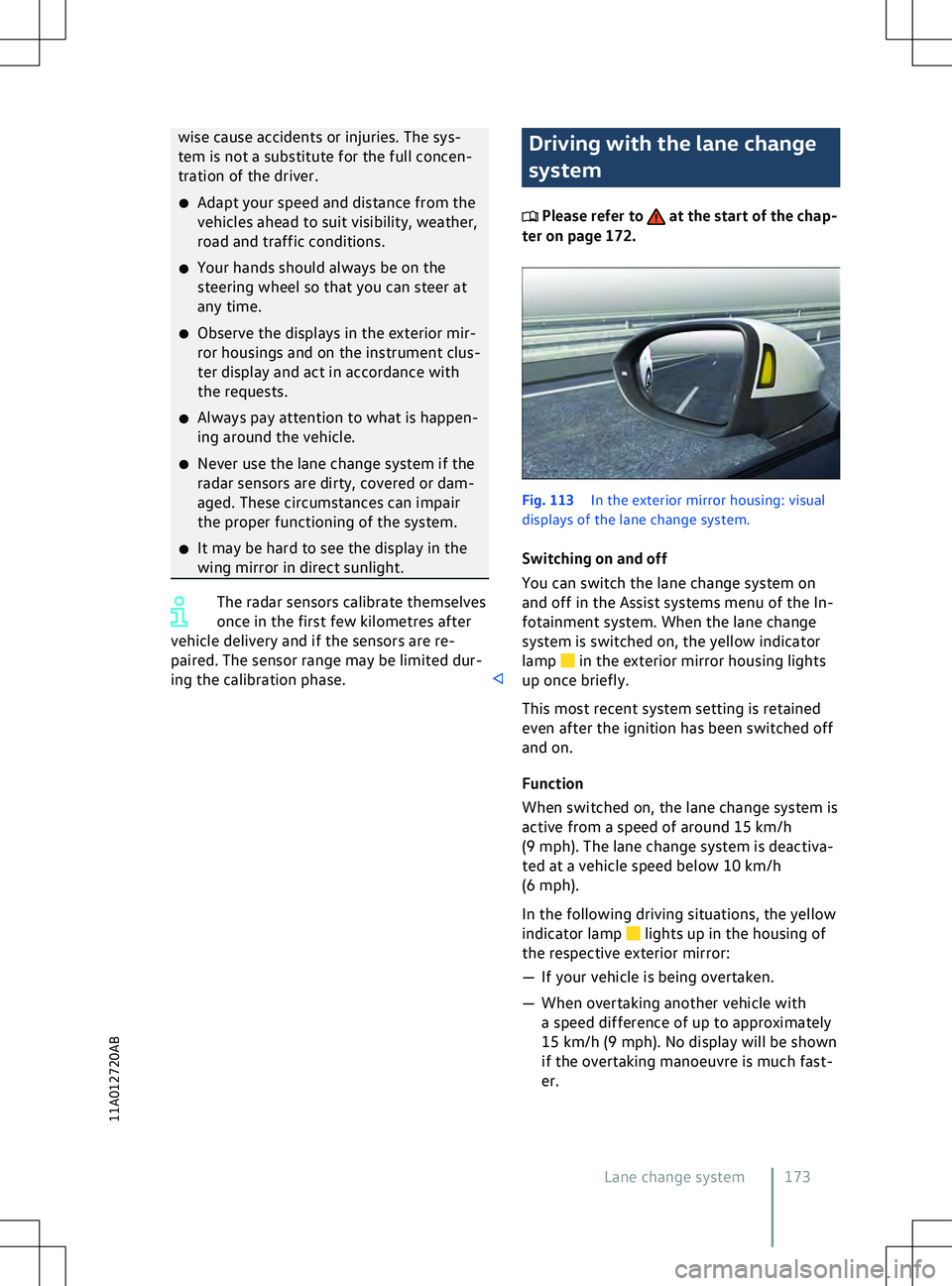

ing the calibration phase. Driving with the lane change
system
Please refer to at the start of the chap-
ter on page 172. Fig. 113
In the e
xterior mirror housing: visual
displays of the lane change system.
Switching on and off
You can switch the lane change system on
and off in the Assist systems menu of the In-
fotainment system. When the lane change
system is switched on, the yellow indicator
lamp in the exterior mirror housing lights
up once briefly.
This most recent system setting is retained
e

ven after the ignition has been switched off
and on.
Function
When switched on, the lane change system is
active from a speed of around 15 km/h
(9 mph). The lane change system is deactiva-
ted at a vehicle speed below 10 km/h
(6 mph).
In the following driving situations, the yellow
indicator lamp lights up in the housing of
the respectiv

e exterior mirror:

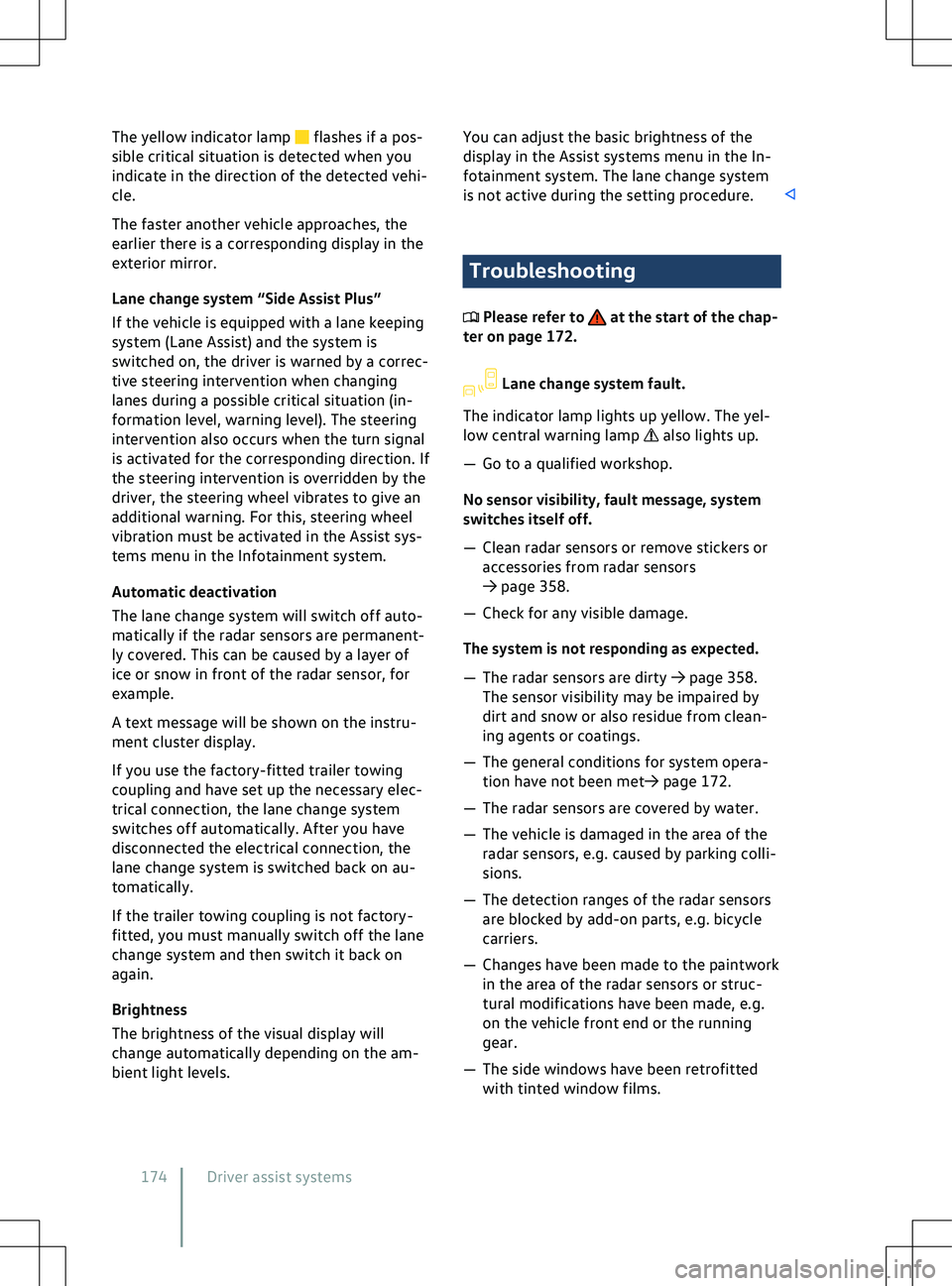

The yellow indicator lamp flashes if a pos-
sible critical situation is detected when you
indicate in the direction of the detected v
ehi-
cle.
The faster another vehicle approaches, the
earlier there is a corresponding display in the
exterior mirror.
Lane change system “Side Assist Plus”
If the vehicle is equipped with a lane keeping
system (Lane Assist) and the system is
switched on, the driver is warned by a correc-
tive steering intervention when changing
lanes during a possible critical situation (in-
formation level, warning level). The steering
intervention also occurs when the turn signal
is activated for the corresponding direction. If
the steering intervention is overridden by the
driver, the steering wheel vibrates to give an
additional warning. For this, steering wheel
vibration must be activated in the Assist sys-
tems menu in the Infotainment system.
Automatic deactivation
The lane change system will switch off auto-
matically if the radar sensors are permanent-
ly covered. This can be caused by a layer of
ice or snow in front of the radar sensor, for
example.
A text message will be shown on the instru-
ment cluster display.
If you use the factory-fitted trailer towing
coupling and have set up the necessary elec-
trical connection, the lane change system
switches off automatically. After you have
disconnected the electrical connection, the
lane change system is switched back on au-
tomatically.
If the trailer towing coupling is not factory-
fitted, you must manually switch off the lane
change system and then switch it back on
again.
Brightness
The brightness of the visual display will
change automatically depending on the am-
bient light levels. You can adjust the basic brightness of the
display in the Assist systems menu in the In-
f
otainment system. The lane change system
is not active during the setting procedure. Troubleshooting
Please refer to at the start of the chap-
ter on page 172. Lane change system fault.
The indicator lamp lights up yellow. The yel-
low central warning lamp also lights up.

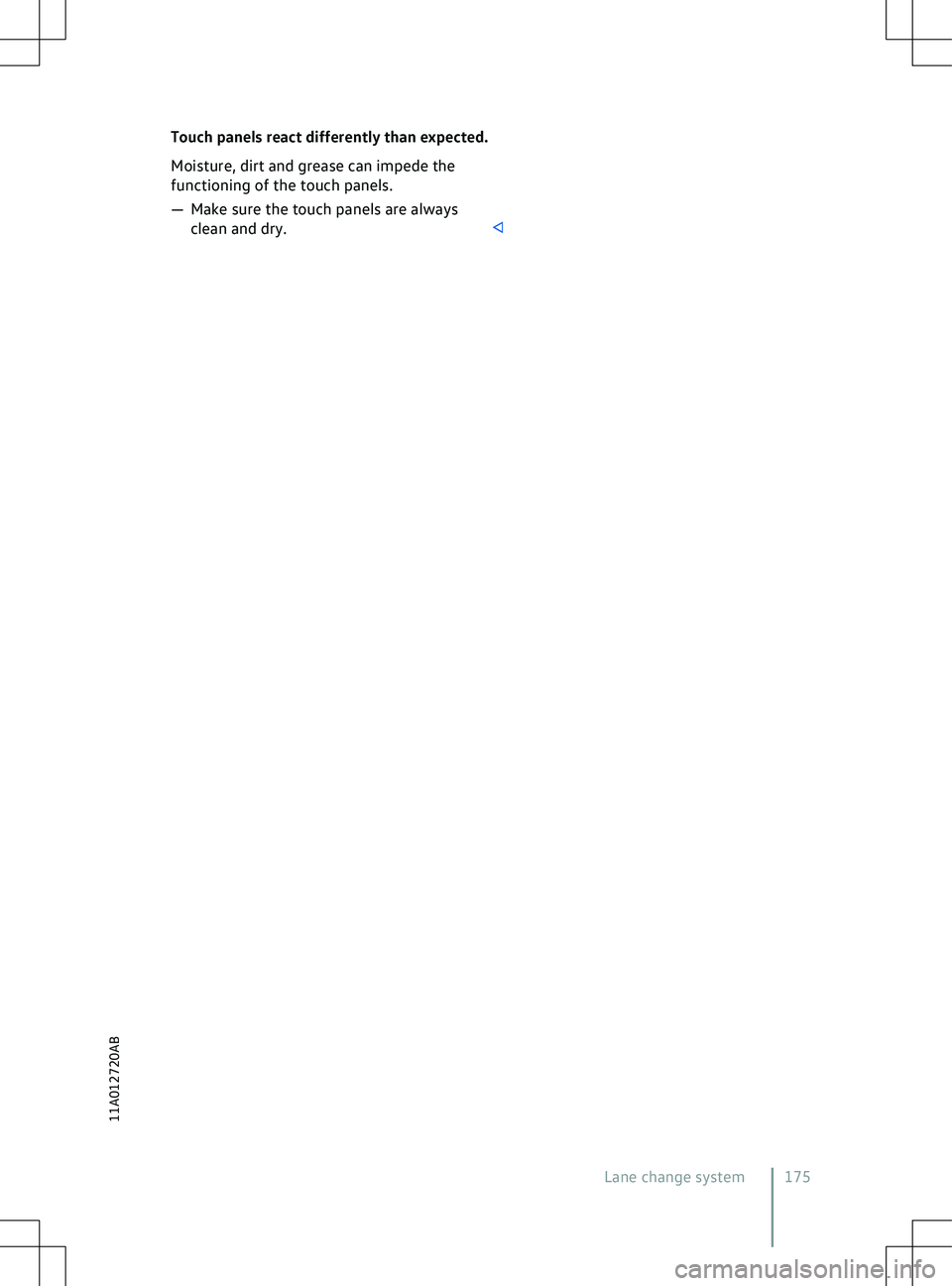

Touch panels react differently than expected.
Moisture, dirt and grease can impede the
functioning of the touch panels.

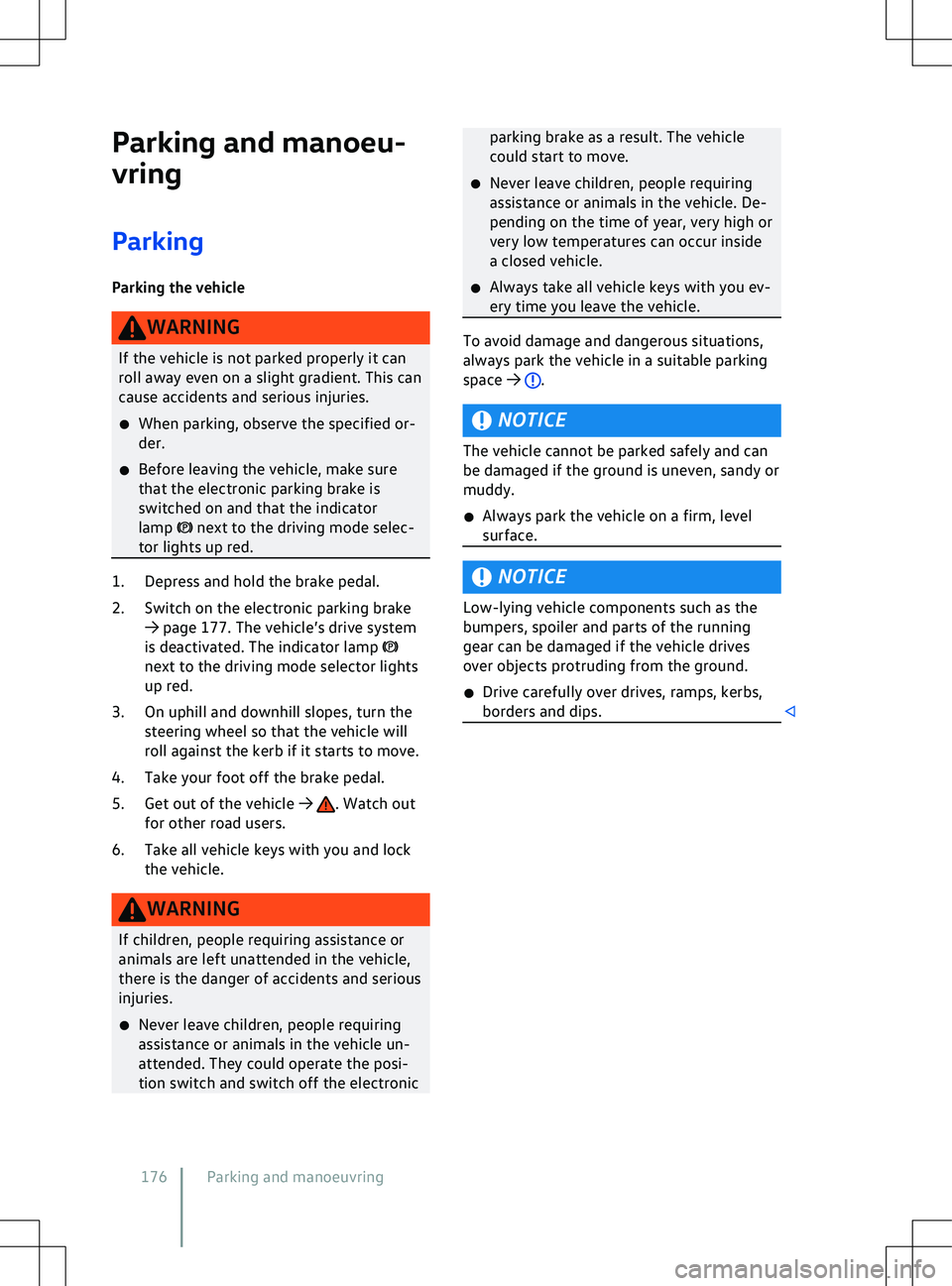

Parking and manoeu-
vring
P
arking
Parking the vehicle WARNING
If the vehicle is not parked properly it can
roll away e
ven on a slight gradient. This can
cause accidents and serious injuries.
x When parking, observe the specified or-
der.
x Before leaving the vehicle, make sure
that the electronic parking brake is
switched on and that the indicator
lamp next to the driving mode selec-
tor lights up red. 1. Depress and hold the brake pedal.
2.

Switch on the electronic parking brake

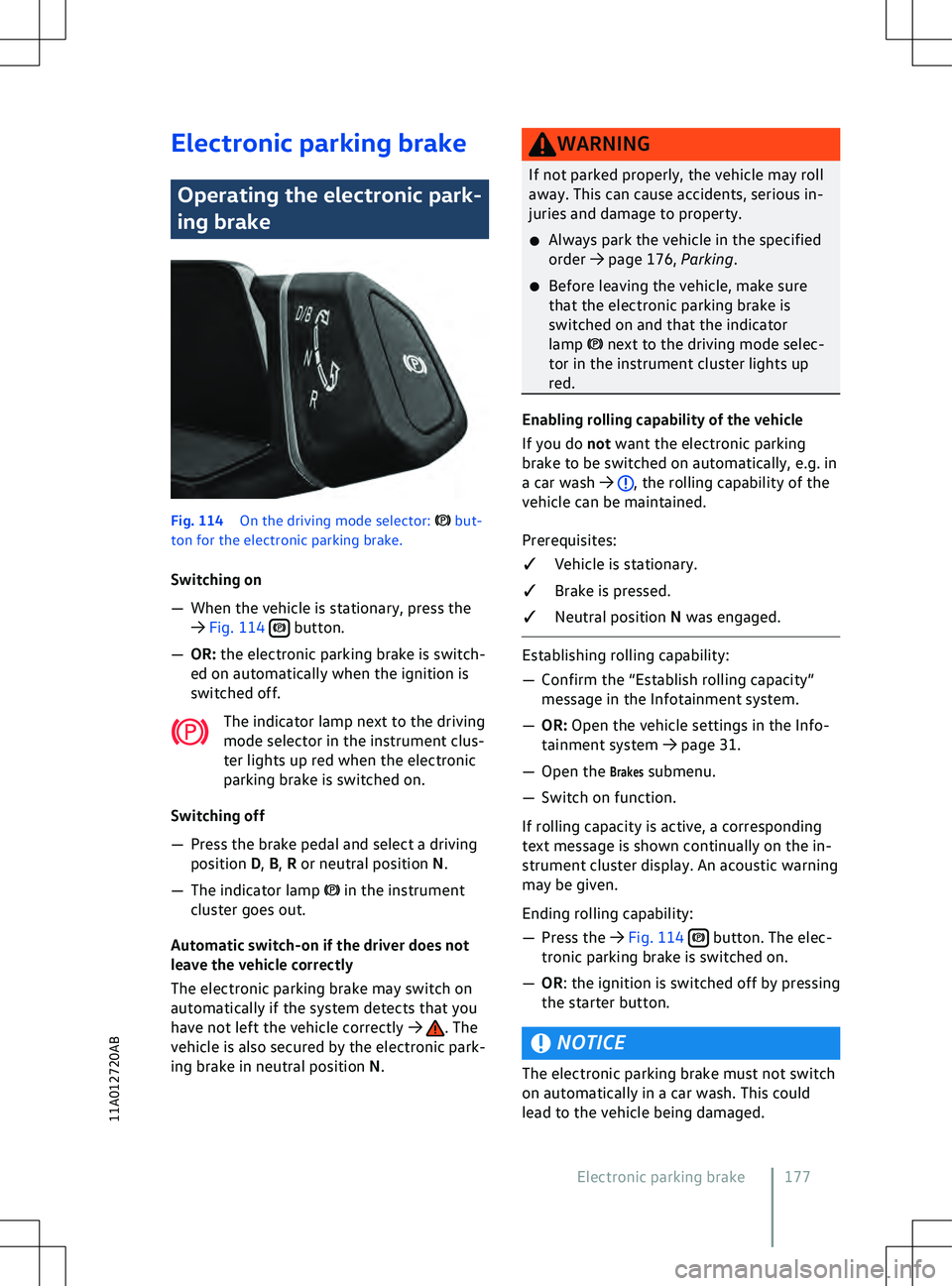

Electronic parking brake
Operating the electronic park-
ing brake
Fig. 114
On the driving mode selector: but-
ton f
or the electronic parking brake.
Switching on

x

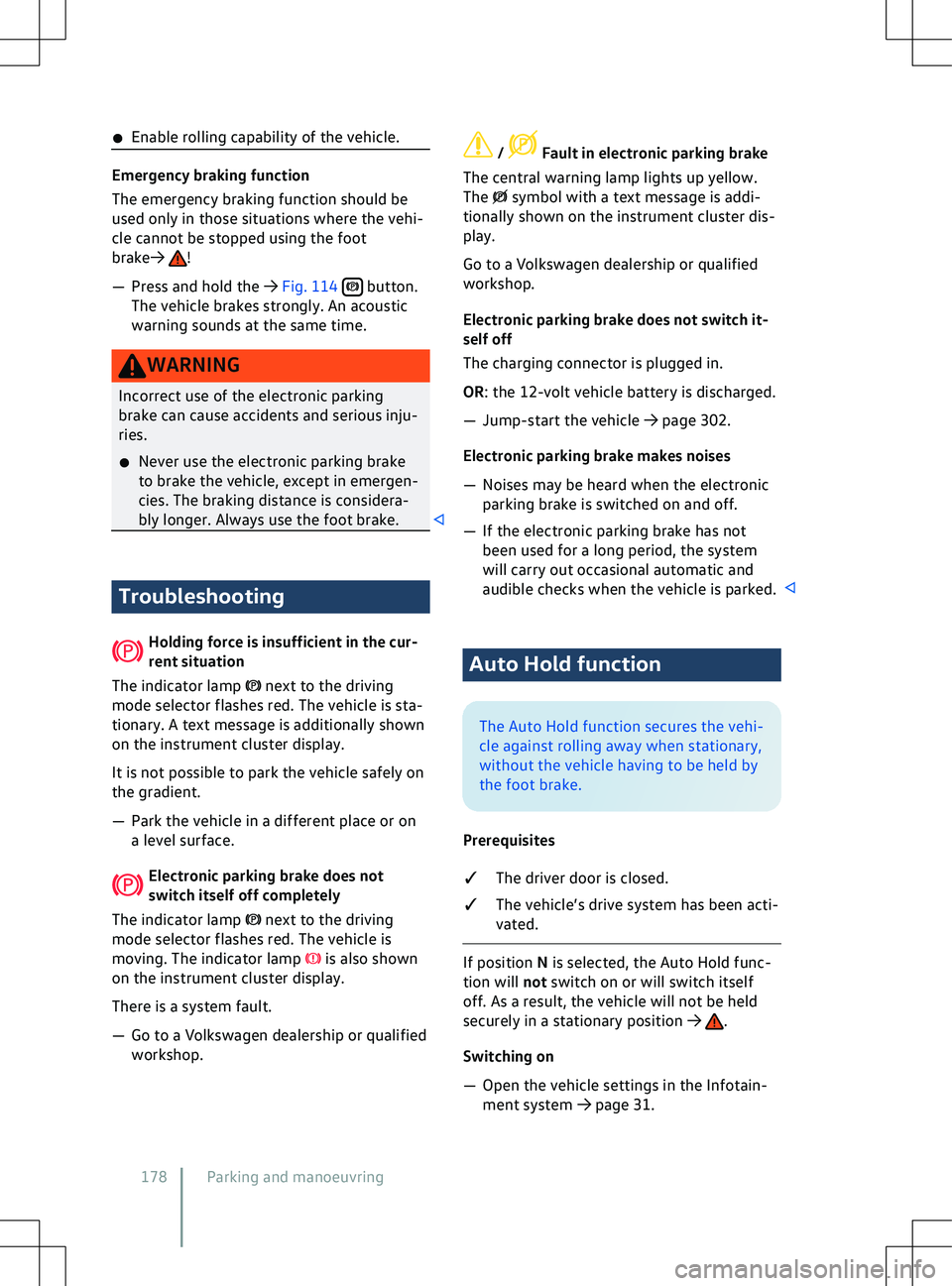

Enable rolling capability of the v ehicle.Emergency braking function
The emergency braking function should be
used only in those situations where the v

ehi-
cle cannot be stopped using the foot
brake
