engine VOLKSWAGEN JETTA 1998 Service Manual

Downloaded from www.Manualslib.com manuals search engine 01-183



-
Press key.
ABS hydraulic pump -V64 no longer runs.
Output Diagnosic Test Mode
-
IRL: VBAT ORL: 0V Wheel RL free
Indicated on display
Brake pedal must give perceptibly
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IRL: 0V ORL: 0V Wheel RL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 25из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-184



-
Press key.
Output Diagnosic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
IRR: 0V ORR: 0V Wheel RR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 26из 129 On Board Diagnostic (OBD), performing

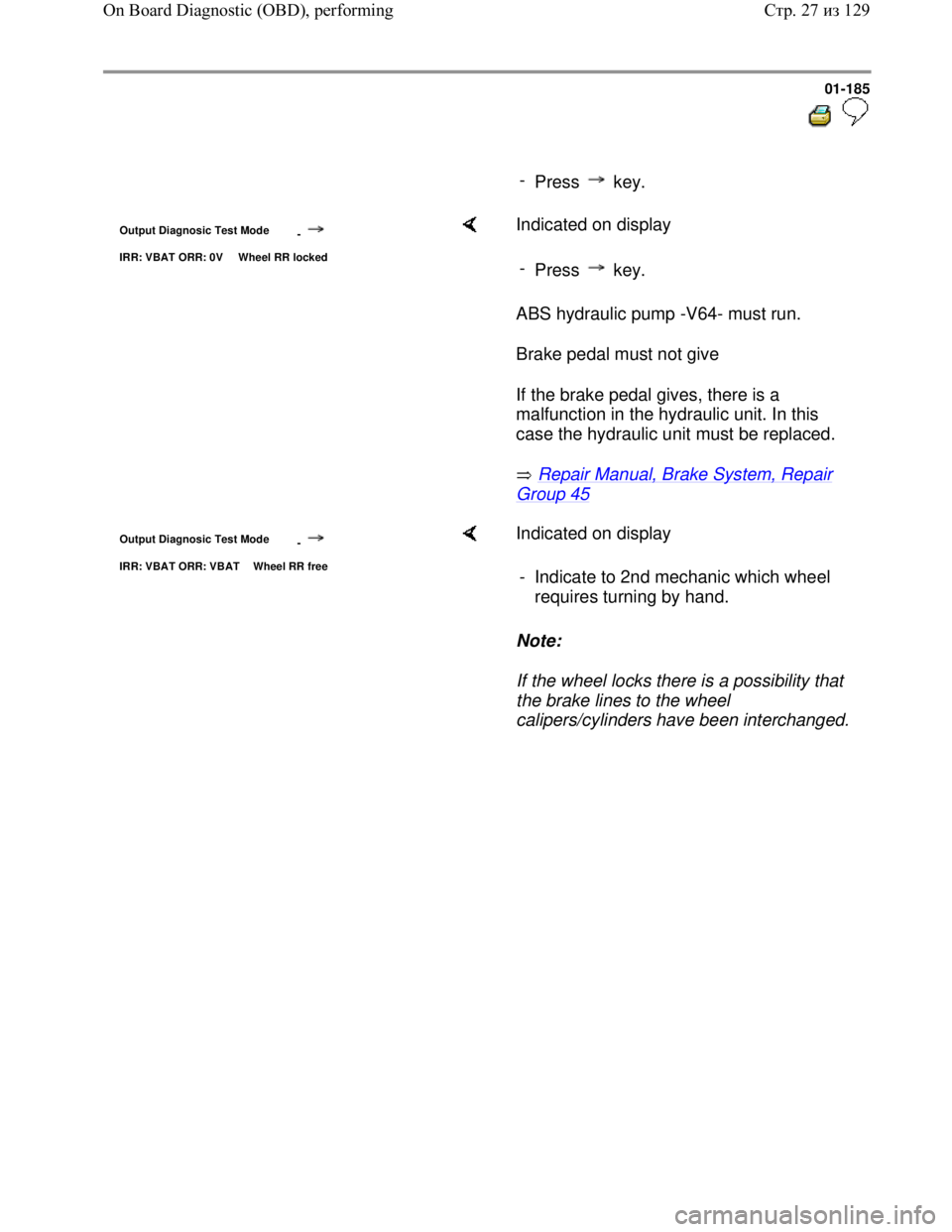

Downloaded from www.Manualslib.com manuals search engine 01-185



-
Press key.
Output Diagnosic Test Mode
-
IRR: VBAT ORR: 0V Wheel RR locked
Indicated on display
ABS hydraulic pump -V64- must run.
Brake pedal must not give
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IRR: VBAT ORR: VBAT Wheel RR free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 27из 129 On Board Diagnostic (OBD), performing

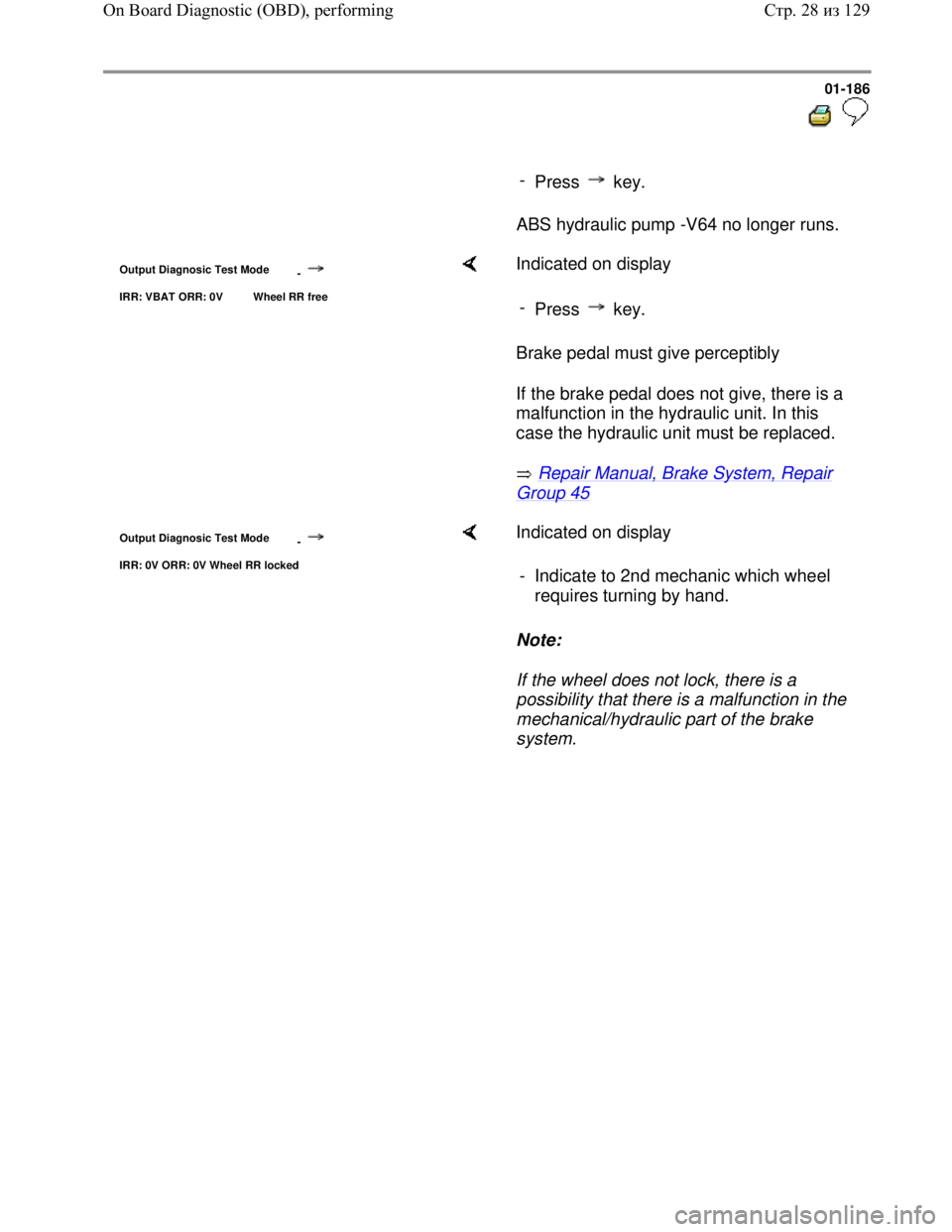

Downloaded from www.Manualslib.com manuals search engine 01-186



-
Press key.
ABS hydraulic pump -V64 no longer runs.
Output Diagnosic Test Mode
-
IRR: VBAT ORR: 0V Wheel RR free
Indicated on display
Brake pedal must give perceptibly
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IRR: 0V ORR: 0V Wheel RR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 28из 129 On Board Diagnostic (OBD), performing

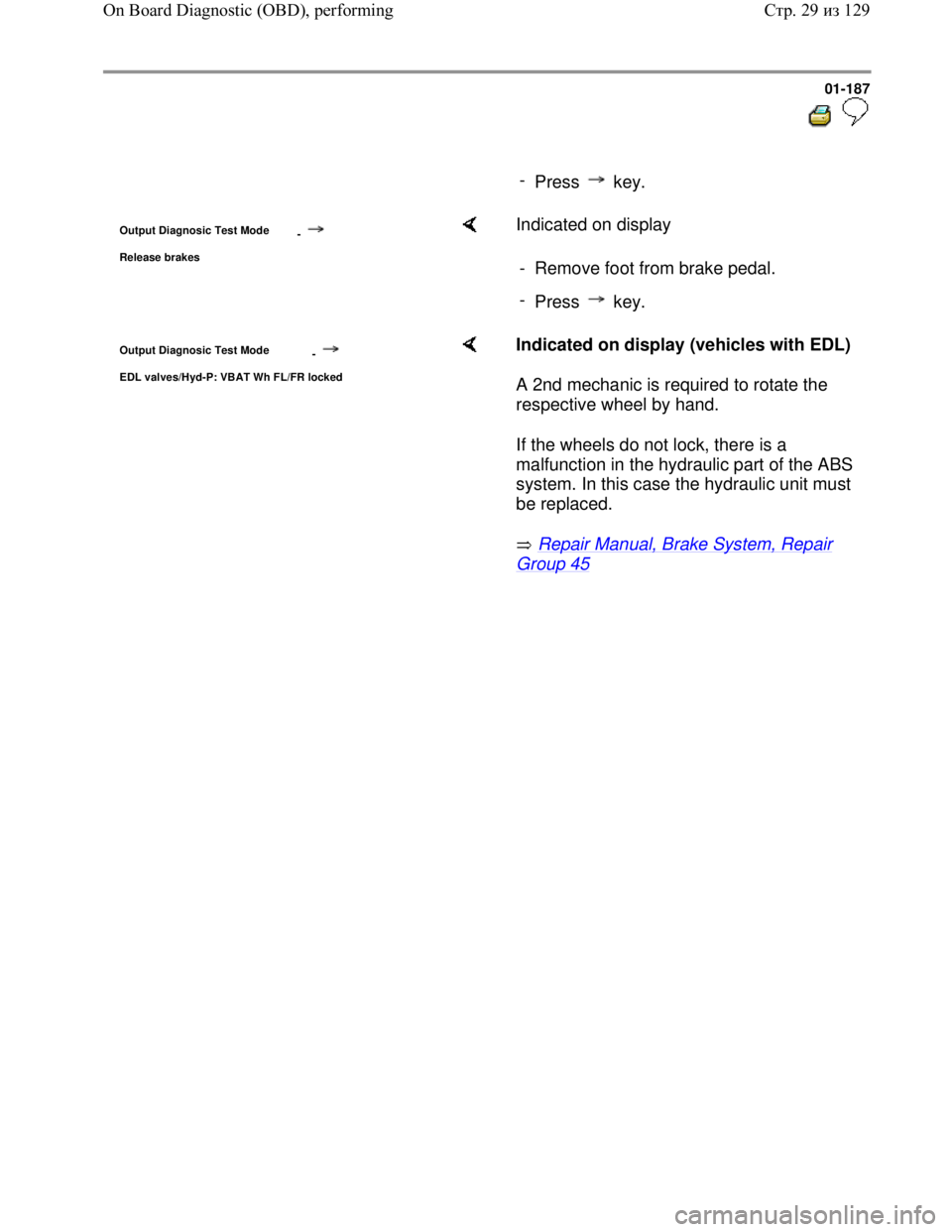

Downloaded from www.Manualslib.com manuals search engine 01-187



-
Press key.
Output Diagnosic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
EDL valves/Hyd-P: VBAT Wh FL/FR locked
Indicated on display (vehicles with EDL)
A 2nd mechanic is required to rotate the
respective wheel by hand.
If the wheels do not lock, there is a
malfunction in the hydraulic part of the ABS
system. In this case the hydraulic unit must
be replaced.
Repair Manual, Brake System, Repair
Group 45
Стр. 29из 129 On Board Diagnostic (OBD), performing

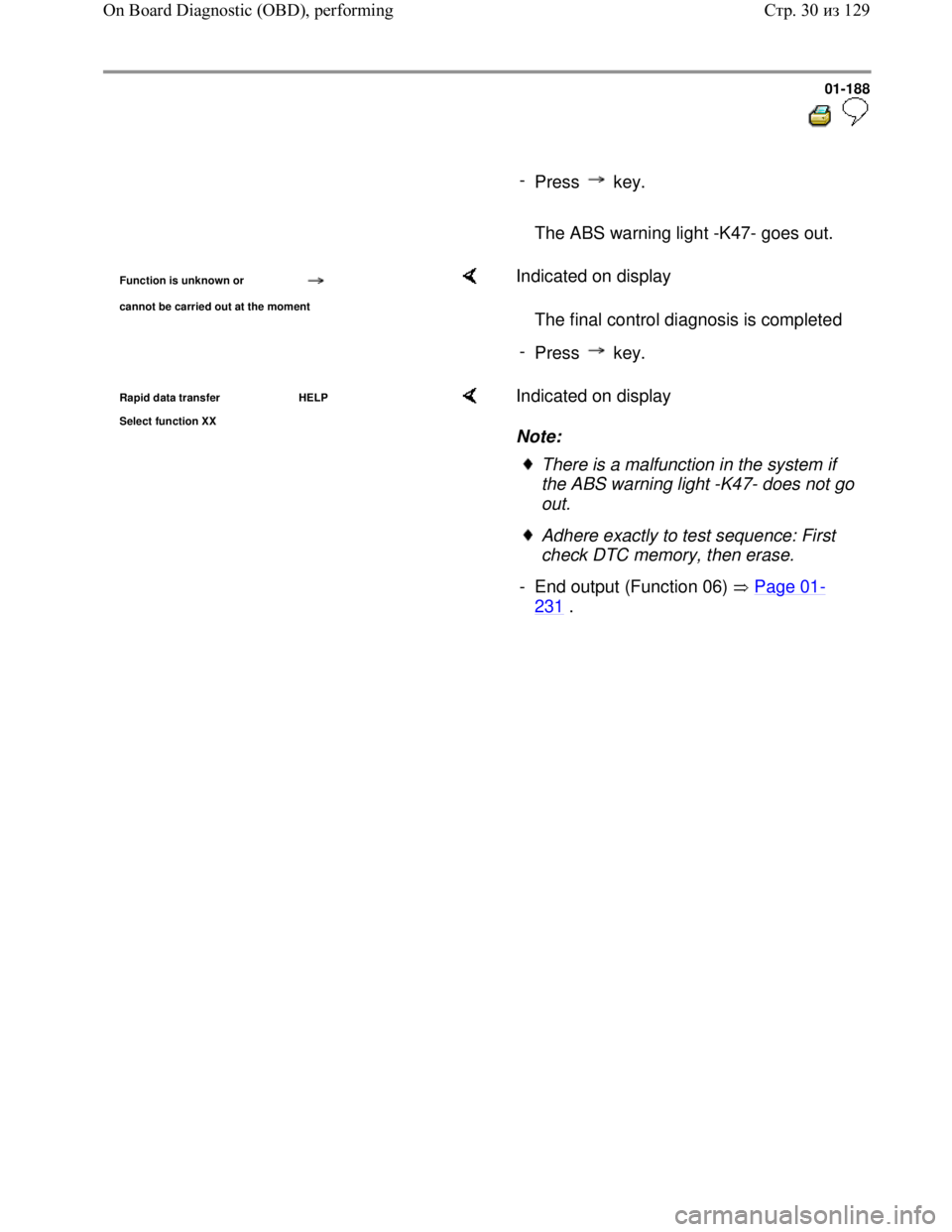

Downloaded from www.Manualslib.com manuals search engine 01-188



-
Press key.

The ABS warning light -K47- goes out.
Function is unknown or
cannot be carried out at the moment
Indicated on display
The final control diagnosis is completed
-
Press key.
Rapid data transfer HELP
Select function XX Indicated on display
Note:
There is a malfunction in the system if
the ABS warning light -K47- does not go
out.
Adhere exactly to test sequence: First
check DTC memory, then erase.
- End output (Function 06) Page 01
-
231 .
Стр. 30из 129 On Board Diagnostic (OBD), performing

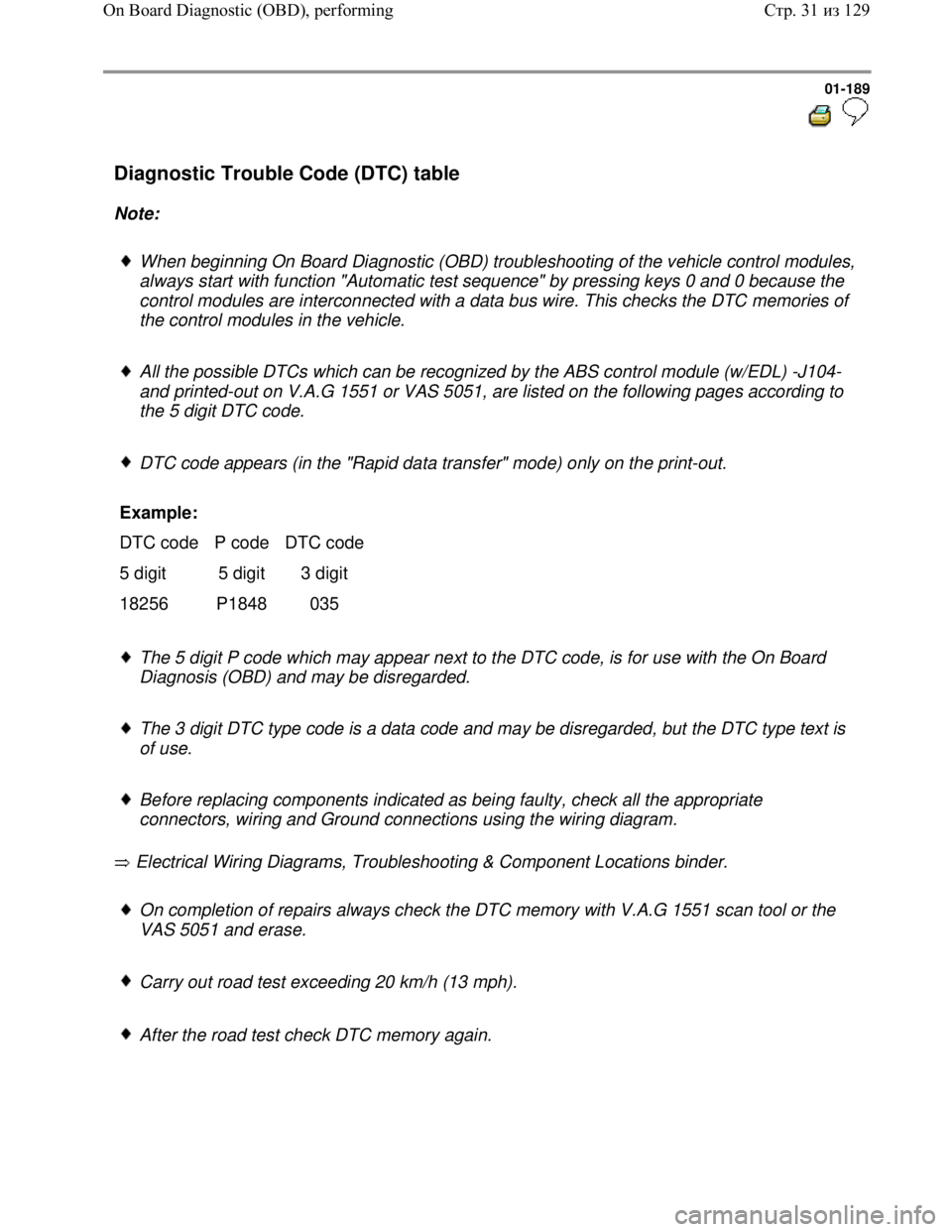

Downloaded from www.Manualslib.com manuals search engine 01-189


Diagnostic Trouble Code (DTC) table
Note:

When beginning On Board Diagnostic (OBD) troubleshooting of the vehicle control modules,
always start with function "Automatic test sequence" by pressing keys 0 and 0 because the
control modules are interconnected with a data bus wire. This checks the DTC memories of
the control modules in the vehicle.

All the possible DTCs which can be recognized by the ABS control module (w/EDL) -J104-
and printed-out on V.A.G 1551 or VAS 5051, are listed on the following pages according to
the 5 digit DTC code.

DTC code appears (in the "Rapid data transfer" mode) only on the print-out.
Example:


DTC code P code DTC code
5 digit 5 digit 3 digit
18256 P1848 035

The 5 digit P code which may appear next to the DTC code, is for use with the On Board
Diagnosis (OBD) and may be disregarded.

The 3 digit DTC type code is a data code and may be disregarded, but the DTC type text is
of use.

Before replacing components indicated as being faulty, check all the appropriate
connectors, wiring and Ground connections using the wiring diagram.
Electrical Wiring Diagrams, Troubleshooting & Component Locations binder.
On completion of repairs always check the DTC memory with V.A.G 1551 scan tool or the
VAS 5051 and erase.

Carry out road test exceeding 20 km/h (13 mph).

After the road test check DTC memory again.
Стр. 31из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-190


V.A.G 1551 print-
out Possible cause
Repair
No DTC recognized If "No DTC recognized" appears after carrying out repairs, On Board
Diagnostic (OBD) is ended.
If, despite "No DTC recognized" appearing in the display, the ABS
system does not function properly, then proceed as follows:
1. Carry out road test exceeding 20 km/h (13 mph),
2. Again check DTC memory, if there is still no DTC stored,
3. Continue troubleshooting without OBD and work through the
complete
Electrical check Page 01
-288 .
00003
Fault number:
00003 / literature ABS Control Module (w/EDL) -
J104- malfunction
Repair Manual, Brake System,
Repair Group 45 - Replace ABS Control Module
(w/EDL) -J104-
Стр. 32из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-191


V.A.G 1551 print-
out Possible cause
Repair
00283
Left front ABS
wheel speed
sensor -G47-
1)
Electrical
malfunction in
current circuit
Open circuit in wiring between
left front ABS wheel speed
sensor -G47- and ABS control
module (w/EDL) -J104-
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on
front and rear axles - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288
- Read measured value block
Page 01
-240 Display group number
001
If the malfunction occurs again:

Left front ABS wheel speed
sensor -G47- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace left front ABS wheel
speed sensor -G47-
1) This DTC is recognized when vehicle is stationary.
Стр. 33из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-192


V.A.G 1551 print-
out Possible cause
Repair
00283
Left front ABS
wheel speed
sensor -G47-
1)
Implausible signal
Open circuit or loose contact in wiring
between Left front ABS wheel speed
sensor -G47- and ABS control module
(w/EDL) -J104- - Check wiring and
connections using wiring
diagram

- Perform electrical check
Page 01
-288
Electrical interferences from other
sources (high frequency radiation e.g.
uninsulated ignition cable) - Read measured value
block Page 01
-240
Display group number 001
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 34из 129 On Board Diagnostic (OBD), performing
