Example:
Indicated on V.A.G 1551 display during Output
DTM:
(e.g. front left wheel, FL)

Output Diagnosic Test Mode -
IFL: VBAT OFL: 0V Wheel FL locked
IFL = Inlet valve Front Left
VBAT = Voltage Battery; Voltage at valve
OFL = Outlet valve Front Left
0V = 0 Volt; No voltage at valve
Locked/free = Wheel condition; must be
checked by 2nd mechanic if required

Output Diagnosic Test Mode -
EDL valves/Hyd-P: VBAT Wheel FL/FR
locked
Hydr-P = Hydraulic pump
Стр. 15из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-174

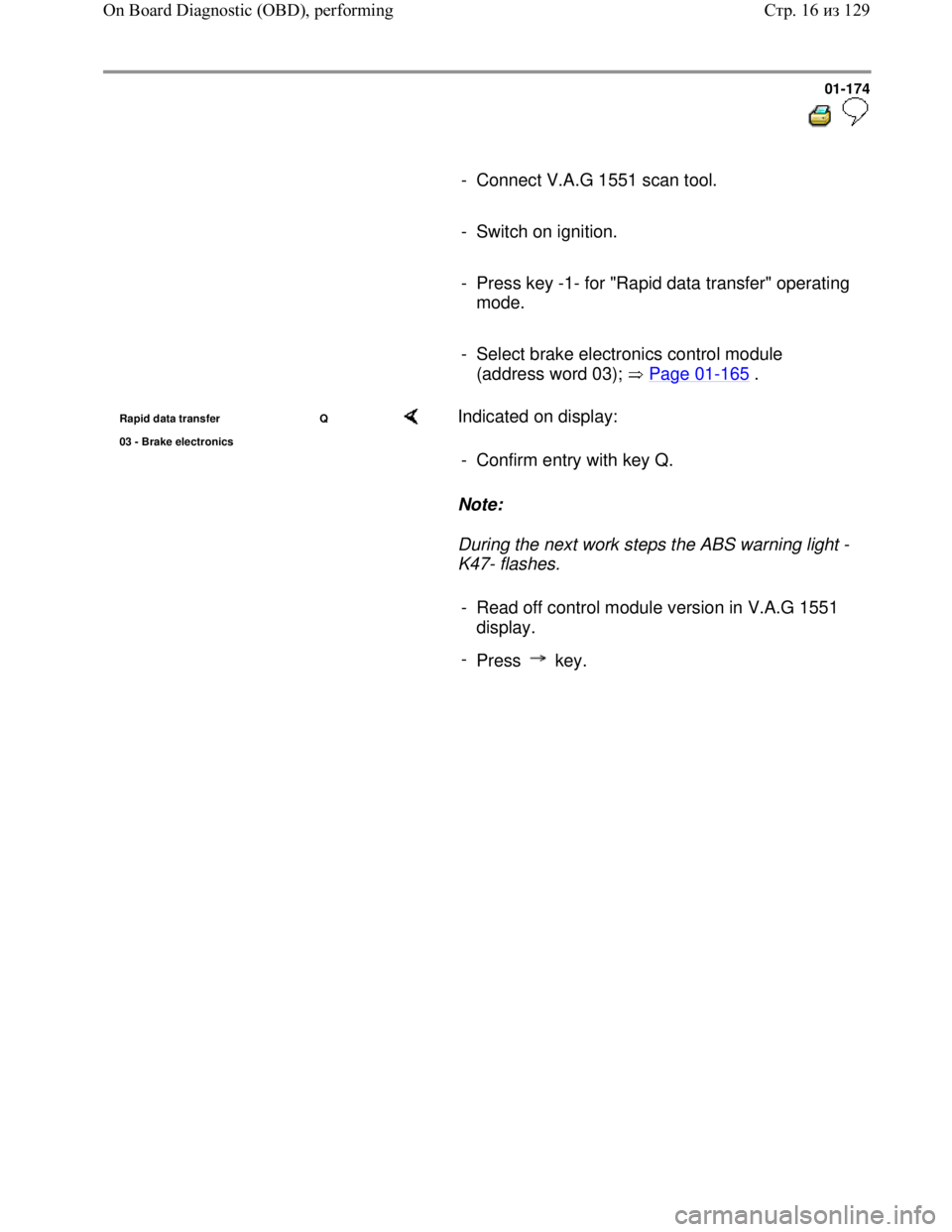

- Connect V.A.G 1551 scan tool.

- Switch on ignition.

- Press key -1- for "Rapid data transfer" operating
mode.

- Select brake electronics control module
(address word 03); Page 01
-165 .
Rapid data transfer Q
03 - Brake electronics Indicated on display:
Note:
During the next work steps the ABS warning light -
K47- flashes. - Confirm entry with key Q.
- Read off control module version in V.A.G 1551
display.
-
Press key.
Стр. 16из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-175

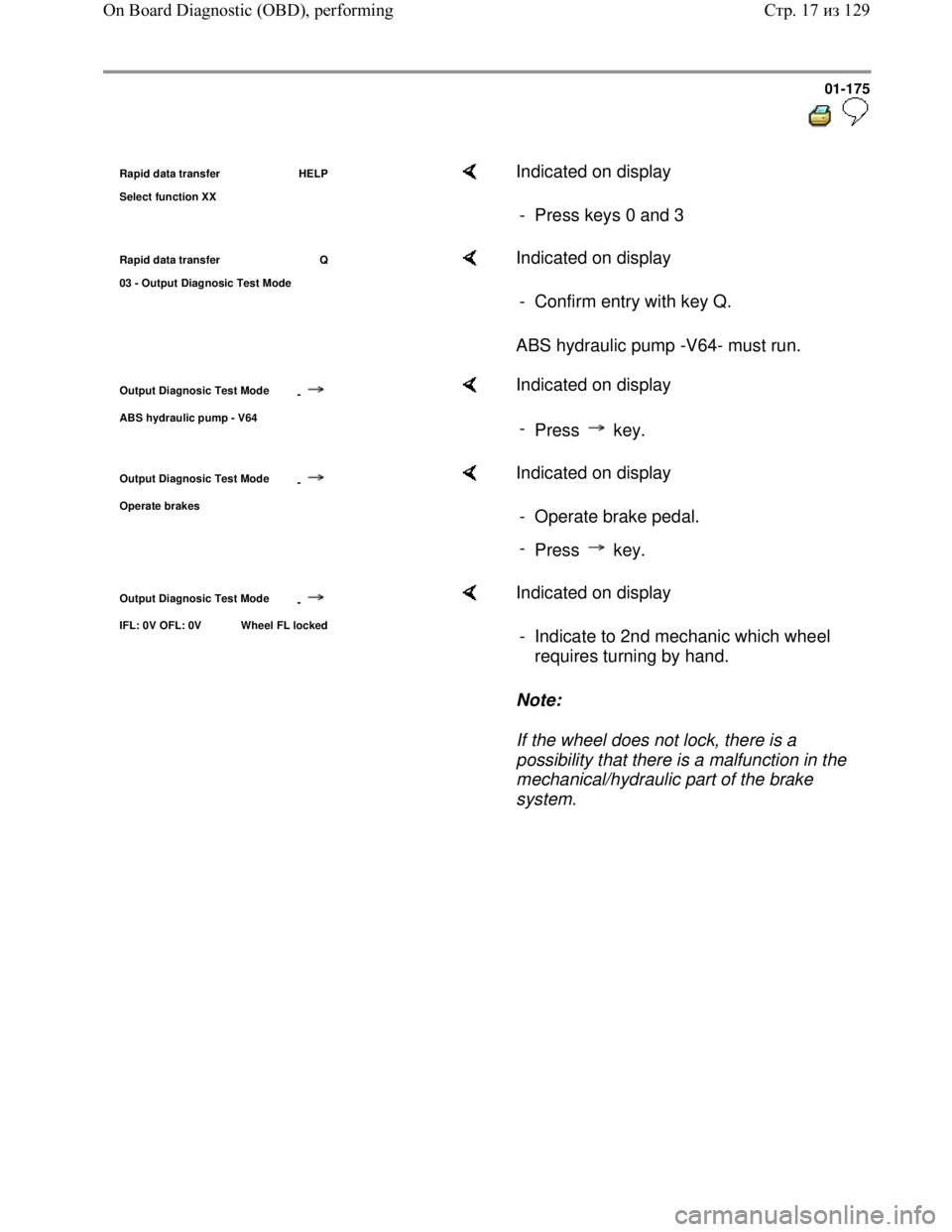

Rapid data transfer HELP
Select function XX Indicated on display
- Press keys 0 and 3
Rapid data transfer Q
03 - Out
put Diagnosic Test Mode
Indicated on display
ABS hydraulic pump -V64- must run. - Confirm entry with key Q.
Output Diagnosic Test Mode
-
ABS hydraulic pump - V64
Indicated on display
-
Press key.
Output Diagnosic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
IFL: 0V OFL: 0V Wheel FL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 17из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-176



-

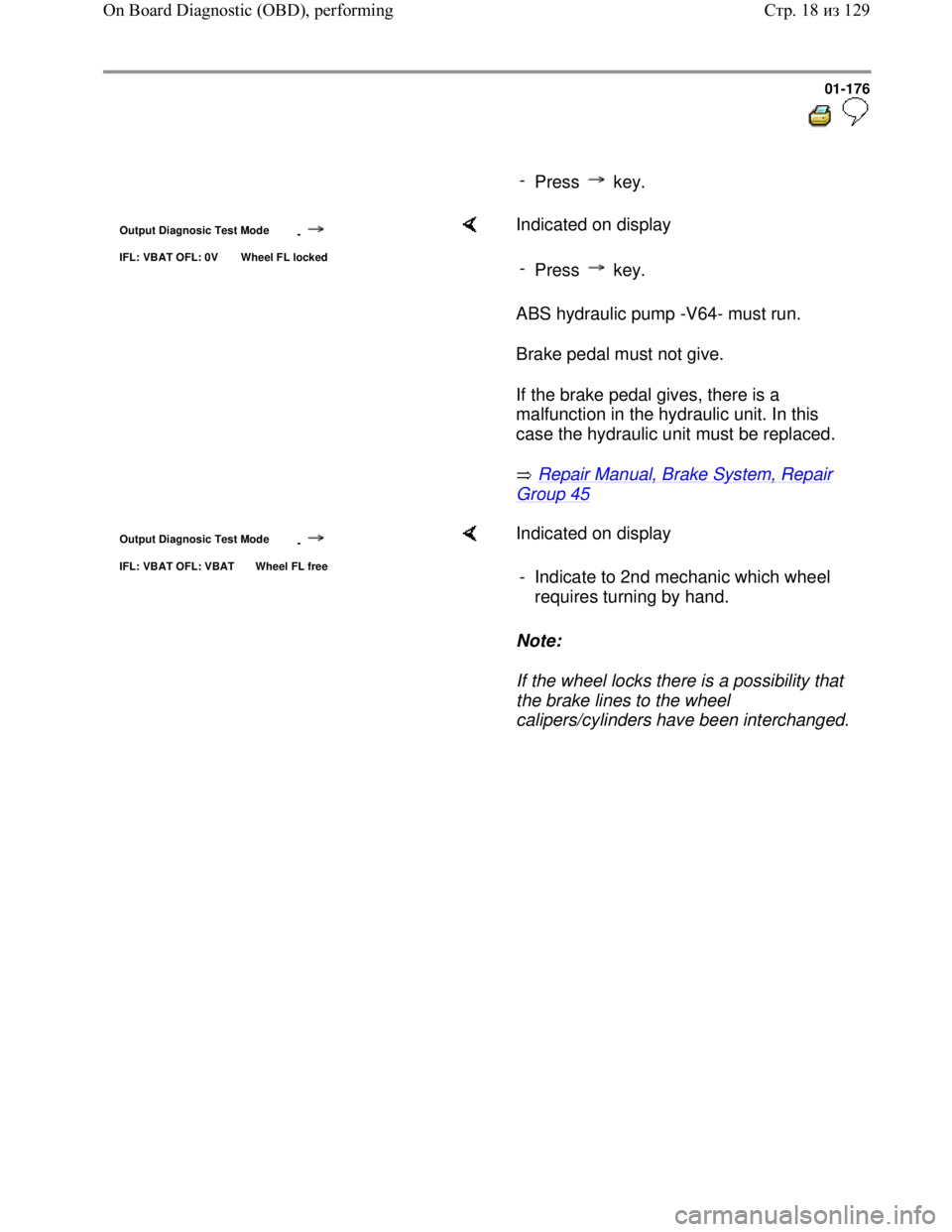

Press key.
Output Diagnosic Test Mode
-
IFL: VBAT OFL: 0V Wheel FL locked
Indicated on display
ABS hydraulic pump -V64- must run.
Brake pedal must not give.
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IFL: VBAT OFL: VBAT Wheel FL free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 18из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-177



-
Press key.
ABS hydraulic pump -V64 no longer runs.
Output Diagnosic Test Mode
-
IFL: VBAT OFL: 0V Wheel FL free
Indicated on display
Brake pedal must give perceptibly
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IFL: 0V OFL: 0V Wheel FL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 19из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-178



-
Press key.
Output Diagnosic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
IFR: 0V OFR: 0V Wheel FR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 20из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-179



-
Press key.
Output Diagnosic Test Mode
-
IFR: VBAT OFR: 0V Wheel FR locked
Indicated on display
ABS hydraulic pump -V64- must run.
Brake pedal must not give
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IFR: VBAT OFR: VBAT Wheel FR free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 21из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-180



-

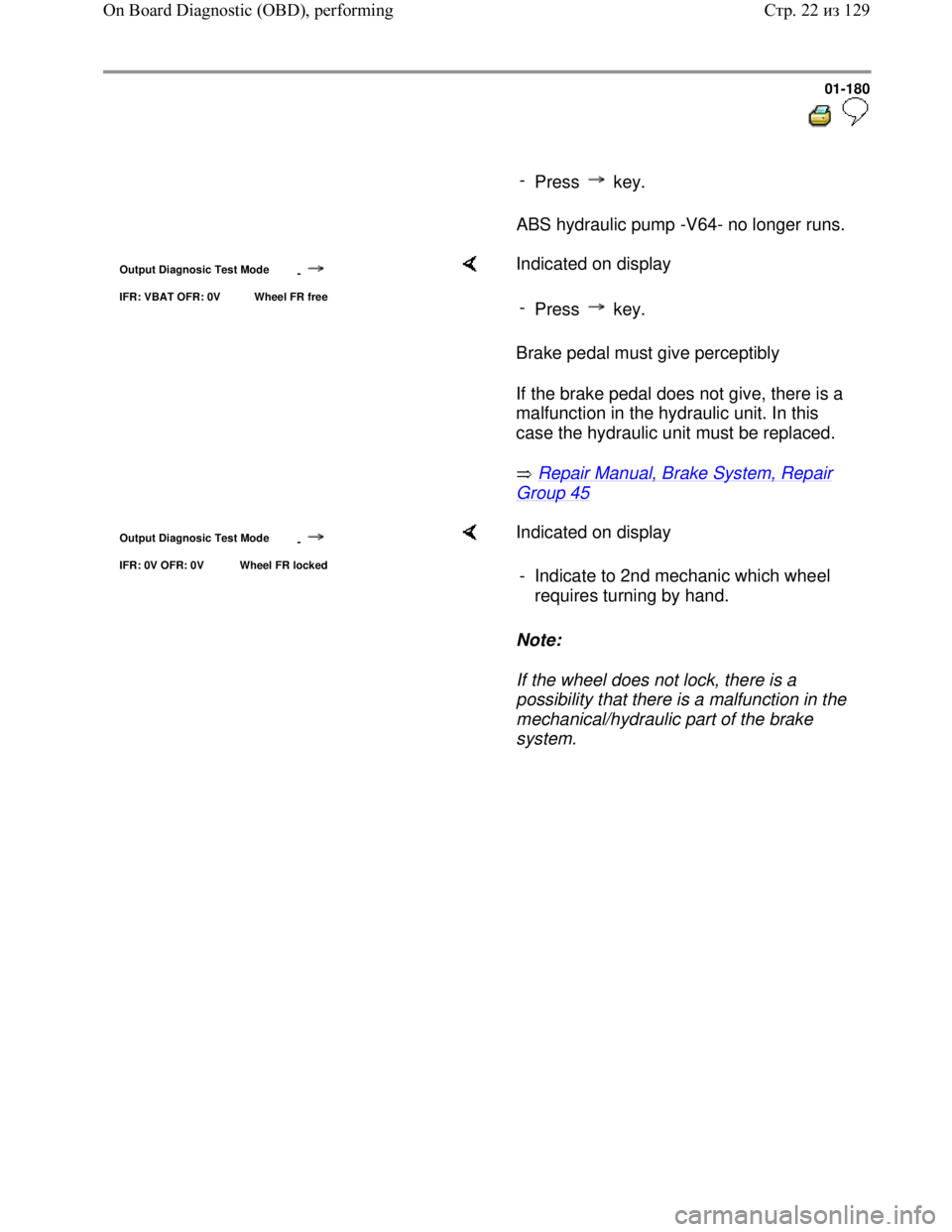

Press key.
ABS hydraulic pump -V64- no longer runs.
Output Diagnosic Test Mode
-
IFR: VBAT OFR: 0V Wheel FR free
Indicated on display
Brake pedal must give perceptibly
If the brake pedal does not give, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IFR: 0V OFR: 0V Wheel FR locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 22из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-181



-

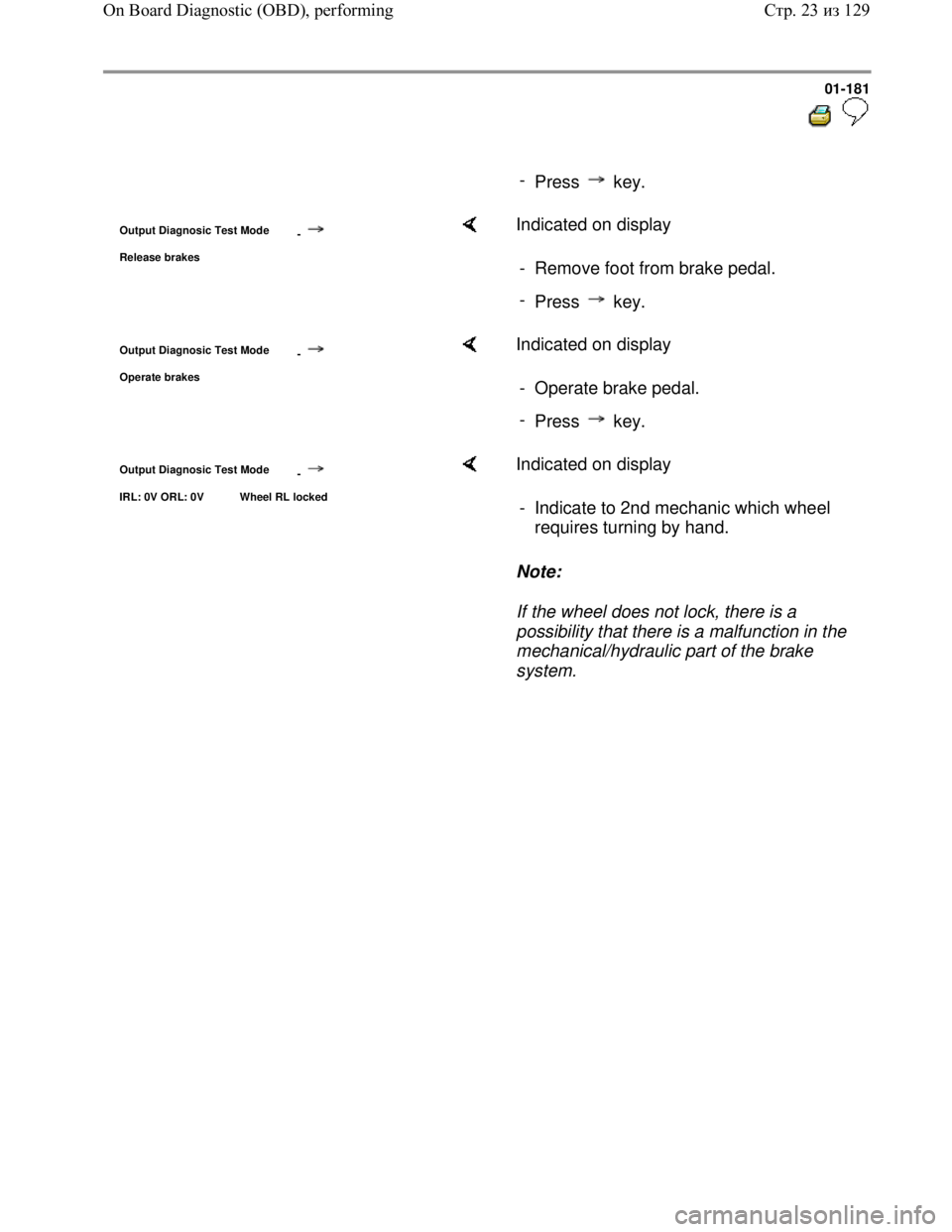

Press key.
Output Diagnosic Test Mode
-
Release brakes
Indicated on display
- Remove foot from brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
Operate brakes
Indicated on display
- Operate brake pedal.
-
Press key.
Output Diagnosic Test Mode
-
IRL: 0V ORL: 0V Wheel RL locked
Indicated on display
Note:
If the wheel does not lock, there is a
possibility that there is a malfunction in the
mechanical/hydraulic part of the brake
system. - Indicate to 2nd mechanic which wheel
requires turning by hand.
Стр. 23из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-182



-
Press key.
Output Diagnosic Test Mode
-
IRL: VBAT ORL: 0V Wheel RL locked
Indicated on display
ABS hydraulic pump -V64- must run.
Brake pedal must not give
If the brake pedal gives, there is a
malfunction in the hydraulic unit. In this
case the hydraulic unit must be replaced.
Repair Manual, Brake System, Repair
Group 45 -
Press key.
Output Diagnosic Test Mode
-
IRL: VBAT ORL: VBAT Wheel RL free
Indicated on display
Note:
If the wheel locks there is a possibility that
the brake lines to the wheel
calipers/cylinders have been interchanged. - Indicate to 2nd mechanic which wheel
requires turning by hand.
