VOLKSWAGEN JETTA 1998 Service Manual

Downloaded from www.Manualslib.com manuals search engine 01-213


V.A.G 1551
print-out Possible cause
Repair
01164
ESP
operation
Implausible
signal
1)
Electrical interferences from other
sources (high frequency radiation e.g.
uninsulated ignition cable) - Erase DTC memory
- Perform test drive at more
than 20 km/h (13 mph)
- Check DTC memory again


Open circuit, short to positive or ground
in the wiring - Check wiring and
connections using wiring
diagram

- Perform electrical check
Page 01
-288

Steering angle sensor -G85- sends
incorrect setting values - Perform a zero
compensation:
- Initiate basic setting Page
01-264 Display group number
060

ABS Control Module (w/EDL) -J104-
faulty
Repair Manual, Brake
System, Repair Group 45 - Replace ABS Control Module
(w/EDL) -J104-
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 55из 129 On Board Diagnostic (OBD), performing

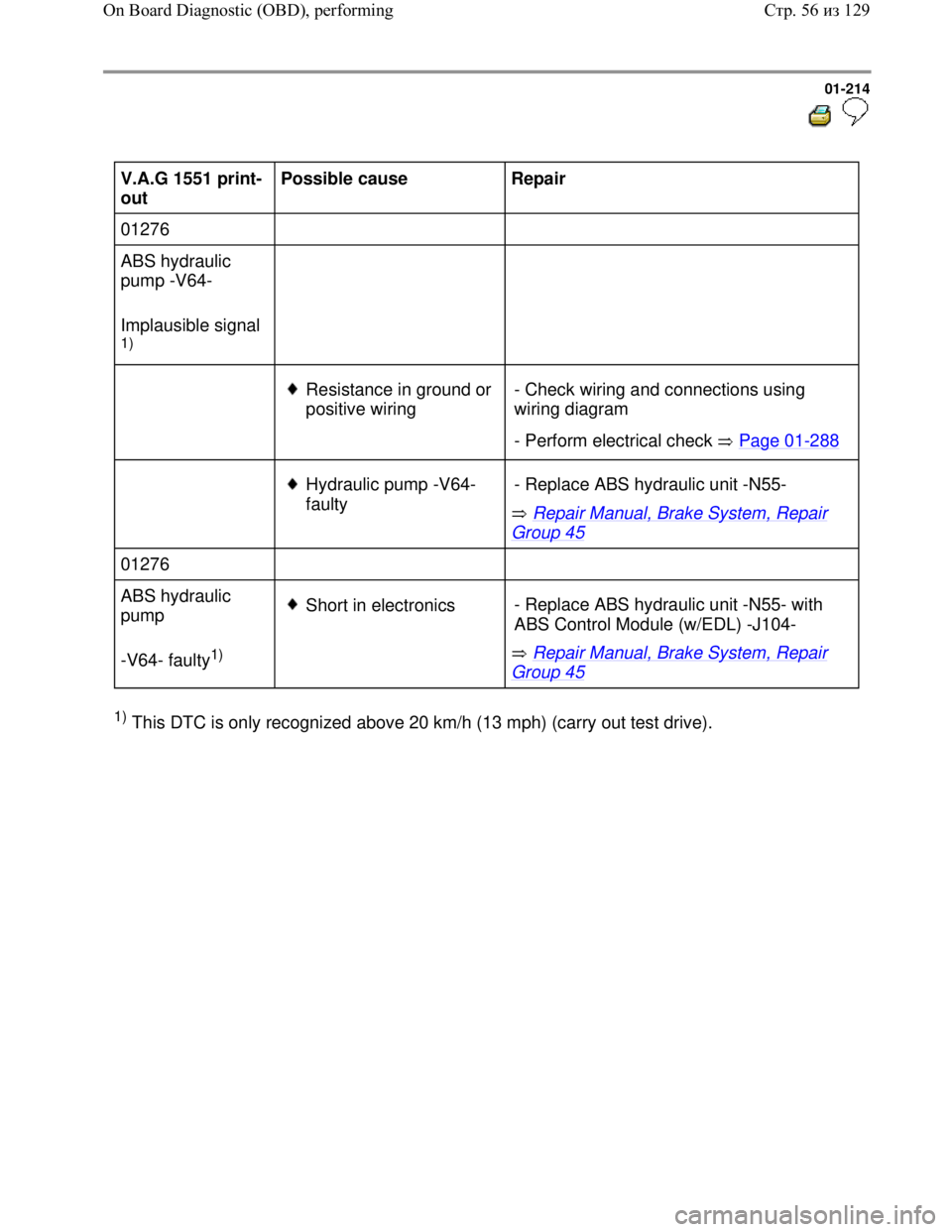

Downloaded from www.Manualslib.com manuals search engine 01-214


V.A.G 1551 print-
out Possible cause
Repair
01276
ABS hydraulic
pump -V64-
Implausible signal

1)


Resistance in ground or
positive wiring - Check wiring and connections using
wiring diagram
- Perform electrical check Page 01
-288
Hydraulic pump -V64-
faulty
Repair Manual, Brake System, Repair
Group 45 - Replace ABS hydraulic unit -N55-
01276
ABS hydraulic
pump
-V64- faulty
1)
Short in electronics
Repair Manual, Brake System, Repair
Group 45 - Replace ABS hydraulic unit -N55- with
ABS Control Module (w/EDL) -J104-
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 56из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-215


V.A.G 1551 print-out
Possible cause
Repair
01276
ABS hydraulic pump -
V64-
Electrical malfunction in
current circuit
1)
Battery positive fuse faulty- Check fuses


Open circuit, short to positive
or ground in the wiring - Check wiring and
connections using wiring
diagram
- Perform electrical check
Page 01
-288

Hydraulic pump -V64- faulty
Repair Manual, Brake
System, Repair Group 45
Replace ABS hydraulic unit
-N55-
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 57из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-216


V.A.G 1551 print-out
Possible cause
Repair
01279
Longitudinal
acceleration sensor -
G251-
1)
Electrical malfunction
in current circuit
Voltage supply less than 5
Volt - Read measured value block
Page 01
-240 Display group number
006

Open circuit, short to
positive or ground in the
wiring - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288

Longitudinal acceleration
sensor -G251- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace longitudinal acceleration
sensor -G251-
- Perform a zero compensation:
- Introduce basic setting Page
01-264 Display group number 069
1) 4MOTION vehicles only
Стр. 58из 129 On Board Diagnostic (OBD), performing

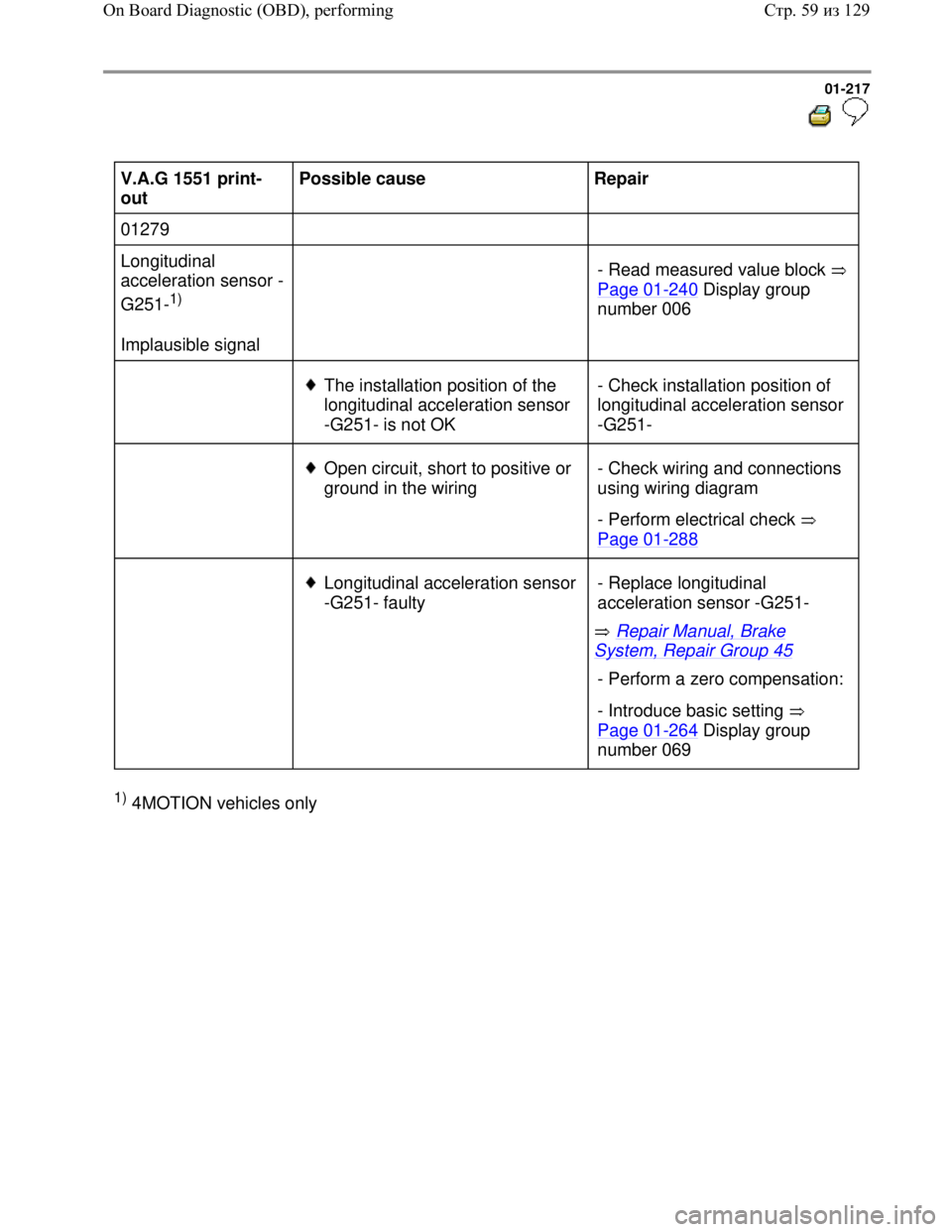

Downloaded from www.Manualslib.com manuals search engine 01-217


V.A.G 1551 print-
out Possible cause
Repair
01279
Longitudinal
acceleration sensor -
G251-
1)
Implausible signal
- Read measured value block
Page 01
-240 Display group
number 006

The installation position of the
longitudinal acceleration sensor
-G251- is not OK - Check installation position of
longitudinal acceleration sensor
-G251-


Open circuit, short to positive or
ground in the wiring - Check wiring and connections
using wiring diagram
- Perform electrical check
Page 01
-288

Longitudinal acceleration sensor
-G251- faulty
Repair Manual, Brake
System, Repair Group 45 - Replace longitudinal
acceleration sensor -G251-
- Perform a zero compensation:
- Introduce basic setting
Page 01
-264 Display group
number 069
1) 4MOTION vehicles only
Стр. 59из 129 On Board Diagnostic (OBD), performing

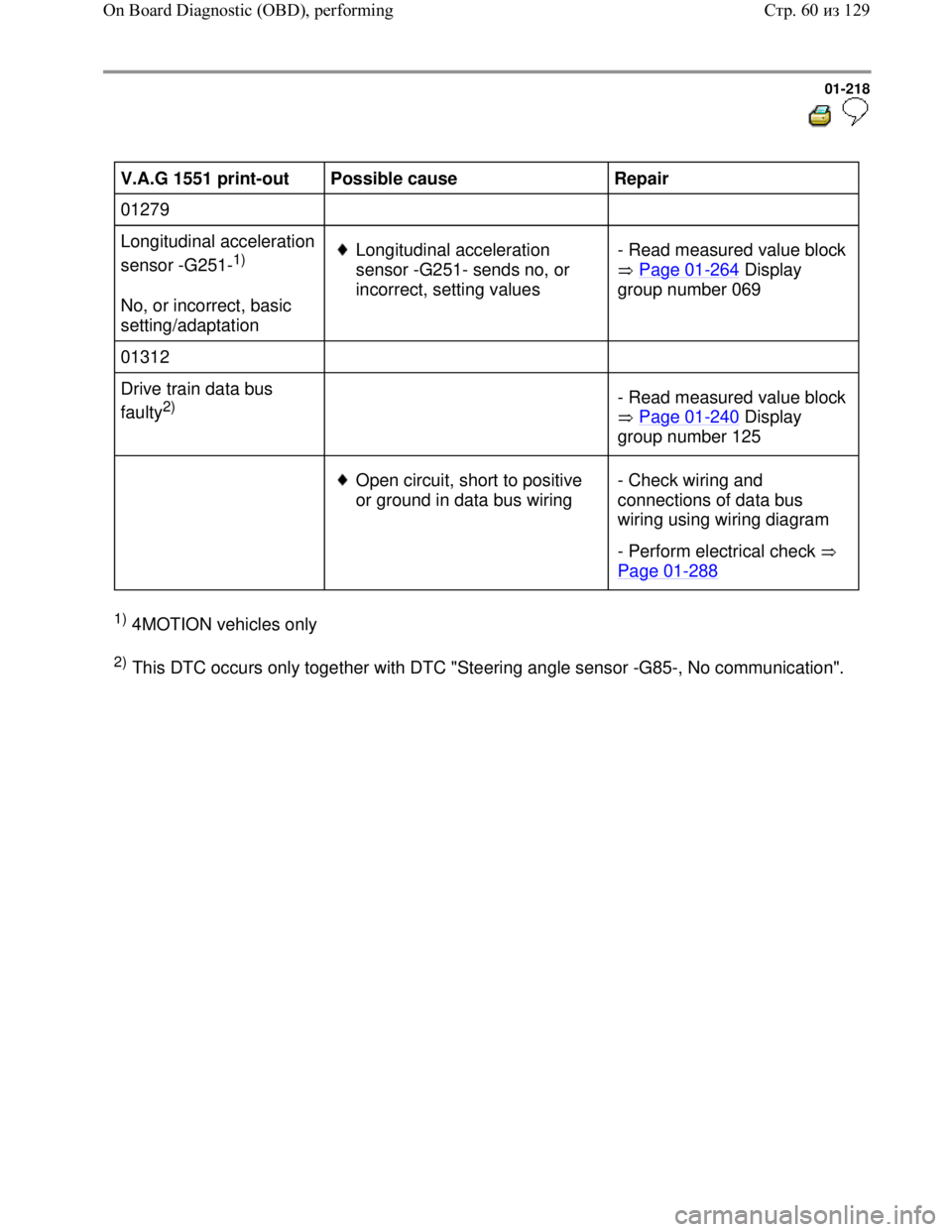

Downloaded from www.Manualslib.com manuals search engine 01-218


V.A.G 1551 print-out
Possible cause
Repair
01279
Longitudinal acceleration
sensor -G251-
1)
No, or incorrect, basic
setting/adaptation
Longitudinal acceleration
sensor -G251- sends no, or
incorrect, setting values - Read measured value block
Page 01
-264 Display
group number 069
01312
Drive train data bus
faulty
2)
- Read measured value block
Page 01-240 Display
group number 125

Open circuit, short to positive
or ground in data bus wiring - Check wiring and
connections of data bus
wiring using wiring diagram
- Perform electrical check
Page 01
-288
1) 4MOTION vehicles only
2) This DTC occurs only together with DTC "Steering angle sensor -G85-, No communication".
Стр. 60из 129 On Board Diagnostic (OBD), performing

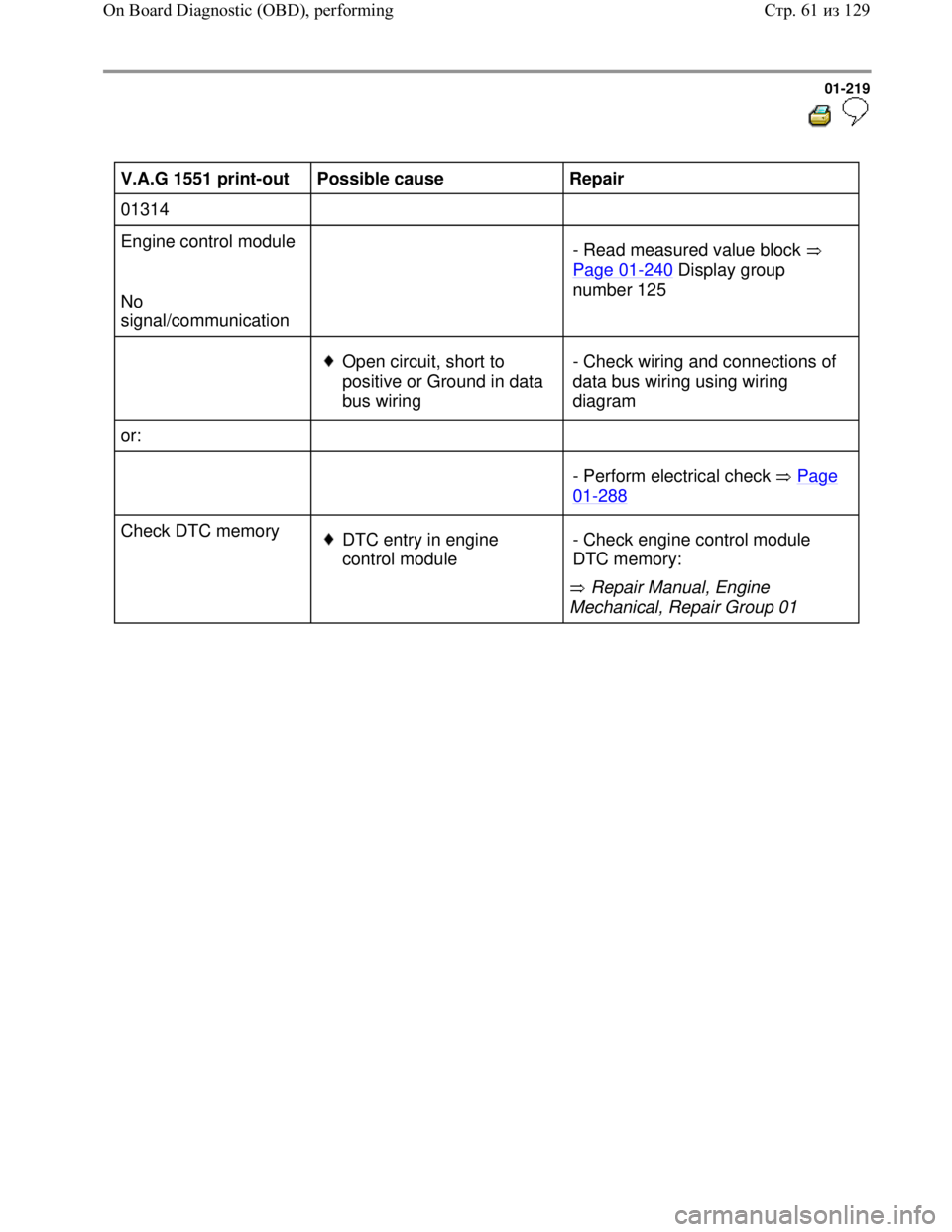

Downloaded from www.Manualslib.com manuals search engine 01-219


V.A.G 1551 print-out
Possible cause
Repair
01314
Engine control module

No
signal/communication
- Read measured value block
Page 01
-240 Display group
number 125

Open circuit, short to
positive or Ground in data
bus wiring - Check wiring and connections of
data bus wiring using wiring
diagram
or:

- Perform electrical check Page
01-288
Check DTC memory
DTC entry in engine
control module
Repair Manual, Engine
Mechanical, Repair Group 01 - Check engine control module
DTC memory:
Стр. 61из 129 On Board Diagnostic (OBD), performing

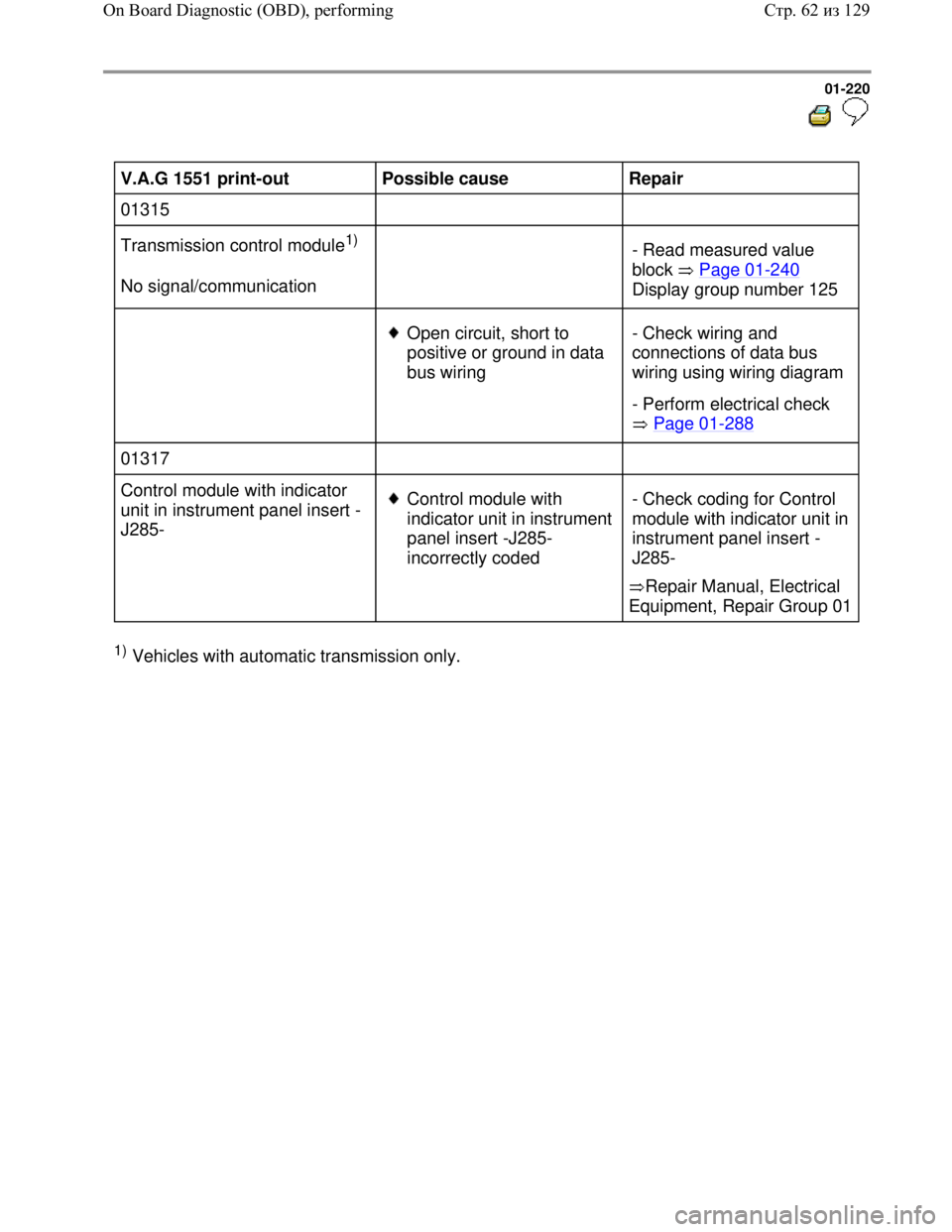

Downloaded from www.Manualslib.com manuals search engine 01-220


V.A.G 1551 print-out
Possible cause
Repair
01315
Transmission control module
1)
No signal/communication
- Read measured value
block Page 01
-240
Display group number 125
Open circuit, short to
positive or ground in data
bus wiring - Check wiring and
connections of data bus
wiring using wiring diagram
- Perform electrical check
Page 01
-288
01317
Control module with indicator
unit in instrument panel insert -
J285-
Control module with
indicator unit in instrument
panel insert -J285-
incorrectly coded
Repair Manual, Electrical
Equipment, Repair Group 01 - Check coding for Control
module with indicator unit in
instrument panel insert -
J285-
1) Vehicles with automatic transmission only.
Стр. 62из 129 On Board Diagnostic (OBD), performing

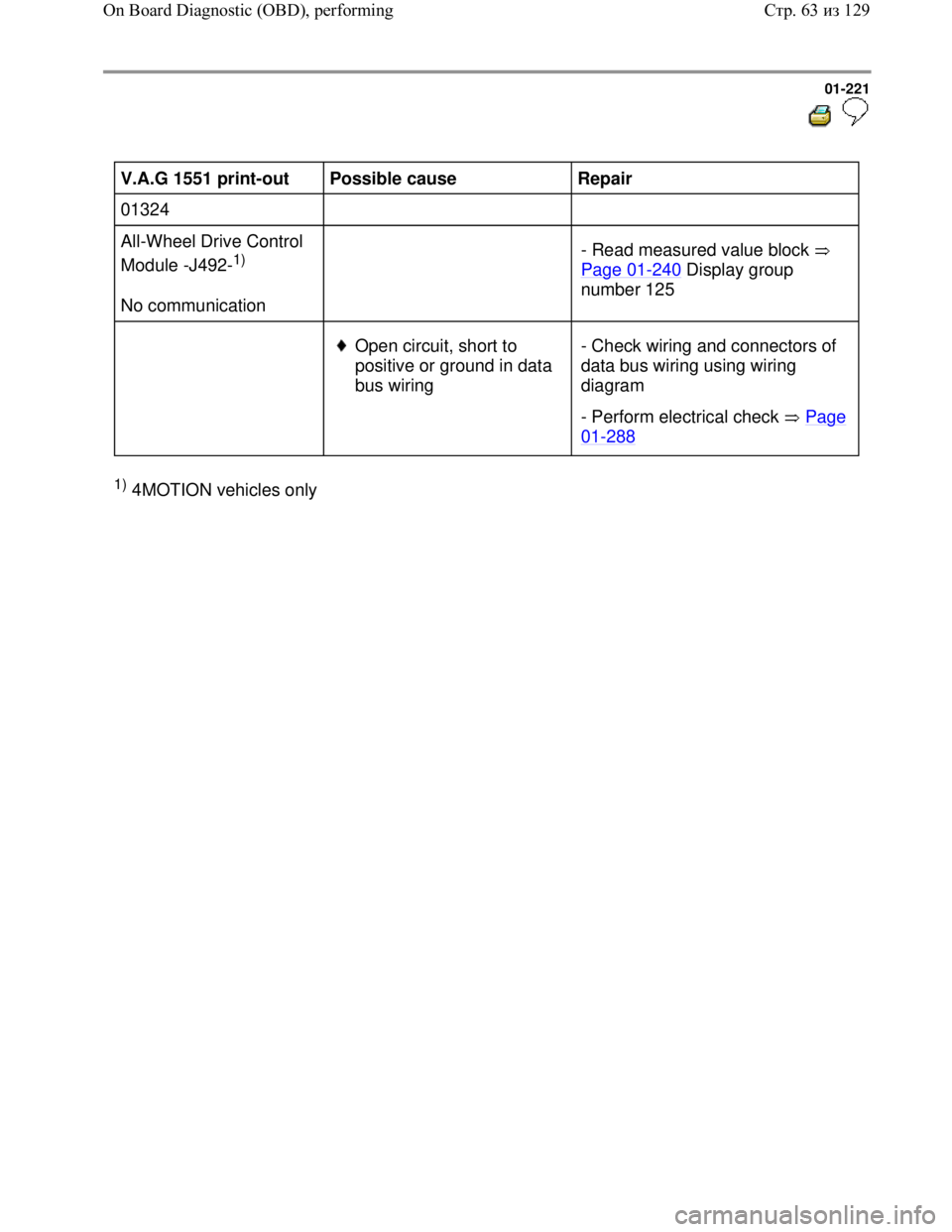

Downloaded from www.Manualslib.com manuals search engine 01-221


V.A.G 1551 print-out
Possible cause
Repair
01324
All-Wheel Drive Control
Module -J492-
1)
No communication
- Read measured value block
Page 01-240 Display group
number 125

Open circuit, short to
positive or ground in data
bus wiring - Check wiring and connectors of
data bus wiring using wiring
diagram
- Perform electrical check Page
01-288
1) 4MOTION vehicles only
Стр. 63из 129 On Board Diagnostic (OBD), performing

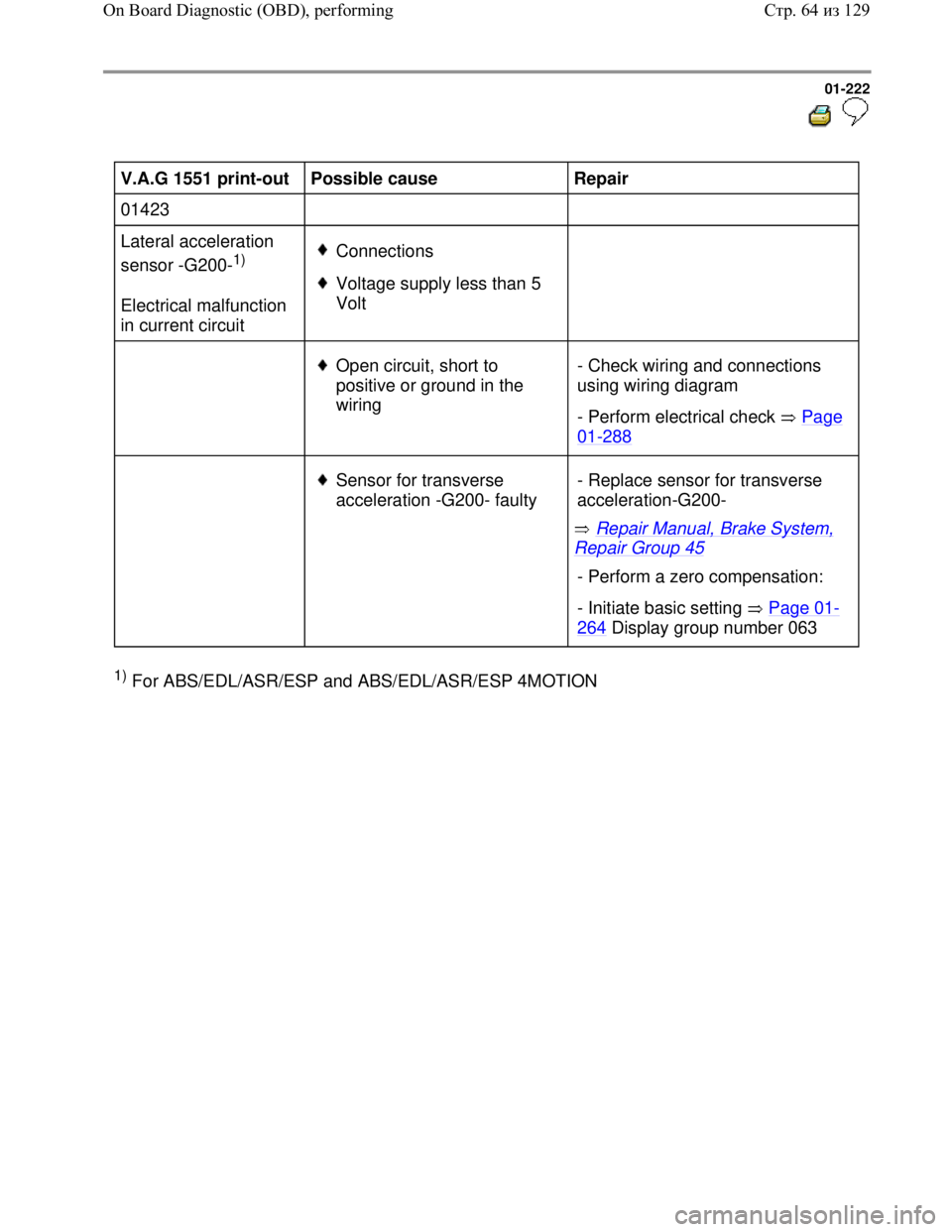

Downloaded from www.Manualslib.com manuals search engine 01-222


V.A.G 1551 print-out
Possible cause
Repair
01423
Lateral acceleration
sensor -G200-
1)
Electrical malfunction
in current circuit Connections

Voltage supply less than 5
Volt


Open circuit, short to
positive or ground in the
wiring - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288

Sensor for transverse
acceleration -G200- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace sensor for transverse
acceleration-G200-
- Perform a zero compensation:
- Initiate basic setting Page 01
-
264 Display group number 063
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP 4MOTION
Стр. 64из 129 On Board Diagnostic (OBD), performing
