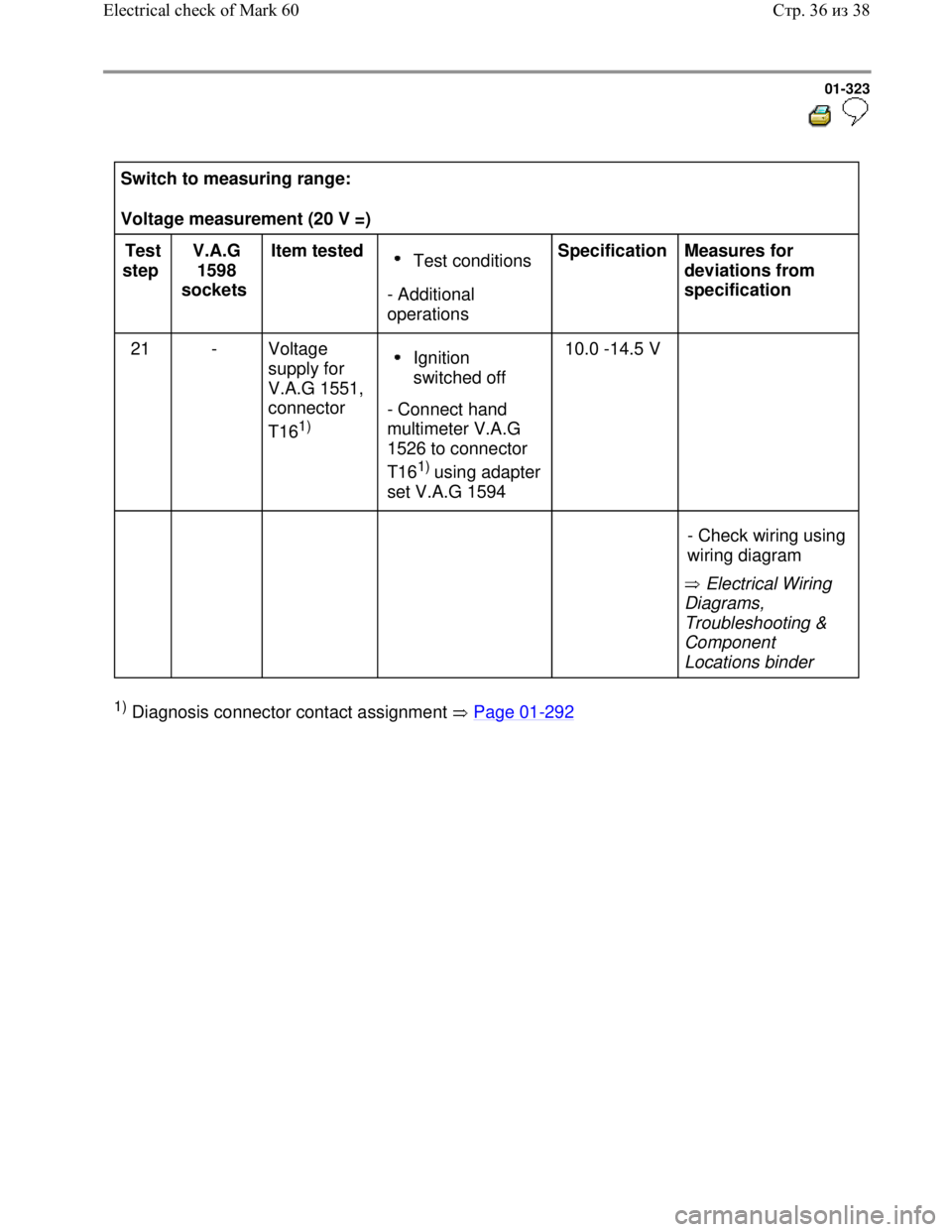

Downloaded from www.Manualslib.com manuals search engine 01-323
Switch to measuring range:
Voltage measurement (20 V =)
Test
step V.A.G
1598
sockets Item tested
Test conditions
- Additional
operations Specification
Measures for
deviations from
specification
21 - Voltage
supply for
V.A.G 1551,
connector
T16
1)
Ignition
switched off
- Connect hand
multimeter V.A.G
1526 to connector
T16
1) using adapter
set V.A.G 1594 10.0 -14.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring using
wiring diagram
1) Diagnosis connector contact assignment Page 01-292
Стр. 36из 38 Electrical check of Mark 60
Page 332 of 339

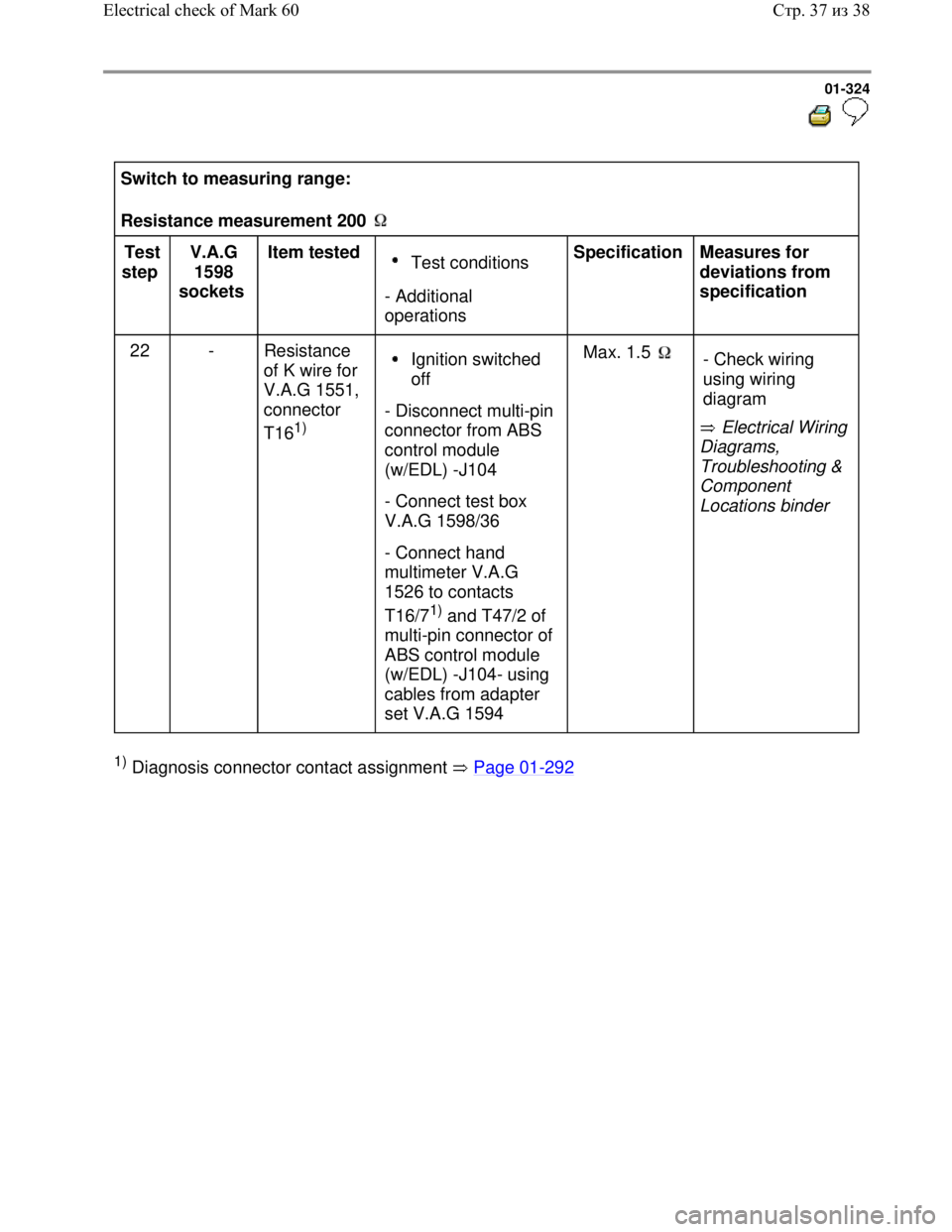

Downloaded from www.Manualslib.com manuals search engine 01-324
Switch to measuring range:
Resistance measurement 200
Test
step V.A.G
1598
sockets Item tested Test conditions
- Additional
operations Specification
Measures for
deviations from
specification
22 - Resistance
of K wire for
V.A.G 1551,
connector
T16
1)
Ignition switched
off
- Disconnect multi-pin
connector from ABS
control module
(w/EDL) -J104
- Connect test box
V.A.G 1598/36
- Connect hand
multimeter V.A.G
1526 to contacts
T16/7
1) and T47/2 of
multi-pin connector of
ABS control module
(w/EDL) -J104- using
cables from adapter
set V.A.G 1594 Max. 1.5
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring
using wiring
diagram
1) Diagnosis connector contact assignment Page 01-292
Стр. 37из 38 Electrical check of Mark 60
Page 333 of 339

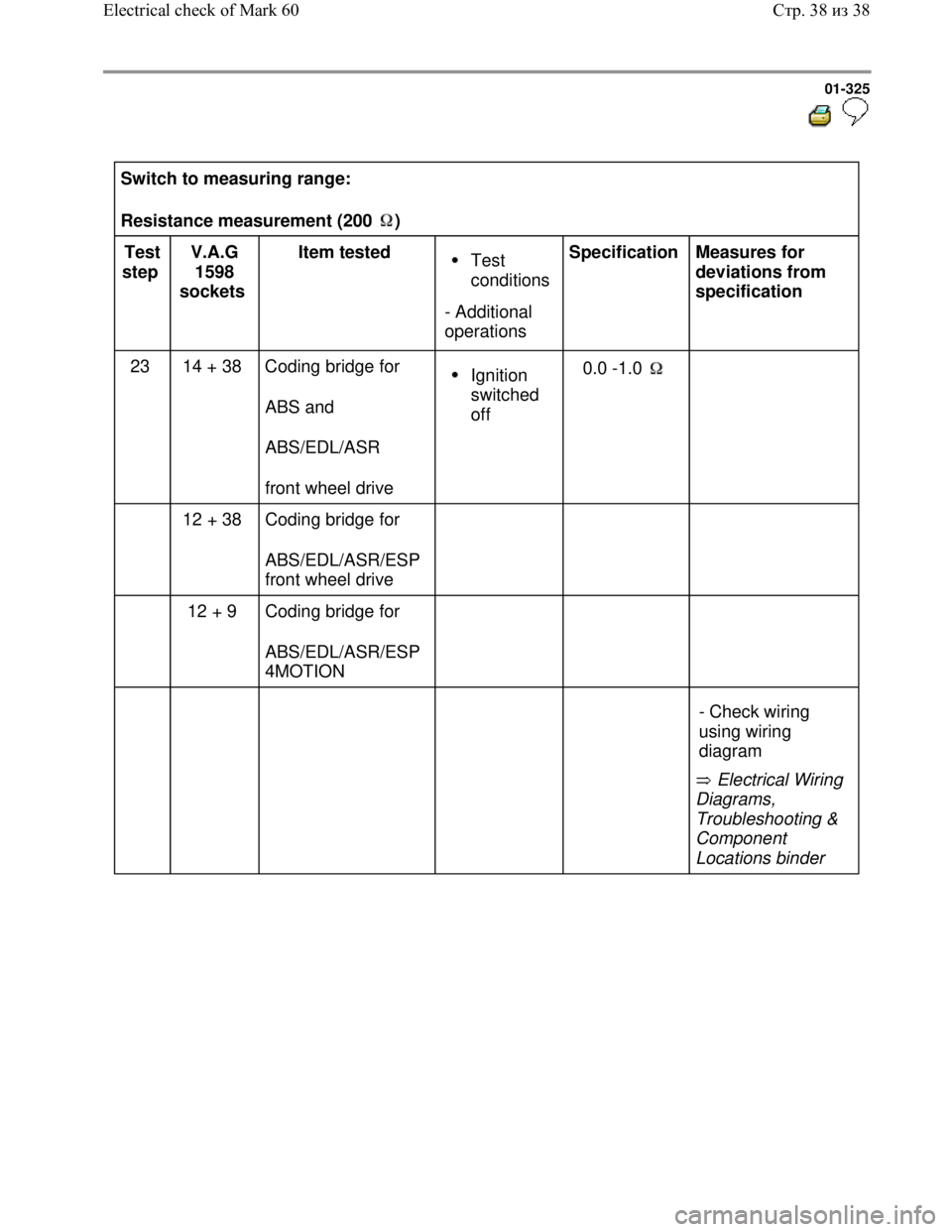

Downloaded from www.Manualslib.com manuals search engine 01-325
Switch to measuring range:
Resistance measurement (200 )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
23 14 + 38 Coding bridge for
ABS and
ABS/EDL/ASR
front wheel drive
Ignition
switched
off 0.0 -1.0
12 + 38 Coding bridge for
ABS/EDL/ASR/ESP
front wheel drive
12 + 9 Coding bridge for
ABS/EDL/ASR/ESP
4MOTION
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring
using wiring
diagram
Стр. 38из 38 Electrical check of Mark 60
Page 334 of 339

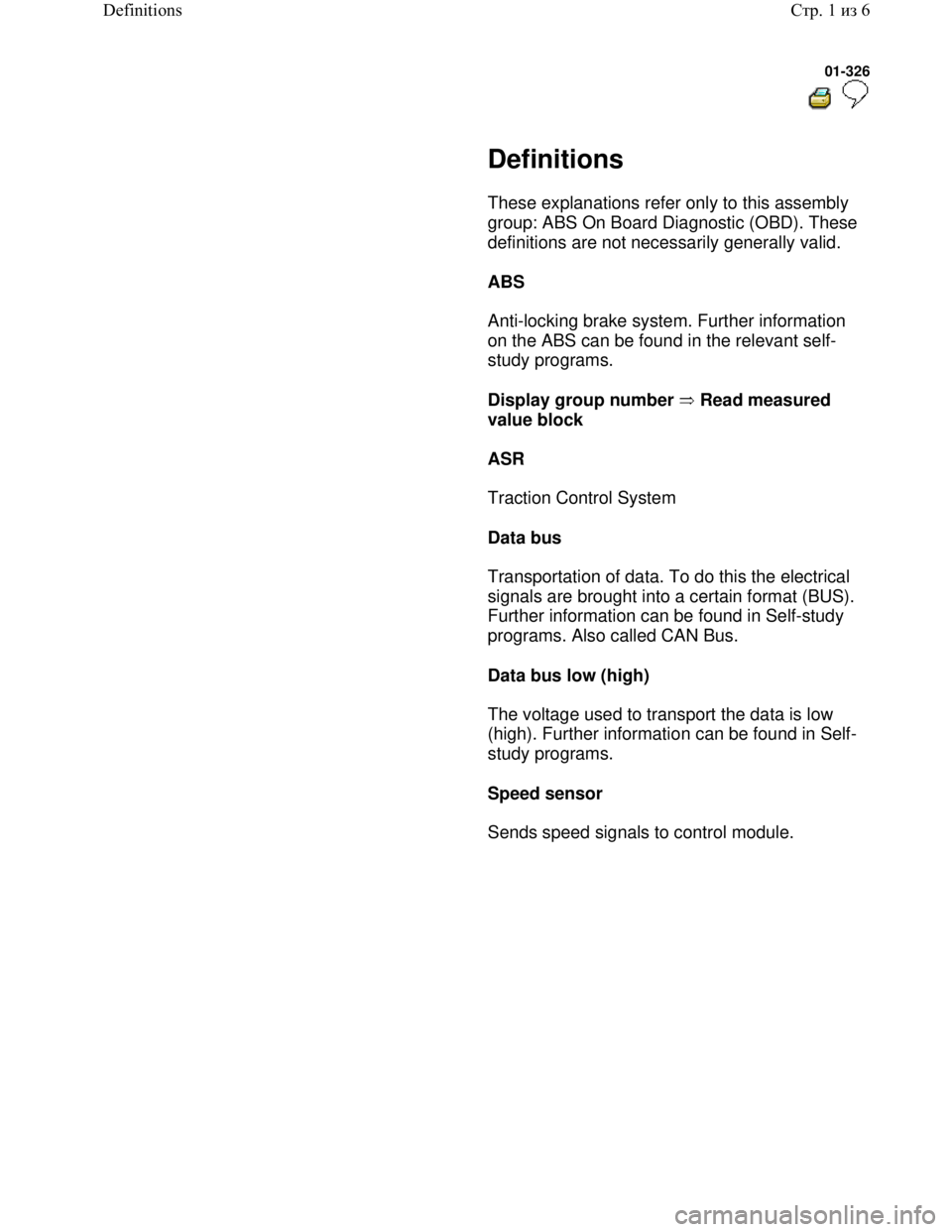

Downloaded from www.Manualslib.com manuals search engine 01-326
Definitions
These explanations refer only to this assembly
group: ABS On Board Diagnostic (OBD). These
definitions are not necessarily generally valid.
ABS
Anti-locking brake system. Further information
on the ABS can be found in the relevant self-
study programs.
Display group number Read measured
value block
ASR
Traction Control System
Data bus
Transportation of data. To do this the electrical
signals are brought into a certain format (BUS).
Further information can be found in Self-study
programs. Also called CAN Bus.
Data bus low (high)
The voltage used to transport the data is low
(high). Further information can be found in Self-
study programs.
Speed sensor
Sends speed signals to control module.
Стр. 1из 6 Definitions
Page 335 of 339

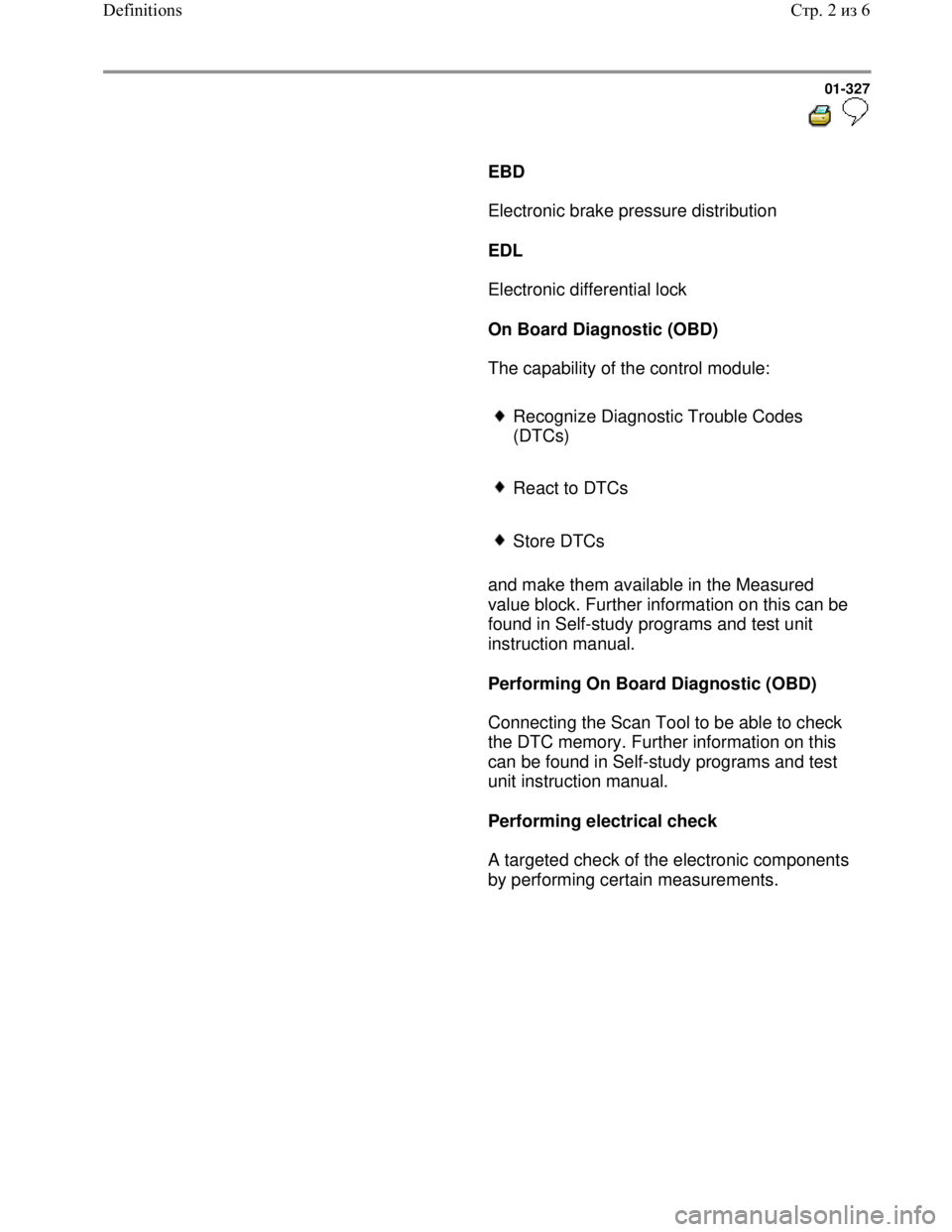

Downloaded from www.Manualslib.com manuals search engine 01-327
EBD
Electronic brake pressure distribution
EDL
Electronic differential lock
On Board Diagnostic (OBD)
The capability of the control module:
Recognize Diagnostic Trouble Codes
(DTCs)
React to DTCs
Store DTCs
and make them available in the Measured
value block. Further information on this can be
found in Self-study programs and test unit
instruction manual.
Performing On Board Diagnostic (OBD)
Connecting the Scan Tool to be able to check
the DTC memory. Further information on this
can be found in Self-study programs and test
unit instruction manual.
Performing electrical check
A targeted check of the electronic components
by performing certain measurements.
Стр. 2из 6 Definitions
Page 336 of 339

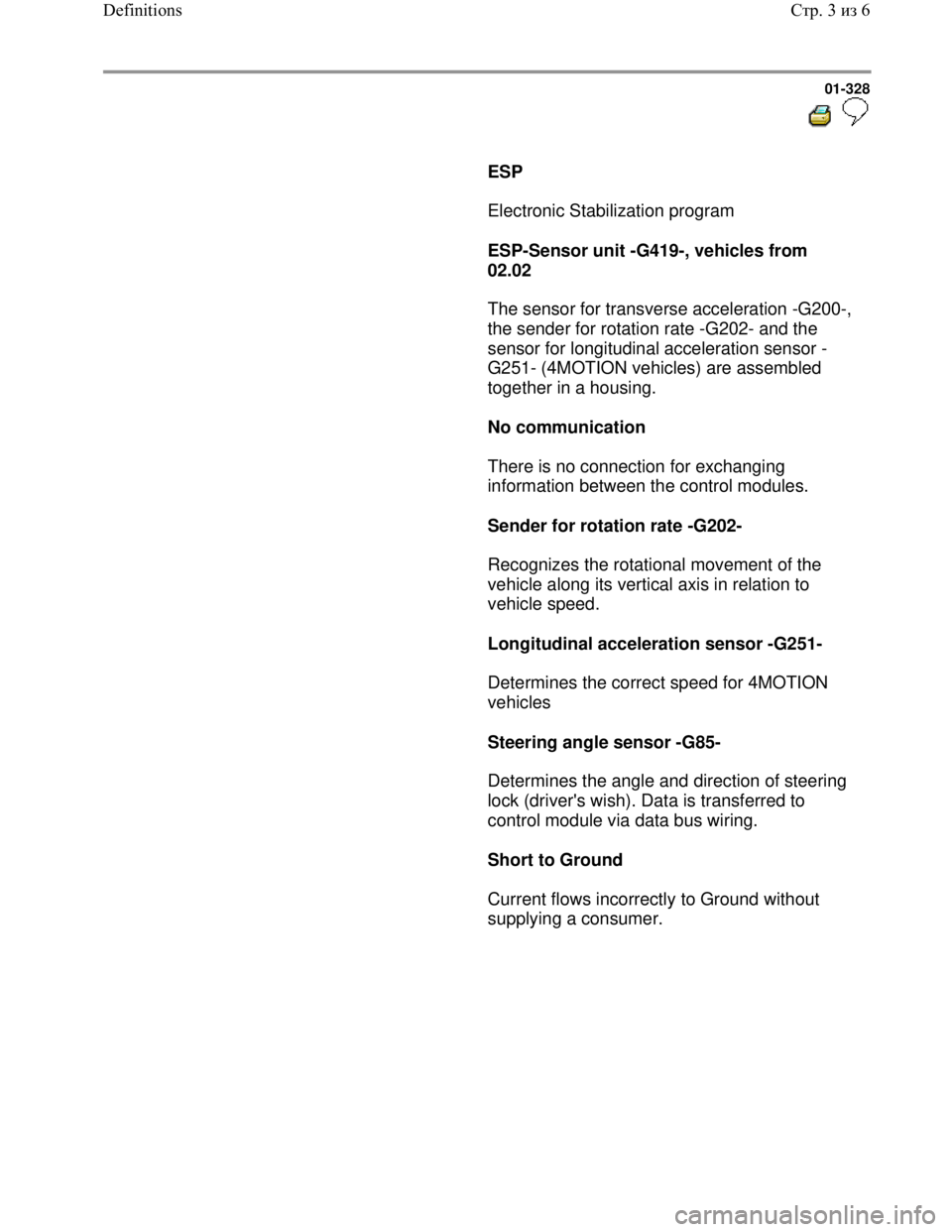

Downloaded from www.Manualslib.com manuals search engine 01-328
ESP
Electronic Stabilization program
ESP-Sensor unit -G419-, vehicles from
02.02
The sensor for transverse acceleration -G200-,
the sender for rotation rate -G202- and the
sensor for longitudinal acceleration sensor -
G251- (4MOTION vehicles) are assembled
together in a housing.
No communication
There is no connection for exchanging
information between the control modules.
Sender for rotation rate -G202-
Recognizes the rotational movement of the
vehicle along its vertical axis in relation to
vehicle speed.
Longitudinal acceleration sensor -G251-
Determines the correct speed for 4MOTION
vehicles
Steering angle sensor -G85-
Determines the angle and direction of steering
lock (driver's wish). Data is transferred to
control module via data bus wiring.
Short to Ground
Current flows incorrectly to Ground without
supplying a consumer.
Стр. 3из 6 Definitions
Page 337 of 339

Downloaded from www.Manualslib.com manuals search engine 01-329
Short to positive
Current flows incorrectly to a live component
without supplying a consumer.
Brake pressure release solenoid -F84-
The trip switch is installed in the brake booster
and is required by the control module to
recognize the braking desired by the driver.
Magnetic coil for brake pressure, in brake
booster, -N247-
The brake pressure solenoid is installed in the
brake booster and ensures that a pre-pressure
of 10 bar is available for the ABS/ESP pump.
Read measured value block
The control module can transfer a considerable
amount of test data. This test data delivers
information on the operational condition of the
system and/or sensors connected to it. In many
cases the transferred test data supports
troubleshooting and malfunction repair. The
test data has been summarized into single
display groups because all the information
cannot be evaluated at the same time. The
information can be selected via display group
numbers.
EBC
Engine braking control
Стр. 4из 6 Definitions
Page 338 of 339

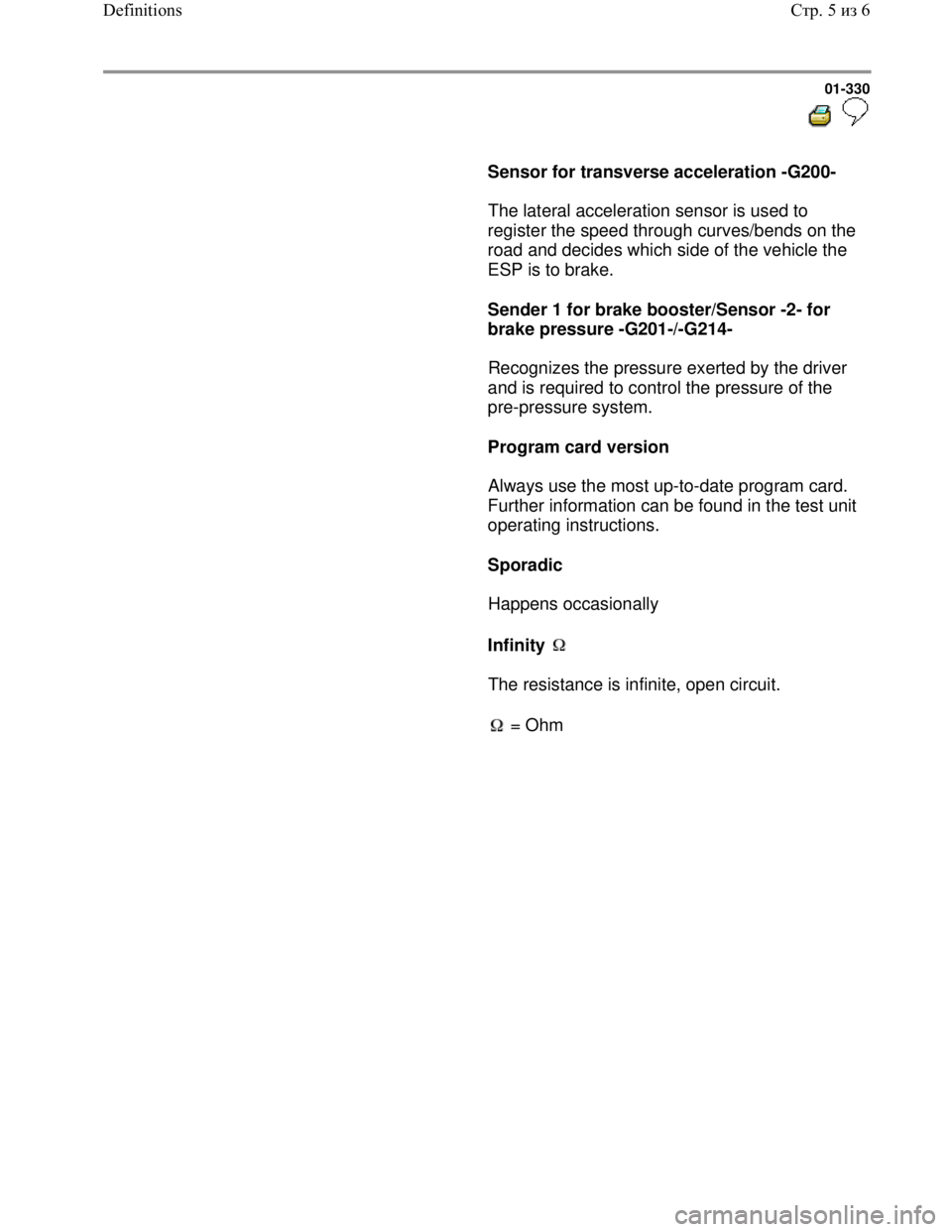

Downloaded from www.Manualslib.com manuals search engine 01-330
Sensor for transverse acceleration -G200-
The lateral acceleration sensor is used to
register the speed through curves/bends on the
road and decides which side of the vehicle the
ESP is to brake.
Sender 1 for brake booster/Sensor -2- for
brake pressure -G201-/-G214-
Recognizes the pressure exerted by the driver
and is required to control the pressure of the
pre-pressure system.
Program card version
Always use the most up-to-date program card.
Further information can be found in the test unit
operating instructions.
Sporadic
Happens occasionally
Infinity
The resistance is infinite, open circuit.
= Ohm
Стр. 5из 6 Definitions
Page 339 of 339

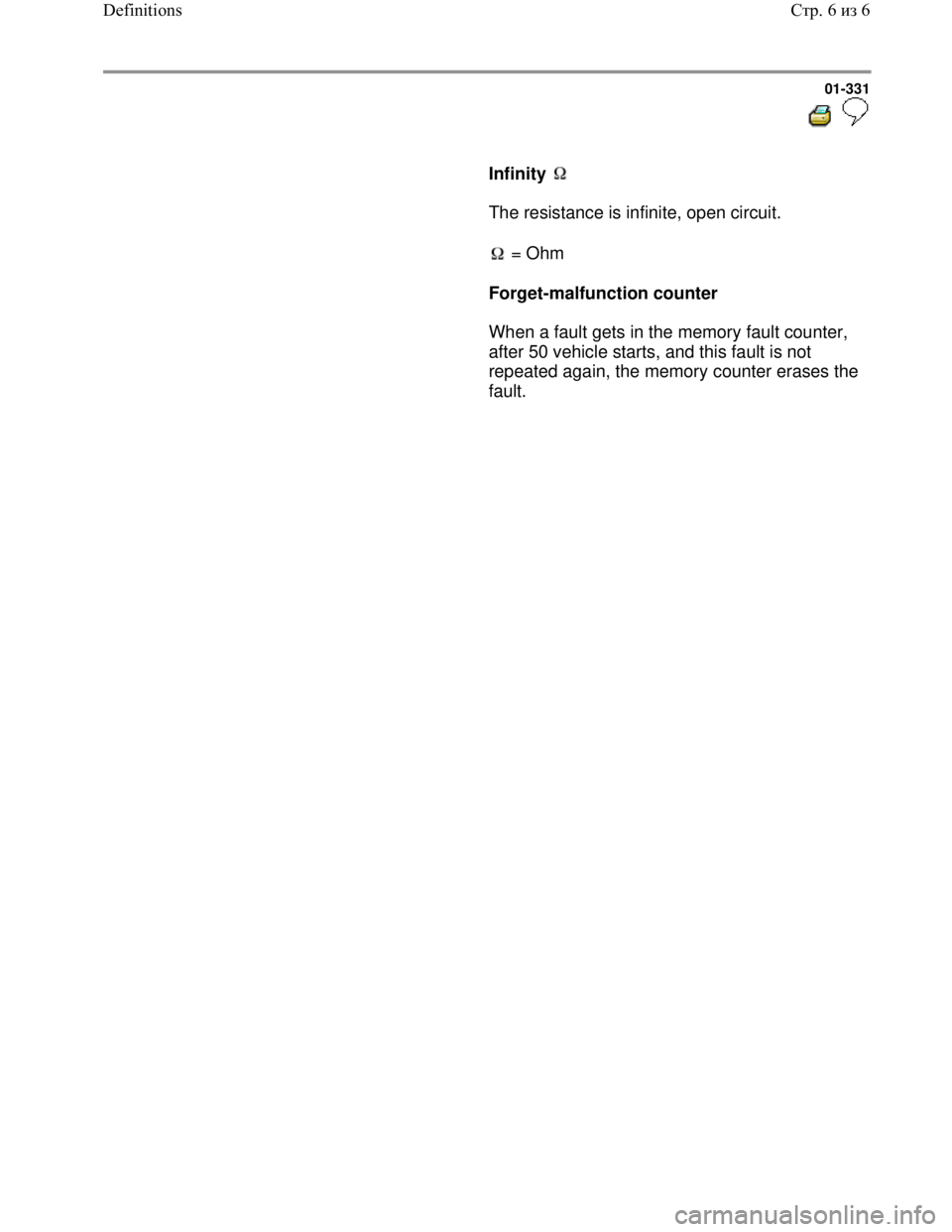

Downloaded from www.Manualslib.com manuals search engine 01-331
Infinity
The resistance is infinite, open circuit.
= Ohm
Forget-malfunction counter
When a fault gets in the memory fault counter,
after 50 vehicle starts, and this fault is not
repeated again, the memory counter erases the
fault.
Стр. 6из 6 Definitions
