01-293


Contact
Wiring connection to component ...
1
Voltage supply fr om battery +
2
Connector T16/7, K wire
3

Longitudinal acceleration sens or -G251- sensor wire(4MOTION vehicles only)
Vacant (4MOTION vehicles with ESP-sensor unit -G419, vehicles from 11.01)
4
Voltage supply from igni tion/starter switch
5

Longitudinal acceleration se nsor -G251- Ground(4MOTION vehicles only)
Vacant (4MOTION vehicles with ESP-sensor unit -G419- , vehicles from 11.01)
6

Sensor for transverse acceleration -G200-
Voltage supply for ESP-sensor unit -G419-, vehicles from 02.02
7

Longitudinal acceleration se nsor -G251- voltage supply(4MOTION vehicles
only)
Vacant (4MOTION vehicles with ESP-sensor unit -G419- , vehicles from 11.01)
8
Vehicles with navi gation system only
9
Coding bridge to contact 12 (vehicle s with ABS/EDL/ASR/ESP 4MOTION
only)
10
Vehicles with navi gation system only
11
Data bus wire Wiring diagrams
12
Coding bridge to contact 9 (vehicles with ABS/EDL/ASR/ESP 4MOTION only)
Coding bridge to contact 38 (vehicles with ABS/EDL/ASR/ESP front wheel
drive only)
Стр. 6 из 38
Electrical check of Mark 60
Volkswagen Technical Site: http://v olkswagen.msk.ru http://vwts.info http://vwts.ru
огромный архив документации по автомобилям Volkswagen, Skoda, Seat, Audi

Downloaded from www.Manualslib.com manuals search engine 01-294


Contact
Wiring connection to component ...
13
ASR/ESP button -E256-
14
Coding bridge to contact 38 (vehicles with ABS and ABS/EDL/ASR front wheel
drive only)
15
Data bus wire Wiring diagrams
16 Ground point on left-hand longitudinal member
17
Vacant
18
Sender 1 for brake booster -G201- voltage supply
19
Sender 1 for brake booster -G201- signal wire
20
Sender 1 for brake booster -G201- ground wire
21
Vacant
22
Vacant
23
Vacant
24

Ground wire for sensor for transverse acceleration -G200- and sender for
rotation rate -G202-
Ground wire for ESP-sensor unit -G419-, vehicles from 02.02
25

Vacant
Data bus wire for ESP-sensor unit -G419-, vehicles from 02.02
26
Voltage supply for sensor for transverse acceleration -G200- and sender for
rotation rate -G202-
Стр. 7из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-295


Contact
Wiring connection to component ...
27
Vacant
28
Vacant
29

Vacant
Data bus wire for ESP-sensor unit -G419-
30
Vacant
31
Vacant
32
Voltage supply from battery +
33
Right front ABS wheel speed sensor -G45-
34
Right front ABS wheel speed sensor -G45-
35
Vacant
36
Left rear ABS wheel speed sensor -G46-
37
Left rear ABS wheel speed sensor -G46-
38

Coding bridge to contact 12 (vehicles with ABS/EDL/ASR/ESP front wheel
drive only)
Coding bridge to contact 14 (vehicles with ABS and ABS/EDL/ASR front wheel
drive only)
Стр. 8из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-296


Contact
Wiring connection to component ...
39
Vacant
40
Sender for rotation rate -G202- signal wire
41
Brake light switch -F-
42
Right rear ABS wheel speed sensor -G44-
43
Right rear ABS wheel speed sensor -G44-
44
Vacant
45
Left front ABS wheel speed sensor -G47-
46
Left front ABS wheel speed sensor -G47-
47
Ground point on left-hand longitudinal member
Стр. 9из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-297


Test step overview
Component to be tested

Voltage supply for ABS hydraulic pump -V64- to ABS control module
(w/EDL) -J104- - Perform test
step 1
Voltage supply for valves in ABS hydraulic unit -N55- to ABS control
module (w/EDL) -J104- - Perform test
step 2
Voltage supply (ignition/starter switch) to ABS control module (w/EDL) -
J104- - Perform test
step 3
Function of brake light switch -F-
- Perform test
step 4
Resistance of right front ABS wheel speed sensor -G45-
- Perform test
step 5
Resistance of left front ABS wheel speed sensor -G47-
- Perform test
step 6
Resistance of right rear ABS wheel speed sensor -G44-
- Perform test
step 7
Resistance of left rear ABS wheel speed sensor -G46-
- Perform test
step 8
Voltage signal of right front ABS wheel speed sensor -G45-
- Perform test
step 9
Voltage signal of left front ABS wheel speed sensor -G47-
- Perform test
step 10
Voltage signal of right rear ABS wheel speed sensor -G44-
- Perform test
step 11
Стр. 10из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-298


Component to be tested

Voltage signal of left rear ABS wheel speed sensor -G46-
- Perform test step 12
Warning lamp function for ABS warning light -K47-
- Perform test step 13
Warning lamp function for warning light for brake system -K118-
- Perform test step 14
Warning lamp function for ESP control lamp -K155-
- Perform test step 15
Function of ASR/ESP button -E256-
- Perform test step 16
Activation of steering angle sensor -G85-
- Perform test step 17
Activation of sensor for transverse acceleration -G200-
Activation of sender for rotation rate -G202- - Perform test step 18
Activation of sender 1 for brake booster -G201-
- Perform test step 19
Check of data bus wiring
- Perform test step 20
Voltage supply for V.A.G 1551, connector T16
- Perform test step 21
Resistance of K wire for self-diagnosis, connector T16
- Perform test step 22
Coding bridge
- Perform test step 23
Стр. 11из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-299

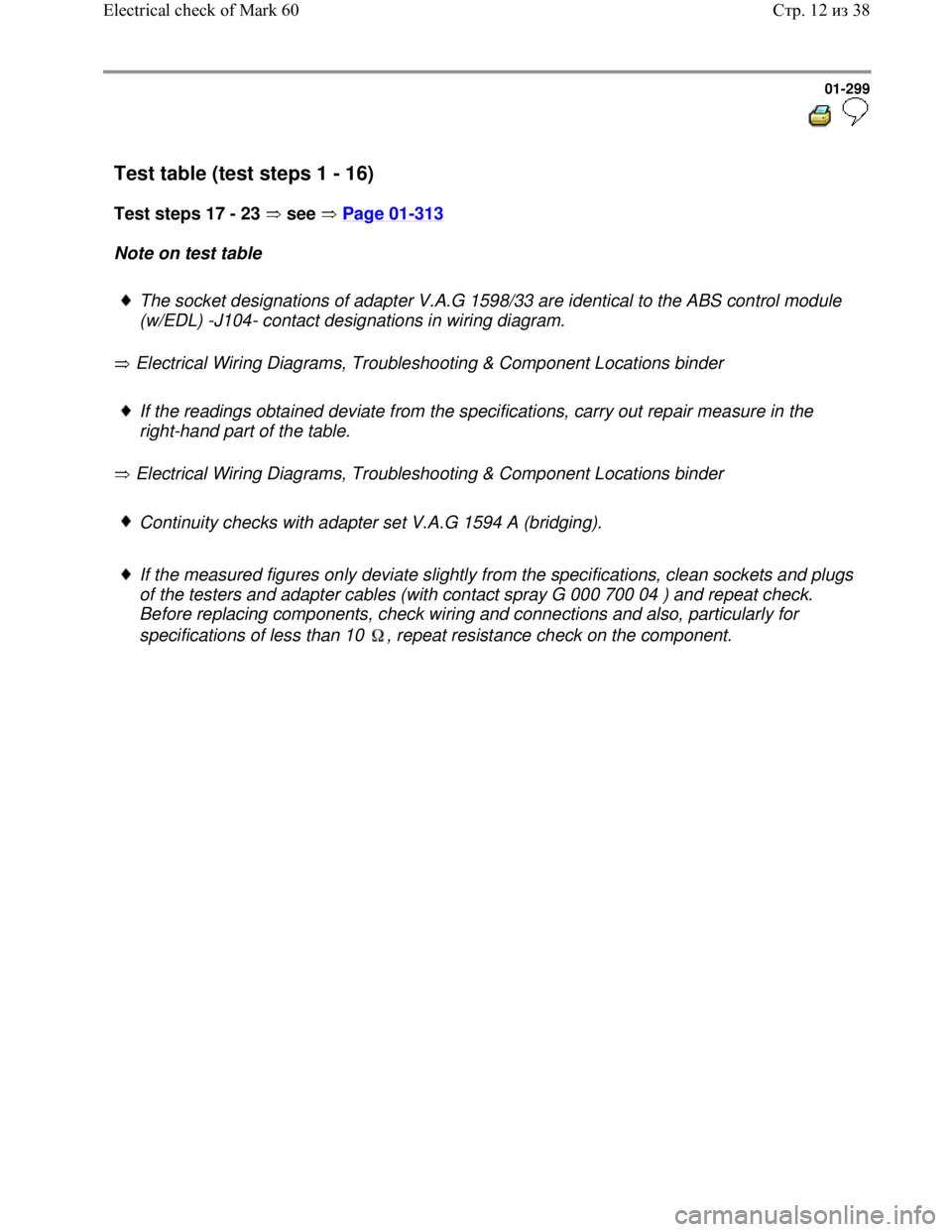

Test table (test steps 1 - 16)
Test steps 17 - 23 see Page 01
-313
Note on test table

The socket designations of adapter V.A.G 1598/33 are identical to the ABS control module
(w/EDL) -J104- contact designations in wiring diagram.
Electrical Wiring Diagrams, Troubleshooting & Component Locations binder
If the readings obtained deviate from the specifications, carry out repair measure in the
right-hand part of the table.
Electrical Wiring Diagrams, Troubleshooting & Component Locations binder
Continuity checks with adapter set V.A.G 1594 A (bridging).

If the measured figures only deviate slightly from the specifications, clean sockets and plugs
of the testers and adapter cables (with contact spray G 000 700 04 ) and repeat check.
Before replacing components, check wiring and connections and also, particularly for
specifications of less than 10 , repeat resistance check on the component.
Стр. 12из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-300

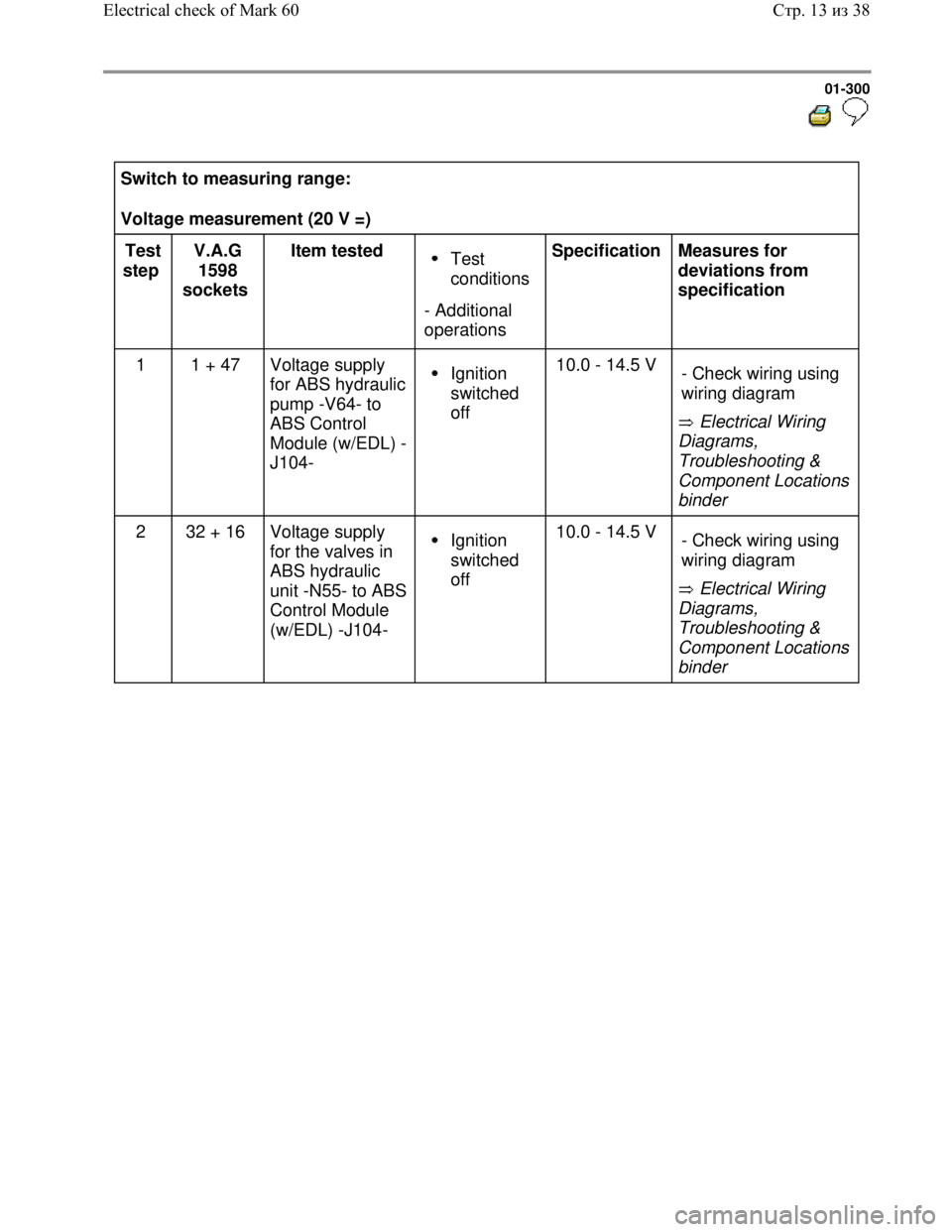

Switch to measuring range:
Voltage measurement (20 V =)
Test
step V.A.G
1598
sockets Item tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
1 1 + 47 Voltage supply
for ABS hydraulic
pump -V64- to
ABS Control
Module (w/EDL) -
J104-
Ignition
switched
off 10.0 - 14.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder - Check wiring using
wiring diagram
2 32 + 16 Voltage supply
for the valves in
ABS hydraulic
unit -N55- to ABS
Control Module
(w/EDL) -J104- Ignition
switched
off 10.0 - 14.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder - Check wiring using
wiring diagram
Стр. 13из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-301

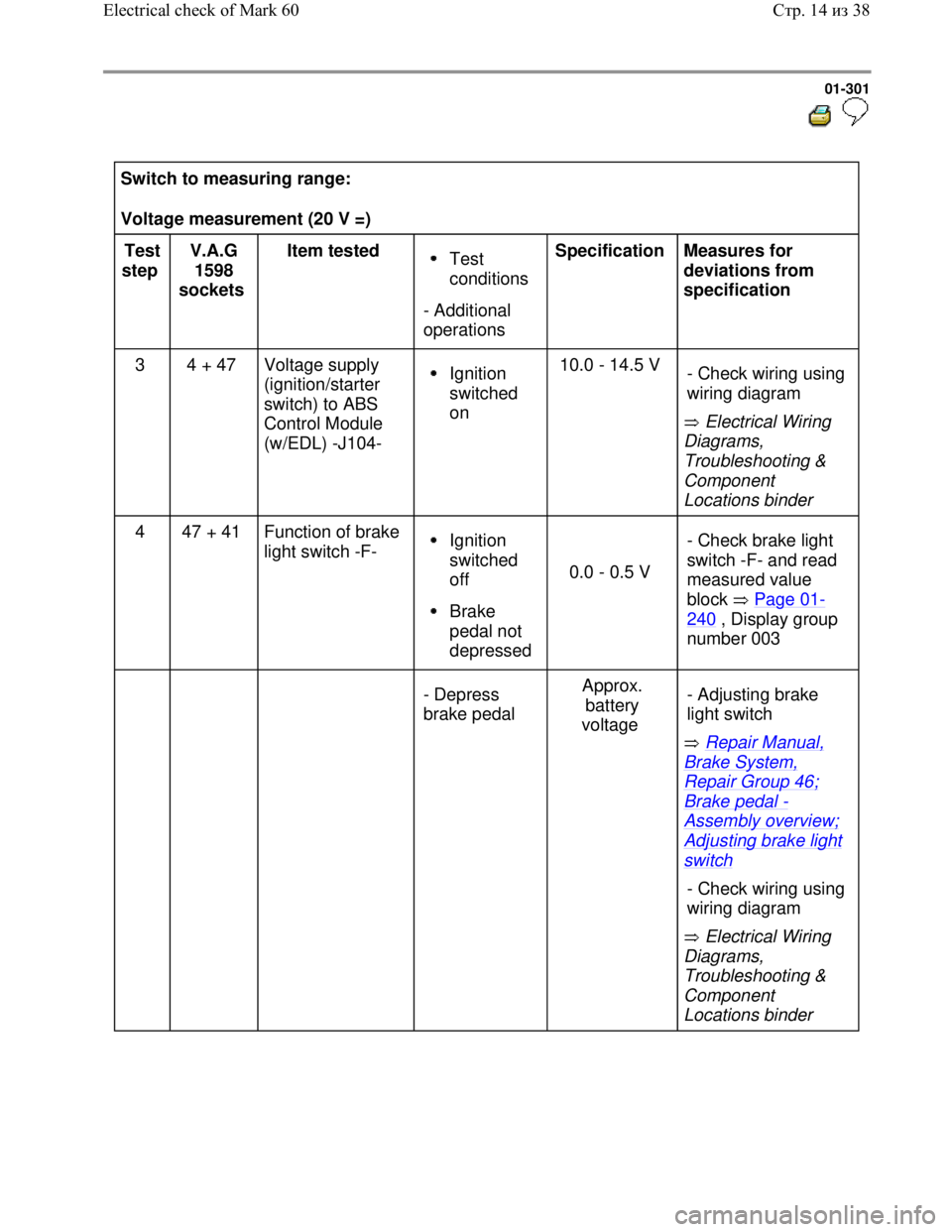

Switch to measuring range:
Voltage measurement (20 V =)
Test
step V.A.G
1598
sockets Item tested
Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
3 4 + 47 Voltage supply
(ignition/starter
switch) to ABS
Control Module
(w/EDL) -J104-
Ignition
switched
on 10.0 - 14.5 V
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Check wiring using
wiring diagram
4 47 + 41 Function of brake
light switch -F- Ignition
switched
off
Brake
pedal not
depressed
0.0 - 0.5 V - Check brake light
switch -F- and read
measured value
block Page 01-
240 , Display group
number 003

- Depress
brake pedal Approx.
battery
voltage
Repair Manual,
Brake System,
Repair Group 46;
Brake pedal -
Assembly overview;
Adjusting brake light
switch
Electrical Wiring
Diagrams,
Troubleshooting &
Component
Locations binder - Adjusting brake
light switch
- Check wiring using
wiring diagram
Стр. 14из 38 Electrical check of Mark 60

Downloaded from www.Manualslib.com manuals search engine 01-302


Switch to measuring range:
Resistance measurement (2 k )
Test
step V.A.G
1598
sockets Item tested Test
conditions
- Additional
operations Specification
Measures for
deviations from
specification
5 33 + 34 Resistance of
right front ABS
wheel speed
sensor -G45-
Ignition
switched
off 1.0 - 1.3 k
Electrical Wiring
Diagrams,
Troubleshooting &
Component Locations
binder
If no malfunction can be
located in the wiring:
Repair Manual, Brake
System, Repair Group
45; Removing and
installing parts of ABS
system on front and rear
axles - Check wiring using
wiring diagram
- Wiggle wiring during
test
- Replace right front
ABS wheel speed
sensor -G45-
Стр. 15из 38 Electrical check of Mark 60
