sensor VOLKSWAGEN JETTA 1998 Workshop Manual

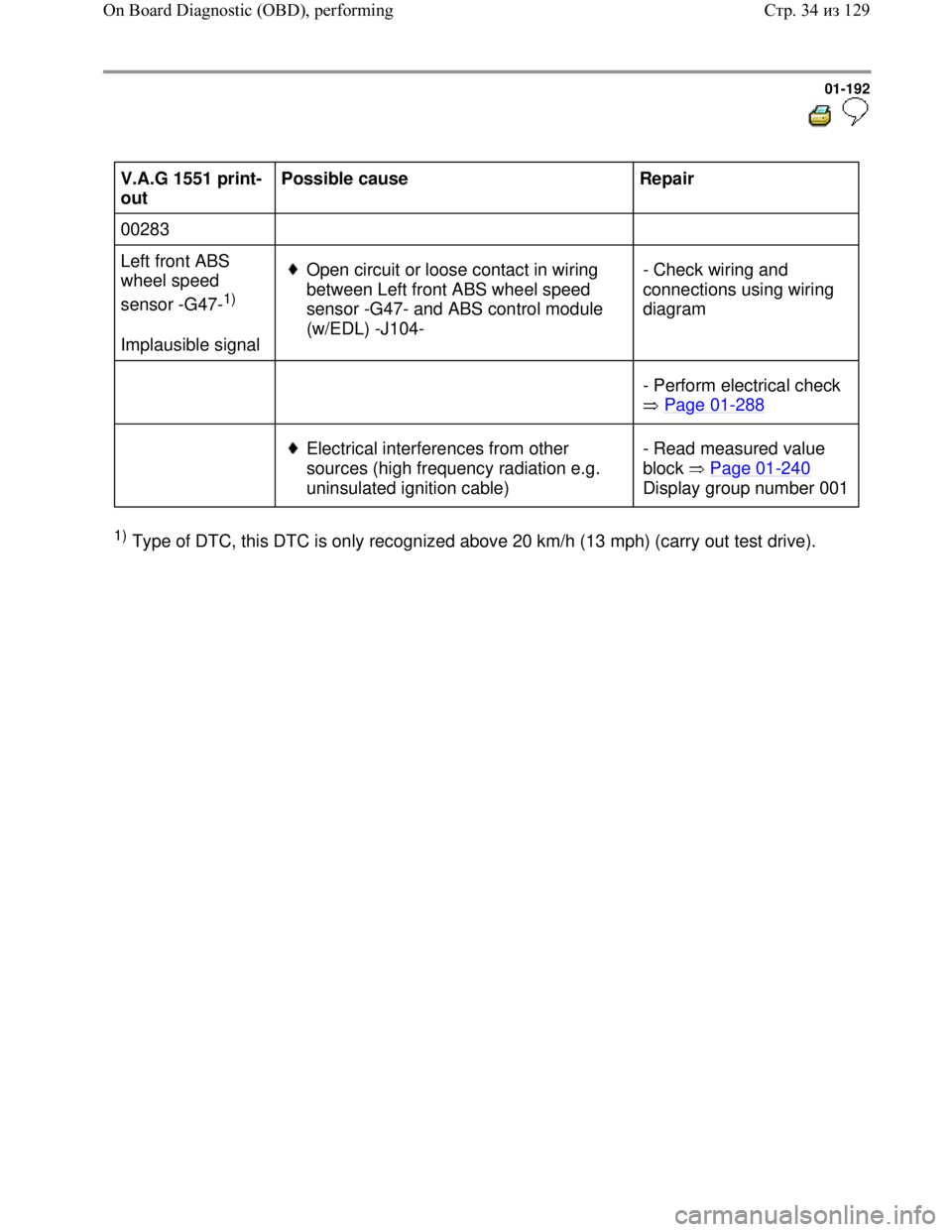

Downloaded from www.Manualslib.com manuals search engine 01-192


V.A.G 1551 print-
out Possible cause
Repair
00283
Left front ABS
wheel speed
sensor -G47-
1)
Implausible signal
Open circuit or loose contact in wiring
between Left front ABS wheel speed
sensor -G47- and ABS control module
(w/EDL) -J104- - Check wiring and
connections using wiring
diagram

- Perform electrical check
Page 01
-288
Electrical interferences from other
sources (high frequency radiation e.g.
uninsulated ignition cable) - Read measured value
block Page 01
-240
Display group number 001
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 34из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-193


V.A.G 1551 print-
out Possible cause
Repair
00283
Left front ABS
wheel speed
sensor -G47-
Mechanical fault
1)
Excessive air gap between
left front ABS wheel speed
sensor-G47- and rotor (signal
not OK) Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on front
and rear axles - Check installation of left front ABS
wheel speed sensor -G47- and rotor
- Read measured value block
Page 01
-240 Display group numbers
001 and 002
- Perform test drive

Short to positive or ground in
wiring - Check wiring and connections using
wiring diagram
- Perform electrical check Page
01-288
Left front ABS wheel speed
sensor -G47- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace left front ABS wheel speed
sensor -G47-
1) Type of DTC, this DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 35из 129 On Board Diagnostic (OBD), performing

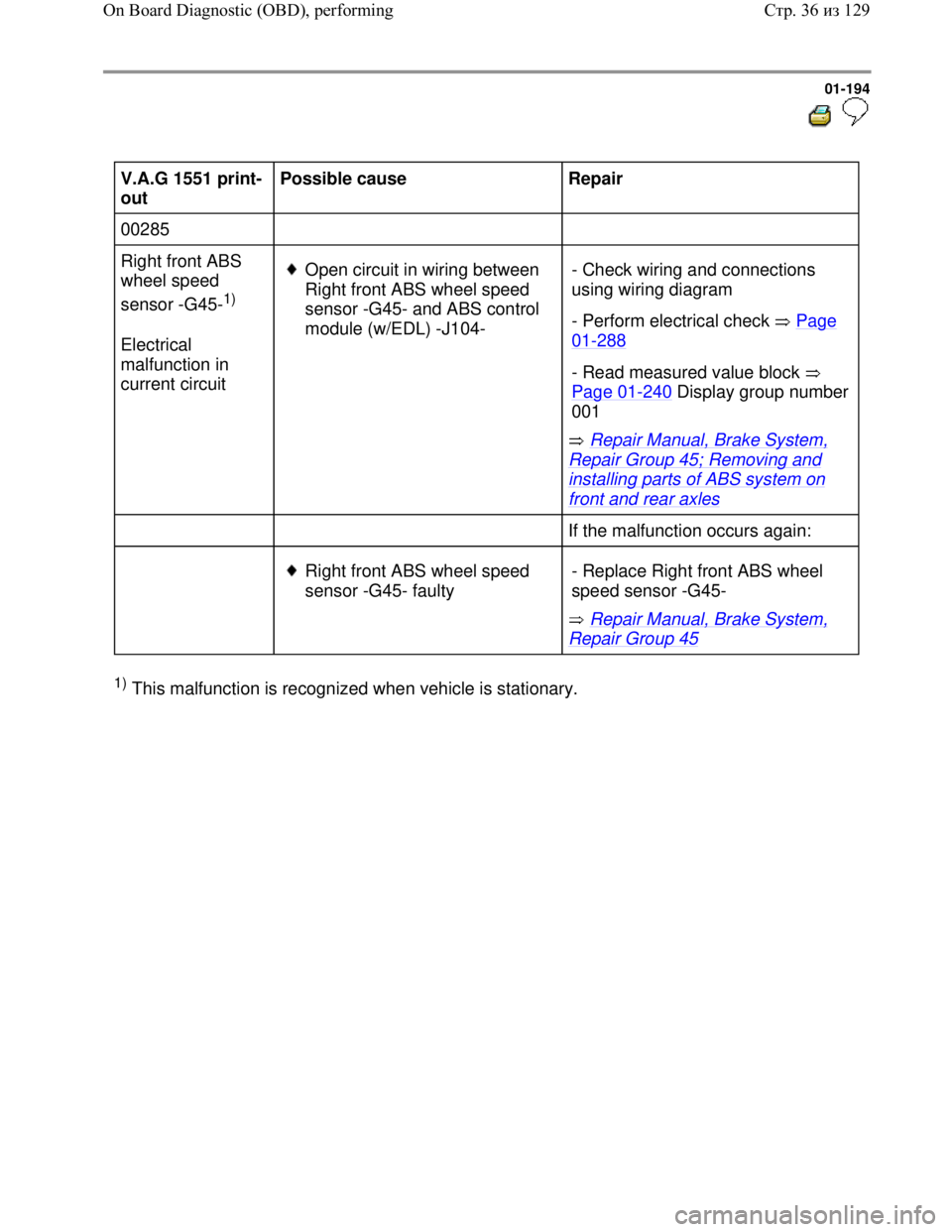

Downloaded from www.Manualslib.com manuals search engine 01-194


V.A.G 1551 print-
out Possible cause
Repair
00285
Right front ABS
wheel speed
sensor -G45-
1)
Electrical
malfunction in
current circuit
Open circuit in wiring between
Right front ABS wheel speed
sensor -G45- and ABS control
module (w/EDL) -J104-
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on
front and rear axles - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288
- Read measured value block
Page 01
-240 Display group number
001
If the malfunction occurs again:

Right front ABS wheel speed
sensor -G45- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace Right front ABS wheel
speed sensor -G45-
1) This malfunction is recognized when vehicle is stationary.
Стр. 36из 129 On Board Diagnostic (OBD), performing

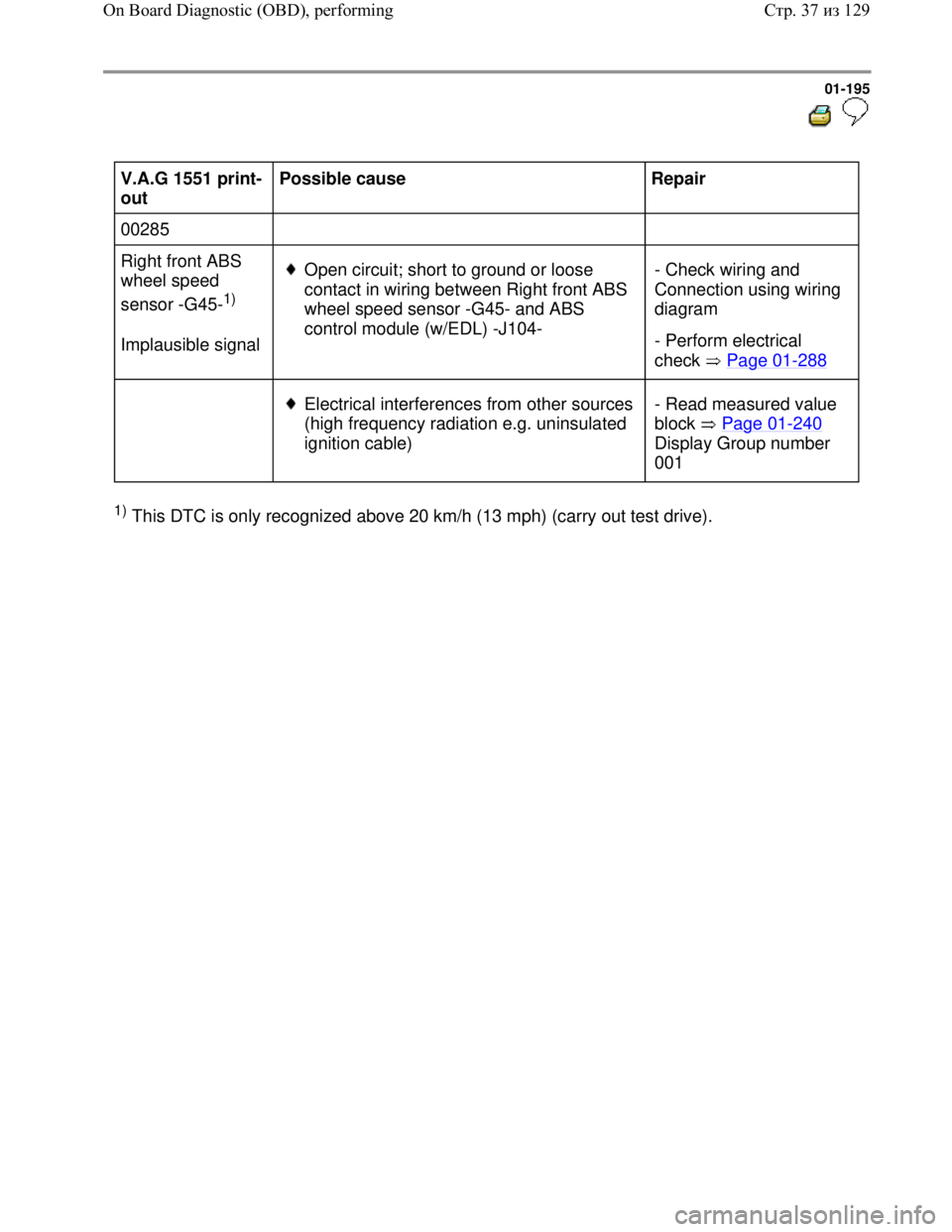

Downloaded from www.Manualslib.com manuals search engine 01-195


V.A.G 1551 print-
out Possible cause
Repair
00285
Right front ABS
wheel speed
sensor -G45-
1)
Implausible signal
Open circuit; short to ground or loose
contact in wiring between Right front ABS
wheel speed sensor -G45- and ABS
control module (w/EDL) -J104- - Check wiring and
Connection using wiring
diagram
- Perform electrical
check Page 01
-288
Electrical interferences from other sources
(high frequency radiation e.g. uninsulated
ignition cable) - Read measured value
block Page 01
-240
Display Group number
001
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 37из 129 On Board Diagnostic (OBD), performing

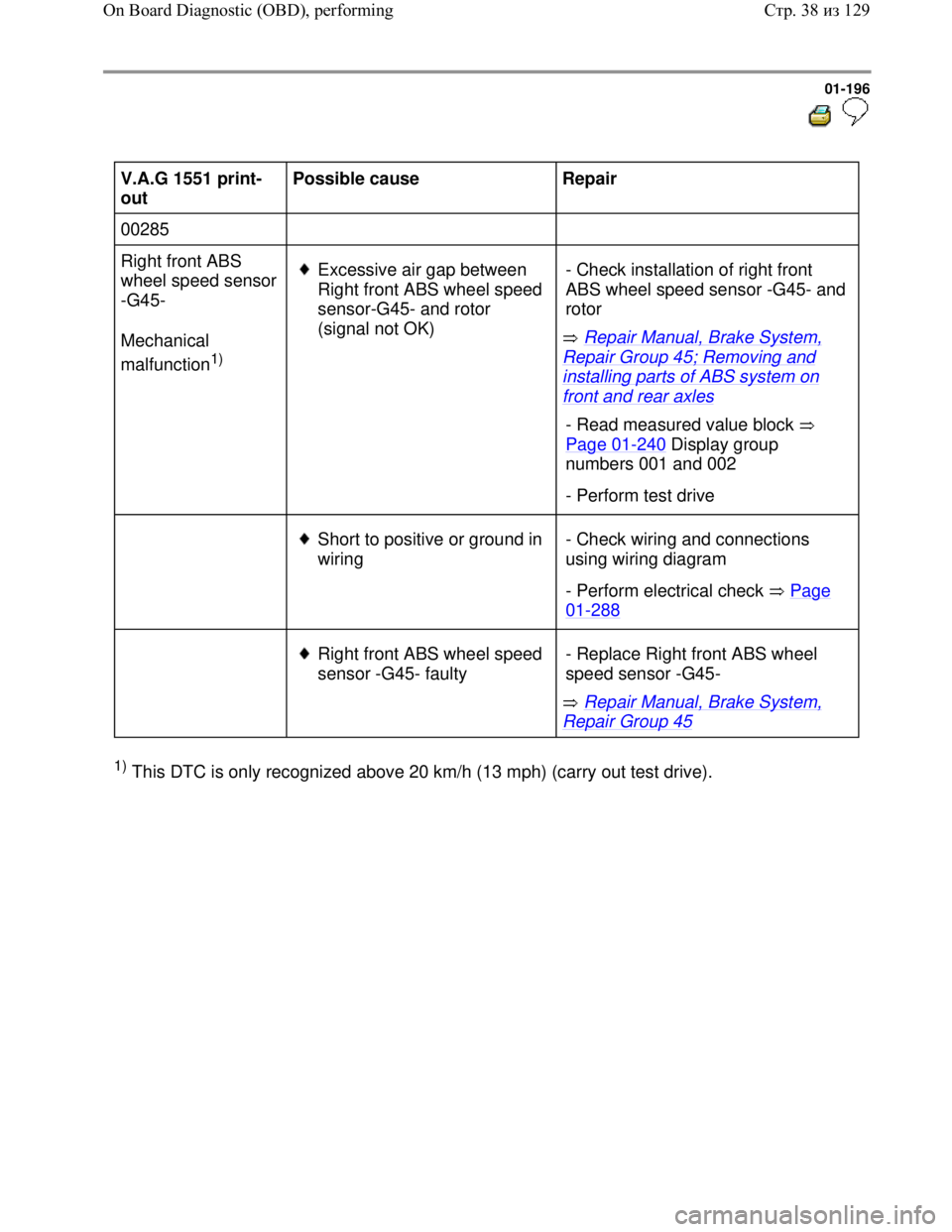

Downloaded from www.Manualslib.com manuals search engine 01-196


V.A.G 1551 print-
out Possible cause
Repair
00285
Right front ABS
wheel speed sensor
-G45-
Mechanical
malfunction
1)
Excessive air gap between
Right front ABS wheel speed
sensor-G45- and rotor
(signal not OK)
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on
front and rear axles - Check installation of right front
ABS wheel speed sensor -G45- and
rotor
- Read measured value block
Page 01
-240 Display group
numbers 001 and 002
- Perform test drive


Short to positive or ground in
wiring - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288

Right front ABS wheel speed
sensor -G45- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace Right front ABS wheel
speed sensor -G45-
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 38из 129 On Board Diagnostic (OBD), performing

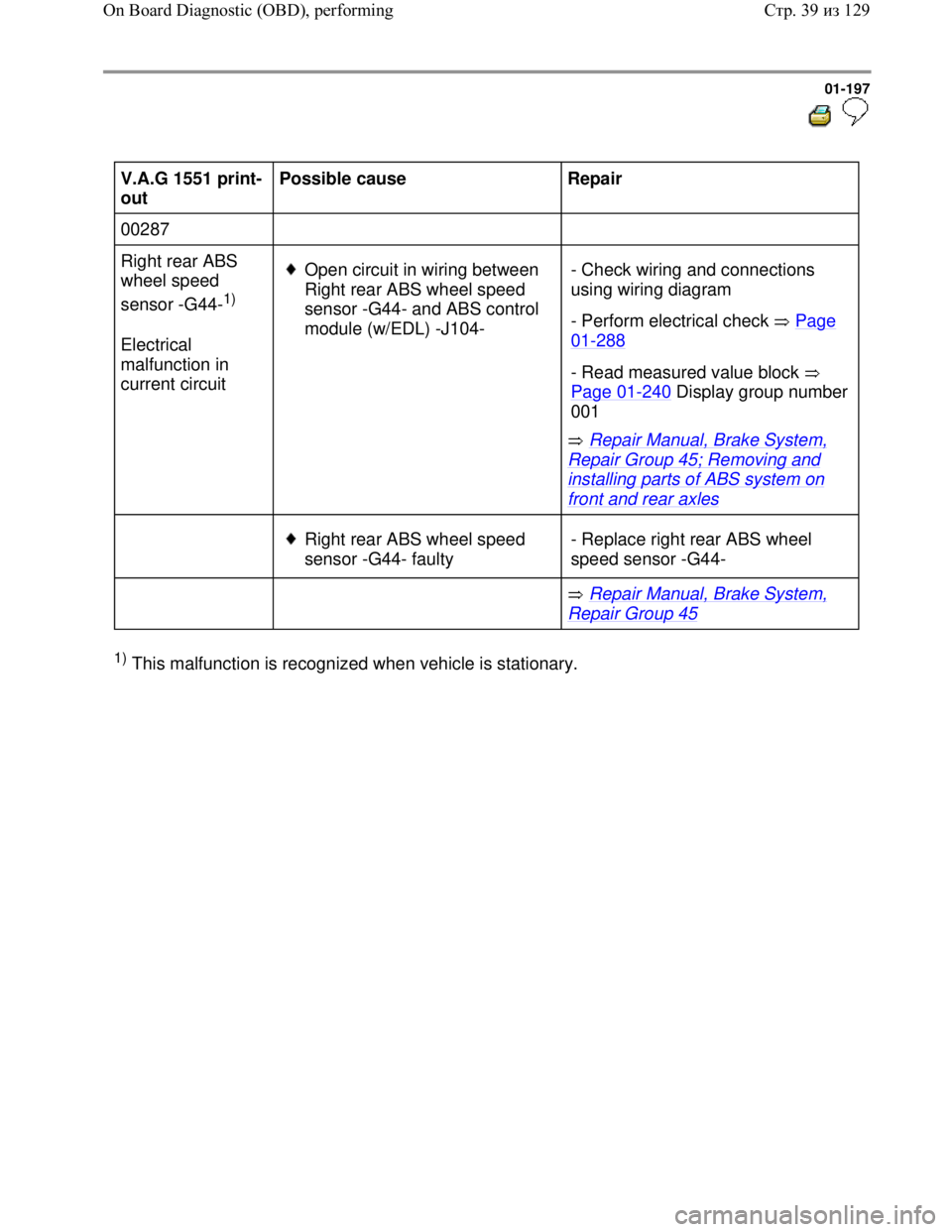

Downloaded from www.Manualslib.com manuals search engine 01-197


V.A.G 1551 print-
out Possible cause
Repair
00287
Right rear ABS
wheel speed
sensor -G44-
1)
Electrical
malfunction in
current circuit
Open circuit in wiring between
Right rear ABS wheel speed
sensor -G44- and ABS control
module (w/EDL) -J104-
Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on
front and rear axles - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288
- Read measured value block
Page 01
-240 Display group number
001
Right rear ABS wheel speed
sensor -G44- faulty - Replace right rear ABS wheel
speed sensor -G44-
Repair Manual, Brake System,
Repair Group 45
1) This malfunction is recognized when vehicle is stationary.
Стр. 39из 129 On Board Diagnostic (OBD), performing

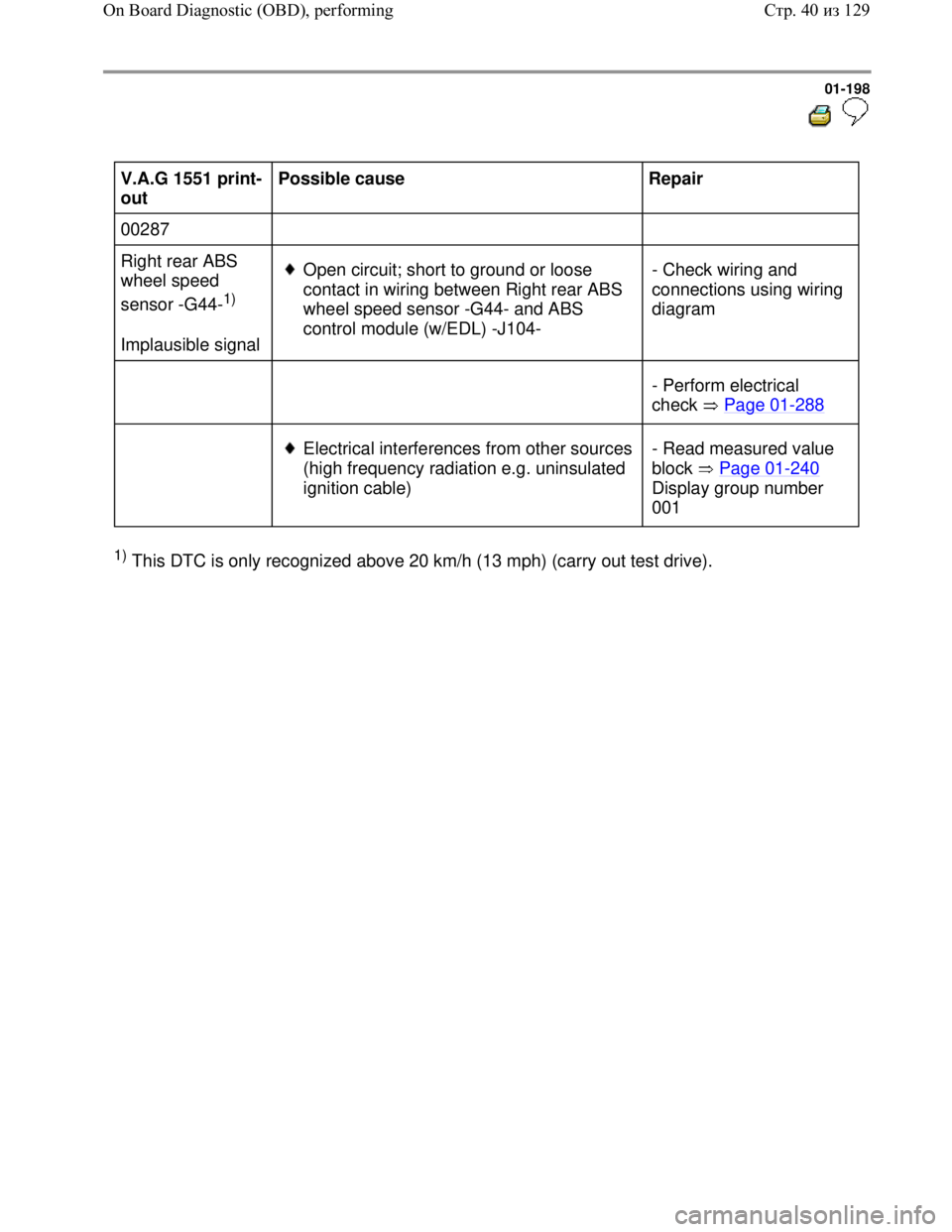

Downloaded from www.Manualslib.com manuals search engine 01-198


V.A.G 1551 print-
out Possible cause
Repair
00287
Right rear ABS
wheel speed
sensor -G44-
1)
Implausible signal
Open circuit; short to ground or loose
contact in wiring between Right rear ABS
wheel speed sensor -G44- and ABS
control module (w/EDL) -J104- - Check wiring and
connections using wiring
diagram

- Perform electrical
check Page 01
-288
Electrical interferences from other sources
(high frequency radiation e.g. uninsulated
ignition cable) - Read measured value
block Page 01
-240
Display group number
001
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 40из 129 On Board Diagnostic (OBD), performing

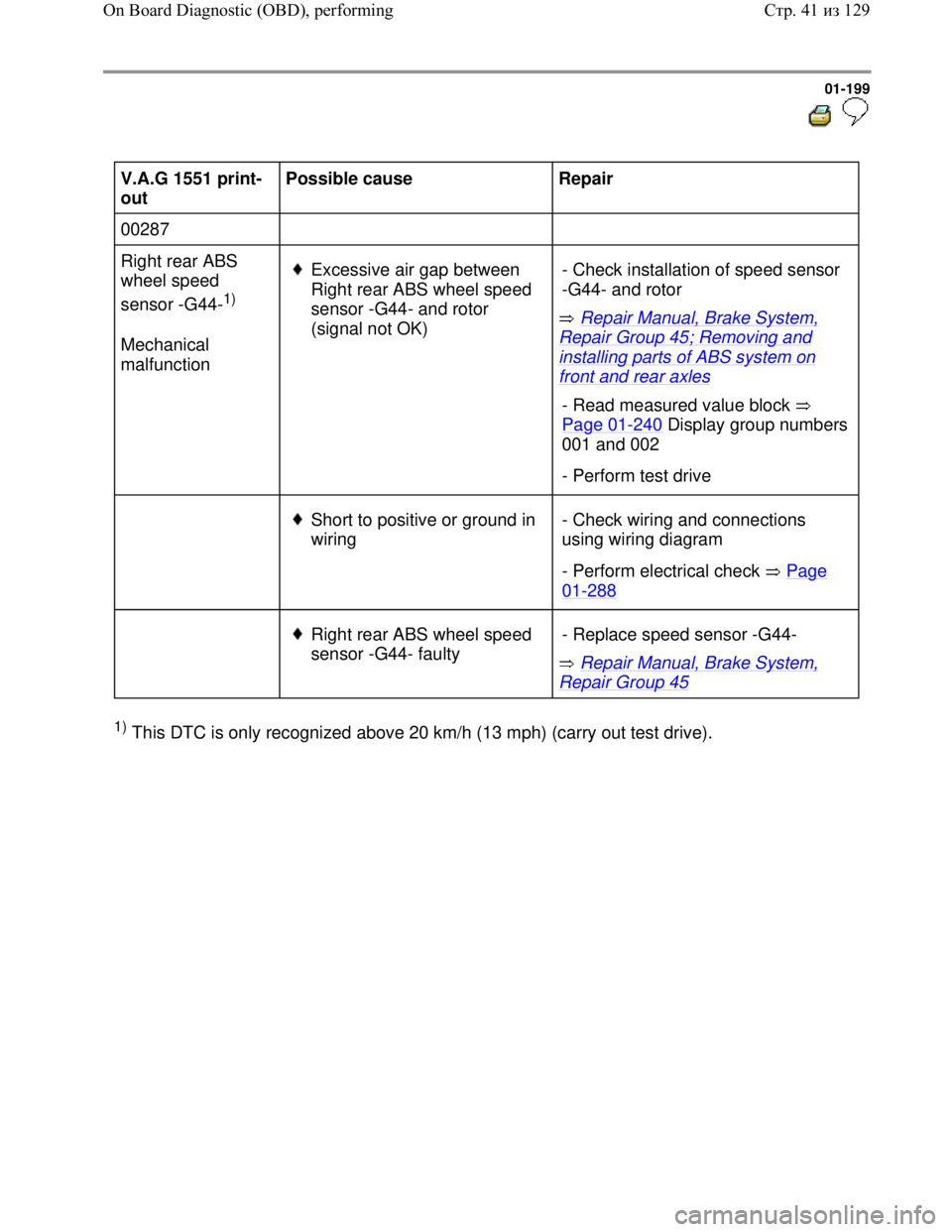

Downloaded from www.Manualslib.com manuals search engine 01-199


V.A.G 1551 print-
out Possible cause
Repair
00287
Right rear ABS
wheel speed
sensor -G44-
1)
Mechanical
malfunction
Excessive air gap between
Right rear ABS wheel speed
sensor -G44- and rotor
(signal not OK) Repair Manual, Brake System,
Repair Group 45; Removing and
installing parts of ABS system on
front and rear axles - Check installation of speed sensor
-G44- and rotor
- Read measured value block
Page 01
-240 Display group numbers
001 and 002
- Perform test drive

Short to positive or ground in
wiring - Check wiring and connections
using wiring diagram
- Perform electrical check Page
01-288
Right rear ABS wheel speed
sensor -G44- faulty
Repair Manual, Brake System,
Repair Group 45 - Replace speed sensor -G44-
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 41из 129 On Board Diagnostic (OBD), performing

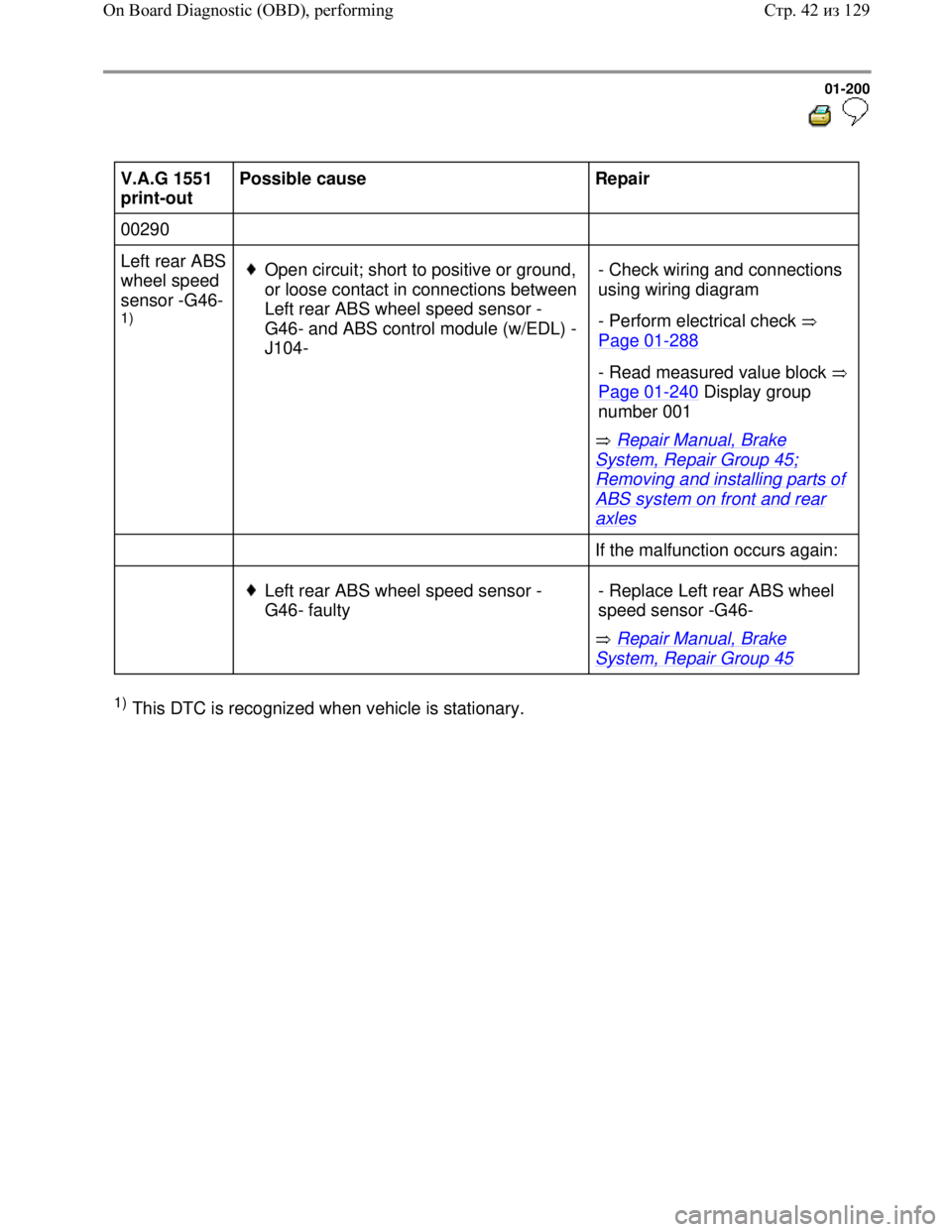

Downloaded from www.Manualslib.com manuals search engine 01-200


V.A.G 1551
print-out Possible cause
Repair
00290
Left rear ABS
wheel speed
sensor -G46-
1)
Open circuit; short to positive or ground,
or loose contact in connections between
Left rear ABS wheel speed sensor -
G46- and ABS control module (w/EDL) -
J104-
Repair Manual, Brake
System, Repair Group 45;
Removing and installing parts of
ABS system on front and rear
axles - Check wiring and connections
using wiring diagram
- Perform electrical check
Page 01
-288
- Read measured value block
Page 01
-240 Display group
number 001
If the malfunction occurs again:


Left rear ABS wheel speed sensor -
G46- faulty
Repair Manual, Brake
System, Repair Group 45 - Replace Left rear ABS wheel
speed sensor -G46-
1) This DTC is recognized when vehicle is stationary.
Стр. 42из 129 On Board Diagnostic (OBD), performing

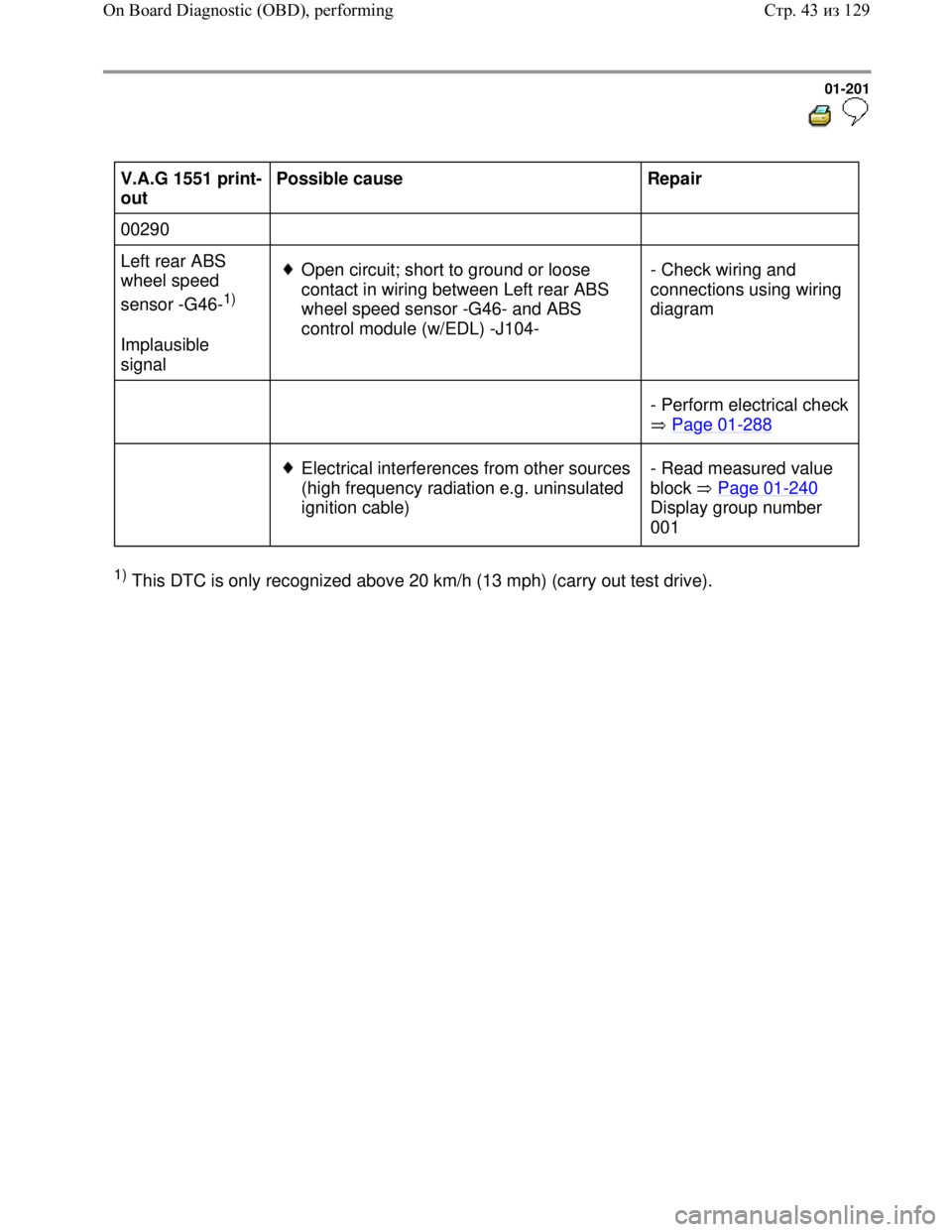

Downloaded from www.Manualslib.com manuals search engine 01-201


V.A.G 1551 print-
out Possible cause
Repair
00290
Left rear ABS
wheel speed
sensor -G46-
1)
Implausible
signal
Open circuit; short to ground or loose
contact in wiring between Left rear ABS
wheel speed sensor -G46- and ABS
control module (w/EDL) -J104- - Check wiring and
connections using wiring
diagram

- Perform electrical check
Page 01
-288
Electrical interferences from other sources
(high frequency radiation e.g. uninsulated
ignition cable) - Read measured value
block Page 01
-240
Display group number
001
1) This DTC is only recognized above 20 km/h (13 mph) (carry out test drive).
Стр. 43из 129 On Board Diagnostic (OBD), performing
