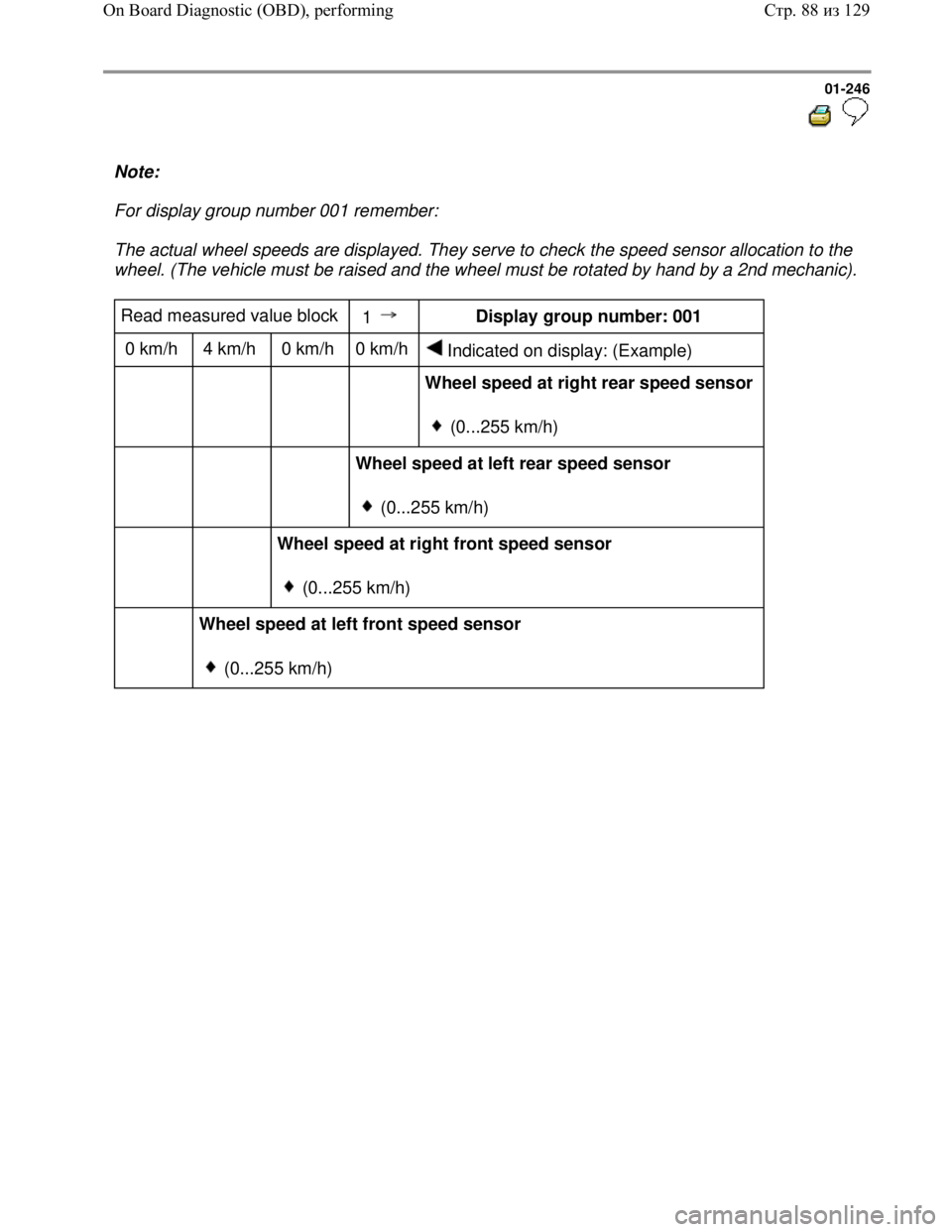

Note:
For display group number 001 remember:
The actual wheel speeds are displayed. They serve to check the speed sensor allocation to the
wheel. (The vehicle must be raised and the wheel must be rotated by hand by a 2nd mechanic).
Read measured value block
1 Display group number: 001
0 km/h 4 km/h 0 km/h 0 km/h
Indicated on display: (Example)

Wheel speed at right rear speed sensor
(0...255 km/h)

Wheel speed at left rear speed sensor

(0...255 km/h)

Wheel speed at right front speed sensor
(0...255 km/h)

Wheel speed at left front speed sensor

(0...255 km/h)
Стр. 88из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-247

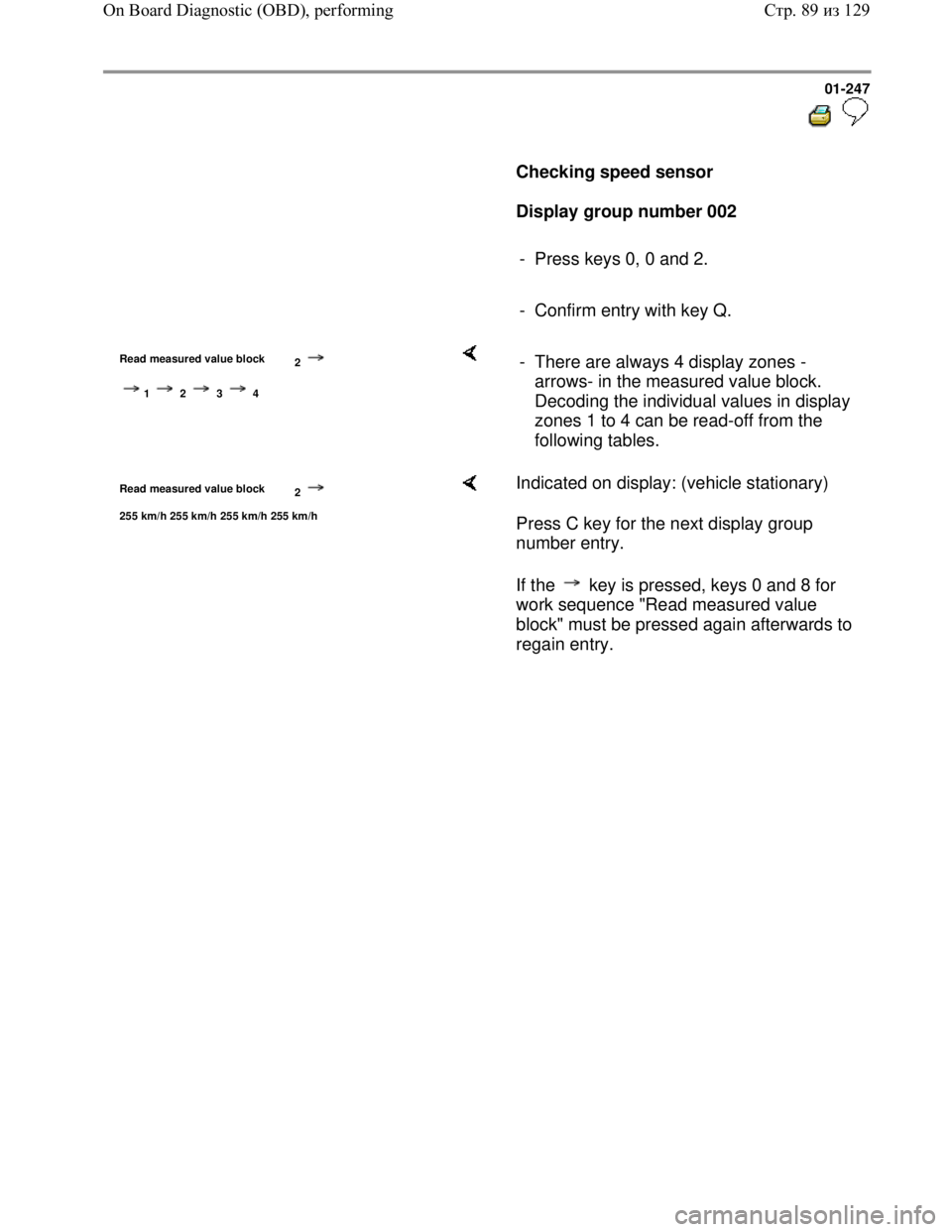

Checking speed sensor

Display group number 002

- Press keys 0, 0 and 2.

- Confirm entry with key Q.
Read measured value block
2
1 2 3 4
- There are always 4 display zones -
arrows- in the measured value block.
Decoding the individual values in display
zones 1 to 4 can be read-off from the
following tables.
Read measured value block
2
255 km/h 255 km/h 255 km/h 255 km/h
Indicated on display: (vehicle stationary)
Press C key for the next display group
number entry.
If the key is pressed, keys 0 and 8 for
work sequence "Read measured value
block" must be pressed again afterwards to
regain entry.
Стр. 89из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-248

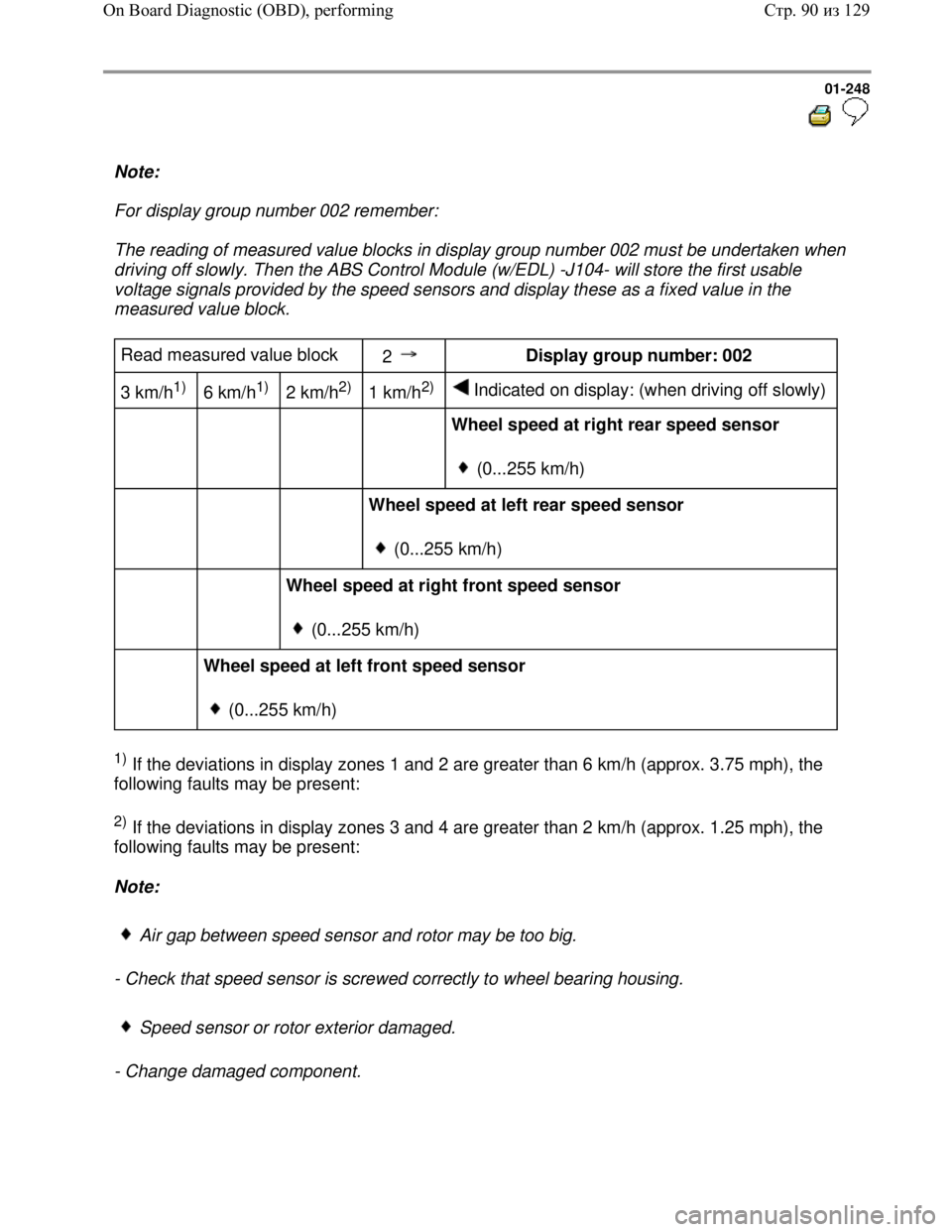

Note:
For display group number 002 remember:
The reading of measured value blocks in display group number 002 must be undertaken when
driving off slowly. Then the ABS Control Module (w/EDL) -J104- will store the first usable
voltage signals provided by the speed sensors and display these as a fixed value in the
measured value block.
Read measured value block
2 Display group number: 002
3 km/h
1)
6 km/h1)
2 km/h2)
1 km/h2)
Indicated on display: (when driving off slowly)

Wheel speed at right rear speed sensor
(0...255 km/h)

Wheel speed at left rear speed sensor

(0...255 km/h)

Wheel speed at right front speed sensor
(0...255 km/h)

Wheel speed at left front speed sensor

(0...255 km/h)
1) If the deviations in display zones 1 and 2 are greater than 6 km/h (approx. 3.75 mph), the
following faults may be present:
2) If the deviations in display zones 3 and 4 are greater than 2 km/h (approx. 1.25 mph), the
following faults may be present:
Note:

Air gap between speed sensor and rotor may be too big.
- Check that speed sensor is screwed correctly to wheel bearing housing.

Speed sensor or rotor exterior damaged.
- Change damaged component.
Стр. 90из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-251

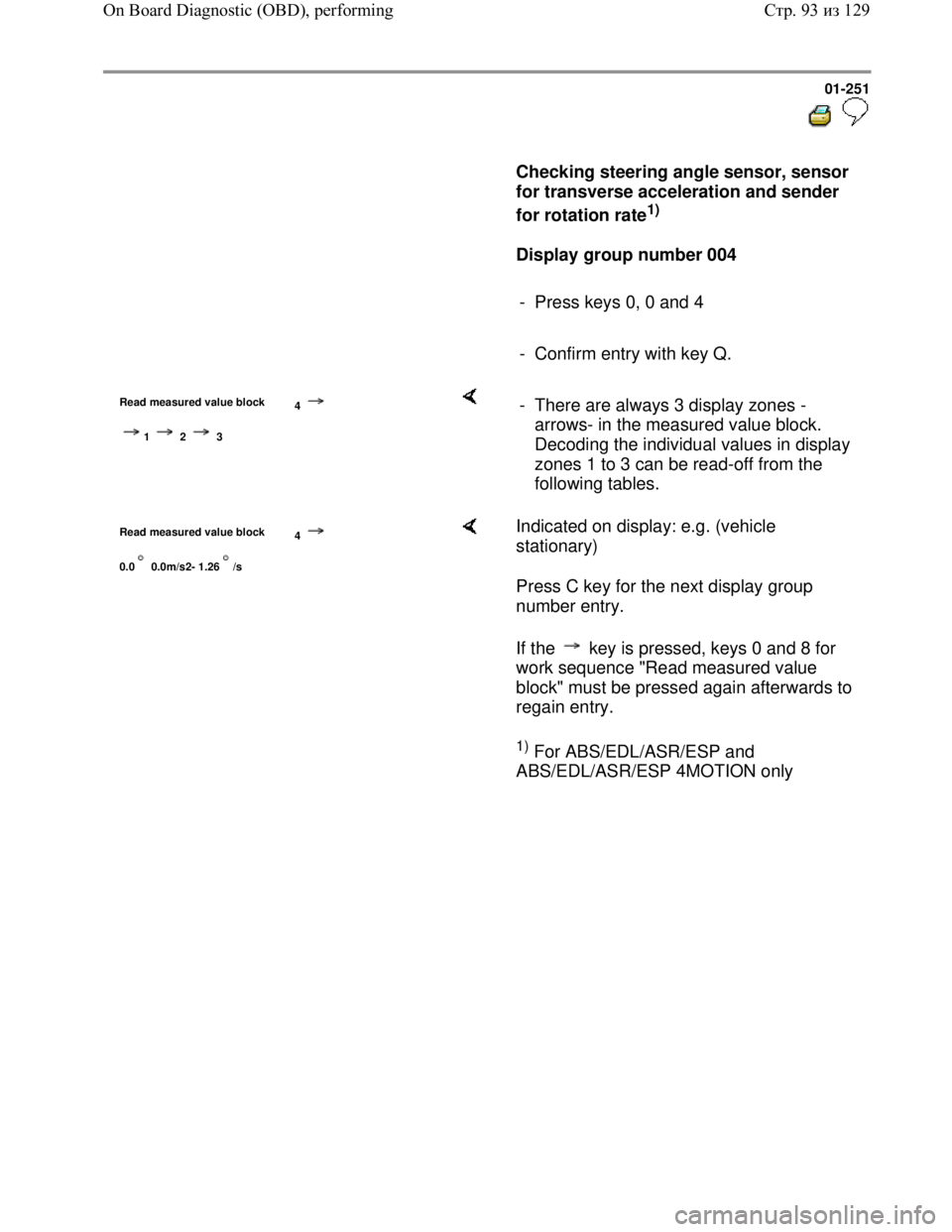

Checking steering angle sensor, sensor
for transverse acceleration and sender
for rotation rate
1)

Display group number 004

- Press keys 0, 0 and 4

- Confirm entry with key Q.
Read measured value block
4
1 2 3
- There are always 3 display zones -
arrows- in the measured value block.
Decoding the individual values in display
zones 1 to 3 can be read-off from the
following tables.
Read measured value block
4
0.0 0.0m/s2- 1.26/s
Indicated on display: e.g. (vehicle
stationary)
Press C key for the next display group
number entry.
If the key is pressed, keys 0 and 8 for
work sequence "Read measured value
block" must be pressed again afterwards to
regain entry.
1) For ABS/EDL/ASR/ESP and
ABS/EDL/ASR/ESP 4MOTION only
Стр. 93из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-252

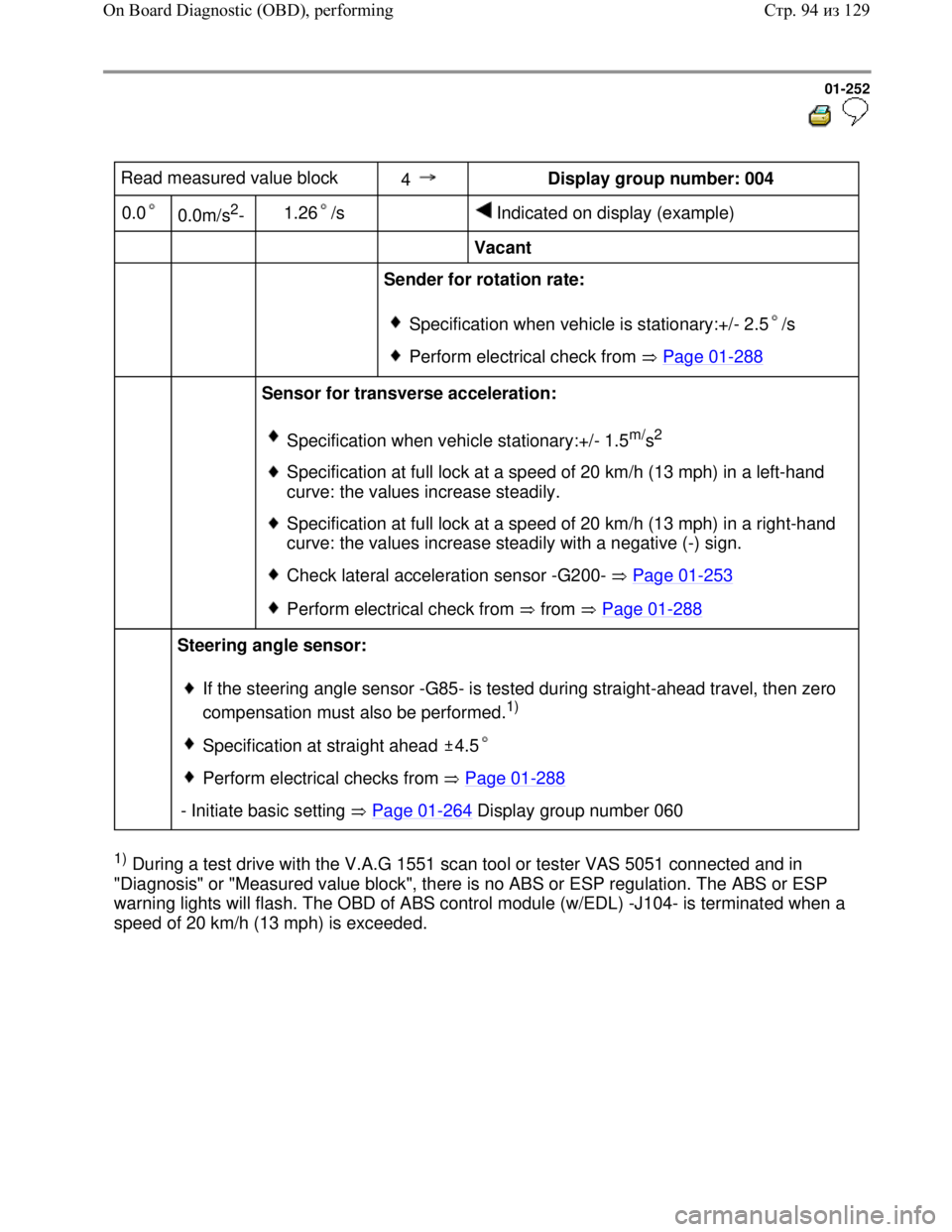

Read measured value block
4 Display group number: 004
0.0
0.0m/s2-
1.26 /s
Indicated on display (example)

Vacant

Sender for rotation rate:
Specification when vehicle is stationary:+/- 2.5 /s
Perform electrical check from Page 01-288

Sensor for transverse acceleration:

Specification when vehicle stationary:+/- 1.5m/s2

Specification at full lock at a speed of 20 km/h (13 mph) in a left-hand
curve: the values increase steadily.

Specification at full lock at a speed of 20 km/h (13 mph) in a right-hand
curve: the values increase steadily with a negative (-) sign.

Check lateral acceleration sensor -G200- Page 01-253
Perform electrical check from from Page 01-288

Steering angle sensor:

If the steering angle sensor -G85- is tested during straight-ahead travel, then zero
compensation must also be performed.
1)

Specification at straight ahead 4.5
Perform electrical checks from Page 01-288
- Initiate basic setting Page 01-264 Display group number 060
1) During a test drive with the V.A.G 1551 scan tool or tester VAS 5051 connected and in
"Diagnosis" or "Measured value block", there is no ABS or ESP regulation. The ABS or ESP
warning lights will flash. The OBD of ABS control module (w/EDL) -J104- is terminated when a
speed of 20 km/h (13 mph) is exceeded.
Стр. 94из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-253

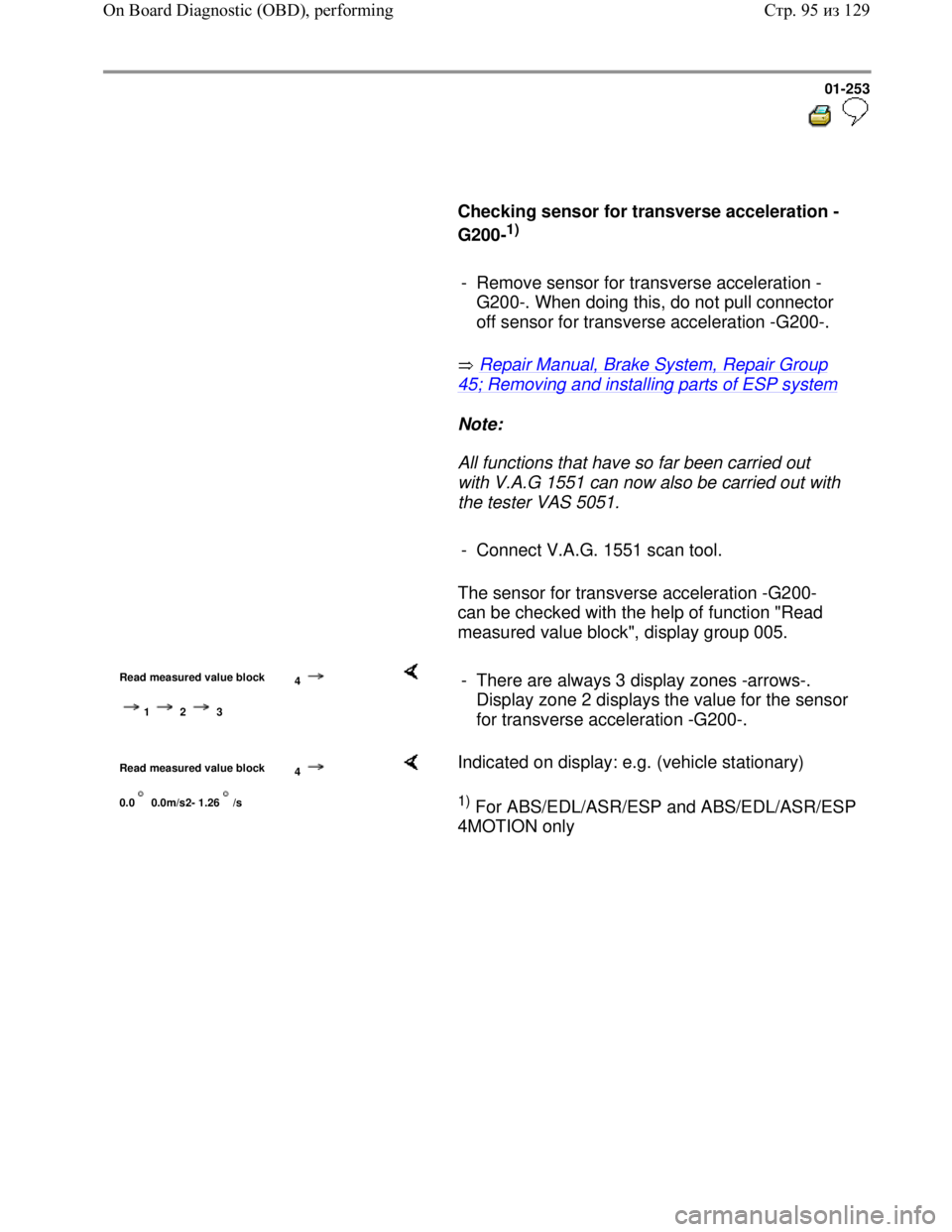

Checking sensor for transverse acceleration -
G200-
1)

- Remove sensor for transverse acceleration -
G200-. When doing this, do not pull connector
off sensor for transverse acceleration -G200-.
Repair Manual, Brake System, Repair Group
45; Removing and installing parts of ESP system

Note:
All functions that have so far been carried out
with V.A.G 1551 can now also be carried out with
the tester VAS 5051.

- Connect V.A.G. 1551 scan tool.
The sensor for transverse acceleration -G200-
can be checked with the help of function "Read
measured value block", display group 005.
Read measured value block
4
1 2 3
- There are always 3 display zones -arrows-.
Display zone 2 displays the value for the sensor
for transverse acceleration -G200-.
Read measured value block
4
0.0 0.0m/s2- 1.26/s
Indicated on display: e.g. (vehicle stationary)
1) For ABS/EDL/ASR/ESP and ABS/EDL/ASR/ESP
4MOTION only
Стр. 95из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-255

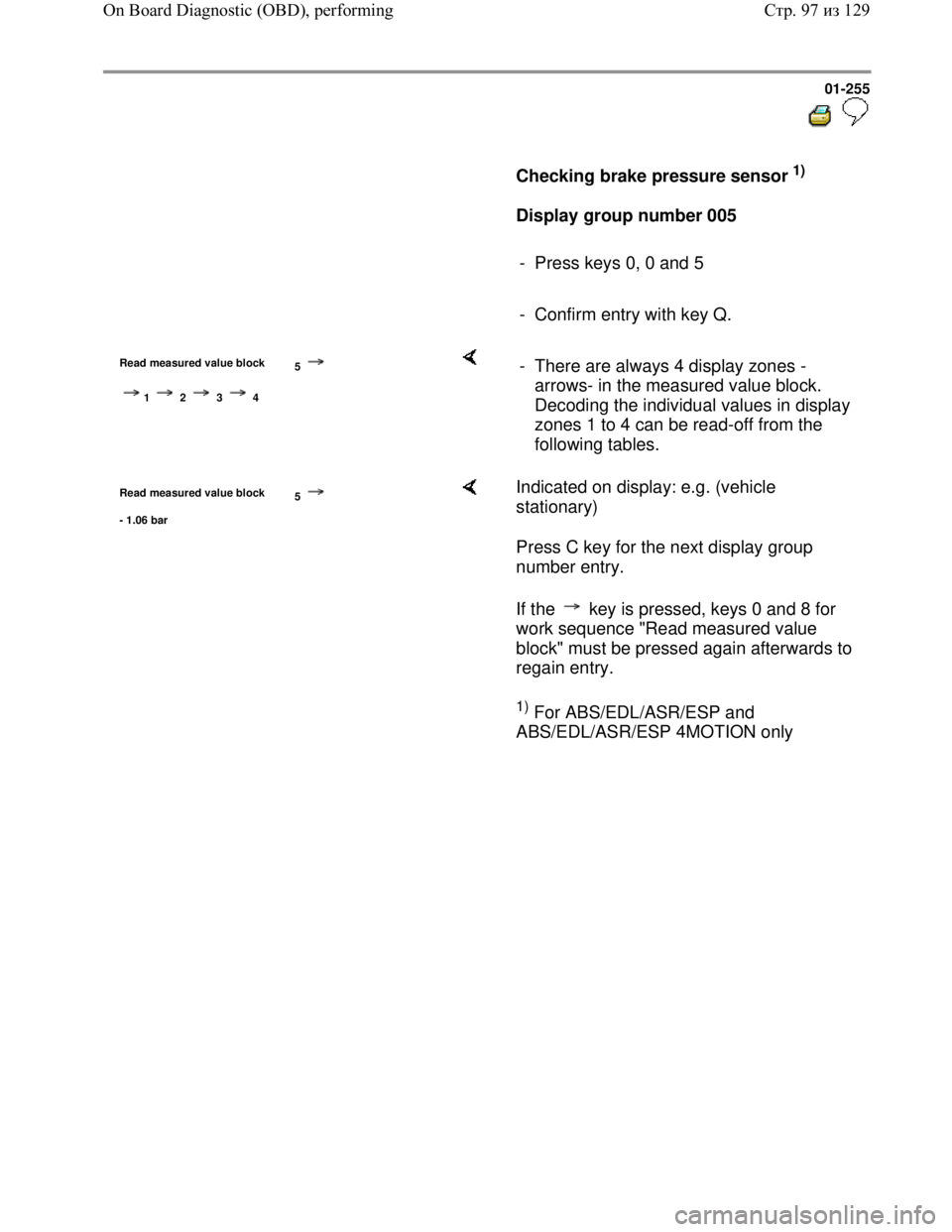

Checking brake pressure sensor 1)

Display group number 005

- Press keys 0, 0 and 5

- Confirm entry with key Q.
Read measured value block
5
1 2 3 4
- There are always 4 display zones -
arrows- in the measured value block.
Decoding the individual values in display
zones 1 to 4 can be read-off from the
following tables.
Read measured value block
5
- 1.06 bar
Indicated on display: e.g. (vehicle
stationary)
Press C key for the next display group
number entry.
If the key is pressed, keys 0 and 8 for
work sequence "Read measured value
block" must be pressed again afterwards to
regain entry.
1) For ABS/EDL/ASR/ESP and
ABS/EDL/ASR/ESP 4MOTION only
Стр. 97из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-256

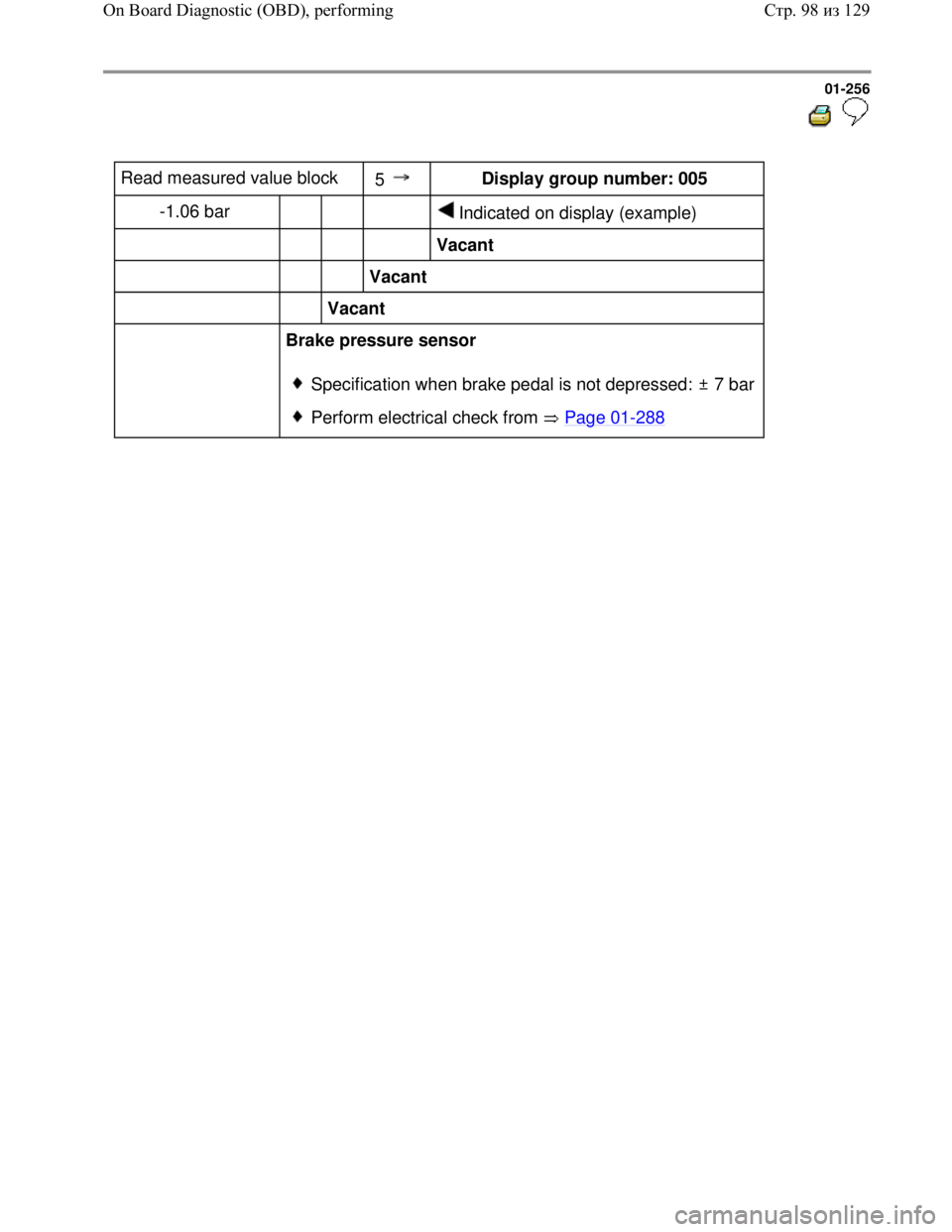

Read measured value block
5 Display group number: 005
-1.06 bar
Indicated on display (example)

Vacant

Vacant

Vacant

Brake pressure sensor
Specification when brake pedal is not depressed: 7 bar
Perform electrical check from Page 01-288
Стр. 98из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-257

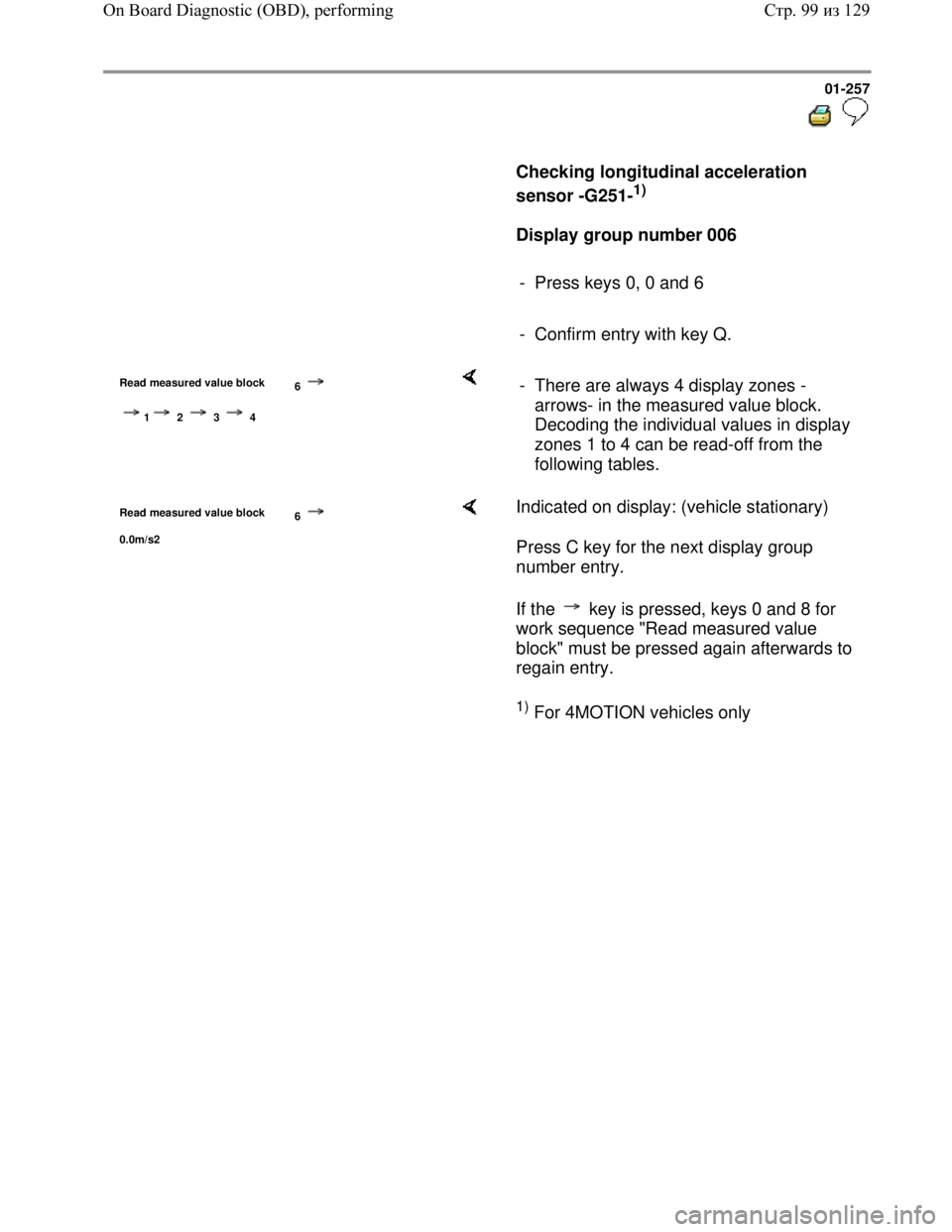

Checking longitudinal acceleration
sensor -G251-
1)

Display group number 006

- Press keys 0, 0 and 6

- Confirm entry with key Q.
Read measured value block
6
1 2 3 4
- There are always 4 display zones -
arrows- in the measured value block.
Decoding the individual values in display
zones 1 to 4 can be read-off from the
following tables.
Read measured value block
6
0.0m/s2
Indicated on display: (vehicle stationary)
Press C key for the next display group
number entry.
If the key is pressed, keys 0 and 8 for
work sequence "Read measured value
block" must be pressed again afterwards to
regain entry.
1) For 4MOTION vehicles only
Стр. 99из 129 On Board Diagnostic (OBD), performing

Downloaded from www.Manualslib.com manuals search engine 01-258

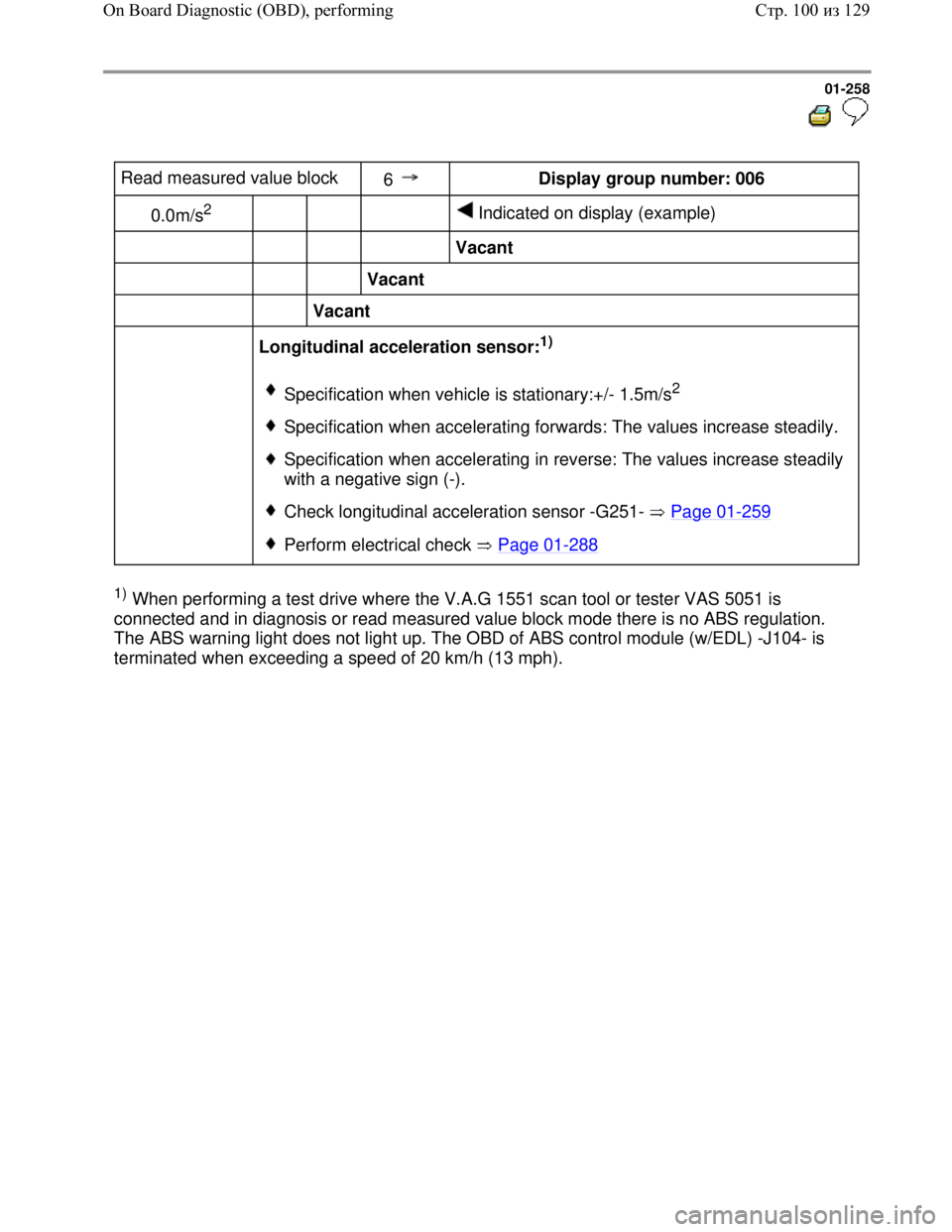

Read measured value block
6 Display group number: 006
0.0m/s
2

Indicated on display (example)

Vacant

Vacant

Vacant

Longitudinal acceleration sensor:
1)

Specification when vehicle is stationary:+/- 1.5m/s2

Specification when accelerating forwards: The values increase steadily.

Specification when accelerating in reverse: The values increase steadily
with a negative sign (-).

Check longitudinal acceleration sensor -G251- Page 01-259
Perform electrical check Page 01-288
1) When performing a test drive where the V.A.G 1551 scan tool or tester VAS 5051 is
connected and in diagnosis or read measured value block mode there is no ABS regulation.
The ABS warning light does not light up. The OBD of ABS control module (w/EDL) -J104- is
terminated when exceeding a speed of 20 km/h (13 mph).
Стр. 100из 129 On Board Diagnostic (OBD), performing
