ABS ITT Mark 20 IE On Board
Diagnostic (OBD)
Function
Since the control modules are interconnected
with CAN-bus, always begin OBD by checking
the Diagnostic Trouble Code (DTC) memories
of all the control modules in the vehicle.
This occurs in the Automatic test sequence and
is activated with key function 00.
When doing this, check to see if there are
DTCs stored which may influence the ABS.
On Board Diagnostic (OBD) relates to the
electrical/electronic part of the ABS, i.e. only
malfunctions via the electrical connection to the
control module are recognized (e.g. speed
sensor open circuit).
The 25-pin ABS Control Module (w/EDL) -J104-
forms with the hydraulic unit a compact unit.
The unit is located on the left in the engine
compartment. The control module is equipped
with a DTC memory. The diagnostic connection
is located in the center console below the
heating/air conditioning controls.
The control module recognizes malfunctions
during vehicle operation and stores them in a
permanent memory, the contents of which
remain even during periods of no battery
voltage.
Стр. 1из 8 ABS ITT Mark 20 IE On Board Diagnostic (OBD)

Downloaded from www.Manualslib.com manuals search engine 01-13

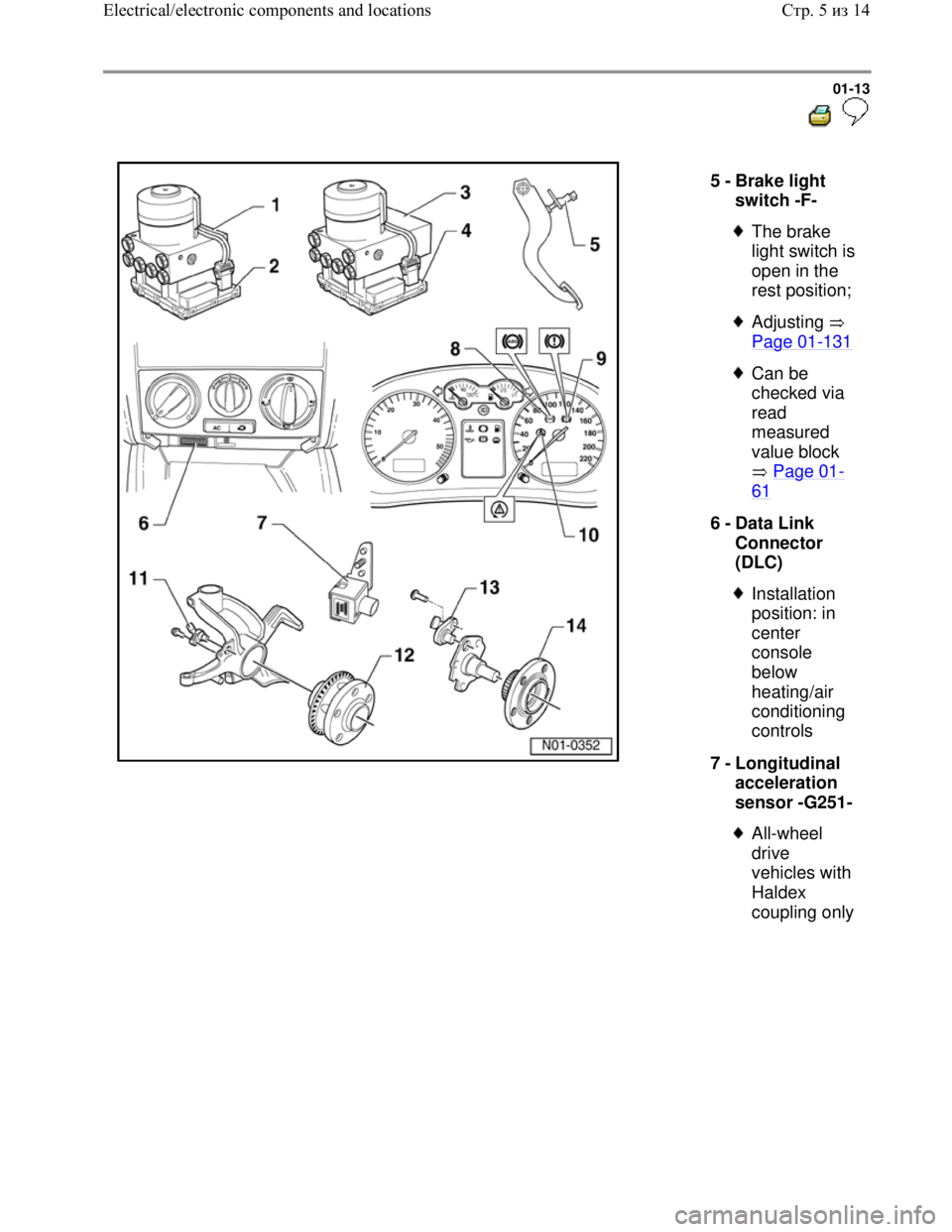

5 -
Brake light
switch -F-

The brake
light switch is
open in the
rest position;

Adjusting
Page 01
-131
Can be
checked via
read
measured
value block
Page 01
-
61
6 -
Data Link
Connector
(DLC)

Installation
position: in
center
console
below
heating/air
conditioning
controls
7 -
Longitudinal
acceleration
sensor -G251-

All-wheel
drive
vehicles with
Haldex
coupling only
Стр. 5из 14 Electrical/electronic components and locations

Downloaded from www.Manualslib.com manuals search engine 01-134


Function
As the control modules are interconnected with
a data bus wire, always start troubleshooting by
the Diagnostic Trouble Code (DTC) memories
of all the control modules in the vehicle.
This occurs in "Automatic test sequence" and is
activated with key function 00.
When doing this, check to see if there are
DTCs stored which may influence the ABS.
The On Board Diagnostic (OBD) relates to the
electrical/electronic part of the ABS, in other
words only malfunctions via the electrical
connection to the control module are
recognized (e.g. speed sensor open circuit).
The 47 pin ABS Control Module (w/EDL) -J104-
forms with the hydraulic unit a compact unit.
The unit is located on the left of the engine
compartment. The control module is equipped
with a DTC memory. The Data Link Connector
(DLC) is located in the center console below
the heating/air conditioning controls.
The control module recognizes malfunctions
during vehicle operation and stores them in a
permanent memory, the contents of which
remain even during periods of no battery
voltage.
Стр. 2из 10 ABS Mark 60 On Board Diagnostic (OBD), vehicles from my 10.00

Downloaded from www.Manualslib.com manuals search engine 01-152

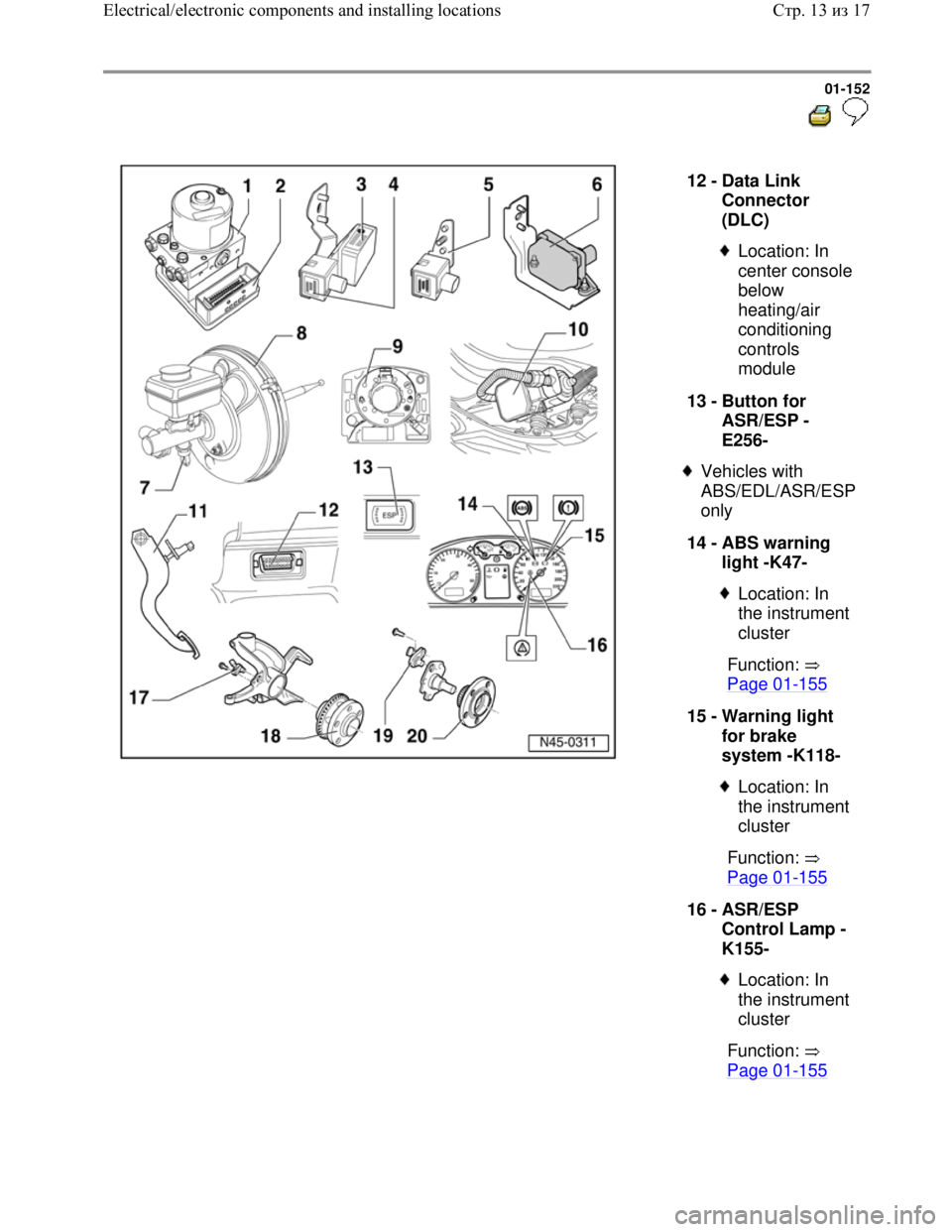

12 -
Data Link
Connector
(DLC)

Location: In
center console
below
heating/air
conditioning
controls
module
13 -
Button for
ASR/ESP -
E256-

Vehicles with
ABS/EDL/ASR/ESP
only
14 -
ABS warning
light -K47-

Location: In
the instrument
cluster
Function:
Page 01
-155
15 -
Warning light
for brake
system -K118-

Location: In
the instrument
cluster
Function:
Page 01
-155
16 -
ASR/ESP
Control Lamp -
K155-

Location: In
the instrument
cluster
Function:
Page 01
-155
