VOLKSWAGEN JETTA HYBRID 2015 1B / 6.G Quick Start Guide

2015
Jetta Hybrid Quick-Start Guide
European model shown.

Hybrid Functions and FeaturesBluetooth
® Technology
Premium VIII AudioRNS 315 Audio and NavigationWindshield WipersSetting the ClockCruise ControlKeyless EntryTire Pressure Monitoring System (TPMS)Volkswagen Car- Net
®
Additional ResourcesTable of Contents
113171921222325262729

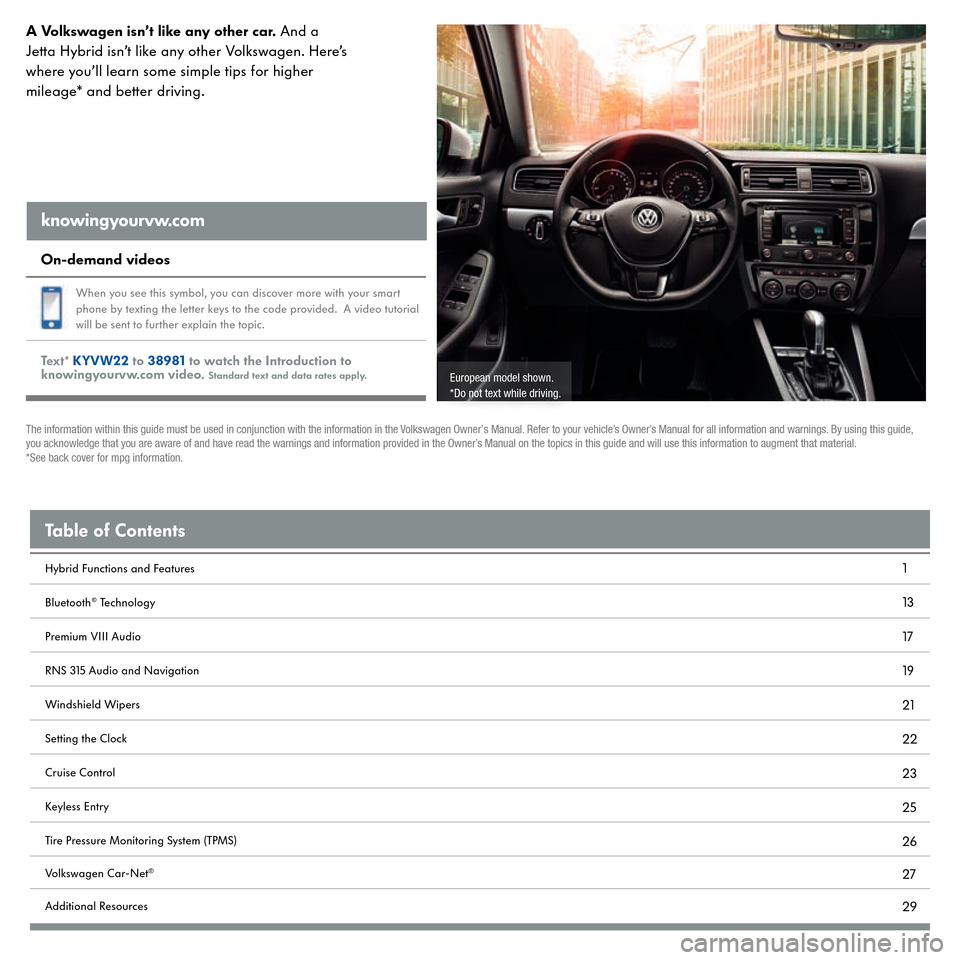

A Volkswagen isn’t like any other car.
And a
Jetta Hybrid isn’t like any other Volkswagen. Here’s where you’ll learn some simple tips for higher mileage* and better driving. knowingyourvw.com On-demand videos
When you see this symbol, you can discover more with your smart phone by texting the letter keys to the code provided. A video tutorial will be sent to further explain the topic.
Text
* KYVW22
to
38981
to watch the Introduction to
knowingyourvw.com video.
Standard text and data rates apply.
The information within this guide must be used in conjunction with the information in the Volkswagen Owner’s Manual. Refer to your vehicle’s Owner’s Manual for all information and warnings. By using this guide, you acknowledge that you are aware of and have read the warnings and information provided in the Owner’s Manual on the topics in this guide and will use this information to augment that material.*See back cover for mpg information.
European model shown.*Do not text while driving.

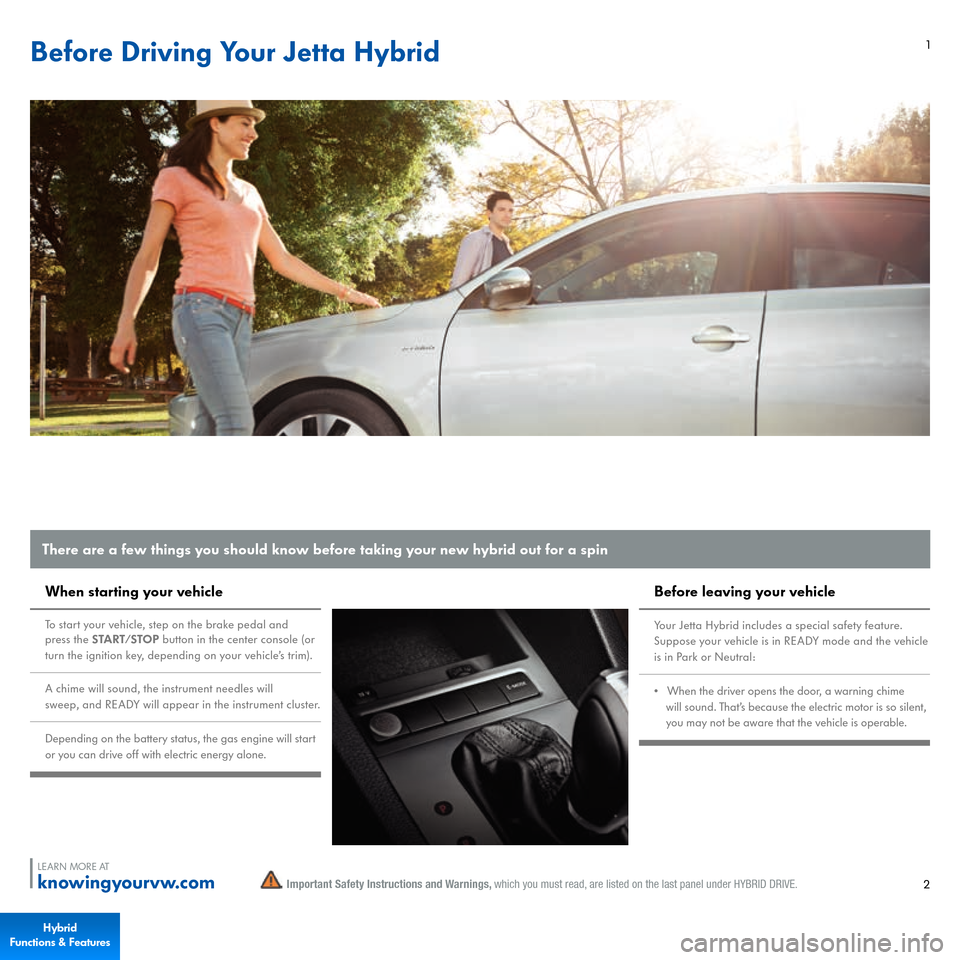

Before Driving Your Jetta Hybrid
12
LEARN MORE ATknowingyourvw.com
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under HYBRID DRIVE.
There are a few things you should know before taking your new hybrid out for a spin
Before leaving your vehicleYour Jetta Hybrid includes a special safety feature. Suppose your vehicle is in READY mode and the vehicle is in Park or Neutral:N


,74=
C74
3A8E4A
>?4=B
C74
3>>A
0
F0A=8=6
278<4
will sound. That’s because the electric motor is so silent, you may not be aware that the vehicle is operable.
When starting your vehicleTo start your vehicle, step on the brake pedal and press the
START/STOP
button in the center console (or
turn the ignition key, depending on your vehicle’s trim).A chime will sound, the instrument needles will sweep, and READY will appear in the instrument cluster. Depending on the battery status, the gas engine will start or you can drive off with electric energy alone.Hybrid
Functions & Features

3
Energy flow diagram

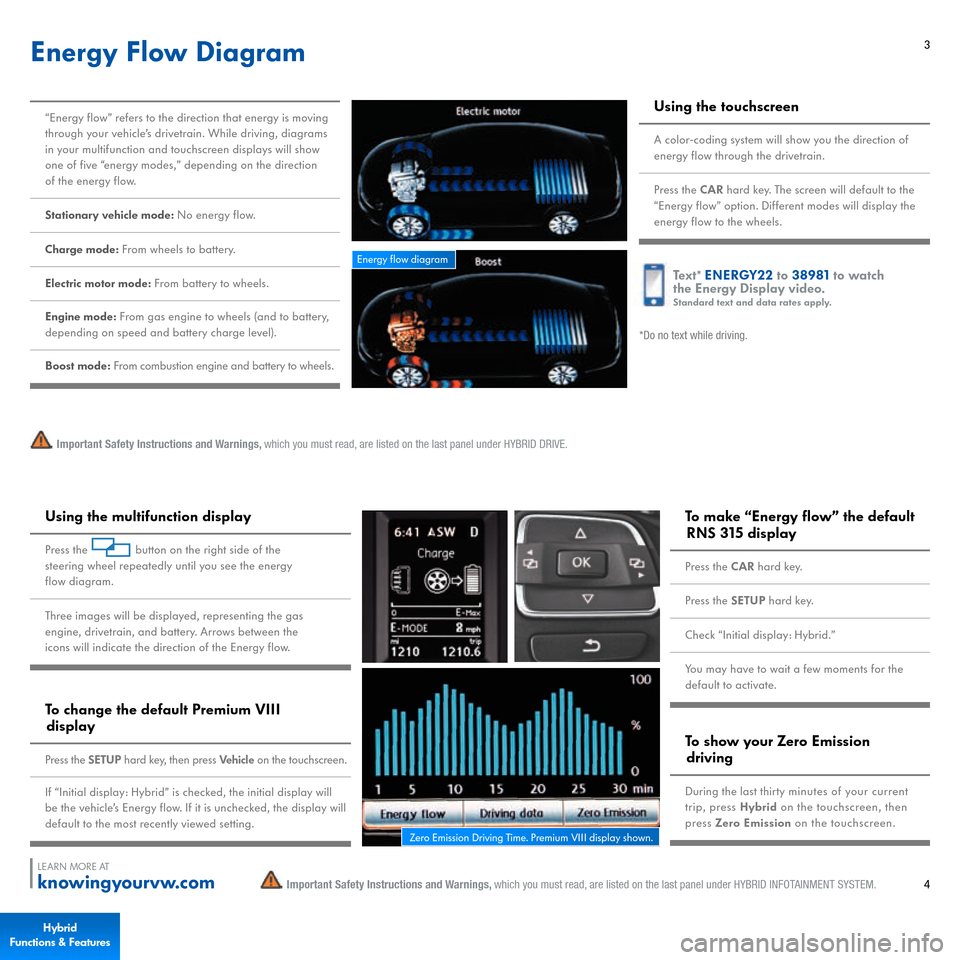

Energy Flow Diagram
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under HYBRID DRIVE.
“Energy flow” refers to the direction that energy is moving through your vehicle’s drivetrain. While driving, diagrams in your multifunction and touchscreen displays will show one of five “energy modes,” depending on the direction of the energy flow. Stationary vehicle mode:
No energy flow.
Charge mode:
From wheels to battery.
Electric motor mode:
From battery to wheels.
Engine mode:
From gas engine to wheels (and to battery,
depending on speed and battery charge level). Boost mode:
From combustion engine and battery to wheels.
Using the touchscreenA color-coding system will show you the direction of energy flow through the drivetrain.Press the
CAR
hard key. The screen will default to the
“Energy flow” option. Different modes will display the energy flow to the wheels.
Text
* ENERGY22
to
38981
to watch
the Energy Display video.Standard text and data rates apply.
*Do no text while driving.
4
LEARN MORE ATknowingyourvw.com
To show your Zero Emission drivingDuring the last thirty minutes of your current trip, press
Hybrid
on the touchscreen, then
press
Zero Emission
on the touchscreen.
Using the multifunction displayPress the

button on the right side of the
steering wheel repeatedly until you see the energy flow diagram.Three images will be displayed, representing the gas engine, drivetrain, and battery. Arrows between the icons will indicate the direction of the Energy flow.To change the default Premium VIII displayPress the
SETUP
hard key, then press
Ve h i c l e
on the touchscreen.
If “Initial display: Hybrid” is checked, the initial display will be the vehicle’s Energy flow. If it is unchecked, the display will default to the most recently viewed setting.
To make “Energy flow” the default RNS 315 displayPress the
CAR
hard key.
Press the
SETUP
hard key.
Check “Initial display: Hybrid.”You may have to wait a few moments for the default to activate.
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under HYBRID INFOTAINMENT SYSTEM.
Zero Emission Driving Time. Premium VI I I display shown.
Hybrid
Functions & Features

5

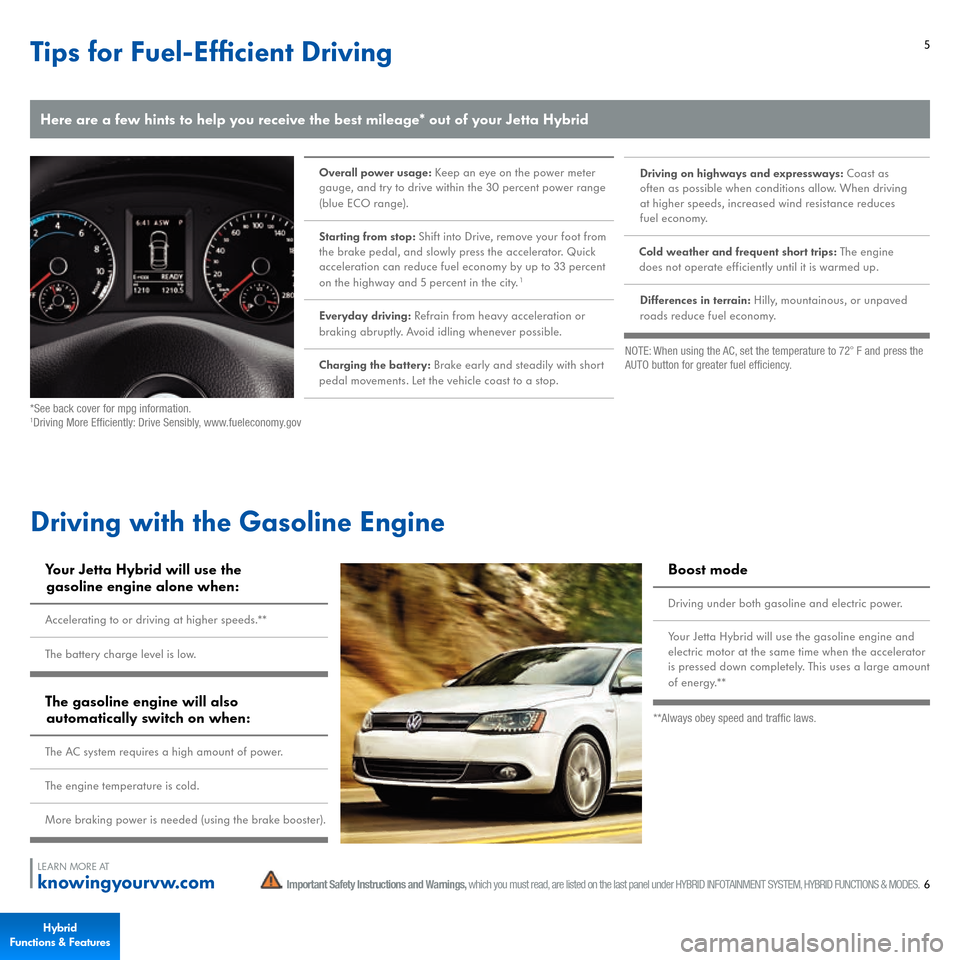

Here are a few hints to help you receive the best mileage* out of your Jetta HybridTips for Fuel-Efficient Driving
Overall power usage:
Keep an eye on the power meter
gauge, and try to drive within the 30 percent power range (blue ECO range).Starting from stop:
Shift into Drive, remove your foot from
the brake pedal, and slowly press the accelerator. Quick acceleration can reduce fuel economy by up to 33 percent on the highway and 5 percent in the city.
1
Everyday driving:
Refrain from heavy acceleration or
braking abruptly. Avoid idling whenever possible.Charging the battery:
Brake early and steadily with short
pedal movements. Let the vehicle coast to a stop.
*See back cover for mpg information.1Driving More Efficiently: Drive Sensibly, www.fueleconomy.gov
Driving on highways and expressways:
Coast as
often as possible when conditions allow. When driving at higher speeds, increased wind resistance reduces fuel economy.Cold weather and frequent short trips:
The engine
does not operate efficiently until it is warmed up. Differences in terrain:
Hilly, mountainous, or unpaved
roads reduce fuel economy.NOTE: When using the AC, set the temperature to 72
o F and press the
AUTO button for greater fuel efficiency.
6
LEARN MORE ATknowingyourvw.comDriving with the Gasoline EngineYour Jetta Hybrid will use the gasoline engine alone when:Accelerating to or driving at higher speeds.**The battery charge level is low.The gasoline engine will also automatically switch on when:The AC system requires a high amount of power.The engine temperature is cold.More braking power is needed (using the brake booster).
Boost modeDriving under both gasoline and electric power.Your Jetta Hybrid will use the gasoline engine and electric motor at the same time when the accelerator is pressed down completely. This uses a large amount of energy.****Always obey speed and traffic laws.
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under HYBRID INFOTAINMENT SYSTEM, HYBRID FUNCTIONS & MODES.
Hybrid
Functions & Features

7

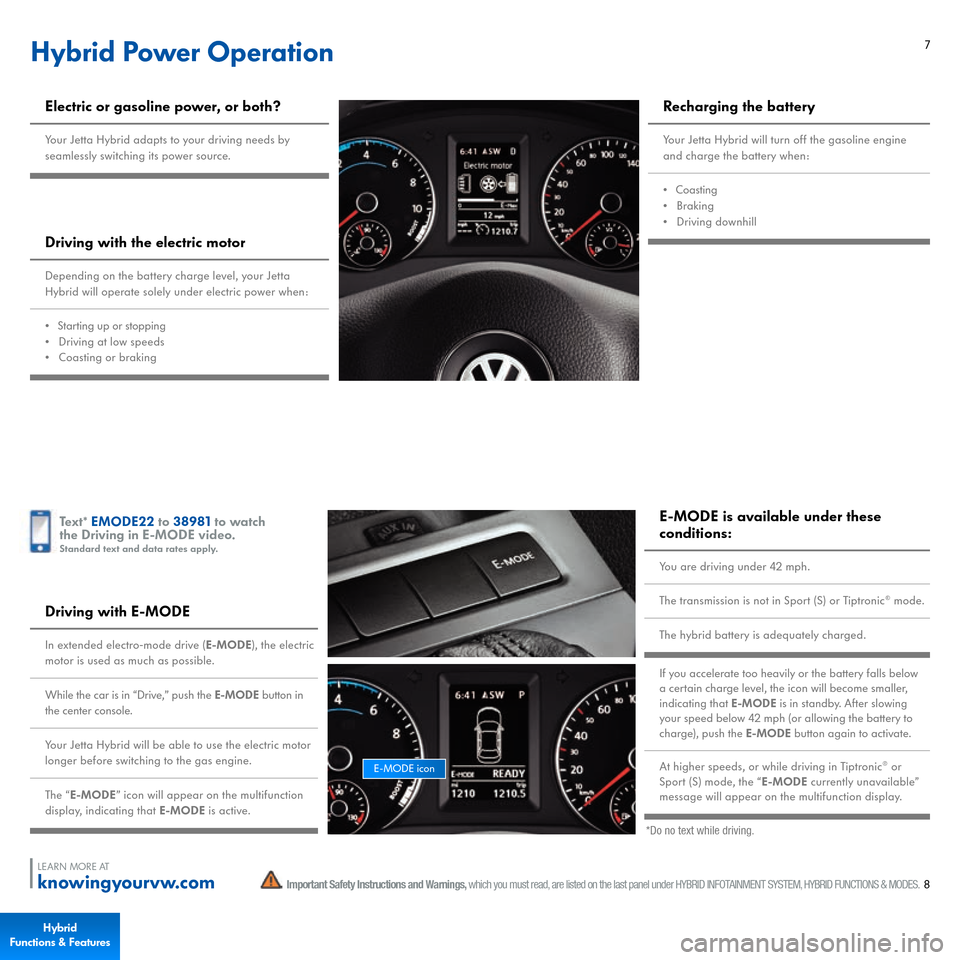

Hybrid Power OperationElectric or gasoline power, or both?Your Jetta Hybrid adapts to your driving needs by seamlessly switching its power source.Driving with the electric motorDepending on the battery charge level, your Jetta Hybrid will operate solely under electric power when:N


(C0AC8=6
D?
>A
BC>??8=6N


A8E8=6
0C
;>F
B?443BN


>0BC8=6
>A
1A0:8=6
Recharging the batteryYour Jetta Hybrid will turn off the gasoline engineand charge the battery when:N


>0BC8=6N


A0:8=6N


A8E8=6
3>F=78;;
8
LEARN MORE ATknowingyourvw.comDriving with E-MODEIn extended electro-mode drive (
E-MODE
), the electric
motor is used as much as possible.While the car is in “Drive,” push the
E-MODE
button in
the center console.Your Jetta Hybrid will be able to use the electric motor longer before switching to the gas engine.The “
E-MODE
” icon will appear on the multifunction
display, indicating that
E-MODE
is active.
E-MODE is available under these conditions:You are driving under 42 mph.The transmission is not in Sport (S) or Tiptronic
® mode.
The hybrid battery is adequately charged.If you accelerate too heavily or the battery falls below a certain charge level, the icon will become smaller, indicating that
E-MODE
is in standby. After slowing
your speed below 42 mph (or allowing the battery to charge), push the
E-MODE
button again to activate.
At higher speeds, or while driving in Tiptronic
® or
Sport (S) mode, the “
E-MODE
currently unavailable”
message will appear on the multifunction display.
Text
* EMODE22
to
38981
to watch
the Driving in E-MODE video.Standard text and data rates apply.
*Do no text while driving.
E-MODE icon
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under HYBRID INFOTAINMENT SYSTEM, HYBRID FUNCTIONS & MODES.
Hybrid
Functions & Features

9

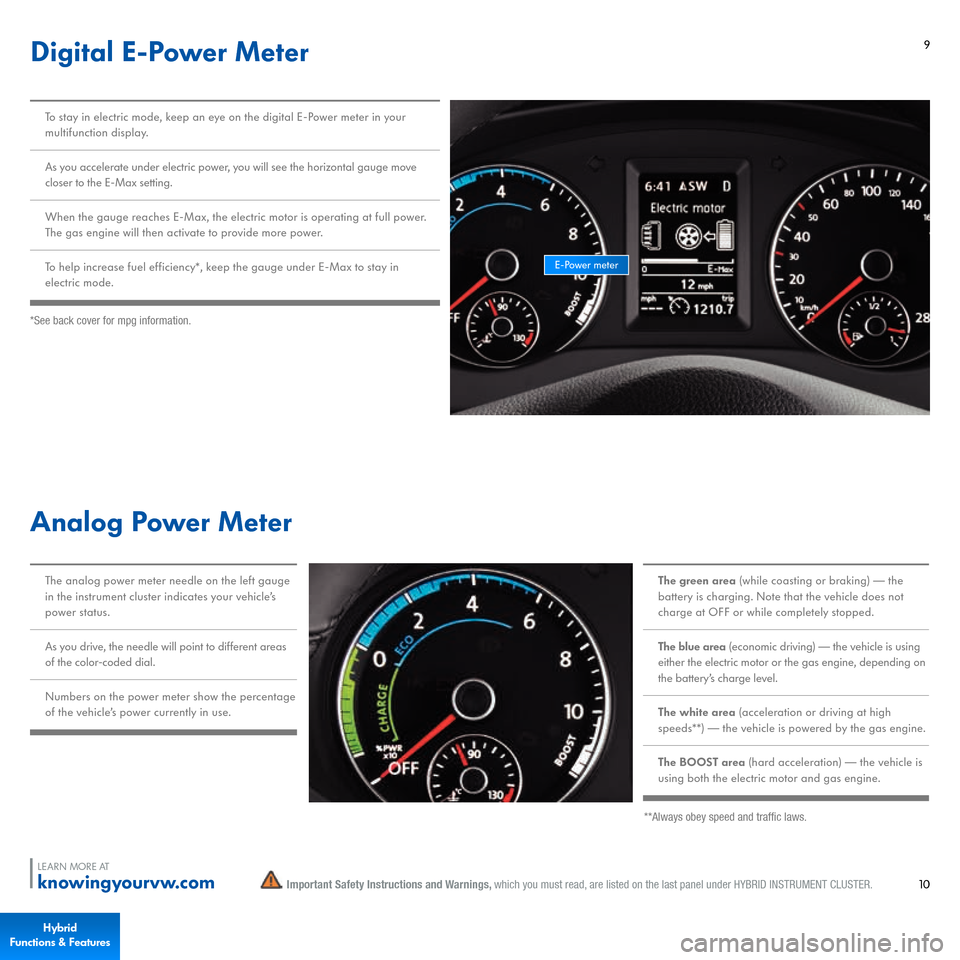

Digital E-Power MeterTo stay in electric mode, keep an eye on the digital E- Power meter in your multifunction display.As you accelerate under electric power, you will see the horizontal gauge move closer to the E-Max setting.When the gauge reaches E-Max, the electric motor is operating at full power. The gas engine will then activate to provide more power.To help increase fuel efficiency*, keep the gauge under E-Max to stay in electric mode.*See back cover for mpg information.
E-Power meter
10
LEARN MORE ATknowingyourvw.comAnalog Power MeterThe analog power meter needle on the left gauge in the instrument cluster indicates your vehicle’s power status.As you drive, the needle will point to different areas of the color-coded dial.Numbers on the power meter show the percentage of the vehicle’s power currently in use.
The green area
(while coasting or braking) — the
battery is charging. Note that the vehicle does not charge at OFF or while completely stopped.The blue area
(economic driving) — the vehicle is using
either the electric motor or the gas engine, depending on the battery’s charge level.The white area
(acceleration or driving at high
speeds**) — the vehicle is powered by the gas engine.The BOOST area
(hard acceleration) — the vehicle is
using both the electric motor and gas engine.**Always obey speed and traffic laws.
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under HYBRID INSTRUMENT CLUSTER.
Hybrid
Functions & Features

11

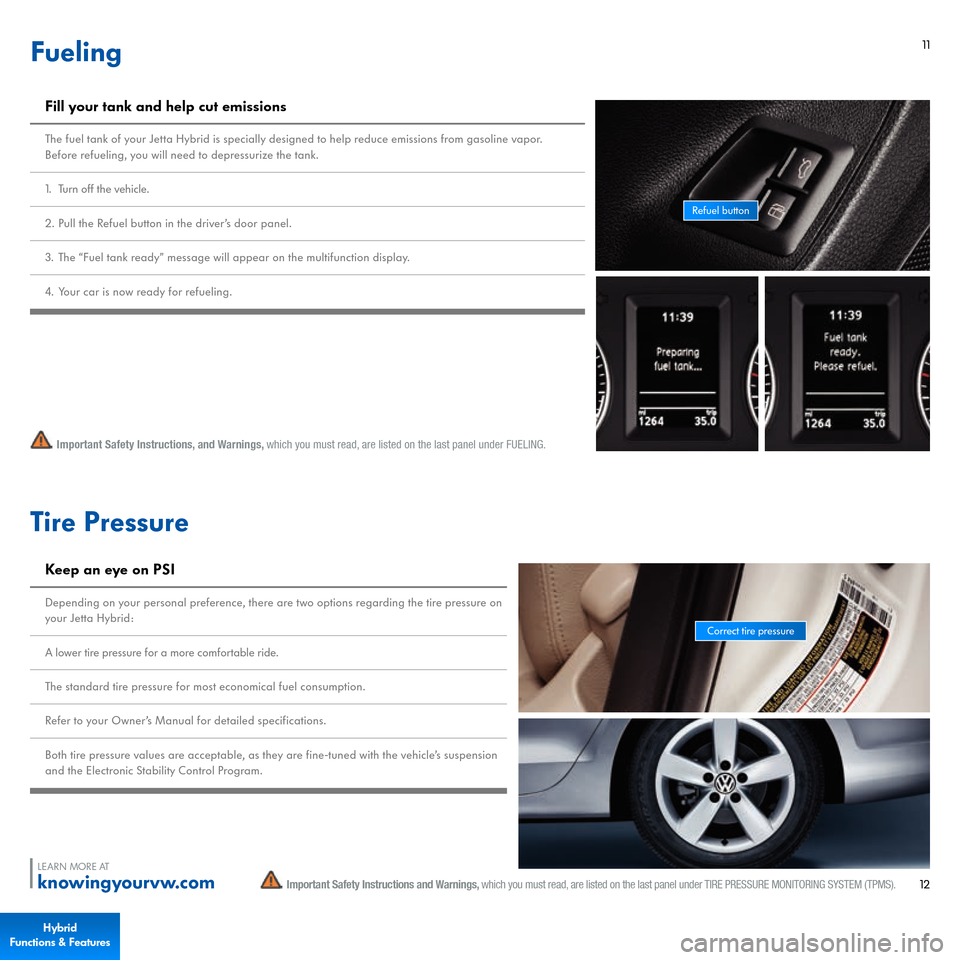

Fueling
Important Safety Instructions, and Warnings,
which you must read, are listed on the last panel under FUELING.
Fill your tank and help cut emissionsThe fuel tank of your Jetta Hybrid is specially designed to help reduce emissions from gasoline vapor. Before refueling, you will need to depressurize the tank. 1. Tu r n o f f t h e v e h i c l e .2. Pull the Refuel button in the driver’s door panel.3. The “Fuel tank ready” message will appear on the multifunction display.4. Your car is now ready for refueling.
Refuel button
12
LEARN MORE ATknowingyourvw.comTire PressureKeep an eye on PSIDepending on your personal preference, there are two options regarding the tire pressure on your Jetta Hybrid: A lower tire pressure for a more comfortable ride.The standard tire pressure for most economical fuel consumption.Refer to your Owner’s Manual for detailed specifications.Both tire pressure values are acceptable, as they are fine-tuned with the vehicle’s suspension and the Electronic Stability Control Program.
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under TIRE PRESSURE MONITORING SYSTEM (TPMS).
Correct tire pressure
Hybrid
Functions & Features

13

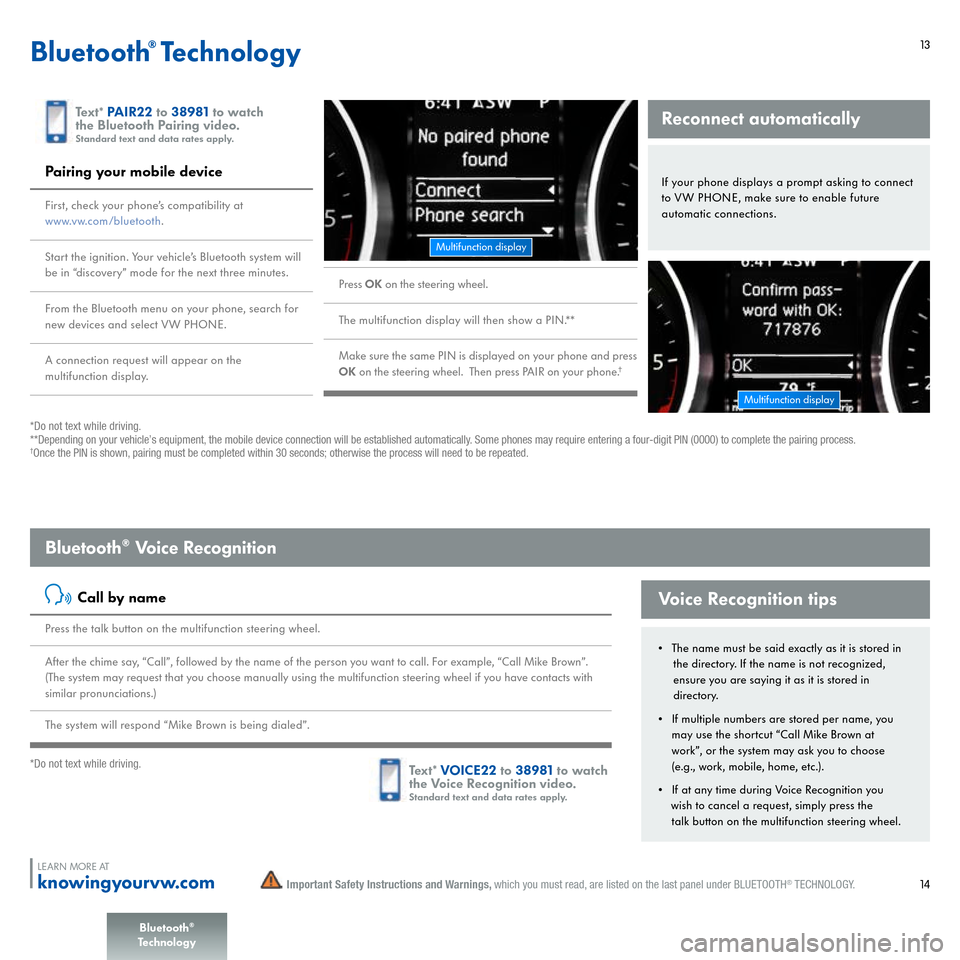

Reconnect automatically
*Do not text while driving.**Depending on your vehicle’s equipment, the mobile device connection will be established automatically. Some phones may require entering a four-digit PIN (0000) to complete the pairing process. †Once the PIN is shown, pairing must be completed within 30 seconds; otherwise the process will need to be repeated.Bluetooth
® Technology
Press
OK
on the steering wheel.
The multifunction display will then show a PIN.**Make sure the same PIN is displayed on your phone and press OK
on the steering wheel. Then press PAIR on your phone.
†
Reconnect automaticallyIf your phone displays a prompt asking to connect to VW PHON E, make sure to enable future automatic connections.
Pairing your mobile deviceFirst, check your phone’s compatibility at www.vw.com/bluetooth
.
Start the ignition. Your vehicle’s Bluetooth system will be in “discovery” mode for the next three minutes.From the Bluetooth menu on your phone, search for new devices and select VW PHONE.A connection request will appear on the multifunction display.
Text
* PAIR22
to 38981
to watch
the Bluetooth Pairing video.Standard text and data rates apply.
Multifunction display
Multifunction display
14
Text
* VOICE22
to
38981
to watch
the Voice Recognition video.Standard text and data rates apply.
Call by name
Press the talk button on the multifunction steering wheel.After the chime say, “Call”, followed by the name of the person you want to call. For example, “Call Mike Brown”. (The
system may request that you choose manually using the multifunction steering wheel if you have contacts with
similar pronunciations.)The system will respond “Mike Brown is being dialed”.*Do not text while driving.
N


The name must be said exactly as it is stored in the directory. If the name is not recognized, ensure you are saying it as it is stored in directory.N If multiple numbers are stored per name, youmay use the shortcut “Call Mike Brown at work”, or the system may ask you to choose(e.g., work, mobile, home, etc.).N If at any time during Voice Recognition you wish to cancel a request, simply press thetalk button on the multifunction steering wheel.Voice Recognition tips
Bluetooth
® Voice Recognition
LEARN MORE ATknowingyourvw.com
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under BLUETOOTH
® TECHNOLOGY.
Bluetooth
®
Technology

15

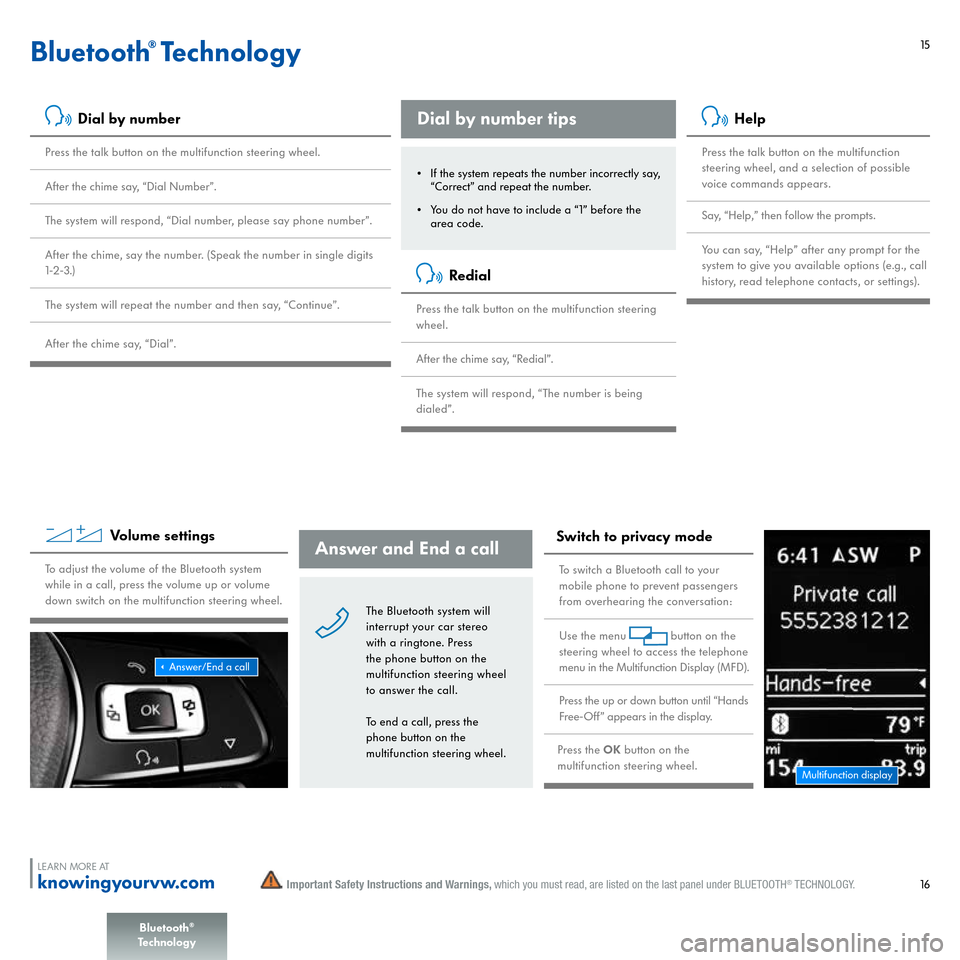

Dial by number
Press the talk button on the multifunction steering wheel.After the chime say, “Dial Number”.The system will respond, “Dial number, please say phone number”.After the chime, say the number. (Speak the number in single digits 1-2-3.)The system will repeat the number and then say, “Continue”.After the chime say, “Dial”.
N If the system repeats the number incorrectly say, “Correct” and repeat the number.N You do not have to include a “1” before the area code.Dial by number tips
Bluetooth
® Technology

Redial
Press the talk button on the multifunction steering wheel.After the chime say, “Redial”.The system will respond, “The number is being dialed”.
Help
Press the talk button on the multifunction steering wheel, and a selection of possible voice commands appears.Say, “Help,” then follow the prompts.You can say, “Help” after any prompt for the system to give you available options (e.g., call history, read telephone contacts, or settings).
16
Important Safety Instructions and Warnings,
which you must read, are listed on the last panel under BLUETOOTH
® TECHNOLOGY.
The Bluetooth system will interrupt your car stereo with a ringtone. Press the phone button on the multifunction steering wheel to answer the call.To end a call, press the phone button on the multifunction steering wheel.
LEARN MORE ATknowingyourvw.com
Switch to privacy modeTo switch a Bluetooth call to your mobile phone to prevent passengers from overhearing the conversation:Use the menu button on the steering wheel to access the telephone menu in the Multifunction Display (MFD).Press the up or down button until “Hands Free-Off” appears in the display. Press the
OK
button on the
multifunction steering wheel.
Volume settings
To adjust the volume of the Bluetooth system while in a call, press the volume up or volume down switch on the multifunction steering wheel.
Answer/End a call
Multifunction display
Answer and End a call
Bluetooth
®
Technology
