Side view

Fig. 1 Vehicle side overview.
Key to fig. 1:
(1) Fuel filler flap
(2) Roof antenna
(3) Outside door handles
(4) Outside mirror
– Additional turn signal light
(5) Lift points for the jack

Front view

Fig. 2 Vehicle front overview.
Key to fig. 2:
(1) Inside mirror with sensor on mirror base for:
– Rain sensor (if equipped)
– Low-light sensor (if equipped)
(2) Windshield wipers
(3) Engine hood release
(4) Headlights (on left and right)
(5) Fog lights (on left and right, if equipped)
(6) Threaded hole for the front towing eye (behind cover)
(7) Side marker lights (on left and right)
(8) Park Distance Control (PDC) sensors (if equipped)

Rear view

Fig. 3 Vehicle rear overview.
Key to fig. 3:
(1) Rear window:
– Rear window defroster
(2) High-mounted brake light
(3) Taillights (on left and right)
(4) Area for:
– Luggage compartment release
– Rear View Camera system (if equipped)
(5) License plate lights
(6) Threaded hole for the rear towing eye (behind cover)
(7) Roof antenna
(8) Sensors for the Blind Spot Monitor with Rear Traffic Alert (if equipped)
(9) Park Distance Control (PDC) sensors (if equipped)

Driver door overview

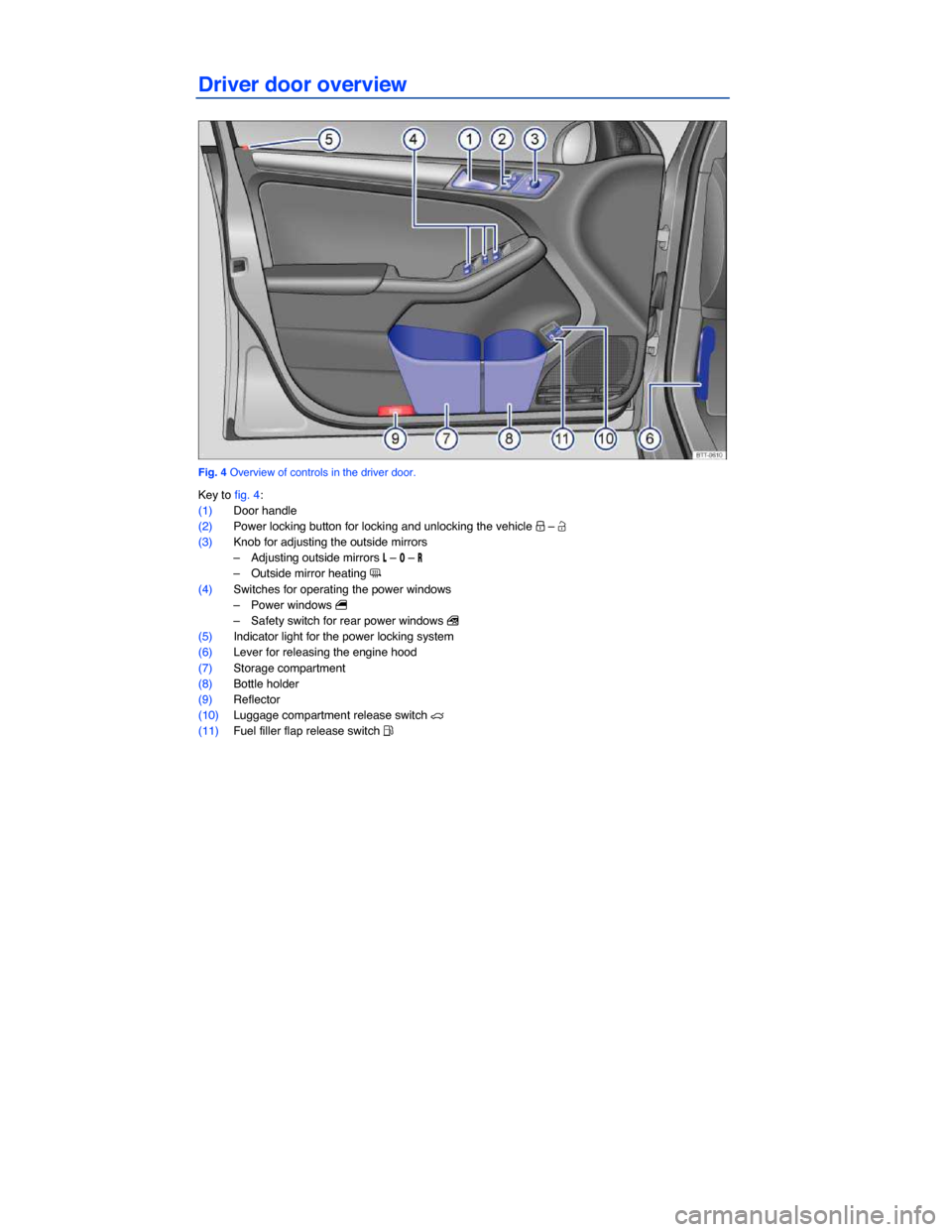

Fig. 4 Overview of controls in the driver door.
Key to fig. 4:
(1) Door handle
(2) Power locking button for locking and unlocking the vehicle

Driver side overview

Fig. 5 Driver side overview.
Key to fig. 5:
(1) Instrument cluster:
– Instruments
– Display
– Warning and indicator lights
(2) Headlight switch

– Display Phone main menu or accept telephone calls -
– Audio, navigation

Upper center console

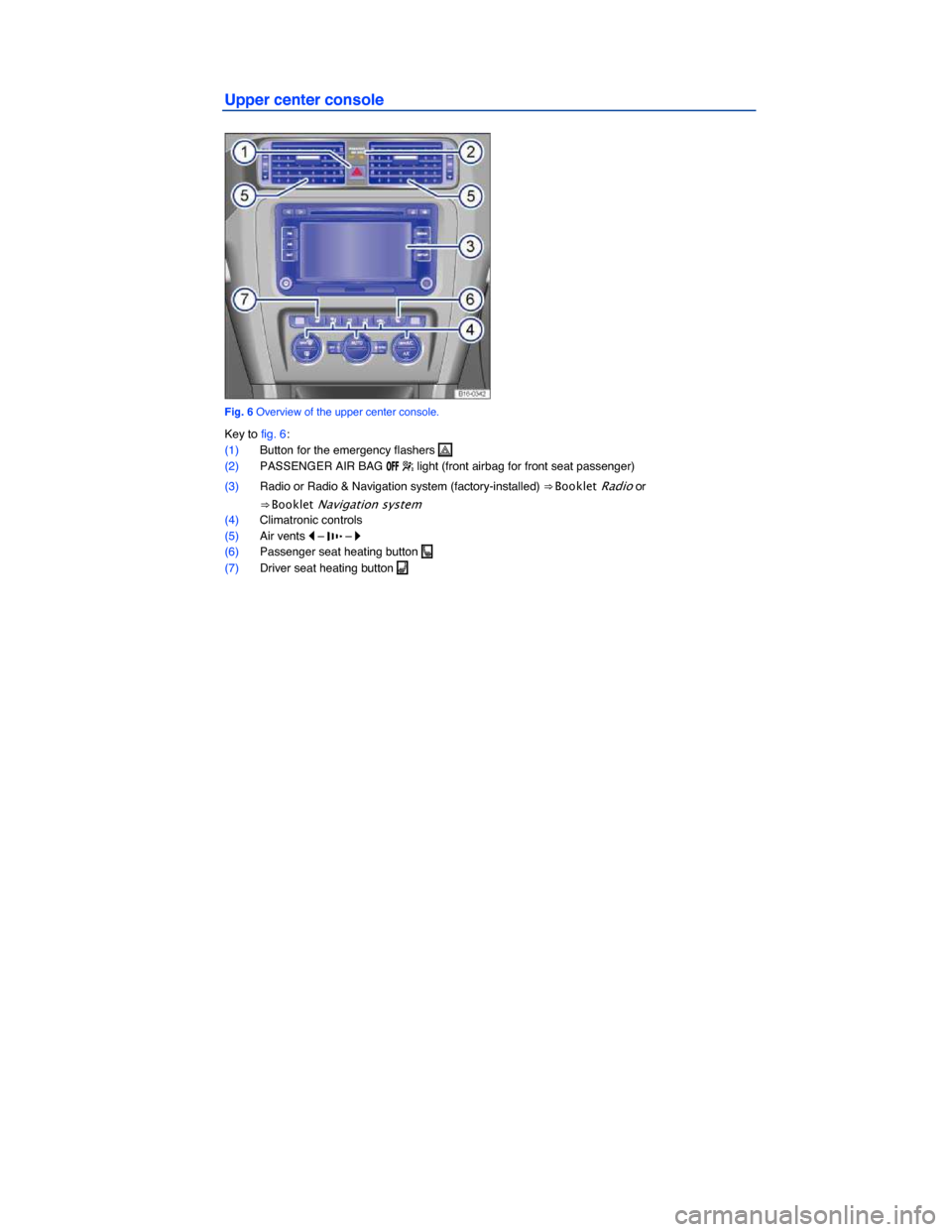

Fig. 6 Overview of the upper center console.
Key to fig. 6:
(1) Button for the emergency flashers
(2) PASSENGER AIR BAG /&&  light (front airbag for front seat passenger)
(3) Radio or Radio & Navigation system (factory-installed) ⇒ Booklet Radio or
⇒ Booklet Navigation system
(4) Climatronic controls
(5) Air vents  –

Lower center console

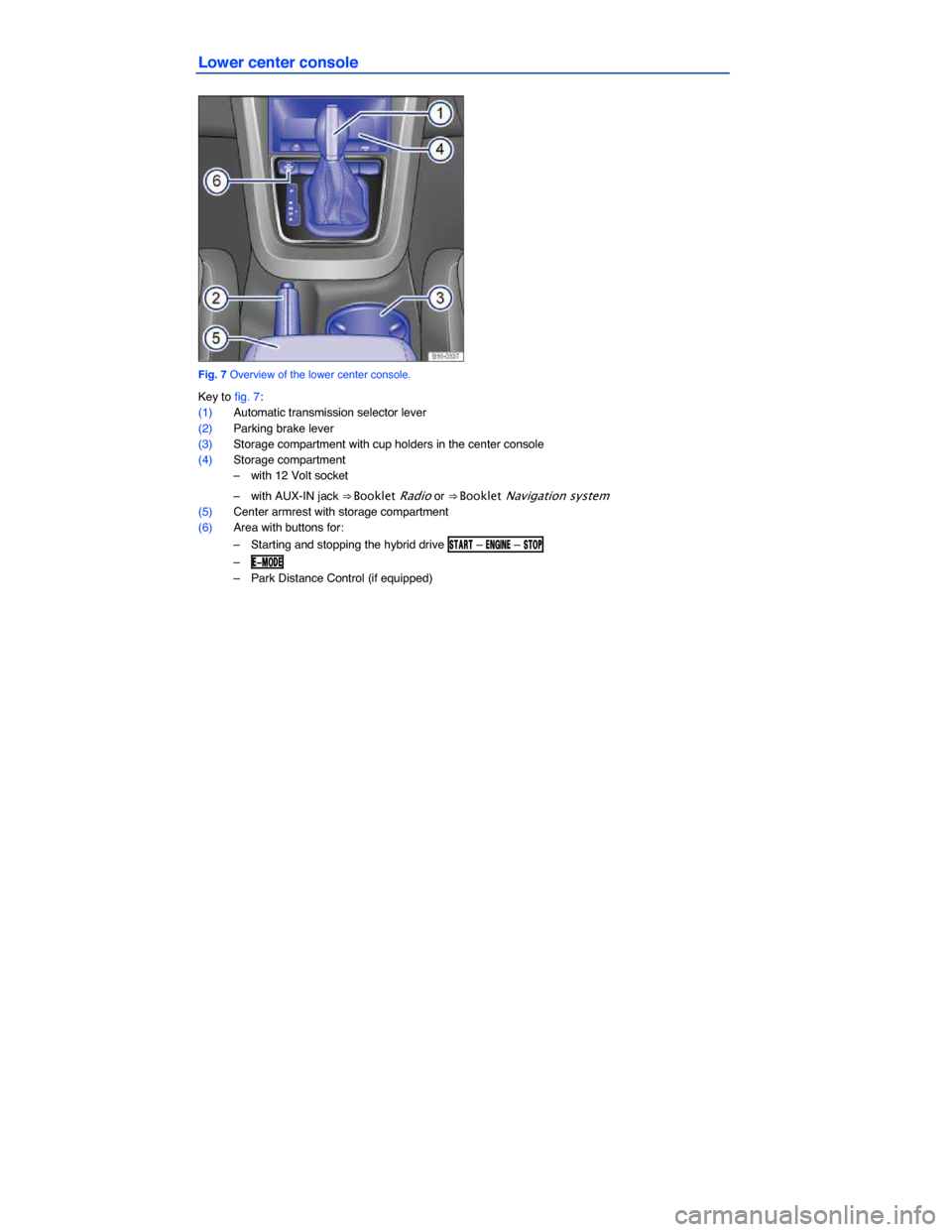

Fig. 7 Overview of the lower center console.
Key to fig. 7:
(1) Automatic transmission selector lever
(2) Parking brake lever
(3) Storage compartment with cup holders in the center console
(4) Storage compartment
– with 12 Volt socket
– with AUX-IN jack ⇒ Booklet Radio or ⇒ Booklet Navigation system
(5) Center armrest with storage compartment
(6) Area with buttons for:
– Starting and stopping the hybrid drive 34!24 – %.').% – 34/0
– %

Instrument cluster

– When the electric drive is activated, the needle moves from /&& to /.
(3) Displays ⇒  Displays. The hybrid power is displayed after the ignition is switched on Starting and stopping the engine.
(4) Reset button for the trip odometer display (trip).
– Push the /./
