Front brake caliper pistons, removing
and installing

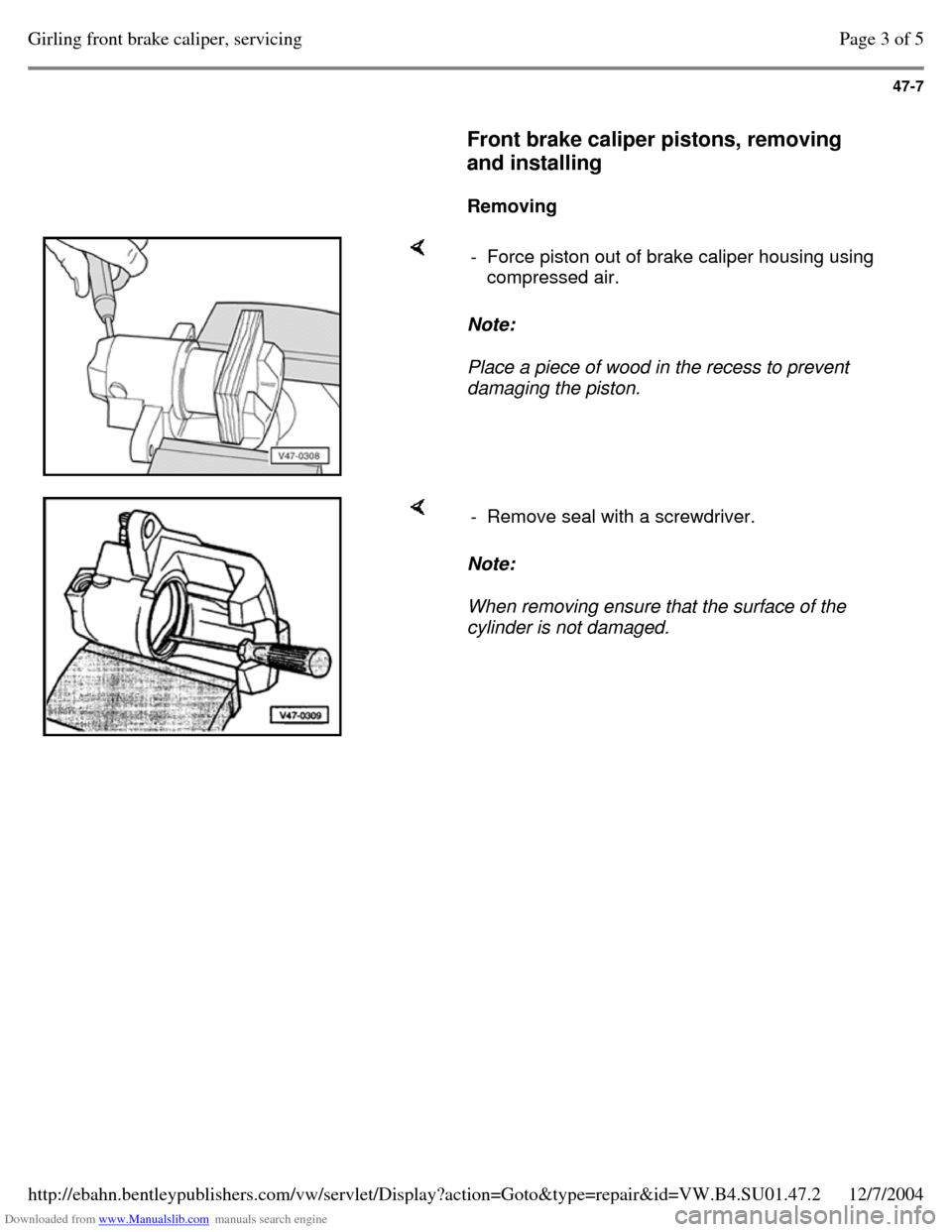

Removing Note:
Place a piece of wood in the recess to prevent
damaging the piston. - Force piston out of brake caliper housing using
compressed air. Note:
When removing ensure that the surface of the
cylinder is not damaged. - Remove seal with a screwdriver. Page 3 of 5Girling front brake caliper, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.2

Downloaded from www.Manualslib.com manuals search engine 47-8

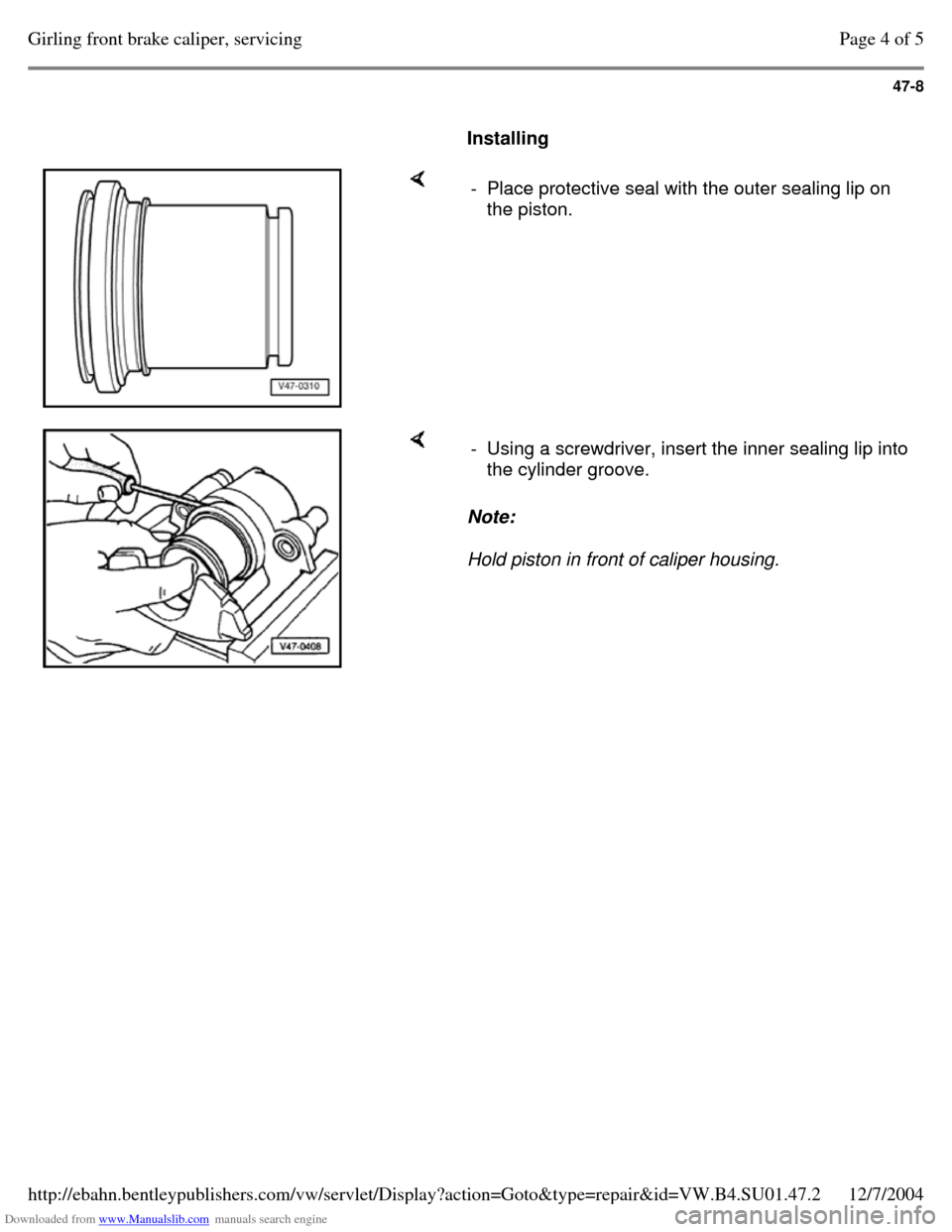

Installing - Place protective seal with the outer sealing lip on
the piston. Note:
Hold piston in front of caliper housing. - Using a screwdriver, insert the inner sealing lip into the cylinder groove. Page 4 of 5Girling front brake caliper, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.2

Downloaded from www.Manualslib.com manuals search engine 47-9

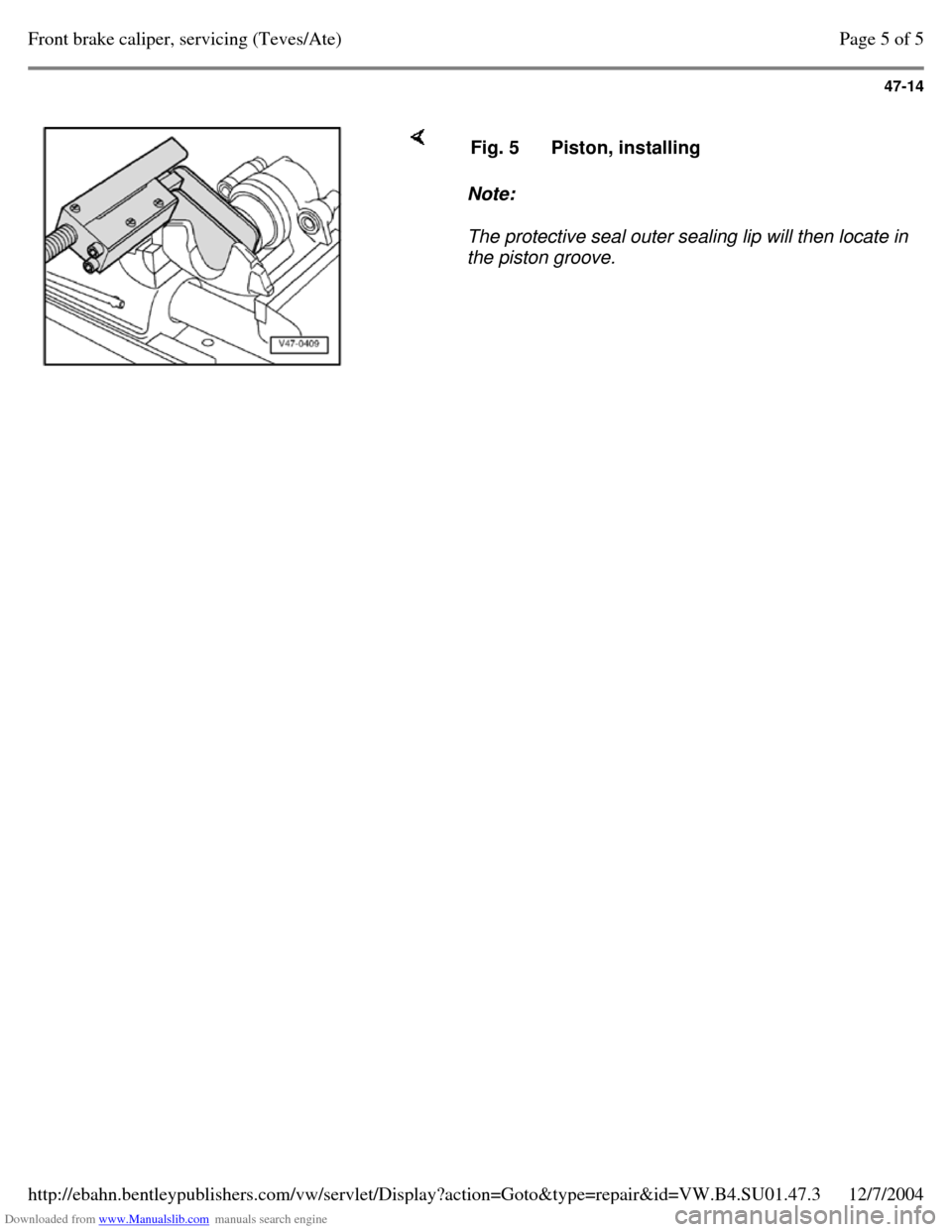

Note:
The protective seal outer sealing lip will then locate in
the piston groove. - Press piston into the brake caliper housing using
piston resetting tool. Page 5 of 5Girling front brake caliper, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.2

Downloaded from www.Manualslib.com manuals search engine 47-10

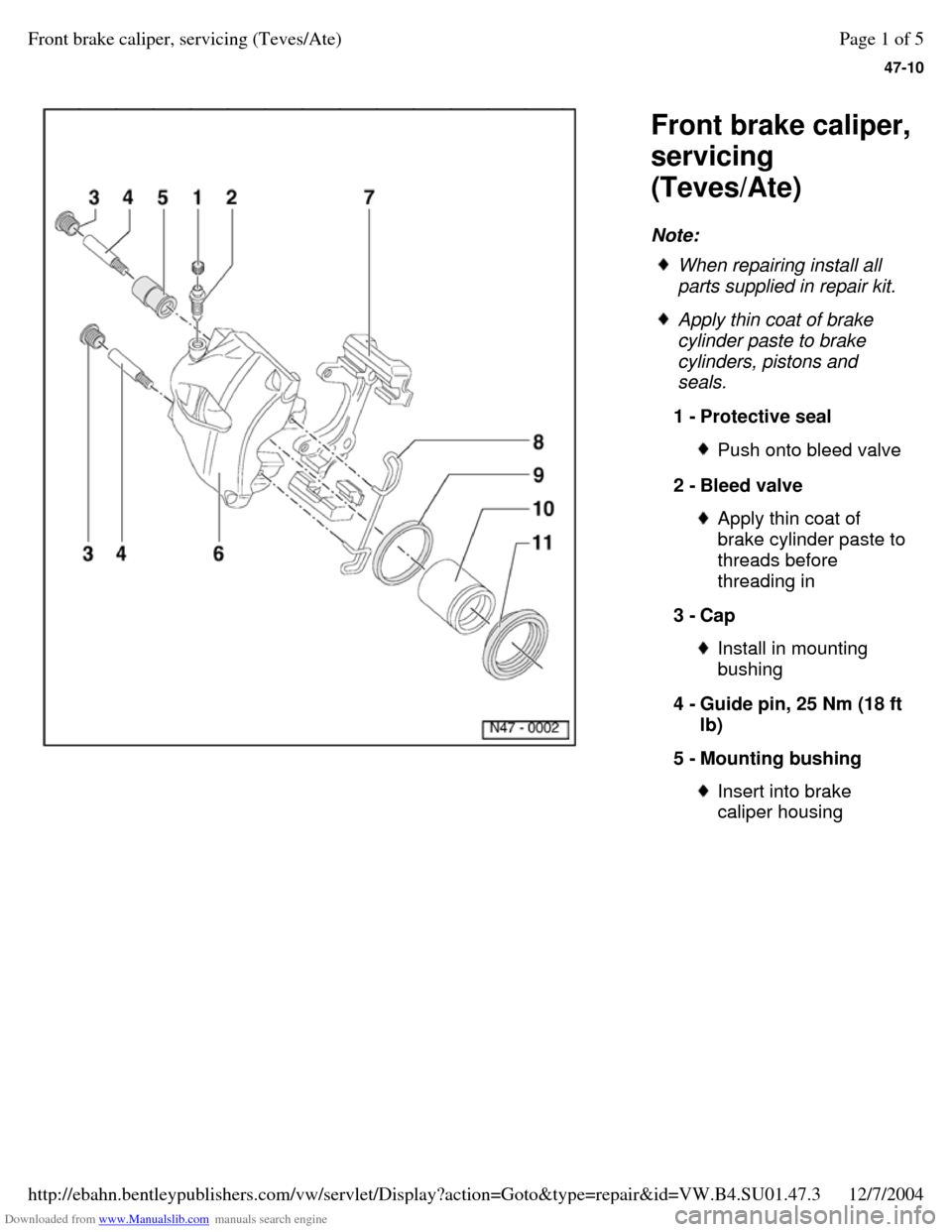

Front brake caliper,
servicing
(Teves/Ate)
Note: When repairing install all
parts supplied in repair kit. Apply thin coat of brake
cylinder paste to brake
cylinders, pistons and
seals.
1 - Protective seal Push onto bleed valve 2 - Bleed valve Apply thin coat of brake cylinder paste to threads before
threading in
3 - Cap Install in mounting
bushing
4 - Guide pin, 25 Nm (18 ft
lb)
5 - Mounting bushing Insert into brake
caliper housing Page 1 of 5Front brake caliper, servicing (Teves/Ate)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.3

Downloaded from www.Manualslib.com manuals search engine 47-11

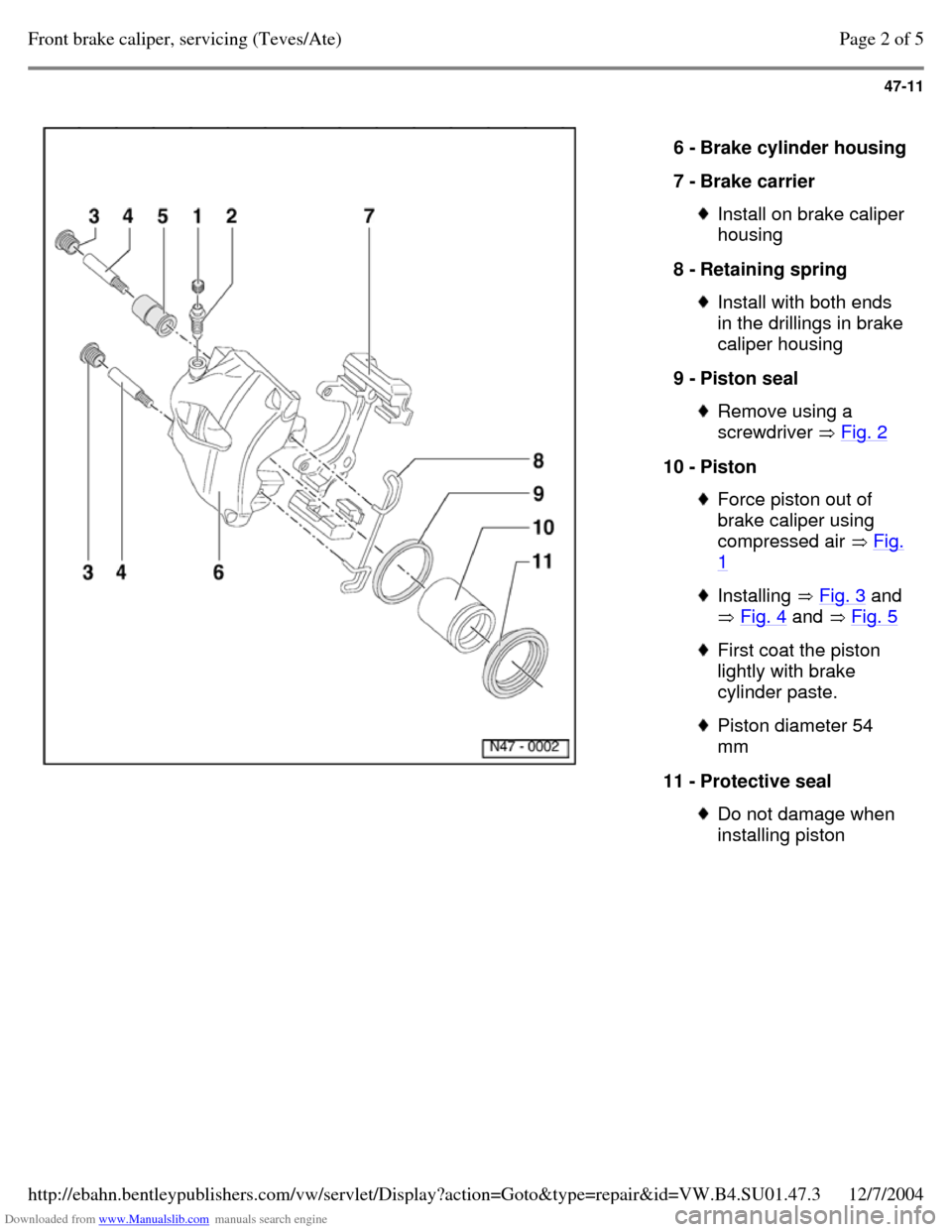

6 - Brake cylinder housing 7 - Brake carrier Install on brake caliper
housing
8 - Retaining spring Install with both ends
in the drillings in brake
caliper housing
9 - Piston seal Remove using a
screwdriver Fig. 2 10 - Piston Force piston out of
brake caliper using
compressed air Fig. 1 Installing Fig. 3 and
Fig. 4 and Fig. 5 First coat the piston
lightly with brake
cylinder paste. Piston diameter 54
mm
11 - Protective seal Do not damage when
installing piston Page 2 of 5Front brake caliper, servicing (Teves/Ate)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.3

Downloaded from www.Manualslib.com manuals search engine 47-12

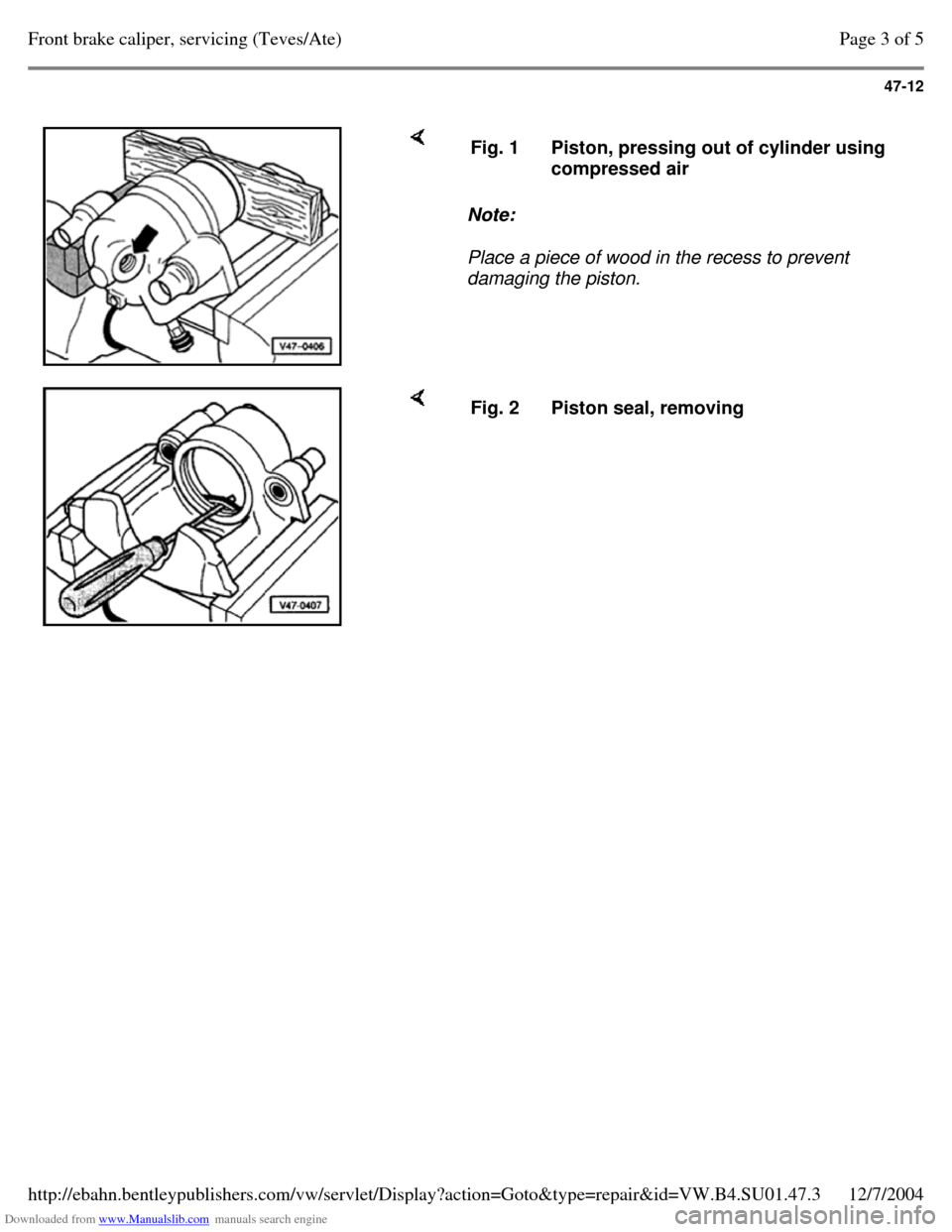

Note:
Place a piece of wood in the recess to prevent
damaging the piston. Fig. 1 Piston, pressing out of cylinder using
compressed air Fig. 2 Piston seal, removing Page 3 of 5Front brake caliper, servicing (Teves/Ate)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.3

Downloaded from www.Manualslib.com manuals search engine 47-13
Fig. 3 Protective seal, installing Note:
Hold piston in front of caliper housing. Fig. 4 Protective seal, installing - Using a screwdriver, insert inner sealing lip into
cylinder groove Page 4 of 5Front brake caliper, servicing (Teves/Ate)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.3

Downloaded from www.Manualslib.com manuals search engine 47-14
Note:
The protective seal outer sealing lip will then locate in
the piston groove. Fig. 5 Piston, installing Page 5 of 5Front brake caliper, servicing (Teves/Ate)12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.3

Downloaded from www.Manualslib.com manuals search engine 47-15

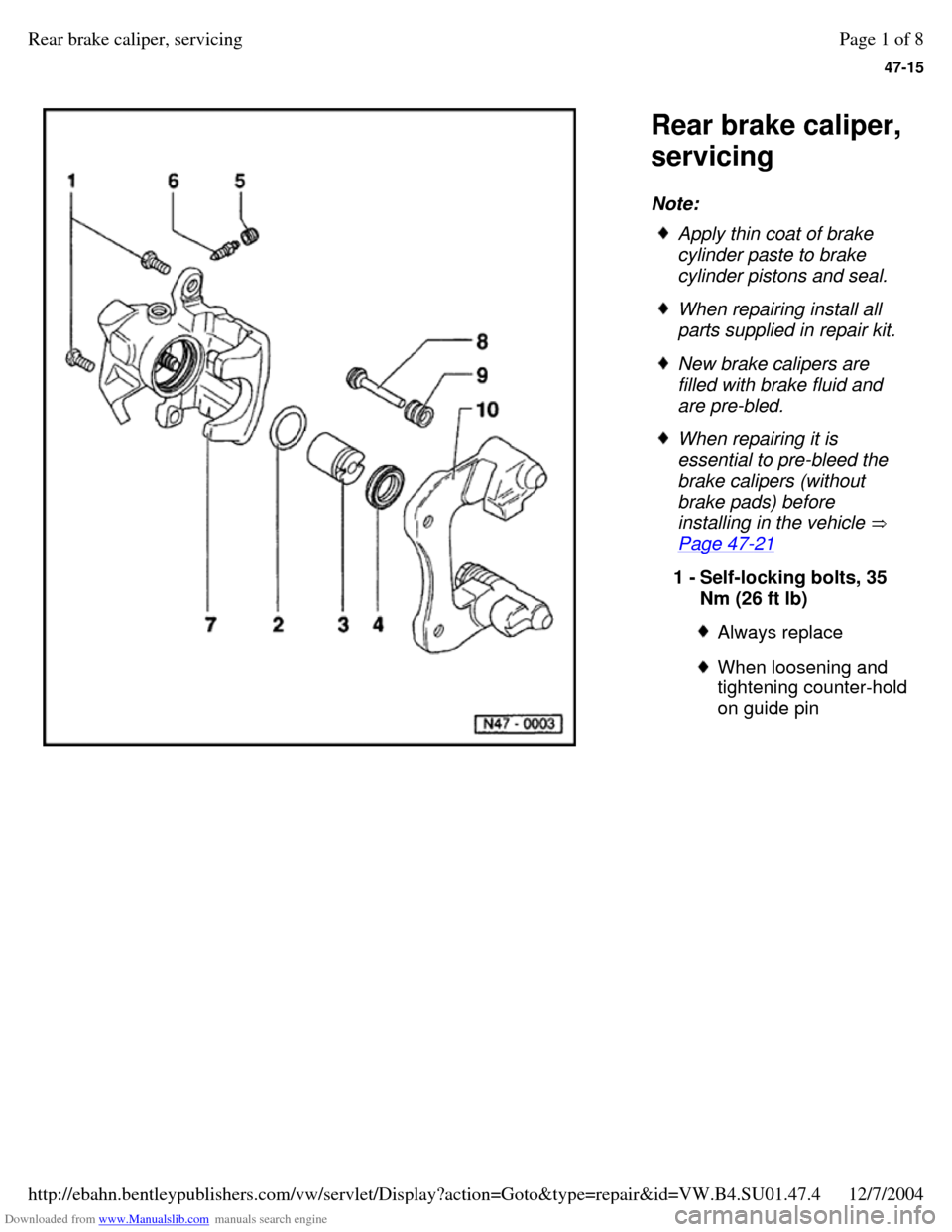

Rear brake caliper,
servicing
Note: Apply thin coat of brake
cylinder paste to brake
cylinder pistons and seal. When repairing install all
parts supplied in repair kit. New brake calipers are
filled with brake fluid and
are pre-bled. When repairing it is
essential to pre-bleed the
brake calipers (without
brake pads) before
installing in the vehicle
Page 47-21 1 - Self-locking bolts, 35
Nm (26 ft lb) Always replace When loosening and
tightening counter-hold on guide pin Page 1 of 8Rear brake caliper, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.4

Downloaded from www.Manualslib.com manuals search engine 47-16

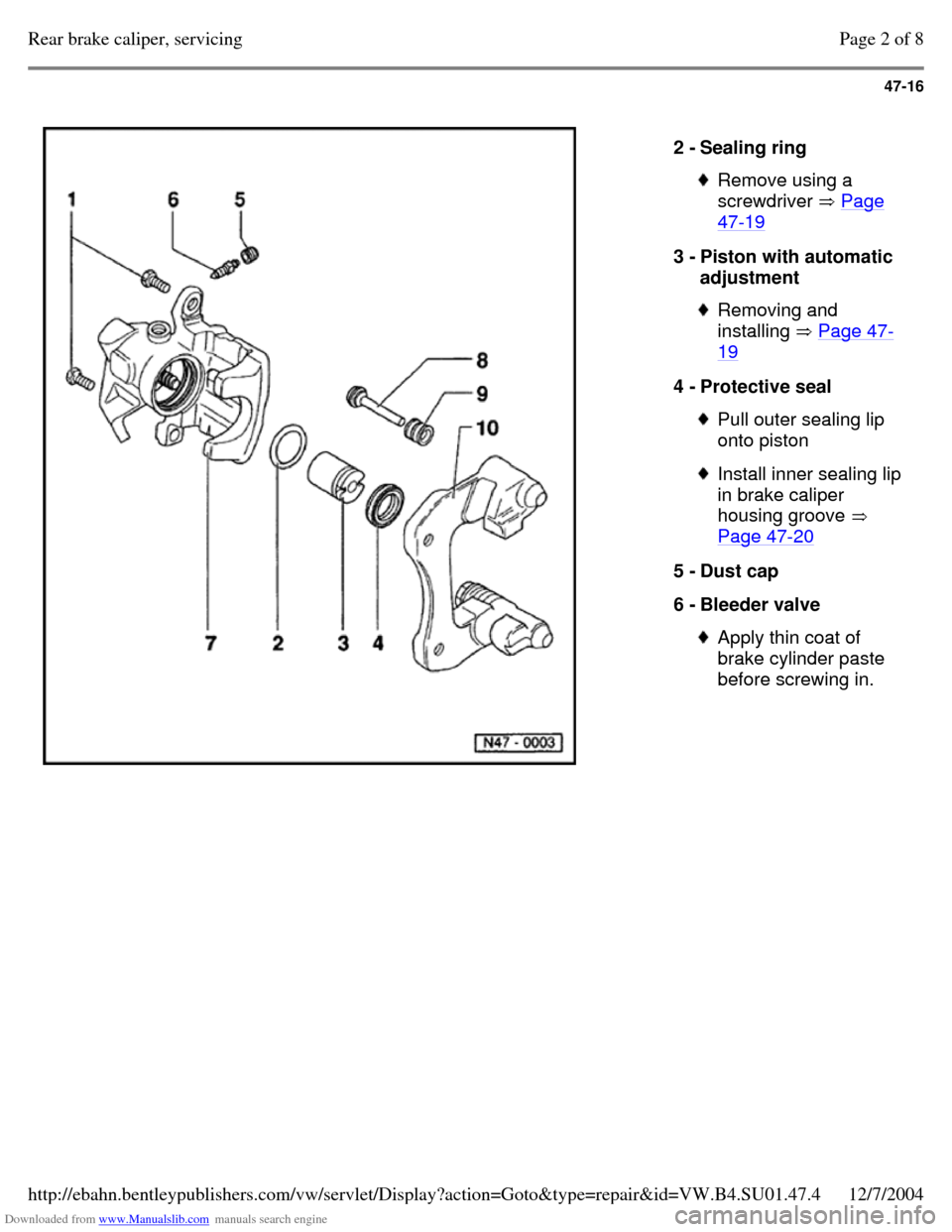

2 - Sealing ring Remove using a
screwdriver Page 47-19 3 - Piston with automatic
adjustment Removing and
installing Page 47-19 4 - Protective seal Pull outer sealing lip
onto piston Install inner sealing lip
in brake caliper
housing groove
Page 47-20 5 - Dust cap
6 - Bleeder valve Apply thin coat of
brake cylinder paste
before screwing in. Page 2 of 8Rear brake caliper, servicing12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.47.4
