VOLKSWAGEN PASSAT 1997 B3, B4 / 3.G Service Owner's Guide

Downloaded from www.Manualslib.com manuals search engine 40-17

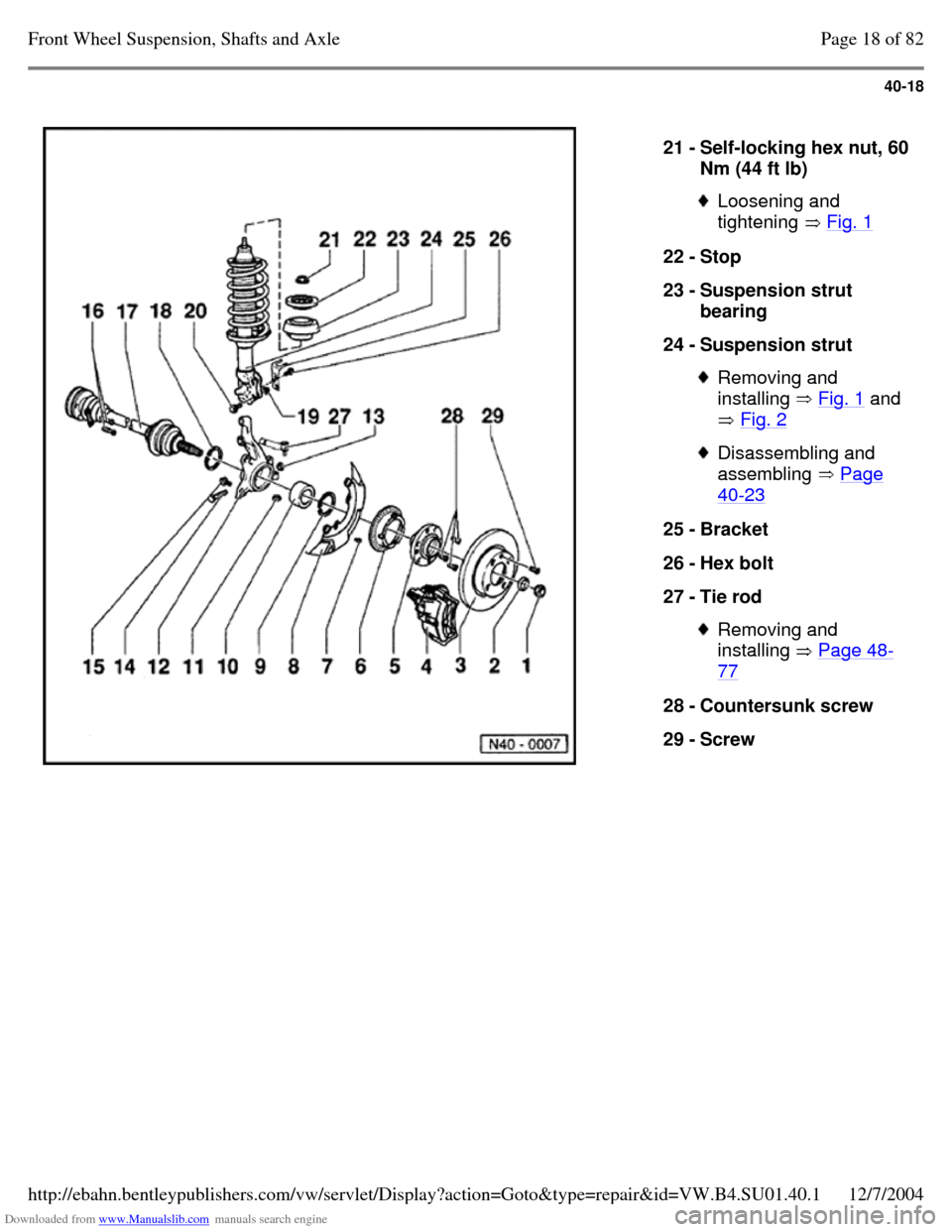

15 - Self-locking
bolt/washer assembly,
125 Nm (92 ft lb) For securing brake
carrier
16 - Socket head multi-
point bolt, 45 Nm (33 ft
lb)
17 - Drive shaft To remove and install
separate ball
joint/control arm
connection Fig. 2 Repairing Page 40-46 18 - Circlip Ensure correctly
seated
19 - Self-locking hex nut, 95 Nm (70 ft lb)
20 - Hex bolt Shank diameter 11
mm Adjusting camber
Page 44-6 Mark position before
loosening Page 17 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-18

21 - Self-locking hex nut, 60 Nm (44 ft lb) Loosening and
tightening Fig. 1 22 - Stop
23 - Suspension strut
bearing
24 - Suspension strut Removing and
installing Fig. 1 and
Fig. 2 Disassembling and
assembling Page 40-23 25 - Bracket
26 - Hex bolt
27 - Tie rod Removing and
installing Page 48-77 28 - Countersunk screw
29 - Screw Page 18 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-19

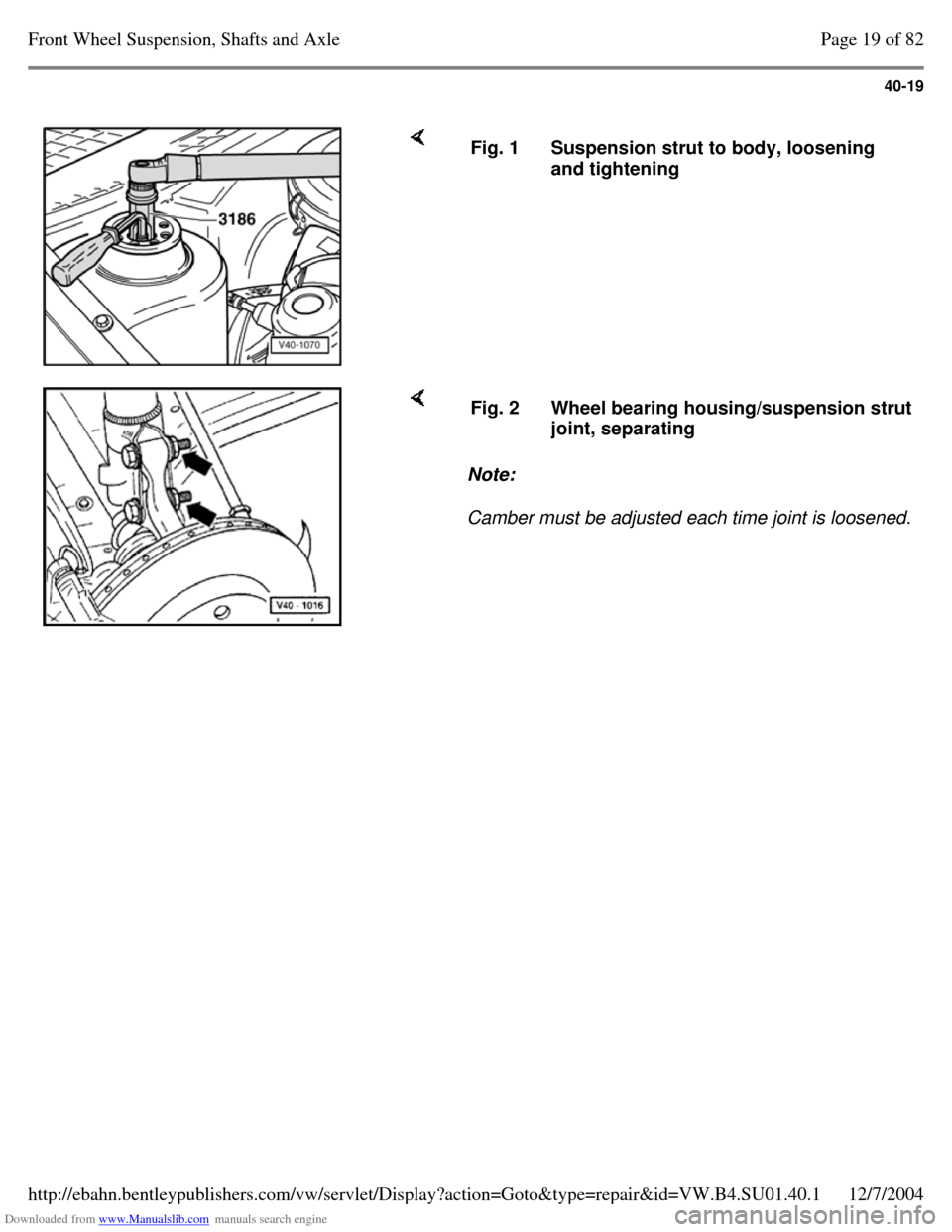

Fig. 1 Suspension strut to body, loosening
and tightening Note:
Camber must be adjusted each time joint is loosened. Fig. 2 Wheel bearing housing/suspension strut joint, separating Page 19 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-20

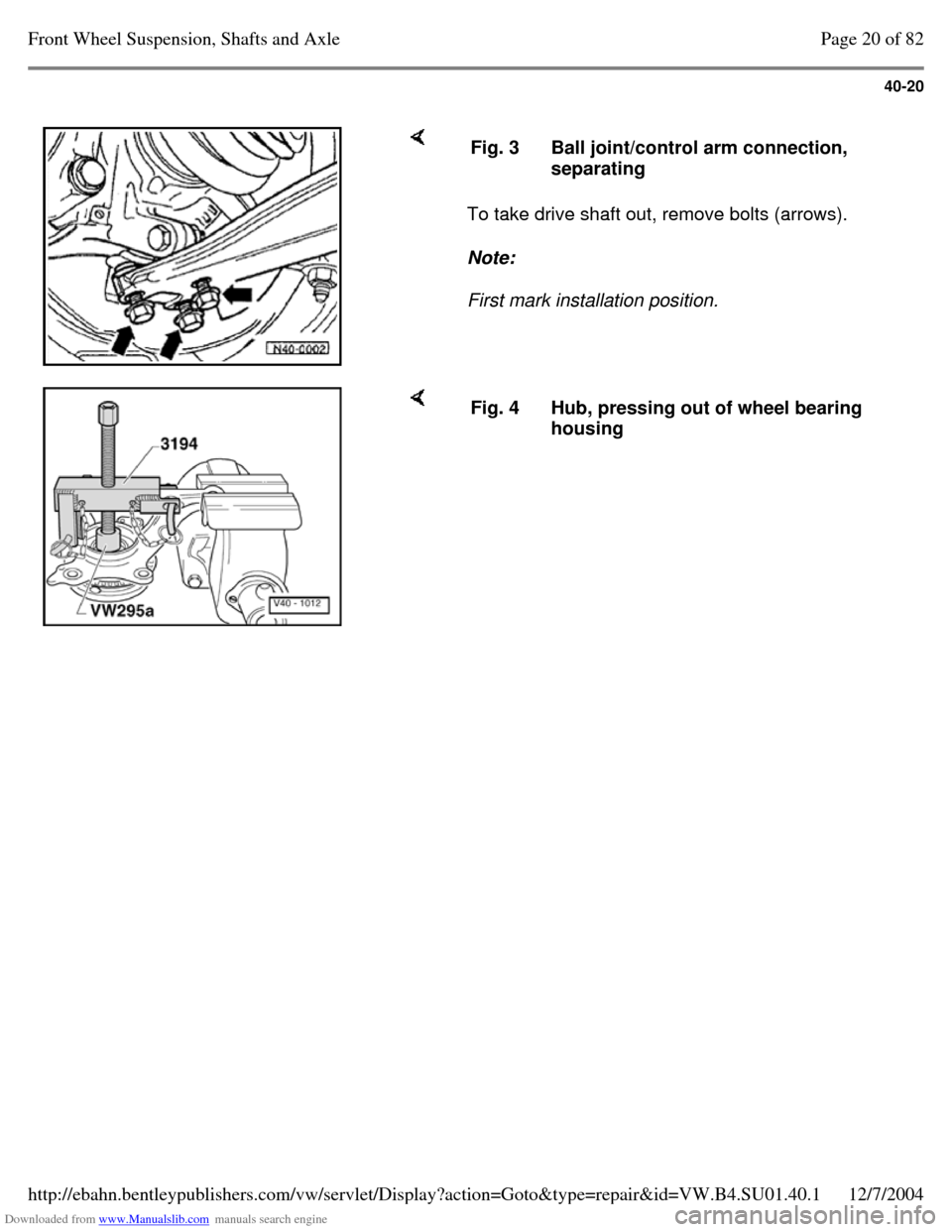

To take drive shaft out, remove bolts (arrows).
Note:
First mark installation position. Fig. 3 Ball joint/control arm connection,
separating Fig. 4 Hub, pressing out of wheel bearing
housing Page 20 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-21

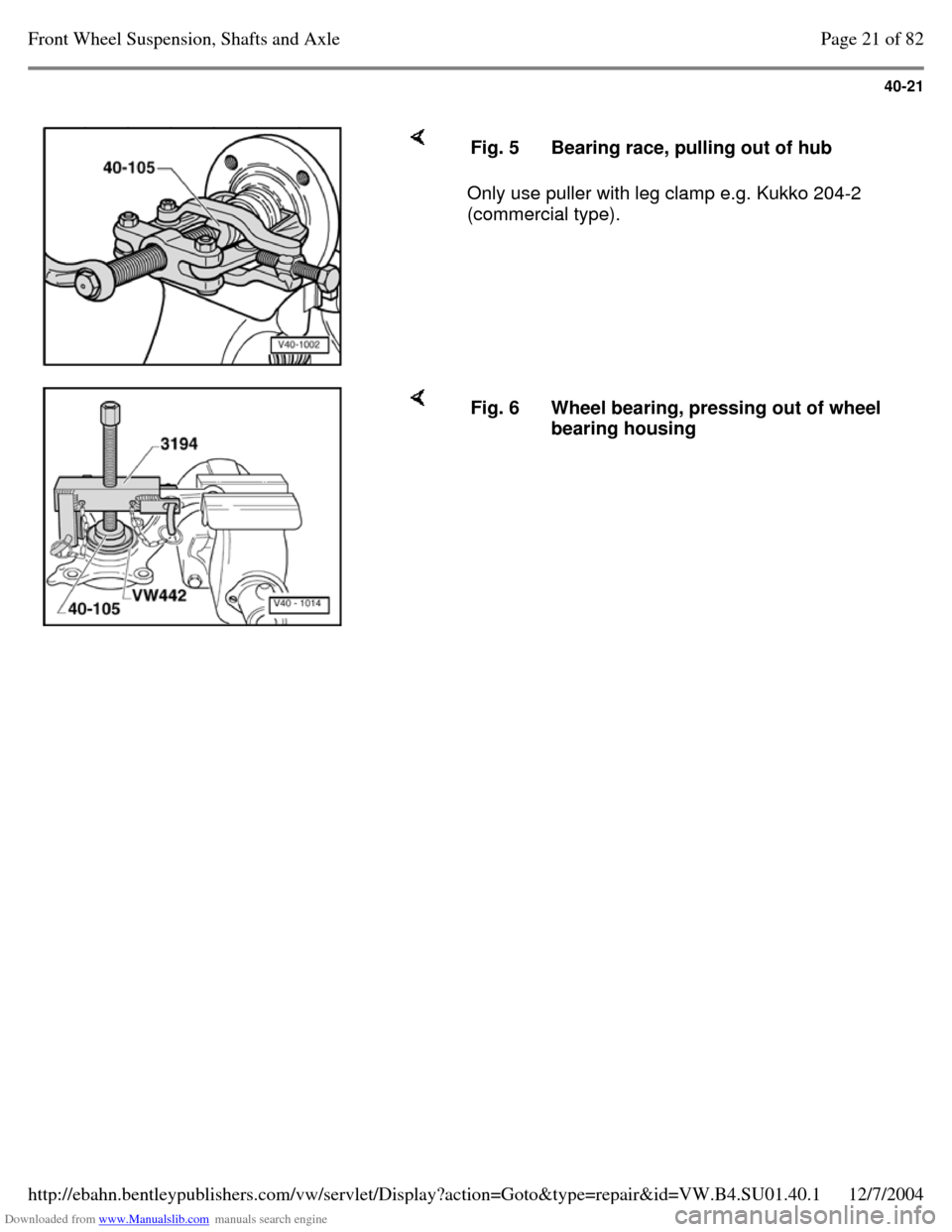

Only use puller with leg clamp e.g. Kukko 204-2
(commercial type). Fig. 5 Bearing race, pulling out of hub Fig. 6 Wheel bearing, pressing out of wheel
bearing housing Page 21 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-22

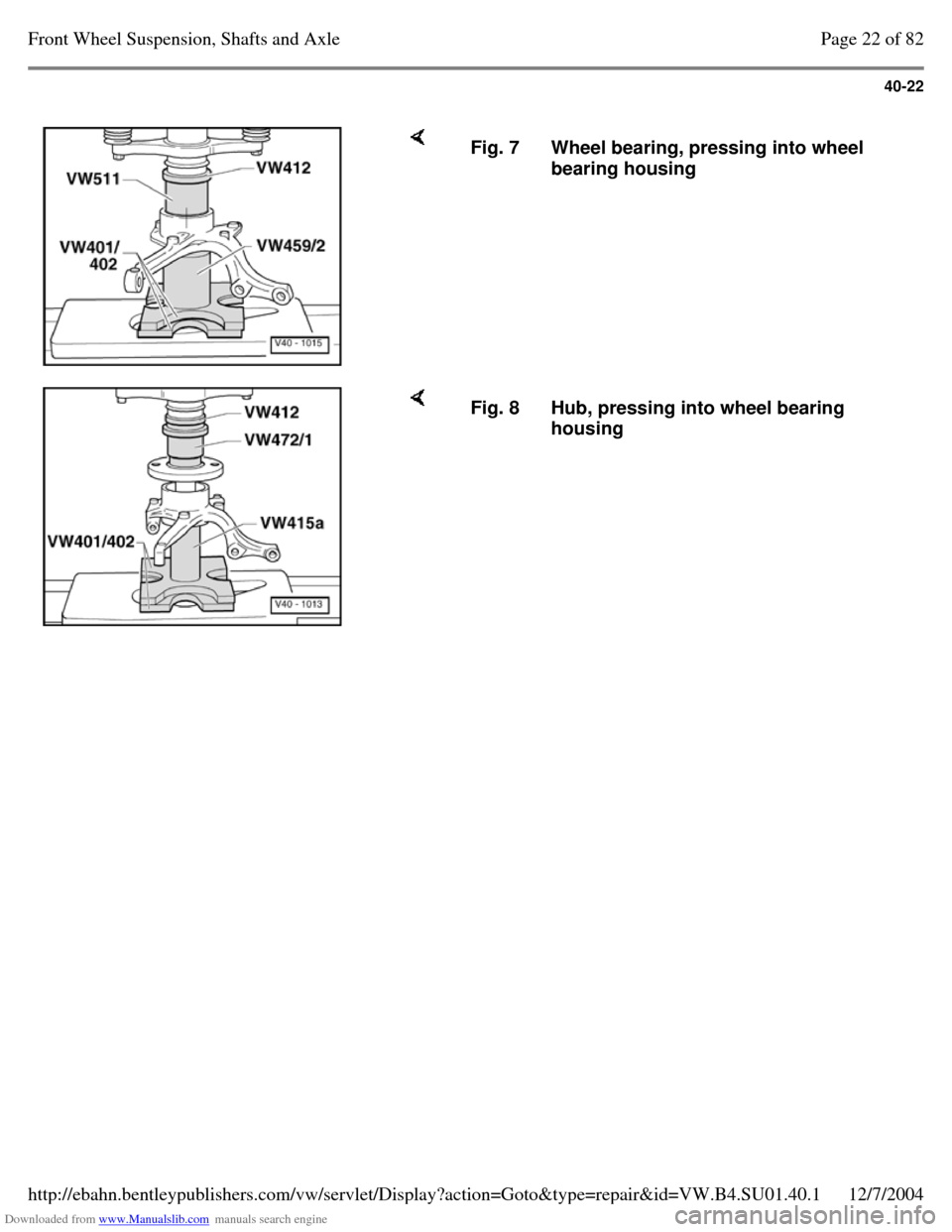

Fig. 7 Wheel bearing, pressing into wheel
bearing housing Fig. 8 Hub, pressing into wheel bearing
housing Page 22 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-23

Front suspension strut,
servicing (Base and Plus
suspension)
1 - Shock absorber Can be replaced
individually Check shock absorber
for leaks and noises After replacing, adjust
camber and toe
Page 44-1 2 - Buffer stop
3 - Protective sleeve Page 23 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-24

4 - Coil spring Removing and
installing Fig. 2 Observe color coding Outer surface of spring must not be damaged Is slightly curved 5 - Spring plate
6 - Axial bearing
7 - Hex nut, 60 Nm (44 ft
lb) Loosening and
tightening Fig. 2 8 - Suspension strut
mounting
9 - Stop
10 - Self-locking hex nut, 60 Nm (44 ft lb) Loosening and
tightening Fig. 1 Page 24 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-25
Fig. 1 Hex nut, loosening and tightening Fig. 2 Spring, removing and installing Page 25 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1

Downloaded from www.Manualslib.com manuals search engine 40-26

Front suspension,
servicing (Plus
suspension)
I - Removing and installing
subframe, stabilizer bar and
control arm (plus suspension)
Page 40-27
II - Removing and installing
wheel bearing, suspension
strut and drive shaft (plus
suspension) Page 40-36
The following components are
different when comparing the
plus suspension with the base
suspension:
Control arm, ball joint, wheel
bearing housing, stabilizer bar,
drive shaft, brake disc, hub,
wheel and tie rods.
The Plus suspension is
installed in Passat models with
engine output 110 kW (148 hp)
and above. Page 26 of 82Front Wheel Suspension, Shafts and Axle12/7/2004http://ebahn.bentleypublishers.com/vw/servlet/Display?action=Goto&type=repair&id=VW.B4.SU01.40.1
