VOLKSWAGEN TIGUAN 2017 Owner´s Manual

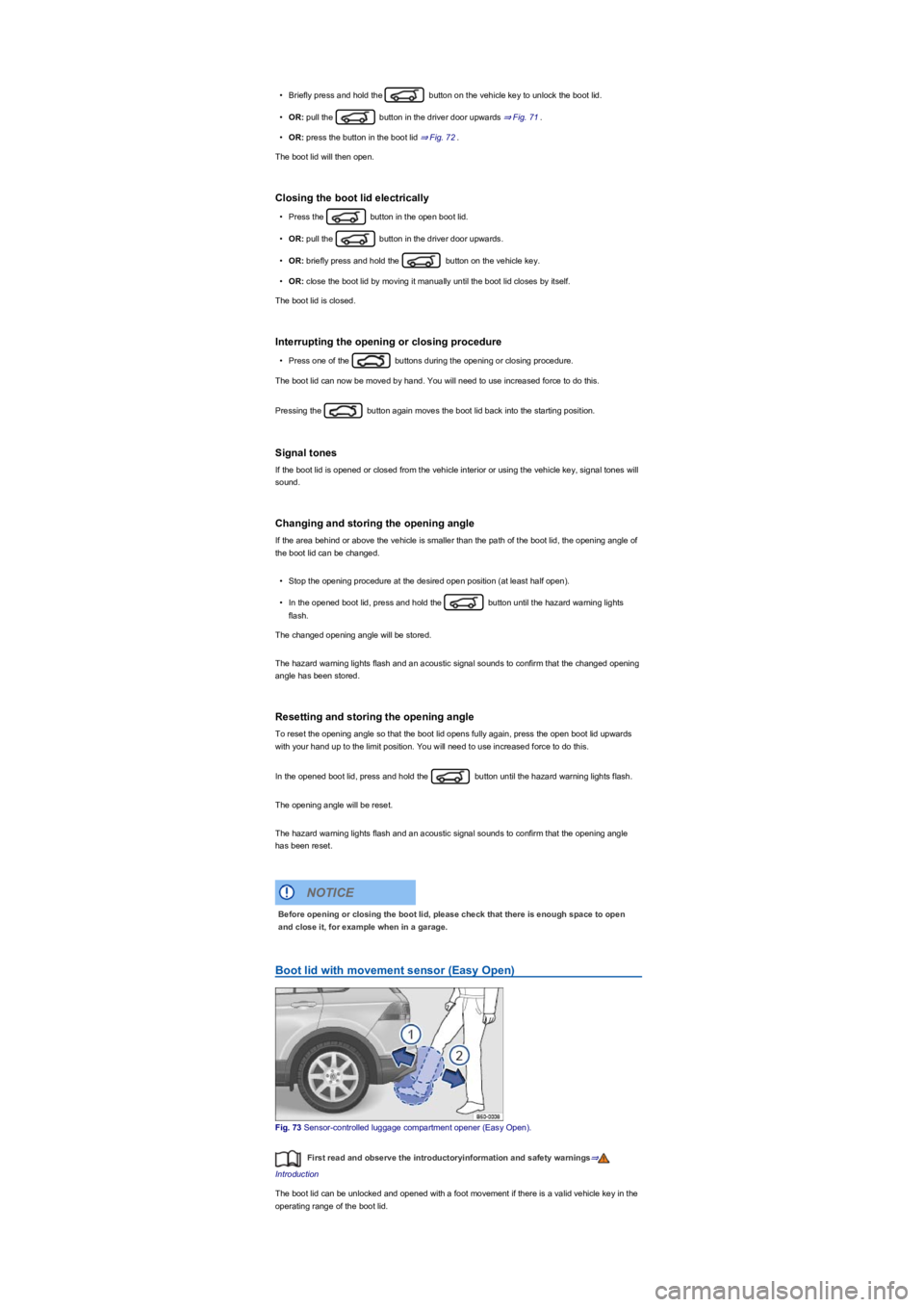

•Briefly press and hold the button on the vehicle key to unlock the boot lid.
•OR: pull the button in the driver door upwards ⇒ Fig. 71.
•OR: press the button in the boot lid ⇒ Fig. 72.
The boot lid will then open.
Closing the boot lid electrically
•Press the button in the open boot lid.
•OR: pull the button in the driver door upwards.
•OR: briefly press and hold the button on the vehicle key.
•OR: close the boot lid by moving it manually until the boot lid closes by itself.
The boot lid is closed.
Interrupting the opening or closing procedure
•Press one of the buttons during the opening or closing procedure.
The boot lid can now be moved by hand. You will need to use increased force to do this.
Pressing the button again moves the boot lid back into the starting position.
Signal tones
If the boot lid is opened or closed from the vehicle interior or using the vehicle key, signal tones will
sound.
Changing and storing the opening angle
If the area behind or above the vehicle is smaller than the path of the boot lid, the opening angle of
the boot lid can be changed.
•Stop the opening procedure at the desired open position (at least half open).
•In the opened boot lid, press and hold the button until the hazard warning lights
flash.
The changed opening angle will be stored.
The hazard warning lights flash and an acoustic signal sounds to confirm that the changed opening
angle has been stored.
Resetting and storing the opening angle
To reset the opening angle so that the boot lid opens fully again, press the open boot lid upwards
with your hand up to the limit position. You will need to use increased force to do this.
In the opened boot lid, press and hold the button until the hazard warning lights flash.
The opening angle will be reset.
The hazard warning lights flash and an acoustic signal sounds to confirm that the opening angle
has been reset.
Boot lid with movement sensor (Easy Open)
Fig. 73 Sensor-controlled luggage compartment opener (Easy Open).
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The boot lid can be unlocked and opened with a foot movement if there is a valid vehicle key in the
operating range of the boot lid.
Before opening or closing the boot lid, please check that there is enough space to open
and close it, for example when in a garage.
NOTICE

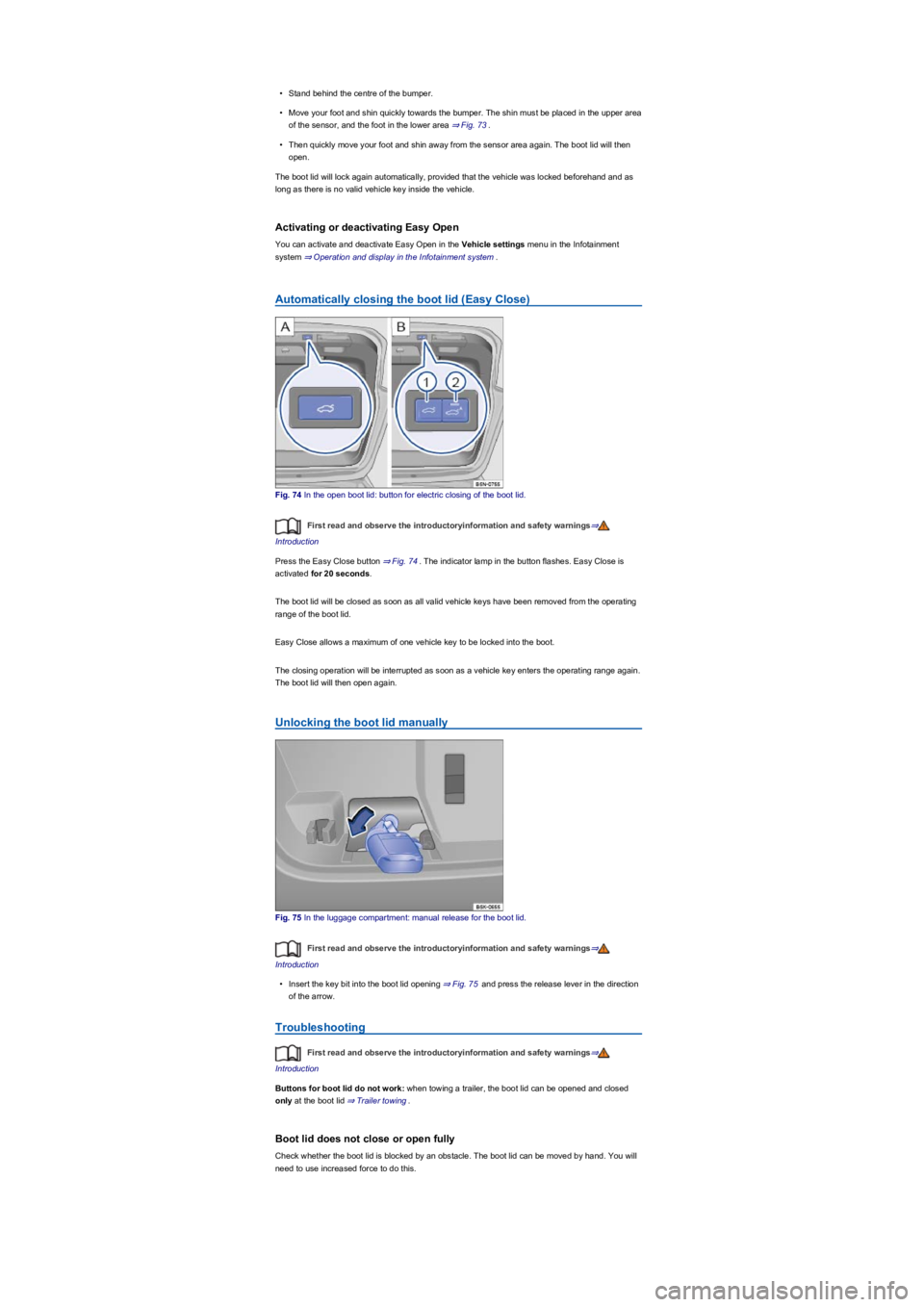

•Stand behind the centre of the bumper.
•Move your foot and shin quickly towards the bumper. The shin must be placed in the upper area
of the sensor, and the foot in the lower area ⇒ Fig. 73.
•Then quickly move your foot and shin away from the sensor area again. The boot lid will then
open.
The boot lid will lock again automatically, provided that the vehicle was locked beforehand and as
long as there is no valid vehicle key inside the vehicle.
Activating or deactivating Easy Open
You can activate and deactivate Easy Open in the Vehicle settings menu in the Infotainment
system ⇒ Operation and display in the Infotainment system.
Automatically closing the boot lid (Easy Close)
Fig. 74 In the open boot lid: button for electric closing of the boot lid.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Press the Easy Close button ⇒ Fig. 74. The indicator lamp in the button flashes. Easy Close is
activated for 20 seconds.
The boot lid will be closed as soon as all valid vehicle keys have been removed from the operating
range of the boot lid.
Easy Close allows a maximum of one vehicle key to be locked into the boot.
The closing operation will be interrupted as soon as a vehicle key enters the operating range again.
The boot lid will then open again.
Unlocking the boot lid manually
Fig. 75 In the luggage compartment: manual release for the boot lid.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
•Insert the key bit into the boot lid opening ⇒ Fig. 75 and press the release lever in the direction
of the arrow.
Troubleshooting
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Buttons for boot lid do not work: when towing a trailer, the boot lid can be opened and closed
only at the boot lid ⇒ Trailer towing.
Boot lid does not close or open fully
Check whether the boot lid is blocked by an obstacle. The boot lid can be moved by hand. You will
need to use increased force to do this.

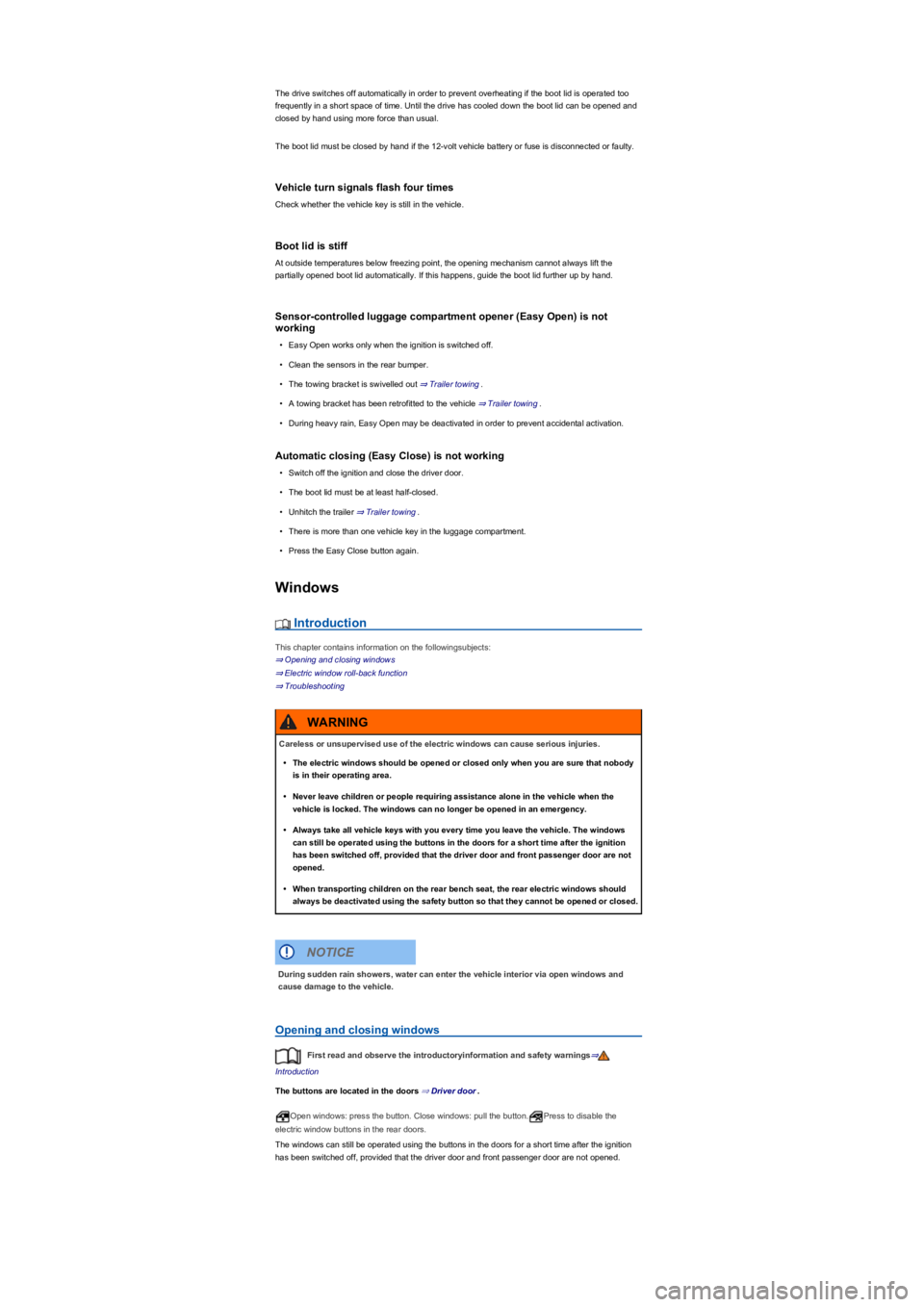

The drive switches off automatically in order to prevent overheating if the boot lid is operated too
frequently in a short space of time. Until the drive has cooled down the boot lid can be opened and
closed by hand using more force than usual.
The boot lid must be closed by hand if the 12-volt vehicle battery or fuse is disconnected or faulty.
Vehicle turn signals flash four times
Check whether the vehicle key is still in the vehicle.
Boot lid is stiff
At outside temperatures below freezing point, the opening mechanism cannot always lift the
partially opened boot lid automatically. If this happens, guide the boot lid further up by hand.
Sensor-controlled luggage compartment opener (Easy Open) is not
working
•Easy Open works only when the ignition is switched off.
•Clean the sensors in the rear bumper.
•The towing bracket is swivelled out ⇒ Trailer towing.
•A towing bracket has been retrofitted to the vehicle ⇒ Trailer towing.
•During heavy rain, Easy Open may be deactivated in order to prevent accidental activation.
Automatic closing (Easy Close) is not working
•Switch off the ignition and close the driver door.
•The boot lid must be at least half-closed.
•Unhitch the trailer ⇒ Trailer towing.
•There is more than one vehicle key in the luggage compartment.
•Press the Easy Close button again.
Windows
Introduction
This chapter contains information on the followingsubjects:
⇒ Opening and closing windows
⇒ Electric window roll-back function
⇒ Troubleshooting
Opening and closing windows
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The buttons are located in the doors ⇒ Driver door.
Open windows: press the button. Close windows: pull the button.Press to disable the
electric window buttons in the rear doors.
The windows can still be operated using the buttons in the doors for a short time after the ignition
has been switched off, provided that the driver door and front passenger door are not opened.
Careless or unsupervised use of the electric windows can cause serious injuries.
•The electric windows should be opened or closed only when you are sure that nobody
is in their operating area.
•Never leave children or people requiring assistance alone in the vehicle when the
vehicle is locked. The windows can no longer be opened in an emergency.
•Always take all vehicle keys with you every time you leave the vehicle. The windows
can still be operated using the buttons in the doors for a short time after the ignition
has been switched off, provided that the driver door and front passenger door are not
opened.
•When transporting children on the rear bench seat, the rear electric windows should
always be deactivated using the safety button so that they cannot be opened or closed.
WARNING
During sudden rain showers, water can enter the vehicle interior via open windows and
cause damage to the vehicle.
NOTICE

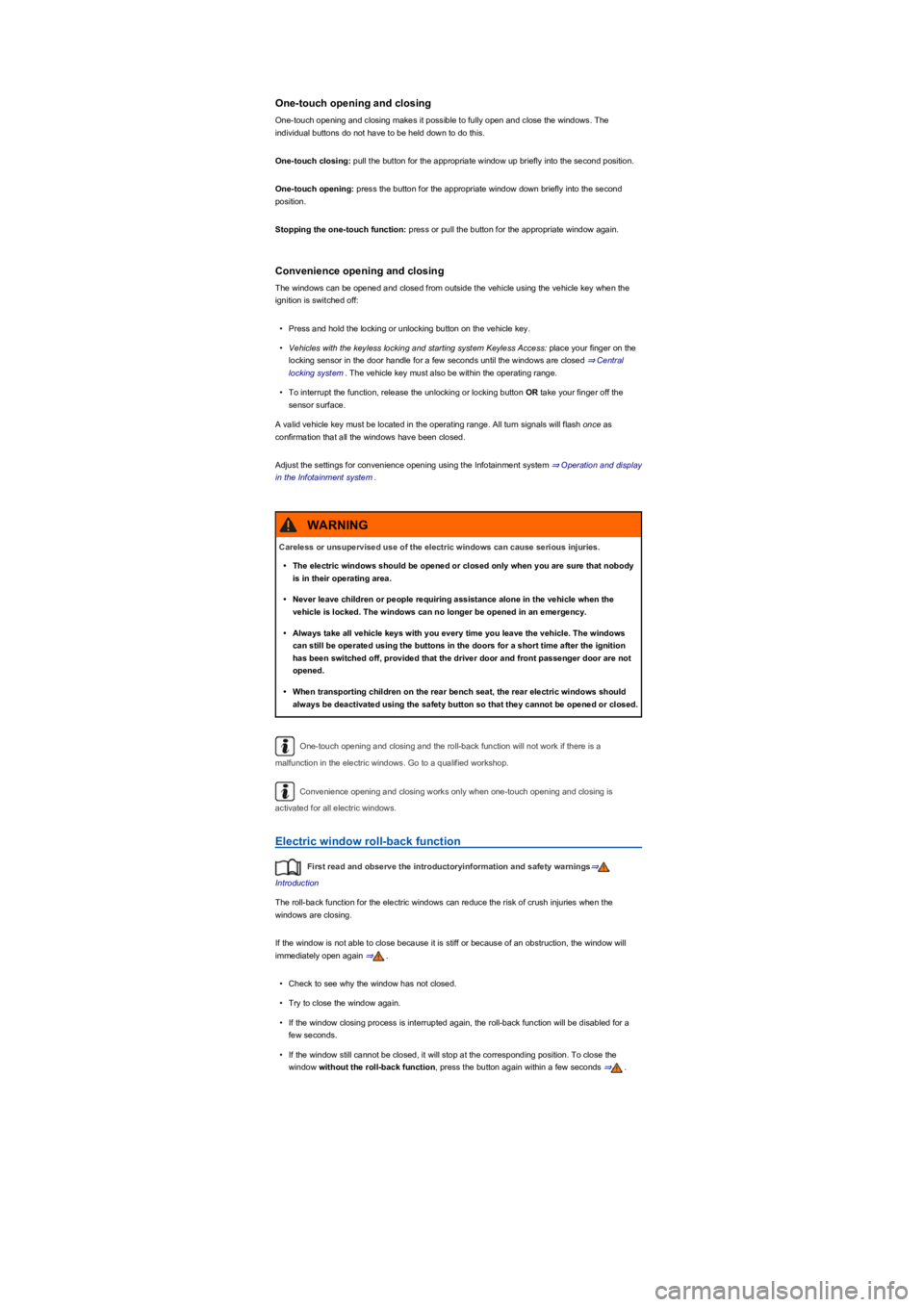

One-touch opening and closing
One-touch opening and closing makes it possible to fully open and close the windows. The
individual buttons do not have to be held down to do this.
One-touch closing: pull the button for the appropriate window up briefly into the second position.
One-touch opening: press the button for the appropriate window down briefly into the second
position.
Stopping the one-touch function: press or pull the button for the appropriate window again.
Convenience opening and closing
The windows can be opened and closed from outside the vehicle using the vehicle key when the
ignition is switched off:
•Press and hold the locking or unlocking button on the vehicle key.
•Vehicles with the keyless locking and starting system Keyless Access: place your finger on the
locking sensor in the door handle for a few seconds until the windows are closed ⇒ Central
locking system. The vehicle key must also be within the operating range.
•To interrupt the function, release the unlocking or locking button OR take your finger off the
sensor surface.
A valid vehicle key must be located in the operating range. All turn signals will flash once as
confirmation that all the windows have been closed.
Adjust the settings for convenience opening using the Infotainment system ⇒ Operation and display
in the Infotainment system.
One-touch opening and closing and the roll-back function will not work if there is a
malfunction in the electric windows. Go to a qualified workshop.
Convenience opening and closing works only when one-touch opening and closing is
activated for all electric windows.
Electric window roll-back function
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The roll-back function for the electric windows can reduce the risk of crush injuries when the
windows are closing.
If the window is not able to close because it is stiff or because of an obstruction, the window will
immediately open again ⇒.
•Check to see why the window has not closed.
•Try to close the window again.
•If the window closing process is interrupted again, the roll-back function will be disabled for a
few seconds.
•If the window still cannot be closed, it will stop at the corresponding position. To close the
window without the roll-back function, press the button again within a few seconds ⇒.
Careless or unsupervised use of the electric windows can cause serious injuries.
•The electric windows should be opened or closed only when you are sure that nobody
is in their operating area.
•Never leave children or people requiring assistance alone in the vehicle when the
vehicle is locked. The windows can no longer be opened in an emergency.
•Always take all vehicle keys with you every time you leave the vehicle. The windows
can still be operated using the buttons in the doors for a short time after the ignition
has been switched off, provided that the driver door and front passenger door are not
opened.
•When transporting children on the rear bench seat, the rear electric windows should
always be deactivated using the safety button so that they cannot be opened or closed.
WARNING

The roll-back function is also activated if the windows are closed using the vehicle key for
convenience closing.
Troubleshooting
First read and observe the introductoryinformation and safety warnings⇒
Introduction

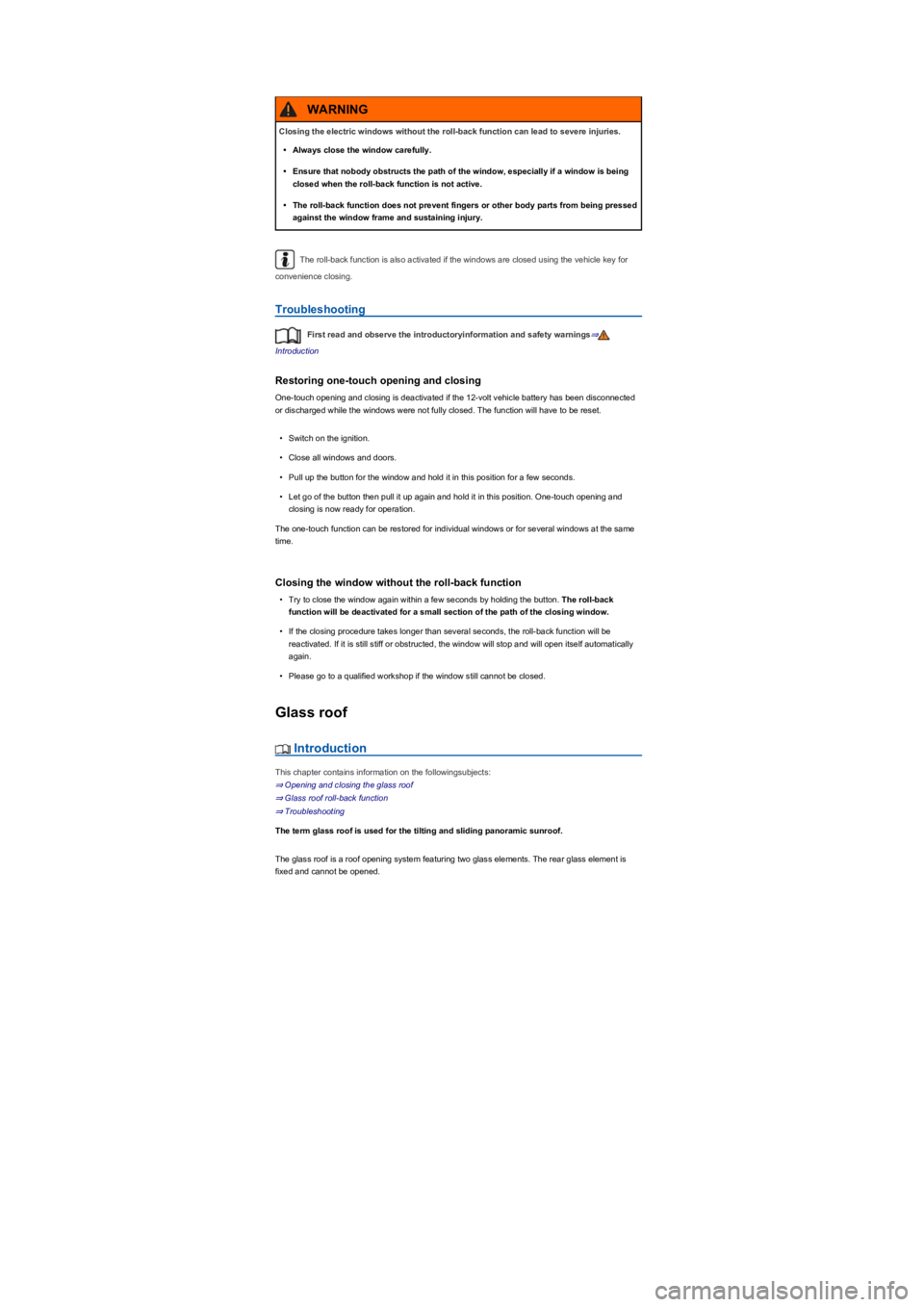

Restoring one-touch opening and closing
One-touch opening and closing is deactivated if the 12-volt vehicle battery has been disconnected
or discharged while the windows were not fully closed. The function will have to be reset.
•Switch on the ignition.
•Close all windows and doors.
•Pull up the button for the window and hold it in this position for a few seconds.
•Let go of the button then pull it up again and hold it in this position. One-touch opening and
closing is now ready for operation.
The one-touch function can be restored for individual windows or for several windows at the same
time.
Closing the window without the roll-back function
•Try to close the window again within a few seconds by holding the button. The roll-back
function will be deactivated for a small section of the path of the closing window.
•If the closing procedure takes longer than several seconds, the roll-back function will be
reactivated. If it is still stiff or obstructed, the window will stop and will open itself automatically
again.
•Please go to a qualified workshop if the window still cannot be closed.
Glass roof
Introduction
This chapter contains information on the followingsubjects:
⇒ Opening and closing the glass roof
⇒ Glass roof roll-back function
⇒ Troubleshooting
The term glass roof is used for the tilting and sliding panoramic sunroof.
The glass roof is a roof opening system featuring two glass elements. The rear glass element is
fixed and cannot be opened.
Closing the electric windows without the roll-back function can lead to severe injuries.
•Always close the window carefully.
•Ensure that nobody obstructs the path of the window, especially if a window is being
closed when the roll-back function is not active.
•The roll-back function does not prevent fingers or other body parts from being pressed
against the window frame and sustaining injury.
WARNING

Remove leaves and other loose items from the glass roof guide rails at regular intervals
using a vacuum cleaner, or by hand.
The roll-back function will not work properly if there is a malfunction with the glass roof. Go to
a qualified workshop.

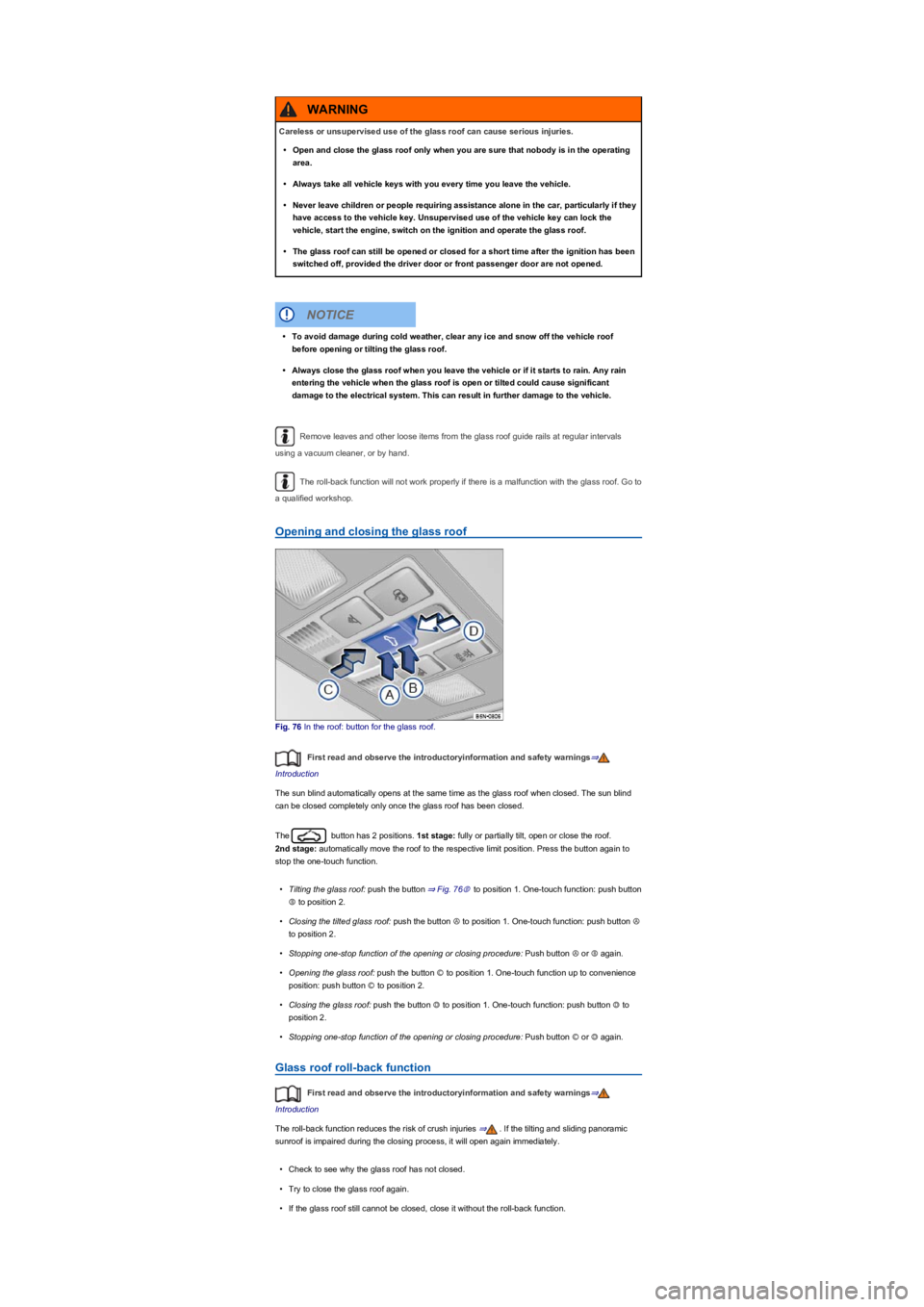

Opening and closing the glass roof
Fig. 76 In the roof: button for the glass roof.
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The sun blind automatically opens at the same time as the glass roof when closed. The sun blind
can be closed completely only once the glass roof has been closed.
The button has 2 positions. 1st stage: fully or partially tilt, open or close the roof.
2nd stage: automatically move the roof to the respective limit position. Press the button again to
stop the one-touch function.
•Tilting the glass roof: push the button ⇒ Fig. 76Ⓑ to position 1. One-touch function: push button
â’· to position 2.
•Closing the tilted glass roof: push the button Ⓐ to position 1. One-touch function: push button Ⓐ
to position 2.
•Stopping one-stop function of the opening or closing procedure: Push button Ⓐ or Ⓑ again.
•Opening the glass roof: push the button Ⓒ to position 1. One-touch function up to convenience
position: push button â’¸ to position 2.
•Closing the glass roof: push the button Ⓓ to position 1. One-touch function: push button Ⓓ to
position 2.
•Stopping one-stop function of the opening or closing procedure: Push button Ⓒ or Ⓓ again.
Glass roof roll-back function
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The roll-back function reduces the risk of crush injuries ⇒. If the tilting and sliding panoramic
sunroof is impaired during the closing process, it will open again immediately.
•Check to see why the glass roof has not closed.
•Try to close the glass roof again.
•If the glass roof still cannot be closed, close it without the roll-back function.
Careless or unsupervised use of the glass roof can cause serious injuries.
•Open and close the glass roof only when you are sure that nobody is in the operating
area.
•Always take all vehicle keys with you every time you leave the vehicle.
•Never leave children or people requiring assistance alone in the car, particularly if they
have access to the vehicle key. Unsupervised use of the vehicle key can lock the
vehicle, start the engine, switch on the ignition and operate the glass roof.
•The glass roof can still be opened or closed for a short time after the ignition has been
switched off, provided the driver door or front passenger door are not opened.
WARNING
•To avoid damage during cold weather, clear any ice and snow off the vehicle roof
before opening or tilting the glass roof.
•Always close the glass roof when you leave the vehicle or if it starts to rain. Any rain
entering the vehicle when the glass roof is open or tilted could cause significant
damage to the electrical system. This can result in further damage to the vehicle.
NOTICE

Closing the glass roof without the roll-back function
•Press the button to the 2nd position Ⓓ until the glass roof has fully closed.
•The glass roof will now close without the roll-back function.
•Please go to a qualified workshop if the glass roof still cannot be closed.
If you let go of the switch during the closing procedure, the glass roof will open automatically.
Troubleshooting
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Glass roof will not close
•The glass roof only works when the ignition is switched on. The glass roof can still be opened or
closed for a short time after the ignition has been switched off, provided the driver door or front
passenger door are not opened.
Steering wheel
Adjusting the steering wheel position
Fig. 77 Below the steering wheel in the steering column trim: lever for mechanical adjustment of the
steering wheel position.
Fig. 78 On the steering wheel: 9 o'clock and 3 o'clock position.
Adjust the steering wheel position before setting off and only when the vehicle is stationary ⇒.
•Push down the lever ⇒ Fig. 77①.
•Adjust the steering wheel so that you can hold it with both hands at its circumference at the 9
o'clock and 3 o'clock positions with your arms slightly bent ⇒ Fig. 78.
•Push the lever up firmly until it is flush with the steering column trim ⇒.
Closing the glass roof without the roll-back function can cause serious injuries.
•Always close the glass roof carefully.
•Ensure that nobody obstructs the path of the glass roof, especially if the roll-back
function is not active.
•The roll-back function does not prevent fingers or other body parts from being pressed
against the roof frame and sustaining injury.
WARNING

Seats and head restraints
Front seats
Introduction
This chapter contains information on the followingsubjects:
⇒ Mechanically adjusting the front seat
⇒ Electrically adjusting the front seat
⇒ Folding the front passenger seat backrest forwards
The following section describes the options for adjusting the front seats. Always ensure that the
correct sitting position is adjusted ⇒ Sitting position.

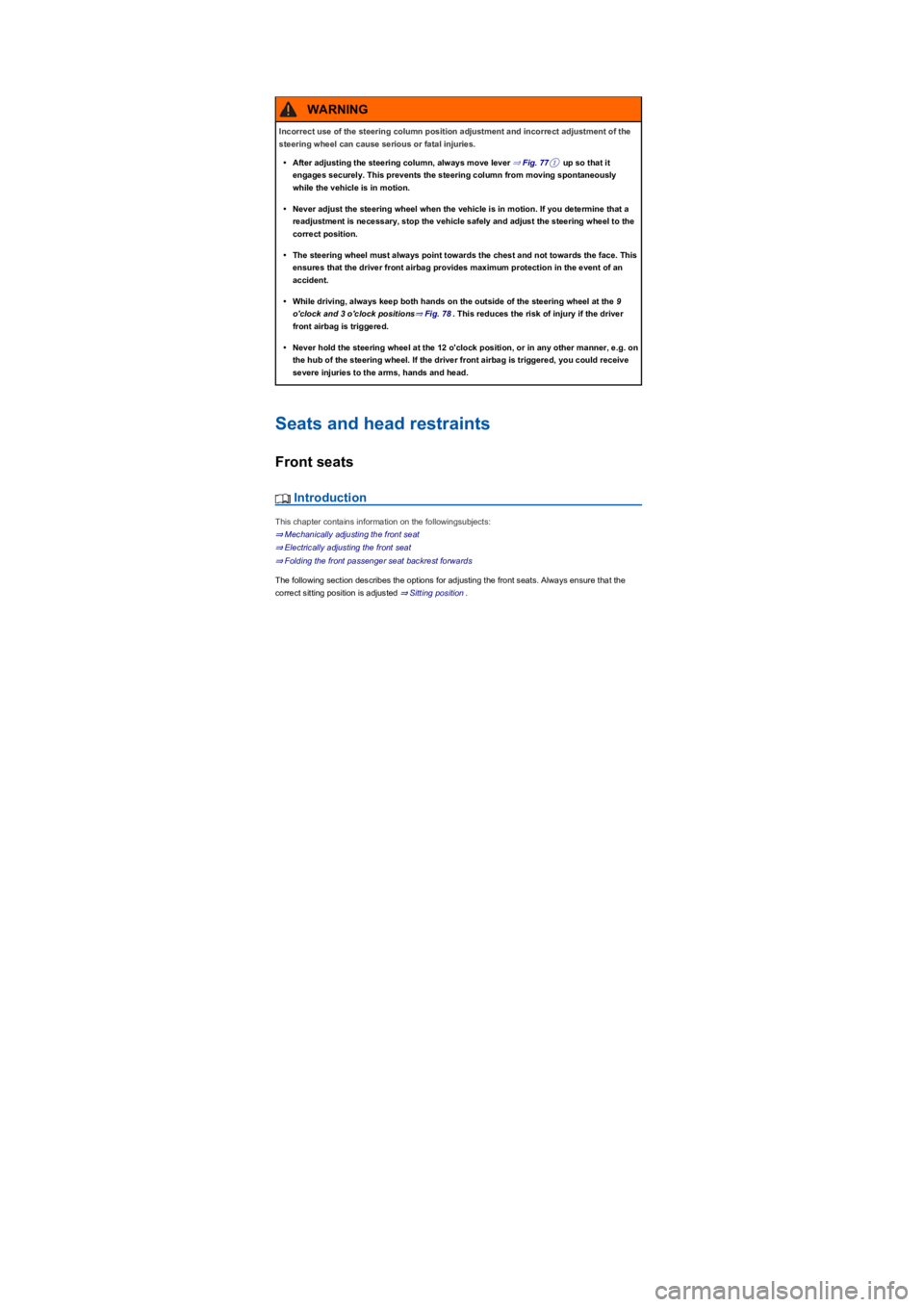

Incorrect use of the steering column position adjustment and incorrect adjustment of the
steering wheel can cause serious or fatal injuries.
•After adjusting the steering column, always move lever ⇒ Fig. 77① up so that it
engages securely. This prevents the steering column from moving spontaneously
while the vehicle is in motion.
•Never adjust the steering wheel when the vehicle is in motion. If you determine that a
readjustment is necessary, stop the vehicle safely and adjust the steering wheel to the
correct position.
•The steering wheel must always point towards the chest and not towards the face. This
ensures that the driver front airbag provides maximum protection in the event of an
accident.
•While driving, always keep both hands on the outside of the steering wheel at the 9
o'clock and 3 o'clock positions⇒ Fig. 78. This reduces the risk of injury if the driver
front airbag is triggered.
•Never hold the steering wheel at the 12 o'clock position, or in any other manner, e.g. on
the hub of the steering wheel. If the driver front airbag is triggered, you could receive
severe injuries to the arms, hands and head.
WARNING

Mechanically adjusting the front seat

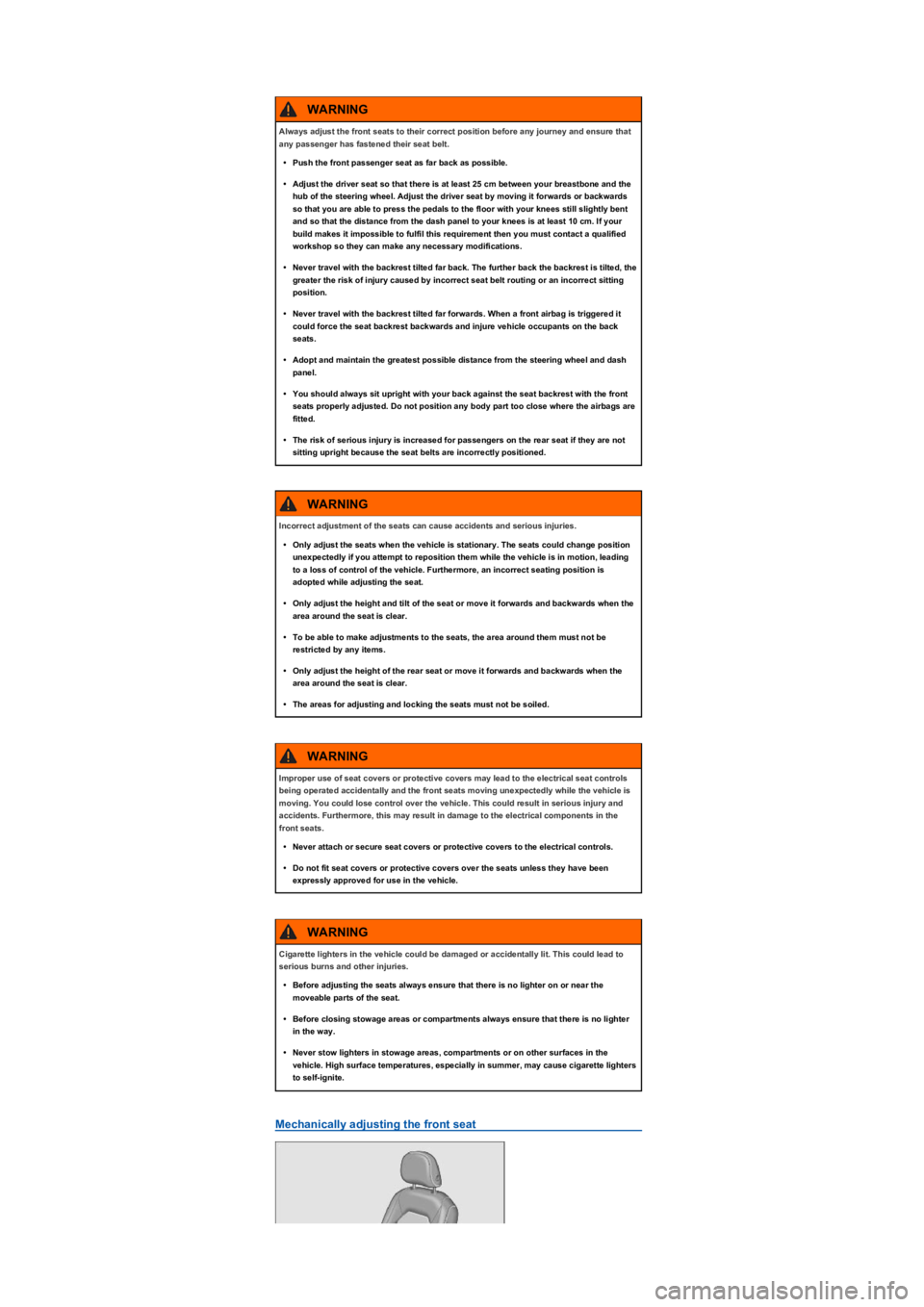

Always adjust the front seats to their correct position before any journey and ensure that
any passenger has fastened their seat belt.
•Push the front passenger seat as far back as possible.
•Adjust the driver seat so that there is at least 25 cm between your breastbone and the
hub of the steering wheel. Adjust the driver seat by moving it forwards or backwards
so that you are able to press the pedals to the floor with your knees still slightly bent
and so that the distance from the dash panel to your knees is at least 10 cm. If your
build makes it impossible to fulfil this requirement then you must contact a qualified
workshop so they can make any necessary modifications.
•Never travel with the backrest tilted far back. The further back the backrest is tilted, the
greater the risk of injury caused by incorrect seat belt routing or an incorrect sitting
position.
•Never travel with the backrest tilted far forwards. When a front airbag is triggered it
could force the seat backrest backwards and injure vehicle occupants on the back
seats.
•Adopt and maintain the greatest possible distance from the steering wheel and dash
panel.
•You should always sit upright with your back against the seat backrest with the front
seats properly adjusted. Do not position any body part too close where the airbags are
fitted.
•The risk of serious injury is increased for passengers on the rear seat if they are not
sitting upright because the seat belts are incorrectly positioned.
WARNING
Incorrect adjustment of the seats can cause accidents and serious injuries.
•Only adjust the seats when the vehicle is stationary. The seats could change position
unexpectedly if you attempt to reposition them while the vehicle is in motion, leading
to a loss of control of the vehicle. Furthermore, an incorrect seating position is
adopted while adjusting the seat.
•Only adjust the height and tilt of the seat or move it forwards and backwards when the
area around the seat is clear.
•To be able to make adjustments to the seats, the area around them must not be
restricted by any items.
•Only adjust the height of the rear seat or move it forwards and backwards when the
area around the seat is clear.
•The areas for adjusting and locking the seats must not be soiled.
WARNING
Improper use of seat covers or protective covers may lead to the electrical seat controls
being operated accidentally and the front seats moving unexpectedly while the vehicle is
moving. You could lose control over the vehicle. This could result in serious injury and
accidents. Furthermore, this may result in damage to the electrical components in the
front seats.
•Never attach or secure seat covers or protective covers to the electrical controls.
•Do not fit seat covers or protective covers over the seats unless they have been
expressly approved for use in the vehicle.
WARNING
Cigarette lighters in the vehicle could be damaged or accidentally lit. This could lead to
serious burns and other injuries.
•Before adjusting the seats always ensure that there is no lighter on or near the
moveable parts of the seat.
•Before closing stowage areas or compartments always ensure that there is no lighter
in the way.
•Never stow lighters in stowage areas, compartments or on other surfaces in the
vehicle. High surface temperatures, especially in summer, may cause cigarette lighters
to self-ignite.
WARNING

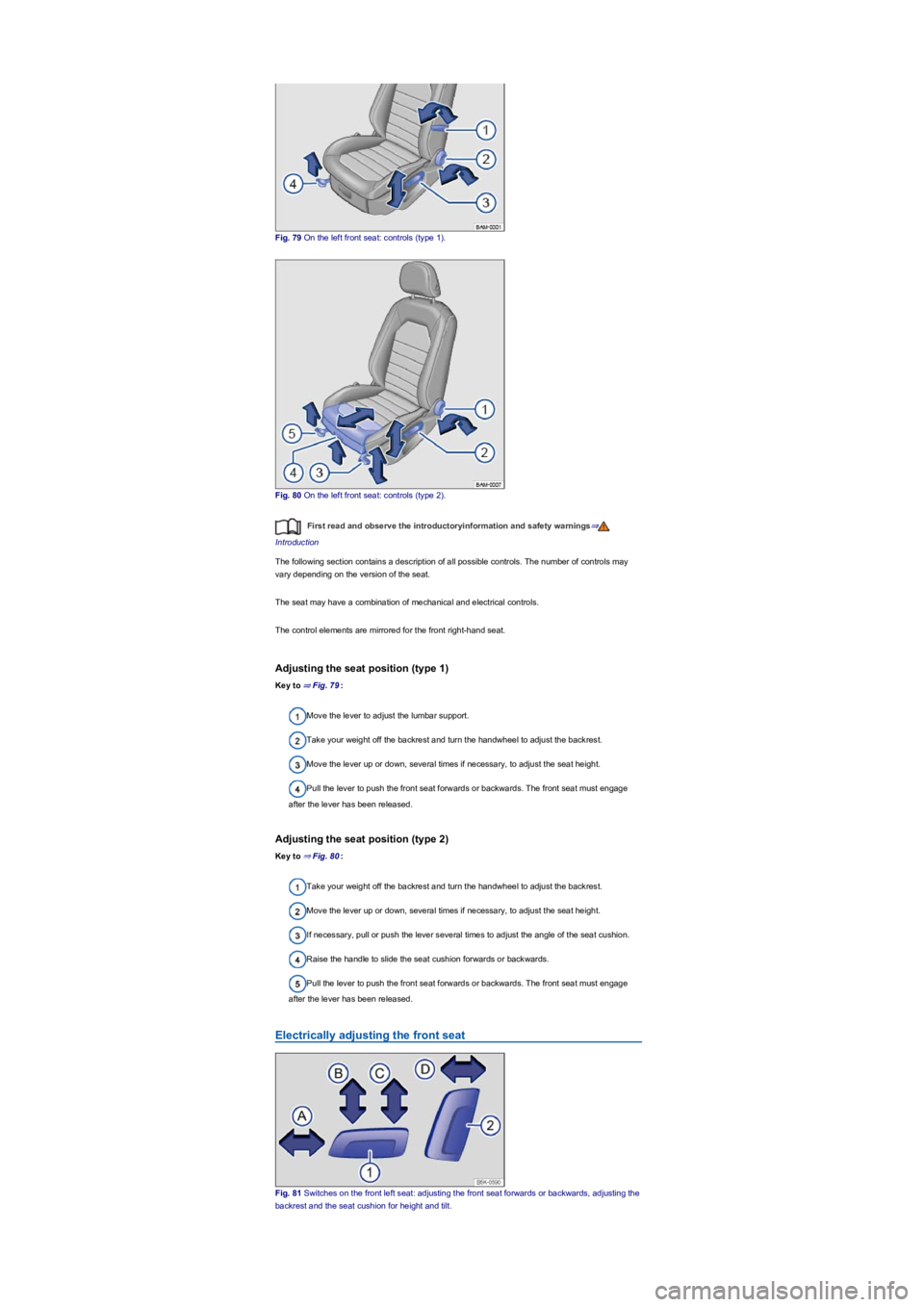

Fig. 79 On the left front seat: controls (type 1).
Fig. 80 On the left front seat: controls (type 2).
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The following section contains a description of all possible controls. The number of controls may
vary depending on the version of the seat.
The seat may have a combination of mechanical and electrical controls.
The control elements are mirrored for the front right-hand seat.
Adjusting the seat position (type 1)
Key to ⇒ Fig. 79:
Move the lever to adjust the lumbar support.
Take your weight off the backrest and turn the handwheel to adjust the backrest.
Move the lever up or down, several times if necessary, to adjust the seat height.
Pull the lever to push the front seat forwards or backwards. The front seat must engage
after the lever has been released.
Adjusting the seat position (type 2)
Key to ⇒ Fig. 80:
Take your weight off the backrest and turn the handwheel to adjust the backrest.
Move the lever up or down, several times if necessary, to adjust the seat height.
If necessary, pull or push the lever several times to adjust the angle of the seat cushion.
Raise the handle to slide the seat cushion forwards or backwards.
Pull the lever to push the front seat forwards or backwards. The front seat must engage
after the lever has been released.
Electrically adjusting the front seat
Fig. 81 Switches on the front left seat: adjusting the front seat forwards or backwards, adjusting the
backrest and the seat cushion for height and tilt.
