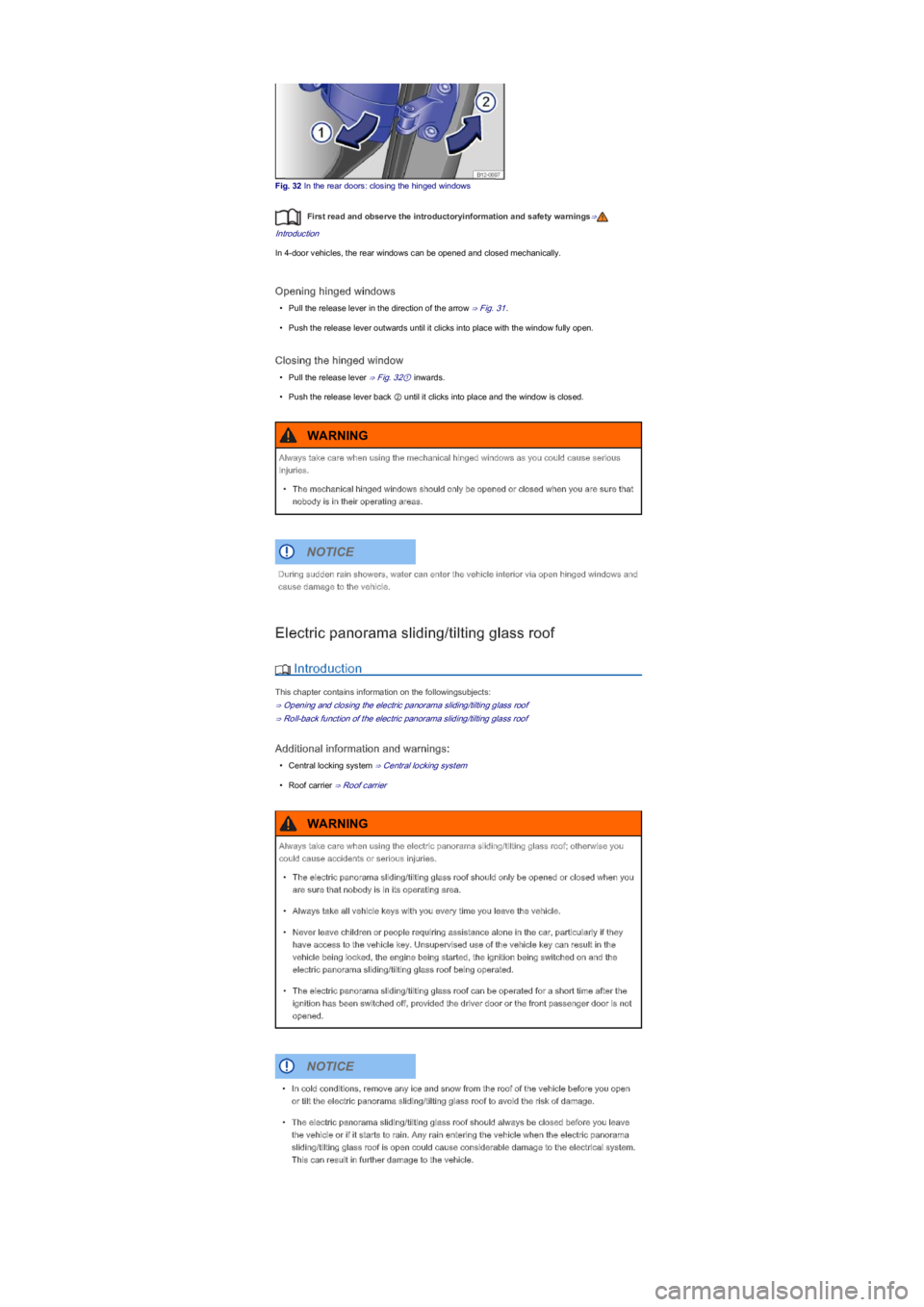

Fig. 32 In the rear doors: closing the hinged windows
First read and observe the introductoryinformation and safety warnings⇒
Introduction
In 4-door vehicles, the rear windows can be opened and closed mechanically.
Opening hinged windows
•Pull the release lever in the direction of the arrow ⇒ Fig. 31.
•Push the release lever outwards until it clicks into place with the window fully open.
Closing the hinged window
•Pull the release lever ⇒ Fig. 32① inwards.
•Push the release lever back ② until it clicks into place and the window is closed.
Electric panorama sliding/tilting glass roof
 Introduction
This chapter contains information on the followingsubjects:
⇒ Opening and closing the electric panorama sliding/tilting glass roof
⇒ Roll-back function of the electric panorama sliding/tilting glass roof
Additional information and warnings:
•Central locking system ⇒ Central locking system
•Roof carrier ⇒ Roof carrier
Always take care when using the mechanical hinged windows as you could cause serious
injuries.
•The mechanical hinged windows should only be opened or closed when you are sure that
nobody is in their operating areas.
WARNING
During sudden rain showers, water can enter the vehicle interior via open hinged windows and
cause damage to the vehicle.
NOTICE
Always take care when using the electric panorama sliding/tilting glass roof; otherwise you
could cause accidents or serious injuries.
•The electric panorama sliding/tilting glass roof should only be opened or closed when you
are sure that nobody is in its operating area.
•Always take all vehicle keys with you every time you leave the vehicle.
•Never leave children or people requiring assistance alone in the car, particularly if they
have access to the vehicle key. Unsupervised use of the vehicle key can result in the
vehicle being locked, the engine being started, the ignition being switched on and the
electric panorama sliding/tilting glass roof being operated.
•The electric panorama sliding/tilting glass roof can be operated for a short time after the
ignition has been switched off, provided the driver door or the front passenger door is not
opened.
WARNING
•In cold conditions, remove any ice and snow from the roof of the vehicle before you open
or tilt the electric panorama sliding/tilting glass roof to avoid the risk of damage.
•The electric panorama sliding/tilting glass roof should always be closed before you leave
the vehicle or if it starts to rain. Any rain entering the vehicle when the electric panorama
sliding/tilting glass roof is open could cause considerable damage to the electrical system.
This can result in further damage to the vehicle.
NOTICE

Leaves and other loose objects must be removed from the guide rails of the electric
panorama sliding/tilting glass roof at regular intervals, using a vacuum cleaner or by hand.
If there is a fault in the electric panorama sliding/tilting roof, the roll-back function will not
work properly. Go to a qualified workshop

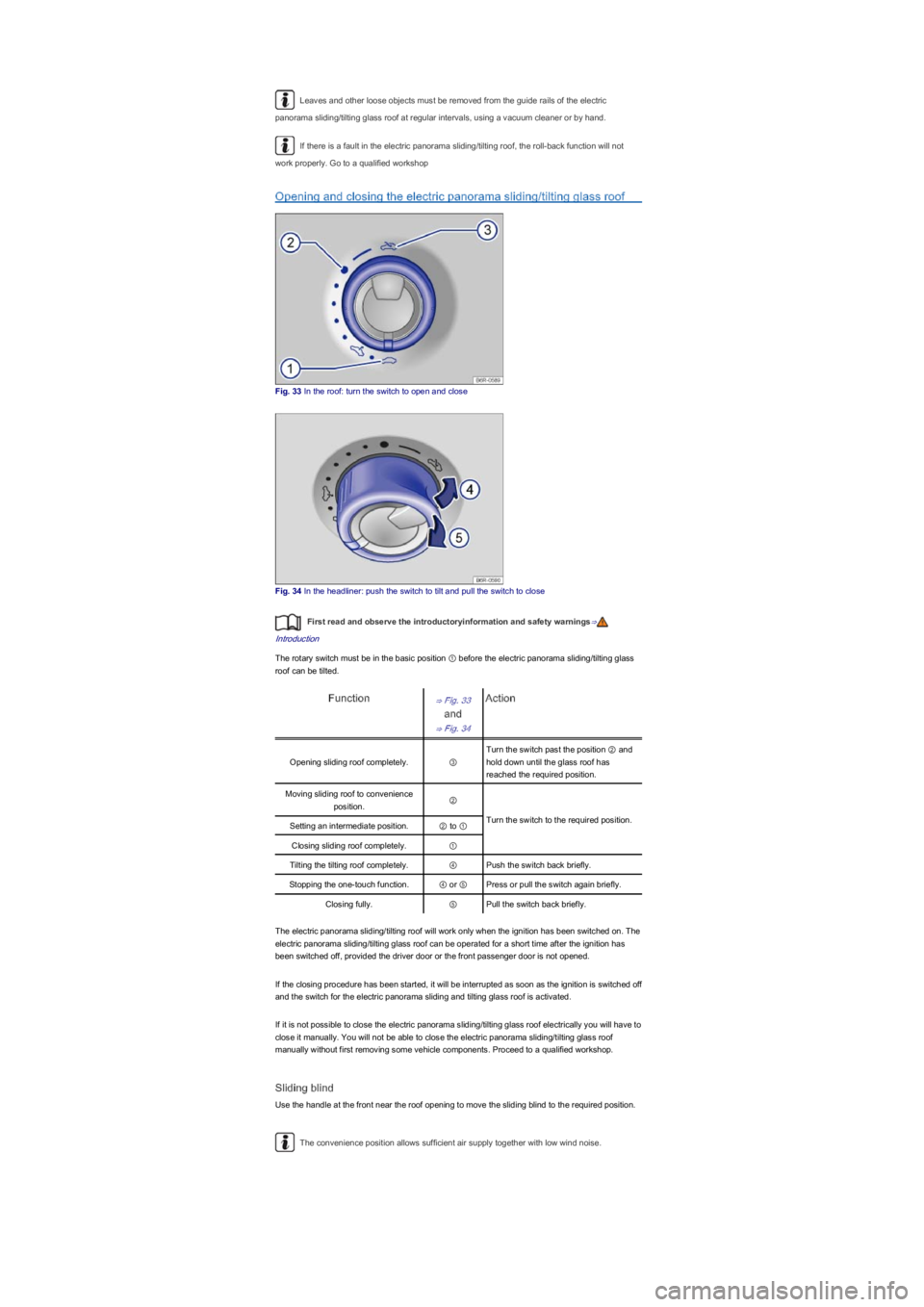

Opening and closing the electric panorama sliding/tilting glass roof
Fig. 33 In the roof: turn the switch to open and close
Fig. 34 In the headliner: push the switch to tilt and pull the switch to close
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The rotary switch must be in the basic position â‘  before the electric panorama sliding/tilting glass
roof can be tilted.
Function⇒ Fig. 33
and
⇒ Fig. 34
Action
Opening sliding roof completely.â‘¢
Turn the switch past the position â‘¡ and
hold down until the glass roof has
reached the required position.
Moving sliding roof to convenience
position.â‘¡
Turn the switch to the required position.Setting an intermediate position.â‘¡ to â‘
Closing sliding roof completely.â‘
Tilting the tilting roof completely.â‘£Push the switch back briefly.
Stopping the one-touch function.④ or ⑤Press or pull the switch again briefly.
Closing fully.⑤Pull the switch back briefly.
The electric panorama sliding/tilting roof will work only when the ignition has been switched on. The
electric panorama sliding/tilting glass roof can be operated for a short time after the ignition has
been switched off, provided the driver door or the front passenger door is not opened.
If the closing procedure has been started, it will be interrupted as soon as the ignition is switched off
and the switch for the electric panorama sliding and tilting glass roof is activated.
If it is not possible to close the electric panorama sliding/tilting glass roof electrically you will have to
close it manually. You will not be able to close the electric panorama sliding/tilting glass roof
manually without first removing some vehicle components. Proceed to a qualified workshop.
Sliding blind
Use the handle at the front near the roof opening to move the sliding blind to the required position.
The convenience position allows sufficient air supply together with low wind noise.

Roll-back function of the electric panorama sliding/tilting glass roof
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The roll-back function can reduce the risk of injury when the electric panorama sliding/tilting glass
roof is being closed ⇒. If the electric panorama sliding/tilting glass roof is not able to close
because it is stiff or obstructed, it will automatically open again immediately.
•Check why the electric panorama sliding/tilting glass roof has not closed.
•Try to close the electric panorama sliding/tilting glass roof again.
•If the electric panorama sliding/tilting glass roof is still stiff or obstructed, it stops at this point.
Then close the electric panorama sliding/tilting glass roof without the roll-back function
Closing the electric panorama sliding/tilting glass roof without the roll-back
function
•Pull the switch ⇒ Fig. 34⑤ within approximately 5 seconds after the roll-back function has been
triggered and hold it in this position until the electric panorama sliding/tilting glass roof is closed
completely.
•The electric panorama sliding/tilting glass roof will then close without the roll-back function.
•If the electric panorama sliding/tilting glass roof still cannot be closed, go to a qualified
workshop.
If you let go of the switch during the closing procedure, the electric panorama sliding/tilting glass
roof will open automatically.
Sitting correctly and safely
Adjusting the seat position
 Introduction
This chapter contains information on the followingsubjects:
⇒ The dangers of assuming an incorrect sitting position
⇒ Correct sitting position
⇒ Controls on the front seats
⇒ Adjusting the rear head restraint

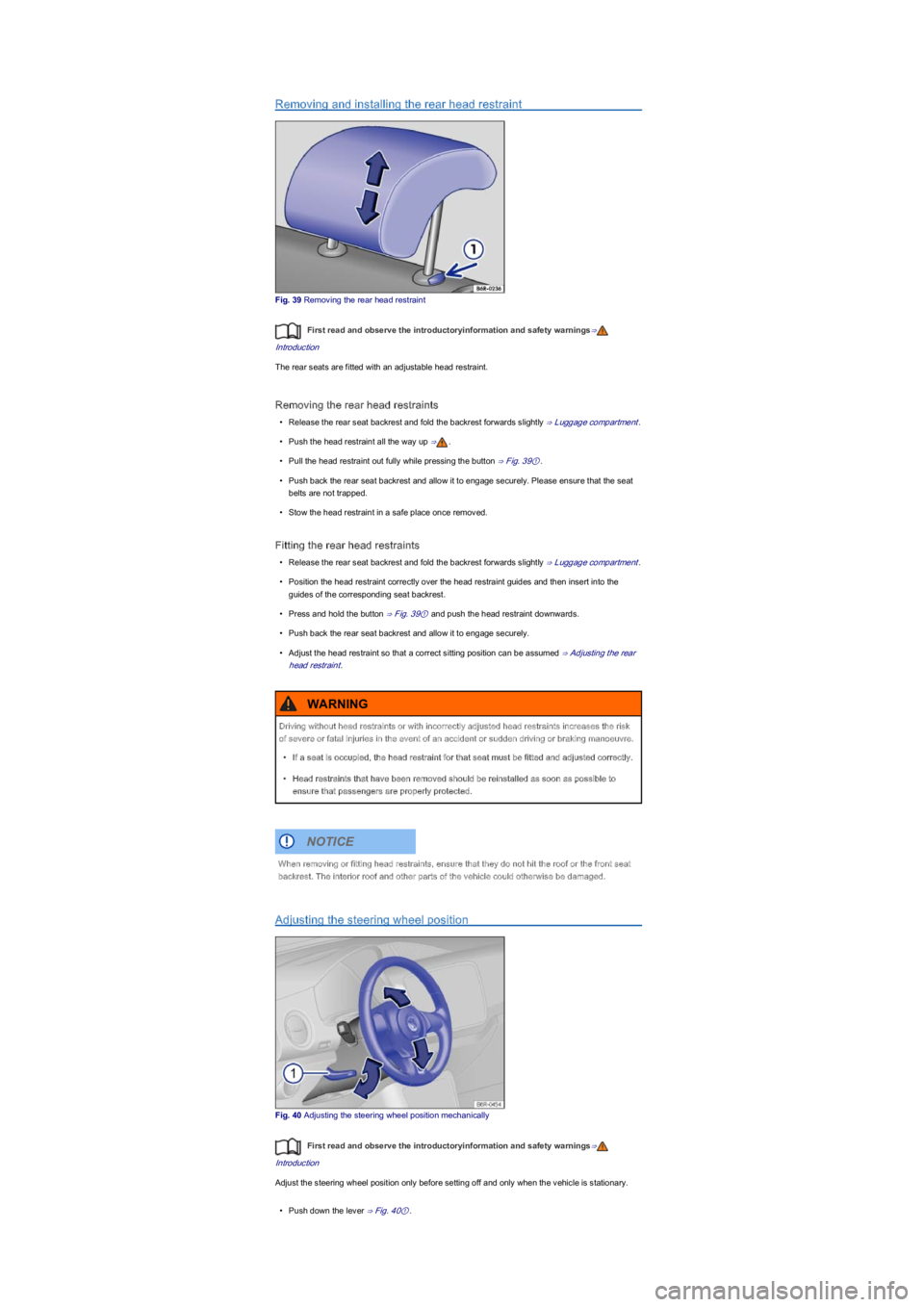

⇒ Removing and installing the rear head restraint
⇒ Adjusting the steering wheel position
Number of seats
The vehicle has a total of 4 seats: 2 at the front and 2 at the rear. Each seat is equipped with a seat
belt.
Additional information and warnings:
•Seat functions ⇒ Seat functions
•Seat belts ⇒ Seat belts
•Airbag system ⇒ Airbag system
•Child seats (accessories) ⇒ Child seats (accessories)
Closing the electric panorama sliding/tilting glass roof without the roll-back function can cause
severe injuries.
•Always be careful when closing the electric panorama sliding/tilting glass roof.
•Ensure that nobody is obstructing the operating area of the electric panorama sliding/tilting
glass roof, especially if the roll-back function is not active.
•The roll-back function does not prevent fingers or other body parts from being pressed
against the roof frame and sustaining injury.
WARNING

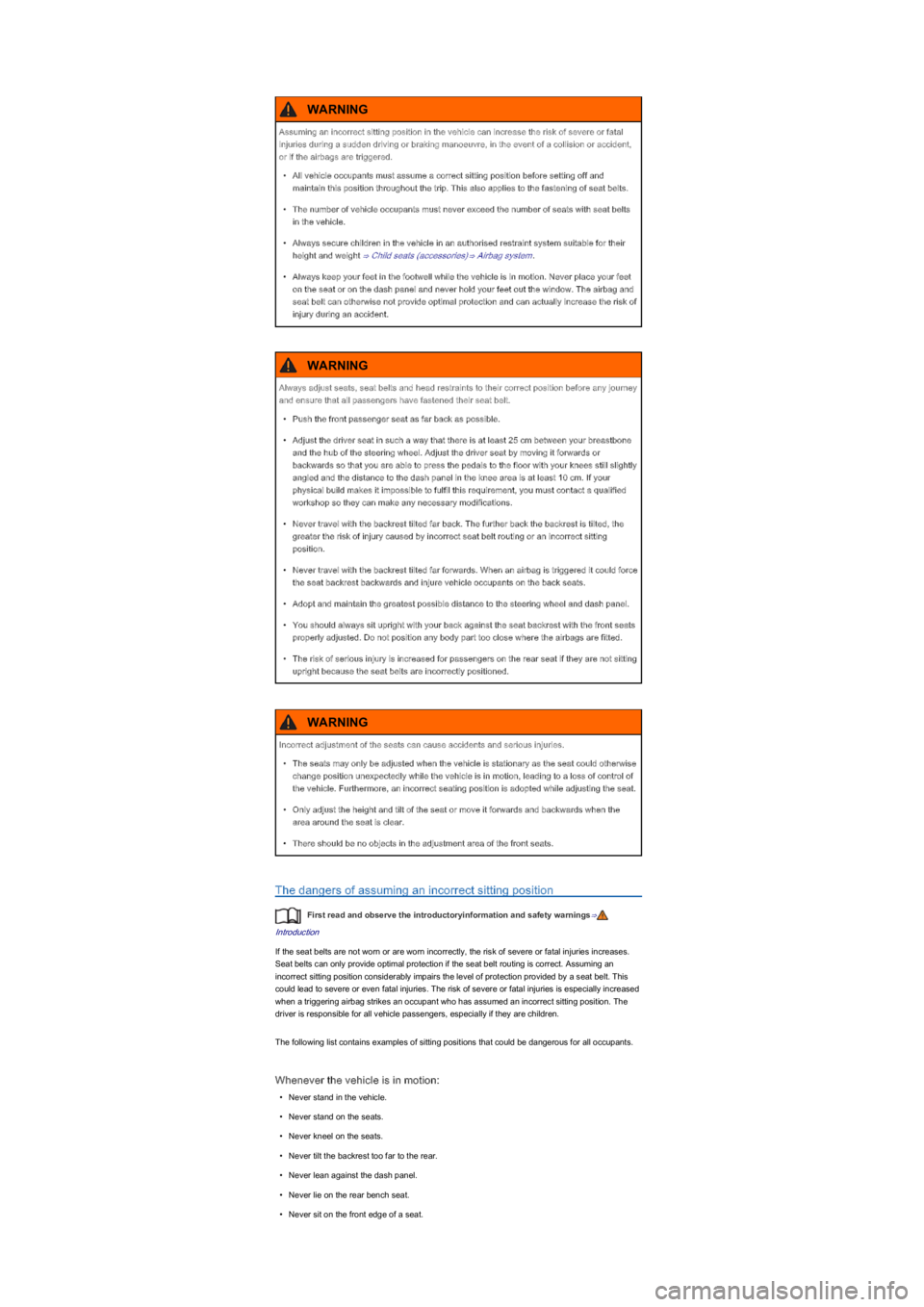

The dangers of assuming an incorrect sitting position
First read and observe the introductoryinformation and safety warnings⇒
Introduction
If the seat belts are not worn or are worn incorrectly, the risk of severe or fatal injuries increases.
Seat belts can only provide optimal protection if the seat belt routing is correct. Assuming an
incorrect sitting position considerably impairs the level of protection provided by a seat belt. This
could lead to severe or even fatal injuries. The risk of severe or fatal injuries is especially increased
when a triggering airbag strikes an occupant who has assumed an incorrect sitting position. The
driver is responsible for all vehicle passengers, especially if they are children.
The following list contains examples of sitting positions that could be dangerous for all occupants.
Whenever the vehicle is in motion:
•Never stand in the vehicle.
•Never stand on the seats.
•Never kneel on the seats.
•Never tilt the backrest too far to the rear.
•Never lean against the dash panel.
•Never lie on the rear bench seat.
•Never sit on the front edge of a seat.
Assuming an incorrect sitting position in the vehicle can increase the risk of severe or fatal
injuries during a sudden driving or braking manoeuvre, in the event of a collision or accident,
or if the airbags are triggered.
•All vehicle occupants must assume a correct sitting position before setting off and
maintain this position throughout the trip. This also applies to the fastening of seat belts.
•The number of vehicle occupants must never exceed the number of seats with seat belts
in the vehicle.
•Always secure children in the vehicle in an authorised restraint system suitable for their
height and weight ⇒ Child seats (accessories)⇒ Airbag system.
•Always keep your feet in the footwell while the vehicle is in motion. Never place your feet
on the seat or on the dash panel and never hold your feet out the window. The airbag and
seat belt can otherwise not provide optimal protection and can actually increase the risk of
injury during an accident.
WARNING
Always adjust seats, seat belts and head restraints to their correct position before any journey
and ensure that all passengers have fastened their seat belt.
•Push the front passenger seat as far back as possible.
•Adjust the driver seat in such a way that there is at least 25 cm between your breastbone
and the hub of the steering wheel. Adjust the driver seat by moving it forwards or
backwards so that you are able to press the pedals to the floor with your knees still slightly
angled and the distance to the dash panel in the knee area is at least 10 cm. If your
physical build makes it impossible to fulfil this requirement, you must contact a qualified
workshop so they can make any necessary modifications.
•Never travel with the backrest tilted far back. The further back the backrest is tilted, the
greater the risk of injury caused by incorrect seat belt routing or an incorrect sitting
position.
•Never travel with the backrest tilted far forwards. When an airbag is triggered it could force
the seat backrest backwards and injure vehicle occupants on the back seats.
•Adopt and maintain the greatest possible distance to the steering wheel and dash panel.
•You should always sit upright with your back against the seat backrest with the front seats
properly adjusted. Do not position any body part too close where the airbags are fitted.
•The risk of serious injury is increased for passengers on the rear seat if they are not sitting
upright because the seat belts are incorrectly positioned.
WARNING
Incorrect adjustment of the seats can cause accidents and serious injuries.
•The seats may only be adjusted when the vehicle is stationary as the seat could otherwise
change position unexpectedly while the vehicle is in motion, leading to a loss of control of
the vehicle. Furthermore, an incorrect seating position is adopted while adjusting the seat.
•Only adjust the height and tilt of the seat or move it forwards and backwards when the
area around the seat is clear.
•There should be no objects in the adjustment area of the front seats.
WARNING

•Never sit sideways.
•Never lean out of a window.
•Never put your feet out of a window.
•Never put your feet on the dash panel.
•Never place your feet on the seat cushion or seat backrest.
•Never travel in a footwell.
•Never travel on a seat without wearing the seat belt.
•Never travel in the luggage compartment.

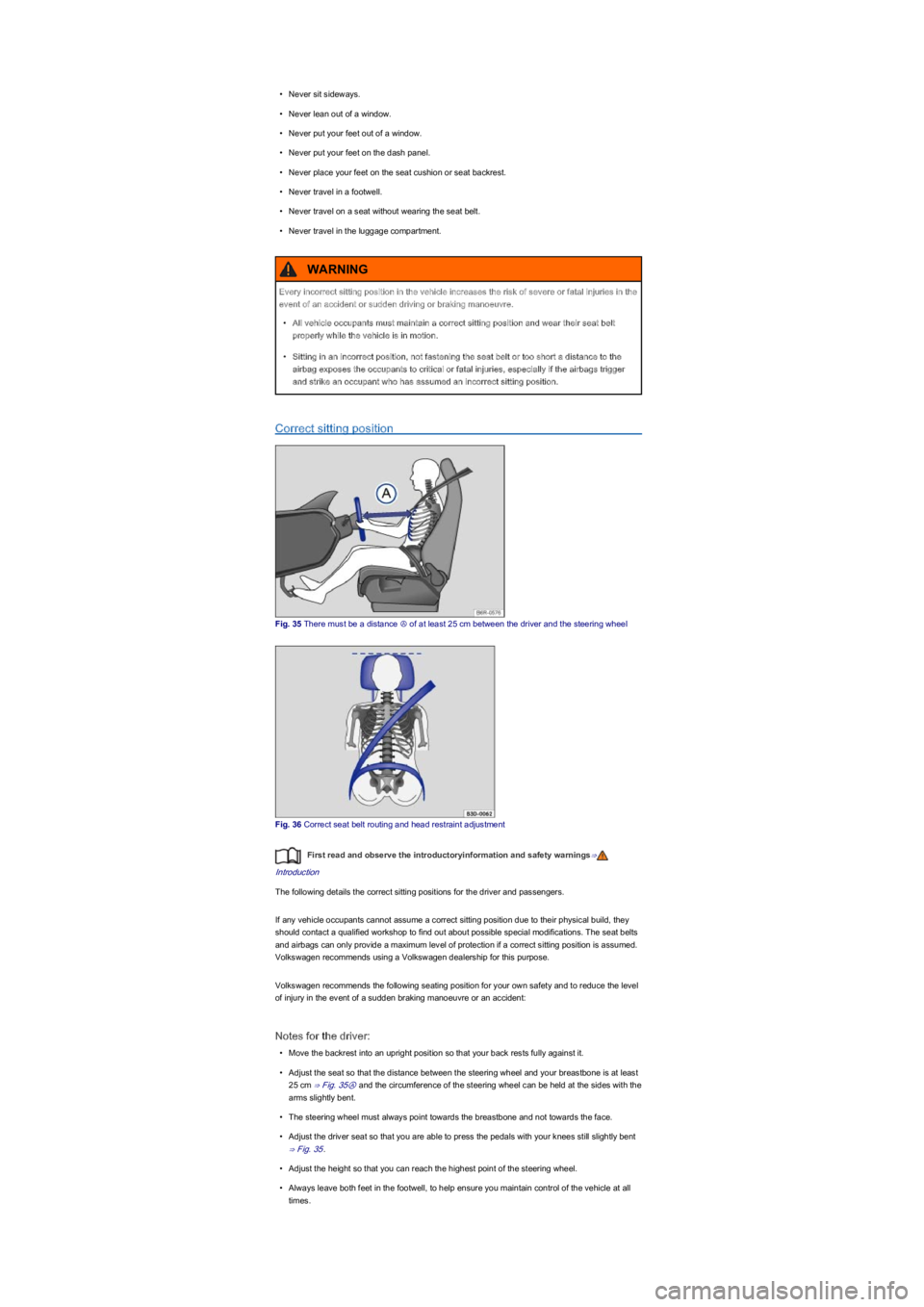

Correct sitting position
Fig. 35 There must be a distance â’¶ of at least 25 cm between the driver and the steering wheel
Fig. 36 Correct seat belt routing and head restraint adjustment
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The following details the correct sitting positions for the driver and passengers.
If any vehicle occupants cannot assume a correct sitting position due to their physical build, they
should contact a qualified workshop to find out about possible special modifications. The seat belts
and airbags can only provide a maximum level of protection if a correct sitting position is assumed.
Volkswagen recommends using a Volkswagen dealership for this purpose.
Volkswagen recommends the following seating position for your own safety and to reduce the level
of injury in the event of a sudden braking manoeuvre or an accident:
Notes for the driver:
•Move the backrest into an upright position so that your back rests fully against it.
•Adjust the seat so that the distance between the steering wheel and your breastbone is at least
25 cm ⇒ Fig. 35Ⓐ and the circumference of the steering wheel can be held at the sides with the
arms slightly bent.
•The steering wheel must always point towards the breastbone and not towards the face.
•Adjust the driver seat so that you are able to press the pedals with your knees still slightly bent
⇒ Fig. 35.
•Adjust the height so that you can reach the highest point of the steering wheel.
•Always leave both feet in the footwell, to help ensure you maintain control of the vehicle at all
times.
Every incorrect sitting position in the vehicle increases the risk of severe or fatal injuries in the
event of an accident or sudden driving or braking manoeuvre.
•All vehicle occupants must maintain a correct sitting position and wear their seat belt
properly while the vehicle is in motion.
•Sitting in an incorrect position, not fastening the seat belt or too short a distance to the
airbag exposes the occupants to critical or fatal injuries, especially if the airbags trigger
and strike an occupant who has assumed an incorrect sitting position.
WARNING

•Adjust and fasten seat belts properly ⇒ Seat belts.

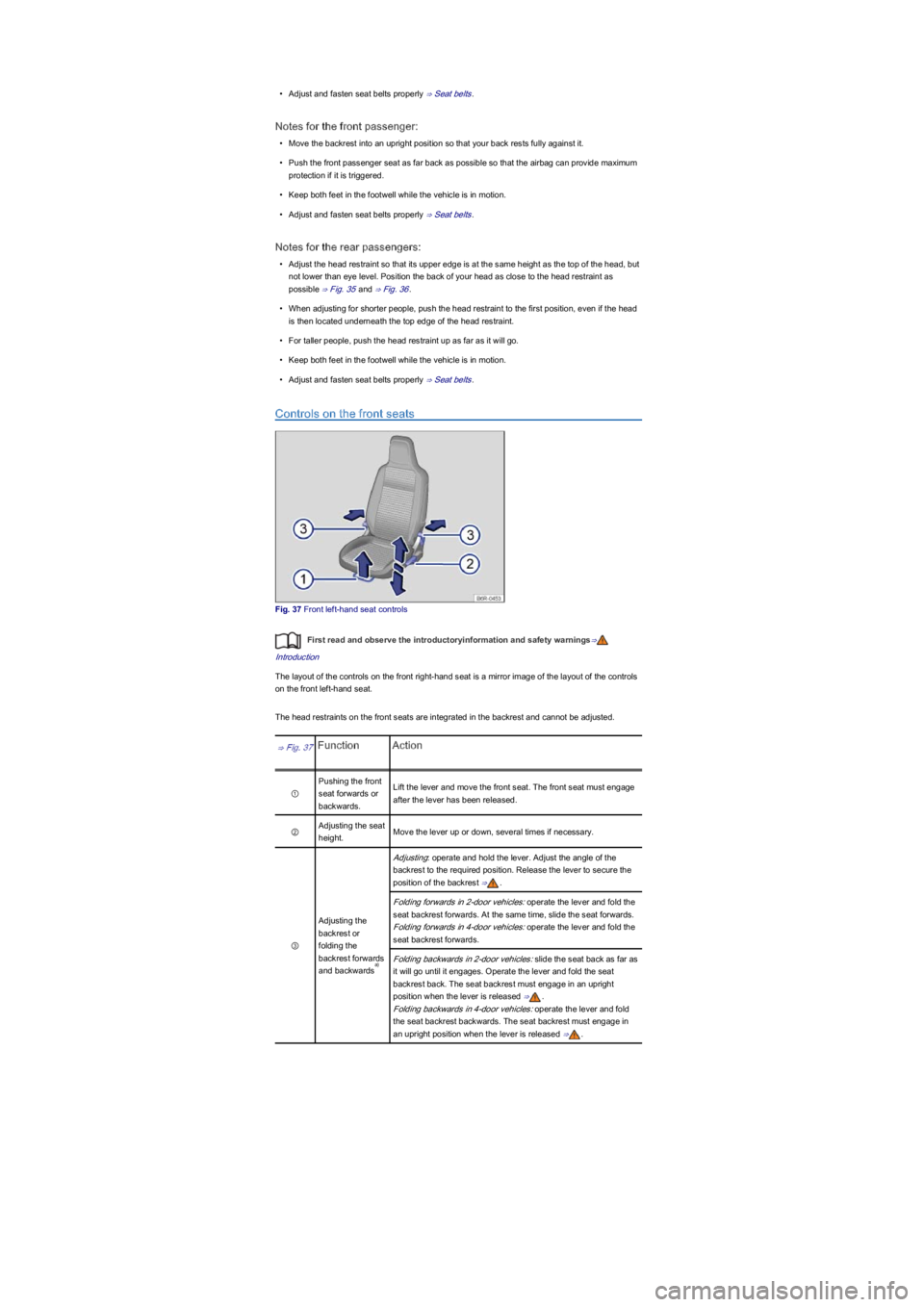

Notes for the front passenger:
•Move the backrest into an upright position so that your back rests fully against it.
•Push the front passenger seat as far back as possible so that the airbag can provide maximum
protection if it is triggered.
•Keep both feet in the footwell while the vehicle is in motion.
•Adjust and fasten seat belts properly ⇒ Seat belts.
Notes for the rear passengers:
•Adjust the head restraint so that its upper edge is at the same height as the top of the head, but
not lower than eye level. Position the back of your head as close to the head restraint as
possible ⇒ Fig. 35 and ⇒ Fig. 36.
•When adjusting for shorter people, push the head restraint to the first position, even if the head
is then located underneath the top edge of the head restraint.
•For taller people, push the head restraint up as far as it will go.
•Keep both feet in the footwell while the vehicle is in motion.
•Adjust and fasten seat belts properly ⇒ Seat belts.
Controls on the front seats
Fig. 37 Front left-hand seat controls
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The layout of the controls on the front right-hand seat is a mirror image of the layout of the controls
on the front left-hand seat.
The head restraints on the front seats are integrated in the backrest and cannot be adjusted.
⇒ Fig. 37FunctionAction
â‘
Pushing the front
seat forwards or
backwards.
Lift the lever and move the front seat. The front seat must engage
after the lever has been released.
â‘¡Adjusting the seat
height.Move the lever up or down, several times if necessary.
â‘¢
Adjusting the
backrest or
folding the
backrest forwards
and backwards
Adjusting: operate and hold the lever. Adjust the angle of the
backrest to the required position. Release the lever to secure the
position of the backrest ⇒.
Folding forwards in 2-door vehicles: operate the lever and fold the
seat backrest forwards. At the same time, slide the seat forwards.
Folding forwards in 4-door vehicles: operate the lever and fold the
seat backrest forwards.
Folding backwards in 2-door vehicles: slide the seat back as far as
it will go until it engages. Operate the lever and fold the seat
backrest back. The seat backrest must engage in an upright
position when the lever is released ⇒.
Folding backwards in 4-door vehicles: operate the lever and fold
the seat backrest backwards. The seat backrest must engage in
an upright position when the lever is released ⇒.
a)

In 4-door vehicles: on the interior side of the seat only.
Adjusting the rear head restraint
Fig. 38 Adjusting rear head restraint
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Every seat is fitted with a head restraint.
The head restraints on the front seats are integrated in the backrest and cannot be adjusted.
The rear seats are fitted with an adjustable head restraint.
Adjusting the height
•Push the head restraint up in the direction of the arrow or push it down while pressing and
holding button ⇒ Fig. 38①⇒.
•The head restraint must click securely into position.
Correct head restraint setting
Adjust the head restraint so that its upper edge is at the same height as the top of the head, but not
lower than eye level. Position the back of your head as close to the head restraint as possible.
Head restraint setting for shorter people
Push the head restraint to the first position, even if the head is then located underneath the top
edge of the head restraint. There may be a small gap between the head restraint and backrest in
the lowest position.
Head restraint setting for taller people
Push the head restraint up as far as it will go.
Injuries could be caused if the backrests are folded forwards and backwards carelessly.
•Never fold the seat backrest forwards or backwards while the vehicle is in motion.
•While folding the seat backrest forwards, always ensure that there are no people, animals
or objects in its path.
•When folding forwards and backwards, keep all hands, fingers, feet and other body parts
away from the seat hinges and seat release mechanism.
•Floor mats or other objects could get caught in the hinges on the seat backrest. The seat
backrest might then not engage securely when it is returned to the upright position.
•Passengers (adults and children) must not use seats if the backrest is folded forwards or
is not clicked securely into place.
•When being folded back, the seat backrest must be securely locked in the upright position.
If the seat backrest is not locked properly it could move suddenly and cause severe
injuries.
WARNING
a)
Driving without head restraints or with incorrectly adjusted head restraints increases the risk
of severe or fatal injuries in the event of an accident or sudden driving or braking manoeuvre.
•If a seat is occupied, the head restraint for that seat must be fitted and adjusted correctly.
•Each vehicle occupant must adjust the head restraint to suit their body size, to help reduce
the risk of neck injuries in an accident. As far as possible, the upper edge of the head
restraint must be level with the top of the head, but no lower than eye level. Position the
back of your head as close to the head restraint as possible.
•Never adjust the head restraint when the vehicle is in motion.
WARNING

Removing and installing the rear head restraint
Fig. 39 Removing the rear head restraint
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The rear seats are fitted with an adjustable head restraint.
Removing the rear head restraints
•Release the rear seat backrest and fold the backrest forwards slightly ⇒ Luggage compartment.
•Push the head restraint all the way up ⇒.
•Pull the head restraint out fully while pressing the button ⇒ Fig. 39①.
•Push back the rear seat backrest and allow it to engage securely. Please ensure that the seat
belts are not trapped.
•Stow the head restraint in a safe place once removed.
Fitting the rear head restraints
•Release the rear seat backrest and fold the backrest forwards slightly ⇒ Luggage compartment.
•Position the head restraint correctly over the head restraint guides and then insert into the
guides of the corresponding seat backrest.
•Press and hold the button ⇒ Fig. 39① and push the head restraint downwards.
•Push back the rear seat backrest and allow it to engage securely.
•Adjust the head restraint so that a correct sitting position can be assumed ⇒ Adjusting the rear
head restraint.
Adjusting the steering wheel position
Fig. 40 Adjusting the steering wheel position mechanically
First read and observe the introductoryinformation and safety warnings⇒
Introduction
Adjust the steering wheel position only before setting off and only when the vehicle is stationary.
•Push down the lever ⇒ Fig. 40①.
Driving without head restraints or with incorrectly adjusted head restraints increases the risk
of severe or fatal injuries in the event of an accident or sudden driving or braking manoeuvre.
•If a seat is occupied, the head restraint for that seat must be fitted and adjusted correctly.
•Head restraints that have been removed should be reinstalled as soon as possible to
ensure that passengers are properly protected.
WARNING
When removing or fitting head restraints, ensure that they do not hit the roof or the front seat
backrest. The interior roof and other parts of the vehicle could otherwise be damaged.
NOTICE

•Adjust the steering wheel so that you can hold it on the outside of the ring (at the 9 o'clock and
3 o'clock positions) with both hands and slightly bent arms.
•Push the lever up firmly until it lines up with the steering column ⇒.
Adjust the correct distance between the driver and the steering wheel ⇒ Fig. 35 using the control
elements on the driver seat ⇒ Controls on the front seats.
Seat functions
 Introduction
This chapter contains information on the followingsubjects:
⇒ Seat heating
Additional information and warnings:
•Adjusting the seat position ⇒ Adjusting the seat position
•Seat belts ⇒ Seat belts
•Airbag system ⇒ Airbag system
•Child seats (accessories) ⇒ Child seats (accessories)
•Exterior mirrors ⇒ Mirrors
Seat heating
Fig. 41 In upper part of centre console: buttons for the front seat heating
First read and observe the introductoryinformation and safety warnings⇒
Introduction
The front seat seat cushions and backrests can be heated electrically when the ignition is switched
on.
Do not switch on the seat heating if one of the following conditions applies:
•The seat is not in use.
•The seat is fitted with a protective cover.
•A child seat is installed on the seat.
•The seat cushion is damp or wet.
•The interior or exterior temperature is above 25 ℃ (77 °F).
Incorrect use of the steering column position adjustment and incorrect adjustment of the
steering wheel can cause serious or fatal injuries.
•After adjusting the steering column, always move lever ⇒ Fig. 40① up so that it engages
securely. This prevents the steering column from moving spontaneously while the vehicle
is in motion.
•Never adjust the steering wheel when the vehicle is in motion. If you determine that a
readjustment is necessary, stop the vehicle safely and adjust the steering wheel to the
correct position.
•The steering wheel must always point towards the chest and not towards the face. This
ensures that the driver front airbag provides maximum protection in the event of an
accident.
•While driving, always keep both hands on the outside of the steering wheel, at the 9
o'clock and 3 o'clock positions. This reduces the risk of injury if the driver front airbag is
triggered.
•Never hold the steering wheel at the 12 o'clock position, or in any other manner, e.g. on
the hub of the steering wheel. If the driver airbag is triggered, you could receive severe
injuries to the arms, hands and head.
WARNING
Incorrect use of the seat functions can cause serious injuries.
•Always assume a correct sitting position before you drive and maintain this position
throughout the trip. This also applies to all passengers.
•Keep hands, fingers, feet and other body parts away from the moving parts of the seats.
WARNING

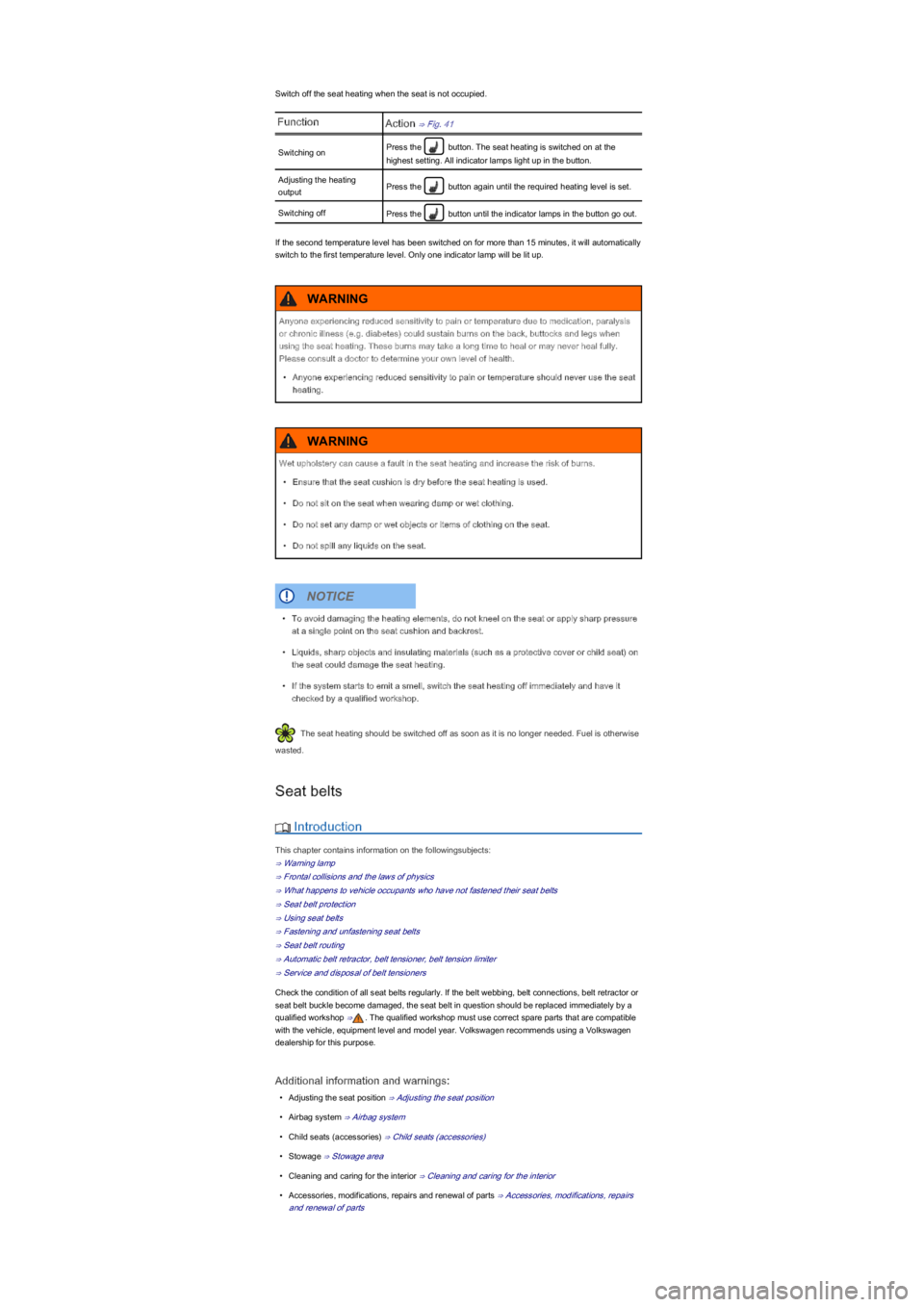

Switch off the seat heating when the seat is not occupied.
FunctionAction ⇒ Fig. 41
Switching onPress the  button. The seat heating is switched on at the
highest setting. All indicator lamps light up in the button.
Adjusting the heating
outputPress the button again until the required heating level is set.
Switching offPress the button until the indicator lamps in the button go out.
If the second temperature level has been switched on for more than 15 minutes, it will automatically
switch to the first temperature level. Only one indicator lamp will be lit up.
The seat heating should be switched off as soon as it is no longer needed. Fuel is otherwise
wasted.
Seat belts
 Introduction
This chapter contains information on the followingsubjects:
⇒ Warning lamp
⇒ Frontal collisions and the laws of physics
⇒ What happens to vehicle occupants who have not fastened their seat belts
⇒ Seat belt protection
⇒ Using seat belts
⇒ Fastening and unfastening seat belts
⇒ Seat belt routing
⇒ Automatic belt retractor, belt tensioner, belt tension limiter
⇒ Service and disposal of belt tensioners
Check the condition of all seat belts regularly. If the belt webbing, belt connections, belt retractor or
seat belt buckle become damaged, the seat belt in question should be replaced immediately by a
qualified workshop ⇒. The qualified workshop must use correct spare parts that are compatible
with the vehicle, equipment level and model year. Volkswagen recommends using a Volkswagen
dealership for this purpose.
Additional information and warnings:
•Adjusting the seat position ⇒ Adjusting the seat position
•Airbag system ⇒ Airbag system
•Child seats (accessories) ⇒ Child seats (accessories)
•Stowage ⇒ Stowage area
•Cleaning and caring for the interior ⇒ Cleaning and caring for the interior
•Accessories, modifications, repairs and renewal of parts ⇒ Accessories, modifications, repairs
and renewal of parts
Anyone experiencing reduced sensitivity to pain or temperature due to medication, paralysis
or chronic illness (e.g. diabetes) could sustain burns on the back, buttocks and legs when
using the seat heating. These burns may take a long time to heal or may never heal fully.
Please consult a doctor to determine your own level of health.
•Anyone experiencing reduced sensitivity to pain or temperature should never use the seat
heating.
WARNING
Wet upholstery can cause a fault in the seat heating and increase the risk of burns.
•Ensure that the seat cushion is dry before the seat heating is used.
•Do not sit on the seat when wearing damp or wet clothing.
•Do not set any damp or wet objects or items of clothing on the seat.
•Do not spill any liquids on the seat.
WARNING
•To avoid damaging the heating elements, do not kneel on the seat or apply sharp pressure
at a single point on the seat cushion and backrest.
•Liquids, sharp objects and insulating materials (such as a protective cover or child seat) on
the seat could damage the seat heating.
•If the system starts to emit a smell, switch the seat heating off immediately and have it
checked by a qualified workshop.
NOTICE
