6 Introduction
General information
Shiftlock (automatic transmission)
When your car is parked, the gear selector is locked in the Park (P) position. To release the selector from this position, turn the igniti\
on
key to position II (or start the engine), depress the brake pedal, pre\
ss the button on the front side of the gear selector and move the selector
from Park (P).
Keylock (automatic transmission)
When the ignition is switched off, the gear selector must be in the Park\
(P) position before the key can be removed from the ignition
switch.
Anti-lock Brake System (ABS)
The ABS system in your car performs a self-diagnostic test when the vehi\
cle first reaches the speed of approximately 12 mph (20 km/ h).
The brake pedal will pulsate several times and a sound may be audible fr\
om the ABS control module. This is normal.
Fuel filler door
Press the button on the light switch panel when the car is at a standsti\
ll to open the fuel filler door.
Fuel filler cap
After refueling, close the fuel filler cap by turning it clockwise until\
it clicks into place. If this cap is not closed tightly or if the engine is
running when the car is refueled, the Malfunction Indicator Lamp ("Chec\
k Engine" light) may indicate a fault.
Points to keep in mind
l Before you operate your vehicle for the first time, please familiarize y\
ourself with the new-engine oil consumption information on page
191. You should also be familiar with the information found in the chapters\
"Instruments and controls," and "Starting and driving."
l Information contained in the balance of the manual is extremely useful a\
nd should be read after operating the vehicle for the first time.
l The manual is structured so that it can be used for reference. For this \
reason, it should be kept in the vehicle for ready access.
l Do not export your Volvo to another country before investigating that co\
untry's applicable safety and emission control requirements. In
some cases it may be difficult or impossible to comply with these requir\
ements. Modifications to the emission control system(s) may
render your Volvo not certifiable for legal operation in the U.S., Canad\
a and other countries.
l All information, illustrations and specifications contained in this manu\
al are based on the latest product information available at the
file:///K|/delme/2007_C70/07c70_00.htm (4 of 7)12/22/2006 9:15:34 PM

2007 Volvo C70
4. Information display
The display presents information and warning messages, the ambient tempe\
rature, and the clock, etc. When the
ambient temperature is between 23° and 36°F (-5° and +2°C)\
, a snowflake symbol is shown in the display. This
symbol serves as a warning for possible slippery road surfaces. Please n\
ote that this symbol does not indicate a fault
with your car. At low speeds, or when the car is not moving, the tempera\
ture readings may be slightly higher than the
actual ambient temperature.
5. Information symbol
See the next pages for additional information.
6. Turn signal, right
7. Tachometer
The tachometer shows engine speed in thousands of revolutions per minute\
(rpm). Do not drive continuously with the
needle in the red area of the dial, which indicates maximum allowable en\
gine rpm range. Instead, shift to a higher
gear or slow the vehicle down. The engine management system will automat\
ically prevent excessively high engines
speeds. This will be noticeable as a pronounced unevenness in engine spe\
ed.
8. Indicator and warning symbols
9. Fuel gauge
The fuel tank holds approximately 16.3 US gallons (62 liters). When a \
warning light in the gauge comes on, there are
approximately 2.1
48 02 Instruments and controls
Instrument panel
US gallons (8 liters) of fuel remaining in the tank.
10. Trip odometer reset button
The trip odometers are used to measure short distances. Press the button\
briefly to switch between the odometer for
the car's total mileage and the two trip odometers, T1 and T2. A long pr\
ess (more than 2 seconds) resets the currently
selected trip odometer.
11. Function display
This window displays information on functions such as the odometer, trip\
odometers, optional rain sensor, and cruise
control.
12. High beam indicator
13. Clock setting button
Turn the button to set the time.
14. Temperature gauge
file:///K|/delme/2007_C70/07c70_02.htm (5 of 43)12/22/2006 9:15:42 PM

2007 Volvo C70
1. Turn the ignition to position II.
2. Press button (3) to turn on the front fog lights.
An indicator light in the button illuminates when the front fog lights a\
re on.
Rear fog light
The single rear fog light is located in the driver's side taillight clus\
ter.
The rear fog light will only function in combination with the high/low b\
eam headlights or the optional front fog lights.
1. Turn the ignition key to position II.
2. Press button (5) to turn on the rear fog light.
An indicator light in the button illuminates when the rear fog light is \
on.
NOTE
The rear fog light is considerably brighter than the normal taillights a\
nd should be used only when conditions such
as fog, rain, snow, smoke or dust reduce visibility for other vehicles t\
o less than 500 ft. (150 meters).
1On Canadian models, the daytime running lights will remain on with the l\
ight switch in this position.
56 02 Instruments and controls
Lighting panel
Instrument panel lighting
The instrument panel lighting illuminates when the ignition is in positi\
on II and the light switch (1) is in either
position
or .
NOTE
To make it easier to read the odometer, trip odometer, clock, and ambien\
t temperature, these gauges illuminate
when the vehicle is unlocked and when the key has been removed from the \
ignition switch. The lighting will go out
when the vehicle is locked.
l Move the thumb wheel (2) up to increase brightness or down to decrease\
brightness.
Unlocking the fuel filler door
file:///K|/delme/2007_C70/07c70_02.htm (16 of 43)12/22/2006 9:15:42 PM\

2007 Volvo C70
The AUTO function automatically regulates climate control to maintain th\
e desired
temperature. The automatic function controls heating, air conditioning, \
blower speed, recirculation, and
air distribution.
If you select one or more manual functions, the remaining functions cont\
inue to be controlled
automatically. All manual settings are
83 03 Climate
Electronic Climate Control (ECC)
switched off when AUTO is switched on. AUTO CLIMATE is shown in the disp\
lay.
2. Blower speed
The blower speed can be increased or decreased by turning the knob. The\
blower speed
is regulated automatically if AUTO is selected. The previously set blowe\
r speed is disconnected.
NOTE
If the knob is turned counterclockwise and the blower indication in the \
display goes out, the blower and
the air conditioning are switched off. The display shows the blower symb\
ol and OFF.
3. Recirculation
This function can be used to shut out exhaust fumes, smoke, etc from the\
passenger
compartment. The air in the passenger compartment is then recirculated, \
i.e. no air from outside the car is
taken into the car when this function is activated. If the air in the ca\
r recirculates for too long, there is a
file:///K|/delme/2007_C70/07c70_03.htm (5 of 10)12/22/2006 9:15:43 PM

2007 Volvo C70
When replacing the battery, avoid touching the electrical circuitry in t\
he other half of the remote
control.
5. Pry out (2) and replace the battery. Avoid touching the battery and\
its contact surfaces with your fingers.
6. Press the cover back into place and tighten the screw.
7. Reinsert the key blade in the remote control.
The old battery should be disposed of properly at a recycling center or \
at your Volvo retailer.

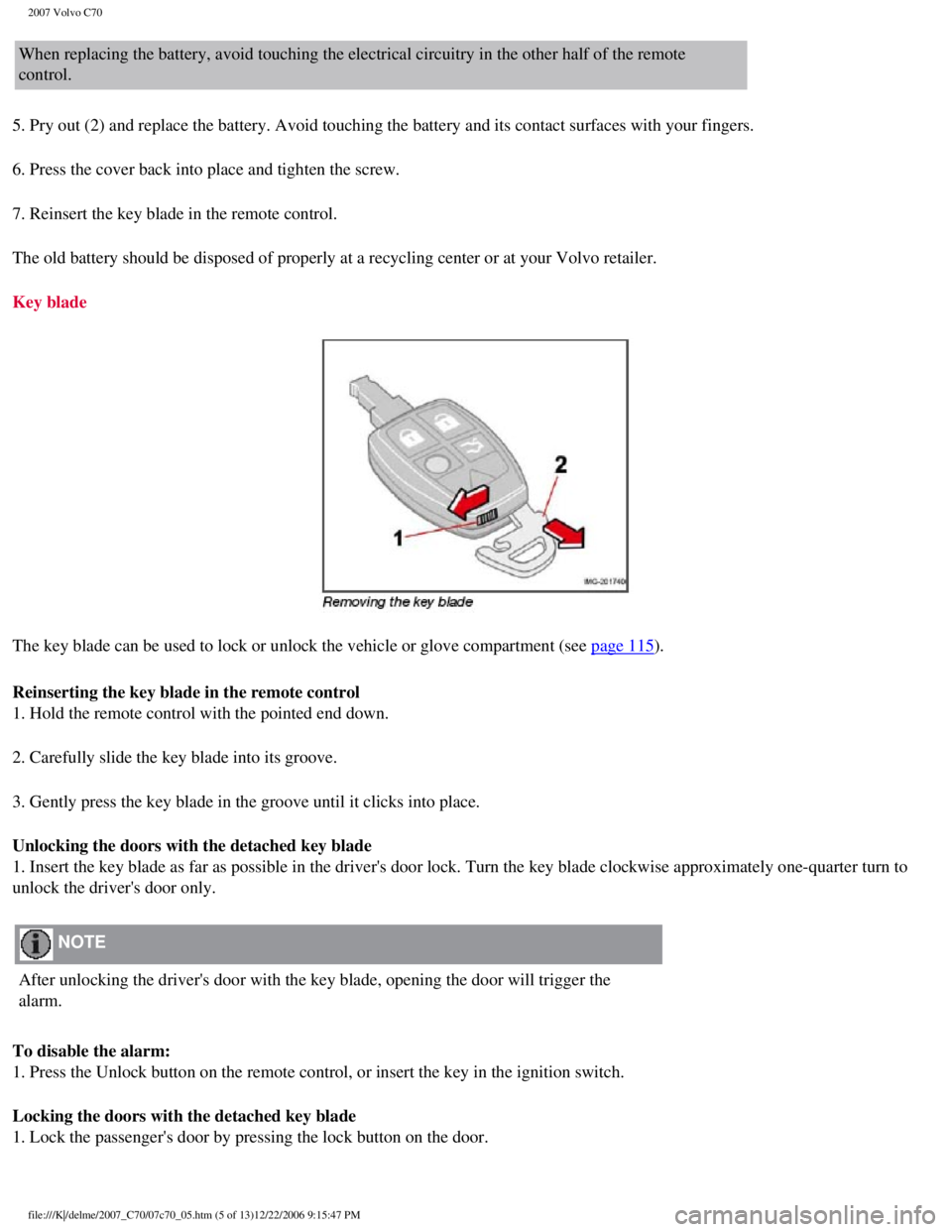

Key blade
The key blade can be used to lock or unlock the vehicle or glove compart\
ment (see page 115).
Reinserting the key blade in the remote control
1. Hold the remote control with the pointed end down.
2. Carefully slide the key blade into its groove.
3. Gently press the key blade in the groove until it clicks into place.
Unlocking the doors with the detached key blade
1. Insert the key blade as far as possible in the driver's door lock. Tu\
rn the key blade clockwise approximately one-quarter turn to
unlock the driver's door only.
NOTE
After unlocking the driver's door with the key blade, opening the door w\
ill trigger the
alarm.
To disable the alarm:
1. Press the Unlock button on the remote control, or insert the key in t\
he ignition switch.
Locking the doors with the detached key blade
1. Lock the passenger's door by pressing the lock button on the door.
file:///K|/delme/2007_C70/07c70_05.htm (5 of 13)12/22/2006 9:15:47 PM

2007 Volvo C70
2. Turn the key blade one-quarter turn counter-clockwise to lock the dri\
ver's door.
NOTE
This does not arm the alarm or lock the
trunk.
112 05 Locks and alarm
Remote control and key blade
Valet locking
Valet or service locking
By utilizing the remote control with the key blade removed, the valet lo\
cking feature enables you to block access to the trunk and
glove compartment for e.g., valet parking or when the car is brought to \
the retailer for service.
Locking points
A. Doors
B. Steering wheel lock
C. Glove compartment
D. Compartments in door panels
E. Ski hatch
F. Trunk
With the valet locking function activated:
l The vehicle's doors can be locked or unlocked
l The engine can be started
l Locking points C, D, E, and F cannot be unlocked with the remote control\
.
Activating the valet locking function
The first stages of opening the power retractable hard top offer tempora\
ry access to the contents of the trunk. Therefore, before
activating valet locking, the power retractable hard top must be up and \
the trunk divider must be open (up), see
page 93. This makes
it impossible to operate the power retractable hard top.
1. Remove the key blade from the remote control.
file:///K|/delme/2007_C70/07c70_05.htm (6 of 13)12/22/2006 9:15:47 PM

2007 Volvo C70
2. Turn the key blade 180° clockwise in the glove compartment lock to\
lock
113 05 Locks and alarm
Remote control and key blade
points C, D, E, and F and disconnect these points from the central locki\
ng system (a message appears in the information display).
3. Give the parking attendant or service personnel only the remote contr\
ol (with the key blade removed).
Deactivating the valet locking function
Turn the key blade 180° counterclockwise in the glove compartment loc\
k to deactivate valet locking.
See
page 115 for information on locking the glove compartment normally.

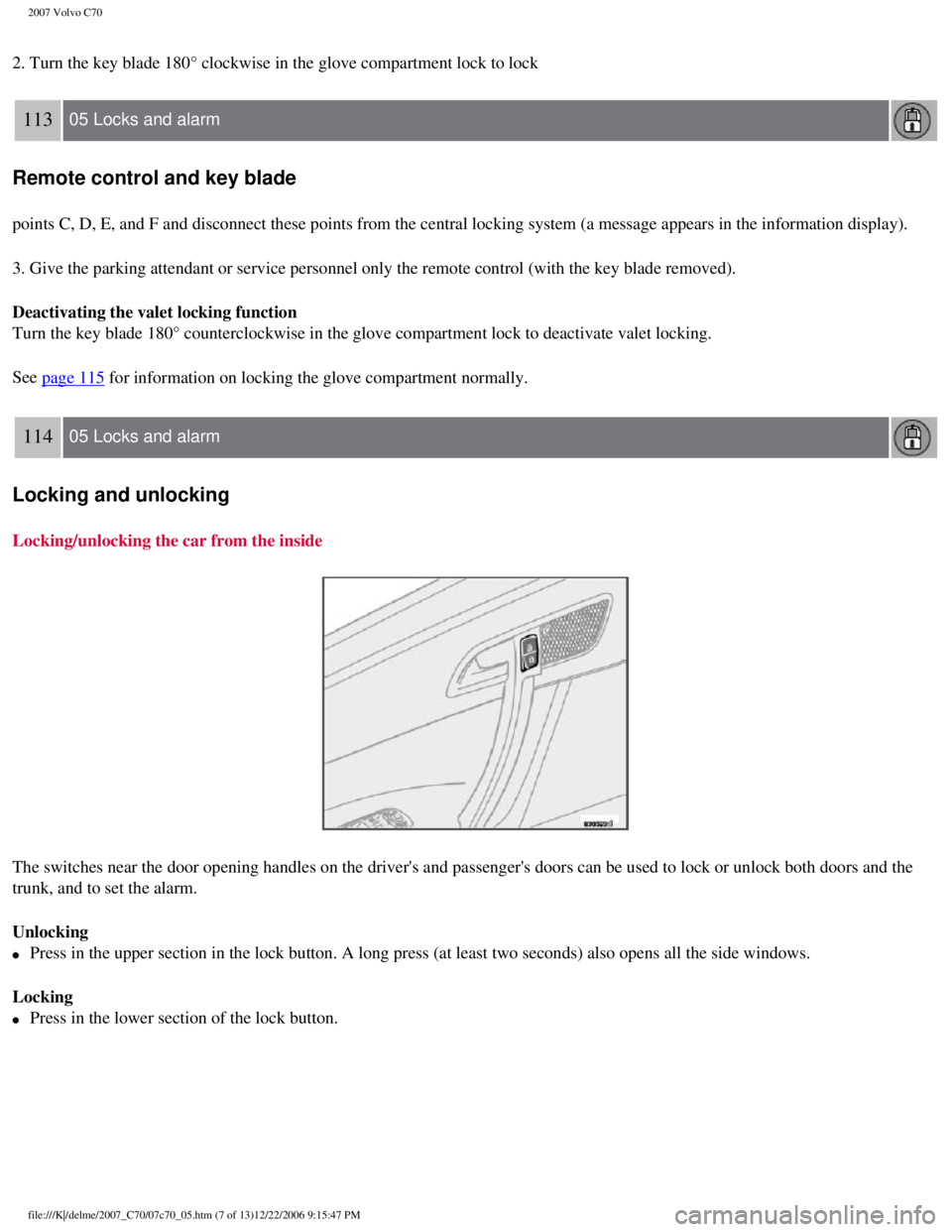

114 05 Locks and alarm
Locking and unlocking
Locking/unlocking the car from the inside

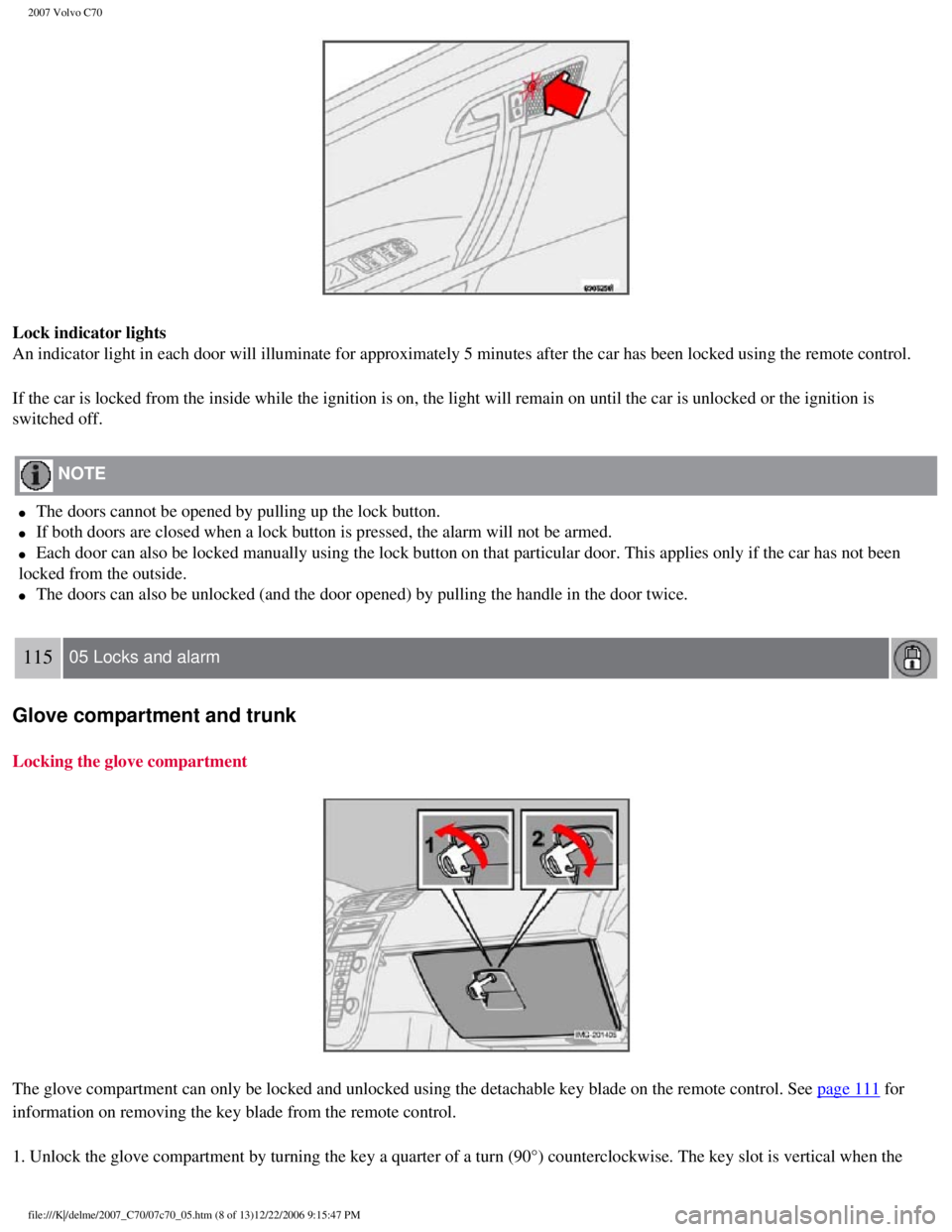

The switches near the door opening handles on the driver's and passenger\
's doors can be used to lock or unlock both doors and the
trunk, and to set the alarm.
Unlocking
l Press in the upper section in the lock button. A long press (at least t\
wo seconds) also opens all the side windows.
Locking
l Press in the lower section of the lock button.
file:///K|/delme/2007_C70/07c70_05.htm (7 of 13)12/22/2006 9:15:47 PM

2007 Volvo C70
Lock indicator lights
An indicator light in each door will illuminate for approximately 5 minu\
tes after the car has been locked using the remote control.
If the car is locked from the inside while the ignition is on, the light\
will remain on until the car is unlocked or the ignition is
switched off.
NOTE
l The doors cannot be opened by pulling up the lock button.
l If both doors are closed when a lock button is pressed, the alarm will n\
ot be armed.
l Each door can also be locked manually using the lock button on that part\
icular door. This applies only if the car has not been
locked from the outside.
l The doors can also be unlocked (and the door opened) by pulling the ha\
ndle in the door twice.
115 05 Locks and alarm
Glove compartment and trunk
Locking the glove compartment
The glove compartment can only be locked and unlocked using the detachab\
le key blade on the remote control. See page 111 for
information on removing the key blade from the remote control.
1. Unlock the glove compartment by turning the key a quarter of a turn (\
90°) counterclockwise. The key slot is vertical when the
file:///K|/delme/2007_C70/07c70_05.htm (8 of 13)12/22/2006 9:15:47 PM

2007 Volvo C70
glove compartment is unlocked.
2. Lock the glove compartment by turning the key a quarter of a turn (9\
0°) clockwise. The key slot is horizontal when the glove
compartment is locked.

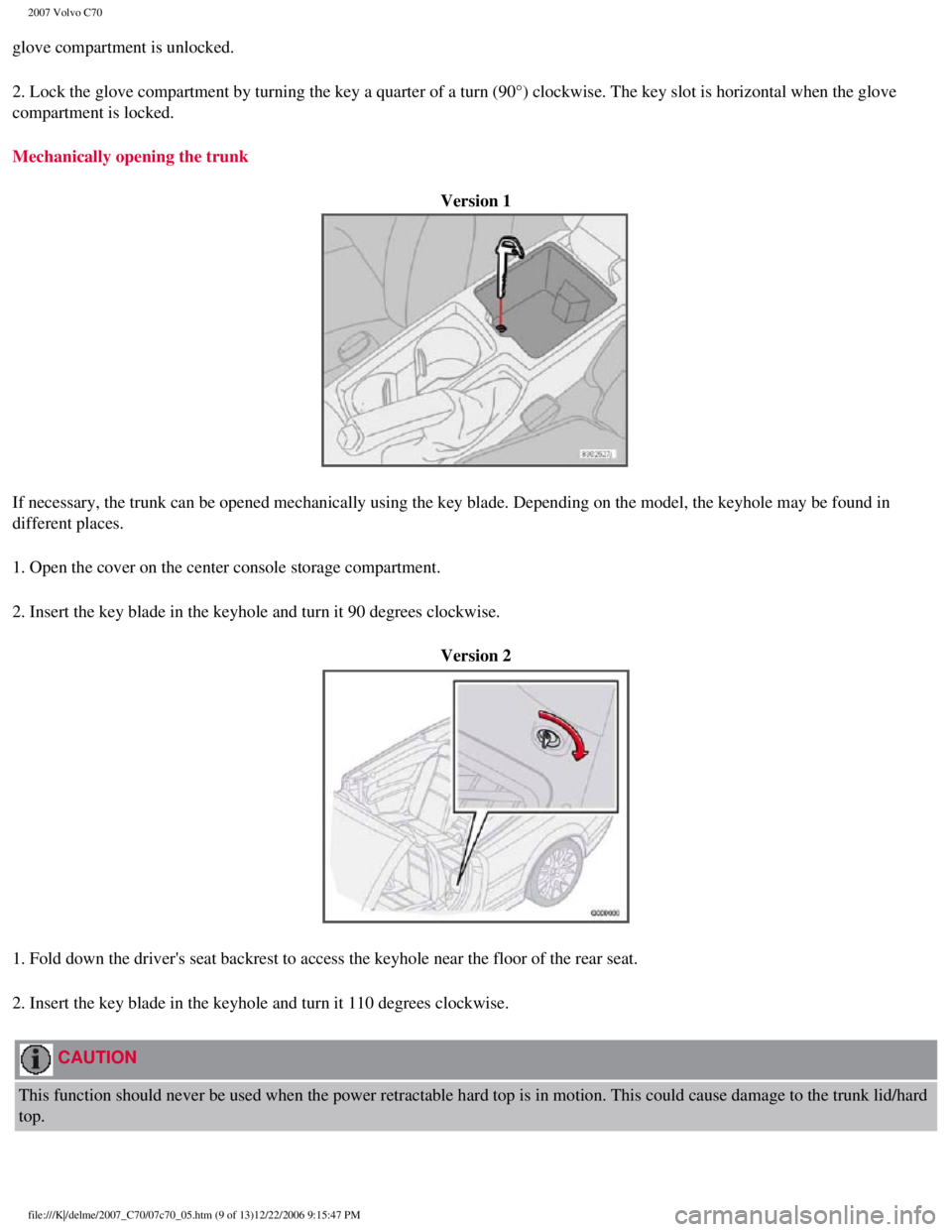

Mechanically opening the trunk Version 1
If necessary, the trunk can be opened mechanically using the key blade. \
Depending on the model, the keyhole may be found in
different places.
1. Open the cover on the center console storage compartment.
2. Insert the key blade in the keyhole and turn it 90 degrees clockwise.\
Version 2
1. Fold down the driver's seat backrest to access the keyhole near the f\
loor of the rear seat.
2. Insert the key blade in the keyhole and turn it 110 degrees clockwise\
.
CAUTION
This function should never be used when the power retractable hard top i\
s in motion. This could cause damage to the trunk lid/hard
top.
file:///K|/delme/2007_C70/07c70_05.htm (9 of 13)12/22/2006 9:15:47 PM

2007 Volvo C70
pump's ability to supply the engine with an adequate supply of fuel.
Therefore, it is advisable to refuel as soon as possible when the needle\
nears the red zone, or when the
fuel warning light comes on.
1Models with All Wheel Drive have a tank volume of 15 US gallons (57 lit\
ers). Models with engine code 39 have
a fuel tank capacity of 14 US gallons (53 liters). This code is the 6t\
h and 7th digits from the left in your vehicle's
VIN number. See
page 235 for the location of the VIN plate.
CAUTION
l Do not refuel with the engine running1. Turn the ignition off or to position I. If the ignition is on, an
incorrect reading could occur in the fuel gauge
l After refueling, close the fuel filler cap by turning it clockwise until\
it clicks into place.
l Avoid overfilling the fuel tank. Do not press the handle on the filler n\
ozzle more than one extra time.
Too much fuel in the tank in hot weather conditions can cause the fuel t\
o overflow. Overfilling could
also cause damage to the emission control systems.
l Avoid spilling gasoline during refueling. In addition to causing damage \
to the environment, gasolines
containing alcohol can cause damage to painted surfaces, which may not b\
e covered under the New
Vehicle Limited Warranty.
l Do not use gasolines containing methanol (methyl alcohol, wood alcohol)\
. This practice can result in
vehicle performance deterioration and can damage critical parts in the f\
uel system. Such damage may
not be covered under the New Vehicle Limited Warranty.
1If the fuel filler cap is not closed tightly or if the engine is running\
when the vehicle is refueled, the Check Engine
Light (malfunction indicator lamp) may indicate a fault. However, your\
vehicle's performance will not be affected.
Use only Volvo original or approved fuel filler caps.
128 06 Starting and driving
Ignition switch, Steering wheel lock
Ignition switch and steering wheel lock
0 - Locked position
Remove the key to lock the steering wheel. Never turn the key to positi\
on 0 while driving
file:///K|/delme/2007_C70/07c70_06.htm (10 of 18)12/22/2006 9:15:48 PM\
