VOLVO S60 2012 Owner´s Manual

05 Infotainment
Radio
05
221
1.
Select Change code in theLock optionsmenu and press OK/MENU.
2.
Enter the new code and press OK/MENU.
3.
Confirm the new code and press OK/
MENU.
If an incorrect code is entered, the text
Incorrect code is displayed.
If you have forgotten the access code:
1.
Select
SIRIUS ID in the Advanced
settings menu and press OK/MENU.
2.
Press and hold the OK/MENU button for
several seconds.
3. The current code will be displayed.
Your Volvo retailer can also provide you with
assistance.
SIRIUS IDThis function displays the 12-digit Sirius acti-
vation ID.

05 Infotainment
Media player
05
222
CD/DVD functions
Center console control panel
Disc slot
MEDIA button
Eject
Number keys
TUNE:Turn to navigate among menu
selections/folders/tracks.
OK/MENU: Press to confirm your selec-
tion or access the menus for the currently
selected source (e.g.,
DISC).Left/rightarrow keys: Fast back/forward and change
track or chapter
1.
Forward/back and change tracks or chap-
ter1.
The media player supports and can play the
following main types of discs and files:
•Purchased CDs (CD Audio)
•Home-burned CDs with audio and /or
video files
•Home-burned DVDs with audio and /or
video files
•Purchased DVDs
See page 225 for a list of compatible formats.
Media menu selections can be made from the
center console or the steering wheel keypad.
See page 244 for more information about the
infotainment menu system.
Playing a disc
Press MEDIA several times until Disc is dis-
played. Release the button and wait several
seconds or press OK/MENU. If there is a disc
in the player, it will begin playing automatically.
Otherwise,
Insert disc will be displayed. Insert
the disc into the slot with the text side upward
and it will begin playing automatically.
If a disc with audio/video files is inserted, its
folder structure will be read by the system. Itmay take several seconds until the disc begins
playing, depending on its quality and the
amount of information it contains.
Disc ejectFor reasons of traffic safety, an ejected disc
must be removed within 12 seconds or it will
be automatically drawn back into the slot.
PauseWhen the audio system volume is turned off
completely, the player will pause and will
resume playing when the volume is turned up
again.
Navigating a disc and playing tracks
CD audio discs
Turn TUNE to access the disc's playlist and to
navigate in this list. Press OK/MENU to con-
firm a choice and begin listening. Press EXIT
to cancel. Press and hold EXIT to return to the
playlist's root level.
The
/ buttons on the center console or
steering wheel keypad can also be used to
change tracks.
Home-burned CD/DVD audio/video filesTurn TUNE to access the disc's playlist and to
navigate in this list. Press OK/MENU to con-
firm a choice and begin listening. Use EXIT to
1DVDs only

05 Infotainment
Media player
05

223
stop or to go back in the disc's folder structure.
Press and hold EXIT to return to the playlist's
root level.
The
/ buttons on the center console or
steering wheel keypad can also be used to
change audio/video files.
The following symbols are used in the display:
•- audio files
•- video files
•- folders
When a file has been played, the player will
continue to play the rest of the files (of the same
type) in the current folder. When all of the files
in the folder have been played, the player will
automatically go to the next folder and play the
files in it (unless
Repeat folder is activated).
The system automatically detects and changes
settings if a disc containing only audio or only
video files is inserted in the player and will play
these files. However, the system will not
change settings if a disc containing both audio
and video files is inserted and the player will
continue to play the current type of file.
NOTE
Video images will only be visible when the
vehicle is not moving. When the vehicle is
traveling faster than approximately 4 mph
(6 km/h),
No visual media available while
driving will be displayed. Sound from the
film will still be audible and video images will
be shown again when the vehicle stops.
NOTE
Some copy protected audio files or home-
burned audio files may not be read by the
player.
DVD videosSee page 224 for information.
Fast forward/reverse
Press and hold the / buttons to fast
forward/reverse. This is done at one speed for
audio files but several speeds can be chosen
for video files. Press the
/ buttons sev-
eral times to increase the speed. Release the
button to return to normal viewing speed.
GracenoteŸ track identificationIf the vehicle is equipped with the optional nav-
igation system, this system uses a hard drive
containing a database that recognizes musicon audio CDs. The database contains songs
that are currently popular. If the media player
finds a track in the database, the album title
and artist's name are displayed, and the title,
artist and album for each song is also dis-
played. If the current audio CD is not found in
the database, CD text from the disc is used. If
no CD text is available, only track 1, track 2,
etc., will be displayed.
Scan2
This function plays the first ten seconds of
each track/audio file. To start scanning:
1.
Press OK/MENU.
2.
Turn TUNE to
Scan.
> The first ten seconds of each track/
audio file will be played.
3.
Stop scanning by pressing EXIT. The cur-
rent track/audio file will continue playing.
Random2
This function plays the tracks in random order
(shuffle). The random tracks/sound files can be
scrolled through in the normal way. To listen to
tracks in random order:
1.
Press OK/MENU,
2.
Turn TUNE to
Random
2Not video DVDs

05 Infotainment
Media player
05
224
3.
Press OK/MENU to activate/deactivate
the random play function.
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks/audio files.
Repeat folder3
This function makes it possible to play files in
a folder repeatedly. When the last file has been
played, the first file will begin again. To acti-
vate:
1.
Press OK/MENU.
2.
Turn TUNE to
Repeat folder.
3.
Press OK/MENU to activate/deactivate
the function.
Playing video DVDs
Play
When playing a video DVD, a disc menu may
appear on the display, giving you access to
extra functions and settings such as choice of
subtitle and language, scene selection, etc.
NOTE
Video images will only be visible when the
vehicle is not moving. When the vehicle is
traveling faster than approximately 4 mph
(6 km/h),
No visual media available while
driving will be displayed. Sound from the
film will still be audible and video images will
be shown again when the vehicle stops.
Navigating in a DVD's menus
Buttons in the center console control panel,
shown above, are used to navigate in a DVD's
menus.
Changing chapters or titlesTurn TUNE to access the list of chapters and
navigate among them (if a film is playing, it willbe paused). Press OK/MENU to select a chap-
ter and return to the normal view. If a film was
playing, it will resume). Press EXIT to access
the list of titles.
Turn TUNE to select a title and press OK/
MENU to confirm and return to the list of chap-
ters. Press EXIT to cancel and return to the
normal view (without having made a selection).
Changing chapters or titleTurnTUNE to access the list of chapters and
navigate in this list (the film will pause if it is
currently playing). Press OK/MENU to choose
a chapter and return to the normal view in the
display (if a film was playing, it will resume).
Press EXIT to access the list of titles.
In the list of titles, turn TUNE to make a selec-
tion and press OK/MENU to confirm. This also
returns you to the list of chapters. Press EXIT
to cancel and return to the normal view (without
having made a selection).
It is also possible to change chapters by press-
ing
/ on the center console control
panel or on the steering wheel keypad.
Advanced settings
Angle
If the DVD supports this function, it is possible
to select a camera angle for a certain scene.
3Applies to audio/video files on home-burned discs/USB only.

05 Infotainment
Media player
05
225
This can be done in DVD mode under DVD root
menu
Advanced settingsAngle.
DivXŸŸ Video On DemandThe media player can be registered to play
DivX VOD files from home-burned discs or
USB. The registration code can be found by
pressing the MY CAR button, and going to
Settings
InformationDivX® VOD
code. See page 133 for more information
about the menu system.
See also www.divx.com/vod for more informa-
tion.
Screen settingsScreen settings can be made (when the vehicle
is not moving) for:
•Brightness
•Contrast
1.
PressOK/MENU and choose
settings and confirm by pressing OK/
MENU.
2.
Turn TUNE to the desired setting and
press OK/MENU.
3.
Change the setting by turning TUNE and
confirm the change by pressing OK/
MENU.
Press OK/MENU or EXIT to return to the
screen settings list.To return to the factory settings, select
Reset .
Compatible formatsThe media player can play a number of differ-
ent types of files and disc formats, and is com-
patible with the formats listed in the following
table.
NOTE
Dual format (double-sided discs) such as
DVD Plus or CD-DVD are thicker than nor-
mal discs and may not play in your infotain-
ment system.
If a disc containing both CDDA and MP3
tracks is played, all MP3 tracks will be
ignored.
Audio
formatsCD-Audio, mp3, wma,
aac, m4a
Video for-
matsCD-Video, DVD-Video, divx,
avi, asf

05 Infotainment
AUX/USB sockets
05
226
Connecting external devices
Sockets for auxiliary devices in the storage com-
partment between the front seats
An auxiliary device, such as an iPodŸ or MP3
player can be connected to the audio system
via one of the sockets in the center console
storage compartment. A device connected to
the USB socket can be operated using the
vehicle's infotainment system controls.
An iPod
Ÿ or an MP3 player with rechargeable
batteries will also be charged if the device is
connected to the USB socket (if the vehicle's
ignition is on or if the engine is running).
To connect a device:1.
Press MEDIA several times to come to the
desired source (
iPod, USB or AUX).
Release the button and wait for several
seconds or press OK/MENU.
> For example, if a USB device has been
selected, the text
Connect USB will be
displayed.
2. Connect the device to one of the sockets
in the center console storage compartment
(see the illustration).
The text
Reading USB will be displayed while
the system reads the device's folders. This may
take a short time, depending on the folder
structure and the number of files.
When this information has been loaded, track
information will be displayed and a track can
be selected.
Tracks can be selected in two ways:
•Turn TUNE and press OK/MENU
•Use the right or left arrow keys
(
/ ) on the center console control
panel or on the steering wheel keypad
NOTE
•The system supports a number of
iPodŸ models produced in 2005 or later.
•In order to help avoid damage to the
USB socket, it will be switched off if
there is a short circuit or if the con-
nected device uses too much current
(which can happen if the device does
not comply with the USB standard). The
USB socket will reactivate the next time
the ignition is switched on if the problem
no longer exists. If the problem persists,
contact a trained and authorized Volvo
service technician.
MEDIA menu selections can be made from the
center console or the steering wheel keypad.
See page 244 for more information about the
infotainment menu system.
Navigating and playing tracks1
Turn TUNE to access the device's playlist and
to navigate in this list. Press OK/MENU to
either select a sub-folder or confirm a choice
and begin playback. Press EXIT to cancel and
exit the playlist or to go back in the folder struc-
ture. Press and hold EXIT to go to the highest
level in the playlist.
1USB and iPodŸ only

05 Infotainment
AUX/USB sockets
05

227
The / buttons on the center console or
steering wheel keypad can also be used to
change tracks/files.
The following symbols are used in the display:
•- audio files
•- video files
•- folders
When a file has been played, the player will
continue to play the rest of the files (of the same
type) in the current folder. When all of the files
in the folder have been played, the player will
automatically go to the next folder
1 (unlessRepeat folder is activated) and play the files
in it.
The system automatically detects and changes
settings if a device containing only audio or
only video files is connected to the USB socket
and will play these files. However, the system
will not change settings if the device contains
both audio and video files and will continue to
play the current type of file.
Fast forward/reverse1
Press and hold the / buttons to fast
forward/reverse. This is done at one speed for
audio files but several speeds can be chosenfor video files. Press the
/ buttons sev-
eral times to increase the speed. Release the
button to return to normal viewing speed.
Scan1
This function plays the first ten seconds of
each track/audio file. To start scanning:
1.
Press OK/MENU.
2.
Turn TUNE to
Scan.
> The first ten seconds of each track/
audio file will be played.
3.
Stop scanning by pressing EXIT. The cur-
rent track/audio file will continue playing.
Random1
This function plays the tracks in random order
(shuffle). The random tracks/sound files can be
scrolled through in the normal way. To listen to
tracks in random order:
1.
Press OK/MENU,
2.
Turn TUNE to
Random
3.
Press OK/MENU to activate/deactivate
the random play function.
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks/audio files.
Search1
The keypad in the center console can be used
to search for a file in the currently selected
folder.
Start the search by either turning TUNE (to
access the folders) or by pressing one of the
character keys to enter a letter/number. Pos-
sible search results will be displayed as char-
acters are entered.
Play the file by pressing OK/MENU.
Repeat2
This function makes it possible to play files in
a folder repeatedly. When the last file has been
played, the first file will begin again. To acti-
vate:
1.
Press OK/MENU.
2.
Turn TUNE to
Repeat folder.
3.
Press OK/MENU to activate/deactivate
the function.
External sound sources
USB flash drive
To simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
1USB and iPodŸ only2USB only

05 Infotainment
AUX/USB sockets
05
228
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
•The system supports removable media
that uses the USB 2.0 standard and the
FAT32 file system. It can index up to
1,000 folders and a maximum of 254
sub-folders/files for each folder. How-
ever, the highest folder level can sup-
port up to 1,000 sub-folders/files.
•When using a longer type of USB
device, connecting it with a USB
adapter cable will help reduce mechan-
ical wear on the USB socket and on the
device.
USB hubA USB hub can be connected to the USB
socket, making it possible to connect several
USB devices at the same time. To select one
of the devices, go to the menu USB menu
Select USB device
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to
USB Removable device/
Mass Storage Device.
iPodŸ
An iPodŸ receives current and its battery is
charged through the USB cable.
The system will only play audio files from an
iPod
Ÿ.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPod
Ÿ. See
the iPod's manual for detailed information.
Compatible file formats via the USB
socket
The following audio and video files are suppor-
ted by the system when playing a device con-
nected to the USB socket.
Audio formatsmp3, wma, aac,
m4a
Video formatsdivx, avi, asf

05 Infotainment
BluetoothŸŸ media
05

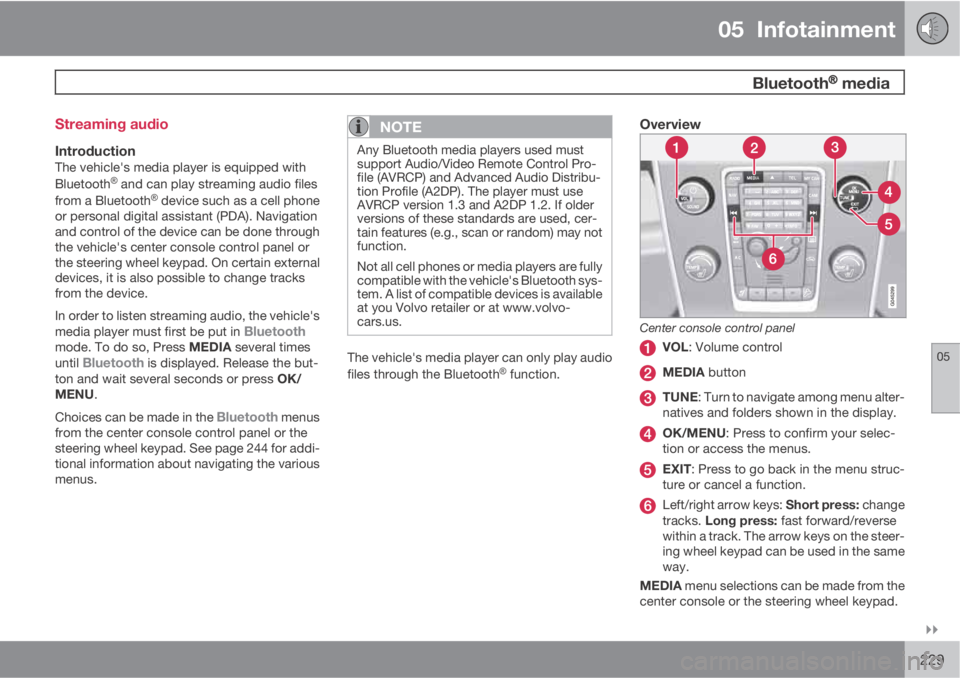

229 Streaming audio
IntroductionThe vehicle's media player is equipped with
BluetoothŸ and can play streaming audio files
from a BluetoothŸ device such as a cell phone
or personal digital assistant (PDA). Navigation
and control of the device can be done through
the vehicle's center console control panel or
the steering wheel keypad. On certain external
devices, it is also possible to change tracks
from the device.
In order to listen streaming audio, the vehicle's
media player must first be put in
Bluetoothmode. To do so, Press MEDIA several times
until Bluetooth is displayed. Release the but-
ton and wait several seconds or press OK/
MENU.
Choices can be made in the
Bluetooth menus
from the center console control panel or the
steering wheel keypad. See page 244 for addi-
tional information about navigating the various
menus.
NOTE
Any Bluetooth media players used must
support Audio/Video Remote Control Pro-
file (AVRCP) and Advanced Audio Distribu-
tion Profile (A2DP). The player must use
AVRCP version 1.3 and A2DP 1.2. If older
versions of these standards are used, cer-
tain features (e.g., scan or random) may not
function.
Not all cell phones or media players are fully
compatible with the vehicle's Bluetooth sys-
tem. A list of compatible devices is available
at you Volvo retailer or at www.volvo-
cars.us.
The vehicle's media player can only play audio
files through the BluetoothŸ function.
Overview
Center console control panel
VOL: Volume control
MEDIA button
TUNE: Turn to navigate among menu alter-
natives and folders shown in the display.
OK/MENU: Press to confirm your selec-
tion or access the menus.
EXIT: Press to go back in the menu struc-
ture or cancel a function.
Left/right arrow keys: Short press: change
tracks. Long press: fast forward/reverse
within a track. The arrow keys on the steer-
ing wheel keypad can be used in the same
way.
MEDIA menu selections can be made from the
center console or the steering wheel keypad.

05 Infotainment
BluetoothŸŸ media
05
230
See page 244 for more information about the
infotainment menu system.
Pairing and connecting an external
device
Before an external device can be connected, it
must be paired to the infotainment system. The
procedure for connecting an external device
varies, depending whether or not the device
has previously been paired to the infotainment
system. A maximum of 10 external devices can
be paired and each device only needs to be
paired once. To pair a device:
1.
Press MEDIA several times until
Bluetooth is displayed, release the button
and wait for several seconds or press OK/
MENU.
2.
Press OK/MENU.
>
When
Add device is displayed, press
OK/MENU.
3.
Be sure the external device's Bluetooth
Ÿ
function is turned on and that the device is
"discoverable." See the device's user's
guide if necessary.
4.
Press OK/MENU.
> The infotainment system will search for
external devices that are in range, which
may take several minutes. TheBluetooth
Ÿ-names of the devices found
will appear in the center console dis-
play.
5. Select the device to be paired and press
OK/MENU.
6. Using the external device’s keypad, enter
the digits shown in the audio system’s dis-
play and press the device's button used to
confirm a choice.
The external device will be automatically paired
and connected to the infotainment system.
Audio files can now be selected using the
/ buttons in the center console or on
the steering wheel keypad.
Automatic connection
When the BluetoothŸ function is active and the
most recently paired device is within range, it
is automatically connected. When the infotain-
ment system searches for the most recently
paired device, its name is shown in the display.
To connect another paired device, press
EXIT. See the following section for information
about switching to another device.
Switching to another deviceIt is possible to switch among paired
BluetoothŸ devices that are in the vehicle. To
do so:1.
Press MEDIA several times until
Bluetooth is displayed, release the button
and wait for several seconds or press OK/
MENU.
2.
Be sure the external device's Bluetooth
Ÿ
function is turned on and that the device is
"discoverable." See the devices user's
guide if necessary.
3.
Press OK/MENU.
4.
Turn TUNE to
Change Bluetooth
device and confirm by pressing OK/
MENU.
> After a short time, the external device's
name will appear in the display. If other
devices that have been paired are in
range, their names will also be dis-
played.
5. Select the device to be connected by turn-
ing TUNE and pressing OK/MENU to con-
firm.
> The external device will be connected to
the infotainment system.
Audio files can now be selected using the
/ buttons in the center console or on
the steering wheel keypad.
Removing a paired device1.
In Bluetooth mode, press OK/MENU.
