Contents
8* Option/accessory, for more information, see Introduction.
09

Tire Pressure Monitoring System (TPMS)
– changing wheels.................................. 304 Tire Pressure Monitoring System (TPMS)
– recalibrating......................................... 305 Tire Pressure Monitoring System (TPMS)
– activating/deactivating......................... 306 Tire Pressure Monitoring System (TPMS)
– messages............................................. 306
Tire Monitor - introduction...................... 307
Calibrating Tire Monitor.......................... 308
Tire Monitor status information............... 308
Tire Monitor – messages......................... 309
Self-supporting run flat tires (SST).......... 310Tire sealing system* – general informa-
tion.......................................................... 311
Tire sealing system* – overview.............. 312
Tire sealing system* – sealing hole......... 313Tire sealing system – checking inflation
pressure.................................................. 315
Tire sealing system* – inflating tires........ 316Tire sealing system* – sealing compound
container................................................. 317
10
10 Maintenance and servicing
Maintenance – introduction.................... 319
Maintenance – owner maintenance........ 320
Maintenance – hoisting........................... 321
Onboard Diagnostic System................... 322
Booking service and repairs .................. 322
Maintenance – opening/closing hood..... 324
Engine compartment – overview............ 325
Engine compartment – engine oil........... 326
Engine compartment – coolant............... 328
Engine compartment – brake fluid.......... 329Engine compartment – power steering
fluid......................................................... 330
Bulbs – introduction................................ 331
Bulbs – headlight housing....................... 332
Bulbs – cover.......................................... 333
Bulbs – low beam, Halogen.................... 334
Bulbs – high beam, Halogen................... 334
Bulbs – extra high beam......................... 335
Bulbs – front turn signals........................ 335
Bulbs – location of taillight bulbs............ 336
Bulbs – taillight housing.......................... 337
Bulbs – license plate lighting.................. 337
Bulbs – trunk lighting.............................. 338
Bulbs – vanity mirror lighting.................. 338
10

Bulbs – specifications............................. 338
Wiper blades – service position.............. 339
Wiper blades – windshield...................... 340
Engine compartment – washer fluid....... 341
Battery – symbols................................... 342
Battery – handling................................... 342
Battery – maintenance............................ 343
Battery – changing.................................. 344
Fuses – introduction............................... 346
Fuses – engine compartment................. 347
Fuses – glove compartment................... 351
Fuses – cargo area/trunk........................ 354Fuses – engine compartment cold zone
(Start/Stop only)...................................... 355
Washing the car...................................... 357
Automatic car wash................................ 358
Polishing and waxing.............................. 358
Cleaning the interior................................ 359
Touching up paintwork........................... 361

10 Maintenance and servicing
10
320
Maintenance – owner maintenance
Periodic maintenance requirements and inter- vals are described in your vehicle's Warrantyand Service Records Information booklet. The following points can be carried out between the normally scheduled maintenanceservices.
Owner maintenance
Each time the car is refueled:
•Check the engine oil level.
• Clean the windshield, windshield wipers, headlights, and taillights.
Monthly:
• Check cold tire pressure in all tires. Inspect the tires for wear.
• Check that engine coolant and other fluidlevels are between the indicated "min"and "max" markings.
• Clean interior glass surfaces with a glasscleaner and soft paper towels.
• Wipe driver information displays with asoft cloth.
• Visually inspect battery terminals for cor-rosion. Corrosion may indicate a looseterminal connector, or a battery near theend of its useful service life. Consult yourVolvo retailer for additional information.
As needed:Wash the car, including the undercarriage, to reduce wear that can be caused by a buildup of dirt, and corrosion that can be caused bysalt residues. Clean leaves and twigs from air intake vents at the base of the windshield, and from otherplaces where they may collect.
NOTE
Complete service information for qualified technicians is available online for purchaseor subscription at www.volvotechinfo.com.
Related information
•
Maintenance – opening/closing hood (p. 324)
• Engine compartment – overview (p. 325)
• Engine compartment – coolant (p. 328)
• Engine compartment – engine oil (p. 326)
• Engine compartment – power steeringfluid (p. 330)
• Engine compartment – washer fluid(p. 341)
• Cleaning the interior (p. 359)
• Washing the car (p. 357)
• Tire inflation – checking pressure (p. 294)
• Tires – tread wear indicator (p. 287)

||
10 Maintenance and servicing
10
326

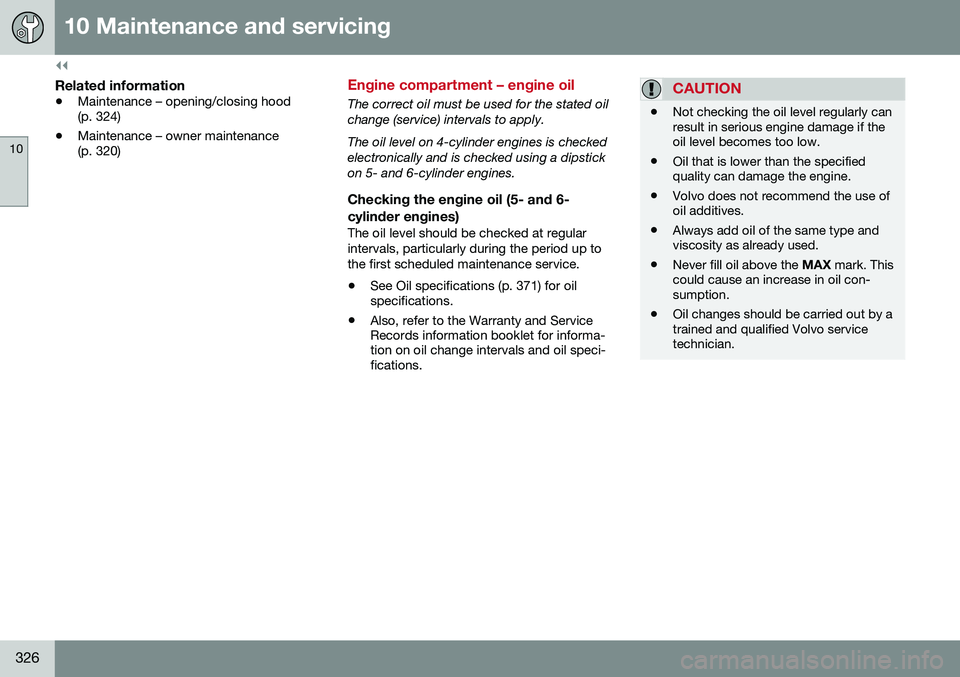

Related information
•Maintenance – opening/closing hood (p. 324)
• Maintenance – owner maintenance(p. 320)
Engine compartment – engine oil
The correct oil must be used for the stated oil change (service) intervals to apply. The oil level on 4-cylinder engines is checked electronically and is checked using a dipstickon 5- and 6-cylinder engines.
Checking the engine oil (5- and 6-
cylinder engines)
The oil level should be checked at regularintervals, particularly during the period up tothe first scheduled maintenance service.
• See Oil specifications (p. 371) for oil specifications.
• Also, refer to the Warranty and ServiceRecords information booklet for informa-tion on oil change intervals and oil speci-fications.
CAUTION
•Not checking the oil level regularly can result in serious engine damage if theoil level becomes too low.
• Oil that is lower than the specifiedquality can damage the engine.
• Volvo does not recommend the use ofoil additives.
• Always add oil of the same type andviscosity as already used.
• Never fill oil above the
MAX mark. This
could cause an increase in oil con-sumption.
• Oil changes should be carried out by atrained and qualified Volvo servicetechnician.

10 Maintenance and servicing
10
}}
327
Checking and adding oil
G021734
Location of the filler cap and dipstick
NOTE
Before checking the oil: •The car should be parked on a level surface.
• If the engine is warm
, wait for at least
10 – 15 minutes after the engine hasbeen switched off.
G021737
The oil level must be between the MIN and MAX
marks on the dipstick
Checking the oil1. Pull out the dipstick and wipe it with a
lint-free rag.
2. Reinsert the dipstick, pull it out, and check the oil level. The level must be between the MIN and MAX marks.
3. Add oil if necessary. If the level is close to the MIN mark, add approximately
0.5 US quarts (0.5 liters) of oil.
4. Recheck the level and add more oil if necessary until the level is near the MAX
mark.
WARNING
Do not allow oil to spill onto or come into contact with hot exhaust pipe surfaces.
Electronic oil level sensor (4-cylinder engines only)
Oil filler cap
No action is necessary until a message is dis- played, see the following illustration.

||
10 Maintenance and servicing
10
328* Option/accessory, for more information, see Introduction.
Left: digital instrument panel*, Right: analog instrument panel
Message
Oil level
The oil level can be checked when the engine is not running by scrolling to the oil level sen-sor using the thumb wheel on the left steeringwheel lever.
CAUTION
• If Oil service required is displayed,
the oil level may be too high. Take the vehicle to an authorized Volvo work-shop as soon as possible.
• If the oil level sensor indicates that thelevel is too low, using the correct oil,top up with the amount of oil indicatedas soon as possible, see oil specifica-tions (p. 371).
WARNING
Do not allow oil to spill onto or come into contact with hot exhaust pipe surfaces.
Electronically checking the oil levelThe oil level should be checked at regular intervals, particularly during the period up tothe first scheduled maintenance service. To check the oil level:
1. Activate ignition mode
II, see Ignition
modes (p. 73).
2. Turn the thumb wheel on the left steering wheel lever until
Oil level is displayed.
> The oil level will be displayed.
NOTE
• The system cannot detect changes in the oil level immediately. The vehiclemust be driven approximately 20 miles(30 km) or have been parked on levelground with the engine off for5 minutes before the oil level readingwill be correct.
• If the necessary conditions are not metfor checking the oil level electronically(time interval after the engine wasswitched off, if the vehicle is parked on an incline, etc.),
No values availablewill be displayed. This does
not indi-
cate a problem with the oil level sen- sor.
Engine compartment – coolant
Normally, the coolant does not need to be changed. If the system must be drained, con-sult a trained and qualified Volvo service tech-nician.
Level check and filling
Location of the coolant reservoir
See Fuel tank volume – specification and vol- ume (p. 374) for information on cooling sys-tem capacities.

||
10 Maintenance and servicing
10
330

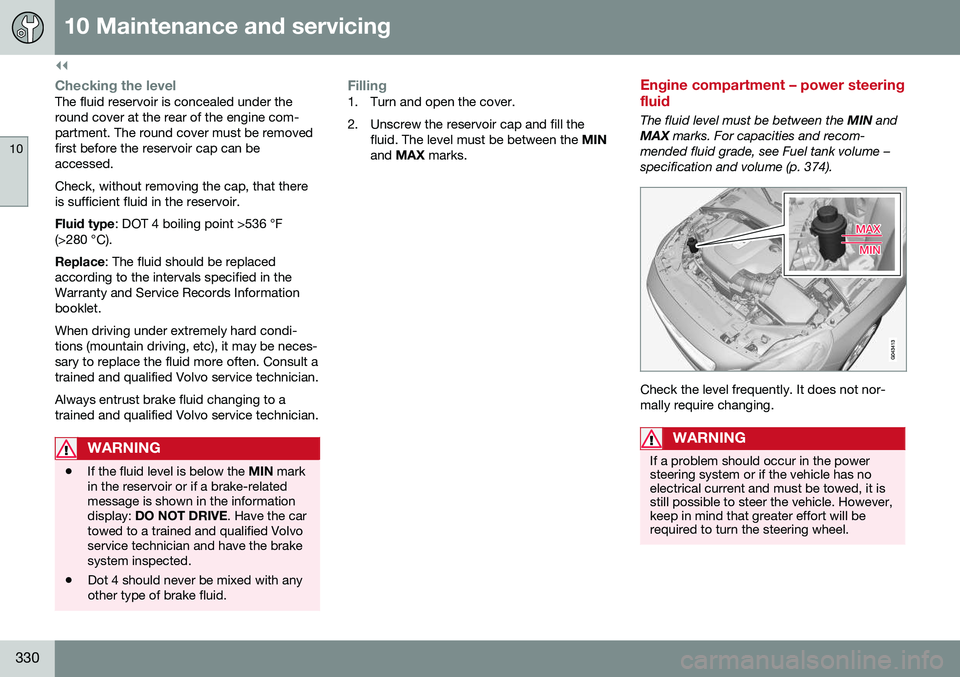

Checking the levelThe fluid reservoir is concealed under the round cover at the rear of the engine com-partment. The round cover must be removedfirst before the reservoir cap can beaccessed. Check, without removing the cap, that there is sufficient fluid in the reservoir. Fluid type: DOT 4 boiling point >536 °F
(>280 °C).Replace : The fluid should be replaced
according to the intervals specified in the Warranty and Service Records Informationbooklet. When driving under extremely hard condi- tions (mountain driving, etc), it may be neces-sary to replace the fluid more often. Consult atrained and qualified Volvo service technician. Always entrust brake fluid changing to a trained and qualified Volvo service technician.
WARNING
• If the fluid level is below the
MIN mark
in the reservoir or if a brake-related message is shown in the informationdisplay: DO NOT DRIVE . Have the car
towed to a trained and qualified Volvoservice technician and have the brakesystem inspected.
• Dot 4 should never be mixed with anyother type of brake fluid.
Filling1. Turn and open the cover.
2. Unscrew the reservoir cap and fill the
fluid. The level must be between the MIN
and MAX marks.
Engine compartment – power steering fluid
The fluid level must be between the MIN and
MAX marks. For capacities and recom-
mended fluid grade, see Fuel tank volume – specification and volume (p. 374).
Check the level frequently. It does not nor- mally require changing.
WARNING
If a problem should occur in the power steering system or if the vehicle has noelectrical current and must be towed, it isstill possible to steer the vehicle. However,keep in mind that greater effort will berequired to turn the steering wheel.

12 Index
12
380
A
ABS (anti-lock brake system).................. 264
Accessory installation warning.................. 23
Active chassis system............................. 162
Active high beams..................................... 84Active yaw control........................... 162, 163
Adaptive brake lights............................... 265
Adaptive cruise control.................... 172, 173Airbags disconnecting the front passenger’s
side....................................................... 36
front...................................................... 33
inflatable curtain................................... 41
side impact........................................... 39
Air conditioning................................ 124, 125
Air distribution.................................. 121, 126
Air distribution table................................. 128
Air vents................................................... 121
Alarm................................ 157, 158, 159, 160
All Wheel Drive......................................... 262
Ambient temperature sensor..................... 71
Anti-freeze....................................... 272, 328Anti-lock brake system warning light......................................... 67
Anti-lock Brake System (ABS)................. 264 Approach lighting.............................. 91, 142
Auto-dim rearview mirror........................... 98
Automatic locking retractor....................... 47Automatic transmission
Eco (driving function).......................... 260
Geartronic........................................... 252
general description..................... 250, 252
oil........................................................ 373
shiftlock override................................ 254
Axle weight.............................................. 298
B
Battery maintenance............................... 343, 344
remote key, replacing......................... 147
replacing............................................. 344
specifications...................................... 375
start/stop............................................ 375
warning symbols................................. 342
Blind Spot Information System (BLIS)..... 238 Cross Traffic Alert (CTA)..................... 240
Booster cushions....................................... 54
Brake lights.............................................. 265Brake system ABS..................................................... 264
Brake pad inspection.......................... 263 checking fluid level............................. 329
emergency brake assistance.............. 265
fluid..................................................... 373
general information............................. 262
Bulbs headlights........... 331, 332, 333, 334, 335
introduction......................................... 331
license plate lights.............................. 337
specifications...................................... 338
taillight................................................ 336
trunk lighting....................................... 338
C
Camera, Park Assist................................ 234
Capacity weight....................................... 298
Catalytic converter................................... 277
Central locking system, introduction 139, 140, 143, 146
Chains...................................................... 301
Check Engine warning light....................... 67Child restraints recalls and registration......................... 47
Child restraint systems.............................. 47 booster cushions.................................. 54
convertible seats.................................. 51
infant seats........................................... 49

12 Index
12
382
Start/Stop........... 255, 256, 257, 258, 259
starting................................................ 245
switching off............................... 247, 248
Engine compartment overview................ 325
Engine Drag Control (EDC)...................... 163
Engine oil................................................. 371 checking............................................. 326
low pressure warning light.................... 68
volumes.............................................. 372
Engine remote start (ERS)........................ 247
Environment............................................... 22
F
Federal Clean Air Act............................... 319 Flat tires repairing with tire sealing system....... 311
Floor mats cleaning.............................................. 360
placing correctly................................. 245
Fluid specifications.......................... 373, 374
Fog lights................................................... 67 rear........................................................ 87
Four C (active chassis system)................ 162
Front airbags.............................................. 33 disconnecting passenger’s side airbag 36 Front park assist.............................. 225, 233
Front seats................................................. 74
heated................................................. 123
Fuel filler cap........................................... 276
Fuel filler door, opening................... 275, 276
Fuel level warning light.............................. 67
Fuel requirements............................ 273, 274
Fuel tank volume..................................... 374
Fuses....................................... 346, 347, 354
G
Garage door opener HomeLink ®
Wireless Control
System........................................ 102, 103
Gasoline requirements............................. 274
Gas tank volume...................................... 374
Gauges...................................................... 62
Geartronic................................................ 252
Geartronic automatic transmission.......... 252
Generator warning light............................. 69
Glossary of tire terminology..................... 299
Grocery bag holder.................................. 137
Gross vehicle weight............................... 298
H
Hazard warning flashers............................ 88 Headlights Active Bending Lights........................... 85
active high beams................................. 84
changing bulbs........... 332, 333, 334, 335
daytime running lights.......................... 82
high/low beams.................................... 83
high beam flash.................................... 83
tunnel detection.................................... 85
Headlight washers..................................... 93
Head restraints, rear seat.......................... 78
Heated front seats................................... 123
Heated oxygen sensors........................... 277
Heated rear seats.................................... 123
Heated steering wheel............................... 82
Heated windshield............................. 98, 125
High beams................................................ 83 active.................................................... 84
Hill Start Assist (HSA).............................. 250
Hoisting the vehicle................................. 321 HomeLink ®
Wireless Control
System............................................. 102, 103
Home safe lighting..................................... 91
Hood, opening/closing............................ 324

12 Index
12
384
Moonroof......................................... 100, 101Motor oil checking............................................. 326
volumes.............................................. 372
O
Occupant safety........................................ 26
Occupant weight sensor............................ 36
Octane recommendations....................... 274
Odometer, trip........................................... 72Oilchecking............................................. 326
volumes.............................................. 372
Oil level sensor........................................ 327
Oil quality................................................. 371
OK button........................................ 107, 108
On Call Roadside Assistance.................... 24
Outside temperature sensor...................... 71
Overhead courtesy lighting........................ 89
Overheating, engine................................... 69
Ownership, changing................................. 18
Oxygen sensors, heated.......................... 277
P
Paint, touching up.................................... 361
Park assist....................................... 225, 233
Park Assist Camera................................. 234
Park Assist Pilot....................................... 229Parking brake electric, applying/releasing. 266, 267, 269
warning light......................................... 68
Parking lights............................................. 87
Pedestrian detection........................ 202, 205
Polishing.................................................. 358Power front seat memory function................................... 75
Power meter.............................................. 65
Power mirrors...................................... 96, 97 defroster............................................... 98
Power moonroof.............................. 100, 101Power steering adjustable........................................... 167
fluid..................................................... 330
Power steering fluid................................. 374
Power windows......................................... 94
Pregnancy, using seat belts during........... 31
Private locking......................................... 145
PROPOSITION 65 WARNING.. 249, 345, 375
R
Rain sensor................................................ 92
Rear fog lights............................................ 87
Rear park assist............................... 225, 233Rear seats center head restraint............................. 78
folding............................................. 78, 80
heated................................................. 123
Rearview mirror auto-dim function................................. 98
compass............................................... 99
Rear window defroster.............................. 98
Recalls....................................................... 26
Recalls, child restraints.............................. 47
Refrigerant............................................... 374
Refueling.......................................... 273, 274 fuel filler cap....................................... 276
fuel filler door.............................. 275, 276
fuel tank volume................................. 374
Registering child restraints........................ 47 Remote control private locking.................................... 145
Remote key...................... 139, 140, 143, 146 approach lighting................................ 142
immobilizer......................................... 141
key blade.... 139, 140, 143, 144, 145, 146
