VOLVO S60 TWIN ENGINE 2019 Owners Manual

CLIMATE CONTROL
}}
219

Related information
Parking climate (p. 217)
Preconditioning (p. 217)
Preconditioning timer (p. 219)
Preconditioning timer
The timer can be set to finish preconditioning ata predetermined time.
The timer can store up to 8 preset times for:
A time on a particular date
A time on one or more days of the week, withor without the repeat function.

NOTE
Preconditioning is only available when the caris connected to an electrical outlet. A charg-ing post that is not always active, for examplebecause of a timer, can cause loss of functionfor preconditioning.
If the vehicle is not connected to an electricalsocket it is still possible in a warm climate toachieve brief cooling of the passenger com-partment by direct starting preconditioning.

Related information
Preconditioning (p. 217)
Adding and editing timer settings for precon-ditioning (p. 219)
Activating and deactivating preconditioningtimer (p. 220)
Deleting preconditioning timer settings(p. 221)
Adding and editing timer settingsfor preconditioning
The preconditioning timer can store up to 8 pre-set timer settings.
Adding a timer setting
Button for adding a timer setting in the Parking climatetab in Climate view.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap Add timer.
>A pop-up window will appear.

NOTE
It is not possible to add a time setting if thereare already 8 settings for the timer. Delete atime setting to be able to add a new one.

||
CLIMATE CONTROL
220
4.Tap Date to set a time for a specific date.
Tap Days to set a time for one or more daysof the week.
With Days: Activate/deactivate the repeatfunction by selecting/deselecting theRepeat weekly checkbox.
5.With Date: Select a date for preconditioningby scrolling in the date list using the arrows.
With Days: Select days of the week for pre-conditioning by tapping the buttons for thedays.
6.Set the time at which preconditioning shouldbe completed by scrolling using the arrows inthe clock.
7.Tap Confirm to add a timer setting.
>The timer setting will be added to the listand activated.

Editing a timer setting
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap the timer setting you would like tochange.
> A pop-up window will appear.
4. To edit a timer setting, follow the proceduresdescribed under the heading "Adding a timersetting" above.
Related information
Preconditioning (p. 217)
Preconditioning timer (p. 219)
Activating and deactivating preconditioningtimer (p. 220)
Deleting preconditioning timer settings(p. 221)
Activating and deactivatingpreconditioning timer
Timer settings in the preconditioning timer canbe activated or deactivated as needed.
Timer buttons in the Parking climate tab in Climateview.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Activate/deactivate a timer setting by tap-ping the timer button to the right of the set-ting.
> The timer setting is activated/deactivatedand the button lights up/goes out.

Related information
Preconditioning (p. 217)
Preconditioning timer (p. 219)

CLIMATE CONTROL
221
Adding and editing timer settings for precon-ditioning (p. 219)
Deleting preconditioning timer settings(p. 221)
Deleting preconditioning timersettings
A preconditioning timer setting that is no longerneeded can be deleted.
The button for editing a list/deleting a timer setting inthe Parking climate tab in Climate view.
1. Open Climate view in the center display.
2.Select the Parking climate tab.
3.Tap Edit list.
4.Tap the editing icon to the right in the list.
>The icon will change to the text Delete.
5.Tap Delete to confirm.
>The timer setting will be deleted from thelist.

Related information
Preconditioning (p. 217)
Preconditioning timer (p. 219)
Adding and editing timer settings for precon-ditioning (p. 219)
Activating and deactivating preconditioningtimer (p. 220)

CLIMATE CONTROL
222
Climate comfort retaining function
The climate in the passenger compartment canbe maintained when the vehicle is parked, e.g. ifthe engine is turned off but the driver or passen-gers remain in the vehicle.
This function can only be direct-started.
The function utilizes several of the vehicle's sys-tems:
Residual heat from the engine is used tohelp heat the passenger compartment to acomfortable temperature.
In warm weather, the ventilation system coolsthe passenger compartment by blowing air infrom outside.

NOTE
Climate comfort maintenance will be deacti-vated if the vehicle is locked from the outsidein order to avoid using residual engine heatunnecessarily. This function is intended to beused to maintain climate comfort when thedriver or a passenger remains in the vehicleafter the engine is turned off.

Related information
Parking climate (p. 217)
Starting and switching off the climate retain-ing function when parking (p. 222)
Starting and switching off theclimate retaining function whenparking
The climate retaining function maintains the cli-mate settings in the vehicle after the engine hasbeen switched off. The function can be activatedin the center display.
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Select the Parking climate tab.
3.Tap Keep climate comfort.
>The climate comfort retaining function willbe activated/deactivated and the buttonlight will go on/off.
NOTE
Maintained climate comfort is not possiblewhen there is not sufficient residual engineheat to maintain the climate settings in thepassenger compartment, or if the outsidetemperature is above approximately 20 °C(68 °F).
NOTE
Climate comfort maintenance will be deacti-vated if the vehicle is locked from the outsidein order to avoid using residual engine heatunnecessarily. This function is intended to beused to maintain climate comfort when thedriver or a passenger remains in the vehicleafter the engine is turned off.

Related information
Climate comfort retaining function (p. 222)

CLIMATE CONTROL
* Option/accessory.223
Parking climate symbols andmessages
A number of symbols and messages related toparking climate may be displayed in the instru-ment panel.
Messages related to parking climate can also bedisplayed in a device that has the Volvo On Call*app.
SymbolMessageMeaning
Parking climate
Service required
Parking climate is not functioning properly. Contact a workshopA to have the system checked assoon as possible.
Parking climate
Temporarily unavailable
Parking climate is temporarily not functioning properly. If the problem persists, contact a work-
shopA to have the system checked.
Parking climate
Unavailable Charge level too low
The parking climate cannot be activated because the hybrid battery's charge level is too low tostart the parking heater. Start the vehicle.
Parking climate
Unavailable, not connected to powersupply
The parking climate cannot be activated if the charging cable is not connected. Connect thecharging cable.
Parking climate
Limited Charge level too low
Parking climate will only run for a limited time when the hybrid battery's charge level is too low.Start the vehicle.
AAn authorized Volvo workshop is recommended.

Related information
Parking climate (p. 217)

CLIMATE CONTROL
224
Heater
The heater has two sub-functions that help warmthe passenger compartment or engine in varioussituations.
The heater has two sub-functions:
Parking heater - heats the passenger com-partment as needed when the parking cli-mate's preconditioning is activated.
Auxiliary heater - heats the passenger com-partment and engine while driving.
The heater is a high-voltage coolant heater and ismounted in the front right-side wheel housing.

Battery and charging
The heater is powered by the vehicle's hybrid bat-tery. If the charge level in the hybrid battery is toolow, the heater will switch off automatically and amessage will be displayed in the instrumentpanel.

NOTE
Make sure that the battery has sufficientcharge if the heater must be used.

Related information
Climate (p. 196)
Parking heater (p. 224)
Additional heater (p. 224)
Parking heater
The parking heater heats the passenger com-partment as needed before driving if precondi-tioning is activated.
The parking heater is one of two sub-functions ofthe vehicle's heater. The heater is mounted in thefront right-side wheel housing.
The parking heater starts automatically if theparking climate's preconditioning is activated andthe passenger compartment needs to be heated.
It switches off automatically when a set timertime has ended, or if the car is restarted.
Related information
Heater (p. 224)
Additional heater (p. 224)
Additional heater
The auxiliary heater helps heat the passengercompartment and engine while driving.
The auxiliary heater is one of two sub-functionsof the vehicle's heater. The heater is mounted inthe front right-side wheel housing.
The auxiliary heater is started and controlledautomatically when extra heat is required whilethe vehicle is being driven.
It switches off automatically when the ignition isswitched off.
Related information
Heater (p. 224)
Parking heater (p. 224)
Activating and deactivating the auxiliaryheater (p. 225)

CLIMATE CONTROL
225
Activating and deactivating theauxiliary heater
The auxiliary heater helps heat the passengercompartment and engine while driving.
It is possible to set whether automatic start forthe auxiliary heater should be activated or deacti-vated.
1.Tap Settings in the Top view in the centerdisplay.
2.Tap Climate.
3.Select Additional Heater to activate/deac-tivate automatic start for the auxiliary heater.

NOTE
If automatic start of the auxiliary heater isdeactivated, this may impair comfort in thepassenger compartment since the climatesystem then does not have a heat source dur-ing electrical operation.

Related information
Additional heater (p. 224)

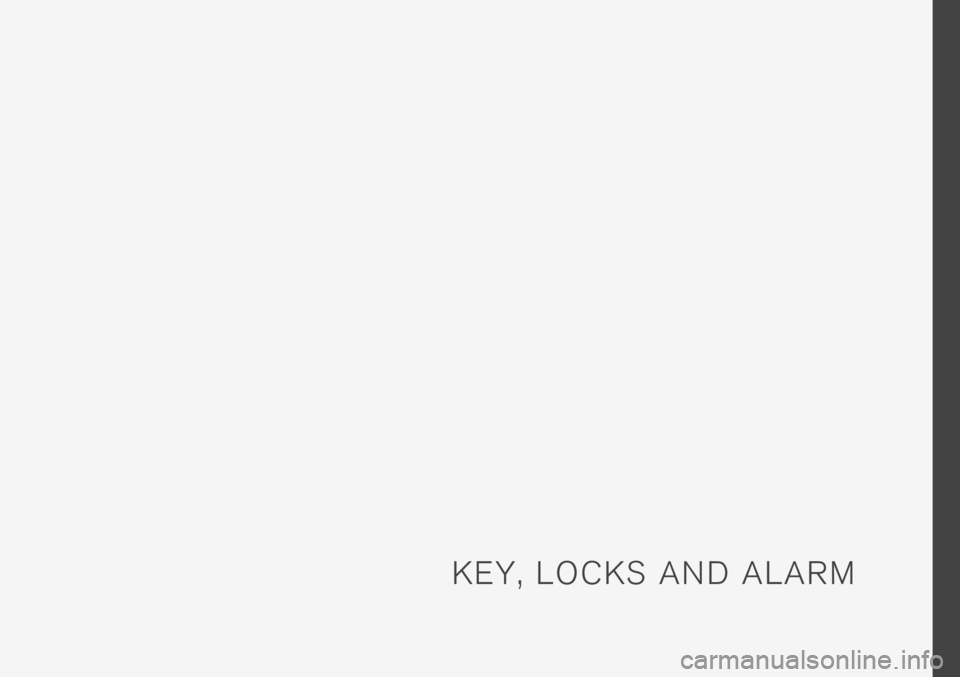

K E Y , L O C K S A N D A L A R M

KEY, LOCKS AND ALARM
* Option/accessory.228
Lock indication
The turn signals will flash when the vehicle islocked or unlocked.

Exterior confirmation
Locking
The turn signals will flash once and the door
mirrors will fold in1 to confirm the vehicle islocked.
Unlocking
The turn signals will flash twice and the door
mirrors will fold out1 to confirm the vehicle isunlocked.
The trunk lid, hood and all doors must be closedfor confirmation to be given. If only the driver's
door is closed when the vehicle is locked2, thevehicle will be locked but the turn signals will onlyflash to indicate locking when all doors and thetrunk and hood have been closed.
Lock and alarm indicators on the
dashboard
The locks and alarm indicator will display the sta-tus of the locking system:
One long flash indicates locking.
When the vehicle is locked, this will be indi-cated by short, pulsating flashes.
Rapid flashing after disabling the alarm indi-cates that the alarm has been triggered.
Lock button indicators
Front door
Lock buttons with indicator lights in front door.
Illuminated indicator lights in both front door lockbuttons indicate that all doors are locked. If anydoor is opened, the lights in both doors will goout.
1Only vehicles with power folding mirrors.2Does not apply to vehicles equipped with keyless locking/unlocking*.
