climate control VOLVO S60 TWIN ENGINE 2019 Owner's Manual

CLIMATE CONTROL
202
Adjusting air distribution
Air distribution can be adjusted manually if nee-ded.
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
Air distribution buttons in Climate view.
Air distribution - windshield defrost vents
Air distribution - dashboard and center con-sole air vents
Air distribution - floor air vents
2.Tap one or more air distribution buttons toopen/close the airflow for that vent.
>The air distribution changes and the but-tons will light up or go out.

Related information
Air distribution (p. 201)
Opening, closing and directing air vents(p. 202)
Air distribution options (p. 204)
Opening, closing and directing airvents
Some of the air vents in the passenger compart-ment can be individually opened, closed anddirected.
Misting can be eliminated by directing the outerair vents towards the door windows.
Direct the outer air vents into the passengercompartment to maintain a comfortable tempera-ture in warm weather.
Opening and closing the air vents
Air vents on the dashboard:
–Turn the knob in the center of the air vent toopen/close airflow from the vent.
When the mark on the knob is vertical, theairflow is strongest.
Air vents on the door pillars:
–Move the lever in the center of the air ventup/down to open/close the airflow from thevent.
The airflow is stopped when the lever is inthe lowest position. In other positions, the air-flow is constant.

Directing air flow
–Move the lever in the center of the air venthorizontally or vertically to direct the airflowfrom the vent.

CLIMATE CONTROL
203

Related information
Air distribution (p. 201)
Adjusting air distribution (p. 202)
Air distribution options (p. 204)

CLIMATE CONTROL
204
Air distribution options
Air distribution can be adjusted manually if nee-ded. The following options are available.
Air distributionPurpose
If all air distribution buttons are deselected in manual mode, the climate control system will revert to automatic mode.
Main airflow from defroster vents. Some airflow from other vents. Helps remove ice and condensation in cold and humid weather(blower speed should not be set too low).
Main airflow from dashboard vents. Some airflow from other vents. Provides effective cooling in warm weather.
Main airflow from floor vents. Some airflow from other vents. Provides heating or cooling in footwell areas.

CLIMATE CONTROL
}}
205
Air distributionPurpose
Main airflow from defroster and dashboard vents. Some airflowfrom other vents.Provides a comfortable climate in warm and dry weather.
Main airflow from defroster and floor vents. Some airflow fromother vents.Provides a comfortable climate and effective defogging in cold andhumid weather.
Main airflow from dashboard and floor vents. Some airflow fromother vents.Provides a comfortable climate in sunny, cool weather.
Main airflow from defroster, dashboard and floor vents.Provides balanced comfort in the passenger compartment.

||
CLIMATE CONTROL
206

Related information
Air distribution (p. 201)
Opening, closing and directing air vents(p. 202)
Adjusting air distribution (p. 202)

CLIMATE CONTROL
}}
* Option/accessory.207
Climate system controls
The climate system functions are controlled fromphysical buttons on the center console, the cen-ter display, and the climate panel on the rearside of the tunnel console*.

Physical buttons in the center console
Button for max defroster.
Button for heated rear window and door mir-rors.

Climate bar in the center display
The most common climate system functions canbe controlled from the climate bar.
Temperature controls for driver and passen-ger side.
Controls for heated* and ventilated* driverand front passenger seat, as well as heatedsteering wheel*.
Button for opening Climate view. The graphicin the button shows activated climate systemsettings.
Climate view in the center display
Tap the symbol in the center of the cli-mate bar to open Climate view.
Depending on equipment level, Climateview may be divided into several tabs.Toggle between the tabs by swiping the screento the left/right or by tapping the desired head-ing.
Main climate
In addition to the functions in the climate bar,other main climate system functions can be con-trolled from the Main climate tab.
Max, Rear – Controls for defrosting windowsand door mirrors.
AC - Air conditioning controls.
Recirc - Air recirculation controls.
Air distribution controls.

||
CLIMATE CONTROL
* Option/accessory.208
Blower control.
AUTO - Automatic climate control.

Parking climate
Parking climate functions can be controlled fromthe Parking climate tab.

Climate controls on the rear side of the
tunnel console *
If the vehicle is equipped with heated rear seats*,there are physical buttons on the rear side of thetunnel console to control this function.

Related information
Climate (p. 196)
Activating and deactivating power frontseats* (p. 208)
Activating and deactivating the heated rearseats* (p. 209)
Activating and deactivating front seat ventila-tion* (p. 209)
Activating and deactivating the heated steer-ing wheel* (p. 210)
Activating auto climate control (p. 211)
Activating and deactivating recirculation(p. 211)
Activating and deactivating max defroster(p. 212)
Activating and deactivating the heated rearwindow and door mirrors (p. 213)
Setting the blower speed for the front seats(p. 214)
Synchronize temperature (p. 216)
Activating and deactivating air conditioning(p. 216)
Activating and deactivating power
front seats*
The seats can be heated for added comfort forthe driver and passengers in cold weather.
1. Tap the left- or right-side steering wheel andseat button in the center display's climatebar to open the controls for steering wheeland seat heating.
If the vehicle is not equipped with ventilatedseats or heated steering wheel (for the driv-er's side), the button for seat heating isdirectly accessible in the climate bar.
2. Tap the seat heating button repeatedly toselect one of the four levels: Off, High,Medium or Low.
>The level is changed and the set level isdisplayed in the button.

Related information
Climate system controls (p. 207)
Activating and deactivating the heated frontseat* (p. 209)

CLIMATE CONTROL
}}
* Option/accessory.209
Activating and deactivating the
heated front seat*
The seats can be heated for added comfort forthe driver and passengers in cold weather.
Seat heating can be set to automatically activatewhen the engine is started. When set to automat-ically activate, heating will be turned on at lowambient temperatures.
1.Tap Settings in the Top view in the centerdisplay.
2.Tap Climate.
3.Select Auto Driver Seat Heating Leveland Auto Passenger Seat Heating Levelto activate/deactivate automatic start ofheated driver's and passenger seat.
>An "A" will be displayed next to the rele-vant seat heating button in the climate barwhen auto start has been activated.
4.Select Low, Medium or High to select levelafter the function has been activated.

Related information
Climate system controls (p. 207)
Activating and deactivating power frontseats* (p. 208)
Activating and deactivating the
heated rear seats*
The seats can be heated for added comfort forthe driver and passengers in cold weather.
Activating and deactivating the heated
rear seats from the rear seat
Buttons for seat heating on the rear side of the tunnelconsole.
–Press repeatedly on the left or right seatheating buttons on the rear side of the tun-nel console to select one of four levels: Off,High, Medium or Low.
>The level is changed and the indicatorlights in the button display the level.

Related information
Climate system controls (p. 207)
Activating and deactivating front
seat ventilation*
The seats can be ventilated to provide increasedcomfort in warm weather.
The ventilation system consists of fans in theseats and backrest that draw air through the seatupholstery. The cooler the passenger compart-ment is, the greater the cooling effect of the ven-tilation. The system can be activated when theengine is running.
1. Tap the left- or right-side steering wheel andseat button in the center display's climatebar to open the controls for steering wheeland seat heating.
If the vehicle is not equipped with heatedseats or heated steering wheel (for the driv-er's side), the button for seat ventilation isdirectly accessible in the climate bar.
2. Tap the seat ventilation button repeatedly toselect one of the four levels: Off, High,Medium or Low.
>The level is changed and the set level isdisplayed in the button.

||
CLIMATE CONTROL
* Option/accessory.210

Related information
Climate system controls (p. 207)Activating and deactivating the
heated steering wheel*
The steering wheel can be heated for addedcomfort in cold weather.
1. Tap the driver's side steering wheel and seatbutton in the climate bar in the center displayto open the controls for steering wheel andseat heating.
If the vehicle is not equipped with heated orventilated seats, the button for steeringwheel heating is directly accessible in the cli-mate bar.
2. Tap the steering wheel heating buttonrepeatedly to select one of the four levels:Off, High, Medium or Low.
>The level is changed and the set level isdisplayed in the button.

Related information
Climate system controls (p. 207)
Activating and deactivating automatic steer-ing wheel heating* (p. 210)
Activating and deactivating
automatic steering wheel heating*
The steering wheel can be heated for addedcomfort in cold weather.
Steering wheel heating can be set to automati-cally activate when the engine is started. Whenset to automatically activate, heating will beturned on at low ambient temperatures.
1.Tap Settings in the Top view in the centerdisplay.
2.Tap Climate.
3.Select Auto Steering Wheel HeatingLevel to activate/deactivate automatic startof heated steering wheel.
>An "A" will be displayed next to theheated steering wheel button in the cli-mate bar when auto start has been acti-vated.
4.Select Low, Medium or High to select levelafter the function has been activated.
Related information
Activating and deactivating the heated steer-ing wheel* (p. 210)

CLIMATE CONTROL
}}
211

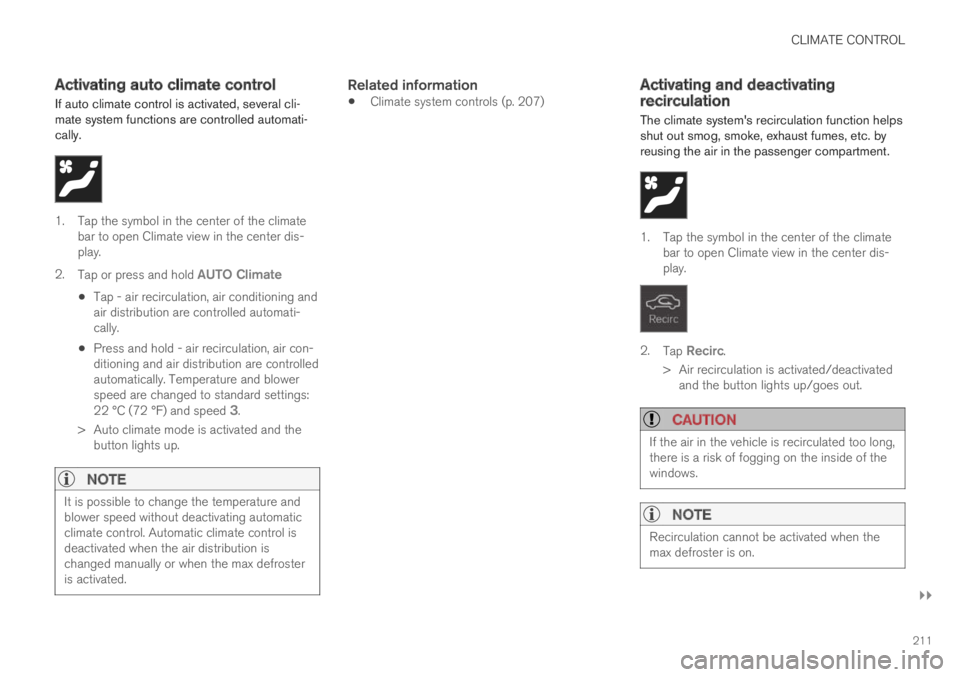

Activating auto climate control
If auto climate control is activated, several cli-mate system functions are controlled automati-cally.
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Tap or press and hold AUTO Climate
Tap - air recirculation, air conditioning andair distribution are controlled automati-cally.
Press and hold - air recirculation, air con-ditioning and air distribution are controlledautomatically. Temperature and blowerspeed are changed to standard settings:22 °C (72 °F) and speed 3.
>Auto climate mode is activated and thebutton lights up.

NOTE
It is possible to change the temperature andblower speed without deactivating automaticclimate control. Automatic climate control isdeactivated when the air distribution ischanged manually or when the max defrosteris activated.
Related information
Climate system controls (p. 207)Activating and deactivatingrecirculation
The climate system's recirculation function helpsshut out smog, smoke, exhaust fumes, etc. byreusing the air in the passenger compartment.
1. Tap the symbol in the center of the climatebar to open Climate view in the center dis-play.
2.Tap Recirc.
>Air recirculation is activated/deactivatedand the button lights up/goes out.

CAUTION
If the air in the vehicle is recirculated too long,there is a risk of fogging on the inside of thewindows.

NOTE
Recirculation cannot be activated when themax defroster is on.
